3U cPCI Sensor Interface Unit

INTRODUCTION

North Atlantic Industries' (NAI) Sensor Interface Unit (SIU31) is a rugged base-plate conduction-cooled that takes advantage of NAI’s rugged conduction-cooled 3U cPCI multi-function I/O boards and power supply product architecture. The SIU31 provides a high density, compact data distribution system solution for I/O intensive and/or processing applications. The SIU31 supports full I/O control and communication over Ethernet. MIL-STD-1553, ARINC 429/575, Serial or CANBus interfaces are also available as primary interfaces when the boards are configured as such. PowerPC, Intel® Core™-i7, Intel ATOM™ or ARM Single Board Computer (SBC) processors can be added for a complete processing and I/O solution. The SIU31 is designed to support up to three NAI multi-function pre-configurable I/O boards, with or without processing, that support a wide variety of interface and communications function modules, all fitted/housed in a single rugged multi-board slot SIU system chassis, which is “delivered” pre-integrated and fully tested as a system.

OBJECTIVES

This manual provides the user with basic hardware implementation and information regarding the operation and interface of the SIU31. Each SIU33 is fitted with one 3U cPCI board and a AC or DC power supply unit.

SCOPE

This manual only covers the operation of the SIU31 as a stand-alone I/O subsystem. This manual does not cover specific details relating to the operation of the specific I/O boards and function modules fitted within the SIU31. Please reference the board specific documentation for details regarding the board level configuration(s).

CONVENTIONS USED IN THIS MANUAL

SIU33 Conventions

NOTE An operating procedure, practice, or condition, etc., that is essential to emphasize.

All numbers are expressed in decimal format unless otherwise noted.

GENERAL SAFETY NOTICES

The following general safety notices supplement the specific warnings and cautions appearing elsewhere in the manual. They are recommended precautions that must be understood and applied during operation and maintenance of the instrument covered herein.

Serious injury may result if personnel fail to observe safety precautions. Dependent on configuration, some modules (e.g. Synchro / Resolver or AC signal sources) can generate output signals with high voltages. Be careful not to contact high-voltage connections when installing, operating or maintaining this instrument.

SIU33 Caution

The SIU33 is delivered as a standalone system. Besides removing the rear cover to access a board’s front panel I/O, if required, NAI recommends that the boards and power supply NOT be removed from the chassis.

REPAIR

SIU33 Caution

DO NOT ATTEMPT REPAIR. Under no circumstances should repair of this instrument be attempted. All repairs to this chassis must be accomplished at the factory.

HIGH VOLTAGE

SIU33 Danger

HIGH VOLTAGE may be used in the operation of this equipment.

INPUT POWER ALWAYS ON

SIU33 Cau Dang
Note
The design of the model SIU33 is such that input power is continuously supplied to internal circuits when connected to a main power source. To disconnect the SIU31 from external power, the external power source should first be de-energized. The power input cable can then be disconnected.

Website

SYSTEM SPECIFICATIONS AND DETAILS

Introduction

The model SIU31 is a next generation rugged systems chassis joining the NAI Sensor Interface Unit (SIU) system chassis family pedigree. The SIU31 is configured to support a wide variety of SBC and multifunction I/O boards that can be configured to support a variety of processing, communications and I/O functions that are supported under the NAI Configurable Open Systems Architecture ™ (COSA®) product families.

The SIU31 can function either as a centralized or distributed system. It can also be used to supplement existing legacy systems by easily adding sensor data acquisition as well as general I/O and communication interfaces without expensive legacy chassis and backplane redesign. It has been designed with rugged embedded industrial, military and aerospace applications in mind.

Leveraging NAI’s field-proven, unique modular architecture, the SIU31 supports standard 3U cPCI board-level compatible boards that can be fitted with a wide selection of different Intelligent I/O, motion simulation/measurement and communications functions such as:

A/D Converter

D/A Converter

I/O TTL/CMOS

RTD

I/O Discrete

I/O Differential Transceiver

Synchro/Resolver LVDT/RVDT Measurement

Synchro/Resolver LVDT/RVDT Simulation

Strain Gauge

Encoder

Dual-Channel Dual Redundant BC/RT/MT MIL-STD-1553

High-Speed Sync/Async RS232/422/423/485

ARINC 429/575

CAN bus

I/O Relay

AC Reference

Ethernet Switch

SSD/Flash

Check w/ NAI’s factory or website for latest selection of available func ons

This approach provides unprecedented flexibility for supporting existing or new applications where there are specific interfacing requirements. Significant application benefits include:

  • Independent (pre-processed) I/O functionality targeted to specific data acquisition/control areas

  • Additional capabilities, technology insertion and sensor interfacing to existing fielded applications

  • Minimal integration risk based on current field-proven, deployed technologies

Specifications

The SIU31 is designed to meet the following general product specifications and is provided as a reference. Actual configuration and usage may affect size, weight and power (SWaP) specifications. Please contact NAI for discerning/defining SWaP considerations regarding specific program configurations. See additional details herein.

General

Table 1. SIU31 General SWaP Specifications

Input Voltage:

Standard/Default: DC: 18 to 36 VDC (28 VDC nominal)

Power (Base unit):

~10 W (PSU efficiency, at 100W load) @ 28 VDC nominal

Then, add the power calculated for the configuration specific boards module(s) power (see separate specific boards and module(s) specifications).

I/O Signal GND reference is isolated from main power source return and chassis.

Power/Heat Dissipation:

Conduction Cooled (CC):

~75 watts (maximum) when properly mounted to a cold plate, which must be maintained at a temperature not to exceed 71°C.

NOTE: The total SIU31 power dissipation is dependent on the configuration of the boards and function module types fixed in the SIU31. Environmental and other operating characteristic variable considerations should be considered.

Temperature, Operating:

-40°C to 71°C

Conduction cooled: As measured at primary thermal transfer interface.

Temperature, Storage:

-55°C to 105°C

Size:

Height: ~2.4” (61 mm)

Depth: ~8.7” (221 mm)

Width: ~4.7” (119 mm)

Weight:

The weight of an SIU31 system is dependent on the configuration. The approximate weight of the SIU31 is based on the selection of the PSU, boards and functional module(s).

The approximate weight of a configured SIU33 is:

~3.15 lbs. unpopulated - Chassis/backplane/rigid flex & connector boards (conduction cooled)

~1.4 lbs. for PSU

~1.25 lbs. for each additional fully function module populated board or SBC

~5.8 lbs. fully populated

UNPACKING AND INSPECTION

Unpacking

The SIU31 packing materials were designed specifically for transport protection of the SIU31. When receiving the shipment container, inspect packaging for any evidence of physical damage. If damage is evident, it is recommended that the carrier agent is present when opening the shipping container. It is further recommended that all packing material is retained in the event the SIU31 needs to be shipped elsewhere.

System/Chassis Identification

An identification label, indicating part number, unique serial number and Ethernet PHY MACs / default IP address(es) is affixed to the system chassis.

SIU31 Labeling

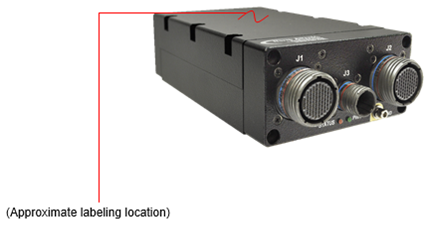

Figure 1. SIU31 Unit Identification Label Location

Label information provided:

     Unit Level Part Number

     Unit Level Serial Number

     Unit Level Date Code

Also, typically provided with:

     Slot/Board configuration(s) as applicable

     Slot/Board serial numbers and D/C

     Slot/Board IP address / MAC address (if applicable)

Special labeling requirements are also considered (i.e. UID matrix, customer part number, etc.). Contact factory for special labeling requirements.

Inspection

Inspect the chassis and connectors to ensure that they were not damaged during transit.

MECHANICAL INTERFACE

Mechanical Description

The SIU33 is a rugged, aluminum, conduction-cooled chassis that requires proper mounting to a cold-plate or surface that is maintained at 71°C or less. Three mounting holes are provided along each side of the SIU33. Please see the outline and interface drawings below. Note that hardware is not supplied

Mounting Requirements

Refer to SIU31 Outline and Installation Drawing (OID) for details on mounting and installing the SIU31. It is available for download from NAI’s website. The SIU31 is conduction cooled and must be mounted in accordance with the drawing. The OID provides recommended hardware, torque, cold-plate flatness and surface finish specifications, and thermal conductivity requirements.

SIU31 Mechanical

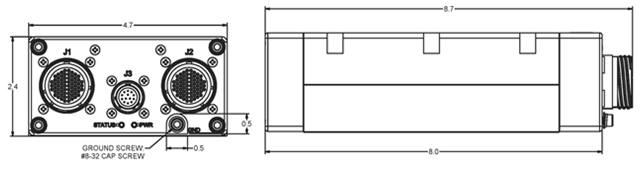

Figure 2. SIU31 Conduction Cooled Outline Dimensions (Reference Only)

Chassis (Earth) GND

Chassis ground point threaded insert location is on the connector face (front) of the SIU31 as shown.

SIU33 Caution
SIU31 Gnd

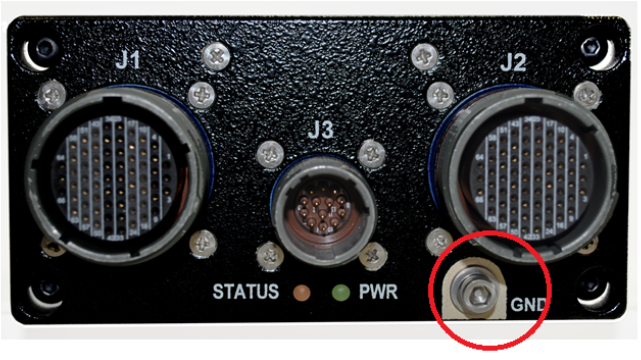

Figure 3. SIU31 Chassis GND location

Finish

Unless otherwise specified, the following standard finish, or equivalent per NAI process requirements applies:

  1. PRE-TREATMENT: CHEMICAL FILM COATING IAW MIL-DTL-5541, TYPE II, CLASS 3, ALL OVER.

  2. PAINT PRIMER COAT: IAW-MIL-PRF-23377, TYPE II, CLASS 2, WITH A 0.9MIL MINIMUM DRY FILM THICKNESS TO EXTERIOR SURFACES SHOWN IN PAINT MASKING FIGURES.

  3. PAINT FINISH COAT: APPLY MEDIUM TEXTURE USING PER MIL-PRF-85285, TYPE I, CLASS 2, SEMI-GLOSS BLACK WITH A DRY FILM THICKNESS OF 0.0008 TO 0.0012 TO EXTERIOR SURFACES.

  4. FINISH NOTES 2 AND 3 OMITTED FROM THERMAL INTERFACE SURFACE INDICATED & FROM ALL HARDWARE.

CONNECTOR DESIGNATIONS, LOCATIONS & DESCRIPTIONS

The Power, I/O Interface and Ethernet connectors are accessible from the SIU31 front housing panel. The J4 Power Connector shown is the 13-pin, 28 VDC connector. See the Input Power Connector (J4) section that follows for the other options.

SIU33 Cau Dang

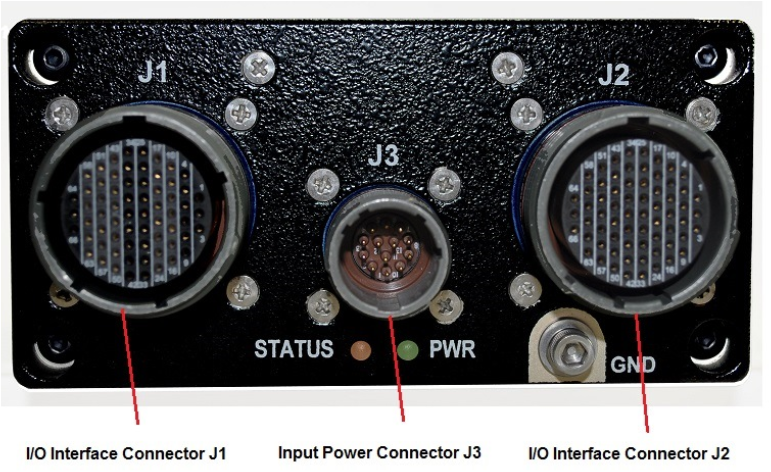

SIU31 Connectors

Figure 4. SIU31 (Front Panel Connector Placement)

REF. DES.

KEY

MANUFACTURER / MIL-DTL SPEC. (or Equiv.)

P/N

MATE P/N

J1

N

AMPHENOL

AMP 88-569779-35S

D38999/26WJ35P

J2

A

AMPHENOL

AMP 88-569779-35SA

D38999/26WJ35PA

J3

N

MIL-DTL-D38999 Type

AMP 88-569772-35P

D38999/26WB35S

CONNECTOR DETAILS AND PINOUTS

Generic pinout. See module I/O section or contact factory regarding any special module I/O configuration.

J3, Primary Power Connector

Primary input power is supported on the SIU31 via the J3 connector. There are three input power options for the SIU31: 28 VDC, 115/230 1ø VAC or 270 VDC. Two unique power connectors are used; one for the 28 VDC input and one for the 115/230 1ø VAC or 270 VDC input.

28 VDC Input Connector

If 28 VDC is specified:

Part Number: TVP02RW-11-35PN, (w/ 10,000 pf conn filtering)

Equivalent to MIL-DTL-D38999 Series III and insert arrangement IAW MIL-STD-1560: Shell size 11-35 (Insert 35), “N” (Normal) key, 13 pins.

Input Mating Connector: D38999/26WB35SN or equivalent

SIU33 J4a

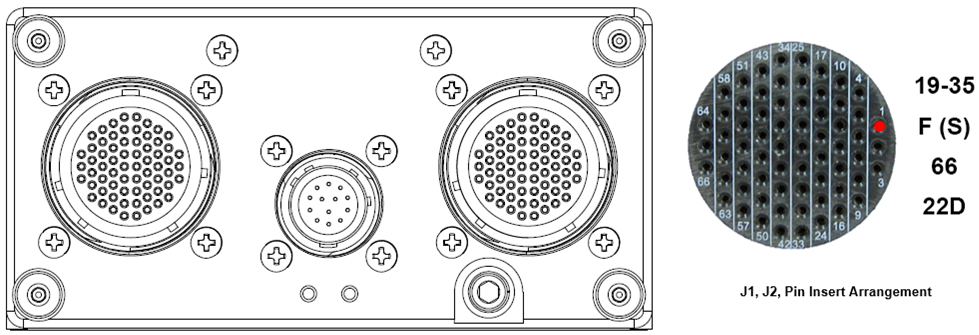

Figure 5. 28 VDC Pin Insert Arrangement, Front View

115/230 1ø VAC and 270 VDC Connector

If 115/230 1ø VAC and 270 VDC is specified:

Part Number: H9300W11-05PN110Y, (w/ 10,000 pf conn filtering)

Equivalent to MIL-DTL-D38999 Series III and insert arrangement IAW MIL-STD-1560: Shell size 11-5 (Insert 5), “N” (Normal) key, 5 pins.

Input Mating Connector: D38999/26W115SN or equivalent

SIU33 J4b

Figure 6. 115/230 1ø VAC or 270 VDC Pin Insert Arrangement, Front View

I/O Connectors (J1 to J2) and SLOT Designations

Connectors J1 and J2 route the I/O and Ethernet connections from the cPCI slot. The I/O pins from the cPCI Slot-X_P2 connectors of the cPCI card are routed through the backplane to the SIU31 front panel connector. The I/O pin-out information for the J1 and J2 is defined by the configuration of the cPCI boards and function modules fitted to the cPCI boards.

Jx Designation

SIU31 Connector MFG. P/N (or equivalent)

Board #

NAI Conn P/N

Key

J1

AMP 88-569779-35S

Slot-1

05-0274

key (N)

J2

AMP 88-569779-35SA

Slot-2

05-0275

key (A)

(J3)

AMP 88-569772-35P

[ PSU (Slot-3) ]

(05-279)

key (N)

SIU31 Conn

Figure 7. SIU31 Assembled, Front Panel View

SIU31 Slot

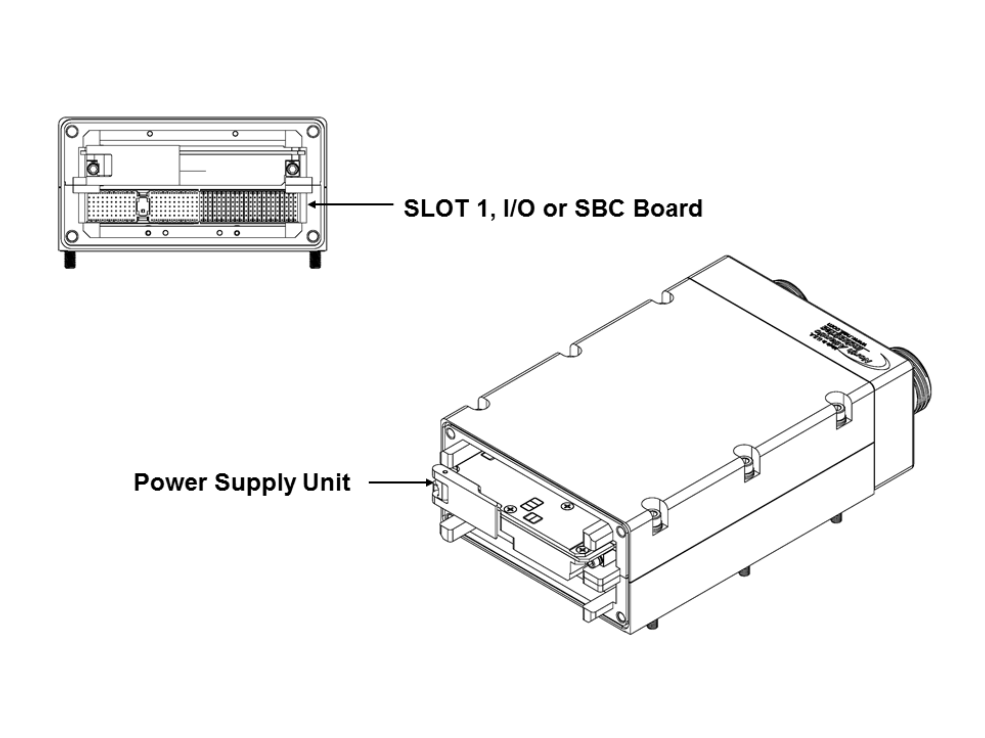

Figure 8. SIU31 SLOT Designation - SIU33 Rear Access Panel Removed

Mating Connector Information

Mating Connector Kit: NAI P/N: SIU31-CONN-KIT

Available as an optional separate line item. The mating connector kit includes 1 each (or equivalent):

J1 Mate

NAI P/N: 05-0284-COM

HD38999 Type III / D38999/26WJ35PN / EN, 66-pin, N-Key

J2 Mate

NAI P/N : 05-0285-COM

HD38999 Type III / D38999/26WJ35PA / EN, 66-pin, A-Key

J3 Mate

NAI P/N : 05-0289-COM

D38999/26WB35S / OD, 13-pin, N-Key

POWER-UP AND BASIC OPERATIONS

Panel LEDs & Functions

Front Panel Power & Status LED Indicators

SIU31 LEDs

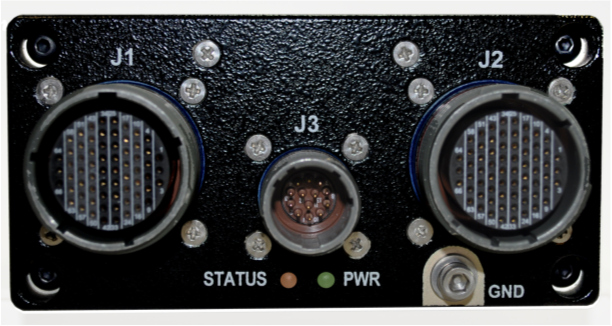

Figure 9. SIU31 Front View (Status LEDs Location)

STATUS

Indication

POWER

Indication

[extinguished]

Default

[extinguished]

OFF / Power Fault

GRN

(Status 1)

GRN

ON / Power OK

RED

(Status 2)

x

x

Status LED

  1. Single Board Computer (SBC) inserted in Slot 1, for example: 75PPC1.

    1. If the primary processor and associated peripherals are powered on and configuration status is OK, AND, the board configured I/O function module(s) are reported as configuration status “OK”, then the status LED will illuminate GRN (typically, within 10 seconds of SIU31 power-on).

    2. If the primary processor and associated peripherals are powered on and configuration status is OK, AND, the board configured I/O function module(s) are reported as configuration status NOT “OK”, then the status LED will illuminate RED (typically, within 10 seconds of SIU31 power-on).

    3. If the primary processor and associated peripherals are powered on but the configuration status is NOT “OK”, then the status LED will remain extinguished (typically, after 10 seconds of SIU31 power-on).

  2. Non-processor card inserted in Slot 1, for example: 75G5.

       NONE (STATUS LED is extinguished).

Power LED

Provided from power supply unit (PSU) or strapped accordingly - SIU31 power “ON” indication

Basic Operations

The SIU31 is delivered as a tested unit. All pins and operation have been verified. It is recommended that Power and Ethernet connections be made to verify operation of the boards fitted within the SIU31 by making use of NAI’s Embedded Soft Panel based GUI sample application that can be utilized as a board level “exercising” tool (if the SIU31 card configuration supports). The example process below describes the use of NAI’s Ethernet communications software tool.

  1. Connect power to connector J3.

  2. Connect a host computer (laptop or similar) running Microsoft® WinXP or Win7, to Ethernet connector J2. The selection of Ethernet Port A or B is dependent on Slot 1 cPCI board configuration.

Note
Ethernet port assignments, MAC address, and factory default IP address are indicated on the chassis label

For detailed supplement, please visit the NAI web-site specific product page(s).

QUALIFICATION

The SIU33 has been designed to meet the following general specifications. Cooling type, size, weight, power and environmental characteristics may affect the program requirements and the specifications as applied. Contact factory for the SIU33 Qualification Test status.

Environmental

Table 2. Environmental Qualification Testing Specifications

Environmental MIL-STD-810 (1) (unless otherwise specified)

No.

Description

Procedure

Cycles

Table

Figure

Comments

514

Random Vibe

Method 514.6, 0.1g2/Hz from 100 to 1K Hz., -3dB octave 5-100 Hz and -6dB 1K-2K Hz,(operational)

514

Sinusoidal Vibe

TBD

501

Temp (High)

3

3 periods (@ 4 hrs. ea.) within 24 hrs. cycle at 71 ºC baseplate

502

Temp (Low)

1

3 periods (@ 4 hrs. ea.) within 24 hrs. cycle at -40 ºC baseplate

503

Temp (Shock)

3

3 x 1 hr. each hot & cold cycle

507

Humidity

II

10

507.5-7

507.5-IX

Cyclic high humidity (Cycle B2)

500

Altitude (50K)

II

1

n/a

n/a

10m/s to 50,000ft for 1 hr.

513

Acceleration

II

1

513.6-II

n/a

Carrier-based Aircraft (18g’s max)

516

Shock - Operating

I

3

516.6-I

n/a

40g’s, 1 min each x 6 axis

516

Shock - Crash

V

3

516.6-I

n/a

75g’s, 1 min each x 6 axis

Ingress Protection IEC 60529 (1, 2)

No.

Description

Procedure

Cycles

Table

Figure

Comments

IP54

Dust Protection

(other - pending characterization / contact factory)

IP54

Water Splashing

(other - pending characterization / contact factory)

IP65

Dust Tight

(other - pending characterization / contact factory)

IP65

Water Jets

(other - pending characterization / contact factory)

EMI/EMC Specifications

Table 3. EMI/EMC Qualification Testing Specifications

EMC / MIL-STD-461 (1, 2) *(unless otherwise specified)

MIL-STD-461F

Method/Curve/Procedure

Comments

CE102

Conducted, Emissions, Power Leads, 10K - 10M Hz

CS101

Conducted, Susceptibility, Power Leads, 30 - 150K Hz

CS106

Conducted, Susceptibility, Power Leads

CS114

Conducted, Susceptibility, Power Leads, 10K - 10M Hz

CS115

Conducted, Susceptibility, Bulk Injection

CS116

Conducted, Susceptibility, SIN Transient 10K - 100M Hz

RE101

Radiated, Emissions, Magnetic Field, 30 - 100K Hz

RE102

Radiated, Emissions, Electric Field, 10K - 1.25G Hz

RS101

Radiated, Susceptibility, Magnetic Field, 30 - 100K Hz

RS103

Radiated, Susceptibility, Electric Field, 2M - 18G Hz

Notes:

*1 - Designed to meet / Generic Test Reports Available

*2 - Utilizing proper shielded cables and system grounding practices

HEAT DISSIPATION

The SIU31 is capable of dissipating up to a total of 75 Watts when properly mounted. Generally, the conduction cooled version thermal interface must be maintained at a temperature not to exceed 71°C. Other operating and environmental factors and variable must be considered when specifying for a higher-level system platform integration. The total SIU31 power dissipation is dependent on the configuration of the cPCI board and power supply fitted in the SIU31.

RELIABILITY

The reliability of the SIU31 is dependent on the configuration of the OpenVPX boards and power supply fitted within it. The Mean Time between Failures is for the SIU31 configured with chassis, backplane, EMI Filter and connectors.

MTBF (UPDATE IMAGE)

The Mean Time between Failures is configuration, environment and temperature dependent. Please contact factory regarding calculations based on the specific configuration and program requirements.

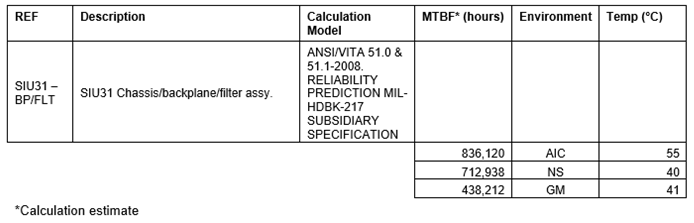

SIU31 MTBF

SIGNAL PIN-OUTS

The following pinouts provides a general use guideline as an example, only. Pinout routing will be dependent on card type/configuration for optimal I/O usage. Consult NAI factory for assistance in determining specific configuration signal definitions as applicable.

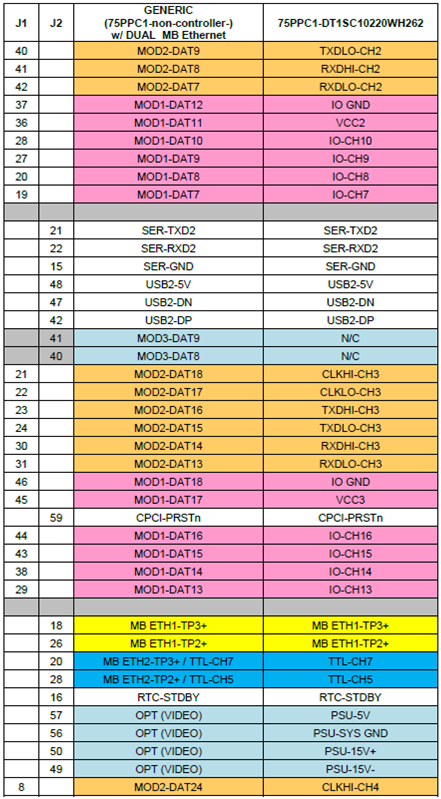

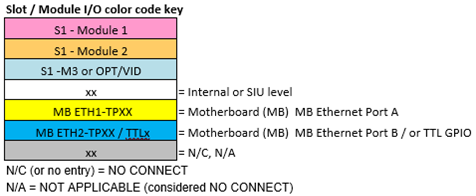

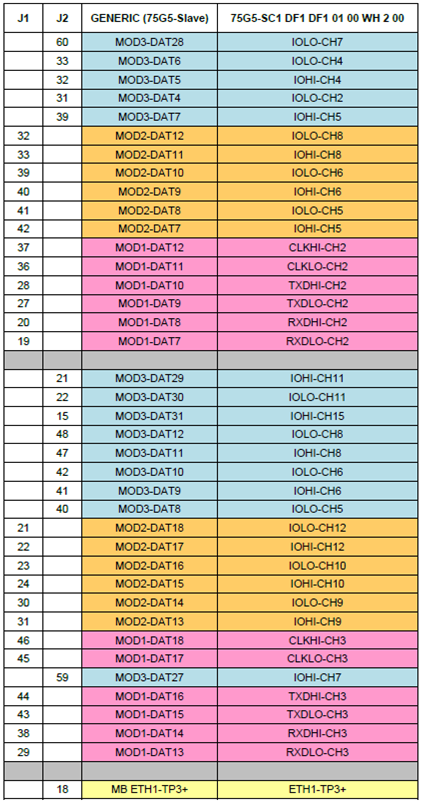

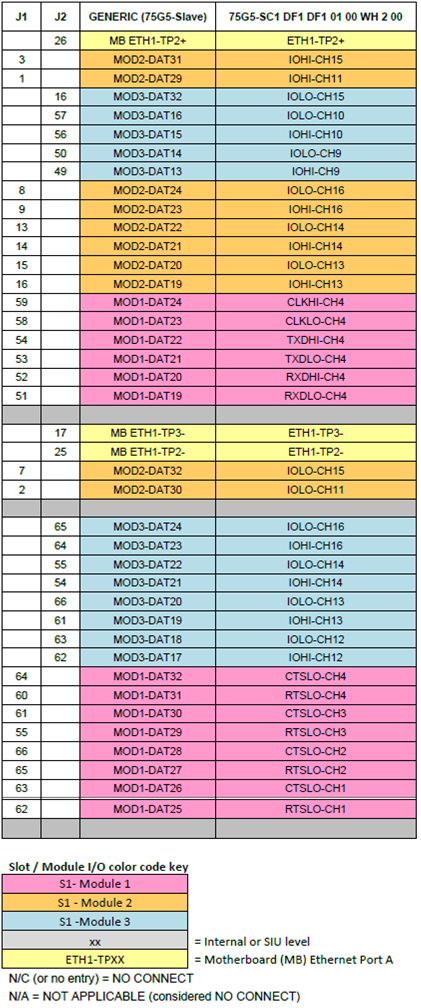

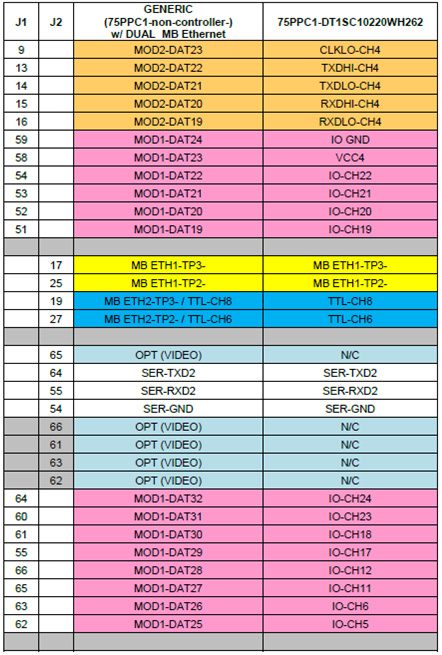

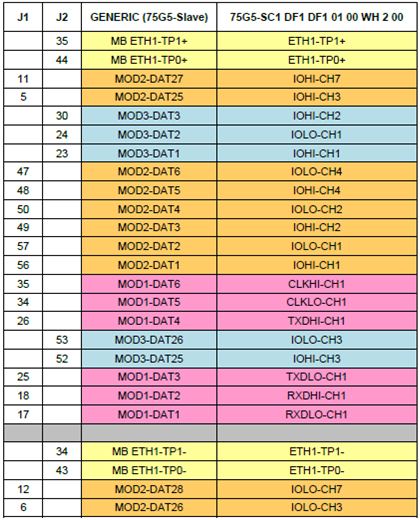

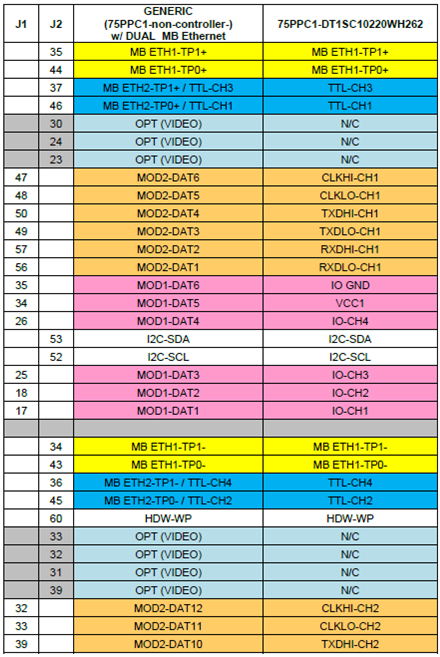

Pin-Out / General / I/O Connector - AA Configuration

The following table provides pin-out data for an SIU31 fitted with an I/O and Communications board. A generic configuration is provided along with an example using the NAI 75G5, a 3U cPCI I/O & Communications Board that can be configured with up to three NAI Intelligent I/O and communication function modules.

In the example, the function modules are:

  1. DF1: 16 Channels Differential I/O, Input: -10 V to +10 V (422), -7 V to +12 V (485) Output: -.25 V to +5 V (Qt. 2)

  2. SC1: 4 Channels Serial, RS-232/422/423 (MIL-STD-188C)/485, Non-Isolated

SIU31 AA1
SIU31 AA2
SIU31 AA4

Pin-Out / General / I/O Connector - AB Configuration

The following table provides pin-out data for an SIU31 fitted with a Single Board Computer. A generic configuration is provided along with an example using the NAI 75 PPC1, a 3U cPCI Freescale™ QorIQ P2041, PowerPC-based, Single Board Computer, which can be configured with up to two NAI Intelligent I/O and communication function modules.

In the example, the function modules are:

  1. DT1: 24 Channels Discrete I/O, 0-60 VDC Input/Output, Max Iout 500 mA - 2 A, Source/Sink (out)

  2. SC1: 4 Channels Serial, RS-232/422/423 (MIL-STD-188C)/485, Non-Isolated

SIU31 AB1
SIU31 AB2
SIU31 AB3
SIU31 AB4

Pin-Out / General System Functions

J2

PSU/CONTROL

9

PS-ON/OFF#

3

SYSRST#

14

SYSTEM (SYS) GND

PS-ON/OFF#

Logic level open or “High” (+5V) (referenced to Input Power Return of the SIU31) enables power output of the internal PSU effectively applying power to the function card.

Logic level low (GND) (referenced to Input Power Return of the SIU31), disables power output of the internal PSU effectively removing power from the function card.

SYSRST#

Logic level GND (referenced to internal system GND of the SIU31) initiates/applies active low assertion to the cPCI SYSRST# signal on the cards; once released, will effectively introduce a 'system/card' reset.

PART NUMBER DESIGNATION

Current Part Number Designation

Current P/N designation, DOM 2019 and later.

Standard Product = SIU31-XXXX

XXXX = NAI/Factory assigned unique configuration identifier

Legacy Part Number Designation

Note
For reference only - legacy, pre-current P/N designation, DOM earlier 2019.

Standard Product = SIU31-VC-XXXX

SIU31-

V

C

-XXXX

Version

A = Version 1

Configuration

A = I/O and Communications Board (i.e. 75G5); up to 3 function modules

B Single Board Computer (i.e. 75PPC1); up to 2 function modules

Factory Assigned MCL Code*

Specifications are subject to change without notice.

Notes

*Factory assigned X-digit code will reference the complete SIU configuration information in the NAI Master Code List (MCL) or Part Number Configurator, as assigned and documented at the factory.

SIU mating connector kit part number:

cPCI Systems; 2x 66-pin & 1x 13-pin (or 1x 5-pin for AC/270 DC power input):

28 VDC Power: SIU31-CONN-KIT; 115/230 VAC / 270 VDC Power - SIU31-AC-CONN-KIT

**If your configuration option is not listed please contact factory at 1-631-567-1100

Help Bot

X
