67PPC2 Manual

67PPC2 DATA SHEET

INTRODUCTION

North Atlantic Industries (NAI) is a leading independent supplier of rugged COTS embedded computing products for industrial, commercial aerospace, and defense markets. Aligned with MOSA, SOSA and FACE standards, NAI’s Configurable Open System Architecture™ (COSA®) accelerates a customer’s time-to-mission by providing the most modular, agile, and rugged COTS portfolio of embedded smart modules, I/O boards, Single Board Computers (SBCs), Power Supplies and Ruggedized Systems of its kind. COSA products are pre-engineered to work together, enabling easy changes, reuses, or repurposing down the road. By utilizing FPGAs and SoCs, NAI has created smart modules that enable the rapid creation of configurable mission systems while reducing or eliminating SBC overhead.

NAI’s 67PPC2 6U OpenVPX Single Board Computer (SBC) is a powerful, multifunctional processing board designed for use in mission-critical applications that require advanced I/O capabilities. When combined with these smart modules, the board’s modular I/O approach makes it a highly flexible and integrable solution for demanding computing environments.

67PPC2 Overview

The 67PPC2 6U OpenVPX Single Board Computer (SBC) offers a variety of features designed to meet the needs of complex requirements for integrated multifunction I/O-intensive, mission-critical applications. Some of the key features include:

6U Profiles supported: This board is aligned with both VPX and OpenVPX standards, with module and slot profiles specified as

MOD6-PAY-2F2U2T-12.2.5-3
SLT6-PAY-2F2U2T-10.2.5

This compatibility ensures interoperability with other components and promote system-level integration for efficient optimized performance.

PCIe connectivity: The 67PPC2 provides highly flexible and efficient high-speed connectivity between the board and data plane with 12 x1 PCIe interfaces (routed on the VPX (P1) connector). This feature facilitates rapid data transfer and enhances overall system efficiency. With this capability, the SBC delivers exceptional throughput and responsiveness, making it an ideal choice for applications demanding extensive data processing and communication tasks.

2x 10/100/1000 Base-T and 2x 1000Base-KX Ethernet: The 67PPC2 provides optional 10/100/1000 Base-T Ethernet ports to the front and rear of the board and 1000Base-KX Ethernet ports to the rear of the board. These ports provide data communication capabilities and network connectivity for advanced control and data acquisition applications.

NXP® PowerPC™ QorIQ® T2080 Quad Core e6500 processor: The 67PPC2 is powered by a NXP® PowerPC™ QorIQ® T2080 Quad Core e6500 processor which provides several benefits to applications in rugged environments such as military, aerospace, and industrial sectors:

With four processing cores, the T2080 processor is well-suited for compute-intensive tasks. In the case of an SBC, this means the ability to handle complex data processing, real-time control, and mission-critical calculations efficiently.
- There is also support for multithreading, enabling each core to handle multiple tasks simultaneously. In applications like radar signal processing, image analysis, or communication systems, this ensures optimal utilization of the CPU, enhancing overall system performance.
The processor is designed to offer a balance between performance and power consumption, making it suitable for applications that require low power consumption.
The T2080 is designed to meet the reliability and ruggedness requirements of applications such as defense and aerospace, where the SBC may be exposed to harsh conditions.
The T2080 includes hardware security features, which are essential for protecting sensitive military data and ensuring the integrity of mission-critical applications.

8 GB DDR3L SDRAM w/ECC memory: The SBC features an 8 GB DDR3L SDRAM, which offers users a powerful memory solution for demanding military, industrial, and aerospace environments:

The large memory capacity allows the 67PPC2 to handle extensive data sets, complex computations, and multitasking efficiently.
The DDR3L SDRAM offers a good balance between performance and power efficiency, making it suitable for a range of applications, while also providing a cost-effective solution for budget-constrained projects.
With ECC (Error Correcting Code), the SDRAM features real-time error detection and correction, which helps prevent data corruption and system crashes due to memory errors.

32 GB SATA II NAND Flash: The 67PPC2 utilizes a SATA II NAND Flash memory capable of providing 32 GB of storage, offering high-capacity, durable, reliable, and rugged data storage. It is well suited for applications where data must be securely stored and accessed in challenging environmental conditions while providing a cost-effective storage solution.

Discrete Input (option): The SBC features eight optional discrete input channels to the rear I/O, expanding the 67PPC’s I/O capabilities.

IPMC support (option): The 67PPC2 has IPMC (Intelligent Platform Management Controller) support, which is VITA 46.11 Tier-2 compatible. This allows for advanced system monitoring and control from the host Chassis Manager.

Support for six independent, smart function: The SBC can support up to six independent, smart function modules based on the COSA® architecture. With over 100 modules to choose from, this allows for a wide range of input and output capabilities, including analog and digital I/O, signal generation and acquisition, and communication interfaces. Each function module slot has an independent x1 SerDes interface for motherboard-to-smart module interface, to offload the host processor from I/O management.

The 67PPC2’s function slots #3, 5, and 6 feature a PCIe interface that enables additional Gig-E ports while function slot #4 boasts an independent external SATA II interface that supports a 480 GB memory expansion over the VPX backplane. These interfaces facilitate the expansion of external host SBC functions, which enables engineers and system architects to easily configure the board with the necessary modules and accelerate SWaP-optimized system deployment.

Peripheral I/O: The 67PPC2 features several sophisticated on-board (on motherboard) peripheral I/O interfaces, all of which are rear accessed. Designed to meet the diverse requirements of complex projects, this comprehensive I/O suite includes:

One USB 2.0 interface to front maintenance J7 and two USB 3.0 interfaces to the rear I/O, enabling users to transfer data quickly and reliably.
An optional I2C port provides a versatile serial communication interface for controlling, monitoring, and interacting with devices located at the rear of the chassis. It consists of two wires (clock and data) and allows for bidirectional communication.
An RS-232 console/maintenance port (front and rear) that provides a standard interface for communicating with the board for maintenance and debugging purposes. This serial port can be used for configuring the board or accessing diagnostic information and logs.

Continuous Background Built-In-Test (BIT): Continuously monitoring the board’s health and functionality during operation, this feature allows for proactive maintenance, minimizing downtime and facilitating early issue resolution for uninterrupted performance in demanding operational environments.

Software Support Kits (SSKs): SSKs are provided ‘free of charge’ and include base motherboard and function module API libraries and documentation. Sample and source code are also available, as well as support for real-time operating systems (RTOS) such as Wind River® VxWorks®, DDC-I™ Deos OS, or Linux BSP/OS, providing developers with flexibility and customization options for their specific application needs.

VICTORY Interface Services: NAI offers VICTORY Interface Services as an option, providing an open industry-standard approach for integrating different components in a system.

25 W MB power dissipation: With an estimated typical power dissipation of 25 W (not including module power), the 67PPC2 ensures suitability for energy-sensitive applications. It minimizes heat generation, contributing to the SBC’s long-term reliability in rugged environments, in addition to making it compatible with legacy systems operating under specific power constraints.

Operating temperature and compliance: The 67PPC2 is designed to meet system levels MIL-STD-461 (EMI) and MIL-STD-810 (vibration/shock).

Operating temperature:

The SBC has a wide operating temperature range, with models operating from:

0° C to 70° C (commercial model)
-40° C to +85° C (rugged model)

SOFTWARE SUPPORT

The ENAIBL Software Support Kit (SSK) is supplied with all system platform based board level products. This platform’s SSK contents include html format help documentation which defines board specific library functions and their respective parameter requirements. A board specific library and its source code is provided (module level ‘C’ and header files) to facilitate function implementation independent of user operating system (O/S). Portability files are provided to identify Board Support Package (BSP) dependent functions and help port code to other common system BSPs. With the use of the provided help documentation, these libraries are easily ported to any 32-bit O/S such as RTOS or Linux.

The latest version of a board specific SSK can be downloaded from our website www.naii.com in the software downloads section. A Quick-Start Software Manual is also available for download where the SSK contents are detailed, Quick-Start Instructions provided and GUI applications are described therein. For other operating system support, contact factory.
Link to original

SPECIFICATIONS

General for the Motherboard

Signal Logic Level:	Supports LVDS PCIe ver. 2.0 bus (x1)
Power (Motherboard):	`5 VDC @ 6.3 A (typical) ±12 V @ 0 mA (certain modules may require `/-12 V for operation) +3.3V_AUX @ <100 mA (typical) Then add power for each individual module
Temperature, Operating:	"C" =0° C to +70° C, "H" =-40° C to +85° C (see part number)
Storage Temperature:	-55° C to +105° C
Temperature Cycling:	Each board is cycled from -40° C to +85° C for option “H”
General size
Height:	9.2" / 233.7 mm (6U)
Width:	0.8” / 20.3 mm (4HP) or 1.0" / 25.4 mm (5 HP) air cooled front panel options
Depth:	6.3“ / 160 mm deep
Weight:	12.5 oz. (354 g) unpopulated (approx.) (convection or conduction cooled) >> then add weight for each module (typically 1.5 oz. (42 g) each)

Specifications are subject to change without notice.

Environmental

Unless otherwise specified, the following table outlines the general Environmental Specifications design guidelines for board level products of North Atlantic Industries. All our cPCI, VME and OpenVPX boards are designed for either air or conduction cooling. All boards also incorporate appropriate stiffening to ensure performance during shock and vibration but also to assure reliable operation (lower fatigue stresses) over the service life of the product.

Parameters	Level
Parameters	1 / Commercial-AC (Air Cooled)	2 / Rugged-AC (Air Cooled)	3 / Rugged-CC (Conduction Cooled)
Temperature - Operating	0° C to 70° C, Ambient^H	-40° C to 85° C, Ambient^I	-40° C to 85° C, at wedge lock thermal interface
Temperature - Storage	-40° C to 85° C	-55° C to 105° C	-55° C to 105° C
Humidity - Operating	0 to 95%, non-condensing	0 to 95%, non-condensing	0 to 95%, non-condensing
Humidity - Storage	0 to 95%, non-condensing	0 to 95%, non-condensing	0 to 95%, non-condensing
Vibration - Sine^A	2 g peak, 15 Hz - 2 kHz^B	6 g peak, 15 Hz - 2 kHz^B	10 g peak, 15 Hz - 2 kHz^C
Vibration - Random^D	.002 g² /Hz, 15 Hz - 2 kHz	0.04 g² /Hz, 15 Hz - 2 kHz	0.1 g² /Hz, 15 Hz - 2 kHz^E
Shock^F	20 g peak, half-sine, 11 ms	30 g peak, half-sine 11 ms	40 g peak, half-sine, 11 ms
Low Pressure^G	Up to 15,000 ft.	Up to 50,000 ft.	Up to 50,000 ft.

Notes:

A. Based on sweep duration of ten minutes per axis on each of the three mutually perpendicular axes. B. Displacement limited to 0.10 D.A. from 15 to 44 Hz. C. Displacement limited to 0.436 D.A. from 15 to 21 Hz. D. 60 minutes per axis on each of the three mutually perpendicular axes. E. Per MIL-STD-810G, Method 5.14.6 Procedure I, Fig.514.6C-6 Category 7 tailored (11.65 Grms): 15 Hz - 2 kHz; ASD (PSD) at 0.04 g²/Hz between 15 Hz - 150 Hz, increasing @ 4 dB/octave from 0.04 g²/Hz to 0.1 g /Hz between 150 Hz - 300 Hz, 0.1 g²/Hz between 300 Hz - 1000 Hz, decreasing @ 6 dB/octave from 0.1 g²/Hz to 0.025 g²/Hz between 1000 Hz - 2000 Hz. Three hits per direction per axis (total of 18 hits). F. Three hits per direction per axis (total of 18 hits). G. For altitudes higher than 50,000 ft., contact NAI. H. High temperature operation requires 350 lfm minimum air flow across cover/heatsink (module dependent). I. High temperature operation requires 600 lfm minimum air flow across cover/heatsink (module dependent).

Specifications subject to change without notice

67PPC2 OVERVIEW

The 67PPC2 is a 6U OpenVPX, low-power and high performance Single Board Computer (SBC). The 67PPC2 offers on-board I/O expansion through six (6) Generation-5 (GEN5) NAI smart I/O function modules. Powered by the NXP T2080 @ 1.8 GHz Power Architecture® processor, the 67PPC2 provides a balanced performance vs. power dissipation SBC solution, for today’s demanding, space constrained and resource limited embedded systems.

The 67PPC2 SBC, supplemented with a full complement of software I/O libraries and drivers, is ideally suited for integration within a multitude of commercial and rugged, military embedded processing and I/O systems. The 67PPC2 SBC provides a PCIe bus root-complex and/or Gigabit Ethernet (GbE) capability and may be utilized with other NAI high-density multifunction I/O boards to provide a complete, expandable, low power, high performance and programmable solution for sensor and communication data acquisition, management, processing and distribution. All I/O sensor data is available on the PCIe bus or GbE.

The 67PPC2 card provides high-density front or rear I/O for systems requiring closed chassis operation (i.e. embedded, conduction cooled applications) and simple card replacement. Using rear I/O minimizes the effort required to remove cards from a chassis improving maintainability and reliability.

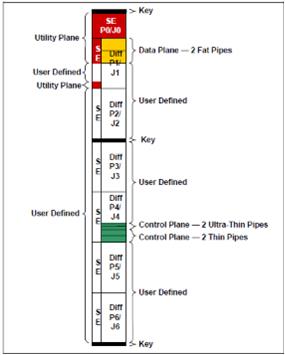

The 67PPC2 card uses OpenVPX P0, P1, and P2 - P6 rear connectors. Rear I/O connectivity, via the P2 and P1 connectors, includes Ethernet, asynchronous serial, I2C, programmable TTL, USB and access to the on-board add-on Module I/O. Front I/O is limited to Expansion Module I/O.NXP QorIQ® T2080 Quad Core e6500 Processor.

The 67PPC2 utilizes the T2080 Quad Core e6500 processor with the following capabilities. Note: all processor capabilities may not be user accessible features at the end item level.

Four e6500 cores sharing a 2MB L2 cache
8GB of DDR3L SDRAM (plus ECC)
2 Ethernet interfaces, supporting combinations of:
- Up to two 1 Gbps KX Ethernet MACs
- Up to two 1 Gbps TX Ethernet MACs
Three PCIe interfaces
- 12x1 PCIe ports for VPX communication
- 1x1 PCIe to Module interface 3
- 1x1 PCIe to switch to support Module interfaces 5 and 6 & the Zynq to R/W to module registers
Two SATA 2.0 controllers
- 32GB onboard ROM
- SATA switch for external storage or storage through Module Slot 4 (factory configured).
Two high-speed USB 3.0 ports (Contact Factory)
I²C port to the VPX backplane
RS232 Serial debug port
On-board TTL Digital I/O
8 Discrete Input channels (0-60V)
256 MB NOR Flash
8 Kb FRAM

I/O Modules

Six I/O module slots enable integrators to mix-n-match a variety I/O and communication functions. The 67PPC2 uses a GEN5 high-speed SerDes Modbus. Some of the new modules are currently under development. Please consult the factory for updates on the availability of certain functions. Module I/O signals are available as both front and rear I/O.

Software

Built-In Test

The 67PPC2 supports options for Power-On-Self-Test (POST) testing (memory, peripherals, etc.). The 67PPC2 also supports function modules with NAI’s flexible, leading-edge, fully programmable and continuous background built-in-test (BIT) enabled function. BIT tests both 67PPC2 on board functions and functions contained on expansion modules, making it a useful field service tool.

U-Boot Firmware (Boot Utility/Linux®)

The U-boot firmware provides a foundation layer to interface between the raw board hardware. U-boot has programmable device set-up, setup flexibility, and supports booting supported Operating Systems with a straight-forward user interface. U-boot also allows booting from a number of different devices (check part numbering options).

Boot ROM (VxWorks®)

VxWorks utilizes the WindRiver VxWorks Boot ROM. When specified/configured with VxWorks as an OS, a VxWorks Boot ROM image (with utilities) is pre-flashed at the factory supporting VxWorks development and FLASH download (check part numbering options).

Operating System Support

Wind River VxWorks 6.9, DDC-I Deos, Linux

Contact NAI for availability of other operating systems.

Mechanicals

Heat Sink

CAUTION: The 67PPC2 contains an integrated heat sink and cover. Do not remove the heat sink. There are no user serviceable components, switches or programming jumpers under the heat sink. In the unlikely event the 67PPC2 becomes is inoperable, please return the unit to the factory for service.

67PPC2 Connector Interfaces

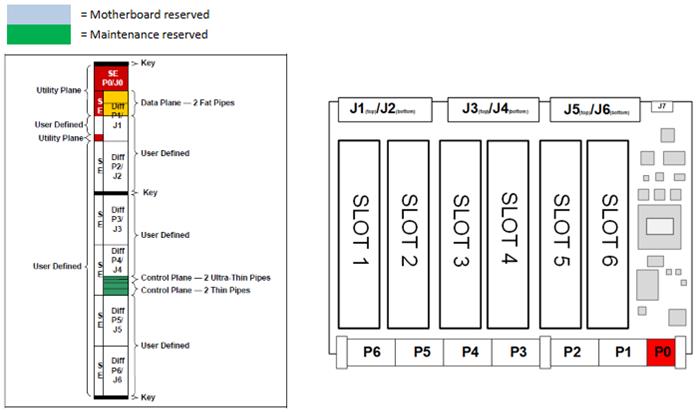

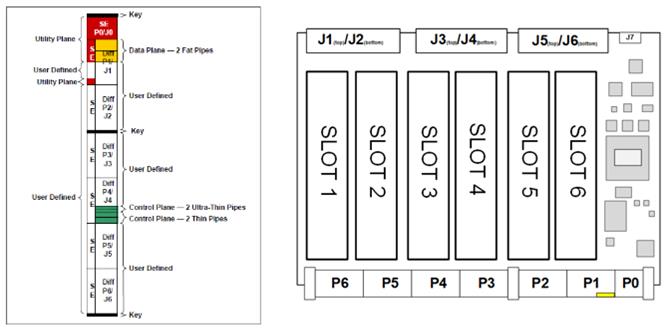

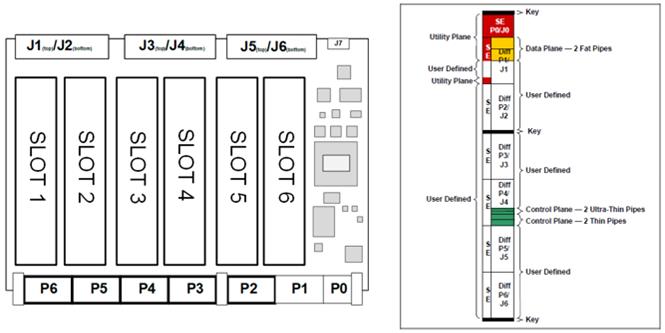

The 67PPC2 Conduction cooled version has eight I/O connectors P0, P1, P2 thru P6 and J7. Connectors P1, and P2 thru P6 at the rear of the module, are used for the OpenVPX interface and for user I/O. Connector J7 is utilized for GbE Ethernet interface option & RS-232 Serial debug/console access. J7 uses a Mini-HDMI connector for USB port1, asynchronous serial (debug port) and optionally Ethernet port 1. A J7 connector adapter cable/breakout board P/N 75SBC4-BB optional accessory kit is available for quick connect (contact factory).

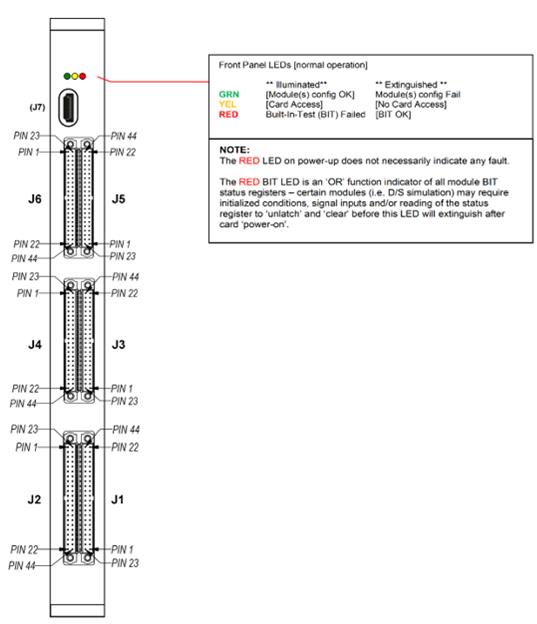

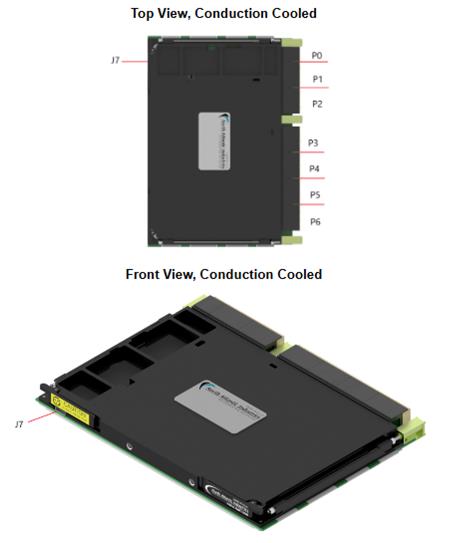

Figure 1. 67PPC2 Connectors

The 67PPC2 may also be provided in an air-cooled version with front panel I/O accessibility. Please refer to part numbering options and contact factory for available mechanical options.

67PPC2 ENVIRONMENTAL/POWER SPECIFICATIONS

Conduction-Cooled/Rugged

Operating temperature	-40 to 85° C (measured at card edge/rail)
Storage temperature	-55 to 105° C
Relative humidity	5 to 95% non-condensing
MTBF	TBD
(see NAI card-level Environmental Specifications for other ruggedization & application environment levels)

Power Requirements

Power	Tolerance	Current requirement
5 V	±10%	6.3 A typical
+12 V-AUX	±10%	*
-12 V-AUX	±10%	*
3.3 V-AUX	±10%	100 mA typical
RTC_STDBY	1.5 V to 5 V ±10%	5 µA @ 3 V Typical

*The 67PPC2 without modules does not derive any power from the +12V and -12V backplane rail supplies. When calculating total power supply consumption, remember to add the +12, -12, and 5V power consumption for two optional modules.

67PPC2 OUTLINE DIMENSIONS

The 67PPC2 is compatible with the OpenVPX ANSI Vita 46 Specification. Conduction cooled 67PPC2 cards comply with ANSI/VITA 30.1-2002. The following diagram is for reference only. All dimensions are in inches.

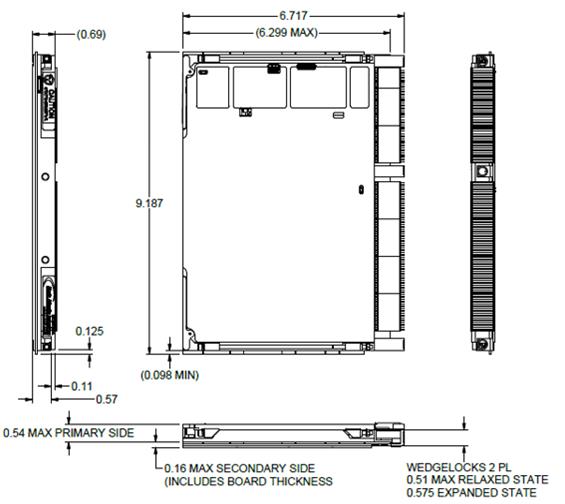

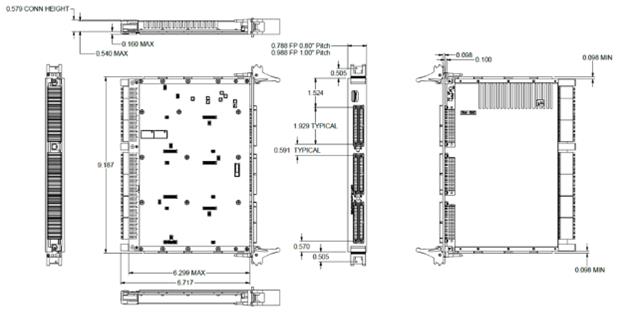

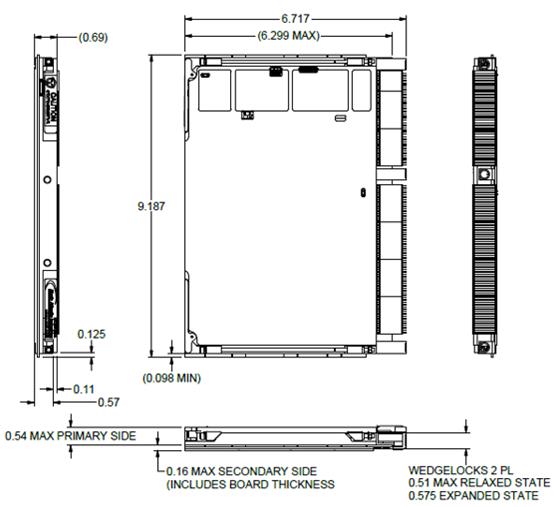

Figure 2. 67PPC2 Dimensions (conduction cooled)

67PPC2 ON BOARD RESOURCES

Memory

DDR3L SDRAM

The 67PPC2 provides a total of 8 GB of ECC DDR3L memory. This memory is organized as 8 1Gb x 8 MT41K1G8 devices (parts may vary), with a ninth device providing storage for ECC data. The T2080 has an on chip 64-bit DDR3 memory controller. The controller has full ECC error-correction support, with the ability to detect multi-bit errors and correct single-bit errors within a nibble. Please consult the Micron data sheet for DDR3 device specific details.

NOR Flash

Connected through the local bus, the 67PPC2 supports 256 Mbytes of flash. The Flash consists of a single soldered in Micron® Flash device MT28FW02GBBA1HPC device. Flash is configured as a 16-bit wide device, using the 16-bit asynchronous data access interface. The 256 MB flash is divided into two logical banks, one standard bank and one for recovery. The FPGA Local Bus controls which bank is accessible by setting the top bits of the address seen by the flash. The NOR Flash has an erase capacity of 100,000 cycles per sector and typical data retention of 20 years.

Banks

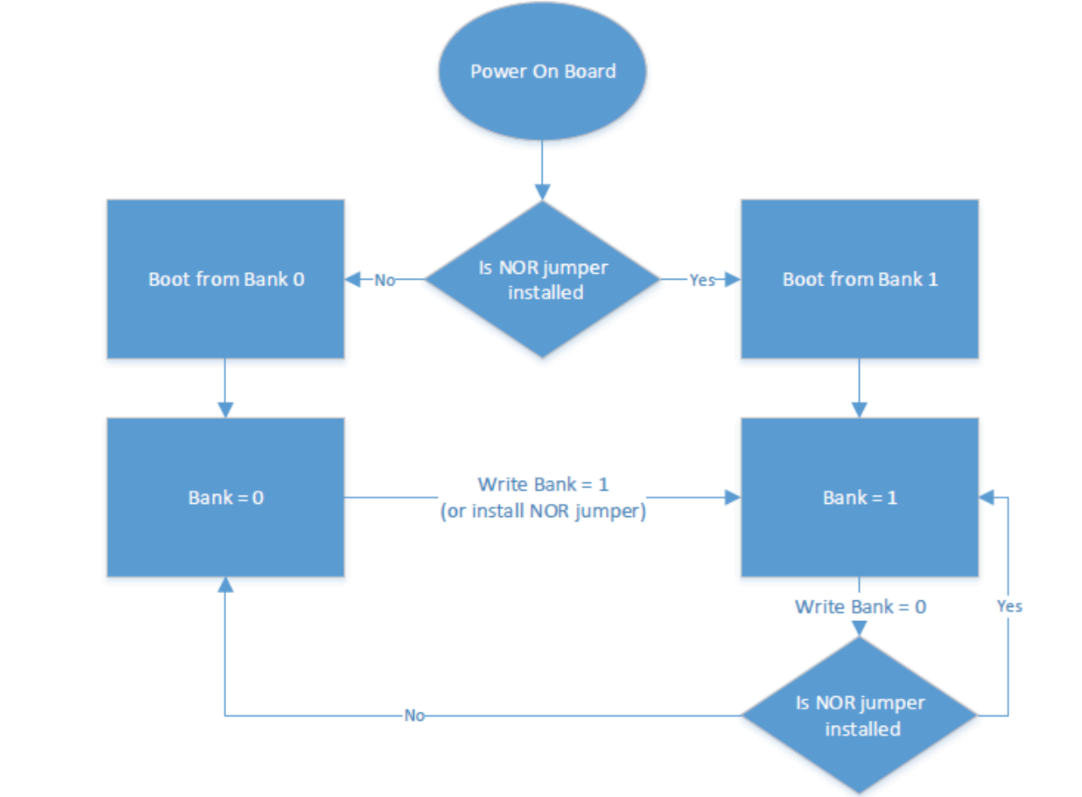

The first bank (bank 0) is reserved for a recovery boot-loader. If the second bank is not accessible the first bank stores a full image for recovery of the system.
The second bank (bank 1) is reserved for the boot-loader. In the default configuration, the SBC will boot from this area. The customer can modify the boot-loader if they want to and flash it in this area.

FRAM

The FM24CL64B is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. The ferroelectric random-access memory or FRAM is nonvolatile and performs reads and writes like a RAM. It provides reliable data retention for 38 years. The 67PPC2 FRAM 64K bits are organized as 8,192 x 8 bits random access memory, connected to the T2080 CPU through the SPI controller, SPI_CS [0].

SATA

The T2080 CPU has two available on-chip SATA 2 type controllers. SATA port 1 is supported with SerDes12, and SATA port 2 is supported with SerDes13. The 67PPC2 SATA port 2 is connected to an on board SATA 2 Solid State Drive. SATA2 is connected to Module Slot 4 (supports direct SATA 2 solid-state FLASH module, if fitted) or to an external storage device via a programmable switch.

SATA Port 1

The SATA port 1 controller interface on the T2080 CPU is directly connected to an on-board, solid-state drive. The SSD contains a single level cell NAND Flash together with a controller in a single multi-chip package. This multi-chip packaged device is soldered directly to the printed circuit board, for reliable electrical and mechanical connection.

The onboard SATA drive conforms to the follow specifications:

Complies with Serial ATA 2.5 Specification
Supports speeds: 1.5 Gbps (first-generation SATA), 3 Gbps (second-generation SATA and eSATA)
Supports advanced technology attachment packet interface (ATAPI) devices
Contains high-speed descriptor-based DMA controller
Supports native command queuing (NCQ) commands

The standard ordering code for the 67PPC2 includes a 32GB SSD drive. Larger devices are available; please consult the factory for availability.

SATA Port 2

The SATA port 2 interface on the T2080 CPU is connected directly to a high-speed connector for Module Slot 4 or to an external storage device via a programmable switch. An optional SATA Flash drive is available for the 67PPC2; please consult the Factory for availability.

Peripheral I/O

Ethernet

The T2080 supports two 10/100/1000Base-TX or two 1000Base-KX Ethernet ports.

The 67PPC2 Ethernet ports support:

Detection and correction of pair swaps (MDI crossover), and pair polarity
MAC-side and line-side loopback
Auto-negotiation

Ethernet port 1 can be routed as 10/100/1000Base-TX to the front, 10/100/1000Base-TX to the rear, or KX-Ethernet to the rear as build options.

Ethernet Port 2 can be routed as 10/100/1000Base-Tx to the rear or KX-Ethernet to the rear as build options.

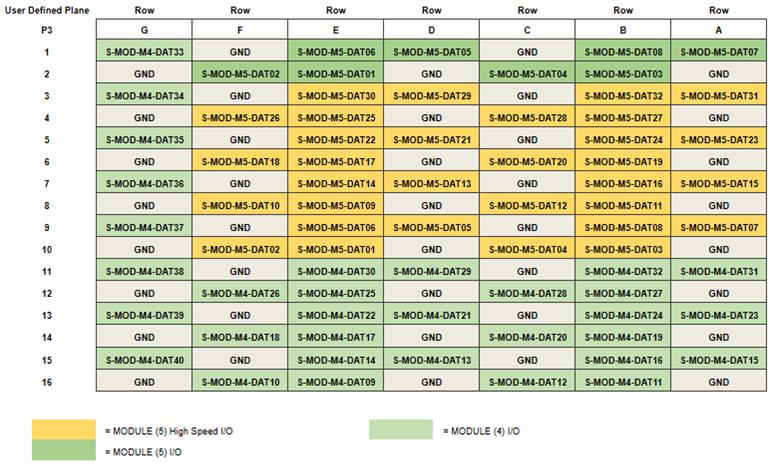

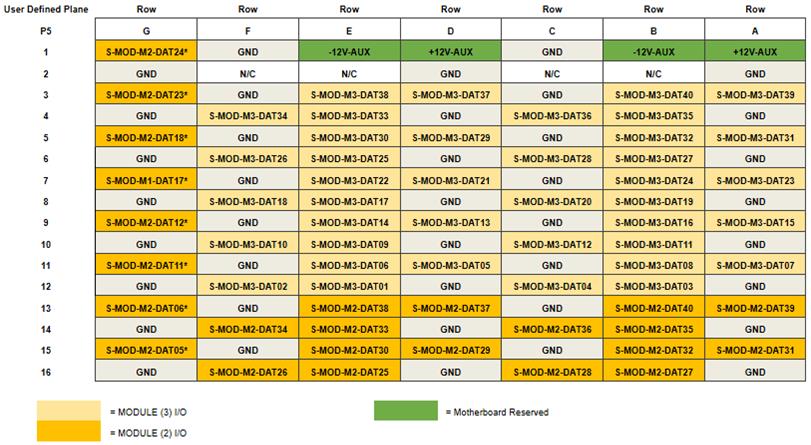

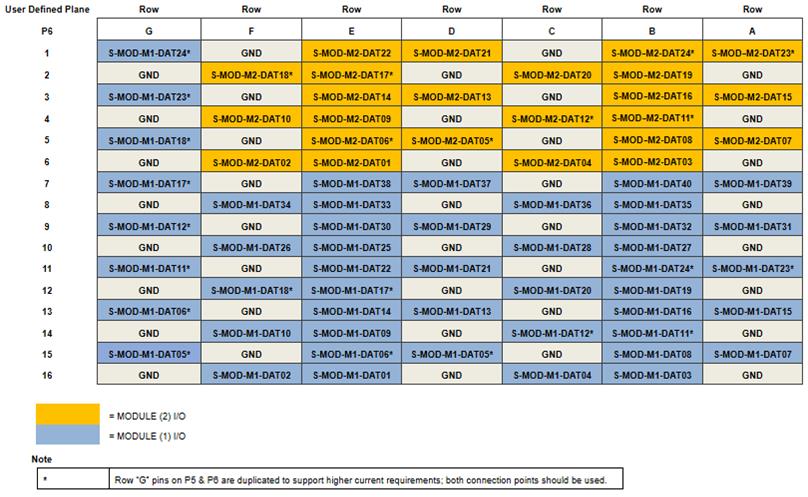

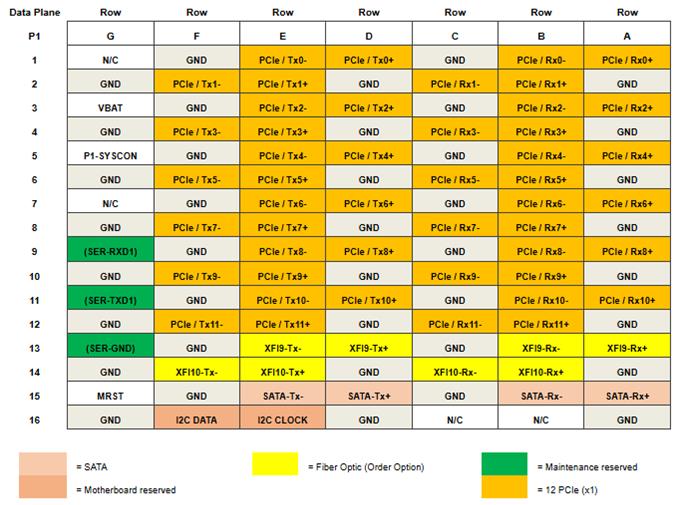

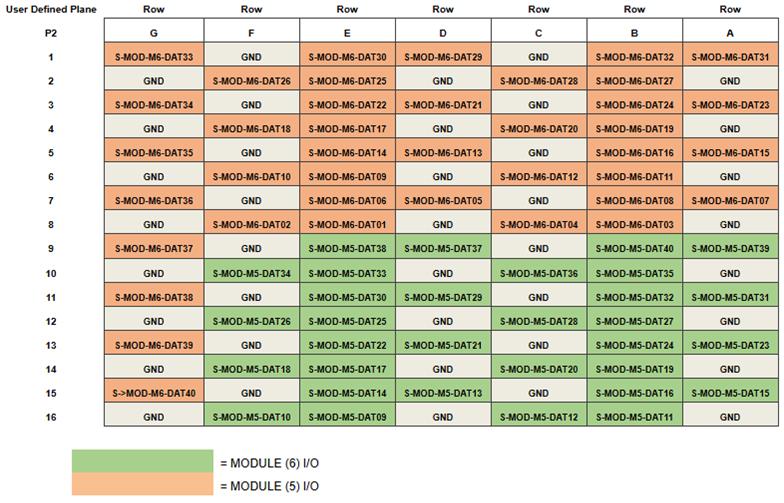

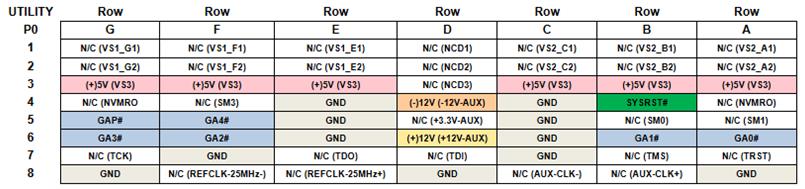

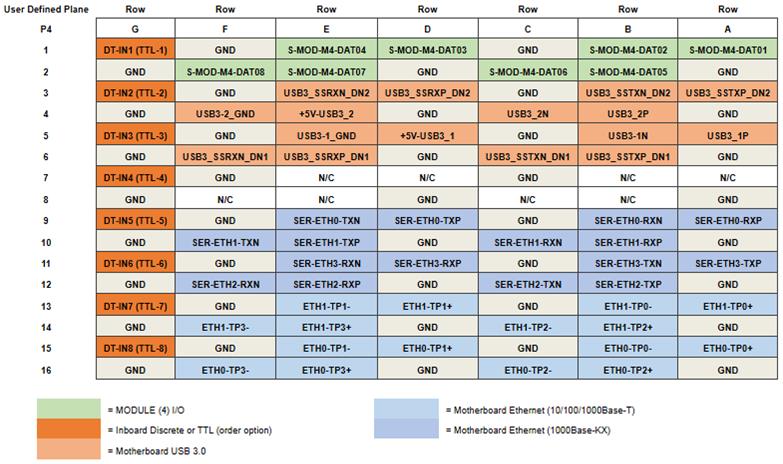

I/O pin outs can be found in the Pinout Details section of this document.

USB

The 67PPC2 supports two USB 3.0 ports. Contact factory for availability.

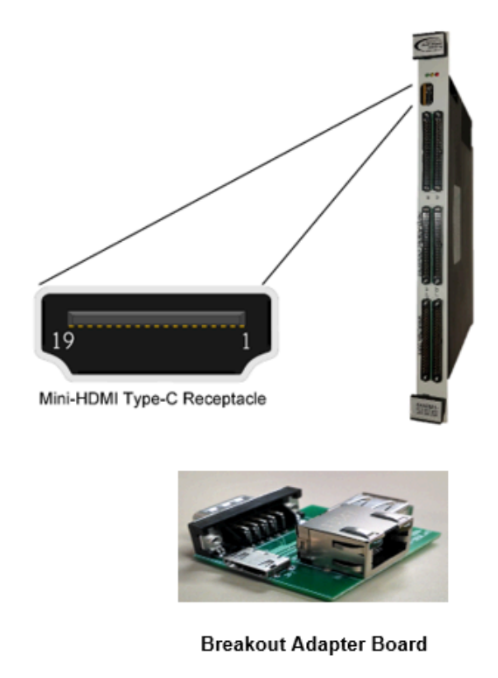

USB port 0 is available at the front of 67PPC2, on connector J7. The USB port can operate as a standalone host.

Compatible with USB specification, Rev. 2.0
Supports high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) operations
Supports operation as a standalone USB host controller
Supports USB root hub with one downstream-facing port
Enhanced host controller interface (EHCI)-compatible
One controller supports operation as a standalone USB device
Supports one upstream-facing port
Supports six programmable USB endpoints

I²C

I²C is a two-wire, bidirectional single ended serial bus that provides efficient method of exchanging data between a master and slave device. The T2080 CPU contains three identical I²C controllers. The 67PPC2, I²C port 1 of the T2080 is connected to the die temperature monitor. I²C port 2 is connected to the real-time clock, and I²C port 3 is connected to the OpenVPX connector P2, and is available as rear I/O.

T2080 CPU I²C port	Assignment	I²C addresses	Device
Port 1	Onboard Devices	0x08 & 0x70	Power Supply
		0x4C	Temperature
		0x50 & 0x51	EEPROM
		0x57 & 6F	RTC
		0x68	PCIe Switch
Port 2	Rear I/O	User Configurable
Port 3	IPMI (contact factory)	Not Applicable

Real-Time Clock

Real-Time Clock/Calendar (RTCC) is used to provide a system time and date function or can be used as an event timer. In addition, the MCP79410 includes:

64 Bytes SRAM, Battery Backed
1 Kbits EEPROM (128x8)
Power-Fail Time-Stamp for Battery Switchover

To maintain the RTCC and SRAM functions when the 5 V power is off, the RTC_STDBY pin must be connected to an external battery or power supply. The RTC_STDBY supply voltage should be between 1.4 V to 5.0 V. A typical RTC_STDBY supply requirement is 3.0 V @ 5 µA.

CAUTION: 5.5 V is the maximum allowable RTC_STDBY input voltage. Any voltage larger than 5.5 V on the RTC_STDBY pin will damage the RTCC.

Temperature Sensor

The T2080 processor has two pins that are connected to a thermal body diode on the processors die. This diode allows for direct die temperature measurements. The ADT7461 I²C device is used to measure the change in forward bias voltage (VBE) of the body diode. The ADT7461and thermal body diode together allow for direct reading of the die temperature, to an accuracy of ±1°C.

Device:	On Semi, ADT7461ARMZ
I2C address:	0x4C

SPI

Serial Peripheral Interface Bus or SPI is a synchronous serial data link standard. SPI operates in full duplex mode. SPI devices communicate in master/slave mode where the master device starts a frame and sources the clock. The T2080 CPU has one SPI controller with four device select pins (SPI_CS [3:0]). SPI_CS [0] is attached to an FRAM. SPI_C [1,2,3] are unconnected.

Linux device drivers are available to access FRAM features.

T2080 CPU SPI CS	Assignment	Device
SPI_CS0	FRAM	FM25CL64
SPI_CS1	Not used
SPI_CS2	Not used
SPI_CS3	Not used

Serial Ports

The 67PPC2 has one serial port to the front and to the rear of the card. Do not plug into the serial port from both the front and rear of the card at the same time. This will cause errors when communicating to the card through the serial port.

For U-boot, the console port is selected at compile time. The 67PPC2 is configured to use the first serial port (SER1), which is routed to the OpenVPX P1 connector at rear of the card.

For Linux, the console port is passed as a kernel parameter by U-boot when it loads Linux and so can be selected at run-time.

Inboard Discrete/TTL Options

Inboard Discrete Input & TTL I/O are available as a configuration options (see pin-outs/P/N configuration).

Discrete Input/TTL I/O Specifications

Note

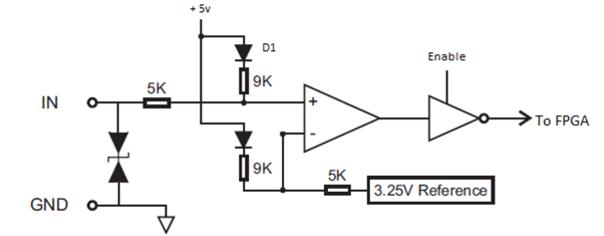

The Discrete Input / TTL I/O signals are non-isolated. All grounds are common and are connected to a single Digital Ground and power return.

Discrete Input

Input levels: 0-60V

TTL Input

Input levels: TTL and CMOS compatible, single ended inputs

Input levels:

Vin L (min): 0 V

Vin L (max): 0.8 V

Vin H (min): 2.0 V

Vin H (max): 5.0 V

TTL Output

Output levels: TTL/CMOS, single ended outputs

Drive Capability:

Vout L (min): 0 V min @ 24 mA (sink)

Vout L (max): 0.55 V max @ 24 mA (sink)

Vout H (min): 2.4 V @ 24 mA (source)

Vout H (max): 3.3 V VCC, (unloaded)

Rise/Fall time: 10 ns into a 50pf load

REGISTER DESCRIPTIONS

The register descriptions provide the Register Name, Function Address Offset, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table. Refer also to the FPGA Local Bus Register Map.

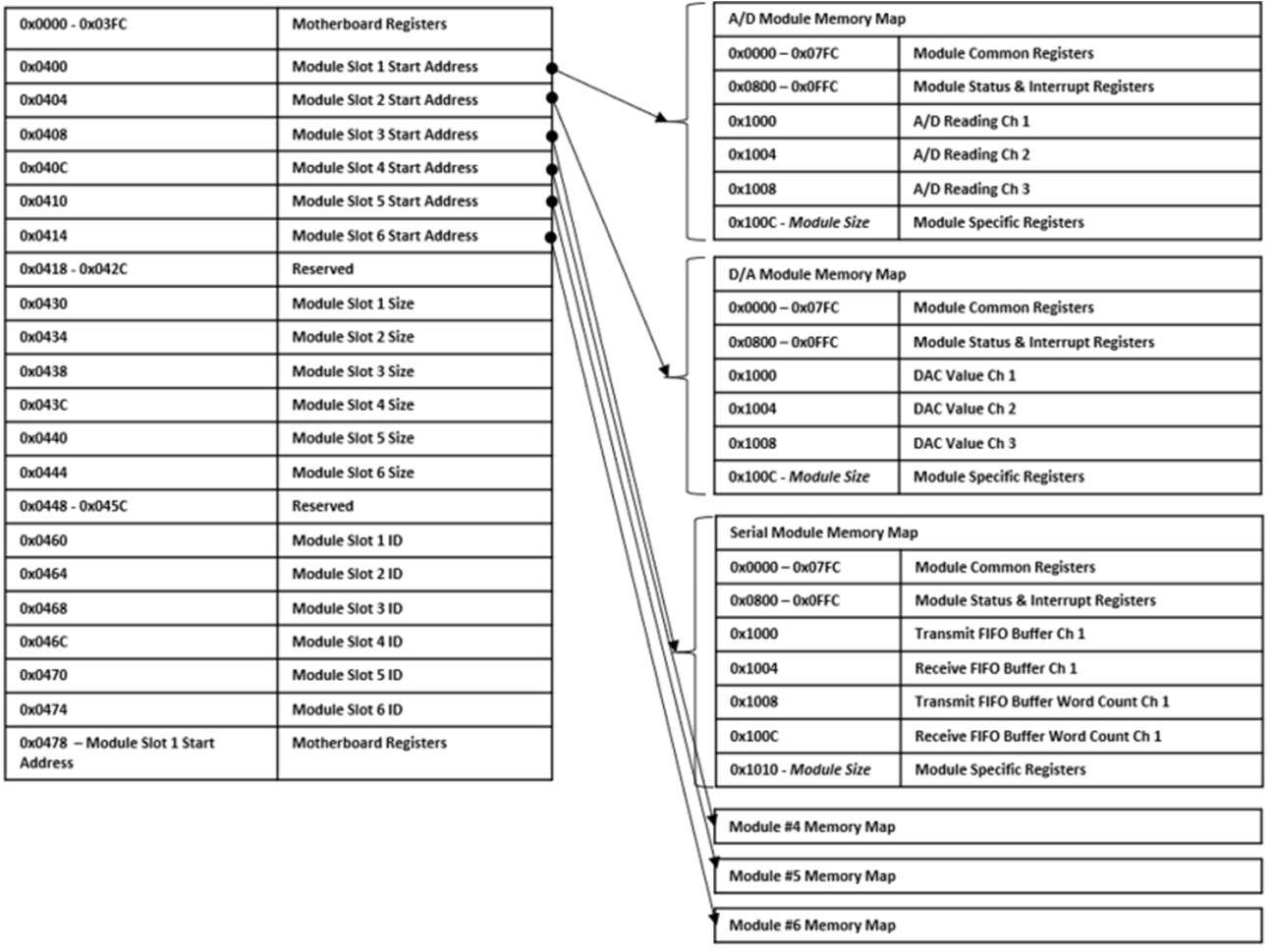

FPGA Local Bus Register Map

Base address of FPGA Local Bus = 0xEA00 0000

	Name	R/W	Default
0x00	SPARE	N/A
0x12	SPARE	N/A
0x02	SATA_MUX_SEL	R/W	1
0x04	BANK_SEL	R/W	0
0x06	FW_REV	R	REVISION
0x08	TTL_DIR	R/W	0x"00"
0x0A	TTL_LPBK	R	0x"00"
0x0C	TTL_DATA	R	0x"XX"
0x0C	TTL_DATA	R/W	0x"00"
0x0E	EN_PROC_RST	W	0
0x14	TTL_IRQ_EN	W	0x"00"
0x16	TTL_IRQ_POL	W	0x"00"
0x18	TTL_IRQ_STAT	R/W	0x"00"
0x1A	TEMP_ALARM_OVD	W	0
0x1C	PWR_DWN_CMD	W	0x"0000"
0x1E	TEMP_INT_STAT	R/W	0
0x20	TEMP_INT_EN	W	0
0x22	WDT_ENABLE	R/W	0
0x24	WDT_TIME_SET	R/W	0
0x26	WDT_RESET	W	0

67PPC2 VxWorks Address Map

OFFSET (Byte)	Name	Size	Function/Notes
0x0000 0000	DDR3	2 GB	DDR3 SDRAM
0x7F40 0000	Reserved	8 MB	8 MB reserved memory for QMAN hardware
0x7FC0 0000	Reserved	4 MB	4 MB reserved memory for BMAN hardware
0x8000 0000	PCIe 1 prefetchable memory	64 MB	PCIe 1 prefetchable memory
*0x8400 0000	PCIe non-prefetchable memory	64 MB	PCIe non-prefetchable memory
0x8800 0000	PCIe 1 IO	64 MB	PCIe 1 I/O
0x8C00 0000	PCIe 1 IO 32	64 MB	PCIe 1 I/O 32
*0x9000 0000	PCIe 2 non-prefetchable memory	512 MB	PCIe 2 non-prefetchable memory
0xB000 0000	PCIe 3 prefetchable memory	64 MB	PCIe 3 prefetchable memory
*0xB400 0000	PCIe 3 non-prefetchable memory	128 MB	PCIe 3 non-prefetchable memory
0xBC00 0000	PCIe 3 I/O	32 MB	PCIe 3 I/O
*0xBE00 0000	PCIe 3 I/O 32	32 MB	PCIe 3 I/O 32
0xC000 0000	PCIe 4 prefetchable memory	64 MB	PCIe 4 prefetchable memory
*0xC400 0000	PCIe non-prefetchable memory	64 MB	PCIe non-prefetchable memory
0xC800 0000	PCIe 4 I/O	64 MB	PCIe 4 I/O
0xCC00 0000	PCIe 4 I/O 32	64 MB	PCIe 4 I/O 32
0xE000 0000	BMAN	32 MB
0xE200 0000	QMAN	32 MB
0xE400 0000	DCSR	4 MB
0xEA00 0000	FPGA Registers	4 KB
0xEE00 0000	CCSBAR	16 MB
0xF800 0000	NOR FLASH	128 MB

Note

*Unassigned n/u

67PPC2 U-Boot/Physical Address Map

OFFSET (Byte)	Name	Size	Function/Notes
0x0000’0000	DDR3	2GB	Main T2080 CPU Memory
0xE800 0000	NOR FLASH	128 MB	128 MB of NOR FLASH per bank
0xFFDF 0000	FPGA Registers	4 KB	FPGA Registers
*0x8000 0000	PCIE 1 Mem	512 MB
0xF800 0000	PCIe 1 I/O	64 KB
*0xA000 0000	PCIe 2 Mem	256 MB
0xF801 0000	PCIe 2 I/O	64 KB
*0xB000 0000	PCIe 3 Mem	256 MB
0xF802 0000	PCIe 3 I/O	64 KB
*0xC000 0000	PCIe 4 Mem	256 MB
0xF803 0000	PCIe 4 I/O	64 KB
*0xF400 0000	BMAN	32 MB
0xF600 0000	QMAN	32 MB
*0xF000 0000	DCSR	4 MB
0xFE00 0000	CCSRBAR	16 MB

Note

*Unassigned n/u

Hardware Interrupts

The 67PPC2 uses eight external hardware interrupts. IRQ06, IRQ07, IRQ08, and IRQ09 are not available (n/a), these pins are used to support the USB ports. The T2080 hardware interrupts are assigned as indicated below.

T2080 CPU Hardware Interrupt	Assignment	Source
IRQ0	RTC (real time clock)	MCP79410 (MFP)
IRQ1	Temperature warning	ADT7461 (Alert#)
IRQ2	ALT-INT1	FPGA (function TBD)
IRQ03/GPIO21/DMA2_DREQ0	Ethernet PHY 1	BCM5482S (LED_P1_2_INTR#)
IRQ04/GPIO22/DMA2_DACK0	Ethernet PHY 2	BCM5482S (LED_P2_2_INTR#)
IRQ05/GPIO23/DMA2_DDONE0	ALT-INT2	PCI INTB
IRQ06/GPIO24/USB1_DRVVBUS		PCI INTC
IRQ07/GPIO25/USB1_PWRFAULT		PCI INTA
IRQ08/GPIO26/USB2_DRVVBUS	n/a
IRQ09/GPIO27/USB2_PWRFAULT	n/a
IRQ10/GPIO28/EVT7	Over Temp & TTL I/O	CLPD (temp-alarm) & TTL I/O
IRQ11/GPIO29/EVT8	ALT-INT3	FPGA (function TBD)

TTL Registers

Attached to the T2080 CPU via local bus is a portion of the FPGA. This logic provides miscellaneous “glue” functions and 8 programmable TTL I/O channels (TTL_CH [8:1]). (These TTL channels may be programmed as inputs or outputs as needed. Channels that are programmed as inputs may generate interrupts. Interrupts on input pins can be programmed to occur on (high to low) or (low to high) input pin transitions. TTL interrupts occur on the IRQ10 input of the T2080 CPU.

The 67PPC2 utilizes level shifting single ended bus transceivers, allowing the I/O pins to be 5 V tolerant. Each I/O pin is individually pulled up on card by a 4.7 KΩ resistor to the internal 3.3 V supply rail. External pull ups are not required for open collector operation. The TTL_CH [8:1] signals are pinned out as rear I/O on connector P2. As a factory option, the eight TTL_CH pins may be disconnected and their associated P2 pins used to support additional module I/O signals.

TTL Direction

Function: TTL direction. Sets channels as inputs or outputs. Bitmapped per TTL channel.

Function Address Offset(s): 0x08

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x00

Operational Settings: Write 0 for input; 1 for output: Default is configured for Input. Data bits [7:0] correspond to one of eight channels TTL_CH [8:1] respectively.

TTL I/O Select

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	Ch.8	Ch.7	Ch.6	Ch.5	Ch.4	Ch.3	Ch.2	Ch.1	Channel
0	D	D	D	D	D	D	D	D	D=DATA BIT

TTL Data

Function: Reads the TTL state of a specific channel’s I/O pin. When configured as an output, write to this register to set the channel to drive high or low. Bitmapped per TTL channel.

Function Address Offset(s): 0x0C

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x00

Operational Settings: When TTL_DIR register has channel configured as an input (0), read corresponding bit for the state of the TTL input. When TTL_DIR has channel configured as an output (1), write 0 for Low output/write 1 for High output: Data bits [7:0] correspond to one of eight channels TTL_CH [8:1] respectively.

Note

Reading this register returns the output to the I/O pin of a specific channel and does not return the value set to the register. Because of this, if there is impedance to the pin it may not return the proper setting. For example, if the channel is set to drive high and some impedance causes it to drive low, then this register will read low (0). To guarantee the correct setting is read, please refer to the TTL Loopback register.

TTL Data

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	Ch.8	Ch.7	Ch.6	Ch.5	Ch.4	Ch.3	Ch.2	Ch.1	Channel
0	D	D	D	D	D	D	D	D	D=DATA BIT

TTL Loopback

Function: Reads back TTL output channel(s) register contents. Bitmapped per TTL channel.

Function Address Offset(s): 0x0A

Type: binary word (16-bit)

Read/Write: R

Initialized Value: 0x00

Operational Settings: Reads the state of output register for each channel, regardless of the state of the I/O channel. Note

This provides the last commanded/written output value, which may differ from the TTL Data ‘read’ status (if there is a problem, can be used for BIT status).

TTL Loop Back

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	Ch.8	Ch.7	Ch.6	Ch.5	Ch.4	Ch.3	Ch.2	Ch.1	Channel
0	D	D	D	D	D	D	D	D	D=DATA BIT

TTL IRQ Enable

Function: To configure a channel as in interrupt, its corresponding TTL_DIR register must be set for inputs (0). Setting the channel’s bit in this register selects the channel to be enabled for as an interrupt. Bitmapped per TTL channel. Function Address Offset(s): 0x14

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x00

Operational Settings: Write 1 to enable interrupts for selected channel. Write 0 for interrupts not enabled, is default.

TTL Enable Interrupts

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	Ch.8	Ch.7	Ch.6	Ch.5	Ch.4	Ch.3	Ch.2	Ch.1	Channel
0	D	D	D	D	D	D	D	D	D=DATA BIT

TTL IRQ Polarity

Function: When a channel TTL IRQ Enable register bit is enabled, this register determines whether the interrupt will be generated for either a “rising edge” or “falling edge” event detection. Bitmapped per TTL channel.

Function Address Offset(s): 0x16

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x00

Operational Settings: Write a 1 to sense on a rising edge and a 0 to sense on a falling edge

TTL Set Edge/Level Interrupt

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	Ch.8	Ch.7	Ch.6	Ch.5	Ch.4	Ch.3	Ch.2	Ch.1	Channel
0	D	D	D	D	D	D	D	D	D=DATA BIT

TTL IRQ Status

Function: When an interrupt for a channel or channels occurs, the corresponding bit for that channel will be set High in this register. Bitmapped.

Function Address Offset(s): 0x18

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x00

Operational Settings: When a TTL input channel generates an interrupt, the corresponding bit in the TTL_IRQ_STAT is set High (1). Once a bit is set by a transition on the input pin, the bit remains set until cleared by a register write. Writing a (1) to the corresponding bit resets the interrupt status to (0).

TTL Interrupt Status

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	Ch.8	Ch.7	Ch.6	Ch.5	Ch.4	Ch.3	Ch.2	Ch.1	Channel
0	D	D	D	D	D	D	D	D	D=DATA BIT

Discrete Registers

On the 67PPC2, there is an option for 8 General Purpose Input signals. These signals are designed to sense grounded and open/floating inputs. They use the same channels as the TTL I/O signals, and the registers must be configured the same way as the input TTLs. The Discrete option shares the same register descriptions as the TTL input, with the addition of the Discrete Data register.

The typical input circuit is in the figure below.

Each input has a 5 K resistor in series with it, to provide input protection.

Inputs can tolerate voltages from -48 v to + 48 v.

Output logic is the inversion of the input state. An Input voltage below 3.0 volts is a valid Low input and produces a valid High output state. An Input voltage above 3.5 volts is a valid High input and produces a valid Low output state.

Each input is pulled up to 5 volts through a 14 K resistor (5 K + 9 K), with a Diode in series.

If the input is open or loaded with impedance greater than 100 K to GND, it will produce a logic Low output state.

If the input is shorted to GND or loaded with impedance to GND less than 100 Ohms, it will produce a logic High output state. In addition, each input has a bi-directional 48 v transient voltage suppressor to GND.

Discrete Data

Function: Reads the discrete input of all channel’s I/O pin.

Function Address Offset(s): 0x0C

Type: binary word (16-bit)

Read/Write: R

Initialized Value: 0x00

Operational Settings: Each GPI backplane input pin is connected to two input circuits.

Redundant input states (In xR) can also be read.

Discrete Inputs

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
In 8R	In 7R	In 6R	In 5R	In 4R	In 3R	In 2R	In 1R	In 8	In 7	In 6	In 5	In 4	In 3	In 2	In 1	D=DATA BIT

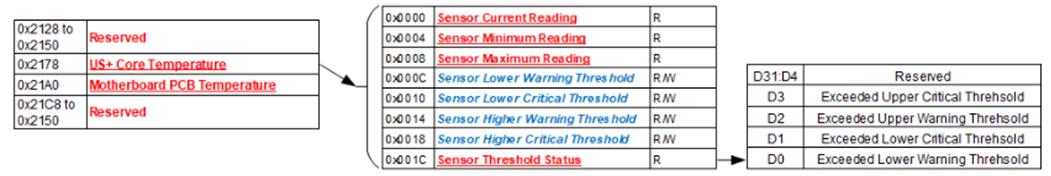

Temperature Sensing

Temperature Alarm Override Select

Function: Overrides temperature alarm auto shutdown.

Function Address Offset(s): 0x1A

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x0000

Operational Settings: Write a 1 to override the temperature alarm automatic shutdown. Default value = 0.

Temperature Alarm Override Select D: [1 = Temperature Alarm Shutdown Disabled; 0 = Temperature Alarm Shutdown Enabled]

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	D	D=DATA BIT

Temperature Alarm Interrupt Status

Function: Clears latched temperature alarm status.

Function Address Offset(s): 0x1E

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x0000

Operational Settings: Write a 1 to clear the interrupt status. Default value = 0.

Temperature Alarm Override Select D: [1 = Clear Interrupts; 0 = Default]

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	D	D=DATA BIT

Temperature Alarm Interrupt Enable

Function: Enables temperature alarm interrupt.

Function Address Offset(s): 0x20

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x0000

Operational Settings: Write a 1 to enable the temperature alarm interrupt. Default value = 0.

Temperature Alarm Override Select D: [1 = Enable Interrupts; 0 = Default]

D15-D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	D	D=DATA BIT

Power Shutdown

Power Down Command

Function: Shuts down power to the board.

Function Address Offset(s): 0x1C

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0x000

Operational Settings: Write the proper sequence of words “0xDEAD” followed by “0xC0DE” to initiate a power shutdown.

Power Down Command

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D=DATA BIT

Bank Select

Function: Selects the Bank to boot from.

Function Address Offset(s): 0x04

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: By default, the motherboard will boot from the second bank (bank 1). If you cannot boot the board remove the NOR jumper to force the board to boot from the first bank (bank 0). Bank 0 contains a recovery image for the board. Please view this flowchart to see how the setting of this register affects how your board boots.

Bank Select

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D	D=DATA BIT

Processor Restart Enable

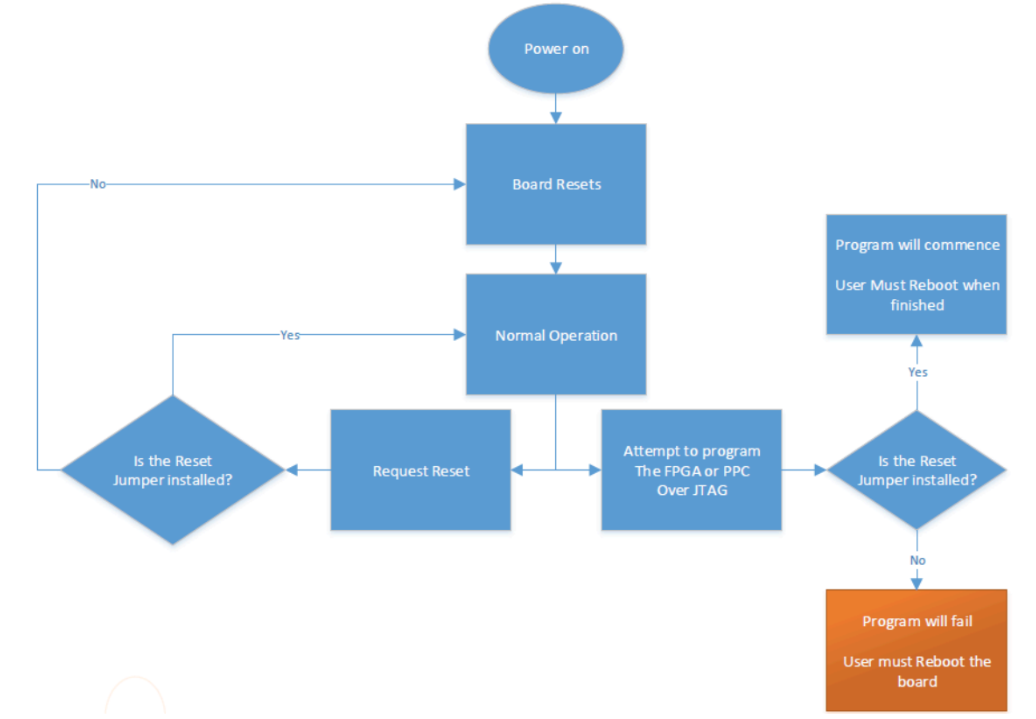

Function: Selects whether the Processor can restart the board.

Function Address Offset(s): 0x0E

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Write a 1 to this register to enable processor restarts. If the Reset jumper is installed a reset cannot occur. Please view this flowchart to see how the setting of this register affects the operation of the board.

Processor Restart Enable

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D	D=DATA BIT

SATA Location Select

Function: Selects whether to use external SATA storage through the backplane or module two SATA storage.

Function Address Offset(s): 0x02

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Write a 0 to this register to use module two SATA storage. Write a 1 to use external SATA storage through the backplane.

SATA Location Select

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D	D=DATA BIT

Watchdog

Watchdog Enable

Function: Enables the hardware Watchdog Timer.

Function Address Offset(s): 0x22

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Write a 0 to this register to disable the Watchdog Timer. Write a 1 to enable the Watchdog Timer

Watchdog Enable

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D	D=DATA BIT

Watchdog Time Set

Function: Set the duration of the hardware Watchdog Time in “counts”. (524uS per count)

Function Address Offset(s): 0x24

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Write a 0 to this register to disable the Watchdog Timer. Write a 1 to enable the Watchdog Timer

Watchdog Enable

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D=DATA BIT

Watchdog Reset

Function: Resets the hardware Watchdog elapsed time.

Function Address Offset(s): 0x26

Type: binary word (16-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Write a 1 to this register to reset the Watchdog elapsed time. This will “pet” the watchdog.

Watchdog Enable

D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D	D=DATA BIT

67PPC2 SOFTWARE LIBRARIES/ASSOCIATED DOCUMENTS

67PPC2 BSP processor Module Library

The 67PPC2 Processor library package provides function interfaces to the on-module functionality as well as the OpenVPX interface. This package contains Help documentation (in html format) that explains all the functions available in the library. The package also contains the source code (**.h, **.c) files as well as the files needed to build the library using Wind River Linux or other supported operating systems similar. Example programs are also provided to demonstrate the usage of the libraries in typical applications of the module.

Associated Documents

NAI Documents

*Programmer’s Reference Guide for NAI 67PPC2 Single Board Computer (TBD)

*67PPC2 Ethernet Download (TBD)

*67PPC2 USB Download (TBD)

*Standalone documents “pending/TBD”; currently, all reference documentation required are embedded within the specific OS 67PPC2 BSP/Support documentation (i.e. BSPx.x.x \ layers \ nai_bsp \ templates \ board \ nai67PPC2 \ (README) files (where x.x.x is the BSP version/revision available).

Processor

T2080 QorIQ Integrated Processor Hardware Specifications

T2080 QorIQ Integrated Multicore Communication Processor Family Reference Manual e500mc Core Reference Manual

REGISTER MEMORY MAP ADDRESSING

The register map address consists of the following:

• cPCI/PCIe BAR or Base Address for the Board • Module Slot Base Address • Function Offset Address

Board Base Address

The table below lists the BAR used for access to the motherboard and module registers. The second BAR is used internally for motherboard and module firmware updates. The other cPCI/PCIe BARs not listed are not used.

NAI Boards	Device ID	Bus	Motherboard and Module Register Access	Motherboard and Module Firmware Updates
Controller/Master Boards
67PPC2	0x6784	PCIe	BAR 1 Size: Module Dependent (minimum 64K Bytes)	BAR 2 Size: 1M Bytes

Module Slot and Function Addresses

The memory map for the modules are dependent on the types of modules on the board and the order in which the modules are installed on the board as well as the firmware installed on the motherboard. The function modules are enumerated allowing for dynamic memory space allocation and therefore the “start” address of the module function register area is factory pre-defined (and read from) the Module Address register. Refer to Figure 1 for an example.

Figure 1. Register Memory Map Addressing for Motherboards with 6 Modules

Address Calculation

Motherboard Registers

Read/Write access to the motherboard registers starts with the base address for the board and then the motherboard base offset address.

For example, to address Module Slot 1 Start Address register (i.e. register address = 0x0400):

Start with the base address for the board.
Add the motherboard base register address offset.

Motherboard Address =	Base Address Motherboard Address Offset	= 0x9000 0400
	0x9000 0000 + 0x0400

Module Registers:

Read/Write access to the Function module’s registers start with the base address of the board. Add the “content” for the Module Start Address and then, add the specific module function register offset.

For example, to address an appropriate/specific function module with a register offset:

Start with the base address for the board.
Add the value (contents) from the module base address offset register (contents/value of Motherboard Memory register for Module 1 (i.e., @ 0x0400) = 0x4000.
Then add the specific module function Register Offset of interest (i.e., A/D Reading Ch 1 @ 0x1000)

(Function Specific) Address =	Base Address +	Module Base Address Offset +	Function Register Offset	= 0x9000 5000
(Function Specific) Address =	0x9000 0000	0x4000	0x1000	= 0x9000 5000

MOTHERBOARD COMMON REGISTER DESCRIPTIONS

Module Information Registers

The Module Slot Addressing Ready, Module Slot Address, Module Slot Size and Module Slot ID registers provide information about the modules detected on the board.

Module Slot Addressing Ready

Function: Indicates that the module slots are ready to be addressed.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: 0xA5A5A5A5
Operational Settings: This register will contain the value of 0xA5A5A5A5 when the module addresses have been determined.
Link to original

Module Slot Address
Function: Specifies the Base Address for the module in the specific slot position.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Based on board's module configuration.
Operational Settings: 0x0000 0000 indicates no Module found.
Link to original

Module Slot Size
Function: Specifies the Memory Size (in bytes) allocated for the module in the specific slot position.
Type: unsigned binary word (32-bit)
Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Assigned by factory for the module.
Operational Settings: 0x0000 0000 indicates no Module found.
Link to original

Module Slot ID
Function: Specifies the Model ID for the module in the specified slot position.
Type: 4-character ASCII string
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Assigned by factory for the module.
Operational Settings: The Module ID is formatted as four ASCII bytes: three characters followed by a space. Module IDs are in little-endian order with a single space following the first three characters. For example, 'TL1' is '1LT', 'SC1' is '1CS' and so forth. Example below is for “TL1” (MSB justified). All value of 0000 0000 indicates no Module found.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
ASCII Character (ex: 'T' - 0x54) ASCII Character (ex: 'L' - 0x4C)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
ASCII Character (ex: '1' - 0x31) ASCII Space (' ' - 0x20)
Link to original

Hardware Information Registers

The registers identified in this section provide information about the board’s hardware.

Product Serial Number
Function: Specifies the Board Serial Number.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Serial number assigned by factory for the board.
Operational Settings: N/A
Link to original

Platform

Function: Specifies the Board Platform Identifier. Values are for the ASCII characters for the NAI valid platforms (Identifiers).

Type: unsigned binary word (32-bit)

Data Range: See table below.

Read/Write: R

Initialized Value: ASCII code is for the Platform Identifier of the board

Operational Settings: Valid NAI platform and the associated value for the platform is shown below:

NAI Platform	Platform Identifier	ASCII Binary Values (Note: little-endian order of ascii values)
3U VPX	67	0x0000 3736

Model

Function: Specifies the Board Model Identifier. Value is for the ASCII characters for the NAI valid model.

Type: unsigned binary word (32-bit)

Data Range: See table below.

Read/Write: R

Initialized Value: ASCII code is for the Model Identifier of the board

Operational Settings: Example of NAI model and the associated value for the model is shown below:

NAI Model	ASCII Binary Values (Note: little-endian order of ascii values)
PPC	0x0043 5050

Generation

Function: Specifies the Board Generation. Identifier values are for the ASCII characters for the NAI valid generation identifiers.

Type: unsigned binary word (32-bit)

Data Range: See table below.

Read/Write: R

Initialized Value: ASCII code is for the Generation Identifier of the board

Operational Settings: Example of NAI generation and the associated value for the generation is shown below:

NAI Generation	ASCII Binary Values (Note: little-endian order of ascii values)
2	0x0000 0032

Processor Count/Ethernet Count

Function: Specifies the Processor Count and Ethernet Count

Type: unsigned binary word (32-bit)

Data Range: See table below.

Read/Write: R

Operational Settings:

 Processor Count - Integer: indicates the number of unique processor types on the motherboard.

NAI Board		Processor Count	Description
6U-VPX	67PPC2	2	NXP QorIQ T2080 Quad-Core e6500 Processor Xilinx Zynq UltraScale+

 Ethernet Interface Count - Indicates the number of Ethernet interfaces on the product motherboard. For the 67PPC2, the Ethernet Count is set for Dual Ethernet = 2.

Processor/Ethernet Interface Count

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Processor Count (See Table)

D15

D14

D13

D12

D11

D10

Ethernet Count (0x0002)

Maximum Module Slot Count/ARM Platform Type

Function: Specifies the Maximum Module Slot Count and ARM Platform Type.

Type: unsigned binary word (32-bit)

Data Range: See table below.

Read/Write: R

Operational Settings:

Maximum Module Slot Count - Indicates the number of modules that can be installed on the product.

ARM Platform - Altera = 1; Xilinx X1 = 2; Xilinx X2 = 3; UltraScale = 3

NAI Board		Maximum Module Slot Count	ARM Platform Type
6U-VPX	67PPC2	6	UltraScale = 3

Maximum Module Slot Count / ARM Platform Type

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

ARM Platform Type (See Table)

D15

D14

D13

D12

D11

D10

Maximum Module Slot Count (See Table)

Processor Operating System Registers

The registers in this section provide information about the Operating System that is running on the host processor on the motherboard. For boards that have more than one processor (ex. 75PPC1, 75INT2, 68PPC2, etc), the host processor would be the Power-PC or Intel processor.

ARM Processor Platform

Function: Specifies the ARM Processor on the motherboard. Values are for the ASCII characters for the NAI host processor platforms specified by the Operating System.

Type: 8-character ASCII string - Two (2) unsigned binary word (32-bit)

Data Range: N/A

Read/Write: R

Initialized Value: ASCII code is for the Host Platform Identifier of the board

Operational Settings: Valid NAI platforms based on Operating System loaded to host processor.

Processor Platform (Note: 8-character ASCII string) (“aarch64”)

Word 1 (0x6372 6161 = “craa”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

'c' (0x63)

'r' (0x72)

D15

D14

D13

D12

D11

D10

'a' (0x61)

Word 2 (0x0034 3668 = “ 46h”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

null (0x00)

'4' (0x34)

D15

D14

D13

D12

D11

D10

'6' (0x36)

'h' (0x68)

Processor Operating System

Function: Specifies the Operating System installed for the host processor. Values are for the ASCII characters for the NAI supported operating systems.

Type: 12-character ASCII string - Three (3) unsigned binary word (32-bit)

Data Range: N/A

Read/Write: R

Operational Settings: ASCII, 12 characters; (‘Linux’, ‘VxWorks’, ‘RTOS’, …)

Processor Platform (Note: 12-character ASCII string) (“Linux”)

Word 1 (0x756E 694C = “uniL”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

'u' (0x75)

'n' (0x6E)

D15

D14

D13

D12

D11

D10

'i' (0x69)

'L' (0x4C)

Word 2 (0x0000 0078 = “ x”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

null (0x00)

D15

D14

D13

D12

D11

D10

null (0x00)

'x' (0x78)

Word 3 (0x0000 0000 = “ ”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

null (0x00)

D15

D14

D13

D12

D11

D10

null (0x00)

Processor Operating System Version

Function: Specifies the Version of Operating System installed for the host processor.

Type: 8-character ASCII string - Two (2) unsigned binary word (32-bit)

Data Range: N/A

Read/Write: R

Operational Settings: ASCII, 8 characters

Processor Platform (Note: little-endian order of ascii values) (ex. “4.14.0”)

Word 1 (Ex. 0x3431 2E34 = “41.4”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

'4' (0x34)

'1' (0x31)

D15

D14

D13

D12

D11

D10

'.' (0x2E)

'3' (0x34)

Word 2 (Ex.0x 0000 302E = “0.”)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

null (0x00)

D15

D14

D13

D12

D11

D10

'0' (0x30)

'.' (0x2E)

Motherboard Firmware Information Registers

The registers in this section provide information on the revision of the firmware installed on the motherboard.

Transclude of Mbcore-Firmware-Version-67Ppc2

Motherboard Firmware Build Time/Date

Function: Specifies the Build Date/Time of the NAI factory provided Motherboard Core Application installed on the board.
Type: Two (2) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Operational Settings: The motherboard firmware time consists of the Build Date and Build Time.
NOTE: On some builds the the Date/Time fields are fixed to 0000 0000 to maintain binary consistency across builds.

Motherboard Firmware Build Time (Note: little-endian order in register)
Word 1 - Build Date (ex. 0x0E05 07E5 = 2021-5-14)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Day (ex: 0x0E = 14) Month (ex: 0x05 = 5)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year (ex: 0x07E5 = 2021)
Word 2 - Build Time (ex. 0x0005 3712 = 18:55:05)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
null (0x00) Seconds (ex: 0x05 = 05)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minutes (ex: 0x37 = 55) Hours (ex: 0x12 = 18)
Link to original

Transclude of Mb-Fpga-Firmware-Version-67Ppc2

Transclude of Mb-Fpga-Compile-Date-Time-67Ppc2

Motherboard Monitoring Registers

The registers in this provide motherboard temperature measurement information, and where applicable the host processor processor measurements.

Temperature Readings Register

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) for the processor and PCB for Zynq processor, and for the Slave processor.

These registers are only available on Xilinx Generation 5 platforms, and are periodically populated by the motherboard core application, which only runs in Petalinux and BareMetal. For other operating systems, refer to the naibrd Software Support Kit (SSK) naibsp_system_Monitor_Temperature_Get() routine to manually retrieve the temperature (NOTE: this feature is typically utilized for development/factory use only; contact the factory for additional details on potential use, if required).

Function: Specifies the Measured Temperatures on Motherboard.

Type: signed byte (8-bits) for each temperature reading - Six (6) 32-bit words

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: R

Initialized Value: Value corresponding to the measured temperatures based on the table below.

Operational Settings: The 8-bit temperature readings are signed bytes. For example, if the following register contains the value 0x6955 E7D8:

Example:

Word 1 (Current UltraScale & Host Temperatures)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
UltraScale Core Temperature UltraScale PCB Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Host Core Temperature Host PCB Temperature

The values would represent the following temperatures:

Temperature Measurements Data Bits Value Temperature (Celsius)
UltraScale Core Temperature D31:D24 0x69 +105°
UltraScale PCB Temperature D23:D16 0x55 +85°
Host Core Temperature D15:D8 0xE7 -25°
Host PCB Temperature D7:D0 0xD8 -40°

Temperature Readings

Word 1 (Current UltraScale & Host Temperatures)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
UltraScale Core Temperature UltraScale PCB Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Host Core Temperature Host PCB Temperature

Word 2 (Max Host Temperatures)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0x00 0x00
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Max Host Core Temperature Max Host PCB Temperature

Word 3 (Max UltraScale & Min Host Temperatures)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Max UltraScale Core Temperature Max UltraScale PCB Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Min Host Core Temperature Min Host PCB Temperature00

Word 4 (Reserved)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0x00 0x00
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0x00 0x00

Word 5 (Min UltraScaleTemperatures)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Min UltraScale Core Temperature Min UltraScale PCB Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0x00 0x00

Word 6 (Reserved)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0x00 0x00
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0x00 0x00
Link to original

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current UltraScale and PCB temperatures.

Higher Precision UltraScale Core Temperature

Function: Specifies the Higher Precision Measured UltraScale Core temperature on Motherboard Board.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured UltraScale Core temperature on Motherboard Board
Operational Settings: The upper 16-bits represent the signed integer part of the temperature, and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents UltraScale Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature
Link to original

Higher Precision Motherboard PCB Temperature
Function: Specifies the Higher Precision Measured Motherboard PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Motherboard PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature
Link to original

Motherboard Health Monitoring Registers

The registers in this section provide motherboard voltage, current and temperature measurement information.

Transclude of Sensor-Summary-Status-Us

Motherboard Sensor Registers

The registers listed in this section apply to each module sensor listed for the Motherboard Sensor Summary Status register.

Transclude of Mb-Sensor-Registers-Us

Sensor Threshold Status
Function: Reflects which threshold has been crossed
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s) Description
D31:D4 Reserved
D3 Exceeded Upper Critical Threshold
D2 Exceeded Upper Warning Threshold
D1 Exceeded Lower Critical Threshold
D0 Exceeded Lower Warning Threshold
Link to original

Sensor Current Reading
Function: Reflects current reading of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Link to original

Sensor Minimum Reading
Function: Reflects minimum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Link to original

Sensor Maximum Reading
Function: Reflects maximum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Link to original

Sensor Lower Warning Threshold
Function: Reflects lower warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.
Link to original

Sensor Lower Critical Threshold
Function: Reflects lower critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.
Link to original

Sensor Upper Warning Threshold
Function: Reflects upper warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.
Link to original

Sensor Upper Critical Threshold
Function: Reflects upper critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.
Link to original

Ethernet Configuration Registers

The registers in this section provide information about the Ethernet Configuration for the two ports on the board.

Important: Regardless if the board is configured for one or two Ethernet ports, the second IP address cannot be on the same Subnet as the First IP Address. The table below provides examples of valid and invalid IP Addresses and Subnet Mask Addresses.

First Port (A) IP Address First Port (A) Subnet Mask Second Port (B) IP Address Second Port (B) Subnet Mask Result
192.168.1.5 255.255.255.0 192.168.2.5 255.255.255.0 Good
192.168.1.5 255.255.0.0 192.168.2.5 255.255.0.0 Conflict
192.168.1.5 255.255.0.0 192.168.2.5 255.255.255.0 Conflict
10.0.0.15 255.0.0.0 192.168.1.5 255.255.255.0 Good
Link to original

Ethernet MAC Address and Ethernet Settings
Function: Specifies the Ethernet MAC Address and Ethernet Settings for the Ethernet port.
Type: Two (2) unsigned binary word (32-bit)
Data Range: See table.
Read/Write: R
Operational Settings: The Ethernet MAC Address consists of six octets. The Ethernet Settings are defined in table.

Bits Description Values
D31:D23 Reserved 0
D22:D21 Duplex 00 = Not Specified, ` 01 = Half Duplex, ` 10 = Full Duplex, + 11 = Reserved
D20:D18 Speed 000 = Not Specified, ` 001 = 10 Mbps, ` 010 = 100 Mbps, ` 011 = 1000 Mbps, ` 100 = 2500 Mbps, ` 101 = 10000 Mbps, ` 110 = Reserved, + 111 = Reserved
D17 Auto Negotiate 0 = Enabled, + 1 = Disabled
D16 Static IP Address 0 = Enabled, + 1 = Disabled

Ethernet MAC Address and Ethernet Settings (Note: little-endian order in register)
Word 1 (Ethernet MAC Address (Octets 1-4)) (ex: aa:bb:cc:dd:ee:ff)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
MAC Address Octet 4 (ex: 0xDD) MAC Address Octet 3 (ex: 0xCC)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
MAC Address Octet 2 (ex: 0xBB) MAC Address Octet 1 (ex: 0xAA)
Word 2 (Ethernet MAC Address (Octets 5-6) and Ethernet Settings)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Ethernet Settings (See table)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
MAC Address Octet 6 (ex: 0xFF) MAC Address Octet 5 (ex: 0xEE)
Link to original

Ethernet Interface Name
Function: Specifies the Ethernet Interface Name for the Ethernet port.
Type: 8-character ASCII string
Data Range: See table.
Read/Write: R
Operational Settings: The Ethernet Interface Name (eth0, eth1, etc) for the Ethernet port.

Ethernet Interface Name (Note: ascii string in register) (ex. “eth0”)
Word 1 (Bit 0-31) (ex: 0x3068 7465 = “0hte”)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
ASCII Character (ex: '0' - 0x30) ASCII Character (ex: 'h' - 0x68)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
ASCII Character (ex: 't' - 0x74) ASCII Character (ex: 'e' - 0x65)
Word 2 (Bit 32-63) (ex: 0x0000 0000)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
ASCII Character (ex: null - 0x00) ASCII Character (ex: null - 0x00)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
ASCII Character (ex: null - 0x00) ASCII Character (ex: null - 0x00)
Link to original

Ethernet IPv4 Address
Function: Specifies the Ethernet IPv4 Address for the Ethernet port.
Type: Three (3) unsigned binary word (32-bit)
Data Range: See table.
Read/Write: R
Operational Settings: The Ethernet IPv4 Address consists of three parts: IPv4 Address, IPv4 Subnet Mask and IPv4 Gateway.

Ethernet IPv4 Address (Note: little-endian order in register)
Word 1 (Ethernet IPv4 Address) (ex: 0x1001 A8C0 = 192.168.1.16)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
IPv4 Address Octet 4 (ex: 0x10 = 16) IPv4 Address Octet 3 (ex: 0x01 = 1)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
IPv4 Address Octet 2 (ex: 0xA8 = 168) IPv4 Address Octet 1 (ex: 0xC0 = 192)
Word 2 (Ethernet IPv4 Subnet) (ex: 0x00FF FFFF = 255.255.255.0)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
IPv4 Subnet Octet 4 (ex: 0x00 = 0) IPv4 Subnet Octet 3 (ex: 0xFF = 255)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
IPv4 Subnet Octet 2 (ex: 0xFF = 255) IPv4 Subnet Octet 1 (ex: 0xFF = 255)
Word 3 (Ethernet IPv4 Gateway) (ex: 0x0101 A8C0 = 192.168.1.1)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
IPv4 Gateway Octet 4 (ex: 0x01 = 1) IPv4 Gateway Octet 3 (ex: 0x01 = 1)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
IPv4 Gateway Octet 2 (ex: 0xA8 = 168) IPv4 Gateway Octet 1 (ex: 0xC0 = 192)
Link to original

Ethernet IPv6 Address
Function: Specifies the Ethernet IPv6 Address for the Ethernet port.
Type: Five (5) unsigned binary word (32-bit)
Data Range: See table.
Read/Write: R
Operational Settings: The IPv6 Prefix length indicates the network portion of an IPv6 address using the following format: IPv6 address/prefix length ` Prefix length can range from 0 to 128 ` * Typical prefix length is 64

The following is an illustration of IPv6 addressing with IPv6 Prefix length of 64.

64 bits 64 bits
Prefix Interface ID
Prefix 1 Prefix 2 Prefix 3 Subnet ID Interface ID 1 Interface ID 2 Interface ID 3 Interface ID 4
Example: 2002:c0a8:101:0:7c99:d118:9058:1235/64
2002 C0A8 0101 0000 7C99 D118 9058 1235

Ethernet IPv6 Address (Note: little-endian order within 32-bit and 16-bit words in register) (ex. IPv6 Address: 2002:c0a8:201:0:7c99:d118:9058:1235 IPv6 Prefix: 64)
Word 1 (Ethernet IPv6 Address (Prefix 1-2)) (ex:0xA8C0 0220 = 2002 C0A8)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Prefix 2 (ex: 0xA8C0 = C0A8)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Prefix 1 (ex: 0x0220 = 2002)
Word 2 (Ethernet IPv6 Address (Prefix 3/Subnet ID)) + (ex:0x000 0101 = 0101 0000)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Subnet ID (ex: 0x0000 = 0000)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Prefix 3 (ex: 0x0101 = 0101)
Word 3 (Ethernet IPv6 Address (Interface ID 1-2)) + (ex: 0x18D1 997C = 7C99 D118)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Interface ID 2 (ex: 0x18D1 = D118)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Interface ID 1 (ex: 0x997C = 7C99)
Word 4 (Ethernet IPv6 Address (Interface ID 3-4)) + (ex: 0x3512 5890 = 9058 1235)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Interface ID 4 (ex: 0x3512 = 1235)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Interface ID 3 (ex: 0x5890 = 9058)
Word 5 (Ethernet IPv6 Prefix Length) + (ex:0x0000 0040)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Prefix Length (ex: 0x0040 = 64)
Link to original

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function: Set an identifier for the interrupt.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function: Sets where to direct the interrupt.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME 1
Direct Interrupt to ARM Processor (via SerDes) +
(Custom App on ARM or NAI Ethernet Listener App) 2
Direct Interrupt to PCIe Bus 5
Direct Interrupt to cPCI Bus 6
Link to original

Modules Health Monitoring Registers

Module BIT Status

Function: Provides the ability to monitor the individual Module BIT Status.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: R

Operational Settings: The Module BIT Status registers provide the ability to monitor individual Module BIT results as Latched and current value. A 1 is any bit field indicates BIT failure for the Module in that slot.

Module BIT Status

Bit(s) Description
D31:23 Reserved
D22 Module Slot 6 BIT Failure (current value)
D21 Module Slot 5 BIT Failure (current value)
D20 Module Slot 4 BIT Failure (current value)
D19 Module Slot 3 BIT Failure (current value)
D18 Module Slot 2 BIT Failure (current value)
D17 Module Slot 1 BIT Failure (current value)
D16 Reserved
D15:D7 Reserved
D6 Module Slot 6 BIT Failure - Latched
D5 Module Slot 5 BIT Failure - Latched
D4 Module Slot 4 BIT Failure - Latched
D3 Module Slot 3 BIT Failure - Latched
D2 Module Slot 2 BIT Failure - Latched
D1 Module Slot 1 BIT Failure - Latched
D0 Reserved
Link to original

Scratchpad Area

Scratchpad Area
Function: Registers reserved as scratch pad for customer use.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R/W
Operational Settings: This area in memory is reserved for customer use.
Link to original

MOTHERBOARD FUNCTION REGISTER MAP

Key:

Bold Underline = Measurement/Status/Board Information

Bold Italic = Configuration/Control

Module Information Registers

0x03FC	Module Slot Addressing Ready	R

0x0400	Module Slot 1 Address	R
0x0404	Module Slot 2 Address	R
0x0408	Module Slot 3 Address	R
0x040C	Module Slot 4 Address	R
0x0410	Module Slot 5 Address	R
0x0414	Module Slot 6 Address	R

0x0430	Module Slot 1 Size	R
0x0434	Module Slot 2 Size	R
0x0438	Module Slot 3 Size	R
0x043C	Module Slot 4 Size	R
0x0440	Module Slot 5 Size	R
0x0444	Module Slot 6 Size	R

0x0460	Module Slot 1 ID	R
0x0464	Module Slot 2 ID	R
0x0468	Module Slot 3 ID	R
0x046C	Module Slot 4 ID	R
0x0470	Module Slot 5 ID	R
0x0474	Module Slot 6 ID	R

Hardware Information Registers

0x0020	Product Serial Number	R

0x0024	Platform	R
0x0028	Model	R
0x002C	Generation	R

0x0030	Processor Count/Ethernet Count	R
0x0034	Maximum Module Slot Count/ARM Platform Type	R

0x0038	Processor Platform (Bit 0-31)	R
0x003C	Processor Platform (Bit 32-63)	R

0x0040	Processor Operating System (Bit 0-31)	R
0x0044	Processor Operating System (Bit 32-63)	R
0x0048	Processor Operating System (Bit 64-95)	R

0x004C	Processor Operating System Version (Bit 0-31)	R
0x0050	Processor Operating System Version (Bit 32-63)	R

Motherboard Firmware Information Registers

Motherboard Core Information

0x0100	MB Core Major/Minor Version	R
0x0104	MB Core Minor 2/3 Version	R
0x0108	MB Core Build Date (Bit 0-31)	R
0x010C	MB Core Build Date (Bit 32-63)	R

Motherboard FPGA Information

0x0270	MB FPGA Revision	R
0x0274	MB FPGA Compile Date/Time	R

Motherboard Monitoring Registers

Temperature Readings

0x0200	Current UltraScale & Host Temperatures	R
0x0204	Max Host Temperatures	R
0x0208	Max UltraScale & Min Host Temperatures	R
0x020C	Reserved	R
0x0210	Min UltraScale Temperatures	R
0x0214	Reserved	R

Higher Precision Temperature Readings

0x0230	Current UltraScale Core Temperature	R
0x0234	Current UltraScale PCB Temperature	R

Motherboard Health Monitoring Registers

0x20F8	Motherboard Sensor Summary Status	R

Ethernet Configuration Registers

0x0070	Ethernet A MAC (Octets 1-4)	R
0x0074	Ethernet A MAC (Octets 5-6)/Misc Settings	R

0x0078	Ethernet A Interface Name (Bit 0-31)	R
0x007C	Ethernet A Interface Name (Bit 32-63)	R

0x0080	Ethernet A IPv4 Address	R
0x0084	Ethernet A IPv4 Subnet Mask	R
0x0088	Ethernet A IPv4 Gateway	R

0x008C	Ethernet A IPv6 Address (Prefix 1-2)	R
0x0090	Ethernet A IPv6 Address (Prefix 3/Subnet ID)	R
0x0094	Ethernet A IPv6 Address (Interface ID 1-2)	R
0x0098	Ethernet A IPv6 Address (Interface ID 3-4)	R
0x009C	Ethernet A IPv6 Prefix Length	R

0x00A0	Ethernet B MAC (Octets 1-4)	R
0x00A4	Ethernet B MAC (Octets 5-6)/Misc Settings	R

0x00A8	Ethernet B Interface Name (Bit 0-31)	R
0x00AC	Ethernet B Interface Name (Bit 32-63)	R

0x00B0	Ethernet B IPv4 Address	R
0x00B4	Ethernet B IPv4 Subnet Mask	R
0x00B8	Ethernet B IPv4 Gateway	R

0x00BC	Ethernet B IPv6 Address (Prefix 1-2)	R
0x00C0	Ethernet B IPv6 Address (Prefix 3/Subnet ID)	R
0x00C4	Ethernet B IPv6 Address (Interface ID 1-2)	R
0x00C8	Ethernet B IPv6 Address (Interface ID 3-4)	R
0x00CC	Ethernet B IPv6 Prefix Length	R

Interrupt Vector and Steering

0x0500 - 0x057C	*Module 1 Interrupt Vector 1 - 32*	R/W	0x0600 - 0x067C	*Module 1 Interrupt Steering 1 - 32*	R/W
0x0700 - 0x077C	*Module 2 Interrupt Vector 1 - 32*	R/W	0x0800 - 0x087C	*Module 2 Interrupt Steering 1 - 32*	R/W
0x0900 - 0x097C	*Module 3 Interrupt Vector 1 - 32*	R/W	0x0A00 - 0x0A7C	*Module 3 Interrupt Steering 1 - 32*	R/W
0x0B00 - 0x0B7C	*Module 4 Interrupt Vector 1 - 32*	R/W	0x0C00 - 0x0C7C	*Module 4 Interrupt Steering 1 - 32*	R/W
0x0D00 - 0x0D7C	*Module 5 Interrupt Vector 1 - 32*	R/W	0x0E00 - 0x0E7C	*Module 5 Interrupt Steering 1 - 32*	R/W
0x0F00 - 0x0F7C	*Module 6 Interrupt Vector 1 - 32*	R/W	0x1000 - 0x107C	*Module 6 Interrupt Steering 1 - 32*	R/W

Module Health Monitoring Registers

Module BIT Status

0x0128	Module BIT Status (current and latched)	R

Scratchpad Area

0x3800 - 0x3BFF	*Scratchpad Registers*	R/W

ETHERNET

(For detailed supplement, please visit the NAI web-site specific product page and refer to: Ethernet Interface for Generation 5 SBC and Embedded IO Boards Specification)

Note

For products capable of 10/100/1000Base-KX functionality - the product Ethernet PHY supports 1000BASE-X. Product interoperability with 10/100/1000BASE-KX is supported with 1000BASE-X (provided that auto-negotiation is disabled).

The Ethernet Interface Option allows communications and control access to all function modules either via the system BUS or Ethernet ports 1 or 2.

Ethernet 1 Ethernet 2 Ethernet 3* Ethernet 4*
(REF PORT A) (REF PORT B) (REF PORT C) (REF PORT D)
The default IP address: 192.168.1.16 192.168.2.16 192.168.3.16 192.168.4.16
The default subnet: 255.255.255.0 255.255.255.0 255.255.255.0 255.255.255.0
The default gateway: 192.168.1.1 192.168.2.1 192.168.3.1 192.168.4.1

*see Part Number Designation for applicability.

Note

Actual “as shipped” card Ethernet default IP addresses may vary based upon final ATP configuration(s).

The NAI interface supports IPv4 and IPv6 and both the TCP and UDP protocols. The Ethernet Operation Mode Command Listener application running on the motherboard host processor implements the operation interface. The listener is operational on startup through the nai_MBStartup process and listen on specific ports for commands to process. The default ports are listed below:

TCP1 - Port 52801

TCP2 - Port 52802

UDP1 - Port 52801

UDP2 - Port 52802

While the listener is active, note that interrupts from the motherboard do not trigger. The listener can be disabled by turning off the nai_MBStartup process through the Motherboard EEPROM. To turn off nai_MBStartup use the command mbeeprom_util set MBStartupInitOnlyFlag 1 in the console, either by serial port or telnet to the motherboard, and then reboot the system. To turn on the nai_MBStartup use the command mbeeprom_util set MBStartupInitOnlyFlag 0 in the console, either by serial port or telnet to the motherboard, and then reboot the system.

Ethernet Message Framework

The interface uses a specific message framework for all commands and responses. All messages begin with a Preamble code and end with a Postamble code. The message framework is shown below.

Preamble
2 bytes Always
0xD30F
SequenceNo
2 bytes
Type Code
2 byte
Message Length
(2 bytes)
Payload
(0..1414 bytes)
Postamble
2 bytes
Always
0xF03D

Message Elements

Preamble The Preamble is used to delineate the beginning of a message frame.
The Preamble is always 0xD30F.
SequenceNo The SequenceNo is used to associate Commands with Responses.
Type Code Type Codes are used to define the type of Command or Response the message contains.
Message Length The Message Length is the number of bytes in the complete message frame starting with and including the
Preamble and ending with and including the Postamble.
Payload The Payload contains the unique data that makes up the command or response.
Payloads vary based on command type.
Postamble The Postamble is use to delineate the end of a message frame.
The Postamble is always 0xF03D.

Notes

The messaging protocol applies only to card products.

Messaging is managed by the connected (client) computer. The client computer will send a single message and wait for a reply from the card. Multiple cards may be managed from a single computer, subject to channel and computer capacity.

Board Addressing

The interface provides two main addressing areas: Onboard and Off-board.

Onboard addressing refers to accessing resources located on the board that is implementing the operation interface (including its modules).

Off-board addressing refers to accessing resources located on another board reachable via VME, PCI, or other bus. Off-board addressing requires a Master/Slave configuration.

The user must always specify if a particular address is Onboard or Off-board. See the command descriptions for the onboard and off-board flags.

Within a particular board (Onboard or Off-board), the address space is broken up into two areas: Motherboard Common Address Space and Module Address Space. All addresses are 32-bit.

Motherboard Common Address Space starts at 0x00000000 and ends at 0x00004000. This is a 4Kx32-bit address space (16 kbytes).

Module Address Space starts at 0x00004000. Module addressing is dynamically configured at startup. NAI boards support between 1 and 6 modules. The minimum module address space size is 4Kx32 (16 kbytes) and module sizes are always a multiple of 4Kx32.

Module addressing is dynamic and cumulative. The first detected module (starting with Slot 1) is given an address of 0x00004000. The 2nd detected Module is given an address of:

First_Detected_Module_Address + First_Detected_Module_Size

Note

Slots do not define addresses.

If no module is detected in a module slot, that slot is not given an address. Therefore, if the first detected Module is in Slot 2, then that module address will be 0x00004000. If the next detected module is in Slot 4, then the address of that Module will be:

Second_Detected_Module_Address = First_Detected_Module_Address + First_Detected_Module_Size

If a 3rd Module is detected in Slot 6, then the address of that Module will be:

Third_Detected_Module_Address = Second_Detected_Module_Address + Second_Detected_Module_Size

Note

Module addresses are calculated at each board startup when the modules are detected. Therefore, if a module should fail to be detected due to malfunction or because it was removed from the motherboard, the addresses of the modules that follow it in the slot sequence will be altered. This is important to note when programming to this interface.

Users can always retrieve the Module Addresses, Module Sizes and Module IDs from the fixed Motherboard Common address area. This data is set upon each board startup. While the Module Addressing is dynamic, the address where these addresses are stored is fixed. For example, to find the startup address of the module location in Slot 3, refer to the MB Common Address 0x00000408 from the Motherboard Common Addresses table that follows.

Ethernet Wiring Convention

RJ-45 Pin T568A Color T568B Color 10/100Base-T 1000BASE-T NAI wiring convention
1 white/green stripe white/orange stripe TX+ DA+ ETH-TP0+
2 green orange TX- DA- ETH-TP0-
3 white/orange stripe white/green stripe RX+ DB+ ETH-TP1+
4 blue blue DC+ ETH-TP2+
5 white/blue stripe white/blue stripe DC- ETH-TP2-
6 orange green RX- DB- ETH-TP1-
7 white/brown stripe white/brown stripe DD+ ETH-TP3+
8 brown brown DD- ETH-TP3-

Link to original

67PPC2 CONNECTOR/PIN-OUT INFORMATION

Front and Rear Panel Connectors

The 67PPC2 6U OpenVPX Multifunction I/O board is available in two configurations: convection-cooled and conduction-cooled. The 67PPC2 follows the OpenVPX “Payload Slot Profile” configured as:

Slot profile:	SLT6-PAY-2F2U2T-10.2.5
Module profile:	MOD6-PAY-2F2U2T-12.2.5-3

User I/O is available through the (J1, J2, J3, J4, J5, J6) front panel connectors when the card is configured with front panel I/O and through the OpenVPX user defined rear I/O connectors P1, P2, P3, P4, P5, P6 (see part number and pin-out information).

Front Panel Connectors J1-J6 (Convection Cooled)

44-pin male connectors, 2mm, Harwin P/N M80-5114422.

Mate kit: “Custom Hood Kit” part # M80C108448C (or equivalent); Includes connector, backshell, pins & jackscrews. This mating connector kit may be purchased separately as NAI P/N 05-0119 (contact factory).

Panel LEDs

Front Panel LEDs indications (only available on air-cooled units).

LED	ILLUMINATED	EXTINGUISHED
GRN:	Blinking: Initializing Steady On: Power-On/Ready	Power off
RED:	Module BIT error	No BIT fault
YEL: (flash)	Card access (bus or Gig-E activity)	No card activity

Chassis Ground

Front Panel Connectors: J1 - J6 pin-1 is chassis GND. Jack screw sockets are chassis GND.

Rear Connectors: Not available.

Front Panel System (Power/Signal) Ground Reference

Front Panel: J1 - J6 pin-23 is System (SYS) GND (referenced to card power/system ground).

Front I/O Utility Connector J7

The 67PPC2 utilizes a Mini-HDMI type card edge connector J7, available on either convection or conduction-cooled configurations that provides the following signals:

Serial (port 1)
USB 2.0
Ethernet port 1 (factory configuration option - Ethernet port1 may be redirected to rear I/O J2)

NAI also provides an optional “breakout” adapter board (NAI P/N 75SBC4-BB) with a mini-HDMI to mini-HDMI type cable. The “breakout” adapter board and a Micro-HDMI cable (NAI P/N 75SBC4-BB) allow for standard I/O connections to Ethernet and asynchronous serial (DB9). Consult the factory for availability.

Front J7	Standard Configuration	Option
J7-01	N/C	N/C
J7-02	N/C	ETH1-TP0+
J7-03	N/C	ETH-TP0-
J7-04	N/C	N/C
J7-05	N/C	ETH1-TP1+
J7-06	N/C	ETH1-TP1-
J7-07	N/C	N/C
J7-08	N/C	ETH1-TP2+
J7-09	N/C	ETH1-TP2-
J7-10	N/C	N/C
J7-11	N/C	ETH1-TP3+
J7-12	N/C	ETH1-TP3-
J7-13	GND	GND
J7-14	N/C	+5V-UBSF
J7-15	N/C	USBF-DP
J7-16	N/C	USBF-DM
J7-17	SER1-RXD	SER1-RXD
J7-18	SER1-TXD	SER1-TXD
J7-19	GND	GND

Signal Descriptions J7

Signal Name	Description
ETH1-TPx	Ethernet port 1 signals (4 pair) 10/100/1000 twisted pair signals (Optional - available only if NOT re-directed to rear I/O (see part number configuration options)
USBF-DP	Front Panel USB Data Positive
USBF-DN	Front Panel USB Data Minus
SER1-TXD	Asynchronous transmit serial data port 1 (out) / RS232 debug/console port only
SER1-RXD	Asynchronous received serial data port 1 (in) / RS232 debug/console port only
GND	System Ground (return)

Rear I/O VPX Connectors P0-P6 (Conduction-Cooled)

The 67PPC2 6U OpenVPX multifunction I/O board provides interface via the rear VPX connectors.

Rear I/O Summary

Signals defined as N/C currently have no functionality associated and are not required for general operation.

P0 - Utility plane. Contains the following signal definitions:
Power	Primary +5V, `3.3V_AUX, `/- 12V and System GND
Geographical Address Pins	GA0# - GA4#, GAP#
Card reset	SYSRST# signal
Non-Volatile Memory Read Only	NVMRO
IPMC	IMPB-SDA-A, IMPB-SDA-B, IMPB-SCL-A, IMPB-SCL-B
VPX AUX/REF CLK	(Not used)

P1 - Defined as Data/Control Planes (User defined I/O secondary)
High Speed Switched Fabric Interface	12 x1 PCIe (end point only)
Ethernet	Gig-E port option(s) are available and defined (See Part Number Designation section)

P2 - User defined I/O (primary)

P3 - User defined I/O (primary)

P4 - Defined as Control Plane (User defined I/O secondary)

P5 - User defined I/O (primary)

P6 - User defined I/O (primary)

Rear I/O Utility Plane (P0)

The P0 (Utility) Plane contains the primary power, bus and utility signals for the OpenVPX board. Additionally, several of the user defined pins can be utilized for Geographical Addressing and a parallel SYSRST# signal. Signals defined as N/C currently have no functionality associated and is not required for general operation.

Rear I/O Data/Control Planes (P1)

The 67PPC2 has twelve PCIe ver 2.0 Ultra-Thin pipes. Additionally, the 67PPC2 can be commanded/controlled via Gig-E (options for either 10/100/1000Base-T and/or 1000Base-KX (SerDes) Interfaces). Additional module I/O is also defined on the P1 user defined plane. Signals defined as N/C currently have no functionality associated or are considered optional and are not required for general operation.

USER I/O - Defined Area (User Defined I/O) (P2-P6)

The following pages contain the ‘user defined’ I/O data area front and rear panel pin-outs with their respective signal designations for all module types currently offered/configured for the 67PPC2 platform. The card is designed to route the function module I/O signals to the front and rear I/O connector. The following I/O connector pin-out is based upon the function module designated in the module slot. Signals defined as N/C currently have no functionality associated or are considered optional and are not required for general operation.

J1-J6 Front Panel Connector Pinout Mapping Summary (Convection-Cooled)

The following provides connector/pinout data for Front Panel connectors J1 through J6. Each connector provides 44 pins of I/O.

Front Panel Connectors J1-J6 Generic User I/O Mapping

.67PPC2 J1 (M1) Front Panel I/O

(System Ground REF)	GND	1	23	GND	(System Ground REF)
M1_DAT01	S-MOD-M1-DAT01	2	24	S-MOD-M1-DAT02	M1_DAT02
M1_DAT03	S-MOD-M1-DAT03	3	25	S-MOD-M1-DAT04	M1_DAT04
M1_DAT25	S-MOD-M1-DAT25	4	26	S-MOD-M1-DAT26	M1_DAT26
M1_DAT05	S-MOD-M1-DAT05	5	27	S-MOD-M1-DAT06	M1_DAT06
M1_DAT33	S-MOD-M1-DAT33	6	28	S-MOD-M1-DAT34	M1_DAT34
M1_DAT07	S-MOD-M1-DAT07	7	29	S-MOD-M1-DAT08	M1_DAT08
M1_DAT09	S-MOD-M1-DAT09	8	30	S-MOD-M1-DAT10	M1_DAT10
M1_DAT27	S-MOD-M1-DAT27	9	31	S-MOD-M1-DAT28	M1_DAT28
M1_DAT11	S-MOD-M1-DAT11	10	32	S-MOD-M1-DAT12	M1_DAT12
M1_DAT35	S-MOD-M1-DAT35	11	33	S-MOD-M1-DAT36	M1_DAT36
M1_DAT13	S-MOD-M1-DAT13	12	34	S-MOD-M1-DAT14	M1_DAT14
M1_DAT15	S-MOD-M1-DAT15	13	35	S-MOD-M1-DAT16	M1_DAT16
M1_DAT29	S-MOD-M1-DAT29	14	36	S-MOD-M1-DAT30	M1_DAT30
M1_DAT17	S-MOD-M1-DAT17	15	37	S-MOD-M1-DAT18	M1_DAT18
M1_DAT37	S-MOD-M1-DAT37	16	38	S-MOD-M1-DAT38	M1_DAT38
M1_DAT19	S-MOD-M1-DAT19	17	39	S-MOD-M1-DAT20	M1_DAT20
M1_DAT21	S-MOD-M1-DAT21	18	40	S-MOD-M1-DAT22	M1_DAT22
M1_DAT31	S-MOD-M1-DAT31	19	41	S-MOD-M1-DAT32	M1_DAT32
M1_DAT23	S-MOD-M1-DAT23	20	42	S-MOD-M1-DAT24	M1_DAT24
M1_DAT39	S-MOD-M1-DAT39	21	43	S-MOD-M1-DAT40	M1_DAT40
	N/C	22	44	N/C

.67PPC2 J2 (M2) Front Panel I/O

(System Ground REF)	GND	1	23	GND	(System Ground REF)
M2_DAT01	S-MOD-M2-DAT01	2	24	S-MOD-M2-DAT02	M2_DAT02
M2_DAT03	S-MOD-M2-DAT03	3	25	S-MOD-M2-DAT04	M2_DAT04
M2_DAT25	S-MOD-M2-DAT25	4	26	S-MOD-M2-DAT26	M2_DAT26
M2_DAT05	S-MOD-M2-DAT05	5	27	S-MOD-M2-DAT06	M2_DAT06
M2_DAT33	S-MOD-M2-DAT33	6	28	S-MOD-M2-DAT34	M2_DAT34
M2_DAT07	S-MOD-M2-DAT07	7	29	S-MOD-M2-DAT08	M2_DAT08
M2_DAT09	S-MOD-M2-DAT09	8	30	S-MOD-M2-DAT10	M2_DAT10
M2_DAT27	S-MOD-M2-DAT27	9	31	S-MOD-M2-DAT28	M2_DAT28
M2_DAT11	S-MOD-M2-DAT11	10	32	S-MOD-M2-DAT12	M2_DAT12
M2_DAT35	S-MOD-M2-DAT35	11	33	S-MOD-M2-DAT36	M2_DAT36
M2_DAT13	S-MOD-M2-DAT13	12	34	S-MOD-M2-DAT14	M2_DAT14
M2_DAT15	S-MOD-M2-DAT15	13	35	S-MOD-M2-DAT16	M2_DAT16
M2_DAT29	S-MOD-M2-DAT29	14	36	S-MOD-M2-DAT30	M2_DAT30
M2_DAT17	S-MOD-M2-DAT17	15	37	S-MOD-M2-DAT18	M2_DAT18
M2_DAT37	S-MOD-M2-DAT37	16	38	S-MOD-M2-DAT38	M2_DAT38
M2_DAT19	S-MOD-M2-DAT19	17	39	S-MOD-M2-DAT20	M2_DAT20
M2_DAT21	S-MOD-M2-DAT21	18	40	S-MOD-M2-DAT22	M2_DAT22
M2_DAT31	S-MOD-M2-DAT31	19	41	S-MOD-M2-DAT32	M2_DAT32
M2_DAT23	S-MOD-M2-DAT23	20	42	S-MOD-M2-DAT24	M2_DAT24
M2_DAT39	S-MOD-M2-DAT39	21	43	S-MOD-M2-DAT40	M2_DAT40
	N/C	22	44	N/C

.67PPC2 J3 (M3) Front Panel I/O

(System Ground REF)	GND	1	23	GND	(System Ground REF)
M3_DAT01	S-MOD-M3-DAT01	2	24	S-MOD-M3-DAT02	M3_DAT02
M3_DAT03	S-MOD-M3-DAT03	3	25	S-MOD-M3-DAT04	M3_DAT04
M3_DAT25	S-MOD-M3-DAT25	4	26	S-MOD-M3-DAT26	M3_DAT26
M3_DAT05	S-MOD-M3-DAT05	5	27	S-MOD-M3-DAT06	M3_DAT06
M3_DAT33	S-MOD-M3-DAT33	6	28	S-MOD-M3-DAT34	M3_DAT34
M3_DAT07	S-MOD-M3-DAT07	7	29	S-MOD-M3-DAT08	M3_DAT08
M3_DAT09	S-MOD-M3-DAT09	8	30	S-MOD-M3-DAT10	M3_DAT10
M3_DAT27	S-MOD-M3-DAT27	9	31	S-MOD-M3-DAT28	M3_DAT28
M3_DAT11	S-MOD-M3-DAT11	10	32	S-MOD-M3-DAT12	M3_DAT12
M3_DAT35	S-MOD-M3-DAT35	11	33	S-MOD-M3-DAT36	M3_DAT36
M3_DAT13	S-MOD-M3-DAT13	12	34	S-MOD-M3-DAT14	M3_DAT14
M3_DAT15	S-MOD-M3-DAT15	13	35	S-MOD-M3-DAT16	M3_DAT16
M3_DAT29	S-MOD-M3-DAT29	14	36	S-MOD-M3-DAT30	M3_DAT30
M3_DAT17	S-MOD-M3-DAT17	15	37	S-MOD-M3-DAT18	M3_DAT18
M3_DAT37	S-MOD-M3-DAT37	16	38	S-MOD-M3-DAT38	M3_DAT38
M3_DAT19	S-MOD-M3-DAT19	17	39	S-MOD-M3-DAT20	M3_DAT20
M3_DAT21	S-MOD-M3-DAT21	18	40	S-MOD-M3-DAT22	M3_DAT22
M3_DAT31	S-MOD-M3-DAT31	19	41	S-MOD-M3-DAT32	M3_DAT32
M3_DAT23	S-MOD-M3-DAT23	20	42	S-MOD-M3-DAT24	M3_DAT24
M3_DAT39	S-MOD-M3-DAT39	21	43	S-MOD-M3-DAT40	M3_DAT40
	N/C	22	44	N/C

.67PPC2 J4 (M4) Front Panel I/O

(System Ground REF)	GND	1	23	GND	(System Ground REF)
M4_DAT01	S-MOD-M4-DAT01	2	24	S-MOD-M4-DAT02	M4_DAT02
M4_DAT03	S-MOD-M4-DAT03	3	25	S-MOD-M4-DAT04	M4_DAT04
M4_DAT25	S-MOD-M4-DAT25	4	26	S-MOD-M4-DAT26	M4_DAT26
M4_DAT05	S-MOD-M4-DAT05	5	27	S-MOD-M4-DAT06	M4_DAT06
M4_DAT33	S-MOD-M4-DAT33	6	28	S-MOD-M4-DAT34	M4_DAT34
M4_DAT07	S-MOD-M4-DAT07	7	29	S-MOD-M4-DAT08	M4_DAT08
M4_DAT09	S-MOD-M4-DAT09	8	30	S-MOD-M4-DAT10	M4_DAT10
M4_DAT27	S-MOD-M4-DAT27	9	31	S-MOD-M4-DAT28	M4_DAT28
M4_DAT11	S-MOD-M4-DAT11	10	32	S-MOD-M4-DAT12	M4_DAT12
M4_DAT35	S-MOD-M4-DAT35	11	33	S-MOD-M4-DAT36	M4_DAT36
M4_DAT13	S-MOD-M4-DAT13	12	34	S-MOD-M4-DAT14	M4_DAT14
M4_DAT15	S-MOD-M4-DAT15	13	35	S-MOD-M4-DAT16	M4_DAT16
M4_DAT29	S-MOD-M4-DAT29	14	36	S-MOD-M4-DAT30	M4_DAT30
M4_DAT17	S-MOD-M4-DAT17	15	37	S-MOD-M4-DAT18	M4_DAT18
M4_DAT37	S-MOD-M4-DAT37	16	38	S-MOD-M4-DAT38	M4_DAT38
M4_DAT19	S-MOD-M4-DAT19	17	39	S-MOD-M4-DAT20	M4_DAT20
M4_DAT21	S-MOD-M4-DAT21	18	40	S-MOD-M4-DAT22	M4_DAT22
M4_DAT31	S-MOD-M4-DAT31	19	41	S-MOD-M4-DAT32	M4_DAT32
M4_DAT23	S-MOD-M4-DAT23	20	42	S-MOD-M4-DAT24	M4_DAT24
M4_DAT39	S-MOD-M4-DAT39	21	43	S-MOD-M4-DAT40	M4_DAT40
	N/C	22	44	N/C

.67PPC2 J5 (M5) Front Panel I/O *

(System Ground REF)	GND	1	23	GND	(System Ground REF)
M5_DAT01	S-MOD-M5-DAT01	2	24	S-MOD-M5-DAT02	M5_DAT02
M5_DAT03	S-MOD-M5-DAT03	3	25	S-MOD-M5-DAT04	M5_DAT04
M5_DAT25	S-MOD-M5-DAT25	4	26	S-MOD-M5-DAT26	M5_DAT26
M5_DAT05	S-MOD-M5-DAT05	5	27	S-MOD-M5-DAT06	M5_DAT06
M5_DAT33	S-MOD-M5-DAT33	6	28	S-MOD-M5-DAT34	M5_DAT34
M5_DAT07	S-MOD-M5-DAT07	7	29	S-MOD-M5-DAT08	M5_DAT08
M5_DAT09	S-MOD-M5-DAT09	8	30	S-MOD-M5-DAT10	M5_DAT10
M5_DAT27	S-MOD-M5-DAT27	9	31	S-MOD-M5-DAT28	M5_DAT28
M5_DAT11	S-MOD-M5-DAT11	10	32	S-MOD-M5-DAT12	M5_DAT12
M5_DAT35	S-MOD-M5-DAT35	11	33	S-MOD-M5-DAT36	M5_DAT36
M5_DAT13	S-MOD-M5-DAT13	12	34	S-MOD-M5-DAT14	M5_DAT14
M5_DAT15	S-MOD-M5-DAT15	13	35	S-MOD-M5-DAT16	M5_DAT16
M5_DAT29	S-MOD-M5-DAT29	14	36	S-MOD-M5-DAT30	M5_DAT30
M5_DAT17	S-MOD-M5-DAT17	15	37	S-MOD-M5-DAT18	M5_DAT18
M5_DAT37	S-MOD-M5-DAT37	16	38	S-MOD-M5-DAT38	M5_DAT38
M5_DAT19	S-MOD-M5-DAT19	17	39	S-MOD-M5-DAT20	M5_DAT20
M5_DAT21	S-MOD-M5-DAT21	18	40	S-MOD-M5-DAT22	M5_DAT22
M5_DAT31	S-MOD-M5-DAT31	19	41	S-MOD-M5-DAT32	M5_DAT32
M5_DAT23	S-MOD-M5-DAT23	20	42	S-MOD-M5-DAT24	M5_DAT24
M5_DAT39	S-MOD-M5-DAT39	21	43	S-MOD-M5-DAT40	M5_DAT40
	N/C	22	44	N/C

.67PPC2 J6 (M6) Front Panel I/O *

(System Ground REF)	GND	1	23	GND	(System Ground REF)
M6_DAT01	S-MOD-M6-DAT01	2	24	S-MOD-M6-DAT02	M6_DAT02
M6_DAT03	S-MOD-M6-DAT03	3	25	S-MOD-M6-DAT04	M6_DAT04
M6_DAT25	S-MOD-M6-DAT25	4	26	S-MOD-M6-DAT26	M6_DAT26
M6_DAT05	S-MOD-M6-DAT05	5	27	S-MOD-M6-DAT06	M6_DAT06
M6_DAT33	S-MOD-M6-DAT33	6	28	S-MOD-M6-DAT34	M6_DAT34
M6_DAT07	S-MOD-M6-DAT07	7	29	S-MOD-M6-DAT08	M6_DAT08
M6_DAT09	S-MOD-M6-DAT09	8	30	S-MOD-M6-DAT10	M6_DAT10
M6_DAT27	S-MOD-M6-DAT27	9	31	S-MOD-M6-DAT28	M6_DAT28
M6_DAT11	S-MOD-M6-DAT11	10	32	S-MOD-M6-DAT12	M6_DAT12
M6_DAT35	S-MOD-M6-DAT35	11	33	S-MOD-M6-DAT36	M6_DAT36
M6_DAT13	S-MOD-M6-DAT13	12	34	S-MOD-M6-DAT14	M6_DAT14
M6_DAT15	S-MOD-M6-DAT15	13	35	S-MOD-M6-DAT16	M6_DAT16
M6_DAT29	S-MOD-M6-DAT29	14	36	S-MOD-M6-DAT30	M6_DAT30
M6_DAT17	S-MOD-M6-DAT17	15	37	S-MOD-M6-DAT18	M6_DAT18
M6_DAT37	S-MOD-M6-DAT37	16	38	S-MOD-M6-DAT38	M6_DAT38
M6_DAT19	S-MOD-M6-DAT19	17	39	S-MOD-M6-DAT20	M6_DAT20
M6_DAT21	S-MOD-M6-DAT21	18	40	S-MOD-M6-DAT22	M6_DAT22
M6_DAT31	S-MOD-M6-DAT31	19	41	S-MOD-M6-DAT32	M6_DAT32
M6_DAT23	S-MOD-M6-DAT23	20	42	S-MOD-M6-DAT24	M6_DAT24
M6_DAT39	S-MOD-M6-DAT39	21	43	S-MOD-M6-DAT40	M6_DAT40
	N/C	22	44	N/C

Note

*High Speed Modules are Rear I/O, Only

Front & Rear User I/O Mapping (Global)

Front/Rear User I/O Mapping (for reference) is shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Module Operational Manuals.

	Slot 1			Slot 2				Slot 3
Module Signal (Ref Only)	Front I/O J1 44-pin	Rear I/O P6	Global (MB)	Front I/O J2 44-pin	Rear I/O P6	Rear I/O P5	Global (MB)	Front I/O J3 44-pin	Rear I/O P5	Global (MB)
DATIO1	2	E16		2	E6			2	E12
DATIO2	24	F16		24	F6			24	F12
DATIO3	3	B16		3	B6			3	B12
DATIO4	25	C16		25	C6			25	C12
DATIO5	5	D15		5	D5			5	D11
DATIO6	27	E15		27	E5			27	E11
DATIO7	7	A15		7	A5			7	A11
DATIO8	29	B15		29	B5			29	B11
DATIO9	8	E14		8	E4			8	E10
DATIO10	30	F14		30	F4			30	F10
DATIO11	10	B14		10	B4			10	B10
DATIO12	32	C14		32	C4			32	C10
DATIO13	12	D13		12	D3			12	D9
DATIO14	34	E13		34	E3			34	E9
DATIO15	13	A13		13	A3			13	A9
DATIO16	35	B13		35	B3			35	B9
DATIO17	15	E12		15	E2			15	E8
DATIO18	37	F12		37	F2			37	F8
DATIO19	17	B12		17	B2			17	B8
DATIO20	39	C12		39	C2			39	C8
DATIO21	18	D11		18	D1			18	D7
DATIO22	40	E11		40	E1			40	E7
DATIO23	20	A11		20	A1			20	A7
DATIO24	42	B11		42	B1			42	B7
DATIO25	4	E10		4		E16		4	E6
DATIO26	26	F10		26		F16		26	F6
DATIO27	9	B10		9		B16		9	B6
DATIO28	31	C10		31		C16		31	C6
DATIO29	14	D9		14		D15		14	D5
DATIO30	36	E9		36		E15		36	E5
DATIO31	19	A9		19		A15		19	A5
DATIO32	41	B9		41		B15		41	B5
DATIO33	6	E8		6		E14		6	E4
DATIO34	28	F8		28		F14		28	F4
DATIO35	11	B8		11		B14		11	B4
DATIO36	33	C8		33		C14		33	C4
DATIO37	16	D7		16		D13		16	D3
DATIO38	38	E7		38		E13		38	E3
DATIO39	21	A7		21		A13		21	A3
DATIO40	43	B7		43		B13		43	B3
N/A	23		SYS GND	23			SYS GND	23		SYS GND
	1		CHASSIS	1			CHASSIS	1		CHASSIS
	22, 44		N/C	22, 44			N/C	22, 44		N/C

	Slot 4				Slot 5				Slot 6
Module Signal (Ref Only)	Front I/O J4 44-pin	Rear I/O P4	Rear I/O P3	Global (MB)	Front I/O J5 44-pin	Rear I/O P3	Rear I/O P2	Global (MB)	Front I/O J6 44-pin	Rear I/O P2	Rear I/O P1	Global (MB)
DATIO1	2	A1			2	E2			2	E8
DATIO2	24	B1			24	F2			24	F8
DATIO3	3	D1			3	B2			3	B8
DATIO4	25	E1			25	C2			25	C8
DATIO5	5	B2			5	D1			5	D7
DATIO6	27	C2			27	E1			27	E7
DATIO7	7	E2			7	A1			7	A7
DATIO8	29	F2			29	B1			29	B7
DATIO9	8		E16		8		E16		8	E6
DATIO10	30		F16		30		F16		30	F6
DATIO11	10		B16		10		B16		10	B6
DATIO12	32		C16		32		C16		32	C6
DATIO13	12		D15		12		D15		12	D5
DATIO14	34		E15		34		E15		34	E5
DATIO15	13		A15		13		A15		13	A5
DATIO16	35		B15		35		B15		35	B5
DATIO17	15		E14		15		E14		15	E4
DATIO18	37		F14		37		F14		37	F4
DATIO19	17		B14		17		B14		17	B4
DATIO20	39		C14		39		C14		39	C4
DATIO21	18		D13		18		D13		18	D3
DATIO22	40		E13		40		E13		40	E3
DATIO23	20		A13		20		A13		20	A3
DATIO24	42		B13		42		B13		42	B3
DATIO25	4		E12		4		E12		4	E2
DATIO26	26		F12		26		F12		26	F2
DATIO27	9		B12		9		B12		9	B2
DATIO28	31		C12		31		C12		31	C2
DATIO29	14		D11		14		D11		14	D1
DATIO30	36		E11		36		E11		36	E1
DATIO31	19		A11		19		A11		19	A1
DATIO32	41		B11		41		B11		41	B1
DATIO33	6		G1		6		E10		6	G1
DATIO34	28		G3		28		F10		28	G3
DATIO35	11		G5		11		B10		11	G5
DATIO36	33		G7		33		C10		33	G7
DATIO37	16		G9		16		D9		16	G9
DATIO38	38		G11		38		E9		38	G11
DATIO39	21		G13		21		A9		21	G13
DATIO40	43		G15		43		B9		43	G15
N/A	23			SYS GND	23			SYS GND	23			SYS GND
	1			CHASSIS	1			CHASSIS	1			CHASSIS
	22, 44			N/C	22, 44			N/C	22, 44			N/C

High Speed I/O Modules

	Slot 5				Slot 6
Module Signal (Ref Only)	Front I/O J5 44-pin	Front I/O J5 44-pin	Rear I/O P3	Global (MB)	Front I/O J6 44-pin	Front I/O J6 44-pin	Rear I/O P1	Global (MB)
DATIO1			E10	ETH1 TP0P			A9	ETH1 TP0P
DATIO2			F10	ETH1 TP0N			B9	ETH1 TP0N
DATIO3			B10	ETH1 TP1P			D9	ETH1 TP1P
DATIO4			C10	ETH1 TP1N			E9	ETH1 TP1N
DATIO5			D9	ETH1 TP2P			B10	ETH1 TP2P
DATIO6			E9	ETH1 TP2N			C10	ETH1 TP2N
DATIO7			A9	ETH1 TP3P			E10	ETH1 TP3P
DATIO8			B9	ETH1 TP3N			F10	ETH1 TP3N
DATIO9			E8	ETH2 TP0P			A11	ETH2 TP0P
DATIO10			F8	ETH2 TP0N			B11	ETH2 TP0N
DATIO11			B8	ETH2 TP1P			D11	ETH2 TP1P
DATIO12			C8	ETH2 TP1N			E11	ETH2 TP1N
DATIO13			D7	ETH2 TP2P			B12	ETH2 TP2P
DATIO14			E7	ETH2 TP2N			C12	ETH2 TP2N
DATIO15			A7	ETH2 TP3P			E12	ETH2 TP3P
DATIO16			B7	ETH2 TP3N			F12	ETH2 TP3N
DATIO17			E6	ETH3 TP0P			A13	ETH3 TP0P
DATIO18			F6	ETH3 TP0N			B13	ETH3 TP0N
DATIO19			B6	ETH3 TP1P			D13	ETH3 TP1P
DATIO20			C6	ETH3 TP1N			E13	ETH3 TP1N
DATIO21			D5	ETH3 TP2P			B14	ETH3 TP2P
DATIO22			E5	ETH3 TP2N			C14	ETH3 TP2N
DATIO23			A5	ETH3 TP3P			E14	ETH3 TP3P
DATIO24			B5	ETH3 TP3N			F14	ETH3 TP3N
DATIO25			E4	ETH4 TP0P			A15	ETH4 TP0P
DATIO26			F4	ETH4 TP0N			B15	ETH4 TP0N
DATIO27			B4	ETH4 TP1P			D15	ETH4 TP1P
DATIO28			C4	ETH4 TP1N			E15	ETH4 TP1N
DATIO29			D3	ETH4 TP2P			B16	ETH4 TP2P
DATIO30			E3	ETH4 TP2N			C16	ETH4 TP2N
DATIO31			A3	ETH4 TP3P			E16	ETH4 TP3P
DATIO32			B3	ETH4 TP3N			F16	ETH4 TP3N

Connector Signal/Pin-Out Notes

NAI Synchro / Resolver Naming Convention

Signal	Resolver	Synchro
S1	SIN(-)	X
S2	COS(+)	Z
S3	SIN(+)	Y
S4	COS(-)	No connect

Additional Pinout Notes

1. Isolated Discrete Module (DT2)	For ‘differential’ A/D; “P” designation considered ‘positive’ input pin, “N” pin designation considered ‘negative’ input pin.
2. Discrete I/O Module (DT1)	All GND pins are common within the module, but, isolated from system/power GND. Each pin should be individually wired for optimal power current distribution.
3. TTL I/O Module (TL1)	I/O referenced to system power GND.
4. CMRP - A/D Module(s) (ADx)	The Common Mode Reference Point (CMRP) is an isolated reference connection for all the A/D channels. For expected high common mode voltage applications, it is recommended that the pin designated as CMRP be referenced (direct or resistor coupled) to the signal source GND reference (must have current path between CMRP and signal source generator) to minimize common mode voltage within the acceptable specification range. All channels within the module are independent but share a common CMRP, which is isolated from system/power GND.

MECHANICAL DETAILS

General - Outline

Note: The following mechanical outline detail examples are provided for reference only. Dimensions are in inches unless otherwise specified.

Conduction Cooled

Outline, General, Conduction Cooled

Convection Cooled

Outline, General, Convection Cooled, Front Panel I/O, 0.8” Pitch

PART NUMBER DESIGNATION

Click here for the 67PPC2 Part Number Designation

SYNCHRO/RESOLVER AND LVDT/RVDT SIMULATION MODULE CODE TABLES

Select the Digital-to-Synchro (DSx), Digital-to-Resolver (DRx) or Digital-to-LVDT/RVDT (DLx) module ID corresponding to the application operating parameters required from the following code table (where x = the specific module ID designator). Customer should indicate the actual frequency applicable the design to assure that the correct default band width is set at the factory. All Input and Reference voltages are auto ranging. Frequency/voltage band tolerances +/- 10%. For availability and ranges other than those listed contact the factory. Specifications may be subject to change.

Single Channel module pending availability (contact factory)

Module ID Format Channel(s) Output Voltage VL-L (Vrms) Reference Voltage (Vrms) Frequency Range (Hz) Power / CH maximum (VA) Notes
DS1 SYN 1* 2 - 28 2 - 115 47 - 1 K 3
DR1 RSL
DL1 LVDT/RVDT
DS2 SYN 1* 2 - 28 2 - 115 1 K - 5 K 3
DR2 RSL
DL2 LVDT/RVDT
DS3 SYN 1* 2 - 28 2 - 115 5 K - 10 K 3
DR3 RSL
DL3 LVDT/RVDT
DS4 SYN 1* 2 - 28 2 - 115 10 K - 20 K 3
DR4 RSL
DL4 LVDT/RVDT
DS5 SYN 1* 28 - 90 2 - 115 47 - 1 K 3
DR5 RSL
DL5 LVDT/RVDT
DSX SYN 1* X X X X X = TBD; special configuration, requires special part number code designation, contact factory
DRX RSL
DLX LVDT/RVDT
DSA SYN 2 2 - 28 2 - 115 47 - 1 K 1.5
DRA RSL
DLA LVDT/RVDT
DSB SYN 2 2 - 28 2 - 115 1 K - 5 K 1.5
DRB RSL
DLB LVDT/RVDT
DSC SYN 2 2 - 28 2 - 115 5 K - 10 K 1.5
DRC RSL
DLC LVDT/RVDT
DSD SYN 2 2 - 28 2 - 115 10 K - 20 K 1.5
DRD RSL
DLD LVDT/RVDT
DSE SYN 2 28 - 90 2 - 115 47 - 1 K 2.2
DRE RSL
DLE LVDT/RVDT
DSY SYN 2 Y Y Y Y Y = TBD; special configuration, requires special part number code designation, contact factory
DRY RSL
DLY LVDT/RVDT
DSJ SYN 3 2 - 28 2 - 115 47 - 1 K 0.5
DRJ RSL
DLJ LVDT/RVDT
DSK SYN 3 2 - 28 2 - 115 1 K - 5 K 0.5
DRK RSL
DLK LVDT/RVDT
DSL SYN 3 2 - 28 2 - 115 5 K - 10 K 0.5
DRL RSL
DLL LVDT/RVDT
DSM SYN 3 2 - 28 2 - 115 10 K - 20 K 0.5
DRM RSL
DLM LVDT/RVDT
DSN SYN 3 28 - 90 2 - 115 47 - 1 K 0.5
DRN RSL
DLN LVDT/RVDT
DSZ SYN 3 Z Z Z Z Z = TBD; special configuration, requires special part number code designation, contact factory
DRZ RSL
DLZ LVDT/RVDT

SYNCHRO/RESOLVER AND LVDT/RVDT MEASUREMENT MODULE CODE TABLES

SYN/RSL Four-Channel Measurement (Field Programmable SYN/RSL)

Select the Synchro/Resolver-to-Digital (SDx) module ID corresponding to the application operating parameters required from the following code table (where x = the specific module ID designator). Customer should indicate the actual frequency applicable to the design to assure that the correct default band width is set at the factory. All Input and Reference voltages are auto ranging. For availability and ranges other than those listed contact the factory. Specifications may be subject to change.

Frequency/voltage band tolerances +/- 10%.

Module ID Input Voltage V (Vrms) Reference Voltage + (Vrms) Frequency Range + (Hz) Notes
SD1 2 - 28 2 - 115 47 - 1 K
SD2 2 - 28 2 - 115 1K - 5 K
SD3 2 - 28 2 - 115 5K - 10 K
SD4* 2 - 28 2 - 115 10K - 20 K
SD5 28 - 90 2 - 115 47 - 1 K
SDX* X X X X = TBD; special configuration, requires special part number code designation, contact factory

*Consult factory for availability

LVDT/RVDT Four-Channel Measurement (Field Programmable 2, 3 or 4-Wire)

Select the LVDT/RVDT-to-Digital (LDx) module ID corresponding to the application operating parameters required from the following code table (where x = the specific module ID designator). Customer should indicate the actual frequency applicable to the design to assure that the correct default band width is set at the factory. All Input and Excitation voltages are auto ranging. For availability and ranges other than those listed contact the factory. Specifications may be subject to change.

Frequency/voltage band tolerances +/- 10%.

Module ID Input Signal Voltage V + (Vrms) Excitation Voltage + (Vrms) Frequency Range + (Hz) Notes
LD1 2 - 28 2 - 115 47 - 1 K
LD2 2 - 28 2 - 115 1K - 5 K
LD3 2 - 28 2 - 115 5K - 10 K
LD4* 2 - 28 2 - 115 10K - 20 K
LD5 28 - 90 2 - 115 47 - 1 K
LDX* X X X X = TBD; special configuration, requires special part number code designation, contact factory

*Consult factory for availability
Link to original

Revision History

Motherboard Manual - 67PPC2 Revision History

Revision	Revision Date	Description
C	2024-03-05	ECO C11199, transition to docbuilder format. Pg.7 & 9, updated from ‘over 70’ to ‘over 100’. Pg.7, updated product image. Pg.7, updated processor clock speed from ‘1.5 GHz’ to ‘1.8 GHz’. Pg.7, updated block diagram for revised processor clock speed. Pg.7, changed SATA II function slot example to ‘480 GB’. Pg.7, added Deos to OS support feature bullet. Pg.8-9, updated available module functions table. Pg.10, updated Introduction; added product overview section. Pg.12/17, updated +5VDC power spec. Pg.12, added +3.3V_Aux to ‘Power (Motherboard)‘. Pg.12, changed ‘E’ to ‘H’ in “Temperature, Operating”. Pg.12, removed ‘E’ from “Temperature Cycling”. Pg.15, updated OS support; removed BSP statement. Pg.22, updated TTL register names in table. Pg.25, changed TTL I/O Select to TTL Direction; corrected init value & data bits. Pg.25, updated TTL Data function & op settings. Pg.26, updated Loopback op settings. Pg.26, changed TTL Enable Interrupts to TTL IRQ Enable; updated function. Pg.26, changed TTL Set Edge/Level to TTL IRQ Polarity; updated function & op settings. Pg.27, changed TTL Interrupt Status to TTL IRQ Status. Pg.37, added Module Slot Addressing Ready. Pg.58, added Module Slot Addressing Ready offset. Pg.67-71, revised P0/P1/P2-P6 pinout tables to meet VPX Standard format. Pg.76-78, removed Module pinouts from manual. Pg.82, updated processor clock speed from 1.5 GHz to 1.8 GHz. Pg.82, removed Note 2 (N/A) from ‘Notes’ table. Pg.83, added Single Channel note. Pg.83, changed DSE/DRE/DLE Power/CH maximum (VA) value from ‘1.5’ to ‘2.2’.

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100
Link to original

Function:	Indicates that the module slots are ready to be addressed.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	0xA5A5A5A5
Operational Settings:	This register will contain the value of 0xA5A5A5A5 when the module addresses have been determined.

Module Slot Address
Function:	Specifies the Base Address for the module in the specific slot position.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Based on board's module configuration.
Operational Settings:	0x0000 0000 indicates no Module found.

Module Slot Size
Function:	Specifies the Memory Size (in bytes) allocated for the module in the specific slot position.
Type:	unsigned binary word (32-bit)
Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Assigned by factory for the module.
Operational Settings:	0x0000 0000 indicates no Module found.

Module Slot ID
Function:	Specifies the Model ID for the module in the specified slot position.
Type:	4-character ASCII string
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Assigned by factory for the module.
Operational Settings:	The Module ID is formatted as four ASCII bytes: three characters followed by a space. Module IDs are in little-endian order with a single space following the first three characters. For example, 'TL1' is '1LT', 'SC1' is '1CS' and so forth. Example below is for “TL1” (MSB justified). All value of 0000 0000 indicates no Module found.

Product Serial Number
Function:	Specifies the Board Serial Number.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Serial number assigned by factory for the board.
Operational Settings:	N/A

Function:	Specifies the Build Date/Time of the NAI factory provided Motherboard Core Application installed on the board.
Type:	Two (2) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Operational Settings:	The motherboard firmware time consists of the Build Date and Build Time. NOTE: On some builds the the Date/Time fields are fixed to 0000 0000 to maintain binary consistency across builds.

Temperature Measurements	Data Bits	Value	Temperature (Celsius)
UltraScale Core Temperature	D31:D24	0x69	+105°
UltraScale PCB Temperature	D23:D16	0x55	+85°
Host Core Temperature	D15:D8	0xE7	-25°
Host PCB Temperature	D7:D0	0xD8	-40°

Function:	Specifies the Higher Precision Measured UltraScale Core temperature on Motherboard Board.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured UltraScale Core temperature on Motherboard Board
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature, and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents UltraScale Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

Higher Precision Motherboard PCB Temperature
Function:	Specifies the Higher Precision Measured Motherboard PCB temperature.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Motherboard PCB temperature
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

Sensor Threshold Status
Function:	Reflects which threshold has been crossed
Type:	unsigned binary word (32-bits)
Data Range:	See table below
Read/Write:	R
Initialized Value:	0
Operational Settings:	The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s)	Description
D31:D4	Reserved
D3	Exceeded Upper Critical Threshold
D2	Exceeded Upper Warning Threshold
D1	Exceeded Lower Critical Threshold
D0	Exceeded Lower Warning Threshold

Sensor Current Reading
Function:	Reflects current reading of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function:	Reflects minimum value of temperature sensor since power up
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function:	Reflects maximum value of temperature sensor since power up
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function:	Reflects lower warning threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default lower warning threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function:	Reflects lower critical threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default lower critical threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function:	Reflects upper warning threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default upper warning threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function:	Reflects upper critical threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default upper critical threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

First Port (A) IP Address	First Port (A) Subnet Mask	Second Port (B) IP Address	Second Port (B) Subnet Mask	Result
192.168.1.5	255.255.255.0	192.168.2.5	255.255.255.0	Good
192.168.1.5	255.255.0.0	192.168.2.5	255.255.0.0	Conflict
192.168.1.5	255.255.0.0	192.168.2.5	255.255.255.0	Conflict
10.0.0.15	255.0.0.0	192.168.1.5	255.255.255.0	Good

Ethernet MAC Address and Ethernet Settings
Function:	Specifies the Ethernet MAC Address and Ethernet Settings for the Ethernet port.
Type:	Two (2) unsigned binary word (32-bit)
Data Range:	See table.
Read/Write:	R
Operational Settings:	The Ethernet MAC Address consists of six octets. The Ethernet Settings are defined in table.

NAI Documentation

Explorer

67PPC2 DATA SHEET

INTRODUCTION

67PPC2 Overview

SOFTWARE SUPPORT

SPECIFICATIONS

General for the Motherboard

Environmental

67PPC2 OVERVIEW

I/O Modules

Software

Built-In Test

U-Boot Firmware (Boot Utility/Linux®)

Boot ROM (VxWorks®)

Operating System Support

Mechanicals

Heat Sink

67PPC2 Connector Interfaces

67PPC2 ENVIRONMENTAL/POWER SPECIFICATIONS

Conduction-Cooled/Rugged

Power Requirements

67PPC2 OUTLINE DIMENSIONS

67PPC2 ON BOARD RESOURCES

Memory

DDR3L SDRAM

NOR Flash

Banks

FRAM

SATA

Peripheral I/O

Ethernet

USB

I2C

Real-Time Clock

Temperature Sensor

SPI

Serial Ports

Inboard Discrete/TTL Options

Discrete Input/TTL I/O Specifications

Discrete Input

TTL Input

TTL Output

REGISTER DESCRIPTIONS

FPGA Local Bus Register Map

67PPC2 VxWorks Address Map

67PPC2 U-Boot/Physical Address Map

Hardware Interrupts

TTL Registers

TTL Direction

TTL I/O Select

TTL Data

TTL Data

TTL Loopback

TTL Loop Back

TTL IRQ Enable

TTL Enable Interrupts

TTL IRQ Polarity

TTL Set Edge/Level Interrupt

TTL IRQ Status

TTL Interrupt Status

Discrete Registers

Discrete Data

Discrete Inputs

Temperature Sensing

Temperature Alarm Override Select

Temperature Alarm Override Select D: [1 = Temperature Alarm Shutdown Disabled; 0 = Temperature Alarm Shutdown Enabled]

Temperature Alarm Interrupt Status

Temperature Alarm Override Select D: [1 = Clear Interrupts; 0 = Default]

Temperature Alarm Interrupt Enable

Temperature Alarm Override Select D: [1 = Enable Interrupts; 0 = Default]

Power Shutdown

Power Down Command

Power Down Command

Bank Select

Bank Select

Processor Restart Enable

Processor Restart Enable

SATA Location Select

I²C

Bits	Description	Values
D31:D23	Reserved	0
D22:D21	Duplex	00 = Not Specified, ` 01 = Half Duplex, ` 10 = Full Duplex, + 11 = Reserved
D20:D18	Speed	000 = Not Specified, ` 001 = 10 Mbps, ` 010 = 100 Mbps, ` 011 = 1000 Mbps, ` 100 = 2500 Mbps, ` 101 = 10000 Mbps, ` 110 = Reserved, + 111 = Reserved
D17	Auto Negotiate	0 = Enabled, + 1 = Disabled
D16	Static IP Address	0 = Enabled, + 1 = Disabled

Ethernet Interface Name
Function:	Specifies the Ethernet Interface Name for the Ethernet port.
Type:	8-character ASCII string
Data Range:	See table.
Read/Write:	R
Operational Settings:	The Ethernet Interface Name (eth0, eth1, etc) for the Ethernet port.

Ethernet IPv4 Address
Function:	Specifies the Ethernet IPv4 Address for the Ethernet port.
Type:	Three (3) unsigned binary word (32-bit)
Data Range:	See table.
Read/Write:	R
Operational Settings:	The Ethernet IPv4 Address consists of three parts: IPv4 Address, IPv4 Subnet Mask and IPv4 Gateway.

Ethernet IPv6 Address
Function:	Specifies the Ethernet IPv6 Address for the Ethernet port.
Type:	Five (5) unsigned binary word (32-bit)
Data Range:	See table.
Read/Write:	R
Operational Settings:	The IPv6 Prefix length indicates the network portion of an IPv6 address using the following format: IPv6 address/prefix length ` Prefix length can range from 0 to 128 ` * Typical prefix length is 64

64 bits				64 bits
Prefix				Interface ID
Prefix 1	Prefix 2	Prefix 3	Subnet ID	Interface ID 1	Interface ID 2	Interface ID 3	Interface ID 4
Example: 2002:c0a8:101:0:7c99:d118:9058:1235/64
2002	C0A8	0101	0000	7C99	D118	9058	1235

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) + (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

Bit(s)	Description
D31:23	Reserved
D22	Module Slot 6 BIT Failure (current value)
D21	Module Slot 5 BIT Failure (current value)
D20	Module Slot 4 BIT Failure (current value)
D19	Module Slot 3 BIT Failure (current value)
D18	Module Slot 2 BIT Failure (current value)
D17	Module Slot 1 BIT Failure (current value)
D16	Reserved
D15:D7	Reserved
D6	Module Slot 6 BIT Failure - Latched
D5	Module Slot 5 BIT Failure - Latched
D4	Module Slot 4 BIT Failure - Latched
D3	Module Slot 3 BIT Failure - Latched
D2	Module Slot 2 BIT Failure - Latched
D1	Module Slot 1 BIT Failure - Latched
D0	Reserved

Scratchpad Area
Function:	Registers reserved as scratch pad for customer use.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Operational Settings:	This area in memory is reserved for customer use.
