DT5 Manual

INTRODUCTION

NAI’s Discrete I/O Modules offer comprehensive interfacing solutions for embedded or test applications. The modules come in two versions: Standard Functionality (SF) modules and Enhanced Functionality (EF) modules, with both providing excellent programming flexibility, a broad operating range, and an innovative design that removes the need for pull-up resistors or mechanical jumpers. In addition, the EF Modules feature built-in operational functionality that can perform Pulse/Frequency Period Measurements of the incoming signal (Input) and/or Pulse/Frequency arbitrary signal generation (Output). These features make NAI’s Discrete I/O Modules suitable for a wide range of applications, including test and measurement, data acquisition, and control systems.

DT5 Overview

NAI’s DT5 Discrete/Switch module is a versatile electronic device designed for reliable and high-performance operation in harsh environments. This module features 16 independent, isolated, programmable channels that can be used for input voltage measurements (±80 V), or as a bidirectional current switch (up to 625 mA per channel). The module includes diode clamping on each channel, which provides protection against inductive loads.

The DT5 offers a wide range of features for accurate and reliable control and monitoring of switches and inductive loads. Key features of the module include:

Sixteen (16) channels available as inputs or outputs: The DT5 module features 16 independent, isolated, programmable channels that can be used as inputs or outputs, providing a high level of flexibility for a variety of applications.

Each channel programmable for input voltage or switch closure: Each channel of the DT5 module can be programmed as an input voltage or a switch closure, allowing for greater control and flexibility in system design.

Continuous background Built-in-Test (BIT): The DT5 module offers continuous background Built-in-Test (BIT) during normal operation, providing status for channel health and operation feedback. This ensures that the module operates reliably and accurately, with minimal errors or noise in the signal.

Ability to read switch I/O voltage and current: The DT5 module can read the voltage and current across the switch, allowing for precise monitoring and control of the circuit.

Ability to handle switch closure currents of up to 625 mA: The DT5 module can handle switch closure currents of up to 625 mA DC, providing high performance and reliability in demanding applications.

Programmable automatic switch overcurrent protection: The module features automatic switch overcurrent protection, which is programmable to a maximum of 625 mA, ensuring the safe and reliable operation of the circuit.

Open circuit detection: The DT5 module includes open circuit detection, which detects if a switch is open and provides an alert for further action.

Clean, bounce-free switching: The DT5 module offers clean, bounce-free switching, ensuring that the module operates reliably and accurately, with minimal errors or noise in the signal.

Enhanced Functionality Features: In addition to offering the same functionality as the DT2 standard function (SF) module, the DT5 includes the following enhanced features:

Enhanced Input Mode - Pulse Measurements, Transition Timestamps, Transition Counters, Period Measurement, and Frequency Measurement.

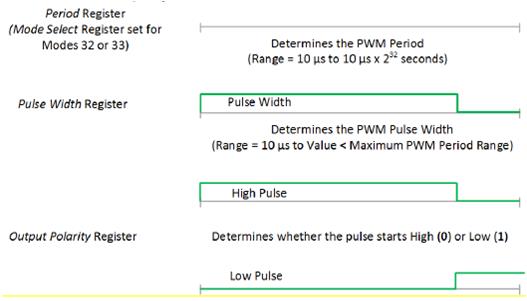

Enhanced Output Mode - PWM Output and Pattern Generator Output; in bidirectional current switch mode, the enhanced features can be used to trigger switch opening or closure using pulse width, number of pulses, or pattern generation.

Overall, NAI’s DT5 Discrete/Switch Module is a highly versatile device that offers a wide range of features for accurate and reliable control and monitoring of switches and inductive loads. Its programmable channels, automatic protection features, and clean switching make it an excellent choice for a wide range of industrial and military applications.

SPECIFICATIONS

Discrete I/O - 16-Channel EF Module DT5

INPUT CHARACTERISTICS

Input Range:	±80 V (peak) / ±60 V (typical)
Input Pulse Detection:	A pulse of 40µs min. width will be sensed and indicated by the appropriate Hi-Lo or Low-High Transition Interrupt.
Input Impedance:	2 MΩ / (200 kΩ if/when Open Circuit Detect Logic enabled)
Switching Threshold:	Levels are programmable from 0 to 80 Vrms with 10-bit resolution (0.98% FS) On/Off.
Accuracy of Set Point:	The greater of 5% signal value or 0.25 V.
	ON/OFF Differential
	0.5 V min. recommended.
Debounce:	Programmable per channel from 0 to 10µs x 232 (LSB= 10 μs; 32-bit resolution).
Update Rate:	Each channel is updated every 10 μs.
Overvoltage Protection:	Input clamped at ±80 VDC.
Voltage Measurement:	User can read output voltage of each channel (isolated 10-bit A/D) LSB=100mV; Accuracy: ±3 LSB’s (300 mV) over temperature.
Additional Enhanced Input Mode Operation:	Input with debounce filter (Mode 0), measure High Time (Mode 1), measure Low Time (Mode 2), time-stamp of all rising edges (Mode 3), time-stamp of all falling edges (Mode 4), time-stamp of all edges (Mode 5), count total number of rising (Mode 6), falling (Mode 7), all (Mode 8) edges, measure period from rising edge-to-rising edge (Mode 9),measure frequency (Mode 10).

BIDIRECTIONAL SWITCH

Switch Formats:	Isolated bidirectional (AC/DC) MOSFET switch
Switch Current:	0-625 mA per channel (load determined) / (±80 V peak)
Switch Impedance Open:	2 MΩ / (200 kΩ if/when Open Circuit Detect Logic enabled)
Switch Impedance Closed:	0.5 W typical, 1 W max.
Current Measurement:	User can read AC/DC current through switch, independently for each channel, LSB=3 mA; Accuracy: The greater of ±10% of Signal or ±20mA over temperature.
Measurement Update Rate:	Each channel is updated every 10 µs.
Isolation:	500 V (between channels and each channel to system GND).
Power:	5 VDC/0.98 A max.
Weight:	1.5 oz. (42 g)
Additional Enhanced Output ModeOperation:	PWM Continuous Output, PWM Burst (n-times), and Pattern Generator Output.
Specifications are subject to change without notice.

PRINCIPLE OF OPERATION

DT5 provides 16 independent, isolated, programmable channels that either can be used for input voltage measurements (+/-60 V), or as a bidirectional current switch (up to 625 mA per channel). With the switch closed,both the current through the switch and the voltage across the switch can be monitored. These modules include diode clamping on each channel. Clamping is useful for inductive loads, such as relays and short circuit protection.

The DT5 Mode Select register provides 13 Mode settings. Each channel can be set to any of the different input or output modes. All settings provide BIT fault detection, which enables flagging of non-compliant outputs or inconsistent input readings between dual input measurements.

All 16 channels are galvanically isolated from each other and from system ground. Each channel’s two-wire connection can function as an isolated voltage input or as an isolated bidirectional switch. When programmed to function as a bidirectional switch, a channel can control valves mechanical relays, indicators, etc. without concern about grounding. This module provides an automatic background built-in-test (BIT) for each channel. The BIT functions are always enabled and continually check that each channel is functioning properly.

Standard input operation is used for voltage sensing and measures both AC and DC input voltages. When operating as a switch, measurements for both voltage across and current through the switch closure are available. Current and Voltage measurements are available as both instantaneous and averaged (RMS).

Four input voltage threshold levels (Maximum High, Upper, Lower, Minimum Low) are programmed to user defined high and low voltage levels. All four of the threshold levels must be set for each Input or Output channel. Threshold crossing may be programmed to generated interrupts on a change of state.

The module design utilizes state of the art galvanic isolation that is superior to alternatives such as optocoupler devices. The galvanic isolation eliminates typical optocoupler design concerns such as uncertain current transfer ratios, nonlinear transfer functions and temperature/lifetime degradation effects.

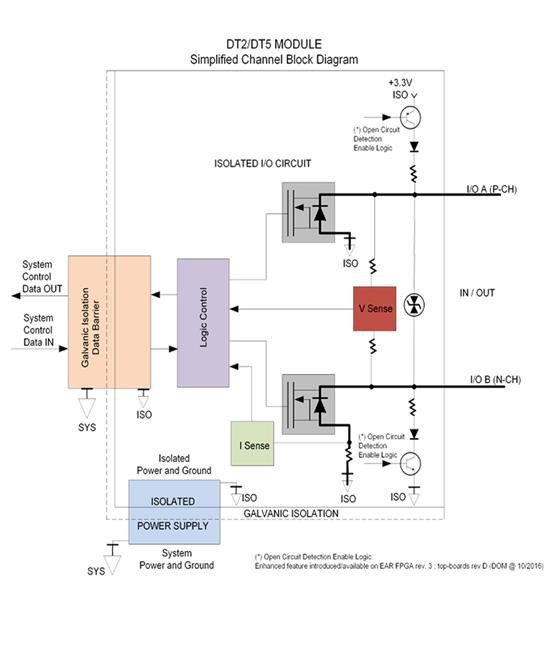

Input/Switch Interface

Each channel contains a both an isolated differential amplifier and a dual N-Channel MOSFET, configured as isolated Solid-State Relay (SSR). The SSR is energized, so both AC and DC current can flow through the channels I/O pins. The MOSFET presents a low ~.5 Ω on impedance. The module contains circuitry to measure the current through the SSR and the voltage present on the I/O pins.

Open Circuit Detection

Each of the 16 channels can be set to indicate an open circuit by setting the Open Circuit Detection register for the channel to 1. A voltage reading of 3.3 V indicates that the channel is open. Default (normal operation) is 0 V.Set the Maximum High Threshold register, for each channel, to this value to generate an interrupt using the Maximum High Threshold Interrupt Enable register.

Note

Added Enhanced Feature; introduced/available on EAR FPGA rev. 3; top-boards rev D (DOM @ 10/2016).

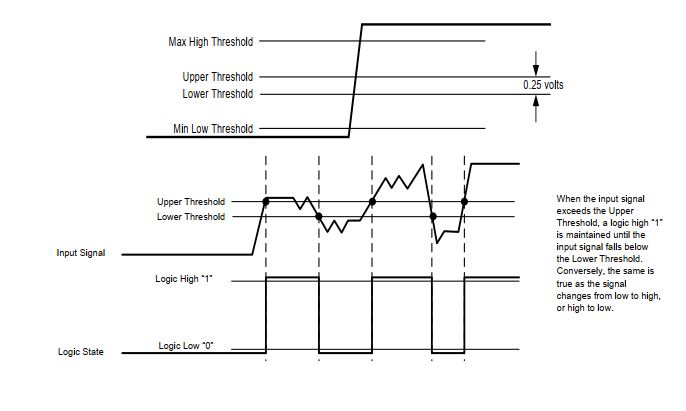

Discrete I/O Threshold Programming

Four threshold levels: Max High Threshold, Upper Threshold, Lower Threshold, and Min Low Threshold offer maximum user flexibility. All four threshold levels must be programmed. For input or output, the threshold levels will define the logic states. For proper operation, the threshold values should be programmed such that:

Max High Threshold > Upper Threshold > Lower Threshold > Min Low Threshold

Program Upper and Lower Thresholds, keeping the 0.25 V min. differential in mind, and then add debounce time as required. When the input signal exceeds the Upper Threshold, a logic high 1 is maintained until the input signal falls below the Lower Threshold. Conversely, when the input signal falls below the Lower Threshold, a logic low 0 is maintained until the input signal rises above the Upper Threshold.

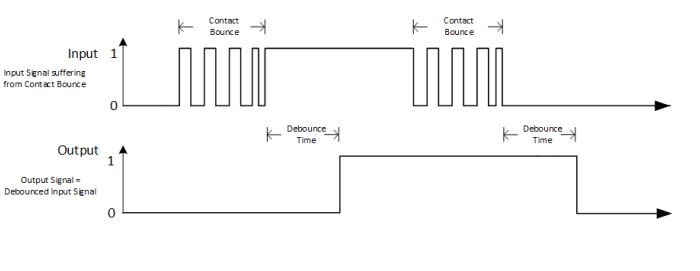

Debounce Programming

The Debounce register, when programmed for a non-zero value, is used with channels programmed as input to “filter” or “ignore” expected application spurious initial transitions. Once a signal level is a logic voltage level period longer than the Debounce Time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed Debounce Time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state.

Automatic Background Built-In Test (BIT)/Diagnostic Capability

BIT is always enabled, and continually checks the health of each channel. This is accomplished by internal test circuitry that is incorporated into each 16-channel module. The test circuit is sequentially connected across each channel and checks that the commanded mode (input or switch closure) is correctly set, and depending upon the configuration, verifies that the channel data agrees with the test data or a possible fault is detected. Additionally, each output is continually checked for overcurrent, which is manually set for each channel. If the switch is open and current is any value other than 0 A, a BIT error will occur. If the switch is closed and voltage is any value other than 0 V, a BIT error will occur.

Status and Interrupts

The Discrete I/O Function Module provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

Module Common Registers

The Discrete I/O Function Module includes module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.

User Watchdog Timer Capability

The Discrete I/O Function Module provide registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the Principle of Operation description.

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Register Offset, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

Discrete Input/Switch Registers

The Switch Control register commands the switch open or closed. the Read I/O register contains the discrete channel’s state (High (1) or Low (0)) as specified by the channel’s threshold configurations.

Switch Control

Function: Opens and closes the switch for each channel.

Type: unsigned binary word (32-bit)

Read/Write: R/W

Initialized Value: 0x0000 0000

Operational Settings: Write integer 0 for input; Write 1 for closed switch.

Switch Control

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Open Circuit Detection

Function: Enables a 3.3V pull-up on the channel that may be used for open circuit detection.

Type: unsigned binary word (32-bit)

Read/Write: R/W

Initialized Value: 0x0000 0000

Operational Settings: Write integer 1 for open circuit detection. Default is 0, which does not provide open circuit detection. When an open circuit occurs, the voltage read on the channel will be pulled up to ~2.7V. Normal reading is 0.

An interrupt is generated for open circuit indication, by channel, via the Maximum High Threshold and Maximum High Threshold Interrupt Enable registers.

Note

Added Enhanced Feature; introduced/available on EAR FPGA rev. 3; top-boards rev D (DOM @ 10/2016).

Open Circuit Detection

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Switch State

Function: Reads whether the state of the switch is open or closed.

Type: unsigned binary word (32-bit)

Read/Write: R

Initialized Value: N/A

Operational Settings: N/A

Switch State

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Read I/O

Function: Reads High 1 or Low 0 as defined by internal channel threshold values.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R

Initialized Value: N/A

Operational Settings: N/A

Read I/O

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Discrete Input/Output Threshold Programming Registers

Four threshold levels: Max High Threshold, Upper Threshold, Lower Threshold, and Min Low Threshold are programmable for each Discrete channel in the module.

Input/Output Threshold Levels

Max High Threshold

Upper Threshold

Lower Threshold

Min Low Threshold

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Max High Threshold

Function: Sets the maximum high threshold value. Programmable per channel from -60 to 60 VDC, with binary 10-bit word resolution (LSB=100 mv).

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FDA8 to 0x0000 0258 (usable range)

Read/Write: R/W

Initialized Value: 0x64

Operational Settings: Assumes that the programmed level is the maximum voltage used to indicate a Max High Threshold. If a signal is greater than the Max High Threshold value, a flag is set in the Max High Threshold Status register. The Max High Threshold register may be used to monitor any type of high signal voltage condition or threshold such as a “Short to +V” as it applies to input measurement as well as contact sensing applications.

Upper Threshold

Function: Sets the upper threshold value. Programmable per channel from -60 to 60 VDC, with binary 10-bit word resolution (LSB=100 mv).

Type: signed binary word (32-bit)

Data Range: 0xFFFF FDA8 to 0x0000 0258 (usable range)

Read/Write: R/W

Initialized Value: 0x32

Operational Settings: A signal is considered logic High (1) when its value exceeds the Upper Threshold and does not consequently fall below the Upper Threshold in less than the programmed Debounce Time.

Lower Threshold

Function: Sets the lower threshold value. Programmable per channel from -60 to 60 VDC, with binary 10-bit word resolution (LSB=100 mv).

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FDA8 to 0x0000 0258 (usable range)

Read/Write: R/W

Initialized Value: 0x1E

Operational Settings: A signal is considered logic Low (0) when its value falls below the Lower Threshold and does not consequently rise above the Lower Threshold in less than the programmed Debounce Time.

Min Low Threshold

Function: Sets the minimum low threshold. Programmable per channel from -60 to 60 VDC, with binary 10-bit word resolution (LSB=100 mv).

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FDA8 to 0x0000 0258 (usable range)

Read/Write: R/W

Initialized Value: 0x0

Operational Settings: The programmed level is the voltage used to indicate a minimum low threshold. If a signal is less than the Min Low Threshold value, a flag is set in the Min Low Threshold Status register. The Min Low Threshold register may be used to monitor any type of low signal voltage condition or threshold such as a “Short to Ground” as it applies to input measurement as well as contact sensing applications.

Discrete Measurement Registers

The measured voltage and current applied at or across the P/N pins for each channel can be read from the Voltage Reading and Current Reading registers.

Voltage Reading (Sampled)

Function: Reads actual voltage at I/O pin per individual channel.

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FDA8 to 0x0000 0258 (usable range)

Read/Write: R

Initialized Value: N/A

Operational Settings: Value is a signed binary 32-bit word, where LSB = 100 mV. Data is read as 2’s complement number. For example, if output voltage word is 0x00F0 (240d), actual voltage is 24.0 V.

Voltage Reading (Sampled)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Voltage Reading (Averaged)

Function: Reads averaged value of the output voltage at I/O pin per individual channel.

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FDA8 to 0x0000 0258 (usable range)

Read/Write: R

Initialized Value: N/A

Operational Settings: Value is an unsigned binary 10-bit word, where LSB=100 mV. For example, if output voltage word is 0x00F0 (240d), actual voltage is 24.0 V.

Voltage Reading (Averaged)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Current Reading (Sampled)

Function: Reads current through the I/O pins per individual channel.

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FEC8 to 0x0000 0138

Read/Write: R

Initialized Value: Updated by module as per conditions

Operational Settings: Value is signed binary 32-bit word, where LSB=2 mA. Read as 2’s complement; Current source is positive, Current sink is negative. For example, if output current word is 0x0064 (100d), actual current is 200 mA.

Current Reading (Sampled)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Current Reading (Averaged)

Function: Reads averaged current through the I/O pins per individual channel.

Type: signed binary dword (32-bit)

Data Range: 0xFFFF FEC8 to 0x0000 0138

Read/Write: R

Initialized Value: N/A

Current Reading (Averaged)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Discrete Input/Output Control Registers

Control of the Discrete switch channels include specifying the Debounce time for each input channel and resetting the switch channel on an overcurrent condition.

Debounce Time

Function: Sets the Debounce time (LSB= 10 μs; 32-bit resolution) for each channel.

Type: unsigned binary dword (32-bit)

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0 (no debounce/disabled)

Operational Settings: The Debounce Time register, when programmed for a non-zero value, is used with channels to “filter” or “ignore” expected application spurious initial transitions. Enter required Debounce Time into appropriate channel registers. LSB weight is 10 µs/bit (register may be programmed from 0x0000 0000 (debounce filter inactive) through a maximum of 0xFFFF FFFF (2^32 * 10µs) (full scale w/ 10 µs resolution). Once a signal level is a logic voltage level period longer than the debounce time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed Debounce Time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state. Enter a value of 0000h to disable debounce filtering.

Overcurrent Value

Function: Sets the overcurrent value for each channel.

Type: signed binary dword (32-bit)

Data Range: 0x0000 0000 to 0x0000 0138

Read/Write: R/W

Initialized Value: 0x138

Operational Settings: LSB = 2 mA

Overcurrent Value

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Overcurrent Reset

Function: Resets disabled channels in Overcurrent Latched Status register following an overcurrent condition as measured by the Current Reading register.

Type: unsigned binary dword (32-bit)

Data Range: 0x0000 0000 to 0x0000 0001

Read/Write: R/W

Initialized Value: 0x0

Operational Settings: 1 is written to reset disabled channels. Processor will write a 0 back to the Overcurrent Reset register when reset process is complete.

Overcurrent Reset

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

User Watchdog Time Programming Registers

Refer to “User Watchdog Timer Module Manual” for the register descriptions.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

Status and Interrupts

The Discrete Module provides status registers for BIT, Low-to-High Transition, High-to-Low Transition, Overcurrent, Above Max High Threshold, Below Min Low Threshold, and Mid-Range.

BIT Status

There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

BIT Status

BIT Dynamic Status

BIT Latched Status

BIT Interrupt Enable

BIT Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s BIT error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

Overcurrent Status

There are four registers associated with the Overcurrent Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Overcurrent Status

Overcurrent Dynamic Status

Overcurrent Latched Status

Overcurrent Interrupt Enable

Overcurrent Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s Overcurrent error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Note

Status is indicated (associated channel(s) bit set to 1), within 80 ms.

Note

Channel(s) shut down by overcurrent sensed can be reset by writing to the Overcurrent Reset register

Above Max High Threshold Status

There are four registers associated with the Above Max High Threshold Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. Latched status is indicated (bit is set) within 500 µs. Write a 1 to clear status.

Above Max High Threshold Status

Above Max High Threshold Dynamic Status

Above Max High Threshold Latched Status

Above Max High Threshold Interrupt Enable

Above Max High Threshold Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s Above Max High Threshold event.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Below Min Low Threshold Status

Below Min Low Threshold Dynamic Status

Below Min Low Threshold Latched Status

Below Min Low Threshold Interrupt Enable

Below Min Low Threshold Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s Below Min Low Threshold event.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Mid-Range Status

There are four registers associated with the Mid-Range Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. Latched status is indicated (bit is set) within 500 µs. Write a 1 to clear status.

Mid-Range Status

Mid-Range Dynamic Status

Mid-Range Latched Status

Mid-Range Interrupt Enable

Mid-Range Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s Mid-Range event.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Note

Voltage level needs to be between the upper and lower thresholds for the debounce time for this status to assert.

Note

In the event this status is asserted, the Input/Output state will hold its previous state.

Low-to-High Transition Status

There are four registers associated with the High-to-Low Transition Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Low-to-High Transition Status

Low-to-High Dynamic Status

Low-to-High Latched Status

Low-to-High Interrupt Enable

Low-to-High Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s Low-to-High Transition event.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Transition status follows the value read by the Input/Output State register.

High-to-Low Transition Status

There are four registers associated with the High-to-Low Transition Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

High-to-Low Transition Status

High-to-Low Dynamic Status

High-to-Low Latched Status

High-to-Low Interrupt Enable

High-to-Low Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Function: Sets the corresponding bit associated with the channel’s High-to-Low Transition event.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 FFFF

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Transition status follows the value read by the Input/Output State register.

User Watchdog Timer Fault Status

The Discrete Module provides registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Fault Status register descriptions.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function: Set an identifier for the interrupt.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function: Sets where to direct the interrupt.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME 1
Direct Interrupt to ARM Processor (via SerDes) +
(Custom App on ARM or NAI Ethernet Listener App) 2
Direct Interrupt to PCIe Bus 5
Direct Interrupt to cPCI Bus 6
Link to original

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) + (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

ENHANCED FUNCTIONALITY

Input Modes

There are 10 Input modes. All input modes may be configured with debounce capability. Debounce capability allows configurable filtering of noisy signals and transients. Each channel may be set to an individual debounce time value. When a debounce time is set to a non-zero value, the signal reading after a transition must remain at the same level for the debounce interval before it is propagated through, otherwise it is rejected. All Input Modes (1-10) FIFO buffers are 1024 words deep.

Mode 0 - No Enhancement Mode: Behaves the same as a standard functionality only module.

Mode 1 - High Time Pulse Measurement (FIFO Buffer): Timing measurements record the time interval (in 8 ns ticks) from a pair of transitions.

Pulse High, Mode 1: records measurements for each rising transition to the next falling one.

Mode 2 - Low Time Pulse Measurement (FIFO Buffer): Timing measurements record the time interval (in 8 ns ticks) from a pair of transitions.

Pulse Low, Mode 2: records the interval from each falling edge to the next rising edge.

Mode 3 - Transition Timestamp of All Rising Edges (FIFO Buffer): Rising Edge time stamps from 125 MHz, 32-bit counter will be sequentially available and stored in the FIFO buffer.

Note

In this example, four counter values at the rising edge transitions are recorded to the FIFO: 0x344321, 0x344999, 0x345011, 0x345689, etc.

Delta of 0x678 = 1656 counts, or 13.248 µs interval between pulses.

Mode 4 - Transition Timestamp of All Falling Edges (FIFO Buffer): Falling Edge time stamps from 125 MHz, 32-bit counter will be sequentially available and stored in the FIFO buffer.

Mode 5 - Transition Timestamp of All Edges (FIFO Buffer): Rising and Falling Edge time stamps from 125 MHz, 32-bit counter will be sequentially available and stored in the FIFO buffer.

Note

In this example, all edges time stamp. Four counter values at the transitions are recorded to the FIFO: 0x344321, 0x344999, 0x345011, 0x345689, etc.

Delta of 0x33C = 828 counts, or 6.624 µs interval between pulses.

Mode 6 - Rising Edge Transition Counter: When selected, the rising edge count will be available from the count register at the FIFO read address. The counter is reset via user command.32-bit count range to 232.

Mode 7 - Falling Edge Transition Counter: When selected, falling edge count will be available from the count register at the FIFO read address. The counter is reset via user command. 32-bit count range to 232.

Mode 8 - Rising and Falling Edge Transition Counter: When selected, cumulative edge counts will be available from the count register at the FIFO read address. The counter is reset via user command. 32-bit count range to 232.

Mode 9 - Period Measurement: Timing measurements record the intervals from pulse-to-pulse in 8 ns ticks (delta timestamp).

Note

In Period Measurement mode, the same three pulse-to-pulse interval values as calculated in the timestamp measurement would be directly recorded to the FIFO.

Mode 10 - Frequency Measurement: Enables frequency measurement, which will be available and stored in the FIFO buffer. Frequency measurement correlates to/utilizes a programmable time interval, which is programmed in the Period register. Direct readout of frequency is available when the interval is set to one second.

Output Modes

There are three Output modes, which include a standard output mode, two PWM outputs and a Pattern Generator Output mode.

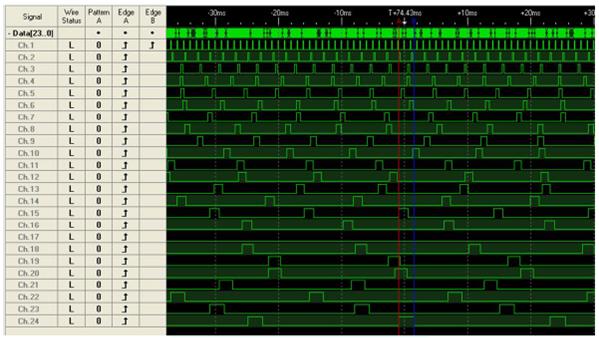

Mode 32 (0x20) - PWM Continuous Output Mode: In the sample shown below, each of the 24 channels has been set up with incrementing periods and pulse widths, running in continuous mode. Timing is asynchronous to each channel, but is very precise and with low jitter. In this mode, the configured PWM output is enabled and disabled with the Start Output/Measure Enable register.

Continuous Output Mode (Mode 32)

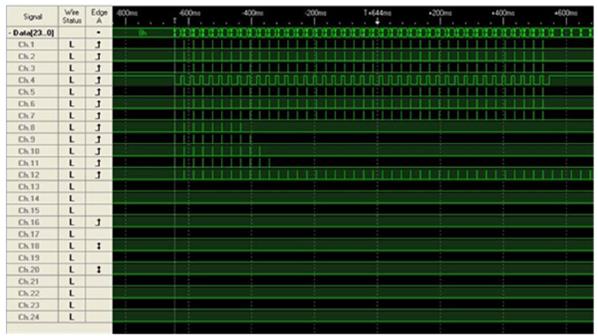

Mode 33 (0x21) - PWM Burst: Repeats the pulse based on programmed Period and Pulse Width “n” times as programmed in the Number of Cycles register.

Burst Mode (Mode 33) Programmed for “n” Number of Cycles

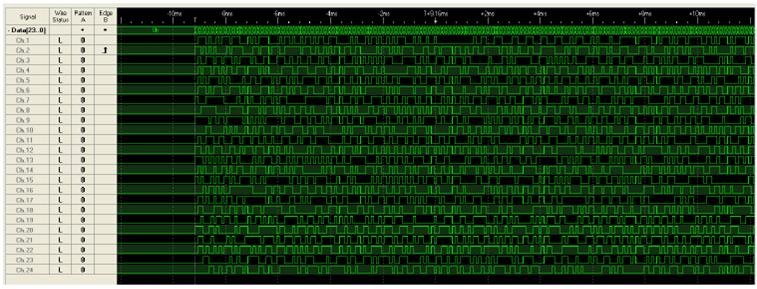

Mode 34 (0x22) - Pattern Generator Output: Outputs all mode selected channels based on the pattern programmed in the Pattern RAM register. The output rate is set in the Pattern RAM Period register. The output is a cyclic transmission of a 216 deep X 24 bit pattern array at configurable pattern intervals with 8 ns resolution. Pattern output may be stopped and resumed at the same point in the cycle. The following shows an arbitrary output of patterns as displayed on 24 channels of a logic analyzer. Each vertical column represents one 24-bit pattern of the 216 pattern array.

Pattern Data Output (Mode 34)

Mode Select

Function: This register provides selection of 13 different modes (0-10; 32,33,34). See the table that follows for a brief description of each mode.

Type: unsigned binary word (32-bit)

Data Range: 1 to 10; 32 to 34

Read/Write: R/W

Initialized Value: 0

Operational Settings: Modes 0 through 10; 32 through 34 are selectable for each channel. Writing a 0 will reset the Modes to their initialized state.

Mode #	Hex	Description
1	0x0001	Measure “High” time: Write a 1 to the Start Output/Measure Enable register to enable measurement of the I/O state “High” time. It will not be measured if the bit is not set for that channel, i.e. 0. If a 1 is written to enable measurement on a channel while that channel’s I/O state is 1, then the internal counter will begin to count upon begin enabled.
2	0x0002	Measure “Low” time: Write a 1 to the Start Output/Measure Enable register to enable measurement of the I/O state “Low time”. It will not be measured if the bit is not set for that channel. If a 1 is written to enable measurement on a channel while that channel’s I/O state is 0, then the internal counter will begin to count upon being enabled.
3	0x0003	Time-stamp of all rising edges: Write a 1 to the Start Output/Measure Enable register and the timestamp counter will begin to count. A low-to-high transition on that channel will store the timestamp at the time of the transition in the FIFO. If that channel is then disabled by writing a 0, the timestamp counter will pause and any low-to-high transitions of the I/O state will not trigger FIFO storage. Write any value to the Reset Timer register to reset the timestamp counter.
4	0x0004	Time-stamp of all falling edges: Write a 1 to the Start Output/Measure Enable register and the timestamp counter will begin to count. A high-to-low transition on that channel will store the timestamp at the time of the transition in the FIFO. If that channel is then disabled by writing a 0, the timestamp counter will pause and any high-to-low transitions of the I/O state will not trigger a FIFO storage. Write any value to the Reset Timer register to reset the timestamp counter.
5	0x0005	Time-stamp of all edges: Write a 1 to the Start Output/Measure Enable register and the timestamp counter will begin to count. Any low-to-high or high-to-low transition on that channel will store the timestamp at the time of the transition in the FIFO. If that channel is then disabled by writing a 0, the timestamp counter will pause and any low-to-high or high-to-low transitions of the I/O state will not trigger FIFO storage. Write any value to the Reset Timer register to reset the timestamp counter.
6	0x0006	Count total number of rising edges (until FIFO reset): Write a 1 to the Start Output/Measure Enable register to begin tracking any low-to-high transition of that channel’s I/O state will increment the counter by one. If a 0 is written in the register for that channel, the count will not increment on any transitions. Write any value to the Reset Timer register to reset the counter.
7	0x0007	Count total number of falling edges (until FIFO reset): Write a 1 to the Start Output/Measure Enable register to begin tracking any high-to-low transition of that channel’s I/O state will increment the counter by one. If a 0 is written in the register for that channel, the count will not increment on any transitions. Write any value to the Reset Timer register to reset the counter.
8	0x0008	Count total number of all edges (until FIFO reset): Write a 1 to the Start Output/Measure Enable register to begin tracking any low-to-high transition or high-to-low transition of that channel’s I/O state will increment the counter by one. If a 0 is written in the register for that channel, the count will not increment on any transitions. Write any value to the Reset Timer register to reset the counter.
9	0x0009	Measure period from rising edge (L-H transition) to next rising edge: The first low-to-high transition of any enabled channel will start the counter. The next low-to-high transition will store the count in the FIFO, reset the counter, and begin the count again. This will repeat. After the waveform on the input has finished, write any value to the Reset Timer to reset it to zero.
10	0x000A	Measure frequency: The first low-to-high transition of any enabled channel will start the PWM Period counter. The counter will be incremented for every low-to-high transition that occurs within the defined period. Once the period counter reaches zero, the number of low-to-high transitions counted will be stored in FIFO and the process will restart. Write any value to the Reset Timer to reset it to zero.
32	0x20	PWM - output continuously: Will continuously (repeat) the pulse based on programmed Period and Pulse Width registers. Write a 1 to output the continuous waveform programed in the Period and Pulse Width registers. Write a 0 to disable the output.
33	0x21	PWM - output “n” times Will repeat the pulse based on programmed Period and Pulse Width “n” times as programmed in the Number of Cycles register. Write a 1 to output the number of pulses written in the Number of Cycles register with the period and pulse width written in the Period and Pulse Width registers. Once the programmed number of pulses that was written to the register has been outputted, a 0 will be written back to the register for the channel that was enabled (self-clearing).
34	0x22	Output pattern data held in RAM: Outputs all mode selected channel(s) based on the pattern programmed in RAM. The output rate is set in the Pattern RAM Period register. The Pattern RAM Start Address register will determine where the pattern RAM output will begin when enabled. The Pattern RAM End Address register will determine where the pattern RAM output will end when enabled. After the pattern is outputted, it will loop back to the start address. Writing a 0x1 to the control register will loop the pattern continuously. While looping continuously, a 0x0 can be written to stop the output and bring the pattern back to the start address or a 0x5 can be written to pause the output wherever it may be in the pattern. Writing a 0x1 when the pattern is paused will resume the pattern at the same spot. Writing a 0x3 to the control register will burst the pattern from the start address to the end address for N number of times. N is determined by the value written in the Pattern RAM Period register. The Pattern RAM Period register determines how long the each address data will be output for. In other words, it is the time it takes for the output to change to the next address.

Notes:

Mode 1 - 10	Input
Mode 32 - 34	Output
1	Mode(s) 1-10: FIFO storage occurs at 8 ns intervals (unless otherwise specified)
2	Mode(s) 7- 9: Applies to measurement “count” edges - the “count” is provided/updated at 8ns intervals in the first element of the FIFO only (no FIFO ‘storage” - first element is dynamically updated).
3	Mode 10 (Measure frequency): In this mode, the captured FIFO data is essentially the number of transitions measured within a given user specified time interval (specified/programmed in the Pulse Width register). From this, the user calculates frequency by [FIFO Data (# of transitions) / Pulse Width], or, simply program the Pulse Width register to a time interval of 1 second, which then FIFO Data (# of transitions) directly correlates to measured frequency (Hz).

Start Output/Measure Enable

Function:

Output Modes: When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the Start Output/Measure Enable register is used to start the channel outputs.

Input Modes: When the Mode Select register is programmed for PWM input modes (Modes 1-10), the Start Output/Measure Enable register is used to start measurement.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: The channel(s) output is based on the pattern preset in the programmed pulse characteristic registers: Period, Pulse Width and Output Polarity. If the Mode Select register is set to Mode 33, the number of pulses is controlled by the Number of Cycles register.

Reset Timer

Function: Resets Timer to default value.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: W

Initialized Value: 0

Operational Settings: Writing any value to this register resets the Timer to default value.

Note

Resetting timers will also retrigger the FIFO store mechanism to trigger or restart the FIFO on the next valid low-to-high transition detected.

FIFO Operations/Functions

There is an independent FIFO (1024 32-bit words deep) for each channel allocated for use when the Mode Select register is programmed for the appropriate mode (applies to Modes 1-10).

Read FIFO/Read Count

Function: Depends upon Mode Select register setting.

Read FIFO: Provides stored data dependent on the input channel(s) mode selected. Applicable to Modes 1 through 5, 9 and 10. See Mode Select register.

Read Count: Applicable to Modes 6, 7 and 8. See Mode Select register.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: R

Initialized Value: 0

Operational Settings: The available data in the FIFO buffer can be retrieved, one word at a time (32-bits), from the identified memory/register address.

Note

The Read FIFO and Read Count functions share a register. They are mutually exclusive in that depending upon the setting of the Mode Select register, either one or the other will become active.

Read FIFO Count

Function: Reads the number of 32-bit words stored in FIFO for each channel.

Type: unsigned binary word (32-bit)

Data Range: Any value

Read/Write: R/W

Initialized Value: 0

Operational Settings: Mode Select register set for Modes 1-10.

Read FIFO Status

Function: Provides a real-time status of the following conditions:

FIFO empty
FIFO full
Almost Empty
Almost Full

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x4

Read/Write: R

Initialized Value: 0

Operational Settings: See table below.

Read FIFO Status

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Bit	Description
D0	Full
D1	Almost Full
D2	Almost Empty
D3	Empty

Reset FIFO

Function: Resets measurement FIFO (only) to zero. Applicable to Modes 1 through 5, 9 and 10. See Mode Select register.

Type: unsigned binary word (32-bit)

Read/Write: W

Initialized Value: 0

Operational Settings: The act of writing any value to this register will apply the reset.

PWM Operations/Functions

Unless otherwise specified, PWM operations and functions apply to channels when the Mode Select register is set for Modes 32 & 33.

Period

The Period register works in conjunction with the Pulse Width, Output Select, Number of Cycles and Start Output/Measure Enable registers to configure PWM output. See Configuring PWM Output figure below. It is also used for Period and Frequency measurement.

Configuring PWM Output

Function: When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the PWM Period is based on the programmed value set in this register.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0002 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: Mode Select register is set to Mode 32 or 33, the Period register is used to program the desired channel PWM output pulse period. Enter the desired PWM pulse period (LSB=@ 8 ns; valid entries are: 16 ns to 34.36 sec.).

Note

Programmed PWM Period must be greater than the value set in the Pulse Width register.

Pulse Width

Function: When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the Pulse Width register is used to program the desired channel(s) PWM Pulse Width “ON” time. See Configuring PWM Output figure. When the Mode Select register is programmed for frequency measurement (Mode 10), the Pulse Width register is used to program the Timebase for the desired channel(s).

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0001 to 0xFFFF FFFE

Read/Write: R/W

Initialized Value: 0

Operational Settings:

Applied to Mode(s) 32 & 33: Enter the desired PWM Pulse Width (LSB=@ 8 ns; 10 µs to @ 10 µs to 10 µs x 232 sec). Used in conjunction with the Period register.

Note

Programmed PWM Pulse Width must be less than the value set in the Period register.

Applied to Mode 10: For channel(s) with functions that rely on frequency measurement, the Pulse Width register is used to program the desired channel “Timebase” for the frequency measurement transition count period of time.

Note

There may be an initial “low” level output delay based on the Period time before the initial pulse is output.

Number of Cycles

Function: When Mode Select register is programmed for Mode 33, the Number of Cycles register is used to program the number of times to repeat the pulse.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0001 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: Pulse is determined and used in conjunction with the Period and Pulse Width registers. Enter the desired Number of Cycles.

Note

If continuous pulse generation is desired, select Mode 32.

Pattern Generator Operations/Functions

Applies to channels set for Output mode 34 on the Mode Select register. There is an allocated RAM data pattern 64K deep RAM location range, bit-mapped per channel that can be used for multichannel pulse pattern generation. Each channel, when programmed for Mode 34, is bit-mapped (LSB = Ch1) and when triggered (timers are reset), will sequentially output the programmed RAM pattern at the rate programmed in the Pattern RAM Period register.

Pattern RAM Period

Function: Programs the desired channel output pattern rate.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0001 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: Enter the desired Pattern Generator RAM period (LSB=@ 10 ns).

Default: 0

Pattern RAM Start Address

Function: Programs the starting address for the Pattern Generator.

Type: unsigned binary word (32-bit)

Data Range: 0x40000 to 0x7FFFC

Read/Write: R/W

Initialized Value: 0

Operational Settings: Output rate is determined by the rate programmed in the Pattern RAM Period register. Write a 1 to start the RAM pattern output; write a 0 to stop the RAM pattern output.

Default: 0

Pattern RAM Start Address

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Pattern RAM End Address

Function: Programs the ending address for the Pattern Generator. There are 32K address locations from 0x40000 to 0x7FFFC.

Register Offset(s): 0x2018

Type: unsigned binary word (32-bit)

Data Range: 0x40000 to 0x7FFFC

Read/Write: R/W

Initialized Value: 0

Operational Settings: NA

Pattern RAM End Address

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Pattern RAM Number of Cycles

Function: Program the number of times to repeat the pattern.

Register Offset(s): 0x2020

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0001 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: Programmable from 1 to 2³² cycles.

Pattern RAM Control

Function: Control the RAM data pattern.

Type: unsigned binary word (32-bit)

Data Range: N/A

Read/Write: W

Initialized Value: 0

Operational Settings: The Pattern RAM Start Address register determines where the pattern RAM output will begin when enabled. The Pattern RAM End Address register determines where the pattern RAM output will end when enabled. After the pattern at the pattern end address is outputted, it will loop back to the start address.

Pattern RAM Control

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Note

Write the following values to the register to perform each function.

Bit	Function
D0	Pattern Looping: This bit will enable or disable continuous pattern looping. Write 0x1 to enable and 0x0 to disable the pattern.
D1	Burst Mode: Write 0x3 will burst the pattern from the start address to the end address for N number of times. N is determined by the value written in the Pattern RAM Number of Cycles register.
D2	Pause: Write 0x5 to pause the pattern when enabled.
D3	Rising Edge External Trigger Enable: Uses Channel 1 as the input. Write 0xA to enable pattern burst on a rising edge.
D4	Falling Edge External Trigger Enable: Uses Channel 1 as the input. Write 0x12 to enable pattern burst on a falling edge.

Output Polarity

Function: When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the Output Polarity programs the PWM Pulse Period to start either High (0) or Low (1).

Type: unsigned binary word (32-bit)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Applies to Modes 32 and 33. The Output Polarity register is used to program the start “level” (or state) of the PWM Pulse Period. The default is ON (High), which is set when the PWM Polarity bit is 0. The PWM start level channel(s) output will be High for the initial start of the period. See Configuring PWM Output figure. The time is defined by the Period and Pulse Width registers. The remainder of the PWM Period time will be “low” defined by the [PWM Period - PWM Pulse Width]. If the PWM Polarity bit is set to 1, the PWM start level will be “low” for the programmed PWM Pulse Width and the remainder of the PWM Period time will be “high” defined by the [PWM Period - PWM Pulse Width]. Bit mapped per channel.

Note

There may be an initial “low” level output delay based on the Period time before the initial pulse is output.

Output Polarity

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0 0	0	0 0	0	0	0	0	D15	D14
D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	D	D
D	D	D	D	D	D	D	D	D	D	D	D	D	D

FUNCTION REGISTER MAP

Key:

Bold Italic = Configuration/Control

Bold Underline = State/Measurement/Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0).

Discrete Input/Switch Registers

0x1000	*Switch Control*	R/W
0x1004	Read I/O	R
0x1010	Switch State	R
0x100C	*Open Circuit Detection^(1)	R/W

(*1) Note: A. Open Circuit Detection enhanced feature; introduced/available on EAR FPGA rev. 3; top-boards rev D (DOM @ 10/2016)

Discrete Input/Output Threshold Programming Registers

0x2014	*Max High Threshold Ch 1*	R/W
0x2094	*Max High Threshold Ch 2*	R/W
0x2114	*Max High Threshold Ch 3*	R/W
0x2194	*Max High Threshold Ch 4*	R/W
0x2214	*Max High Threshold Ch 5*	R/W
0x2294	*Max High Threshold Ch 6*	R/W
0x2314	*Max High Threshold Ch 7*	R/W
0x2394	*Max High Threshold Ch 8*	R/W
0x2414	*Max High Threshold Ch 9*	R/W
0x2494	*Max High Threshold Ch 10*	R/W
0x2514	*Max High Threshold Ch 11*	R/W
0x2594	*Max High Threshold Ch 12*	R/W
0x2614	*Max High Threshold Ch 13*	R/W
0x2694	*Max High Threshold Ch 14*	R/W
0x2714	*Max High Threshold Ch 15*	R/W
0x2794	*Max High Threshold Ch 16*	R/W

0x2018	*Upper Threshold Ch 1*	R/W
0x2098	*Upper Threshold Ch 2*	R/W
0x2118	*Upper Threshold Ch 3*	R/W
0x2198	*Upper Threshold Ch 4*	R/W
0x2218	*Upper Threshold Ch 5*	R/W
0x2298	*Upper Threshold Ch 6*	R/W
0x2318	*Upper Threshold Ch 7*	R/W
0x2398	*Upper Threshold Ch 8*	R/W
0x2418	*Upper Threshold Ch 9*	R/W
0x2498	*Upper Threshold Ch 10*	R/W
0x2518	*Upper Threshold Ch 11*	R/W
0x2598	*Upper Threshold Ch 12*	R/W
0x2618	*Upper Threshold Ch 13*	R/W
0x2698	*Upper Threshold Ch 14*	R/W
0x2718	*Upper Threshold Ch 15*	R/W
0x2798	*Upper Threshold Ch 16*	R/W

0x201C	*Lower Threshold Ch 1*	R/W
0x209C	*Lower Threshold Ch 2*	R/W
0x211C	*Lower Threshold Ch 3*	R/W
0x219C	*Lower Threshold Ch 4*	R/W
0x221C	*Lower Threshold Ch 5*	R/W
0x229C	*Lower Threshold Ch 6*	R/W
0x231C	*Lower Threshold Ch 7*	R/W
0x239C	*Lower Threshold Ch 8*	R/W
0x241C	*Lower Threshold Ch 9*	R/W
0x249C	*Lower Threshold Ch 10*	R/W
0x251C	*Lower Threshold Ch 11*	R/W
0x259C	*Lower Threshold Ch 12*	R/W
0x261C	*Lower Threshold Ch 13*	R/W
0x269C	*Lower Threshold Ch 14*	R/W
0x271C	*Lower Threshold Ch 15*	R/W
0x279C	*Lower Threshold Ch 16*	R/W

0x2020	*Min Low Threshold Ch 1*	R/W
0x20A0	*Min Low Threshold Ch 2*	R/W
0x2120	*Min Low Threshold Ch 3*	R/W
0x21A0	*Min Low Threshold Ch 4*	R/W
0x2220	*Min Low Threshold Ch 5*	R/W
0x22A0	*Min Low Threshold Ch 6*	R/W
0x2320	*Min Low Threshold Ch 7*	R/W
0x23A0	*Min Low Threshold Ch 8*	R/W
0x2420	*Min Low Threshold Ch 9*	R/W
0x24A0	*Min Low Threshold Ch 10*	R/W
0x2520	*Min Low Threshold Ch 11*	R/W
0x25A0	*Min Low Threshold Ch 12*	R/W
0x2620	*Min Low Threshold Ch 13*	R/W
0x26A0	*Min Low Threshold Ch 14*	R/W
0x2720	*Min Low Threshold Ch 15*	R/W
0x27A0	*Min Low Threshold Ch 16*	R/W

Discrete Input/Output Measurement Registers

0x2000	Voltage Reading (Sampled) Ch 1	R
0x2080	Voltage Reading (Sampled) Ch 2	R
0x2100	Voltage Reading (Sampled) Ch 3	R
0x2180	Voltage Reading (Sampled) Ch 4	R
0x2200	Voltage Reading (Sampled) Ch 5	R
0x2280	Voltage Reading (Sampled) Ch 6	R
0x2300	Voltage Reading (Sampled) Ch 7	R
0x2380	Voltage Reading (Sampled) Ch 8	R
0x2400	Voltage Reading (Sampled) Ch 9	R
0x2480	Voltage Reading (Sampled) Ch 10	R
0x2500	Voltage Reading (Sampled) Ch 11	R
0x2580	Voltage Reading (Sampled) Ch 12	R
0x2600	Voltage Reading (Sampled) Ch 13	R
0x2680	Voltage Reading (Sampled) Ch 14	R
0x2700	Voltage Reading (Sampled) Ch 15	R
0x2780	Voltage Reading (Sampled) Ch 16	R

0x2004	Voltage Reading (Averaged) Ch 1	R
0x2084	Voltage Reading (Averaged) Ch 2	R
0x2104	Voltage Reading (Averaged) Ch 3	R
0x2184	Voltage Reading (Averaged) Ch 4	R
0x2204	Voltage Reading (Averaged) Ch 5	R
0x2284	Voltage Reading (Averaged) Ch 6	R
0x2304	Voltage Reading (Averaged) Ch 7	R
0x2384	Voltage Reading (Averaged) Ch 8	R
0x2404	Voltage Reading (Averaged) Ch 9	R
0x2484	Voltage Reading (Averaged) Ch 10	R
0x2504	Voltage Reading (Averaged) Ch 11	R
0x2584	Voltage Reading (Averaged) Ch 12	R
0x2604	Voltage Reading (Averaged) Ch 13	R
0x2684	Voltage Reading (Averaged) Ch 14	R
0x2704	Voltage Reading (Averaged) Ch 15	R
0x2784	Voltage Reading (Averaged) Ch 16	R

0x2008	Current Reading Ch 1 (Sampled)	R
0x2088	Current Reading Ch 2 (Sampled)	R
0x2108	Current Reading Ch 3 (Sampled)	R
0x2188	Current Reading Ch 4 (Sampled)	R
0x2208	Current Reading Ch 5 (Sampled)	R
0x2288	Current Reading Ch 6 (Sampled)	R
0x2308	Current Reading Ch 7 (Sampled)	R
0x2388	Current Reading Ch 8 (Sampled)	R
0x2408	Current Reading Ch 9 (Sampled)	R
0x2488	Current Reading Ch 10 (Sampled)	R
0x2508	Current Reading Ch 11 (Sampled)	R
0x2588	Current Reading Ch 12 (Sampled)	R
0x2608	Current Reading Ch 13 (Sampled)	R
0x2688	Current Reading Ch 14 (Sampled)	R
0x2708	Current Reading Ch 15 (Sampled)	R
0x2788	Current Reading Ch 16 (Sampled)	R

0x200C	Current Reading Ch 1 (Averaged)	R
0x208C	Current Reading Ch 2 (Averaged)	R
0x210C	Current Reading Ch 3 (Averaged)	R
0x218C	Current Reading Ch 4 (Averaged)	R
0x220C	Current Reading Ch 5 (Averaged)	R
0x228C	Current Reading Ch 6 (Averaged)	R
0x230C	Current Reading Ch 7 (Averaged)	R
0x238C	Current Reading Ch 8 (Averaged)	R
0x240C	Current Reading Ch 9 (Averaged)	R
0x248C	Current Reading Ch 10 (Averaged)	R
0x250C	Current Reading Ch 11 (Averaged)	R
0x258C	Current Reading Ch 12 (Averaged)	R
0x260C	Current Reading Ch 13 (Averaged)	R
0x268C	Current Reading Ch 14 (Averaged)	R
0x270C	Current Reading Ch 15 (Averaged)	R
0x278C	Current Reading Ch 16 (Averaged)	R

Discrete Input/Output Control Registers

0x2010	*Debounce Time Ch 1*	R/W
0x2090	*Debounce Time Ch 2*	R/W
0x2110	*Debounce Time Ch 3*	R/W
0x2190	*Debounce Time Ch 4*	R/W
0x2210	*Debounce Time Ch 5*	R/W
0x2290	*Debounce Time Ch 6*	R/W
0x2310	*Debounce Time Ch 7*	R/W
0x2390	*Debounce Time Ch 8*	R/W
0x2410	*Debounce Time Ch 9*	R/W
0x2490	*Debounce Time Ch 10*	R/W
0x2510	*Debounce Time Ch 11*	R/W
0x2590	*Debounce Time Ch 12*	R/W
0x2610	*Debounce Time Ch 13*	R/W
0x2690	*Debounce Time Ch 14*	R/W
0x2710	*Debounce Time Ch 15*	R/W
0x2790	*Debounce Time Ch 16*	R/W

0x2024	*Overcurrent Value Ch 1*	R/W
0x20A4	*Overcurrent Value Ch 2*	R/W
0x2124	*Overcurrent Value Ch 3*	R/W
0x21A4	*Overcurrent Value Ch 4*	R/W
0x2224	*Overcurrent Value Ch 5*	R/W
0x22A4	*Overcurrent Value Ch 6*	R/W
0x2324	*Overcurrent Value Ch 7*	R/W
0x23A4	*Overcurrent Value Ch 8*	R/W
0x2424	*Overcurrent Value Ch 9*	R/W
0x24A4	*Overcurrent Value Ch 10*	R/W
0x2524	*Overcurrent Value Ch 11*	R/W
0x25A4	*Overcurrent Value Ch 12*	R/W
0x2624	*Overcurrent Value Ch 13*	R/W
0x26A4	*Overcurrent Value Ch 14*	R/W
0x2724	*Overcurrent Value Ch 15*	R/W
0x27A4	*Overcurrent Value Ch 16*	R/W

0x1008	*Overcurrent Reset*	R/W

User Watchdog Timer Programming Registers

Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Status Function Register Map

Module Common Registers

Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map.

Discrete Status Registers

BIT Status

0x0800	Dynamic Status	R
0x0804	Latched Status*	R/W
0x0808	*Interrupt Enable*	R/W
0x080C	*Set Edge/Level Interrupt*	R/W

Overcurrent Status

0x0810	Dynamic Status	R
0x0814	Latched Status*	R/W
0x0818	*Interrupt Enable*	R/W
0x081C	*Set Edge/Level Interrupt*	R/W

Above Max High Threshold Status

0x0820	Dynamic Status	R
0x0824	Latched Status*	R/W
0x0828	*Interrupt Enable*	R/W
0x082C	*Set Edge/Level Interrupt*	R/W

Below Min Low Threshold Status

0x0830	Dynamic Status	R
0x0834	Latched Status*	R/W
0x0838	*Interrupt Enable*	R/W
0x083C	*Set Edge/Level Interrupt*	R/W

Mid-Range Status

0x0840	Dynamic Status	R
0x0844	Latched Status*	R/W
0x0848	*Interrupt Enable*	R/W
0x084C	*Set Edge/Level Interrupt*	R/W

Low-to-High Transition Status

0x0850	Dynamic Status	R
0x0854	Latched Status*	R/W
0x0858	*Interrupt Enable*	R/W
0x085C	*Set Edge/Level Interrupt*	R/W

High-to-Low Transition

0x0860	Dynamic Status	R
0x0864	Latched Status*	R/W
0x0868	*Interrupt Enable*	R/W
0x086C	*Set Edge/Level Interrupt*	R/W

User Watchdog Timer Fault Status

The Discrete Module provides registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Fault Status Function Register Map.

Interrupt Registers

The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address Offsets. These registers are accessed using the absolute addresses listed in the table below.

0x0500	*Module 1 Interrupt Vector 1 - BIT*	R/W
0x0504	*Module 1 Interrupt Vector 2 - Low-High*	R/W
0x0508	*Module 1 Interrupt Vector 3 - High-Low*	R/W
0x050C	*Module 1 Interrupt Vector 4 - Overcurrent*	R/W
0x0510	*Module 1 Interrupt Vector 5 - Max-High*	R/W
0x0514	*Module 1 Interrupt Vector 6 - Min-Low*	R/W
0x0518	*Module 1 Interrupt Vector 7 - Mid Range*	R/W
0x051C to 0x0568	*Module 1 Interrupt Vector 8 - 27 - Reserved*	R/W
0x056C	*Module 1 Interrupt Vector 28 - User Watchdog Timer Fault*	R/W
0x0570 to 0x057C	*Module 1 Interrupt Vector 29-32 - Reserved*	R/W

0x0600	*Module 1 Interrupt Steering 1 - BIT*	R/W
0x0604	*Module 1 Interrupt Steering 2 - Low-High*	R/W
0x0608	*Module 1 Interrupt Steering 3 - High-Low*	R/W
0x060C	*Module 1 Interrupt Steering 4 - Overcurrent*	R/W
0x0610	*Module 1 Interrupt Steering 5 - Max-High*	R/W
0x0614	*Module 1 Interrupt Steering 6 - Min-Low*	R/W
0x0618	*Module 1 Interrupt Steering 7 - Mid Range*	R/W
0x061C to 0x0668	*Module 1 Interrupt Steering 8 - 27 - Reserved*	R/W
0x066C	*Module 1 Interrupt Steering 28 - User Watchdog Timer Fault*	R/W
0x0670 to 0x067C	*Module 1 Interrupt Steering 29-32 - Reserved*	R/W

0x0700	*Module 2 Interrupt Vector 1 - BIT*	R/W
0x0704	*Module 2 Interrupt Vector 2 - Low-High*	R/W
0x0708	*Module 2 Interrupt Vector 3 - High-Low*	R/W
0x070C	*Module 2 Interrupt Vector 4 - Overcurrent*	R/W
0x0710	*Module 2 Interrupt Vector 5 - Max-High*	R/W
0x0714	*Module 2 Interrupt Vector 6 - Min-Low*	R/W
0x0718	*Module 2 Interrupt Vector 7 - Mid Range*	R/W
0x071C to 0x0768	*Module 2 Interrupt Vector 8 - 27 - Reserved*	R/W
0x076C	*Module 2 Interrupt Vector 28 - User Watchdog Timer Fault*	R/W
0x0770 to 0x077C	*Module 2 Interrupt Vector 29-32 - Reserved*	R/W

0x0800	*Module 2 Interrupt Steering 1 - BIT*	R/W
0x0804	*Module 2 Interrupt Steering 2 - Low-High*	R/W
0x0808	*Module 2 Interrupt Steering 3 - High-Low*	R/W
0x080C	*Module 2 Interrupt Steering 4 - Overcurrent*	R/W
0x0810	*Module 2 Interrupt Steering 5 - Max-High*	R/W
0x0814	*Module 2 Interrupt Steering 6 - Min-Low*	R/W
0x0818	*Module 2 Interrupt Steering 7 - Mid Range*	R/W
0x081C to 0x0868	*Module 2 Interrupt Steering 8 - 27 - Reserved*	R/W
0x086C	*Module 2 Interrupt Steering 28 - User Watchdog Timer Fault*	R/W
0x0870 to 0x087C	*Module 2 Interrupt Steering 29-32 - Reserved*	R/W

0x0900	*Module 3 Interrupt Vector 1 - BIT*	R/W
0x0904	*Module 3 Interrupt Vector 2 - Low-High*	R/W
0x0908	*Module 3 Interrupt Vector 3 - High-Low*	R/W
0x090C	*Module 3 Interrupt Vector 4 - Overcurrent*	R/W
0x0910	*Module 3 Interrupt Vector 5 - Max-High*	R/W
0x0914	*Module 3 Interrupt Vector 6 - Min-Low*	R/W
0x0918	*Module 3 Interrupt Vector 7 - Mid Range*	R/W
0x091C to 0x0968	*Module 3 Interrupt Vector 8 - 27 - Reserved*	R/W
0x096C	*Module 3 Interrupt Vector 28 - User Watchdog Timer Fault*	R/W
0x0970 to 0x097C	*Module 3 Interrupt Vector 29-32 - Reserved*	R/W

0x0A00	*Module 3 Interrupt Steering 1 - BIT*	R/W
0x0A04	*Module 3 Interrupt Steering 2 - Low-High*	R/W
0x0A08	*Module 3 Interrupt Steering 3 - High-Low*	R/W
0x0A0C	*Module 3 Interrupt Steering 4 - Overcurrent*	R/W
0x0A10	*Module 3 Interrupt Steering 5 - Max-High*	R/W
0x0A14	*Module 3 Interrupt Steering 6 - Min-Low*	R/W
0x0A18	*Module 3 Interrupt Steering 7 - Mid Range*	R/W
0x0A1C to 0x0A68	*Module 3 Interrupt Steering 8 - 27 - Reserved*	R/W
0x0A6C	*Module 3 Interrupt Steering 28 - User Watchdog Timer Fault*	R/W
0x0A70 to 0x0A7C	*Module 3 Interrupt Steering 29-32 - Reserved*	R/W

0x0B00	*Module 4 Interrupt Vector 1 - BIT*	R/W
0x0B04	*Module 4 Interrupt Vector 2 - Low-High*	R/W
0x0B08	*Module 4 Interrupt Vector 3 - High-Low*	R/W
0x0B0C	*Module 4 Interrupt Vector 4 - Overcurrent*	R/W
0x0B10	*Module 4 Interrupt Vector 5 - Max-High*	R/W
0x0B14	*Module 4 Interrupt Vector 6 - Min-Low*	R/W
0x0B18	*Module 4 Interrupt Vector 7 - Mid Range*	R/W
0x0B1C to 0x0B68	*Module 4 Interrupt Vector 8 - 27 - Reserved*	R/W
0x0B6C	*Module 4 Interrupt Vector 28 - User Watchdog Timer Fault*	R/W
0x0B70 to 0x0B7C	*Module 4 Interrupt Vector 29-32 - Reserved*	R/W

0x0C00	*Module 4 Interrupt Steering 1 - BIT*	R/W
0x0C04	*Module 4 Interrupt Steering 2 - Low-High*	R/W
0x0C08	*Module 4 Interrupt Steering 3 - High-Low*	R/W
0x0C0C	*Module 4 Interrupt Steering 4 - Overcurrent*	R/W
0x0C10	*Module 4 Interrupt Steering 5 - Max-High*	R/W
0x0C14	*Module 4 Interrupt Steering 6 - Min-Low*	R/W
0x0C18	*Module 4 Interrupt Steering 7 - Mid Range*	R/W
0x0C1C to 0x0C68	*Module 4 Interrupt Steering 8 - 27 - Reserved*	R/W
0x0C6C	*Module 4 Interrupt Steering 28 - User Watchdog Timer Fault*	R/W
0x0C70 to 0x0C7C	*Module 4 Interrupt Steering 29-32 - Reserved*	R/W

0x0D00	*Module 5 Interrupt Vector 1 - BIT*	R/W
0x0D04	*Module 5 Interrupt Vector 2 - Low-High*	R/W
0x0D08	*Module 5 Interrupt Vector 3 - High-Low*	R/W
0x0D0C	*Module 5 Interrupt Vector 4 - Overcurrent*	R/W
0x0D10	*Module 5 Interrupt Vector 5 - Max-High*	R/W
0x0D14	*Module 5 Interrupt Vector 6 - Min-Low*	R/W
0x0D18	*Module 5 Interrupt Vector 7 - Mid Range*	R/W
0x0D1C to 0x0D68	*Module 5 Interrupt Vector 8 - 27 - Reserved*	R/W
0x0D6C	*Module 5 Interrupt Vector 28 - User Watchdog Timer Fault*	R/W
0x0D70 to 0x0D7C	*Module 5 Interrupt Vector 29-32 - Reserved*	R/W

0x0E00	*Module 5 Interrupt Steering 1 - BIT*	R/W
0x0E04	*Module 5 Interrupt Steering 2 - Low-High*	R/W
0x0E08	*Module 5 Interrupt Steering 3 - High-Low*	R/W
0x0E0C	*Module 5 Interrupt Steering 4 - Overcurrent*	R/W
0x0E10	*Module 5 Interrupt Steering 5 - Max-High*	R/W
0x0E14	*Module 5 Interrupt Steering 6 - Min-Low*	R/W
0x0E18	*Module 5 Interrupt Steering 7 - Mid Range*	R/W
0x0E1C to 0x0E68	*Module 5 Interrupt Steering 8 - 27 - Reserved*	R/W
0x0E6C	*Module 5 Interrupt Steering 28 - User Watchdog Timer Fault*	R/W
0x0E70 to 0x0E7C	*Module 5 Interrupt Steering 29-32 - Reserved*	R/W

0x0F00	*Module 6 Interrupt Vector 1 - BIT*	R/W
0x0F04	*Module 6 Interrupt Vector 2 - Low-High*	R/W
0x0F08	*Module 6 Interrupt Vector 3 - High-Low*	R/W
0x0F0C	*Module 6 Interrupt Vector 4 - Overcurrent*	R/W
0x0F10	*Module 6 Interrupt Vector 5 - Max-High*	R/W
0x0F14	*Module 6 Interrupt Vector 6 - Min-Low*	R/W
0x0F18	*Module 6 Interrupt Vector 7 - Mid Range*	R/W
0x0F1C to 0x0F68	*Module 6 Interrupt Vector 8 - 27 - Reserved*	R/W
0x0F6C	*Module 6 Interrupt Vector 28 - User Watchdog Timer Fault*	R/W
0x0F70 to 0x0F7C	*Module 6 Interrupt Vector 29-32 - Reserved*	R/W

0x1000	*Module 6 Interrupt Steering 1 - BIT*	R/W
0x1004	*Module 6 Interrupt Steering 2 - Low-High*	R/W
0x1008	*Module 6 Interrupt Steering 3 - High-Low*	R/W
0x100C	*Module 6 Interrupt Steering 4 - Overcurrent*	R/W
0x1010	*Module 6 Interrupt Steering 5 - Max-High*	R/W
0x1014	*Module 6 Interrupt Steering 6 - Min-Low*	R/W
0x1018	*Module 6 Interrupt Steering 7 - Mid Range*	R/W
0x101C to 0x1068	*Module 6 Interrupt Steering 8 - 27 - Reserved*	R/W
0x106C	*Module 6 Interrupt Steering 28 - User Watchdog Timer Fault*	R/W
0x1070 to 0x107C	*Module 6 Interrupt Steering 29-32 - Reserved*	R/W

Enhanced Functionality Registers

0x300C	*Mode Select Ch.1*	R/W
0x308C	*Mode Select Ch.2*	R/W
0x310C	*Mode Select Ch.3*	R/W
0x318C	*Mode Select Ch.4*	R/W
0x320C	*Mode Select Ch.5*	R/W
0x328C	*Mode Select Ch.6*	R/W
0x330C	*Mode Select Ch.7*	R/W
0x338C	*Mode Select Ch.8*	R/W
0x340C	*Mode Select Ch.9*	R/W
0x348C	*Mode Select Ch.10*	R/W
0x350C	*Mode Select Ch.11*	R/W
0x358C	*Mode Select Ch.12*	R/W
0x360C	*Mode Select Ch.13*	R/W
0x368C	*Mode Select Ch.14*	R/W
0x370C	*Mode Select Ch.15*	R/W
0x378C	*Mode Select Ch.16*	R/W

0x2F00	*Start Output/Measure Enable*	R/W
0x2F04	*Reset Timer*	W

FIFO Operations/Functions

0x3000	Read FIFO/Read Count Ch.1	R
0x3080	Read FIFO/Read Count Ch.2	R
0x3100	Read FIFO/Read Count Ch.3	R
0x3180	Read FIFO/Read Count Ch.4	R
0x3200	Read FIFO/Read Count Ch.5	R
0x3280	Read FIFO/Read Count Ch.6	R
0x3300	Read FIFO/Read Count Ch.7	R
0x3380	Read FIFO/Read Count Ch.8	R
0x3400	Read FIFO/Read Count Ch.9	R
0x3480	Read FIFO/Read Count Ch.10	R
0x3500	Read FIFO/Read Count Ch.11	R
0x3580	Read FIFO/Read Count Ch.12	R
0x3600	Read FIFO/Read Count Ch.13	R
0x3680	Read FIFO/Read Count Ch.14	R
0x3700	Read FIFO/Read Count Ch.15	R
0x3780	Read FIFO/Read Count Ch.16	R

0x3004	Read FIFO Count Ch.1	R
0x3084	Read FIFO Count Ch.2	R
0x3104	Read FIFO Count Ch.3	R
0x3184	Read FIFO Count Ch.4	R
0x3204	Read FIFO Count Ch.5	R
0x3284	Read FIFO Count Ch.6	R
0x3304	Read FIFO Count Ch.7	R
0x3384	Read FIFO Count Ch.8	R
0x3404	Read FIFO Count Ch.9	R
0x3484	Read FIFO Count Ch.10	R
0x3504	Read FIFO Count Ch.11	R
0x3584	Read FIFO Count Ch.12	R
0x3604	Read FIFO Count Ch.13	R
0x3684	Read FIFO Count Ch.14	R
0x3704	Read FIFO Count Ch.15	R
0x3784	Read FIFO Count Ch.16	R

0x3008	Read FIFO Status Ch.1	R
0x3088	Read FIFO Status Ch.2	R
0x3108	Read FIFO Status Ch.3	R
0x3188	Read FIFO Status Ch.4	R
0x3208	Read FIFO Status Ch.5	R
0x3288	Read FIFO Status Ch.6	R
0x3308	Read FIFO Status Ch.7	R
0x3388	Read FIFO Status Ch.8	R
0x3408	Read FIFO Status Ch.9	R
0x3488	Read FIFO Status Ch.10	R
0x3508	Read FIFO Status Ch.11	R
0x3588	Read FIFO Status Ch.12	R
0x3608	Read FIFO Status Ch.13	R
0x3688	Read FIFO Status Ch.14	R
0x3708	Read FIFO Status Ch.15	R
0x3788	Read FIFO Status Ch.16	R

0x2F08	*Reset FIFO*	W

PWM Operations/Functions

0x3014	*Period Ch.1*	R/W
0x3094	*Period Ch.2*	R/W
0x3114	*Period Ch.3*	R/W
0x3194	*Period Ch.4*	R/W
0x3214	*Period Ch.5*	R/W
0x3294	*Period Ch.6*	R/W
0x3314	*Period Ch.7*	R/W
0x3394	*Period Ch.8*	R/W
0x3414	*Period Ch.9*	R/W
0x3494	*Period Ch.10*	R/W
0x3514	*Period Ch.11*	R/W
0x3594	*Period Ch.12*	R/W
0x3614	*Period Ch.13*	R/W
0x3694	*Period Ch.14*	R/W
0x3714	*Period Ch.15*	R/W
0x3794	*Period Ch.16*	R/W

0x3010	*Pulse Width Ch. 1*	R/W
0x3090	*Pulse Width Ch. 2*	R/W
0x3110	*Pulse Width Ch. 3*	R/W
0x3190	*Pulse Width Ch. 4*	R/W
0x3210	*Pulse Width Ch. 5*	R/W
0x3290	*Pulse Width Ch. 6*	R/W
0x3310	*Pulse Width Ch. 7*	R/W
0x3390	*Pulse Width Ch. 8*	R/W
0x3410	*Pulse Width Ch. 9*	R/W
0x3490	*Pulse Width Ch. 10*	R/W
0x3510	*Pulse Width Ch. 11*	R/W
0x3590	*Pulse Width Ch. 12*	R/W
0x3610	*Pulse Width Ch. 13*	R/W
0x3690	*Pulse Width Ch. 14*	R/W
0x3710	*Pulse Width Ch. 15*	R/W
0x3790	*Pulse Width Ch. 16*	R/W

0x3018	*Number of Cycles Ch.1*	R/W
0x3098	*Number of Cycles Ch.2*	R/W
0x3118	*Number of Cycles Ch.3*	R/W
0x3198	*Number of Cycles Ch.4*	R/W
0x3218	*Number of Cycles Ch.5*	R/W
0x3298	*Number of Cycles Ch.6*	R/W
0x3318	*Number of Cycles Ch.7*	R/W
0x3398	*Number of Cycles Ch.8*	R/W
0x3418	*Number of Cycles Ch.9*	R/W
0x3498	*Number of Cycles Ch.10*	R/W
0x3518	*Number of Cycles Ch.11*	R/W
0x3598	*Number of Cycles Ch.12*	R/W
0x3618	*Number of Cycles Ch.13*	R/W
0x3698	*Number of Cycles Ch.14*	R/W
0x3718	*Number of Cycles Ch.15*	R/W
0x3798	*Number of Cycles Ch.16*	R/W

0x2F0C	*Output Polarity*	R/W

Pattern Generator Operations/Functions

0x2F10	*Pattern RAM Control*	R/W
0x2F14	*Pattern RAM Start Address*	R/W
0x2F18	*Pattern RAM End Address*	R/W
0x2F1C	*Pattern RAM Period*	R/W
0x2F20	*Pattern RAM Num of Cycles*	R/W

APPENDIX: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

Module Signal (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	Discrete (DT5)
DATIO1	2	10	1	2		P-CH01
DATIO2	24	35	26	27		N-CH01
DATIO3	3	11	2	3		P-CH02
DATIO4	25	36	27	28		N-CH02
DATIO5	5	13	4	5		P-CH04
DATIO6	27	38	29	30		N-CH04
DATIO7	7	14	5	6		P-CH05
DATIO8	29	39	30	31		N-CH05
DATIO9	8	15	6	7		P-CH06
DATIO10	30	40	31	32		N-CH06
DATIO11	10	17	8	9		P-CH08
DATIO12	32	42	33	34		N-CH08
DATIO13	12	18	9		17	P-CH09
DATIO14	34	43	34		42	N-CH09
DATIO15	13	19	10		18	P-CH10
DATIO16	35	44	35		43	N-CH10
DATIO17	15	21	12		20	P-CH12
DATIO18	37	46	37		45	N-CH12
DATIO19	17	22	13		21	P-CH13
DATIO20	39	47	38		46	N-CH13
DATIO21	18	23	14		22	P-CH14
DATIO22	40	48	39		47	N-CH14
DATIO23	20	25	16		24	P-CH16
DATIO24	42	50	41		49	N-CH16
DATIO25	4	12	3	4		P-CH03
DATIO26	26	37	28	29		N-CH03
DATIO27	9	16	7	8		P-CH07
DATIO28	31	41	32	33		N-CH07
DATIO29	14	20	11		19	P-CH11
DATIO30	36	45	36		44	N-CH11
DATIO31	19	24	15		23	P-CH15
DATIO32	41	49	40		48	N-CH15
DATIO33	6
DATIO34	28
DATIO35	11
DATIO36	33
DATIO37	16
DATIO38	38
DATIO39	21
DATIO40	43
N/A

ENHANCED INPUT/OUTPUT FUNCTIONALITY CAPABILITY

The Enhanced Input/Output Functionality Capability is available on the following modules:

Differential Transceiver Modules

DF2 - 16 Channels Differential I/O

Discrete I/O Modules

DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 – 60 VCC source.

DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

TTL/CMOS Modules

TL2, TL4, TL6 and TL8 - 24 Channels, Programmable for either input or output.

PRINCIPLE OF OPERATION

The modules listed in Enhanced Input/Output Functionality Capability provide enhanced input and output mode functionality. For incoming signals (inputs), the enhanced modes include Pulse, Frequency and Period measurements. For outputs, the enhanced modes include PWM (Pulse Width Modulation) and Pattern Generation.

Input Modes

All input modes may be configured with debounce capability. Debounce capability allows configurable filtering of noisy signals and transients. Each channel may be set to an individual debounce time value. When a debounce time is set to a non-zero value, the signal reading after a transition must remain at the same level for the debounce interval before it is propagated through, otherwise it is rejected.

The waveform shown in Figure 1 will be used to illustrate the behavior for each input mode.

Figure 1. Incoming Signal Example Used to illustrate Input Modes

Pulse Measurements

There are two Pulse Measurements features available - High Time Pulse Measurements and Low Time Pulse Measurements. The Pulse Measurement data is stored in the FIFO Buffer.

High Time Pulse Measurements

In this input mode, the data in the FIFO buffer is the measurement for each rising transition to the next falling one. Timing measurements record the time interval (in 10 µs ticks) from a pair of transitions.

Figure 2 - High Time Pulse Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

1500 (0x0000 05DC)

2500 (0x0000 09C4)

1000 (0x0000 03E8)

Time Interval Calculations High Time Pulse Measurements
1 1500 counts * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec
2 2500 counts * 10 µsec = 25000 µsec = 25.0 msec 25.0 msec
3 1000 counts * 10 µsec = 10000 µsec = 10.0 msec 10.0 msec

Low Time Pulse Measurements

In this mode, the data in the FIFO buffer is the measurement for each falling edge to the next rising edge. Timing measurements record the time interval (in 10 µs ticks) from a pair of transitions.

Figure 3. Low Time Pulse Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

2000 (0x0000 07D0)

500 (0x0000 01F4)

1500 (0x0000 05DC)

Time Interval Calculations Low Time Pulse Measurements
1 2000 counts * 10 µsec = 2000 µsec = 20.0 msec 20.0 msec
2 500 counts * 10 µsec = 5000 µsec = 5.0 msec 5.0 msec
3 1500 counts * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec

Transition Timestamps

There are three Transition Timestamp Measurements features available - Transition Timestamp for All Rising Edges, Transition Timestamp for All Falling Edges, and Transition Timestamp for All Edges. The Transition Timestamps Measurement data are store in the FIFO Buffer.

Transition Timestamp of All Rising Edges

In this mode, the data in the FIFO buffer is the Rising Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 4. Transition Timestamp of All Rising Edges Input Mode

For this example, the FIFO Word Count register will be set to 4 and the FIFO Buffer Data register will contain the following four values (counts of 10 µs):

1000 (0x0000 03E8)

4500 (0x0000 1194)

7500 (0x0000 1D4C)

10000 (0x000 2710)

This data can be interpreted as follows:

Time Interval Calculations Time Between Rising Edges
1 to 2 4500 counts * 10 µsec = 35000 µsec = 35.0 msec 35.0 msec
2 to 3 7500 counts * 10 µsec = 30000 µsec = 30.0 msec 30.0 msec
3 to 4 10000 counts * 10 µsec = 25000 µsec = 25.0 msec 25.0 msec

Transition Timestamp of All Falling Edges

In this mode, the data in the FIFO buffer is the Falling Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 5. Transition Timestamp of All Falling Edges Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

2500 (0x0000 09C4)

7000 (0x0000 1B58)

8500 (0x0000 2134)

This data can be interpreted as follows:

Time Interval Calculations Time Between Falling Edges
1 to 2 7000 - 2500 = 4500 counts = 4500 * 10 µsec = 45000 µsec = 45.0 msec 45.0 msec
2 to 3 8500 - 7000 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec

Transition Timestamp of All Edges

In this mode, the data in the FIFO buffer is the Rising and Falling Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 6. Transition Timestamp for All Edges Input Mode

For this example, the FIFO Word Count register will be set to 7 and the FIFO Buffer Data register will contain the following seven values (counts of 10 µs):

1000 (0x0000 03E8)

2500 (0x0000 09C4)

4500 (0x0000 1194)

7000 (0x0000 1B58)

7500 (0x0000 1D4C)

8500 (0x0000 2134)

10000 (0x000 2710)

This data can be interpreted as follows:

Time Interval Calculations Time Between Edges
1 to 2 2500 - 1000 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec
2 to 3 4500 - 2500 = 2000 counts = 2000 * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
3 to 4 7000 - 4500 = 2500 counts = 2500 * 10 µsec = 25000 µsec = 25.0 msec 25.0 msec
4 to 5 7500 - 7000 = 500 counts = 500 * 10 µsec = 5000 µsec = 5.0 msec 5.0 msec
5 to 6 8500 - 7500 = 1000 counts = 1000 * 10 µsec = 10000 µsec = 10.0 msec 10.0 msec
6 to 7 10000 - 8500 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec

Transition Counter

There are three Transition Counter features available - Rising Edge Transition Counter, Falling Edge Transition Counter and All Edge Transition Counter.

Rising Edges Transition Counter

In this mode, the count of the number of Rising Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time.

Figure 7. Rising Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 4.

Falling Edges Transition Counter

In this mode, the count of the number of Falling Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time

Figure 8. Falling Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 3.

All Edges Transition Counter

In this mode, the count of the number of Rising and Falling Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time.

Figure 9. All Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 7.

Period Measurement

In this input mode, the data in the FIFO buffer is the measurement for each rising edge transition to the next rising edge transition. Timing measurements record the time interval (in 10 µs ticks).

Figure 10. Period Measurement Input Mode

For this example, the FIFO Word Count register will be set to 4 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

2000 (0x0000 07D0)

2000 (0x0000 07D0)

2000 (0x0000 07D0)

2000 (0x0000 07D0)

Time Interval Calculations Period Measurements
1 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
2 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
3 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
4 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec

Frequency Measurement

In this input mode, the data in the FIFO buffer is the number of rising edge transitions for the programmable time interval programmed in the Frequency Measurement Period register.

For this example, set the Frequency Measurement Period register = 4000 (4000 * 10 µs = 40000 µs = 40 msec)

Figure 11. Frequency Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (number of rising edges:

2 (0x0000 0002)

2 (0x0000 0002)

2 (0x0000 0002)

Time Interval Calculations Frequency Measurements
1 2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz 50 Hz
2 2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz 50 Hz
3 2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz 50 Hz

Output Modes

There are three Enhanced Output Functionality modes: two PWM outputs and one Pattern Generator Output mode.

PWM Output

There are two PWM output modes, PWM Continuous and PWM Burst. The PWM timing is very precise with low jitter. In PWM Output mode, the Mode Select register is set to either “PWM Continuous or PWM Burst”. The value written to the PWM Period register specifies the period to output the PWM signal, the value written to the PWM Pulse Width register specifies the time for the “ON” state, and the value written to the PWM Output Polarity register specifies the initial edge of the output. For PWM Burst mode, the PWM Number of Cycles register specifies the number of cycles to output the signal. Note, there may be an initial “OFF” state level delay based on the Period time before the initial pulse is output.

PWM Continuous

Figure 12 and Figure 13 illustrate the PWM Continuous Output signal, one configured with PWM Output Polarity = Positive (0) and one configured with PWM Output Polarity = Negative (1). The configured PWM output is enabled and disabled with the Enable Measurements/Outputs register.

Figure 12. PWM Continuous Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Positive (0))

Figure 13. PWM Continuous Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Negative (1))

PWM Burst

Figure 14 and Figure 15 illustrate the PWM Burst Output signal with the PWM Number of Cycles = 5 pulses, one configured with PWM Output Polarity = Positive (0) and one configured with PWM Output Polarity = Negative (1). The configured PWM output is enabled with the Enable Measurements/Outputs register. Once the number of pulses that were requested is outputted, the value in the Enable Measurements/Outputs register will be reset (self-clearing) to allow for the output to be re-enabled.

Figure 14. PWM Burst Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Positive (0), PWM Number of Cycles = 5)

Figure 15. PWM Burst Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Negative (1), PWM Number of Cycles = 5)

Pattern Generator

For the Pattern Generator mode, there is 64K block of unsigned 32-bit words allocated to specify the data pattern for the output channels. The data in each 32-bit word is bit-mapped per channel. The Pattern RAM Start Address and Pattern RAM End Address registers specify the starting and ending address in the 64K block to use as the data to output for each channel configured for Pattern Generator mode. The Pattern RAM Period register specifies the pattern rate. The Pattern RAM Control and Pattern RAM Number of Cycles control the Pattern Generator output - Continuous, Burst with a specified number of cycles, Pause, or External Trigger from input from Channel 1.

Note

When any channel is configured for External Trigger Pattern Generator mode, Channel 1 MUST be set as an input.

Figure 16 illustrates the output of the 24 channels for the DT4 module all configured in Pattern Generator mode

Figure 16. Pattern Generator

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

Enhanced Input/Output Functionality Registers

The onboard Discrete I/O option provides enhanced input and output mode functionality. The Mode Select and Enable Output/Measurement registers are general control registers for the different enhanced input and output modes.

Mode Select
Function: Configures the Enhanced Functionality Modes to apply to the channel.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: It is important that the channel is correctly configured to either input or output in the Input/Output Format registers to correspond to the Enhanced Functionality Mode selected. Setting a 0 to this register will configure that channel to normal operation.

Mode Select Value (Decimal) Mode Select Value (Hexadecimal) Description
0 0x0000 0000 Enhanced Functionality Disabled
Input Enhanced Functionality Mode
1 0x0000 0001 High Time Pulse Measurements
2 0x0000 0002 Low Time Pulse Measurements
3 0x0000 0003 Transition Timestamp of All Rising Edges
4 0x0000 0004 Transition Timestamp of All Falling Edges
5 0x0000 0005 Transition Timestamp of All Edges
6 0x0000 0006 Rising Edges Transition Counter
7 0x0000 0007 Falling Edges Transition Counter
8 0x0000 0008 All Edges Transition Counter
9 0x0000 0009 Period Measurement
10 0x0000 000A Frequency Measurement
Output Enhanced Functionality Mode
32 0x0000 0020 PWM Continuous
33 0x0000 0021 PWM Burst
34 0x0000 0022 Pattern Generator

Enable Measurements/Outputs
Function: Enables/starts the measurements or outputs based on the Mode Select for the channel.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Setting the bit for the associated channel to a 1 will start the measurement or output depending on the Mode Select configuration for that channel. Setting the bit for the associated channel to 0 will stop the measurements/outputs.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

Input Mode Registers

After configuring the Mode Select register, write a 1 to the Reset Timer/Counter register resets the channel’s timestamp and counter used for input modes. Write a 1 to the Enable Measurements/Outputs register to begin the measurement of the input signal. Write a 0 to the Enable Measurements/Outputs register to stop the measurement of the input signal. The data can be read either while the measurements are being made on input signals or after stopping the measurements.

Reset Timer/Counter
Function: Resets the measurement timestamp and counter for the channel.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: W
Initialized Value: 0
Operational Settings: Setting the bit for the associated channel to a 1 will: reset the timestamp used for the Pulse Measurements mode (1-2), Transition Timestamp mode (3-5), and Period Measurement mode (9) and Frequency Measurement mode (10) reset the counter used for Transition Counter mode (6-8)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

FIFO Registers

The FIFO registers are used for the following input modes:

Pulse Measurements mode (1-2)

Transition Timestamp mode (3-5)

Period Measurement mode (9)

Frequency Measurement mode (10)

FIFO Buffer Data
Function: The data stored in the FIFO Buffer Data is dependent on the input mode.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: N/A
Operational Settings: Refer to examples in Input Modes.

FIFO Word Count
Function: This is a counter that reports the number of 32-bit words stored in the FIFO buffer.
Type: unsigned binary word (32-bit)
Data Range: 0 - 255 (0x0000 0000 to 0x0000 00FF)
Read/Write: R
Initialized Value: 0
Operational Settings: Every time a read operation is made from the FIFO Buffer Data register, the value in the FIFO Word Count register will be decremented by one. The maximum number of words that can be stored in the FIFO is 255.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 D D D D D D D D D

Clear FIFO
Function: Clears FIFO by resetting the FIFO Word Count register.
Type: unsigned binary word (32-bit)
Data Range: 0 or 1
Read/Write: W
Initialized Value: N/A
Operational Settings: Write a 1 to resets the Words in FIFO to zero; Clear FIFO register does not clear data in the buffer. A read to the buffer data will give “aged” data.

Bit Description
D31:D1 Reserved. Set to 0
D0 Set to 1 to reset the FIFO Word Count value to zero.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 D

FIFO Status
Function: Sets the corresponding bit associated with the FIFO status type; there is a separate register for each channel.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R
Initialized Value: 0

Bit Name Description
D31:D4 Reserved Set to 0
D3 Empty Set to 1 when FIFO Word Count = 0
D2 Almost Empty Set to 1 when FIFO Word Count <= 63 (25%)
D1 Almost Full Set to 1 when FIFO Word Count >= 191 (75%)
D0 Full Set to 1 when FIFO Word Count = 255

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 0 0 0 0 D D D D

Transition Count Registers

The Transition Count register are used for the following input modes:

Transition Counter mode (6-8)

Transition Count
Function: Contains the count of the transitions depending on the configuration in the Mode Select register - Rising Edges, Falling Edges or All Edges.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: 0
Operational Settings: Refer to examples in Transition Counter.

Frequency Measurement Registers

For the Frequency Measurement mode, the period to perform the frequency measurements must be specified in the Frequency Measurement Period register.

Frequency Measurement Period
Function: When the Mode Select register is programmed for Frequency Measurement mode (10), the value in the Frequency Measurement Period is used as the time interval for counting the number of rising edge transitions within that interval.
Type: unsigned binary word (32-bit)
Data Range: 0x0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the Frequency Measurement Period (LSB = 10 µs). Refer to examples in Frequency Measurement.

Output Modes Registers

After configuring the Mode Select register, write a 1 to the Enable Measurements/Outputs register to outputting the signal. Write a 0 to the Enable Measurements/Outputs register to stop the output signal.

PWM Registers

The PWM Period, PWM Pulse Width and PWM Output Polarity registers configure the PWM output signal. When the Mode Select register is configured for PWM Burst mode, the PWM Number of Cycles register is used to specify the number of cycles to repeat for the burst.

PWM Period
Function: When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Period is used as the time interval for outputting the PWM signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the PWM Period (LSB = 10 µs). The PWM Period must be greater than the value set in the PWM Pulse Width register. Refer to examples in PWM Output.

PWM Pulse Width
Function: When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Pulse Width is used as the time interval of the “ON” state for outputting the PWM signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the PWM Pulse Width (LSB = 10 µs). The PWM Pulse Width must be less than the value set in the PWM Pulse Width register. Refer to examples in PWM Output.

PWM Output Polarity
Function: When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Output Polarity is used to specify whether the PWM output signal starts with a rising edge (Positive (0)), or a falling edge (Negative (1)).
Type: unsigned binary word (32-bit)
Data Range: 0x0 to 0x00FF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: The PWM Output Polarity register is used to program the starting edge of the PWM Pulse Period (rising or falling). When the PWM output Polarity is set to Positive (0), the output will start with a rising edge, when it's set to Negative (1), the output will start with a falling edge. The default is Positive (0), which is set when the PWM Polarity bit is 0. Refer to examples in PWM Output.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

PWM Number of Cycles
Function: When the Mode Select register is programmed for PWM Burst mode (33), the value in the PWM Number of Cycles is used to specify the number of times to repeat the PWM output signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the number of times to output the PWM signal. Refer to examples in PWM Output.

Pattern Generator Registers

The Pattern RAM registers are a 64K block of unsigned 32-bit words allocated to specify the data pattern for the output channels. The Pattern RAM Start Address, Pattern RAM End Address, Pattern RAM Period and Pattern RAM Control registers configure the Pattern Generator output signals. When the Pattern RAM Control register is configured for Burst, the Pattern RAM Number of Cycles specify the number of cycles to repeat the pattern for the burst.

Pattern RAM
Function: Pattern Generator Memory Block from 0x40000 to 0x7FFFC.
Type: unsigned binary word (32-bit)
Address Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: R /W
Initialized Value: 0
Operational Settings: 64K block of unsigned 32-bit words. The data in each 32-bit word is bit-mapped per channel.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

Pattern RAM Start Address
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the Pattern RAM Start Address register specifies the starting address within the Pattern RAM block registers to use for the output.
Type: unsigned binary word (32-bit)
Data Range: 0x0004 0000 to 0x0007 FFFC
Read/Write: R/W
Initialized Value: 0
Operational Settings: The value in the Pattern RAM Start Address must be LESS than the value in the Pattern RAM End Address.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 D D D
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D D D D D D D D D D D D D D D D

Pattern RAM End Address
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the Pattern RAM End Address register specifies the end address within the Pattern RAM block registers to use for the output.
Type: unsigned binary word (32-bit)
Data Range: 0x40000 to 0x7FFFC
Read/Write: R/W
Initialized Value: 0
Operational Settings: The value in the Pattern RAM End Address must be GREATER than the value in the Pattern RAM Start Address.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 D D D
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D D D D D D D D D D D D D D D D

Pattern RAM Period
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the value in the Pattern RAM Period is used as the time interval for outputting the Pattern Generator signals.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the Pattern RAM Period (LSB = 10 µs).

Pattern RAM Control
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the value in the Pattern RAM Control is used to control the outputting of the Pattern Generator signals.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: Configures the Pattern Generator for Continuous, Burst with a specified number of cycles, Pause, or External Trigger from input from Channel 1.

Note

When any channel is configured for External Trigger Pattern Generator mode, Channel 1 MUST be set as an input.

Bits Description
D31-D5 Reserved. Set to 0
D4 Falling Edge External Trigger - Channel 1 used as the input for the trigger
D3 Rising Edge External Trigger - Channel 1 used as the input for the trigger
D2 Pause
D1 Burst Mode - value in Pattern RAM Number of Cycles register defines number of cycles to output
D0 Enable Pattern Generator

Values Description
0x0000 Disable Pattern Generator, Continuous Mode, No External Trigger
0x0001 Enable Pattern Generator, Continuous Mode, No External Trigger
0x0002 Disable Pattern Generator, Burst Mode, No External Trigger
0x0003 Enable Pattern Generator, Burst Mode, No External Trigger
0x0005 Enable Pattern Generator, Continuous Mode, Pause, No External Trigger
0x0007 Enable Pattern Generator, Burst Mode, Pause, No External Trigger
0x0008 Disable Pattern Generator, Continuous Mode, Rising External Trigger
0x0009 Enable Pattern Generator, Continuous Mode, Rising External Trigger
0x000A Disable Pattern Generator, Burst Mode, Rising External Trigger
0x000B Enable Pattern Generator, Burst Mode, Rising External Trigger
0x000D Enable Pattern Generator, Continuous Mode, Pause, Rising External Trigger
0x000F Enable Pattern Generator, Burst Mode, Pause, Rising External Trigger
0x1000 Disable Pattern Generator, Continuous Mode, Falling External Trigger
0x1001 Enable Pattern Generator, Continuous Mode, Falling External Trigger
0x1002 Disable Pattern Generator, Burst Mode, Falling External Trigger
0x1003 Enable Pattern Generator, Burst Mode, Falling External Trigger
0x1005 Enable Pattern Generator, Continuous Mode, Pause, Falling External Trigger
0x1007 Enable Pattern Generator, Burst Mode, Pause, Falling External Trigger
0x0004, 0x0006, 0x000C, 0x000E, 0x1004, 0x1006, 0x1008-0x100F Invalid

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 0 0 0 0 D D D D

Pattern RAM Number of Cycles
Function: When the Mode Select register is programmed for Pattern Generator mode (34) and the Pattern RAM Control register is set for Burst mode, the value in the Pattern RAM Number of Cycles is used to specify the number of times to repeat the pattern output signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the number of times to output the pattern.

FUNCTION REGISTER MAP

Key:

Configuration/Control
Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

MODE SELECT REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x300C Mode Select Ch 1 R/W
0x308C Mode Select Ch 2 R/W
0x310C Mode Select Ch 3 R/W
0x318C Mode Select Ch 4 R/W
0x320C Mode Select Ch 5 R/W
0x328C Mode Select Ch 6 R/W
0x330C Mode Select Ch 7 R/W
0x338C Mode Select Ch 8 R/W
0x340C Mode Select Ch 9 R/W
0x348C Mode Select Ch 10 R/W
0x350C Mode Select Ch 11 R/W
0x358C Mode Select Ch 12 R/W
0x360C Mode Select Ch 13 R/W
0x368C Mode Select Ch 14 R/W
0x370C Mode Select Ch 15 R/W
0x378C Mode Select Ch 16 R/W
0x380C Mode Select Ch 17 R/W
0x388C Mode Select Ch 18 R/W
0x390C Mode Select Ch 19 R/W
0x398C Mode Select Ch 20 R/W
0x3A0C Mode Select Ch 21 R/W
0x3A8C Mode Select Ch 22 R/W
0x3B0C Mode Select Ch 23 R/W
0x3B8C Mode Select Ch 24 R/W
0x2000 Enable Measurements/Outputs R/W
INPUT MODES REGISTER
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x2004 Reset Timer/Counter W
FIFO REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3000 FIFO Buffer Data Ch 1 R 0x3004 FIFO Word Count Ch 1 R
0x3080 FIFO Buffer Data Ch 2 R 0x3084 FIFO Word Count Ch 2 R
0x3100 FIFO Buffer Data Ch 3 R 0x3104 FIFO Word Count Ch 3 R
0x3180 FIFO Buffer Data Ch 4 R 0x3184 FIFO Word Count Ch 4 R
0x3200 FIFO Buffer Data Ch 5 R 0x3204 FIFO Word Count Ch 5 R
0x3280 FIFO Buffer Data Ch 6 R 0x3284 FIFO Word Count Ch 6 R
0x3300 FIFO Buffer Data Ch 7 R 0x3304 FIFO Word Count Ch 7 R
0x3380 FIFO Buffer Data Ch 8 R 0x3384 FIFO Word Count Ch 8 R
0x3400 FIFO Buffer Data Ch 9 R 0x3404 FIFO Word Count Ch 9 R
0x3480 FIFO Buffer Data Ch 10 R 0x3484 FIFO Word Count Ch 10 R
0x3500 FIFO Buffer Data Ch 11 R 0x3504 FIFO Word Count Ch 11 R
0x3580 FIFO Buffer Data Ch 12 R 0x3584 FIFO Word Count Ch 12 R
0x3600 FIFO Buffer Data Ch 13 R 0x3604 FIFO Word Count Ch 13 R
0x3680 FIFO Buffer Data Ch 14 R 0x3684 FIFO Word Count Ch 14 R
0x3700 FIFO Buffer Data Ch 15 R 0x3704 FIFO Word Count Ch 15 R
0x3780 FIFO Buffer Data Ch 16 R 0x3784 FIFO Word Count Ch 16 R
0x3800 FIFO Buffer Data Ch 17 R 0x3804 FIFO Word Count Ch 17 R
0x3880 FIFO Buffer Data Ch 18 R 0x3884 FIFO Word Count Ch 18 R
0x3900 FIFO Buffer Data Ch 19 R 0x3904 FIFO Word Count Ch 19 R
0x3980 FIFO Buffer Data Ch 20 R 0x3984 FIFO Word Count Ch 20 R
0x3A00 FIFO Buffer Data Ch 21 R 0x3A04 FIFO Word Count Ch 21 R
0x3A80 FIFO Buffer Data Ch 22 R 0x3A84 FIFO Word Count Ch 22 R
0x3B00 FIFO Buffer Data Ch 23 R 0x3B04 FIFO Word Count Ch 23 R
0x3B80 FIFO Buffer Data Ch 24 R 0x3B84 FIFO Word Count Ch 24 R
0x3008 FIFO Status Ch 1 R
0x3088 FIFO Status Ch 2 R
0x3108 FIFO Status Ch 3 R
0x3188 FIFO Status Ch 4 R
0x3208 FIFO Status Ch 5 R
0x3288 FIFO Status Ch 6 R
0x3308 FIFO Status Ch 7 R
0x3388 FIFO Status Ch 8 R
0x3408 FIFO Status Ch 9 R
0x3488 FIFO Status Ch 10 R
0x3508 FIFO Status Ch 11 R
0x3588 FIFO Status Ch 12 R
0x3608 FIFO Status Ch 13 R
0x3688 FIFO Status Ch 14 R
0x3708 FIFO Status Ch 15 R
0x3788 FIFO Status Ch 16 R
0x3808 FIFO Status Ch 17 R
0x3888 FIFO Status Ch 18 R
0x3908 FIFO Status Ch 19 R
0x3988 FIFO Status Ch 20 R
0x3A08 FIFO Status Ch 21 R
0x3A88 FIFO Status Ch 22 R
0x3B08 FIFO Status Ch 23 R
0x3B88 FIFO Status Ch 24 R
0x2008 Reset FIFO W
TRANSITION COUNT REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3000 Transition Count Ch 1 R
0x3080 Transition Count Ch 2 R
0x3100 Transition Count Ch 3 R
0x3180 Transition Count Ch 4 R
0x3200 Transition Count Ch 5 R
0x3280 Transition Count Ch 6 R
0x3300 Transition Count Ch 7 R
0x3380 Transition Count Ch 8 R
0x3400 Transition Count Ch 9 R
0x3480 Transition Count Ch 10 R
0x3500 Transition Count Ch 11 R
0x3580 Transition Count Ch 12 R
0x3600 Transition Count Ch 13 R
0x3680 Transition Count Ch 14 R
0x3700 Transition Count Ch 15 R
0x3780 Transition Count Ch 16 R
0x3800 Transition Count Ch 17 R
0x3880 Transition Count Ch 18 R
0x3900 Transition Count Ch 19 R
0x3980 Transition Count Ch 20 R
0x3A00 Transition Count Ch 21 R
0x3A80 Transition Count Ch 22 R
0x3B00 Transition Count Ch 23 R
0x3B80 Transition Count Ch 24 R
FREQUENCY MEASUREMENT REGISTERS
NOTE: Base Address - 0x9010 C000
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3014 Frequency Measurement Period Ch 1 R/W
0x3094 Frequency Measurement Period Ch 2 R/W
0x3114 Frequency Measurement Period Ch 3 R/W
0x3194 Frequency Measurement Period Ch 4 R/W
0x3214 Frequency Measurement Period Ch 5 R/W
0x3294 Frequency Measurement Period Ch 6 R/W
0x3314 Frequency Measurement Period Ch 7 R/W
0x3394 Frequency Measurement Period Ch 8 R/W
0x3414 Frequency Measurement Period Ch 9 R/W
0x3494 Frequency Measurement Period Ch 10 R/W
0x3514 Frequency Measurement Period Ch 11 R/W
0x3594 Frequency Measurement Period Ch 12 R/W
0x3614 Frequency Measurement Period Ch 13 R/W
0x3694 Frequency Measurement Period Ch 14 R/W
0x3714 Frequency Measurement Period Ch 15 R/W
0x3794 Frequency Measurement Period Ch 16 R/W
0x3814 Frequency Measurement Period Ch 17 R/W
0x3894 Frequency Measurement Period Ch 18 R/W
0x3914 Frequency Measurement Period Ch 19 R/W
0x3994 Frequency Measurement Period Ch 20 R/W
0x3A14 Frequency Measurement Period Ch 21 R/W
0x3A94 Frequency Measurement Period Ch 22 R/W
0x3B14 Frequency Measurement Period Ch 23 R/W
0x3B94 Frequency Measurement Period Ch 24 R/W
PWM REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3014 PWM Period Ch 1 R/W 0x3010 PWM Pulse Width Ch 1 R/W
0x3094 PWM Period Ch 2 R/W 0x3090 PWM Pulse Width Ch 2 R/W
0x3114 PWM Period Ch 3 R/W 0x3110 PWM Pulse Width Ch 3 R/W
0x3194 PWM Period Ch 4 R/W 0x3190 PWM Pulse Width Ch 4 R/W
0x3214 PWM Period Ch 5 R/W 0x3210 PWM Pulse Width Ch 5 R/W
0x3294 PWM Period Ch 6 R/W 0x3290 PWM Pulse Width Ch 6 R/W
0x3314 PWM Period Ch 7 R/W 0x3310 PWM Pulse Width Ch 7 R/W
0x3394 PWM Period Ch 8 R/W 0x3390 PWM Pulse Width Ch 8 R/W
0x3414 PWM Period Ch 9 R/W 0x3410 PWM Pulse Width Ch 9 R/W
0x3494 PWM Period Ch 10 R/W 0x3490 PWM Pulse Width Ch 10 R/W
0x3514 PWM Period Ch 11 R/W 0x3510 PWM Pulse Width Ch 11 R/W
0x3594 PWM Period Ch 12 R/W 0x3590 PWM Pulse Width Ch 12 R/W
0x3614 PWM Period Ch 13 R/W 0x3610 PWM Pulse Width Ch 13 R/W
0x3694 PWM Period Ch 14 R/W 0x3690 PWM Pulse Width Ch 14 R/W
0x3714 PWM Period Ch 15 R/W 0x3710 PWM Pulse Width Ch 15 R/W
0x3794 PWM Period Ch 16 R/W 0x3790 PWM Pulse Width Ch 16 R/W
0x3814 PWM Period Ch 17 R/W 0x3810 PWM Pulse Width Ch 17 R/W
0x3894 PWM Period Ch 18 R/W 0x3890 PWM Pulse Width Ch 18 R/W
0x3914 PWM Period Ch 19 R/W 0x3910 PWM Pulse Width Ch 19 R/W
0x3994 PWM Period Ch 20 R/W 0x3990 PWM Pulse Width Ch 20 R/W
0x3A14 PWM Period Ch 21 R/W 0x3A10 PWM Pulse Width Ch 21 R/W
0x3A94 PWM Period Ch 22 R/W 0x3A90 PWM Pulse Width Ch 22 R/W
0x3B14 PWM Period Ch 23 R/W 0x3B10 PWM Pulse Width Ch 23 R/W
0x3B94 PWM Period Ch 24 R/W 0x3B90 PWM Pulse Width Ch 24 R/W
0x3018 PWM Number of Cycles Ch 1 R/W
0x3098 PWM Number of Cycles Ch 2 R/W
0x3118 PWM Number of Cycles Ch 3 R/W
0x3198 PWM Number of Cycles Ch 4 R/W
0x3218 PWM Number of Cycles Ch 5 R/W
0x3298 PWM Number of Cycles Ch 6 R/W
0x3318 PWM Number of Cycles Ch 7 R/W
0x3398 PWM Number of Cycles Ch 8 R/W
0x3418 PWM Number of Cycles Ch 9 R/W
0x3498 PWM Number of Cycles Ch 10 R/W
0x3518 PWM Number of Cycles Ch 11 R/W
0x3598 PWM Number of Cycles Ch 12 R/W
0x3618 PWM Number of Cycles Ch 13 R/W
0x3698 PWM Number of Cycles Ch 14 R/W
0x3718 PWM Number of Cycles Ch 15 R/W
0x3798 PWM Number of Cycles Ch 16 R/W
0x3818 PWM Number of Cycles Ch 17 R/W
0x3898 PWM Number of Cycles Ch 18 R/W
0x3918 PWM Number of Cycles Ch 19 R/W
0x3998 PWM Number of Cycles Ch 20 R/W
0x3A18 PWM Number of Cycles Ch 21 R/W
0x3A98 PWM Number of Cycles Ch 22 R/W
0x3B18 PWM Number of Cycles Ch 23 R/W
0x3B98 PWM Number of Cycles Ch 24 R/W
0x200C PWM Output Polarity R/W
PATTERN GENERATOR REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0004_0000 to 0x0007_FFFC Pattern RAM R/W
0x2010 Pattern RAM Period R/W 0x2014 Pattern RAM Start Address R/W
0x2018 Pattern RAM End Address R/W 0x201C Pattern RAM Control R/W
0x2020 Pattern RAM Number of Cycles R/W

REVISION HISTORY

Module Manual - Enhanced IO Functionality Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

No Clearing of Latched Status Clearing of Latched Status (Edge-Triggered) Clearing of Latched Status(Level-Triggered)
Time Dynamic Status Latched Status Action Latched Status Action Latched
T0 0x0 0x0 Read Latched Register 0x0 Read Latched Register 0x0
T1 0x1 0x1 Read Latched Register 0x1 0x1
T1 0x1 0x1 Write 0x1 to Latched Register Write 0x1 to Latched Register
T1 0x1 0x1 0x0 0x1
T2 0x0 0x1 Read Latched Register 0x0 Read Latched Register 0x1
T2 0x0 0x1 Read Latched Register 0x0 Write 0x1 to Latched Register
T2 0x0 0x1 Read Latched Register 0x0 0x0
T3 0x2 0x3 Read Latched Register 0x2 Read Latched Register 0x2
T3 0x2 0x3 Write 0x2 to Latched Register Write 0x2 to Latched Register
T3 0x2 0x3 0x0 0x2
T4 0x2 0x3 Read Latched Register 0x1 Read Latched Register 0x3
T4 0x2 0x3 Write 0x1 to Latched Register Write 0x3 to Latched Register
T4 0x2 0x3 0x0 0x2
T5 0xC 0xF Read Latched Register 0xC Read Latched Register 0xE
T5 0xC 0xF Write 0xC to Latched Register Write 0xE to Latched Register
T5 0xC 0xF 0x0 0xC
T6 0xC 0xF Read Latched Register 0x0 Read Latched 0xC
T6 0xC 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T6 0xC 0xF Read Latched Register 0x0 0xC
T7 0x4 0xF Read Latched Register 0x0 Read Latched Register 0xC
T7 0x4 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T7 0x4 0xF Read Latched Register 0x0 0x4
T8 0x4 0xF Read Latched Register 0x0 Read Latched Register 0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time Latched Status (Edge-Triggered - Clear Multi-Channel) Latched Status (Edge-Triggered - Clear Single Channel) 2+ Latched Status (Level-Triggered - Clear Multi-Channel) Action
Latched Action Latched Action Latched T1 (Int 1)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 T1 (Int 1)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x1 to Latched Register T1 (Int 1)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T2. 0x1 T3 (Int 2)
Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 T3 (Int 2)
Write 0x2 to Latched Register Write 0x2 to Latched Register Write 0x2 to Latched Register T3 (Int 2)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T4 (Int 3)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x3 T4 (Int 3)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x3 to Latched Register T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5. 0x3 T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T6 (Int 4)
Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xE T6 (Int 4)
Write 0xC to Latched Register Write 0x4 to Latched Register Write 0xE to Latched Register T6 (Int 4)
0x0 Interrupt re-triggers++``+
Write 0x8 to Latched Register 0x8 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7. 0xE T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8. 0xC T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always. 0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

The User Watchdog Timer (UWDT) Capability is available on the following modules:

AC Reference Source Modules

AC1 - 1 Channel, 2-115 Vrms, 47 Hz - 20kHz

AC2 - 2 Channels, 2-28 Vrms, 47 Hz - 20kHz

AC3 - 1 Channel, 28-115 Vrms, 47 Hz - 2.5 kHz

Differential Transceiver Modules

DF1/DF2 - 16 Channels Differential I/O

Digital-to-Analog (D/A) Modules

DA1 - 12 Channels, ±10 VDC @ 25 mA, Voltage or Current Control Modes

DA2 - 16 Channels, ±10 VDC @ 10 mA

DA3 - 4 Channels, ±40 VDC @ ±100 mA, Voltage or Current Control Modes

DA4 - 4 Channels, ±80 VDC @ 10 mA

DA5 - 4 Channels, ±65 VDC or ±2 A, Voltage or Current Control Modes

Digital-to-Synchro/Resolver (D/S) or Digital-to-L( R )VDT (D/LV) Modules

(Not supported)

Discrete I/O Modules

DT1/DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 - 60 VCC source.

DT2/DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

DT3/DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

TTL/CMOS Modules

TL1-TL8 - 24 Channels, Programmable for either input or output.

Principle of Operation

The User Watchdog Timer is optionally activated by the applications that require the module’s outputs to be disabled as a failsafe in the event of an application failure or crash. The circuit is designed such that a specific periodic write strobe pattern must be executed by the software to maintain operation and prevent the disablement from taking place.

The User Watchdog Timer is inactive until the application sends an initial strobe by writing the value 0x55AA to the UWDT Strobe register. After activating the User Watchdog Timer, the application must continually strobe the timer within the intervals specified with the configurable UWDT Quiet Time and UWDT Window registers. The timing of the strobes must be consistent with the following rules:

The application must not strobe during the Quiet time.

The application must strobe within the Window time.

The application must not strobe more than once in a single window time.

A violation of any of these rules will trigger a User Watchdog Timer fault and result in shutting down any isolated power supplies and/or disabling any active drive outputs, as applicable for the specific module. Upon a User Watchdog Timer event, recovery to the module shutting down will require the module to be reset.

The Figure 1 and Figure 2 provides an overview and an example with actual values for the User Watchdog Timer Strobes, Quiet Time and Window. As depicted in the diagrams, there are two processes that run in parallel. The Strobe event starts the timer for the beginning of the “Quiet Time”. The timer for the Previous Strobe event continues to run to ensure that no additional Strobes are received within the “Window” associated with the Previous Strobe.

The optimal target for the user watchdog strobes should be at the interval of [Quiet time + ½ Window time] after the previous strobe, which will place the strobe in the center of the window. This affords the greatest margin of safety against unintended disablement in critical operations.

Figure 1. User Watchdog Timer Overview

Figure 2. User Watchdog Timer Example

Figure 3. User Watchdog Timer Failures

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

User Watchdog Timer Registers

The registers associated with the User Watchdog Timer provide the ability to specify the UWDT Quiet Time and the UWDT Window that will be monitored to ensure that EXACTLY ONE User Watchdog Timer (UWDT) Strobe is written within the window.

UWDT Quiet Time
Function: Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.
UWDT Window
Function: Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.
UWDT Strobe
Function: Writes the strobe value to be use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0x55AA
Read/Write: W
Initialized Value: 0x0
Operational Settings: At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

Status and Interrupt

The modules that are capable of User Watchdog Timer support provide status registers for the User Watchdog Timer.

User Watchdog Timer Status

The status register that contains the User Watchdog Timer Fault information is also used to indicate channel Inter-FPGA failures on modules that have communication between FPGA components. There are four registers associated with the User Watchdog Timer Fault/Inter-FPGA Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Function: Sets the corresponding bit (D31) associated with the channel’s User Watchdog Timer Fault error.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Set Edge/Level Interrupt)
Initialized Value: 0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s) Status Description
D31 User Watchdog Timer Fault Status 0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0 Reserved for Inter-FPGA Failure Status Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function: Set an identifier for the interrupt.
Type: unsigned binary word (32-bit)
Data Range: 0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function: Sets where to direct the interrupt.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME 1
Direct Interrupt to ARM Processor (via SerDes)
(Custom App on ARM or NAI Ethernet Listener App) 2
Direct Interrupt to PCIe Bus 5
Direct Interrupt to cPCI Bus 6

Function Register Map

KEY

Configuration/Control
Measurement/Status

USER WATCHDOG TIMER REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x01C0 UWDT Quiet Time R/W
0x01C4 UWDT Window R/W
0x01C8 UWDT Strobe R/W
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x09B0 Dynamic Status R
0x09B4 Latched Status* R/W
0x09B8 Interrupt Enable R/W
0x09BC Set Edge/Level Interrupt R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x056C Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x066C Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x076C Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x086C Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x096C Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0A6C Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0B6C Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0C6C Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0D6C Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0E6C Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0F6C Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x106C Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function: FPGA firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Compile Timestamp
Function: Compile Timestamp for the FPGA firmware.
Type: unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the compile timestamp of the board's FPGA
Operational Settings: The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
day (5-bits) month (4-bits) year (6-bits) hr
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
hour (5-bits) minutes (6-bits) seconds (6-bits)

FPGA SerDes Revision
Function: FPGA SerDes revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the SerDes revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Template Revision
Function: FPGA Template revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the template revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Zynq Block Revision
Function: FPGA Zynq Block revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function: Bare Metal firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's Bare Metal
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Compile Time
Function: Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function: FSBL firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FSBL
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FSBL Compile Time
Function: Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function: Unique 128-bit identifier used to identify the interface board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the interface board
Operational Settings: This register is for information purposes only.

Functional Board Serial Number
Function: Unique 128-bit identifier used to identify the functional board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the functional board
Operational Settings: This register is for information purposes only.

Module Capability
Function: Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x0000 0107
Read/Write: R
Initialized Value: 0x0000 0107
Operational Settings: A “1” in the bit associated with the capability indicates that it is supported.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 Flt-Pt 0 0 0 0 0 Pack FIFO Blk Blk

Module Memory Map Revision
Function: Module Memory Map revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Module Memory Map Revision
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function: Measured PCB and Zynq Core temperatures on Interface Board.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Current Temperature
Function: Measured PCB temperature on Functional Board.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Interface Board Maximum Temperature
Function: Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Interface Board Minimum Temperature
Function: Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Maximum Temperature
Function: Maximum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Functional Board Minimum Temperature
Function: Minimum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function: Higher precision measured Zynq Core temperature on Interface Board.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Zynq Core temperature on Interface Board
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function: Higher precision measured Interface PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Interface PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function: Higher precision measured Functional PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Functional PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function: The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s) Sensor
D31:D6 Reserved
D5 Functional Board PCB Temperature
D4 Interface Board PCB Temperature
D3:D0 Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function: Reflects which threshold has been crossed
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s) Description
D31:D4 Reserved
D3 Exceeded Upper Critical Threshold
D2 Exceeded Upper Warning Threshold
D1 Exceeded Lower Critical Threshold
D0 Exceeded Lower Warning Threshold

Sensor Current Reading
Function: Reflects current reading of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function: Reflects minimum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function: Reflects maximum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function: Reflects lower warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function: Reflects lower critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function: Reflects upper warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function: Reflects upper critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control
Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x003C FPGA Revision R 0x0074 Bare Metal Revision R
0x0030 FPGA Compile Timestamp R 0x0080 Bare Metal Compile Time (Bit 0-31) R
0x0034 FPGA SerDes Revision R 0x0084 Bare Metal Compile Time (Bit 32-63) R
0x0038 FPGA Template Revision R 0x0088 Bare Metal Compile Time (Bit 64-95) R
0x0040 FPGA Zynq Block Revision R 0x008C Bare Metal Compile Time (Bit 96-127) R
0x0090 Bare Metal Compile Time (Bit 128-159) R
0x0094 Bare Metal Compile Time (Bit 160-191) R
0x007C FSBL Revision R
0x00B0 FSBL Compile Time (Bit 0-31) R
0x00B4 FSBL Compile Time (Bit 32-63) R
0x00B8 FSBL Compile Time (Bit 64-95) R
0x00BC FSBL Compile Time (Bit 96-127) R
0x00C0 FSBL Compile Time (Bit 128-159) R
0x00C4 FSBL Compile Time (Bit 160-191) R
0x0000 Interface Board Serial Number (Bit 0-31) R 0x0010 Functional Board Serial Number (Bit 0-31) R
0x0034 Interface Board Serial Number (Bit 32-63) R 0x0014 Functional Board Serial Number (Bit 32-63) R
0x0008 Interface Board Serial Number (Bit 64-95) R 0x0018 Functional Board Serial Number (Bit 64-95) R
0x000C Interface Board Serial Number (Bit 96-127) R 0x001C Functional Board Serial Number (Bit 96-127) R
0x0070 Module Capability R
0x01FC Module Memory Map Revision R
MODULE MEASUREMENTS REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0200 Interface Board PCB/Zynq Current Temp R 0x0208 Functional Board PCB Current Temp R
0x0218 Interface Board PCB/Zynq Max Temp R 0x0228 Functional Board PCB Max Temp R
0x0220 Interface Board PCB/Zynq Min Temp R 0x0230 Functional Board PCB Min Temp R
0x02C0 Higher Precision Zynq Core Temperature R
0x02C4 Higher Precision Interface PCB Temperature R
0x02E0 Higher Precision Functional PCB Temperature R
MODULE HEALTH MONITORING REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x07F8 Module Sensor Summary Status R
![](/_shared/images/Module_Sensor_Registers_Memory_Map.png)

REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision Revision Date Description
C 2023-08-11 ECO C10649, initial release of module common registers manual.
C1 2024-05-15 ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2 2024-07-10 ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date Description
2025-11-05 Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02 Formatting updates to document; no technical changes.
Link to original

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100
Link to original

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

NAI Documentation

Explorer

INTRODUCTION

DT5 Overview

SPECIFICATIONS

Discrete I/O - 16-Channel EF Module DT5

PRINCIPLE OF OPERATION

Input/Switch Interface

Open Circuit Detection

Discrete I/O Threshold Programming

Debounce Programming

Automatic Background Built-In Test (BIT)/Diagnostic Capability

Status and Interrupts

Module Common Registers

User Watchdog Timer Capability

REGISTER DESCRIPTIONS

Discrete Input/Switch Registers

Switch Control

Switch Control

Open Circuit Detection

Open Circuit Detection

Switch State

Switch State

Read I/O

Read I/O

Discrete Input/Output Threshold Programming Registers

Input/Output Threshold Levels

Max High Threshold

Upper Threshold

Lower Threshold

Min Low Threshold

Discrete Measurement Registers

Voltage Reading (Sampled)

Voltage Reading (Sampled)

Voltage Reading (Averaged)

Voltage Reading (Averaged)

Current Reading (Sampled)

Current Reading (Sampled)

Current Reading (Averaged)

Current Reading (Averaged)

Discrete Input/Output Control Registers

Debounce Time

Overcurrent Value

Overcurrent Value

Overcurrent Reset

Overcurrent Reset

User Watchdog Time Programming Registers

Module Common Registers

Status and Interrupts

BIT Status

BIT Status

Overcurrent Status

Overcurrent Status

Above Max High Threshold Status

Above Max High Threshold Status

Below Min Low Threshold Status

Below Min Low Threshold Status

Mid-Range Status

Mid-Range Status

Low-to-High Transition Status

Low-to-High Transition Status

High-to-Low Transition Status

High-to-Low Transition Status

User Watchdog Timer Fault Status

Interrupt Vector and Steering

ENHANCED FUNCTIONALITY

Input Modes

Output Modes

Mode Select

Start Output/Measure Enable

Reset Timer

FIFO Operations/Functions

Read FIFO/Read Count

Read FIFO Count

Read FIFO Status

Read FIFO Status

Reset FIFO

PWM Operations/Functions

Period

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
