TL2 Manual

INTRODUCTION

This module manual provides information about the North Atlantic Industries, Inc. (NAI) TTL/CMOS EF Function Module: TL2 and the variants TL4, TL6, and TL8, which provide different TTL strapping options. This module is compatible with all NAI Generation 5 motherboards.

The TL2 and its variants, TTL/CMOS (TTL) Digital I/O 32-Bit Enhanced Functionality module provide 24 individual channels that are programmable via a Mode Select register that can be set up for basic Input/Output functionality or a multitude of special features, including Pulse Width Modulation, Pattern Generation, Pulse Timing measurement capability, Transceiver Mode and Synchronous Triggering with Preloaded Outputs. The transistor-transistor logic (TTL) employs transmitters with multiple emitters in gates having more than one input. TTL offers high switching speed and relative immunity to noisy systems. CMOS sensors provide image sensing technology by converting light waves into signals that are small bursts of current. These waves can be light or other electromagnetic radiation.

TTL Strapping Configurations by Module

Designation	Type	Default Power-On / Description
TL2	TTL I/O	Internal VCC, Input with 100k pull-downs
TL4	TTL with: EXT-VCC strapped to Internal +5 V	Internal VCC, Input with 100k pull-downs
TL6	TTL with: Input pull-ups	Internal VCC, Input with 100k pull-ups
TL8	TTL with: Input pull-ups EXT-VCC strapped to Internal +5 V	Internal VCC, Input with 100k pull-ups

FEATURES

• 24 channels available as inputs or outputs

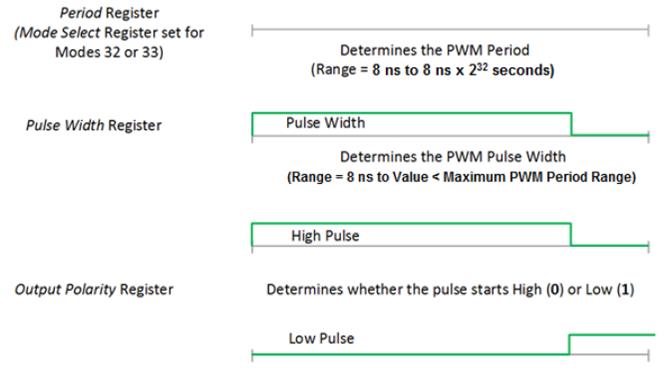

• Pulse Width Modulation (PWM) output mode

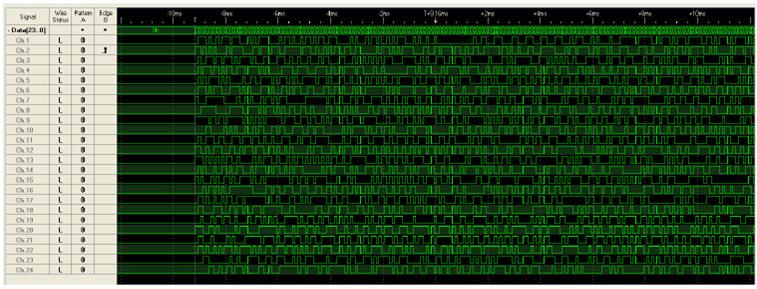

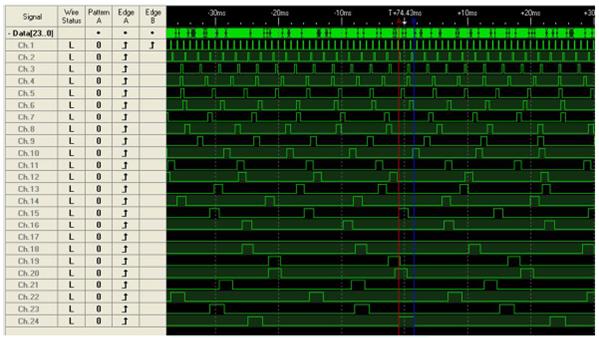

• Pattern Generator output mode

• Timing measurement of inputs with 8 ns resolution

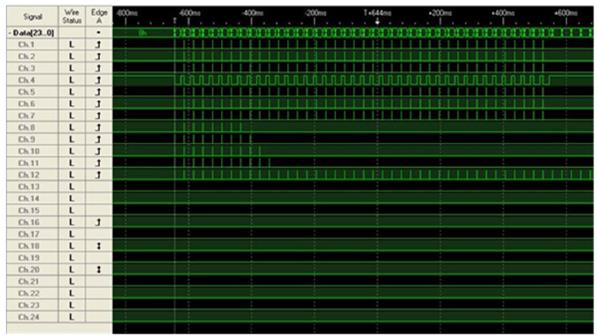

• Synchronous Triggering with Preload Mode that provides a master trigger channel to control the other 23 channels. May be set up to control additional modules.

• Programmable debounce circuitry with selectable time delay eliminates false signals resulting from relay contact bounce

• Transceiver Mode provides simultaneous input/output switching of multiple channels in a single operation

• Built-in test runs in background constantly monitoring system health for each channel

SPECIFICATIONS

Digital I/O - 24-Channel TTL/CMOS EF Module TL2 and TL4, TL6, and TL8 Variants

TTL Input

Input levels:	TTL and CMOS compatible, single ended inputs. Each channel incorporates a 100 KΩ pull-down resistor (contact factory regarding special configurations requiring inputs with 100 KΩ pull-up resistor(s)).
V in L:	≤ 0.8 V = “0”
V in H:	≥ 2.0 V = “1”
V in Max.:	5.5 V
I in:	± 50 µA
Read Delay:	300 ns (pending characterization)
Debounce:	Programmable from 0 to 34.36 sec.; LSB=8 ns.
Additional Enhanced Input Mode Operation:	Input with de-bounce filter (Mode 0), measure High Time (Mode 1), measure Low Time (Mode 2), time-stamp of all rising edges (Mode 3), time-stamp of all falling edges (Mode 4), time-stamp of all edges (Mode 5), count total number of rising (Mode 6), falling (Mode 7), all edges (Mode 8), measure period from rising edge-to-rising edge (Mode 9), measure frequency (Mode 10).

TTL Output

Output Levels:	TTL/CMOS, single ended outputs (internal or external Vcc selectable)
Drive Capability:	V out L: 0.55 V max. Low level output current: 24 mA (sink) V out H: 2.4 V min. High level output current 24 mA (source)
Rise/Fall Time:	10 ns into a 50pf load
Write Delay:	300 ns (pending characterization)
Power:	5 VDC @ 75 mA unloaded (max. 650 mA, with all channels at full source) (pending characterization)
Ground:	All grounds are common and connected/referenced to system ground.
Weight:	1.5 oz. (42 g)
Additional Enhanced Output Mode Operation:	PWM Continuous, PWM Burst (n-times), and Pattern Generator Output

PRINCIPLE OF OPERATION

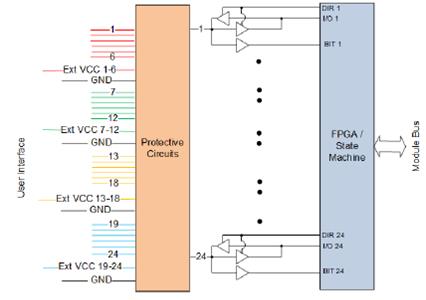

TL2 and its variants, provide up to 24 individual digital TTL/CMOS I/O channels, depending on platform and I/O connector pin availability. TL2 channels 1 through 24 may be set as inputs or outputs. The TL2 Mode Select register provides 13 Mode settings. Each channel can be set to any of the different input or output modes. All settings provide BIT fault detection, which enables flagging of non-compliant outputs or inconsistent input readings between dual input measurements. Status and/or interrupts are enabled for each channel to indicate transition on rising edge or transition on falling edge as well as current state. Each TTL/CMOS channel has an internal 100 K-ohm pull-down resistor, which is hardware configurable for 100 K pull-up. All inputs are continually hardware scanned as a background operation. Debounce circuits for each channel offer a selectable time delay to eliminate false signals resulting from contact bounce commonly experienced with mechanical relays and switches.

When programmed as outputs, the channels can be set to output the commanded state from either an internally generated 3.3V power supply, or from an externally provided VCC supply (up to 5.5 V max). If an overcurrent condition is detected, the channel will be reset to input mode. All outputs are continually scanned “real-time”, for present status.

The input thresholds are fixed and ratiometric with the VCC supply. If the external VCC supply is configured, the effective input threshold will be dependent on the supplied VCC.

Note

See TTL Strapping Configurations by Module for strapping options.

Automatic Background Built-In Test (BIT)/Diagnostic Capability

The module contains automatic background BIT testing that verifies channel processing, tests for overcurrent conditions, and provides status for threshold signal transitioning.

Any failure triggers an Interrupt (if enabled) with the results available in status registers. The testing is totally transparent to the user, requires no external programming and has no effect on the operation of this card. It continually checks that each channel is functional. This capability is accomplished by an additional test comparator that is incorporated into each module. The test comparator checks each channel and is compared against the operational channel. Depending upon the configuration, the Input data read or Output logic written of the operational channel and test comparator must agree or a fault is indicated with the results available in the associated status register. Low-to-High and High-to-Low logic transitions are indicated.

There is no independent overcurrent detection. Instead, the BIT detection circuitry is used to infer an overcurrent condition if the output state setting doesn’t match the readback value seen by the input circuitry. For example, a shorted output, causing the read state to be opposite from the expected value would trigger this. If the fault persists beyond the BIT interval stabilization time, the overcurrent protection will kick in and reset the drive output by returning the transceiver to input mode. To reset this condition, a reset command needs to be issued to the Overcurrent Reset register, which will restore drive output and allow the latched status to be reset. This is separate from the reset for the Overcurrent Interrupt Enable register on this module. It is recommended that a reset command is done whenever status is cleared to avoid a non-apparent output reset condition.

Enhanced Functionality

The TTL/CMOS EF Function Module provides enhanced input and output mode functionality. For incoming signals (inputs), the module’s enhanced modes include Pulse Measurements, Transition Timestamps, Transition Counters, Period Measurement and Frequency Measurement. For outputs, the module’s enhanced modes include PWM (Pulse Width Modulation) Outputs and Pattern Generator Outputs.

Refer to “Enhanced Discrete I/O, Digital I/O Functionality - Module Manual” for the Principle of Operation description.

Status and Interrupts

The TTL/CMOS EF Function Module provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

User Watchdog Timer Capability

The TTL/CMOS EF Function Module provide registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the Principle of Operation description.

Module Common Registers

The TTL/CMOS EF Function Module provide module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Function Address Offset, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

Input/Output Registers

I/O Format

Function:	Sets channels as inputs or outputs.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 0 for input (default), 1 for output.

Note

Power-on default or reset is configured for input. Bit-mapped per channel.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Read I/O

Function:	Reads High (1) or Low (0) inputs or outputs as defined by internal TTL channel threshold values. Bitmapped by channel.
Type:	unsigned binary word (32-bit)
Read/Write:	R
Initialized Value:	NA
Operational Settings:	NA

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Write Outputs

Function:	Output modes only - Sets data outputs High (1) or Low (0). Bit-mapped per channel.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 1 for High output; write 0 for Low. NOTE: Each bit corresponds to one of 24 channels.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

VCC Bank Registers

VCC Select

Function:	Enables user selection of external VCC source or internal 3.3 V source for each Channel Bank (6 channels per bank), for applications requiring output voltages other than the internal voltage.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0x0000 000F
Read/Write:	R/W
Initialized Value:	0x0000 000F
Operational Settings:	Write 0 for external VCC source or 1 for internal (3.3 V) for each bank.

Notes:

• Normal operating range for external VCC must be within the range between 1.2 V and 5.5 V (-0.35 V to 6.0 V absolute max. short-term tolerance) with a maximum current source of 30 mA.
• For special strapping option; whereby the external VCC is tied to the internal +5 V supply or special internal voltage configurations, contact factory.

Bit(s)	Name	Description
D31:D4	Reserved	Set Reserved bits to 0.
D3	Configure Bank 4 (Ch 19-24)	1=Internal (3.3V), 0=External
D2	Configure Bank 3 (Ch 13-18)	1=Internal (3.3V), 0=External
D1	Configure Bank 2 (Ch 07-12)	1=Internal (3.3V), 0=External
D0	Configure Bank 1 (Ch 01-06)	1=Internal (3.3V), 0=External

Read VCC Bank

Function:	Read the VCC bank voltage
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The Read VCC Bank register reflects the VCC voltage of a bank. The voltage can be calculated using the equation VCC = (0.001221 * register_value) / 0.91.

Input/Output Control Registers

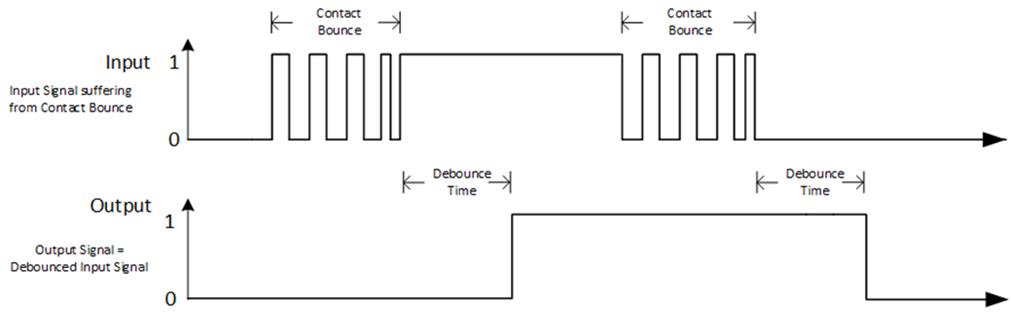

Debounce

Function:	When the I/O Format register is set for Input mode, the input signal will have the debounce filtering applied based on this programmed value. This is selectable for each channel.
Type:	binary word (32-bit)
Data Range:	0x 0000 0002 to 0x FFFF FFFF
Read/Write:	R/W
Initialized Value:	0x10
Operational Settings:	The Debounce register, when programmed for a non-zero value, is used with channels programmed as input to “filter” or “ignore” expected application spurious initial transitions. Enter required debounce time into appropriate channel registers. LSB weight is 8 ns/bit (register may be programmed from 0 (debounce filter inactive) through a maximum of 34.36s (full scale w/ 8 ns resolution). Once a signal level is a logic voltage level period longer than the debounce time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed debounce time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state. Enter a value of 0 to disable debounce filtering. Debounce defaults to 80h upon reset.

Read VCC Bank

Function:	Read the VCC bank for a group of six channels.
Type:	binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The Read VCC Bank register reflects the Vcc voltage of a bank. The voltage can be calculated using the following equation: Vcc = (0.001221 * register_value) / 0.91.

Overcurrent Reset

Function:	Resets disabled channels in Overcurrent Latched Status register following an overcurrent condition.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	1 is written to reset disabled channels. Processor will write a 0 back to the Overcurrent Reset register when reset process is complete.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

User Watchdog Timer Programming Registers

Refer to “User Watchdog Timer Module Manual” for the register descriptions.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

General Purpose Status Functions

BIT Error Interrupt Interval

Function:	Sets up a threshold requirement of “successive” events to accumulate before a BIT Error is generated. Accumulated successive fault detections add +2 to the count and no-fault detections subtract 1 from the count to filter BIT errors prior to an actual interrupt generation. Once the count exceeds this register’s value, a BIT error is generated.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0x3
Operational Settings:	Write a threshold to filter BIT errors prior to generating a BIT Error.

Note

Advantageous in “noisy”/unstable application environments or for general filtering purposes.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

BIT Count Error Clear

Function:	Clears the BIT error.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write a 1 to clear BIT errors.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Status and Interrupt Registers

The TTL/CMOS I/O Module provides status registers for BIT, Low-to-High Transition, High-to-Low Transition, and Overcurrent.

BIT Status

There are four registers associated with the BIT Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s BIT error.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

BIT Dynamic Status Register

BIT Latched Status Register

BIT Interrupt Enable Register

BIT Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

Ch24

Ch23

Ch22

Ch21

Ch20

Ch19

Ch18

Ch17

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Low-to-High Transition Status

There are four registers associated with the Low-to-High Transition Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s Low-to-High Transition event.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 40 ns.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 100 ns.

Note

Transition status follows the value read by the I/O Format register.

Low-to-High Dynamic Status Register

Low-to-High Latched Status Register

Low-to-High Interrupt Enable Register

Low-to-High Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

Ch24

Ch23

Ch22

Ch21

Ch20

Ch19

Ch18

Ch17

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

High-to-Low Transition Status

There are four registers associated with the High-to-Low Transition Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s High-to-Low Transition event.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 40 ns.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 40 ns.

Note

Transition status follows the value read by the I/O Format register.

High-to-Low Dynamic Status Register

High-to-Low Latched Status Register

High-to-Low Interrupt Enable Register

High-to-Low Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

Ch24

Ch23

Ch22

Ch21

Ch20

Ch19

Ch18

Ch17

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Overcurrent Status

There are four registers associated with the Overcurrent Transition Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s Overcurrent Error.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Status is indicated (associated channel(s) bit set to 1) within 80 ms.

Note

Channel(s) shut down by overcurrent sensed can be reset by writing to the Overcurrent Reset register.

Overcurrent Dynamic Status Register

Overcurrent Latched Status Register

Overcurrent Interrupt Enable Register

Overcurrent Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

Ch24

Ch23

Ch22

Ch21

Ch20

Ch19

Ch18

Ch17

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

User Watchdog Timer Fault Status

The TTL/CMOS EF Function Module provides registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Fault Status register descriptions.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector

Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering

Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table Read/Write: R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

ENHANCED FUNCTIONALITY

Input Modes

There are 10 Input modes. All input modes may be configured with debounce capability. Debounce capability allows configurable filtering of noisy signals and transients. Each channel may be set to an individual debounce time value. When a debounce time is set to a non-zero value, the signal reading after a transition must remain at the same level for the debounce interval before it is propagated through, otherwise it is rejected. All Input Modes (1-10) FIFO buffers are 1024 words deep.

Mode 0 - No Enhancement Mode

Behaves the same as a standard functionality only module.

Mode 1 - High Time Pulse Measurement (FIFO Buffer)

Timing measurements record the time interval (in 8 ns ticks) from a pair of transitions.

Pulse High, Mode 1: records measurements for each rising transition to the next falling one.

Mode 2 - Low Time Pulse Measurement (FIFO Buffer)

Timing measurements record the time interval (in 8 ns ticks) from a pair of transitions.

Pulse Low, Mode 2: records the interval from each falling edge to the next rising edge.

Mode 3 - Transition Timestamp of All Rising Edges (FIFO Buffer)

Rising Edge time stamps from 125 MHz, 32-bit counter will be sequentially available and stored in the FIFO buffer.

Note

In this example, four counter values at the rising edge transitions are recorded to the FIFO: 0x344321, 0x344999, 0x345011, 0x345689, etc.

Delta of 0x678 = 1656 counts, or 13.248 µs interval between pulses.

Mode 4 - Transition Timestamp of All Falling Edges (FIFO Buffer)

Falling Edge time stamps from 125 MHz, 32-bit counter will be sequentially available and stored in the FIFO buffer.

Mode 5 - Transition Timestamp of All Edges (FIFO Buffer)

Rising and Falling Edge time stamps from 125 MHz, 32-bit counter will be sequentially available and stored in the FIFO buffer.

Note

In this example, all edges time stamp. Four counter values at the transitions are recorded to the FIFO: 0x344321, 0x344999, 0x345011, 0x345689, etc.

Delta of 0x33C = 828 counts, or 6.624 µs interval between pulses.

Mode 6 - Rising Edge Transition Counter

When selected, the rising edge count will be available from the count register at the FIFO read address. The counter is reset via user command. 32-bit count range to 232.

Mode 7 - Falling Edge Transition Counter

When selected, falling edge count will be available from the count register at the FIFO read address. The counter is reset via user command. 32-bit count range to 232.

Mode 8 - Rising and Falling Edge Transition Counter

When selected, cumulative edge counts will be available from the count register at the FIFO read address. The counter is reset via user command. 32-bit count range to 232.

Mode 9 - Period Measurement

Timing measurements record the intervals from pulse-to-pulse in 8 ns ticks (delta timestamp).

Note

In Period Measurement mode, the same three pulse-to-pulse interval values as calculated in the timestamp measurement would be directly recorded to the FIFO.

Mode 10 - Frequency Measurement

Enables frequency measurement, which will be available and stored in the FIFO buffer. Frequency measurement correlates to/utilizes a programmable time interval, which is programmed in the Period register. Direct readout of frequency is available when the interval is set to one second.

Output Modes

There are three Output modes, which include a standard output mode, two PWM outputs and a Pattern Generator Output mode.

Mode 32 (0x20) - PWM Continuous Output Mode

In the sample shown below, each of the 24 channels has been set up with incrementing periods and pulse widths, running in continuous mode. Timing is asynchronous to each channel, but is very precise and with low jitter. In this mode, the configured PWM output is enabled and disabled with the Start Output/Measure Enable register.

Continuous Output Mode (Mode 32)

Mode 33 (0x21) - PWM Burst

Repeats the pulse based on programmed Period and Pulse Width “n” times as programmed in the Number of Cycles register.

Burst Mode (Mode 33) Programmed for “n” Number of Cycles

Mode 34 (0x22) - Pattern Generator Output

Outputs all mode selected channels based on the pattern programmed in the Pattern RAM register. The output rate is set in the Pattern RAM Period register. The output is a cyclic transmission of a 216 deep X 24-bit pattern array at configurable pattern intervals with 8 ns resolution. Pattern output may be stopped and resumed at the same point in the cycle. The following shows an arbitrary output of patterns as displayed on 24 channels of a logic analyzer. Each vertical column represents one 24-bit pattern of the 216 pattern array.

Pattern Data Output (Mode 34)

Mode Select

Function:	This register provides selection of 13 different modes: Inputs 1-10; Outputs 32-34. See the following table for a brief description of each mode.
Type:	unsigned binary word (32-bit) Data Range: 1-10; 32-34
Data Range:	1-10; 32-34
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Modes 0 through 10, 32, 33 and 34 are selectable for each channel. Writing a 0 will reset the Modes to their initialized state.

Mode #	Hex	Description
1	0x0001	Measure “High” time: Write a 1 to the Start Output/Measure Enable register to enable measurement of the I/O state “High” time. It will not be measured if the bit is not set for that channel, i.e. 0. If a 1 is written to enable measurement on a channel while that channel’s I/O state is 1, then the internal counter will begin to count upon begin enabled.
2	0x0002	Measure “Low” time: Write a 1 to the Start Output/Measure Enable register to enable measurement of the I/O state “Low time”. It will not be measured if the bit is not set for that channel. If a 1 is written to enable measurement on a channel while that channel’s I/O state is 0, then the internal counter will begin to count upon being enabled.
3	0x0003	Time-stamp of all rising edges: Write a 1 to the Start Output/Measure Enable register and the timestamp counter will begin to count. A low-to-high transition on that channel will store the timestamp at the time of the transition in the FIFO. If that channel is then disabled by writing a 0, the timestamp counter will pause and any low-to-high transitions of the I/O state will not trigger FIFO storage. Write any value to the Reset Timer register to reset the timestamp counter.
4	0x0004	Time-stamp of all falling edges: Write a 1 to the Start Output/Measure Enable register and the timestamp counter will begin to count. A high-to-low transition on that channel will store the timestamp at the time of the transition in the FIFO. If that channel is then disabled by writing a 0, the timestamp counter will pause and any high-to-low transitions of the I/O state will not trigger a FIFO storage. Write any value to the Reset Timer register to reset the timestamp counter.
5	0x0005	Time-stamp of all edges: Write a 1 to the Start Output/Measure Enable register and the timestamp counter will begin to count. Any low-to-high or high-to-low transition on that channel will store the timestamp at the time of the transition in the FIFO. If that channel is then disabled by writing a 0, the timestamp counter will pause and any low-to-high or high-to-low transitions of the I/O state will not trigger FIFO storage. Write any value to the Reset Timer register to reset the timestamp counter.
6	0x0006	Count total number of rising edges (until FIFO reset): Write a 1 to the Start Output/Measure Enable register to begin tracking any low-to-high transition of that channel’s I/O state will increment the counter by one. If a 0 is written in the register for that channel, the count will not increment on any transitions. Write any value to the Reset Timer register to reset the counter.
7	0x0007	Count total number of falling edges (until FIFO reset): Write a 1 to the Start Output/Measure Enable register to begin tracking any high-to-low transition of that channel’s I/O state will increment the counter by one. If a 0 is written in the register for that channel, the count will not increment on any transitions. Write any value to the Reset Timer register to reset the counter.
8	0x0008	Count total number of all edges (until FIFO reset): Write a 1 to the Start Output/Measure Enable register to begin tracking any low-to-high transition or high-to-low transition of that channel’s I/O state will increment the counter by one. If a 0 is written in the register for that channel, the count will not increment on any transitions. Write any value to the Reset Timer register to reset the counter.
9	0x0009	Measure period from rising edge (L-H transition) to next rising edge: The first low-to-high transition of any enabled channel will start the counter. The next low-to-high transition will store the count in the FIFO, reset the counter, and begin the count again. This will repeat. After the waveform on the input has finished, write any value to the Reset Timer to reset it to zero.
10	0x000A	Measure frequency: The first low-to-high transition of any enabled channel will start the PWM Period counter. The counter will be incremented for every low-to-high transition that occurs within the defined period. Once the period counter reaches zero, the number of low-to-high transitions counted will be stored in FIFO and the process will restart. Write any value to the Reset Timer to reset it to zero.
32	0x20	PWM - output continuously: Will continuously (repeat) the pulse based on programmed Period and Pulse Width registers. Write a 1 to output the continuous waveform programed in the Period and Pulse Width registers. Write a 0 to disable the output.
33	0x21	PWM - output “n” times: Will repeat the pulse based on programmed Period and Pulse Width “n” times as programmed in the Number of Cycles register. Write a 1 to output the number of pulses written in the Number of Cycles register with the period and pulse width written in the Period and Pulse Width registers. Once the programmed number of pulses that was written to the register has been outputted, a 0 will be written back to the register for the channel that was enabled (self-clearing).
34	0x22	Output pattern data held in RAM: Outputs all mode selected channel(s) based on the pattern programmed in RAM. The output rate is set in the Pattern RAM Period register. The Pattern RAM Start Address register will determine where the pattern RAM output will begin when enabled. The Pattern RAM End Address register will determine where the pattern RAM output will end when enabled. After the pattern is outputted, it will loop back to the start address. Writing a 0x1 to the control register will loop the pattern continuously. While looping continuously, a 0x0 can be written to stop the output and bring the pattern back to the start address or a 0x5 can be written to pause the output wherever it may be in the pattern. Writing a 0x1 when the pattern is paused will resume the pattern at the same spot. Writing a 0x3 to the control register will burst the pattern from the start address to the end address for N number of times. N is determined by the value written in the Pattern RAM Period register. The Pattern RAM Period register determines how long the each address data will be output for. In other words, it is the time it takes for the output to change to the next address.

Notes:

Mode 1 - 10	Input
Mode 32 - 34	Output
1	Mode(s) 1-10: FIFO storage occurs at 8 ns intervals (unless otherwise specified)
2	Mode(s) 7- 9: Applies to measurement “count” edges - the “count” is provided/updated at 8ns intervals in the first element of the FIFO only (no FIFO ‘storage” - first element is dynamically updated).
3	Mode 10 (Measure frequency): In this mode, the captured FIFO data is essentially the number of transitions measured within a given user specified time interval (specified/programmed in the Pulse Width register). From this, the user calculates frequency by [FIFO Data (# of transitions) / Pulse Width], or, simply program the Pulse Width register to a time interval of 1 second, which then FIFO Data (# of transitions) directly correlates to measured frequency (Hz).

Start Output/Measure Enable

Function:	Output Modes: When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the Start Output/Measure Enable register is used to start the channel outputs. Input Modes: When the Mode Select register is programmed for PWM input modes (Modes 1-10), the Start Output/Measure Enable register is used to start measurement.
Type:	binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The channel(s) output is based on the pattern preset in the programmed pulse characteristic registers: Period, Pulse Width and Output Polarity. If the Mode Select register is set to Mode 33, the number of pulses is controlled by the Number of Cycles register.

Reset Timer

Function:	Resets Timer to default value.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	W
Initialized Value:	0
Operational Settings:	Writing any value to this register resets the Timer to default value. Applicable to Modes 3 through 10. See Mode Select register.

Note

Resetting timers will also retrigger the FIFO store mechanism to trigger or restart the FIFO on the next valid low-to-high transition detected.

FIFO Operations/Functions

There is an independent FIFO (512 32-bit words deep) for each channel allocated for use when the Mode Select register is programmed for the appropriate mode (applies to Input modes 1-10).

Read FIFO/Read Count

Function:	Depends upon Mode Select register setting. Read FIFO: Provides stored data dependent on the input channel(s) mode selected. Applicable to Modes 1 through 5, 9 and 10. See Mode Select register. Read Count: Applicable to Modes 6, 7 and 8. See Mode Select register.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	The available data in the FIFO buffer can be retrieved, one word at a time (32-bits), from the identified memory/register address.

Note

The Read FIFO and Read Count functions share a register. They are mutually exclusive in that depending upon the setting of the Mode Select register, either one or the other will become active.

Read FIFO Count

Function:	unsigned Reads the number of 32-bit words stored in FIFO for each channel.
Type:	binary word (32-bit)
Data Range:	Any value
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Mode Select register set for Modes 1-10.

Read FIFO Status

Function:	Provides a real-time status of the following conditions: * FIFO empty * FIFO full * Almost Empty * Almost Full
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x4
Read/Write:	R
Initialized Value:	0
Operational Settings:	See table below.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Reset FIFO

Function:	Resets measurement FIFO (only) to zero. Applicable to Modes 1 through 5, 9 and 10. See Mode Select register.
Type:	unsigned binary word (32-bit)
Read/Write:	W
Initialized Value:	0
Operational Settings:	The act of writing any value to this register will apply the reset.

PWM Operations/Functions

Unless otherwise specified, PWM operations and functions apply to channels when the Mode Select register is set for Modes 32 & 33.

Period

The Period register works in conjunction with the Pulse Width, Output Select, Number of Cycles and Start Output/Measure Enable registers to configure PWM output. See Configuring PWM Output figure below. It is also used for Period and Frequency measurement.

Configuring PWM Output

Function:	When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the PWM Period is based on the programmed value set in this register.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0002 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Mode Select register is set to Mode 32 or 33, the Period register is used to program the desired channel PWM output pulse period. Enter the desired PWM pulse period (LSB=@ 8 ns; valid entries are: 16 ns to 34.36 sec.). NOTE: Programmed PWM Period must be greater than the value set in the Pulse Width register.

Pulse Width

Function:	When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the Pulse Width register is used to program the desired channel(s) PWM Pulse Width “ON” time. See Configuring PWM Output figure. When the Mode Select register is programmed for frequency measurement (Mode 10), the Pulse Width register is used to program the Timebase for the desired channel(s).
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFE
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Applied to Mode(s) 32 & 33: Enter the desired PWM Pulse Width (LSB= @ 8 ns; valid entries from 8 ns to 34.36 s). Used in conjunction with the Period register. NOTE: Programmed PWM Pulse Width must be less than the value set in the Period register. Applied to Mode 10: For channel(s) with functions that rely on frequency measurement, the Pulse Width register is used to program the desired channel “Timebase” for the frequency measurement transition count period of time. NOTE: There may be an initial “low” level output delay based on the Period time before the initial pulse is output.

Number of Cycles

Function:	When Mode Select register is programmed for Mode 33, the Number of Cycles register is used to program the number of times to repeat the pulse.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Pulse is determined and used in conjunction with the Period and Pulse Width registers. Enter the desired Number of Cycles.

Note

If continuous pulse generation is desired, select Mode 32.

Pattern Generator Operations/Functions

Applies to channels set for Output mode 34 on the Mode Select register. There is an allocated RAM data pattern 64K deep RAM location range, bit-mapped per channel that can be used for multichannel pulse pattern generation. Each channel, when programmed for Mode 34, is bit-mapped (LSB = Ch1) and when triggered (timers are reset), will sequentially output the programmed RAM pattern at the rate programmed in the Pattern RAM Period register.

Pattern RAM Period

Function:	Programs the desired channel output pattern rate.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Enter the desired Pattern Generator RAM period (LSB=@ 8 ns).

Pattern RAM Start Address

Function:	Programs the starting address for the Pattern Generator.
Type:	unsigned binary word (32-bit)
Data Range:	0x40000 to 0x7FFFC
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Output rate is determined by the rate programmed in the Pattern RAM Period register. Write a 1 to start the RAM pattern output; write a 0 to stop the RAM pattern output.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Pattern RAM End Address

Function:	Programs the ending address for the Pattern Generator. There are 32K address locations from 0x40000 to 0x7FFFC.
Type:	unsigned binary word (32-bit)
Data Range:	0x40000 to 0x7FFFC
Read/Write:	R/W
Initialized Value:	0 Operational Settings:
NA

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Pattern RAM Number of Cycles

Function:	Program the number of times to repeat the pattern.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Programmable from 1 to 232 cycles.

Pattern RAM Control

Function:	Control the RAM data pattern.
Type:	unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	W
Initialized Value:	0
Operational Settings:	The Pattern RAM Start Address register determines where the pattern RAM output will begin when enabled. The Pattern RAM End Address register determines where the pattern RAM output will end when enabled. After the pattern at the pattern end address is outputted, it will loop back to the start address.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Note

Write the following values to the register to perform each function.

Bit	Function
D0	Pattern Looping: This bit will enable or disable continuous pattern looping. Write 0x1 to enable and 0x0 to disable the pattern.
D1	Burst Mode: Write 0x3 will burst the pattern from the start address to the end address for N number of times. N is determined by the value written in the Pattern RAM Number of Cycles register.
D2	Pause: Write 0x5 to pause the pattern when enabled.
D3	Rising Edge External Trigger Enable: Uses Channel 1 as the input. Write 0xA to enable pattern burst on a rising edge.
D4	Falling Edge External Trigger Enable: Uses Channel 1 as the input. Write 0x12 to enable pattern burst on a falling edge.

Output Polarity

Function:	When the Mode Select register is programmed for PWM output modes (Modes 32 & 33), the Output Polarity programs the PWM Pulse Period to start either High (0) or Low (1).
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Applies to Modes 32 and 33. The Output Polarity register is used to program the start “level” (or state) of the PWM Pulse Period. The default is ON (High), which is set when the PWM Polarity bit is 0. The PWM start level channel(s) output will be High for the initial start of the period. See Configuring PWM Output figure. The time is defined by the Period and Pulse Width registers. The remainder of the PWM Period time will be “low” defined by the [PWM Period - PWM Pulse Width]. If the PWM Polarity bit is set to 1, the PWM start level will be “low” for the programmed PWM Pulse Width and the remainder of the PWM Period time will be “high” defined by the [PWM Period - PWM Pulse Width]. Bit mapped per channel.

Note

There may be an initial “low” level output delay based on the Period time before the initial pulse is output.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

FUNCTION REGISTER MAP

Key:

Bold Italic	= Configuration/Control
Bold Underline	= Measurement/Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

Input/Output Registers

Addr (Hex)	Name	Read/Write
0x1038	I/O Format	R/W

Addr (Hex)	Name	Read/Write
0x1000	Read I/O	R
0x1024	Write Outputs	R/W

Vcc Bank Registers

Addr (Hex)	Name	Read/Write
0x1020	Vcc Select	R/W

Addr (Hex)	Name	Read/Write
0x1200	Read Vcc Bank 1	R
0x1204	Read Vcc Bank 1	R
0x1208	Read Vcc Bank 1	R
0x120C	Read Vcc Bank 1	R

Input/Output Control Registers

Addr (Hex)	Name	Read/Write
0x208C	Debounce Time Ch.1	R/W
0x210C	Debounce Time Ch.2	R/W
0x218C	Debounce Time Ch.3	R/W
0x220C	Debounce Time Ch.4	R/W
0x228C	Debounce Time Ch.5	R/W
0x230C	Debounce Time Ch.6	R/W
0x238C	Debounce Time Ch.7	R/W
0x240C	Debounce Time Ch.8	R/W
0x248C	Debounce Time Ch.9	R/W
0x250C	Debounce Time Ch.10	R/W
0x258C	Debounce Time Ch.11	R/W
0x260C	Debounce Time Ch.12	R/W
0x268C	Debounce Time Ch.13	R/W
0x270C	Debounce Time Ch.14	R/W
0x278C	Debounce Time Ch.15	R/W
0x280C	Debounce Time Ch.16	R/W
0x288C	Debounce Time Ch.17	R/W
0x290C	Debounce Time Ch.18	R/W
0x298C	Debounce Time Ch.19	R/W
0x2A0C	Debounce Time Ch.20	R/W
0x2A8C	Debounce Time Ch.21	R/W
0x2B0C	Debounce Time Ch.22	R/W
0x2B8C	Debounce Time Ch.23	R/W
0x2C0C	Debounce Time Ch.24	R/W

Addr (Hex)	Name	Read/Write
0x1100	Overcurrent Clear	R/W

User Watchdog Timer Programming Registers

Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Status Function Register Map.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map.

General Purpose Status Registers

Addr (Hex)	Name	Read/Write
0x101C	BIT Error Interrupt Interval	R/W
0x1014	BIT Count Error Clear	R/W

Status Registers

BIT

Addr (Hex)	Name	Read/Write
0x0800	BIT Dynamic Status	R
0x0804	BIT Latched Status*	R/W
0x0808	BIT Interrupt Enable	R/W
0x080C	BIT Set Edge/Level Interrupt	R/W

Low-to-High Transition

Addr (Hex)	Name	Read/Write
0x0810	Low-High Transition Dynamic Status	R
0x0814	Low-High Transition Latched Status*	R/W
0x0818	Lo-Hi Transition Interrupt Enable	R/W
0x081C	Lo-Hi Transition Set Edge/Level Interrupt	R/W

High-to-Low Transition

Addr (Hex)	Name	Read/Write
0x0820	High-Low Transition Dynamic Status	R
0x0824	High-Low Transition Latched Status*	R/W
0x0828	Hi-Lo Transition Interrupt Enable	R/W
0x082C	Hi-Lo Transition Set Edge/Level Interrupt	R/W

Overcurrent

Addr (Hex)	Name	Read/Write
0x0830	Overcurrent Dynamic Status	R
0x0834	Overcurrent Latched Status*	R/W
0x0838	Overcurrent Interrupt Enable	R/W
0x083C	Overcurrent Set Edge/Level Interrupt	R/W

Interrupt Registers

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.

Addr (Hex)	Name	Read/Write
0x0500	Module 1 Interrupt Vector 1 - BIT	R/W
0x0504	Module 1 Interrupt Vector 2 - Low-High	R/W
0x0508	Module 1 Interrupt Vector 3 - High-Low	R/W
0x050C	Module 1 Interrupt Vector 4 - Overcurrent	R/W
0x0510 to 0x0568	Module 1 Interrupt Vector 5-27 - Reserved	R/W
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0570 to 0x057C	Module 1 Interrupt Vector 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0600	Module 1 Interrupt Steering 1 - BIT	R/W
0x0604	Module 1 Interrupt Steering 2 - Low-High	R/W
0x0608	Module 1 Interrupt Steering 3 - High-Low	R/W
0x060C	Module 1 Interrupt Steering 4 - Overcurrent	R/W
0x0610 to 0x0668	Module 1 Interrupt Steering 5-27 - Reserved	R/W
0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0670 to 0x067C	Module 1 Interrupt Steering 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0700	Module 2 Interrupt Vector 1 - BIT	R/W
0x0704	Module 2 Interrupt Vector 2 - Low-High	R/W
0x0708	Module 2 Interrupt Vector 3 - High-Low	R/W
0x070C	Module 2 Interrupt Vector 4 - Overcurrent	R/W
0x0710 to 0x0768	Module 2 Interrupt Vector 5-27 - Reserved	R/W
0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0770 to 0x077C	Module 2 Interrupt Vector 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0800	Module 2 Interrupt Steering 1 - BIT	R/W
0x0804	Module 2 Interrupt Steering 2 - Low-High	R/W
0x0808	Module 2 Interrupt Steering 3 - High-Low	R/W
0x080C	Module 2 Interrupt Steering 4 - Overcurrent	R/W
0x0810 to 0x0868	Module 2 Interrupt Steering 5-27 - Reserved	R/W
0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0870 to 0x087C	Module 2 Interrupt Steering 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0900	Module 3 Interrupt Vector 1 - BIT	R/W
0x0904	Module 3 Interrupt Vector 2 - Low-High	R/W
0x0908	Module 3 Interrupt Vector 3 - High-Low	R/W
0x090C	Module 3 Interrupt Vector 4 - Overcurrent	R/W
0x0910 to 0x0968	Module 3 Interrupt Vector 5-27 - Reserved	R/W
0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0970 to 0x097C	Module 3 Interrupt Vector 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0A00	Module 3 Interrupt Steering 1 - BIT	R/W
0x0A04	Module 3 Interrupt Steering 2 - Low-High	R/W
0x0A08	Module 3 Interrupt Steering 3 - High-Low	R/W
0x0A0C	Module 3 Interrupt Steering 4 - Overcurrent	R/W
0x0A10 to 0x0A68	Module 3 Interrupt Steering 5-27 - Reserved	R/W
0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0A70 to 0x0A7C	Module 3 Interrupt Steering 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0B00	Module 4 Interrupt Vector 1 - BIT	R/W
0x0B04	Module 4 Interrupt Vector 2 - Low-High	R/W
0x0B08	Module 4 Interrupt Vector 3 - High-Low	R/W
0x0B0C	Module 4 Interrupt Vector 4 - Overcurrent	R/W
0x0B10 to 0x0B68	Module 4 Interrupt Vector 5-27 - Reserved	R/W
0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0B70 to 0x0B7C	Module 4 Interrupt Vector 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0C00	Module 4 Interrupt Steering 1 - BIT	R/W
0x0C04	Module 4 Interrupt Steering 2 - Low-High	R/W
0x0C08	Module 4 Interrupt Steering 3 - High-Low	R/W
0x0C0C	Module 4 Interrupt Steering 4 - Overcurrent	R/W
0x0C10 to 0x0C68	Module 4 Interrupt Steering 5-27 - Reserved	R/W
0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0C70 to 0x0C7C	Module 4 Interrupt Steering 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0D00	Module 5 Interrupt Vector 1 - BIT	R/W
0x0D04	Module 5 Interrupt Vector 2 - Low-High	R/W
0x0D08	Module 5 Interrupt Vector 3 - High-Low	R/W
0x0D0C	Module 5 Interrupt Vector 4 - Overcurrent	R/W
0x0D10 to 0x0D68	Module 5 Interrupt Vector 5-27 - Reserved	R/W
0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0D70 to 0x0D7C	Module 5 Interrupt Vector 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0E00	Module 5 Interrupt Steering 1 - BIT	R/W
0x0E04	Module 5 Interrupt Steering 2 - Low-High	R/W
0x0E08	Module 5 Interrupt Steering 3 - High-Low	R/W
0x0E0C	Module 5 Interrupt Steering 4 - Overcurrent	R/W
0x0E10 to 0x0E68	Module 5 Interrupt Steering 5-27 - Reserved	R/W
0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0E70 to 0x0E7C	Module 5 Interrupt Steering 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x0F00	Module 6 Interrupt Vector 1 - BIT	R/W
0x0F04	Module 6 Interrupt Vector 2 - Low-High	R/W
0x0F08	Module 6 Interrupt Vector 3 - High-Low	R/W
0x0F0C	Module 6 Interrupt Vector 4 - Overcurrent	R/W
0x0F10 to 0x0F68	Module 6 Interrupt Vector 5-27 - Reserved	R/W
0x0F6C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0F70 to 0x0F7C	Module 6 Interrupt Vector 29-32 - Reserved	R/W

Addr (Hex)	Name	Read/Write
0x1000	Module 6 Interrupt Steering 1 - BIT	R/W
0x1004	Module 6 Interrupt Steering 2 - Low-High	R/W
0x1008	Module 6 Interrupt Steering 3 - High-Low	R/W
0x100C	Module 6 Interrupt Steering 4 - Overcurrent	R/W
0x1010 to 0x1068	Module 6 Interrupt Steering 5-27 - Reserved	R/W
0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x1070 to 0x107C	Module 6 Interrupt Steering 29-32 - Reserved	R/W

Enhanced Functionality Registers

Addr (Hex)	Name	Read/Write
0x300C	Mode Select Ch.1	R/W
0x308C	Mode Select Ch.2	R/W
0x310C	Mode Select Ch.3	R/W
0x318C	Mode Select Ch.4	R/W
0x320C	Mode Select Ch.5	R/W
0x328C	Mode Select Ch.6	R/W
0x330C	Mode Select Ch.7	R/W
0x338C	Mode Select Ch.8	R/W
0x340C	Mode Select Ch.9	R/W
0x348C	Mode Select Ch.10	R/W
0x350C	Mode Select Ch.11	R/W
0x358C	Mode Select Ch.12	R/W
0x360C	Mode Select Ch.13	R/W
0x368C	Mode Select Ch.14	R/W
0x370C	Mode Select Ch.15	R/W
0x378C	Mode Select Ch.16	R/W
0x380C	Mode Select Ch.17	R/W
0x388C	Mode Select Ch.18	R/W
0x390C	Mode Select Ch.19	R/W
0x398C	Mode Select Ch.20	R/W
0x3A0C	Mode Select Ch.21	R/W
0x3A8C	Mode Select Ch.22	R/W
0x3B0C	Mode Select Ch.23	R/W
0x3B8C	Mode Select Ch.24	R/W

Addr (Hex)	Name	Read/Write
0x2000	Start Output/Measure Enable	R/W
0x2004	Reset Timer	W

FIFO Operations/Functions

Addr (Hex)	Name	Read/Write
0x3000	Read FIFO/Read Count Ch.1	R
0x3080	Read FIFO/Read Count Ch.2	R
0x3100	Read FIFO/Read Count Ch.3	R
0x3180	Read FIFO/Read Count Ch.4	R
0x3200	Read FIFO/Read Count Ch.5	R
0x3280	Read FIFO/Read Count Ch.6	R
0x3300	Read FIFO/Read Count Ch.7	R
0x3380	Read FIFO/Read Count Ch.8	R
0x3400	Read FIFO/Read Count Ch.9	R
0x3480	Read FIFO/Read Count Ch.10	R
0x3500	Read FIFO/Read Count Ch.11	R
0x3580	Read FIFO/Read Count Ch.12	R
0x3600	Read FIFO/Read Count Ch.13	R
0x3680	Read FIFO/Read Count Ch.14	R
0x3700	Read FIFO/Read Count Ch.15	R
0x3780	Read FIFO/Read Count Ch.16	R
0x3800	Read FIFO/Read Count Ch.17	R
0x3880	Read FIFO/Read Count Ch.18	R
0x3900	Read FIFO/Read Count Ch.19	R
0x3980	Read FIFO/Read Count Ch.20	R
0x3A00	Read FIFO/Read Count Ch.21	R
0x3A80	Read FIFO/Read Count Ch.22	R
0x3B00	Read FIFO/Read Count Ch.23	R
0x3B80	Read FIFO/Read Count Ch.24	R

Addr (Hex)	Name	Read/Write
0x3004	Read FIFO Count Ch.1	R
0x3084	Read FIFO Count Ch.2	R
0x3104	Read FIFO Count Ch.3	R
0x3184	Read FIFO Count Ch.4	R
0x3204	Read FIFO Count Ch.5	R
0x3284	Read FIFO Count Ch.6	R
0x3304	Read FIFO Count Ch.7	R
0x3384	Read FIFO Count Ch.8	R
0x3404	Read FIFO Count Ch.9	R
0x3484	Read FIFO Count Ch.10	R
0x3504	Read FIFO Count Ch.11	R
0x3584	Read FIFO Count Ch.12	R
0x3604	Read FIFO Count Ch.13	R
0x3684	Read FIFO Count Ch.14	R
0x3704	Read FIFO Count Ch.15	R
0x3784	Read FIFO Count Ch.16	R
0x3804	Read FIFO Count Ch.17	R
0x3884	Read FIFO Count Ch.18	R
0x3904	Read FIFO Count Ch.19	R
0x3984	Read FIFO Count Ch.20	R
0x3A04	Read FIFO Count Ch.21	R
0x3A84	Read FIFO Count Ch.22	R
0x3B04	Read FIFO Count Ch.23	R
0x3B84	Read FIFO Count Ch.24	R

Addr (Hex)	Name	Read/Write
0x3008	Read FIFO Status Ch.1	R
0x3088	Read FIFO Status Ch.2	R
0x3108	Read FIFO Status Ch.3	R
0x3188	Read FIFO Status Ch.4	R
0x3208	Read FIFO Status Ch.5	R
0x3288	Read FIFO Status Ch.6	R
0x3308	Read FIFO Status Ch.7	R
0x3388	Read FIFO Status Ch.8	R
0x3408	Read FIFO Status Ch.9	R
0x3488	Read FIFO Status Ch.10	R
0x3508	Read FIFO Status Ch.11	R
0x3588	Read FIFO Status Ch.12	R
0x3608	Read FIFO Status Ch.13	R
0x3688	Read FIFO Status Ch.14	R
0x3708	Read FIFO Status Ch.15	R
0x3788	Read FIFO Status Ch.16	R
0x3808	Read FIFO Status Ch.17	R
0x3888	Read FIFO Status Ch.18	R
0x3908	Read FIFO Status Ch.19	R
0x3988	Read FIFO Status Ch.20	R
0x3A08	Read FIFO Status Ch.21	R
0x3A88	Read FIFO Status Ch.22	R
0x3B08	Read FIFO Status Ch.23	R
0x3B88	Read FIFO Status Ch.24	R

Addr (Hex)	Name	Read/Write
0x2008	Reset FIFO	W

PWM Operations/Functions

Addr (Hex)	Name	Read/Write
0x3014	Period Ch.1	R/W
0x3094	Period Ch.2	R/W
0x3114	Period Ch.3	R/W
0x3194	Period Ch.4	R/W
0x3214	Period Ch.5	R/W
0x3294	Period Ch.6	R/W
0x3314	Period Ch.7	R/W
0x3394	Period Ch.8	R/W
0x3414	Period Ch.9	R/W
0x3494	Period Ch.10	R/W
0x3514	Period Ch.11	R/W
0x3594	Period Ch.12	R/W
0x3614	Period Ch.13	R/W
0x3694	Period Ch.14	R/W
0x3714	Period Ch.15	R/W
0x3794	Period Ch.16	R/W
0x3814	Period Ch.17	R/W
0x3894	Period Ch.18	R/W
0x3914	Period Ch.19	R/W
0x3994	Period Ch.20	R/W
0x3A14	Period Ch.21	R/W
0x3A94	Period Ch.22	R/W
0x3B14	Period Ch.23	R/W
0x3B94	Period Ch.24	R/W

Addr (Hex)	Name	Read/Write
0x3010	Pulse Width Ch. 1	R/W
0x3090	Pulse Width Ch. 2	R/W
0x3110	Pulse Width Ch. 3	R/W
0x3190	Pulse Width Ch. 4	R/W
0x3210	Pulse Width Ch. 5	R/W
0x3290	Pulse Width Ch. 6	R/W
0x3310	Pulse Width Ch. 7	R/W
0x3390	Pulse Width Ch. 8	R/W
0x3410	Pulse Width Ch. 9	R/W
0x3490	Pulse Width Ch. 10	R/W
0x3510	Pulse Width Ch. 11	R/W
0x3590	Pulse Width Ch. 12	R/W
0x3610	Pulse Width Ch. 13	R/W
0x3690	Pulse Width Ch. 14	R/W
0x3710	Pulse Width Ch. 15	R/W
0x3790	Pulse Width Ch. 16	R/W
0x3810	Pulse Width Ch. 17	R/W
0x3890	Pulse Width Ch. 18	R/W
0x3910	Pulse Width Ch. 19	R/W
0x3990	Pulse Width Ch. 20	R/W
0x3A10	Pulse Width Ch. 21	R/W
0x3A90	Pulse Width Ch. 22	R/W
0x3B10	Pulse Width Ch. 23	R/W
0x3B90	Pulse Width Ch. 24	R/W

Addr (Hex)	Name	Read/Write
0x3018	Number of Cycles Ch.1	R/W
0x3098	Number of Cycles Ch.2	R/W
0x3118	Number of Cycles Ch.3	R/W
0x3198	Number of Cycles Ch.4	R/W
0x3218	Number of Cycles Ch.5	R/W
0x3298	Number of Cycles Ch.6	R/W
0x3318	Number of Cycles Ch.7	R/W
0x3398	Number of Cycles Ch.8	R/W
0x3418	Number of Cycles Ch.9	R/W
0x3498	Number of Cycles Ch.10	R/W
0x3518	Number of Cycles Ch.11	R/W
0x3598	Number of Cycles Ch.12	R/W
0x3618	Number of Cycles Ch.13	R/W
0x3698	Number of Cycles Ch.14	R/W
0x3718	Number of Cycles Ch.15	R/W
0x3798	Number of Cycles Ch.16	R/W
0x3818	Number of Cycles Ch.17	R/W
0x3898	Number of Cycles Ch.18	R/W
0x3918	Number of Cycles Ch.19	R/W
0x3998	Number of Cycles Ch.20	R/W
0x3A18	Number of Cycles Ch.21	R/W
0x3A98	Number of Cycles Ch.22	R/W
0x3B18	Number of Cycles Ch.23	R/W
0x3B98	Number of Cycles Ch.24	R/W

Addr (Hex)	Name	Read/Write
0x200C	Output Polarity	R/W

Pattern Generator Operations/Functions

Addr (Hex)	Name	Read/Write
0x201C	Pattern RAM Period	R/W
0x2014	Pattern RAM Start Address	R/W
0x2018	Pattern RAM End Address	R/W
0x2020	Pattern RAM Num of Cycles	R/W
0x2010	Pattern RAM Control	R/W

APPENDIX: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

Module Signal (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	TTL/CMOS (TLx)
DATIO1	2	10	1	2		IO-CH01
DATIO2	24	35	26	27		IO-CH02
DATIO3	3	11	2	3		IO-CH03
DATIO4	25	36	27	28		IO-CH04
DATIO5	5	13	4	5		VCC1 (1-6)
DATIO6	27	38	29	30		GND
DATIO7	7	14	5	6		IO-CH07
DATIO8	29	39	30	31		IO-CH08
DATIO9	8	15	6	7		IO-CH09
DATIO10	30	40	31	32		IO-CH10
DATIO11	10	17	8	9		VCC2 (7-12)
DATIO12	32	42	33	34		GND
DATIO13	12	18	9		17	IO-CH13
DATIO14	34	43	34		42	IO-CH14
DATIO15	13	19	10		18	IO-CH15
DATIO16	35	44	35		43	IO-CH16
DATIO17	15	21	12		20	VCC3 (13-18)
DATIO18	37	46	37		45	GND
DATIO19	17	22	13		21	IO-CH19
DATIO20	39	47	38		46	IO-CH20
DATIO21	18	23	14		22	IO-CH21
DATIO22	40	48	39		47	IO-CH22
DATIO23	20	25	16		24	VCC4 (19-24)
DATIO24	42	50	41		49	GND
DATIO25	4	12	3	4		IO-CH05
DATIO26	26	37	28	29		IO-CH06
DATIO27	9	16	7	8		IO-CH11
DATIO28	31	41	32	33		IO-CH12
DATIO29	14	20	11		19	IO-CH17
DATIO30	36	45	36		44	IO-CH18
DATIO31	19	24	15		23	IO-CH23
DATIO32	41	49	40		48	IO-CH24
DATIO33	6					VCC1 (1-6)
DATIO34	28					GND
DATIO35	11					VCC2 (7-12)
DATIO36	33					GND
DATIO37	16					VCC3 (13-18)
DATIO38	38					GND
DATIO39	21					VCC4 (19-24)
DATIO40	43					GND
N/A

DOCS.NAII REVISIONS

Revision Date	Description
2025-03-13	Updated module pinout table to add module I/O pinouts for 44- & 50-pin connectors.
2025-04-21	Updated Debounce high-end spec (from 32.36 sec to 34.36) in both module specifications & Debounce register description.

ENHANCED INPUT/OUTPUT FUNCTIONALITY CAPABILITY

The Enhanced Input/Output Functionality Capability is available on the following modules:

• Differential Transceiver Modules

  • DF2 - 16 Channels Differential I/O

• Discrete I/O Modules

  • DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 – 60 VCC source.
  • DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).
  • DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

• TTL/CMOS Modules

  • TL2, TL4, TL6 and TL8 - 24 Channels, Programmable for either input or output.

PRINCIPLE OF OPERATION

The modules listed in Enhanced Input/Output Functionality Capability provide enhanced input and output mode functionality. For incoming signals (inputs), the enhanced modes include Pulse, Frequency and Period measurements. For outputs, the enhanced modes include PWM (Pulse Width Modulation) and Pattern Generation.

Input Modes

All input modes may be configured with debounce capability. Debounce capability allows configurable filtering of noisy signals and transients. Each channel may be set to an individual debounce time value. When a debounce time is set to a non-zero value, the signal reading after a transition must remain at the same level for the debounce interval before it is propagated through, otherwise it is rejected.

The waveform shown in Figure 1 will be used to illustrate the behavior for each input mode.

Figure 1. Incoming Signal Example Used to illustrate Input Modes

Pulse Measurements

There are two Pulse Measurements features available - High Time Pulse Measurements and Low Time Pulse Measurements. The Pulse Measurement data is stored in the FIFO Buffer.

High Time Pulse Measurements

In this input mode, the data in the FIFO buffer is the measurement for each rising transition to the next falling one. Timing measurements record the time interval (in 10 µs ticks) from a pair of transitions.

Figure 2 - High Time Pulse Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

1. 1500 (0x0000 05DC)
2. 2500 (0x0000 09C4)
3. 1000 (0x0000 03E8)

Time Interval	Calculations	High Time Pulse Measurements
1	1500 counts * 10 µsec = 15000 µsec = 15.0 msec	15.0 msec
2	2500 counts * 10 µsec = 25000 µsec = 25.0 msec	25.0 msec
3	1000 counts * 10 µsec = 10000 µsec = 10.0 msec	10.0 msec

Low Time Pulse Measurements

In this mode, the data in the FIFO buffer is the measurement for each falling edge to the next rising edge. Timing measurements record the time interval (in 10 µs ticks) from a pair of transitions.

Figure 3. Low Time Pulse Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

1. 2000 (0x0000 07D0)
2. 500 (0x0000 01F4)
3. 1500 (0x0000 05DC)

Time Interval	Calculations	Low Time Pulse Measurements
1	2000 counts * 10 µsec = 2000 µsec = 20.0 msec	20.0 msec
2	500 counts * 10 µsec = 5000 µsec = 5.0 msec	5.0 msec
3	1500 counts * 10 µsec = 15000 µsec = 15.0 msec	15.0 msec

Transition Timestamps

There are three Transition Timestamp Measurements features available - Transition Timestamp for All Rising Edges, Transition Timestamp for All Falling Edges, and Transition Timestamp for All Edges. The Transition Timestamps Measurement data are store in the FIFO Buffer.

Transition Timestamp of All Rising Edges

In this mode, the data in the FIFO buffer is the Rising Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 4. Transition Timestamp of All Rising Edges Input Mode

For this example, the FIFO Word Count register will be set to 4 and the FIFO Buffer Data register will contain the following four values (counts of 10 µs):

1. 1000 (0x0000 03E8)
2. 4500 (0x0000 1194)
3. 7500 (0x0000 1D4C)
4. 10000 (0x000 2710)

This data can be interpreted as follows:

Time Interval	Calculations	Time Between Rising Edges
1 to 2	4500 counts * 10 µsec = 35000 µsec = 35.0 msec	35.0 msec
2 to 3	7500 counts * 10 µsec = 30000 µsec = 30.0 msec	30.0 msec
3 to 4	10000 counts * 10 µsec = 25000 µsec = 25.0 msec	25.0 msec

Transition Timestamp of All Falling Edges

In this mode, the data in the FIFO buffer is the Falling Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 5. Transition Timestamp of All Falling Edges Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

1. 2500 (0x0000 09C4)
2. 7000 (0x0000 1B58)
3. 8500 (0x0000 2134)

This data can be interpreted as follows:

Time Interval	Calculations	Time Between Falling Edges
1 to 2	7000 - 2500 = 4500 counts = 4500 * 10 µsec = 45000 µsec = 45.0 msec	45.0 msec
2 to 3	8500 - 7000 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec	15.0 msec

Transition Timestamp of All Edges

In this mode, the data in the FIFO buffer is the Rising and Falling Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 6. Transition Timestamp for All Edges Input Mode

For this example, the FIFO Word Count register will be set to 7 and the FIFO Buffer Data register will contain the following seven values (counts of 10 µs):

1. 1000 (0x0000 03E8)
2. 2500 (0x0000 09C4)
3. 4500 (0x0000 1194)
4. 7000 (0x0000 1B58)
5. 7500 (0x0000 1D4C)
6. 8500 (0x0000 2134)
7. 10000 (0x000 2710)

This data can be interpreted as follows:

Time Interval	Calculations	Time Between Edges
1 to 2	2500 - 1000 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec	15.0 msec
2 to 3	4500 - 2500 = 2000 counts = 2000 * 10 µsec = 20000 µsec = 20.0 msec	20.0 msec
3 to 4	7000 - 4500 = 2500 counts = 2500 * 10 µsec = 25000 µsec = 25.0 msec	25.0 msec
4 to 5	7500 - 7000 = 500 counts = 500 * 10 µsec = 5000 µsec = 5.0 msec	5.0 msec
5 to 6	8500 - 7500 = 1000 counts = 1000 * 10 µsec = 10000 µsec = 10.0 msec	10.0 msec
6 to 7	10000 - 8500 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec	15.0 msec

Transition Counter

There are three Transition Counter features available - Rising Edge Transition Counter, Falling Edge Transition Counter and All Edge Transition Counter.

Rising Edges Transition Counter

In this mode, the count of the number of Rising Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time.

Figure 7. Rising Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 4.

Falling Edges Transition Counter

In this mode, the count of the number of Falling Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time

Figure 8. Falling Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 3.

All Edges Transition Counter

In this mode, the count of the number of Rising and Falling Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time.

Figure 9. All Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 7.

Period Measurement

In this input mode, the data in the FIFO buffer is the measurement for each rising edge transition to the next rising edge transition. Timing measurements record the time interval (in 10 µs ticks).

Figure 10. Period Measurement Input Mode

For this example, the FIFO Word Count register will be set to 4 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

1. 2000 (0x0000 07D0)
2. 2000 (0x0000 07D0)
3. 2000 (0x0000 07D0)
4. 2000 (0x0000 07D0)

Time Interval	Calculations	Period Measurements
1	2000 counts * 10 µsec = 20000 µsec = 20.0 msec	20.0 msec
2	2000 counts * 10 µsec = 20000 µsec = 20.0 msec	20.0 msec
3	2000 counts * 10 µsec = 20000 µsec = 20.0 msec	20.0 msec
4	2000 counts * 10 µsec = 20000 µsec = 20.0 msec	20.0 msec

Frequency Measurement

In this input mode, the data in the FIFO buffer is the number of rising edge transitions for the programmable time interval programmed in the Frequency Measurement Period register.

For this example, set the Frequency Measurement Period register = 4000 (4000 * 10 µs = 40000 µs = 40 msec)

Figure 11. Frequency Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (number of rising edges:

1. 2 (0x0000 0002)
2. 2 (0x0000 0002)
3. 2 (0x0000 0002)

Time Interval	Calculations	Frequency Measurements
1	2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz	50 Hz
2	2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz	50 Hz
3	2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz	50 Hz

Output Modes

There are three Enhanced Output Functionality modes: two PWM outputs and one Pattern Generator Output mode.

PWM Output

There are two PWM output modes, PWM Continuous and PWM Burst. The PWM timing is very precise with low jitter. In PWM Output mode, the Mode Select register is set to either “PWM Continuous or PWM Burst”. The value written to the PWM Period register specifies the period to output the PWM signal, the value written to the PWM Pulse Width register specifies the time for the “ON” state, and the value written to the PWM Output Polarity register specifies the initial edge of the output. For PWM Burst mode, the PWM Number of Cycles register specifies the number of cycles to output the signal. Note, there may be an initial “OFF” state level delay based on the Period time before the initial pulse is output.

PWM Continuous

Figure 12 and Figure 13 illustrate the PWM Continuous Output signal, one configured with PWM Output Polarity = Positive (0) and one configured with PWM Output Polarity = Negative (1). The configured PWM output is enabled and disabled with the Enable Measurements/Outputs register.

Figure 12. PWM Continuous Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Positive (0))

Figure 13. PWM Continuous Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Negative (1))

PWM Burst

Figure 14 and Figure 15 illustrate the PWM Burst Output signal with the PWM Number of Cycles = 5 pulses, one configured with PWM Output Polarity = Positive (0) and one configured with PWM Output Polarity = Negative (1). The configured PWM output is enabled with the Enable Measurements/Outputs register. Once the number of pulses that were requested is outputted, the value in the Enable Measurements/Outputs register will be reset (self-clearing) to allow for the output to be re-enabled.

Figure 14. PWM Burst Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Positive (0), PWM Number of Cycles = 5)

Figure 15. PWM Burst Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Negative (1), PWM Number of Cycles = 5)

Pattern Generator

For the Pattern Generator mode, there is 64K block of unsigned 32-bit words allocated to specify the data pattern for the output channels. The data in each 32-bit word is bit-mapped per channel. The Pattern RAM Start Address and Pattern RAM End Address registers specify the starting and ending address in the 64K block to use as the data to output for each channel configured for Pattern Generator mode. The Pattern RAM Period register specifies the pattern rate. The Pattern RAM Control and Pattern RAM Number of Cycles control the Pattern Generator output - Continuous, Burst with a specified number of cycles, Pause, or External Trigger from input from Channel 1.

Note

When any channel is configured for External Trigger Pattern Generator mode, Channel 1 MUST be set as an input.

Figure 16 illustrates the output of the 24 channels for the DT4 module all configured in Pattern Generator mode

Figure 16. Pattern Generator

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

Enhanced Input/Output Functionality Registers

The onboard Discrete I/O option provides enhanced input and output mode functionality. The Mode Select and Enable Output/Measurement registers are general control registers for the different enhanced input and output modes.

Mode Select
Function:	Configures the Enhanced Functionality Modes to apply to the channel.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	It is important that the channel is correctly configured to either input or output in the Input/Output Format registers to correspond to the Enhanced Functionality Mode selected. Setting a 0 to this register will configure that channel to normal operation.

Mode Select Value (Decimal)	Mode Select Value (Hexadecimal)	Description
0	0x0000 0000	Enhanced Functionality Disabled
Input Enhanced Functionality Mode
1	0x0000 0001	High Time Pulse Measurements
2	0x0000 0002	Low Time Pulse Measurements
3	0x0000 0003	Transition Timestamp of All Rising Edges
4	0x0000 0004	Transition Timestamp of All Falling Edges
5	0x0000 0005	Transition Timestamp of All Edges
6	0x0000 0006	Rising Edges Transition Counter
7	0x0000 0007	Falling Edges Transition Counter
8	0x0000 0008	All Edges Transition Counter
9	0x0000 0009	Period Measurement
10	0x0000 000A	Frequency Measurement
Output Enhanced Functionality Mode
32	0x0000 0020	PWM Continuous
33	0x0000 0021	PWM Burst
34	0x0000 0022	Pattern Generator

Enable Measurements/Outputs
Function:	Enables/starts the measurements or outputs based on the Mode Select for the channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Setting the bit for the associated channel to a 1 will start the measurement or output depending on the Mode Select configuration for that channel. Setting the bit for the associated channel to 0 will stop the measurements/outputs.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Input Mode Registers

After configuring the Mode Select register, write a 1 to the Reset Timer/Counter register resets the channel’s timestamp and counter used for input modes. Write a 1 to the Enable Measurements/Outputs register to begin the measurement of the input signal. Write a 0 to the Enable Measurements/Outputs register to stop the measurement of the input signal. The data can be read either while the measurements are being made on input signals or after stopping the measurements.

Reset Timer/Counter
Function:	Resets the measurement timestamp and counter for the channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	W
Initialized Value:	0
Operational Settings:	Setting the bit for the associated channel to a 1 will: reset the timestamp used for the Pulse Measurements mode (1-2), Transition Timestamp mode (3-5), and Period Measurement mode (9) and Frequency Measurement mode (10) reset the counter used for Transition Counter mode (6-8)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

FIFO Registers

The FIFO registers are used for the following input modes:

• Pulse Measurements mode (1-2)
• Transition Timestamp mode (3-5)
• Period Measurement mode (9)
• Frequency Measurement mode (10)

FIFO Buffer Data
Function:	The data stored in the FIFO Buffer Data is dependent on the input mode.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	Refer to examples in Input Modes.

FIFO Word Count
Function:	This is a counter that reports the number of 32-bit words stored in the FIFO buffer.
Type:	unsigned binary word (32-bit)
Data Range:	0 - 255 (0x0000 0000 to 0x0000 00FF)
Read/Write:	R
Initialized Value:	0
Operational Settings:	Every time a read operation is made from the FIFO Buffer Data register, the value in the FIFO Word Count register will be decremented by one. The maximum number of words that can be stored in the FIFO is 255.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	D	D	D	D	D	D	D	D	D

Clear FIFO
Function:	Clears FIFO by resetting the FIFO Word Count register.
Type:	unsigned binary word (32-bit)
Data Range:	0 or 1
Read/Write:	W
Initialized Value:	N/A
Operational Settings:	Write a 1 to resets the Words in FIFO to zero; Clear FIFO register does not clear data in the buffer. A read to the buffer data will give “aged” data.

Bit	Description
D31:D1	Reserved. Set to 0
D0	Set to 1 to reset the FIFO Word Count value to zero.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

FIFO Status
Function:	Sets the corresponding bit associated with the FIFO status type; there is a separate register for each channel.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R
Initialized Value:	0

Bit	Name	Description
D31:D4	Reserved	Set to 0
D3	Empty	Set to 1 when FIFO Word Count = 0
D2	Almost Empty	Set to 1 when FIFO Word Count <= 63 (25%)
D1	Almost Full	Set to 1 when FIFO Word Count >= 191 (75%)
D0	Full	Set to 1 when FIFO Word Count = 255

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Transition Count Registers

The Transition Count register are used for the following input modes:

• Transition Counter mode (6-8)

Transition Count
Function:	Contains the count of the transitions depending on the configuration in the Mode Select register - Rising Edges, Falling Edges or All Edges.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	Refer to examples in Transition Counter.

Frequency Measurement Registers

For the Frequency Measurement mode, the period to perform the frequency measurements must be specified in the Frequency Measurement Period register.

Frequency Measurement Period
Function:	When the Mode Select register is programmed for Frequency Measurement mode (10), the value in the Frequency Measurement Period is used as the time interval for counting the number of rising edge transitions within that interval.
Type:	unsigned binary word (32-bit)
Data Range:	0x0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set the Frequency Measurement Period (LSB = 10 µs). Refer to examples in Frequency Measurement.

Output Modes Registers

After configuring the Mode Select register, write a 1 to the Enable Measurements/Outputs register to outputting the signal. Write a 0 to the Enable Measurements/Outputs register to stop the output signal.

PWM Registers

The PWM Period, PWM Pulse Width and PWM Output Polarity registers configure the PWM output signal. When the Mode Select register is configured for PWM Burst mode, the PWM Number of Cycles register is used to specify the number of cycles to repeat for the burst.

PWM Period
Function:	When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Period is used as the time interval for outputting the PWM signal.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set the PWM Period (LSB = 10 µs). The PWM Period must be greater than the value set in the PWM Pulse Width register. Refer to examples in PWM Output.

PWM Pulse Width
Function:	When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Pulse Width is used as the time interval of the “ON” state for outputting the PWM signal.
Type:	unsigned binary word (32-bit)
Data Range:	0x0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set the PWM Pulse Width (LSB = 10 µs). The PWM Pulse Width must be less than the value set in the PWM Pulse Width register. Refer to examples in PWM Output.

PWM Output Polarity
Function:	When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Output Polarity is used to specify whether the PWM output signal starts with a rising edge (Positive (0)), or a falling edge (Negative (1)).
Type:	unsigned binary word (32-bit)
Data Range:	0x0 to 0x00FF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The PWM Output Polarity register is used to program the starting edge of the PWM Pulse Period (rising or falling). When the PWM output Polarity is set to Positive (0), the output will start with a rising edge, when it's set to Negative (1), the output will start with a falling edge. The default is Positive (0), which is set when the PWM Polarity bit is 0. Refer to examples in PWM Output.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

PWM Number of Cycles
Function:	When the Mode Select register is programmed for PWM Burst mode (33), the value in the PWM Number of Cycles is used to specify the number of times to repeat the PWM output signal.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set the number of times to output the PWM signal. Refer to examples in PWM Output.

Pattern Generator Registers

The Pattern RAM registers are a 64K block of unsigned 32-bit words allocated to specify the data pattern for the output channels. The Pattern RAM Start Address, Pattern RAM End Address, Pattern RAM Period and Pattern RAM Control registers configure the Pattern Generator output signals. When the Pattern RAM Control register is configured for Burst, the Pattern RAM Number of Cycles specify the number of cycles to repeat the pattern for the burst.

Pattern RAM
Function:	Pattern Generator Memory Block from 0x40000 to 0x7FFFC.
Type:	unsigned binary word (32-bit)
Address Range:	0x0000 0000 to 0x00FF FFFF
Read/Write: R	/W
Initialized Value:	0
Operational Settings:	64K block of unsigned 32-bit words. The data in each 32-bit word is bit-mapped per channel.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	Ch24	Ch23	Ch22	Ch21	Ch20	Ch19	Ch18	Ch17
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Pattern RAM Start Address
Function:	When the Mode Select register is programmed for Pattern Generator mode (34), the Pattern RAM Start Address register specifies the starting address within the Pattern RAM block registers to use for the output.
Type:	unsigned binary word (32-bit)
Data Range:	0x0004 0000 to 0x0007 FFFC
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The value in the Pattern RAM Start Address must be LESS than the value in the Pattern RAM End Address.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Pattern RAM End Address
Function:	When the Mode Select register is programmed for Pattern Generator mode (34), the Pattern RAM End Address register specifies the end address within the Pattern RAM block registers to use for the output.
Type:	unsigned binary word (32-bit)
Data Range:	0x40000 to 0x7FFFC
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The value in the Pattern RAM End Address must be GREATER than the value in the Pattern RAM Start Address.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Pattern RAM Period
Function:	When the Mode Select register is programmed for Pattern Generator mode (34), the value in the Pattern RAM Period is used as the time interval for outputting the Pattern Generator signals.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set the Pattern RAM Period (LSB = 10 µs).

Pattern RAM Control
Function:	When the Mode Select register is programmed for Pattern Generator mode (34), the value in the Pattern RAM Control is used to control the outputting of the Pattern Generator signals.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Configures the Pattern Generator for Continuous, Burst with a specified number of cycles, Pause, or External Trigger from input from Channel 1.

Note

When any channel is configured for External Trigger Pattern Generator mode, Channel 1 MUST be set as an input.

Bits	Description
D31-D5	Reserved. Set to 0
D4	Falling Edge External Trigger - Channel 1 used as the input for the trigger
D3	Rising Edge External Trigger - Channel 1 used as the input for the trigger
D2	Pause
D1	Burst Mode - value in Pattern RAM Number of Cycles register defines number of cycles to output
D0	Enable Pattern Generator

Values	Description
0x0000	Disable Pattern Generator, Continuous Mode, No External Trigger
0x0001	Enable Pattern Generator, Continuous Mode, No External Trigger
0x0002	Disable Pattern Generator, Burst Mode, No External Trigger
0x0003	Enable Pattern Generator, Burst Mode, No External Trigger
0x0005	Enable Pattern Generator, Continuous Mode, Pause, No External Trigger
0x0007	Enable Pattern Generator, Burst Mode, Pause, No External Trigger
0x0008	Disable Pattern Generator, Continuous Mode, Rising External Trigger
0x0009	Enable Pattern Generator, Continuous Mode, Rising External Trigger
0x000A	Disable Pattern Generator, Burst Mode, Rising External Trigger
0x000B	Enable Pattern Generator, Burst Mode, Rising External Trigger
0x000D	Enable Pattern Generator, Continuous Mode, Pause, Rising External Trigger
0x000F	Enable Pattern Generator, Burst Mode, Pause, Rising External Trigger
0x1000	Disable Pattern Generator, Continuous Mode, Falling External Trigger
0x1001	Enable Pattern Generator, Continuous Mode, Falling External Trigger
0x1002	Disable Pattern Generator, Burst Mode, Falling External Trigger
0x1003	Enable Pattern Generator, Burst Mode, Falling External Trigger
0x1005	Enable Pattern Generator, Continuous Mode, Pause, Falling External Trigger
0x1007	Enable Pattern Generator, Burst Mode, Pause, Falling External Trigger
0x0004, 0x0006, 0x000C, 0x000E, 0x1004, 0x1006, 0x1008-0x100F	Invalid

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Pattern RAM Number of Cycles
Function:	When the Mode Select register is programmed for Pattern Generator mode (34) and the Pattern RAM Control register is set for Burst mode, the value in the Pattern RAM Number of Cycles is used to specify the number of times to repeat the pattern output signal.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0001 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set the number of times to output the pattern.

FUNCTION REGISTER MAP

Key:

Configuration/Control

Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

MODE SELECT REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x300C	Mode Select Ch 1	R/W
0x308C	Mode Select Ch 2	R/W
0x310C	Mode Select Ch 3	R/W
0x318C	Mode Select Ch 4	R/W
0x320C	Mode Select Ch 5	R/W
0x328C	Mode Select Ch 6	R/W
0x330C	Mode Select Ch 7	R/W
0x338C	Mode Select Ch 8	R/W
0x340C	Mode Select Ch 9	R/W
0x348C	Mode Select Ch 10	R/W
0x350C	Mode Select Ch 11	R/W
0x358C	Mode Select Ch 12	R/W
0x360C	Mode Select Ch 13	R/W
0x368C	Mode Select Ch 14	R/W
0x370C	Mode Select Ch 15	R/W
0x378C	Mode Select Ch 16	R/W
0x380C	Mode Select Ch 17	R/W
0x388C	Mode Select Ch 18	R/W
0x390C	Mode Select Ch 19	R/W
0x398C	Mode Select Ch 20	R/W
0x3A0C	Mode Select Ch 21	R/W
0x3A8C	Mode Select Ch 22	R/W
0x3B0C	Mode Select Ch 23	R/W
0x3B8C	Mode Select Ch 24	R/W
0x2000	Enable Measurements/Outputs	R/W
INPUT MODES REGISTER
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x2004	Reset Timer/Counter	W
FIFO REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x3000	FIFO Buffer Data Ch 1	R	0x3004	FIFO Word Count Ch 1	R
0x3080	FIFO Buffer Data Ch 2	R	0x3084	FIFO Word Count Ch 2	R
0x3100	FIFO Buffer Data Ch 3	R	0x3104	FIFO Word Count Ch 3	R
0x3180	FIFO Buffer Data Ch 4	R	0x3184	FIFO Word Count Ch 4	R
0x3200	FIFO Buffer Data Ch 5	R	0x3204	FIFO Word Count Ch 5	R
0x3280	FIFO Buffer Data Ch 6	R	0x3284	FIFO Word Count Ch 6	R
0x3300	FIFO Buffer Data Ch 7	R	0x3304	FIFO Word Count Ch 7	R
0x3380	FIFO Buffer Data Ch 8	R	0x3384	FIFO Word Count Ch 8	R
0x3400	FIFO Buffer Data Ch 9	R	0x3404	FIFO Word Count Ch 9	R
0x3480	FIFO Buffer Data Ch 10	R	0x3484	FIFO Word Count Ch 10	R
0x3500	FIFO Buffer Data Ch 11	R	0x3504	FIFO Word Count Ch 11	R
0x3580	FIFO Buffer Data Ch 12	R	0x3584	FIFO Word Count Ch 12	R
0x3600	FIFO Buffer Data Ch 13	R	0x3604	FIFO Word Count Ch 13	R
0x3680	FIFO Buffer Data Ch 14	R	0x3684	FIFO Word Count Ch 14	R
0x3700	FIFO Buffer Data Ch 15	R	0x3704	FIFO Word Count Ch 15	R
0x3780	FIFO Buffer Data Ch 16	R	0x3784	FIFO Word Count Ch 16	R
0x3800	FIFO Buffer Data Ch 17	R	0x3804	FIFO Word Count Ch 17	R
0x3880	FIFO Buffer Data Ch 18	R	0x3884	FIFO Word Count Ch 18	R
0x3900	FIFO Buffer Data Ch 19	R	0x3904	FIFO Word Count Ch 19	R
0x3980	FIFO Buffer Data Ch 20	R	0x3984	FIFO Word Count Ch 20	R
0x3A00	FIFO Buffer Data Ch 21	R	0x3A04	FIFO Word Count Ch 21	R
0x3A80	FIFO Buffer Data Ch 22	R	0x3A84	FIFO Word Count Ch 22	R
0x3B00	FIFO Buffer Data Ch 23	R	0x3B04	FIFO Word Count Ch 23	R
0x3B80	FIFO Buffer Data Ch 24	R	0x3B84	FIFO Word Count Ch 24	R
0x3008	FIFO Status Ch 1	R
0x3088	FIFO Status Ch 2	R
0x3108	FIFO Status Ch 3	R
0x3188	FIFO Status Ch 4	R
0x3208	FIFO Status Ch 5	R
0x3288	FIFO Status Ch 6	R
0x3308	FIFO Status Ch 7	R
0x3388	FIFO Status Ch 8	R
0x3408	FIFO Status Ch 9	R
0x3488	FIFO Status Ch 10	R
0x3508	FIFO Status Ch 11	R
0x3588	FIFO Status Ch 12	R
0x3608	FIFO Status Ch 13	R
0x3688	FIFO Status Ch 14	R
0x3708	FIFO Status Ch 15	R
0x3788	FIFO Status Ch 16	R
0x3808	FIFO Status Ch 17	R
0x3888	FIFO Status Ch 18	R
0x3908	FIFO Status Ch 19	R
0x3988	FIFO Status Ch 20	R
0x3A08	FIFO Status Ch 21	R
0x3A88	FIFO Status Ch 22	R
0x3B08	FIFO Status Ch 23	R
0x3B88	FIFO Status Ch 24	R
0x2008	Reset FIFO	W
TRANSITION COUNT REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x3000	Transition Count Ch 1	R
0x3080	Transition Count Ch 2	R
0x3100	Transition Count Ch 3	R
0x3180	Transition Count Ch 4	R
0x3200	Transition Count Ch 5	R
0x3280	Transition Count Ch 6	R
0x3300	Transition Count Ch 7	R
0x3380	Transition Count Ch 8	R
0x3400	Transition Count Ch 9	R
0x3480	Transition Count Ch 10	R
0x3500	Transition Count Ch 11	R
0x3580	Transition Count Ch 12	R
0x3600	Transition Count Ch 13	R
0x3680	Transition Count Ch 14	R
0x3700	Transition Count Ch 15	R
0x3780	Transition Count Ch 16	R
0x3800	Transition Count Ch 17	R
0x3880	Transition Count Ch 18	R
0x3900	Transition Count Ch 19	R
0x3980	Transition Count Ch 20	R
0x3A00	Transition Count Ch 21	R
0x3A80	Transition Count Ch 22	R
0x3B00	Transition Count Ch 23	R
0x3B80	Transition Count Ch 24	R
FREQUENCY MEASUREMENT REGISTERS
NOTE: Base Address - 0x9010 C000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x3014	Frequency Measurement Period Ch 1	R/W
0x3094	Frequency Measurement Period Ch 2	R/W
0x3114	Frequency Measurement Period Ch 3	R/W
0x3194	Frequency Measurement Period Ch 4	R/W
0x3214	Frequency Measurement Period Ch 5	R/W
0x3294	Frequency Measurement Period Ch 6	R/W
0x3314	Frequency Measurement Period Ch 7	R/W
0x3394	Frequency Measurement Period Ch 8	R/W
0x3414	Frequency Measurement Period Ch 9	R/W
0x3494	Frequency Measurement Period Ch 10	R/W
0x3514	Frequency Measurement Period Ch 11	R/W
0x3594	Frequency Measurement Period Ch 12	R/W
0x3614	Frequency Measurement Period Ch 13	R/W
0x3694	Frequency Measurement Period Ch 14	R/W
0x3714	Frequency Measurement Period Ch 15	R/W
0x3794	Frequency Measurement Period Ch 16	R/W
0x3814	Frequency Measurement Period Ch 17	R/W
0x3894	Frequency Measurement Period Ch 18	R/W
0x3914	Frequency Measurement Period Ch 19	R/W
0x3994	Frequency Measurement Period Ch 20	R/W
0x3A14	Frequency Measurement Period Ch 21	R/W
0x3A94	Frequency Measurement Period Ch 22	R/W
0x3B14	Frequency Measurement Period Ch 23	R/W
0x3B94	Frequency Measurement Period Ch 24	R/W
PWM REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x3014	PWM Period Ch 1	R/W	0x3010	PWM Pulse Width Ch 1	R/W
0x3094	PWM Period Ch 2	R/W	0x3090	PWM Pulse Width Ch 2	R/W
0x3114	PWM Period Ch 3	R/W	0x3110	PWM Pulse Width Ch 3	R/W
0x3194	PWM Period Ch 4	R/W	0x3190	PWM Pulse Width Ch 4	R/W
0x3214	PWM Period Ch 5	R/W	0x3210	PWM Pulse Width Ch 5	R/W
0x3294	PWM Period Ch 6	R/W	0x3290	PWM Pulse Width Ch 6	R/W
0x3314	PWM Period Ch 7	R/W	0x3310	PWM Pulse Width Ch 7	R/W
0x3394	PWM Period Ch 8	R/W	0x3390	PWM Pulse Width Ch 8	R/W
0x3414	PWM Period Ch 9	R/W	0x3410	PWM Pulse Width Ch 9	R/W
0x3494	PWM Period Ch 10	R/W	0x3490	PWM Pulse Width Ch 10	R/W
0x3514	PWM Period Ch 11	R/W	0x3510	PWM Pulse Width Ch 11	R/W
0x3594	PWM Period Ch 12	R/W	0x3590	PWM Pulse Width Ch 12	R/W
0x3614	PWM Period Ch 13	R/W	0x3610	PWM Pulse Width Ch 13	R/W
0x3694	PWM Period Ch 14	R/W	0x3690	PWM Pulse Width Ch 14	R/W
0x3714	PWM Period Ch 15	R/W	0x3710	PWM Pulse Width Ch 15	R/W
0x3794	PWM Period Ch 16	R/W	0x3790	PWM Pulse Width Ch 16	R/W
0x3814	PWM Period Ch 17	R/W	0x3810	PWM Pulse Width Ch 17	R/W
0x3894	PWM Period Ch 18	R/W	0x3890	PWM Pulse Width Ch 18	R/W
0x3914	PWM Period Ch 19	R/W	0x3910	PWM Pulse Width Ch 19	R/W
0x3994	PWM Period Ch 20	R/W	0x3990	PWM Pulse Width Ch 20	R/W
0x3A14	PWM Period Ch 21	R/W	0x3A10	PWM Pulse Width Ch 21	R/W
0x3A94	PWM Period Ch 22	R/W	0x3A90	PWM Pulse Width Ch 22	R/W
0x3B14	PWM Period Ch 23	R/W	0x3B10	PWM Pulse Width Ch 23	R/W
0x3B94	PWM Period Ch 24	R/W	0x3B90	PWM Pulse Width Ch 24	R/W
0x3018	PWM Number of Cycles Ch 1	R/W
0x3098	PWM Number of Cycles Ch 2	R/W
0x3118	PWM Number of Cycles Ch 3	R/W
0x3198	PWM Number of Cycles Ch 4	R/W
0x3218	PWM Number of Cycles Ch 5	R/W
0x3298	PWM Number of Cycles Ch 6	R/W
0x3318	PWM Number of Cycles Ch 7	R/W
0x3398	PWM Number of Cycles Ch 8	R/W
0x3418	PWM Number of Cycles Ch 9	R/W
0x3498	PWM Number of Cycles Ch 10	R/W
0x3518	PWM Number of Cycles Ch 11	R/W
0x3598	PWM Number of Cycles Ch 12	R/W
0x3618	PWM Number of Cycles Ch 13	R/W
0x3698	PWM Number of Cycles Ch 14	R/W
0x3718	PWM Number of Cycles Ch 15	R/W
0x3798	PWM Number of Cycles Ch 16	R/W
0x3818	PWM Number of Cycles Ch 17	R/W
0x3898	PWM Number of Cycles Ch 18	R/W
0x3918	PWM Number of Cycles Ch 19	R/W
0x3998	PWM Number of Cycles Ch 20	R/W
0x3A18	PWM Number of Cycles Ch 21	R/W
0x3A98	PWM Number of Cycles Ch 22	R/W
0x3B18	PWM Number of Cycles Ch 23	R/W
0x3B98	PWM Number of Cycles Ch 24	R/W
0x200C	PWM Output Polarity	R/W
PATTERN GENERATOR REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0004_0000 to 0x0007_FFFC	Pattern RAM	R/W
0x2010	Pattern RAM Period	R/W	0x2014	Pattern RAM Start Address	R/W
0x2018	Pattern RAM End Address	R/W	0x201C	Pattern RAM Control	R/W
0x2020	Pattern RAM Number of Cycles	R/W

REVISION HISTORY

Module Manual - Enhanced IO Functionality Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date	Description
2026-03-02	Formatting updates to document; no technical changes.

Link to original

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

• Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

• Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

---

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

		No Clearing of Latched Status	Clearing of Latched Status (Edge-Triggered)		Clearing of Latched Status(Level-Triggered)
Time	Dynamic Status	Latched Status	Action	Latched Status	Action	Latched
T0	0x0	0x0	Read Latched Register	0x0	Read Latched Register	0x0
T1	0x1	0x1	Read Latched Register	0x1		0x1
T1	0x1	0x1	Write 0x1 to Latched Register		Write 0x1 to Latched Register
T1	0x1	0x1		0x0		0x1
T2	0x0	0x1	Read Latched Register	0x0	Read Latched Register	0x1
T2	0x0	0x1	Read Latched Register	0x0	Write 0x1 to Latched Register
T2	0x0	0x1	Read Latched Register	0x0		0x0
T3	0x2	0x3	Read Latched Register	0x2	Read Latched Register	0x2
T3	0x2	0x3	Write 0x2 to Latched Register		Write 0x2 to Latched Register
T3	0x2	0x3		0x0		0x2
T4	0x2	0x3	Read Latched Register	0x1	Read Latched Register	0x3
T4	0x2	0x3	Write 0x1 to Latched Register		Write 0x3 to Latched Register
T4	0x2	0x3		0x0		0x2
T5	0xC	0xF	Read Latched Register	0xC	Read Latched Register	0xE
T5	0xC	0xF	Write 0xC to Latched Register		Write 0xE to Latched Register
T5	0xC	0xF		0x0		0xC
T6	0xC	0xF	Read Latched Register	0x0	Read Latched	0xC
T6	0xC	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T6	0xC	0xF	Read Latched Register	0x0		0xC
T7	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0xC
T7	0x4	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T7	0x4	0xF	Read Latched Register	0x0		0x4
T8	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time	Latched Status (Edge-Triggered - Clear Multi-Channel)		Latched Status (Edge-Triggered - Clear Single Channel) 2+		Latched Status (Level-Triggered - Clear Multi-Channel)	Action
	Latched	Action	Latched	Action	Latched	T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	T1 (Int 1)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x1 to Latched Register		T1 (Int 1)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T2.	0x1	T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	T3 (Int 2)
Write 0x2 to Latched Register		Write 0x2 to Latched Register		Write 0x2 to Latched Register		T3 (Int 2)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.	0x2	T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x3	T4 (Int 3)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x3 to Latched Register		T4 (Int 3)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.	0x3	T4 (Int 3)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.	0x2	T6 (Int 4)
Interrupt Generated++``+ Read Latched Registers	0xC	Interrupt Generated++``+ Read Latched Registers	0xC	Interrupt Generated++``+ Read Latched Registers	0xE	T6 (Int 4)
Write 0xC to Latched Register		Write 0x4 to Latched Register		Write 0xE to Latched Register		T6 (Int 4)
	0x0	Interrupt re-triggers++``+ Write 0x8 to Latched Register	0x8	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.	0xE	T6 (Int 4)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.	0xC	T6 (Int 4)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.	0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date	Description
2026-03-02	Formatting updates to document; no technical changes.

Link to original

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

The User Watchdog Timer (UWDT) Capability is available on the following modules:

• AC Reference Source Modules

  • AC1 - 1 Channel, 2-115 Vrms, 47 Hz - 20kHz
  • AC2 - 2 Channels, 2-28 Vrms, 47 Hz - 20kHz
  • AC3 - 1 Channel, 28-115 Vrms, 47 Hz - 2.5 kHz

• Differential Transceiver Modules

  • DF1/DF2 - 16 Channels Differential I/O

• Digital-to-Analog (D/A) Modules

  • DA1 - 12 Channels, ±10 VDC @ 25 mA, Voltage or Current Control Modes
  • DA2 - 16 Channels, ±10 VDC @ 10 mA
  • DA3 - 4 Channels, ±40 VDC @ ±100 mA, Voltage or Current Control Modes
  • DA4 - 4 Channels, ±80 VDC @ 10 mA
  • DA5 - 4 Channels, ±65 VDC or ±2 A, Voltage or Current Control Modes

• Digital-to-Synchro/Resolver (D/S) or Digital-to-L( R )VDT (D/LV) Modules

  • (Not supported)

• Discrete I/O Modules

  • DT1/DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 - 60 VCC source.

  • DT2/DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

  • DT3/DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

• TTL/CMOS Modules

  • TL1-TL8 - 24 Channels, Programmable for either input or output.

Principle of Operation

The User Watchdog Timer is optionally activated by the applications that require the module’s outputs to be disabled as a failsafe in the event of an application failure or crash. The circuit is designed such that a specific periodic write strobe pattern must be executed by the software to maintain operation and prevent the disablement from taking place.

The User Watchdog Timer is inactive until the application sends an initial strobe by writing the value 0x55AA to the UWDT Strobe register. After activating the User Watchdog Timer, the application must continually strobe the timer within the intervals specified with the configurable UWDT Quiet Time and UWDT Window registers. The timing of the strobes must be consistent with the following rules:

• The application must not strobe during the Quiet time.
• The application must strobe within the Window time.
• The application must not strobe more than once in a single window time.

A violation of any of these rules will trigger a User Watchdog Timer fault and result in shutting down any isolated power supplies and/or disabling any active drive outputs, as applicable for the specific module. Upon a User Watchdog Timer event, recovery to the module shutting down will require the module to be reset.

The Figure 1 and Figure 2 provides an overview and an example with actual values for the User Watchdog Timer Strobes, Quiet Time and Window. As depicted in the diagrams, there are two processes that run in parallel. The Strobe event starts the timer for the beginning of the “Quiet Time”. The timer for the Previous Strobe event continues to run to ensure that no additional Strobes are received within the “Window” associated with the Previous Strobe.

The optimal target for the user watchdog strobes should be at the interval of [Quiet time + ½ Window time] after the previous strobe, which will place the strobe in the center of the window. This affords the greatest margin of safety against unintended disablement in critical operations.

Figure 1. User Watchdog Timer Overview

Figure 2. User Watchdog Timer Example

Figure 3. User Watchdog Timer Failures

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

User Watchdog Timer Registers

The registers associated with the User Watchdog Timer provide the ability to specify the UWDT Quiet Time and the UWDT Window that will be monitored to ensure that EXACTLY ONE User Watchdog Timer (UWDT) Strobe is written within the window.

UWDT Quiet Time
Function:	Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.
UWDT Window
Function:	Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.
UWDT Strobe
Function:	Writes the strobe value to be use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0x55AA
Read/Write:	W
Initialized Value:	0x0
Operational Settings:	At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

Status and Interrupt

The modules that are capable of User Watchdog Timer support provide status registers for the User Watchdog Timer.

User Watchdog Timer Status

The status register that contains the User Watchdog Timer Fault information is also used to indicate channel Inter-FPGA failures on modules that have communication between FPGA components. There are four registers associated with the User Watchdog Timer Fault/Inter-FPGA Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit (D31) associated with the channel’s User Watchdog Timer Fault error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Set Edge/Level Interrupt)
Initialized Value:	0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s)	Status	Description
D31	User Watchdog Timer Fault Status	0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0	Reserved for Inter-FPGA Failure Status	Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

Function Register Map

KEY

Configuration/Control

Measurement/Status

USER WATCHDOG TIMER REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x01C0	UWDT Quiet Time	R/W
0x01C4	UWDT Window	R/W
0x01C8	UWDT Strobe	R/W
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x09B0	Dynamic Status	R
0x09B4	Latched Status*	R/W
0x09B8	Interrupt Enable	R/W
0x09BC	Set Edge/Level Interrupt	R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0F6C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date	Description
2026-03-02	Formatting updates to document; no technical changes.

Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function:	FPGA firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FPGA Compile Timestamp
Function:	Compile Timestamp for the FPGA firmware.
Type:	unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:	The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

day (5-bits)

month (4-bits)

year (6-bits)

hr

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

hour (5-bits)

minutes (6-bits)

seconds (6-bits)

FPGA SerDes Revision
Function:	FPGA SerDes revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FPGA Template Revision
Function:	FPGA Template revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the template revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FPGA Zynq Block Revision
Function:	FPGA Zynq Block revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function:	Bare Metal firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's Bare Metal
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

Bare Metal Compile Time
Function:	Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type:	24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings:	The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Month ('y' - 0x79)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Month ('a' - 0x61)

Month ('M' - 0x4D)

Word 2 (Ex. 0x32203731)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Year ('2' - 0x32)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Day ('7' - 0x37)

Day ('1' - 0x31)

Word 3 (Ex. 0x20393130)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Year ('9' - 0x39)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Year ('1' - 0x31)

Year ('0' - 0x30)

Word 4 (Ex. 0x31207461)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Hour ('1' - 0x31)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

'a' (0x74)

't' (0x61)

Word 5 (Ex. 0x38333A35)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Minute ('8' - 0x38)

Minute ('3' - 0x33)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

':' (0x3A)

Hour ('5' - 0x35)

Word 6 (Ex. 0x0032333A)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

NULL (0x00)

Seconds ('2' - 0x32)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Seconds ('3' - 0x33)

':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function:	FSBL firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FSBL
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FSBL Compile Time
Function:	Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type:	24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings:	The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Month ('y' - 0x79)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Month ('a' - 0x61)

Month ('M' - 0x4D)

Word 2 (Ex. 0x32203731)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Year ('2' - 0x32)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Day ('7' - 0x37)

Day ('1' - 0x31)

Word 3 (Ex. 0x20393130)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Year ('9' - 0x39)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Year ('1' - 0x31)

Year ('0' - 0x30)

Word 4 (Ex. 0x31207461)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Hour ('1' - 0x31)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

'a' (0x74)

't' (0x61)

Word 5 (Ex. 0x38333A35)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Minute ('8' - 0x38)

Minute ('3' - 0x33)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

':' (0x3A)

Hour ('5' - 0x35)

Word 6 (Ex. 0x0032333A)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

NULL (0x00)

Seconds ('2' - 0x32)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Seconds ('3' - 0x33)

':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function:	Unique 128-bit identifier used to identify the interface board.
Type:	16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Serial number of the interface board
Operational Settings:	This register is for information purposes only.

Functional Board Serial Number
Function:	Unique 128-bit identifier used to identify the functional board.
Type:	16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Serial number of the functional board
Operational Settings:	This register is for information purposes only.

Module Capability
Function:	Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0107
Read/Write:	R
Initialized Value:	0x0000 0107
Operational Settings:	A “1” in the bit associated with the capability indicates that it is supported.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	Flt-Pt	0	0	0	0	0	Pack	FIFO Blk	Blk

Module Memory Map Revision
Function:	Module Memory Map revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Module Memory Map Revision
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function:	Measured PCB and Zynq Core temperatures on Interface Board.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

PCB Temperature

Zynq Core Temperature

Functional Board Current Temperature
Function:	Measured PCB temperature on Functional Board.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Interface Board Maximum Temperature
Function:	Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

PCB Temperature

Zynq Core Temperature

Interface Board Minimum Temperature
Function:	Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

PCB Temperature

Zynq Core Temperature

Functional Board Maximum Temperature
Function:	Maximum PCB temperature on Functional Board since power-on.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Functional Board Minimum Temperature
Function:	Minimum PCB temperature on Functional Board since power-on.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function:	Higher precision measured Zynq Core temperature on Interface Board.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Zynq Core temperature on Interface Board
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Signed Integer Part of Temperature

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function:	Higher precision measured Interface PCB temperature.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Interface PCB temperature
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Signed Integer Part of Temperature

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function:	Higher precision measured Functional PCB temperature.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Functional PCB temperature
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Signed Integer Part of Temperature

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function:	The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type:	unsigned binary word (32-bits)
Data Range:	See table below
Read/Write:	R
Initialized Value:	0
Operational Settings:	This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s)	Sensor
D31:D6	Reserved
D5	Functional Board PCB Temperature
D4	Interface Board PCB Temperature
D3:D0	Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function:	Reflects which threshold has been crossed
Type:	unsigned binary word (32-bits)
Data Range:	See table below
Read/Write:	R
Initialized Value:	0
Operational Settings:	The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s)	Description
D31:D4	Reserved
D3	Exceeded Upper Critical Threshold
D2	Exceeded Upper Warning Threshold
D1	Exceeded Lower Critical Threshold
D0	Exceeded Lower Warning Threshold

Sensor Current Reading
Function:	Reflects current reading of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function:	Reflects minimum value of temperature sensor since power up
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function:	Reflects maximum value of temperature sensor since power up
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function:	Reflects lower warning threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default lower warning threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function:	Reflects lower critical threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default lower critical threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function:	Reflects upper warning threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default upper warning threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function:	Reflects upper critical threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default upper critical threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control

Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x003C	FPGA Revision	R	0x0074	Bare Metal Revision	R
0x0030	FPGA Compile Timestamp	R	0x0080	Bare Metal Compile Time (Bit 0-31)	R
0x0034	FPGA SerDes Revision	R	0x0084	Bare Metal Compile Time (Bit 32-63)	R
0x0038	FPGA Template Revision	R	0x0088	Bare Metal Compile Time (Bit 64-95)	R
0x0040	FPGA Zynq Block Revision	R	0x008C	Bare Metal Compile Time (Bit 96-127)	R
			0x0090	Bare Metal Compile Time (Bit 128-159)	R
			0x0094	Bare Metal Compile Time (Bit 160-191)	R
0x007C	FSBL Revision	R
0x00B0	FSBL Compile Time (Bit 0-31)	R
0x00B4	FSBL Compile Time (Bit 32-63)	R
0x00B8	FSBL Compile Time (Bit 64-95)	R
0x00BC	FSBL Compile Time (Bit 96-127)	R
0x00C0	FSBL Compile Time (Bit 128-159)	R
0x00C4	FSBL Compile Time (Bit 160-191)	R
0x0000	Interface Board Serial Number (Bit 0-31)	R	0x0010	Functional Board Serial Number (Bit 0-31)	R
0x0034	Interface Board Serial Number (Bit 32-63)	R	0x0014	Functional Board Serial Number (Bit 32-63)	R
0x0008	Interface Board Serial Number (Bit 64-95)	R	0x0018	Functional Board Serial Number (Bit 64-95)	R
0x000C	Interface Board Serial Number (Bit 96-127)	R	0x001C	Functional Board Serial Number (Bit 96-127)	R
0x0070	Module Capability	R
0x01FC	Module Memory Map Revision	R
MODULE MEASUREMENTS REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0200	Interface Board PCB/Zynq Current Temp	R	0x0208	Functional Board PCB Current Temp	R
0x0218	Interface Board PCB/Zynq Max Temp	R	0x0228	Functional Board PCB Max Temp	R
0x0220	Interface Board PCB/Zynq Min Temp	R	0x0230	Functional Board PCB Min Temp	R
0x02C0	Higher Precision Zynq Core Temperature	R
0x02C4	Higher Precision Interface PCB Temperature	R
0x02E0	Higher Precision Functional PCB Temperature	R
MODULE HEALTH MONITORING REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x07F8	Module Sensor Summary Status	R


REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision	Revision Date	Description
C	2023-08-11	ECO C10649, initial release of module common registers manual.
C1	2024-05-15	ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2	2024-07-10	ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date	Description
2025-11-05	Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02	Formatting updates to document; no technical changes.

Link to original

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100

Link to original
