CM2 Manual

INTRODUCTION

As a leading manufacturer of smart function modules, NAI offers over 100 different modules that cover a wide range of I/O, measurements and simulation, communications, Ethernet switch, and SBC functions. Our CM2 combination module offers users the functionality of two COSA® smart function modules in one physical module. Based on NAI’s AR1 and DT4 modules, the CM2 module provides eight ARINC 429/575 and twelve Discrete I/O channels in a single smart function module. This user manual is designed to help you get the most out of our CM2 smart function module.

For a brief description of the module and complete list of specifications, click here for the CM2 data sheet.

CM2 Overview

NAI’s CM2 module offers a range of features designed to suit a variety of system requirements, including:

Discrete I/O (DT4 Module-Type) Features

12 Channels of Programmable Discrete Input/Output: The DT4 function features 12 channels programmable for either discrete input or output that provide the following:

Input - voltage or contact sensing with programmable, pull-up/pull-down current sources, eliminating the need for external resistors or mechanical jumpers.
Output - programmable current source (high-side), sink (low-side) or push-pull switching up to 500 mA per channel from an applied 3- 60V external VCC source (or sink to ISO-GND).

Current Sharing: The DT4 function enables current sharing* by connecting multiple outputs in parallel, capable of sinking or sourcing up to 2A per bank, enhancing your system’s capacity and reliability.

(*) Current Share: The maximum output load per-channel is ±0.5A. Channels can be connected and operated in parallel to provide > 0.5A to act as a single channel. The load current between paralleled channels cannot be effectively characterized and is not expected to be equal due to factors including:

Channel/bank position, module position, motherboard/system platform configuration, operating temperature range including external application/configuration influences (e.g., external cabling).

Therefore, when operating in shared current (parallel channel) configuration, it is recommended to de-rate the per-channel maximum current output to at least 66% (or 333 mA/channel) to ensure that no single channel is overburdened by handling most of the load current.

For example: If the maximum continuous load current is expected to be 1A: 1/0.33 ≅ 3 channels (minimum).

Inrush Current Handling: The DT4 function can efficiently handle high inrush current loads, such as connecting two #327 incandescent lamps in parallel, without compromising performance.

Dual Turn-On Application Support: The DT4 function supports ‘dual turn-on’ applications, such as dual series ‘key’ missile launch control, providing seamless control in critical operations.

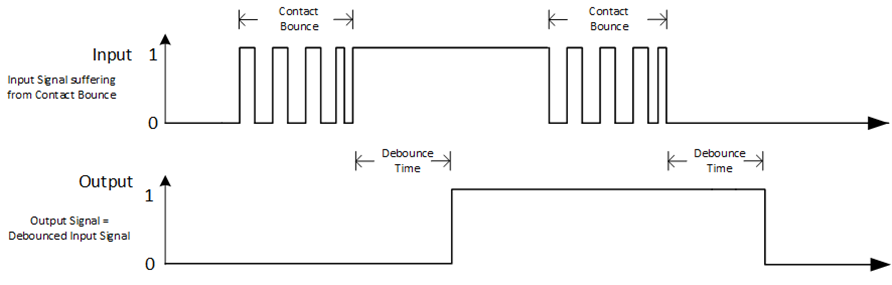

Debounce Circuitry: Programmable debounce circuitry with selectable time delay eliminates false signals caused by relay contact bounce, ensuring accurate data acquisition.

Background Built-In-Test (BIT): All channels have continuous background Built-In-Test (BIT), which provides real-time channel health to ensure reliable operation in mission-critical systems. This feature runs in the background and is transparent in normal operations.

Input Diagnostics: The DT4 function can sense broken input connections and detect if inputs are shorted to +V or ground, allowing for early detection and troubleshooting.

Voltage and Current Readings: The DT4 function offers the ability to read I/O voltage and output current, facilitating improved diagnostics and load status identification (indicates if load is connected).

Enhanced Functionality Features: In addition to offering the same functionality as the DT1 standard function (SF) module, the DT4 includes the following enhanced features:

Enhanced Input Mode - Pulse Measurements, Transition Timestamps, Transition Counters, Period Measurement, and Frequency Measurement.
Enhanced Output Mode - PWM Output and Pattern Generator Output.

ARINC 429/575 (AR1 Module-Type) Features

ARINC 429: ARINC 429 is a widely adopted data transfer standard, serving as an alternative to MIL-STD-1553. It utilizes a self-clocking, self-synchronizing data bus protocol with separate transmit and receive ports. The physical connection consists of twisted pairs carrying balanced differential signaling. Each data word is 32 bits in length, with most messages containing a single data word. Messages are transmitted at either 12.5 or 100 kbps, allowing other system elements to monitor the bus messages. The transmitter continuously transmits 32-bit data words or the NULL state. A single-wire pair can accommodate one transmitter and up to 20 receivers. Notably, the receiver end of the protocol enables self-clocking, eliminating the need for transmitting clocking data.

ARINC 575: In addition to ARINC 429, the AR1 function also supports ARINC 575, a data transfer protocol specifically used for the Digital Air Data System (DADS) on commercial and transport aircraft. ARINC 575 defines a digital data bus that distributes crucial air-data information to displays, autopilots, and flight control instrumentation.

While there are minor differences between the digital data bus of ARINC 575 and ARINC 429, the most significant distinction lies in the usage of bit 32. In ARINC 429, bit 32 is reserved for parity, whereas ARINC 575 can utilize bit 32 for either parity (when using BNR encoding) or data (when using BCD encoding).

Receive/Transmit Mode Programmability: Each channel of the AR1 function can be programmed to operate in either receive or transmit mode according to your specific application needs.

Flexible Operation: The AR1 function supports both 100 kHz and 12.5 kHz operation per channel, allowing you to choose the appropriate speed for your communication requirements.

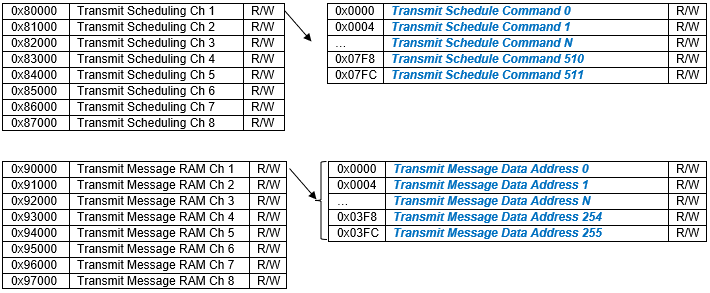

Transmit Capabilities: Enjoy the convenience of a 255 message FIFO or scheduled transmits per channel, allowing you to efficiently manage and control the transmission of messages. Additionally, asynchronous transmits can be performed alongside scheduled transmits.

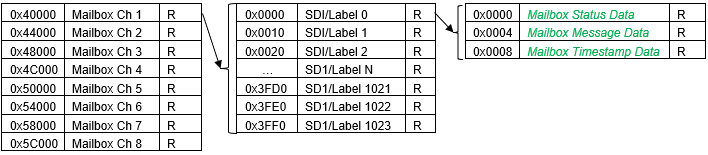

Receive Capabilities: Benefit from a 255 message FIFO or mailbox buffering per channel, providing ample storage for incoming messages. This ensures reliable reception and efficient handling of data.

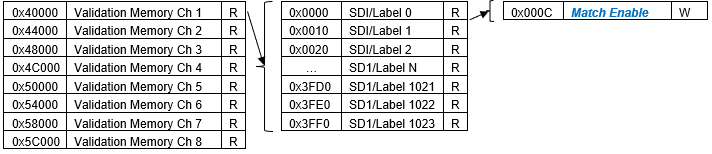

Message Validation: The AR1 function supports SDI/Label Filtering, enabling you to validate received messages based on specific criteria per channel. This feature enhances the overall data integrity and ensures only relevant information is processed.

Hardware Parity: You have the option to enable selectable hardware parity generation/checking, which adds an extra layer of data integrity verification during transmission and reception.

Receive Time Stamping: Gain valuable insight into message reception with the functions’s receive time stamping feature. This allows precise timing analysis and synchronization in your communication system.

Continuous Built-In Test (BIT): The AR1 function incorporates continuous BIT functionality, providing self-diagnostics and monitoring capabilities to ensure reliable operation and easy troubleshooting.

Loop-Back Test: Verify the integrity of the AR1 function by performing loop-back tests. This feature allows you to validate the communication path and confirm proper functionality.

Tri-State Outputs: The AR1 function’s outputs support tri-state functionality, allowing you to control the state of the outputs as needed. This enables seamless integration with other system components.

High and Low-Speed Slew Rate Outputs: The AR1 function offers both high and low-speed slew rate outputs, providing flexibility in meeting the requirements of various communication interfaces.

DISCRETE I/O FUNCTION

The Discrete I/O communications function is like the standard DT4 communications function module (DT4 may be used as a reference/guide within the context of this document).

Principle of Operation

The CM2 provides up to twelve (12) channels of individual digital (DT4 module-type) I/O with BIT fault detection, which enables flagging of non-compliant outputs or inconsistent input readings between dual input measurements

When channels are programmed as inputs, they can be used for either voltage or contact sensing. Channels set for contact sensing (e.g., sensing a relay contact position; OPEN-CLOSED) can be configured with a programmable “pull-up” or “pull-down” (current source or sink) which effectively provides the proper voltage level change to sense the open state of the contact. This unique design eliminates the need for external resistors or mechanical jumpers. Instead, this design offers a current source/sink (in banks of 6 channels) that the user programs to a desired current (0-5 mA) level.

When programmed as outputs, each channel can be set for high-side (current-source), low-side (current-sink) or push-pull (current-source-sink) operation. The load impedance determines the delivered switched output current drive (up to 500 mA per channel). Diode clamping is provided (useful for inductive loads, such as relays) and thermal protection.

Overcurrent protection is implemented using current sensing technology. When the current exceeds a programmed threshold of 650 mA steady-state, or a higher short duration, the overcurrent/short-circuit protection is triggered, shutting down the output drivers for safety. The overcurrent fault status will be indicated for the affected channels and will require a reset operation to restore output. To reset this condition, a reset command needs to be issued to the Overcurrent Reset register, which will restore drive output and allow the latched status to be reset. This is separate from the reset for the Overcurrent Interrupt Enable register on this module. It is recommended that a reset command is done whenever status is cleared to avoid a non-apparent output reset condition.

The 12 channels are configured as 2 banks of 6 channels. Each bank is provided with a separate external input VCC and a ground return (GND) pin. The GND pins are common within the module but are isolated from system (power) GND.

Operational requirements/assumptions:

An external source VCC supply must be wired for proper:
- Output operation as a current source.
- Input operation when requiring a programmed pull-up current (i.e., programmed “pull-up” for input contact sense; OPEN/GND detect/state change).
An external source Ground/Return must be wired for all I/O configurations. The Ground/Return must be the input signal or the load current sink ground/reference.

Input/Output Interface

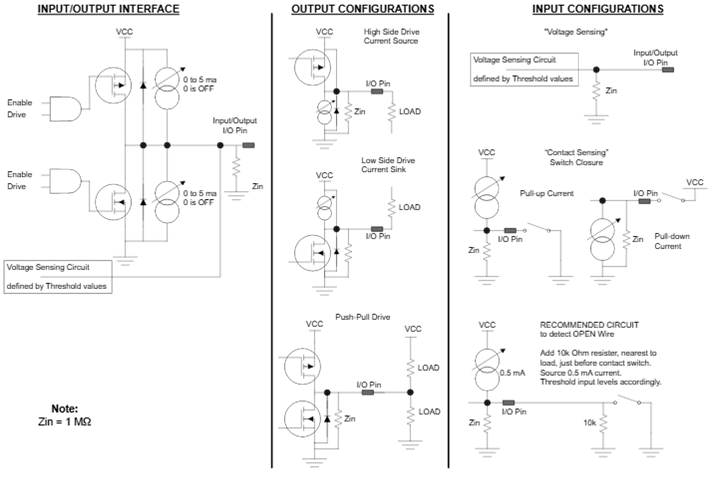

Each channel can be configured as an input or one of three types of outputs.

Output

When configured as an output, the interface can act as a “High-Side”, “Low-Side” or “Push-Pull” drive, providing up to 500 mA per channel or 1 A when two channels are connected in parallel. The total output per module is 8 A (2 A per bank).

Note

Maximum source current ‘rules’ for rear I/O connectors still apply - see specifications.

Input

When configured as an input, output drivers are disabled. The I/O interface can act as a constant current source, current sink or voltage sensing circuit. For contact sensing, each channel may be set for pull-up or pull-down using the Select Pull-Up or Pull-Down register and by entering the appropriate current level in the Pull-Up/Down Current register. Contact closure and hysteresis may be defined using the Upper Voltage and Lower Voltage Threshold registers. No additional resistors or hardware are required to provide for current flow. A current value of zero disables the current source/sink circuits and configures the module for voltage sensing. Default is voltage sensing. Level or contact sensing can be mixed within a channel bank, if the contact sensing channels are externally pulled up or pulled down.

Note

If this module supplies the current for the contact sensing, then level and contact sensing cannot be mixed within a channel bank.

All four threshold levels must be programmed in monotonic, increasing order of: Minimum Low, Lower, Upper and Maximum High. For input and output, threshold levels define logic state. For output, threshold levels are used in BIT test (wrap-around) signal monitoring. A pair of drive FETs and current circuits are provided at each I/O pin. See the functional representation of the drivers in the I/O Circuits interface diagram below.

Input/Output Circuits

Discrete I/O Threshold Programming

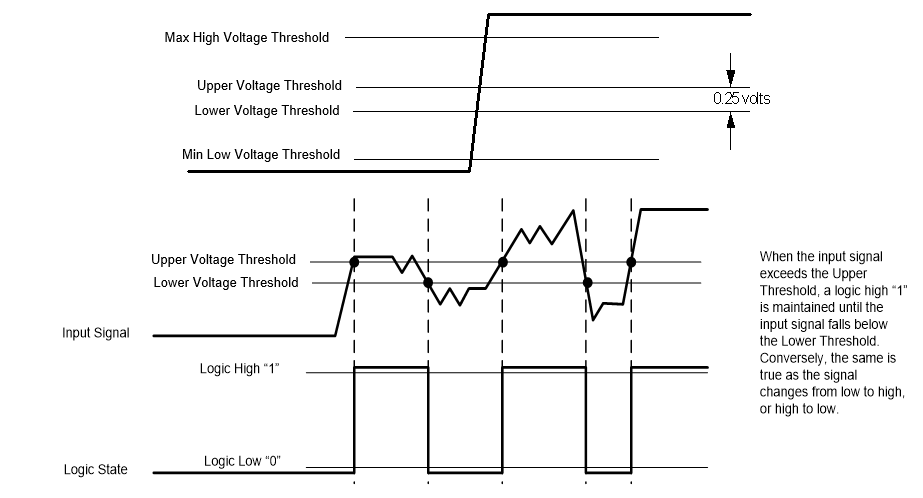

Four threshold levels (Max High Voltage Threshold, Upper Voltage Threshold, Lower Voltage Threshold, and Min Low Voltage Threshold) offer maximum user flexibility. All four threshold levels must be programmed. For input or output, the threshold levels will define the logic states. For proper operation, the threshold values should be programmed such that:

Max High Voltage Threshold > Upper Voltage Threshold > Lower Voltage Threshold > Min Low Voltage Threshold

Program Upper and Lower Voltage Thresholds, keeping the 0.25 V min. differential in mind, and then add debounce time as required. When the input signal exceeds the Upper Voltage Threshold, a logic high 1 is maintained until the input signal falls below the Lower Voltage Threshold. Conversely, when the input signal falls below the Lower Voltage Threshold, a logic low 0 is maintained until the input signal rises above the Upper Voltage Threshold.

Debounce Programming

The Debounce register, when programmed for a non-zero value, is used with channels programmed as input to “filter” or “ignore” expected application spurious initial transitions. Once a signal level is a logic voltage level period longer than the Debounce Time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed Debounce Time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state.

Automatic Background Built-In Test (BIT)/Diagnostic Capability

The Discrete module supports automatic background BIT testing that verifies channel processing. The testing is totally transparent to the user, requires no external programming and has no effect on the operation of the module. This capability is accomplished by an additional test comparator that is incorporated into each module. The test comparator checks each channel and is compared against the operational channel. Depending upon the configuration, the Input data read, or Output logic written of the operational channel and test comparator must agree or a fault is indicated with the results available in the associated status register. The results of the tests are stored in the BIT Dynamic Status and BIT Latched Status registers.

The technique used by the continuous background BIT (CBIT) test consists of an “add-2, subtract-1” counting scheme. The BIT counter is incremented by 2 when a BIT-fault is detected and decremented by 1 when there is no BIT fault detected and the BIT counter is greater than 0. When the BIT counter exceeds the (programmed) Background BIT Threshold value, the specific channel’s fault bit in the BIT status register will be set. Note, the interval at which BIT is performed is dependent and differs between module types. Rather than specifying the BIT Threshold as a “count”, the BIT Threshold is specified as a time in milliseconds. The module will convert the time specified to the BIT Threshold “count” based on the BIT interval for that module. The “add-2, subtract-1” counting scheme effectively filters momentary or intermittent anomalies by allowing them to “come and go“ before a BIT fault status or indication is flagged (e.g., BIT faults would register when sustained; i.e., at a ten second interval, not a 10-millisecond interval). This prevents spurious faults from registering valid such as those caused by EMI and/or dirty power causing false BIT faults. Putting more “weight” on errors (“add-2”) and less “weight” on subsequent passing results (subtract-1) will result in a BIT failure indication even if a channel “oscillates” between a pass and fail state.

In addition to BIT, the Discrete module tests for overcurrent conditions and provides Above Max High Voltage, Below Min Low Voltage, and Mid-Range Voltage statuses for threshold signal transitioning.

Status and Interrupts

The Discrete I/O function provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

Module Common Registers

The Discrete I/O function includes module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.

Unit Conversions

The Discrete I/O function Threshold and Measurement registers can be programmed to be utilized as a single precision floating point value (IEEE-754) or as a 32-bit integer value. The purpose for providing this feature is to offload the processing that is normally performed by the mission processor to convert the integer values to floating-point values.

When the Enable Floating Point Mode register is set to 1 (Floating Point Mode) the following registers are formatted as Single Precision Floating Point Value (IEEE-754):

Voltage Reading (Volts)
Current Reading (mA)
VCC Voltage Reading (Volts)
Max High Voltage Threshold (Volts)*
Upper Voltage Threshold (Volts)*
Lower Voltage Threshold (Volts)*
Min Low Voltage Threshold (Volts)*
Pull-Up/Down Current (mA)*

*When the Enable Floating Point Mode register is set to 1, it is important that these registers are updated with the Single Precision Floating Point (IEEE-754) representation of the value for proper operation of the channel. Conversely, when the Enable Floating Point Mode register is set to 0, these registers must be updated with the Integer 32-bit representation of the value.

Note

When changing the Enable Floating Point Mode from Integer Mode to Floating Point Mode or vice versa, the following steps are followed to avoid faults from falsely being generated:

Set the Enable Floating Point Mode register to the desired mode (Integer or Floating Point).
The application waits for the Floating Point State register to match the value for the requested Floating Point Mode (Integer = 0, Floating Point = 1); this indicates that the module’s conversion of the register values and internal values is complete. Data registers will be converted to the units specified and can be read in that specified format.

User Watchdog Timer Capability

The Discrete I/O function provide registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the Principle of Operation description.

Enhanced Functionality

The Discrete I/O function (DT4-type) provides enhanced input and output mode functionality. For incoming signals (inputs), the Discrete I/O enhanced modes include Pulse Measurements, Transition Timestamps, Transition Counters, Period Measurement and Frequency Measurement. For outputs, the Discrete I/O enhanced modes include PWM (Pulse Width Modulation) Outputs and Pattern Generator Outputs.

Refer to “Enhanced Discrete I/O, Digital I/O Functionality - Module Manual” for the Principle of Operation description.

Register Description

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

Discrete Input/Output Registers

Each channel can be configured as an input or one of three types of outputs. The I/O Format registers are used to set each channel input/output configuration. The Write Outputs register controls the output channels to either a High (1) or Low (0) state, and the Read I/O register contains the discrete channel’s state (High (1) or Low (0)) as specified by the channel’s threshold configurations.

I/O Format Ch1-12
Function:	Sets channels 1-12 as inputs or outputs.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x00FF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write integer 0 for input; 1, 2 or 3 for specific output format.

Integer	D_H	D_L	(2 bits per channel)
0	0	0	Input
1	0	1	Output, Low-side switched, with/without current pull up
2	1	0	Output, High-side switched, with/without current pull down
3	1	1	Output, push-pull

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Ch12

Ch11

Ch10

Ch9

D15

D14

D13

D12

D11

D10

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Write Outputs
Function:	Drives output channels High 1 or Low 0
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 1 to drive output high. Write 0 to drive output low.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Input/Output State
Function:	Reads High 1 or Low 0 inputs or outputs as defined by internal channel threshold values.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	Bit-mapped per channel.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Discrete Input/Output Voltage Threshold Programming Registers

Four threshold levels (Max High Voltage Threshold, Upper Voltage Threshold, Lower Voltage Threshold, and Min Low Voltage Threshold) are programmable for each Discrete channel in the module.

Max High Voltage Threshold (Enable Floating Point Mode: Integer Mode)

Upper Voltage Threshold (Enable Floating Point Mode: Integer Mode)

Lower Voltage Threshold (Enable Floating Point Mode: Integer Mode)

Min Low Voltage Threshold (Enable Floating Point Mode: Integer Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Max High Voltage Threshold (Enable Floating Point Mode: Floating Point Mode)

Upper Voltage Threshold (Enable Floating Point Mode: Floating Point Mode)

Lower Voltage Threshold (Enable Floating Point Mode: Floating Point Mode)

Min Low Voltage Threshold (Enable Floating Point Mode: Floating Point Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Max High Voltage Threshold
Function:	Sets the maximum high voltage threshold value. Programmable per channel from 0 VDC to 60 VDC.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` 0x0000 0000 to 0x0000 0258 Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	0x32
Operational Settings:	Assumes that the programmed level is the minimum voltage used to indicate a Max High Voltage Threshold. If a signal is greater than the Max High Voltage Threshold value, a flag is set in the Max High Voltage Threshold Status register. The Max High Voltage Threshold register may be used to monitor any type of high signal voltage condition or threshold such as a “Short to V” as it applies to input measurement as well as contact sensing applications. Integer Mode: LSB is 0.1 VDC. For example: to program 5.0 VDC, 5.0 / 0.1 = 50 (binary equivalent for 50 is 0x0000 0032). Floating Point Mode: Set Max High Voltage Threshold value as a Single Precision Floating Point Value (IEEE-754). For example, to program 5.0V, enter 5.0 as a single precision floating point value (IEEE-754) (binary equivalent 5.0 is 0x40A0 0000).

Upper Voltage Threshold
Function:	Sets the upper voltage threshold value. Programmable per channel from 0 VDC to 60 VDC.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` 0x0000 0000 to 0x0000 0258 Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	0x28
Operational Settings:	A signal is considered logic High 1 when its value exceeds the Upper Voltage Threshold and does not consequently fall below the Upper Voltage Threshold in less than the programmed Debounce Time Integer Mode: LSB is 0.1 VDC. For example: to program 3.5 VDC, 3.5 / 0.1 = 35 (binary equivalent for 35 is 0x0000 0023). Floating Point Mode: Set Upper Voltage Threshold value as a Single Precision Floating Point Value (IEEE-754). For example, to program 3.5 V, enter 3.5 as a single precision floating point value (IEEE-754) (binary equivalent 3.5 is 0x4060 0000).

Lower Voltage Threshold
Function:	Sets the lower voltage threshold value. Programmable per channel from 0 VDC to 60 VDC.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` 0x0000 0000 to 0x0000 0258 Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	0x10
Operational Settings:	A signal is considered logic Low 0 when its value falls below the Lower Voltage Threshold and does not consequently rise above the Lower Voltage Threshold in less than the programmed Debounce Time. Integer Mode: LSB is 0.1 VDC. For example: to program 1.5 VDC, 1.5 / 0.1 = 15 (binary equivalent for 15 is 0x0000 000F). Floating Point Mode: Set Lower Voltage Threshold value as a Single Precision Floating Point Value (IEEE-754). For example, to program 1.5 V, enter 1.5 as a single precision floating point value (IEEE-754) (binary equivalent 1.5 is 0x3FC0 0000).

Min Low Voltage Threshold
Function:	Sets the minimum low voltage threshold. Programmable per channel 0 VDC to 60 VDC.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) 0x0000 0000 to 0x0000 0258 Enable Floating Point Mode: 1 (Floating Point Mode) Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	0xA
Operational Settings:	Assumes that the programmed level is the voltage used to indicate a Minimum Low Voltage Threshold. If a signal is less than the Min Low Voltage Threshold value, a flag is set in the Min Low Voltage Threshold Status register. The Min Low Voltage Threshold register may be used to monitor any type of low signal voltage condition or threshold such as a “Short to Ground” as it applies to input measurement as well as contact sensing applications. Integer Mode: LSB is 0.1 VDC. For example: to program 0.5 VDC, 0.5 / 0.1 = 5 (binary equivalent for 5 is 0x0000 0005). Floating Point Mode: Set Min Low Voltage Threshold value as a Single Precision Floating Point Value (IEEE-754). For example, to program 0.5 V, enter 0.5 as a single precision floating point value (IEEE-754) (binary equivalent 0.5 is 0x3F00 0000).

Discrete Input/Output Measurement Registers

The measured voltage and current at the I/O pin for each channel can be read from the Voltage Reading and Current Reading registers.

Voltage Reading
Function:	Reads actual voltage at I/O pin per individual channel.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` 0x0000 0000 to 0x0000 0258 Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	Integer Mode: LSB is 0.1 VDC. If the register value is 261 (binary equivalent for 261 is 0x0000 0105), conversion to the voltage value is 261 * 0.1 = 26.1 V. Floating Point Mode: Read as a Single Precision Floating Point Value (IEEE-754). For example, if the register value is 0x41D0 CCCD, this is equivalent to is 26.1, which represent 26.1 V.

Voltage Reading (Enable Floating Point Mode: Integer Mode)``

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Voltage Reading (Enable Floating Point Mode: Floating Point Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Current Reading
Function:	Reads actual output current through I/O pin per channel.
Type:	signed binary word (32-bit (only lower 16-bit is used)) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` (2's compliment. 16-bit value sign extended to 32 bits) ` 0x0000 0000 to 0x0000 00D0 (positive) or 0x0000 FF30 (negative) Enable Floating Point Mode: 1 (Floating Point Mode) + Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	Integer Mode: LSB is 3.0 mA. Value is signed binary 16-bit word. Read as 2's complement value for positive and negative current readings. For example, if the register value is 50 (binary equivalent for 50 is 0x0000 0032), the conversion to the current value is 50 3.0 = 150 mA. If register value is -50 (binary equivalent for -150 is 0x0000 FFCE), the conversion to the current value is -50 3.0 = -150 mA. Floating Point Mode: Read as a Single Precision Floating Point Value (IEEE-754). The value will represent a positive or negative current reading. For example, if the register value is 0x4316 0000, this is equivalent to 150, which represent 150 mA. If the register value is 0xC316 0000, this is equivalent to -150, which represents -150 mA.

Current Reading (Enable Floating Point Mode: Integer Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Current Reading (Enable Floating Point Mode: Floating Point Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

VCC Bank Registers

There are two VCC banks where each bank controls 6 discrete channels. Configuration for each bank involves specifying if the bank is configured for pull-up or pull-down and the current for source/sink. The measured voltage for each VCC bank can be read from the VCC Voltage Reading register.

Select Pull-Up or Pull-Down
Function:	Configures Pull-up or Pull-down configuration per 6-channel bank
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0x0000 0003
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set bit to 1 to configure channel bank to Pull-up. Set bit to 0 to configure channel bank to Pull-down. Each data bit configures entire bank of 6 channels.

Note

For contact (switch closure) applications, a current supply (Vcc) is required for internal pull-up.

Bit(s)	Name	Description
D31:D2	Reserved	Set Reserved bits to 0.
D1	Configure Bank 2 (Ch 07-12)	1=Pull-Up, 0=Pull-Down
D0	Configure Bank 1 (Ch 01-06)	1=Pull-Up, 0=Pull-Down

Pull-Up/Down Current
Function:	Sets current for pull-up/down per 6-channel bank. Programmable from 0 to 5 mA.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` 0x0000 0000 to 0x0000 0032 Enable Floating Point Mode: 1 (Floating Point Mode) ` Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	A current of zero disables the current pull-down circuits and configures for voltage sensing. Integer Mode: LSB is 0.1 mA. For example: to program 5 mA, 5 / 0.1 = 50 (binary equivalent for 50 is 0x0000 0032). Floating Point Mode: Set the current for pull-up/down as a Single Precision Floating Point Value (IEEE-754). For example, to program 5 mA, enter 5.0 as a Single Precision Floating Point Value (IEEE-754) (binary equivalent for 5.0 is 0x40A0 0000).

Pull-Up/Down Current (Enable Floating Point Mode: Integer Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Pull-Up/Down Current (Enable Floating Point Mode: Floating Point Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

VCC Voltage Reading
Function:	Read the VCC bank voltage.
Type:	unsigned binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) ` 0x0000 0000 to 0x0000 0258 Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	Integer Mode: LSB is 0.1 VDC. If the register value is 260 (binary equivalent for this value is 0x0000 0104), conversion to the voltage value is 260 * 0.1 = 26.0 V. Floating Point Mode: Read as a Single Precision Floating Point Value (IEEE-754). For example, the binary equivalent for 0x41D0 0000 is 26.0 which represent 26.0 V.

VCC Voltage Reading (Enable Floating Point Mode: Integer Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

VCC Voltage Reading (Enable Floating Point Mode: Floating Point Mode)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Discrete Input/Output Control Registers

Control of the Discrete I/O channels include specifying the Debounce time for each input channel and resetting the I/O channel on an overcurrent condition.

Debounce Time
Function:	When set for inputs, the input signal will have the debounce filtering applied based on this programmed value. This is selectable for each channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The Debounce Time register, when programmed for a non-zero value, is used with channels programmed as input to “filter” or “ignore” expected application spurious initial transitions. Enter required Debounce Time into appropriate channel registers. LSB weight is 10 µs/bit (register may be programmed from 0x0000 0000 (debounce filter inactive) through a maximum of 0xFFFF FFFF (2^32 * 10µs). (full scale w/ 10 µs resolution). Once a signal level is a logic voltage level period longer than the debounce time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed Debounce Time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state. Enter a value of 0 to disable debounce filtering.

Overcurrent Reset
Function:	Resets disabled channels in Overcurrent Latched Status register following an overcurrent condition as measured by the Current Reading register.
Type:	unsigned binary word (32-bit)
Data Range:	0 or 1
Read/Write:	W
Initialized Value:	0
Operational Settings:	1 is written to reset disabled channels. Processor will write a 0 back to the Overcurrent Reset register when reset process is complete.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Unit Conversion Programming Registers

The Enable Floating Point register provides the ability to set the Threshold values as floating-point values and read the Voltage Reading and Current Reading registers as floating-point values. The purpose for this feature is to offload the processing that is normally performed by the mission processor to convert the integer values to floating-point values.

Enable Floating Point Mode
Function:	Sets all channels for floating point mode or integer module.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 1
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set bit to 1 to enable Floating Point Mode and 0 for Integer Mode. Wait for the Floating Point State register to match the value for the requested Floating Point Mode (Integer = 0, Floating Point = 1); this indicates that the module's conversion of the register values and internal values is complete before changing the values of the configuration and control registers with the values in the units specified (Integer or Floating Point).

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Floating Point State
Function:	Indicates the state of the mode selected (Integer or Floating Point).
Type:	unsigned binary word (32-bit)
Data Range:	0 to 1
Read/Write:	R
Initialized Value:	0
Operational Settings:	Indicates the whether the module registers are in Integer (0) or Floating Point Mode (1). When the Enable Floating Point Mode is modified, the application must wait until this register's value matches the requested mode before changing the values of the configuration and control registers with the values in the units specified (Integer or Floating Point).

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Background BIT Threshold Programming Registers

The Background BIT Threshold register provides the ability to specify the minimum time before the BIT fault is reported in the BIT Status registers. The BIT Count Clear register provides the ability to reset the BIT counter used in CBIT.

Background BIT Threshold
Function:	Sets BIT Threshold value (in milliseconds) to use for all channels for BIT failure indication.
Type:	unsigned binary word (32-bit)
Data Range:	1 ms to 2^32 ms
Read/Write:	R/W
Initialized Value:	5 ms
Operational Settings:	The interval at which BIT is performed is dependent and differs between module types. Rather than specifying the BIT Threshold as a “count”, the BIT Threshold is specified as a time in milliseconds. The module will convert the time specified to the BIT Threshold “count” based on the BIT interval for that module.

BIT Count Clear
Function:	Resets the CBIT internal circuitry and count mechanism. Set the bit corresponding to the channel you want to clear.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	W
Initialized Value:	0
Operational Settings:	Set bit to 1 for channel to resets the CBIT mechanisms. Bit is self-clearing.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

User Watchdog Timer Programming Registers

Refer to “User Watchdog Timer Module Manual” for the Register descriptions.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

Status and Interrupt Registers

The Discrete I/O function provides status registers for BIT, Low-to-High Transition, High-to-Low Transition, Overcurrent, Above Max High Voltage, Below Min Low Voltage, and Mid-Range Voltage

Channel Status Enable
Function:	Determines whether to update the status for the channels. This feature can be used to “mask” status bits of unused channels in status registers that are bitmapped by channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF (Channel Status)
Read/Write:	R/W
Initialized Value:	0x0000 0FFF
Operational Settings:	When the bit corresponding to a given channel in the Channel Status Enable register is not enabled (0) the status will be masked and report “0” or “no failure”. This applies to all statuses that are bitmapped by channel (BIT Status, Low-to-High Transition Status, High-to-Low Transition Status, Overcurrent Status, Above Max High Voltage Status, Below Min Low Voltage Status, Mid-Range Voltage and Summary Status).

Note

Background BIT will continue to run even if the Channel Status Enable is set to 0.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

BIT Status

There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Note

When a BIT fault is detected, reading the Voltage Reading Error and the Driver Error register will provide additional diagnostics on the cause of the BIT fault.

BIT Status
Function:	Sets the corresponding bit associated with the channel's BIT error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Discrete faults are detected (associated channel(s) bit set to 1) within 10 ms.

Note

BIT Status is a shared register between the AR1 and DT4 functions. Bits D11:D0 are dedicated to the DT4 function and bits D19:D12 are dedicated to the AR1 function.

BIT Dynamic Status

BIT Latched Status

BIT Interrupt Enable

BIT Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

AR1
Ch8

AR1
Ch7

AR1
Ch6

AR1
Ch5

D15

D14

D13

D12

D11

D10

AR1
Ch4

AR1
Ch3

AR1
Ch2

AR1
Ch1

DT4
Ch12

DT4
Ch11

DT4 Ch10

DT4
Ch9

DT4
Ch8

DT4
Ch7

DT4
Ch6

DT4
Ch5

DT4
Ch4

DT4
Ch3

DT4
Ch2

DT4
Ch1

Voltage Reading Error
Function:	The Voltage Reading Error register is set when a redundant voltage measurement is inconsistent with the input voltage level detected.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	1 is read when a fault is detected. 0 indicates no fault detected.

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

Note

Clearing the latched BIT status will also clear this error register.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Driver Error
Function:	The Driver Error register is set when the voltage reading mismatches active driver measurement and is inconsistent with the input driver level detected (Note: requires programming of thresholds).
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	1 is read when a fault is detected. 0 indicates no fault detected.

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

Note

Clearing the latched BIT status will also clear this error register.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Low-to-High Transition Status

There are four registers associated with the High-to-Low Transition Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Low-to-High Transition Status
Function:	Sets the corresponding bit associated with the channel's Low-to-High Transition event.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Transition status follows the value read by the Input/Output State register.

Low-to-High Transition Dynamic Status

Low-to-High Transition Latched Status

Low-to-High Transition Interrupt Enable

Low-to-High Transition Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

High-to-Low Transition Status

There are four registers associated with the High-to-Low Transition Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

High-to-Low Transition Status
Function:	Sets the corresponding bit associated with the channel's High-to-Low Transition event.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 µs.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 20 s.

Note

Transition status follows the value read by the Input/Output State register.

High-to-Low Transition Dynamic Status

High-to-Low Transition Latched Status

High-to-Low Transition Interrupt Enable

High-to-Low Transition Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Overcurrent Status

There are four registers associated with the Overcurrent Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Overcurrent Status
Function:	Sets the corresponding bit associated with the channel's Overcurrent error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Status is indicated (associated channel(s) bit set to 1), within 80 ms.

Note

Latched Status is indicated (associated channel(s) bit set to 1), within 80 ms.

Note

Channel(s) shut down by overcurrent sensed can be reset by writing to the Overcurrent Clear register.

Overcurrent Dynamic Status

Overcurrent Latched Status

Overcurrent Interrupt Enable

Overcurrent Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Above Max High Voltage Status

There are four registers associated with the Above Max High Voltage Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. Latched status is indicated (bit is set) within 500 µs. Write a 1 to clear status.

Above Max High Voltage Status
Function:	Sets the corresponding bit associated with the channel's Above Max High Voltage event.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Above Max High Voltage Dynamic Status

Above Max High Voltage Latched Status

Above Max High Voltage Interrupt Enable

Above Max High Voltage Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Below Min Low Voltage Status

There are four registers associated with the Below Min Low Voltage Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. Latched status is indicated (bit is set) within 500 µs. Write a 1 to clear status.

Below Min Low Voltage Status
Function:	Sets the corresponding bit associated with the channel's Below Min Low Voltage event.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Below Min Low Voltage Dynamic Status

Below Min Low Voltage Latched Status

Below Min Low Voltage Interrupt Enable

Below Min Low Voltage Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Mid-Range Voltage Status

There are four registers associated with the Mid-Range Voltage Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. Latched status is indicated (bit is set) within 500 µs. Write a 1 to clear status.

Mid-Range Voltage Status
Function:	Sets the corresponding bit associated with the channel's Mid-Range Voltage error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Voltage level needs to be between the upper and lower thresholds for the debounce time for this status to assert.

Note

In the event this status is asserted, the Input/Output state will hold its previous state.

Mid-Range Voltage Dynamic Status

Mid-Range Voltage Latched Status

Mid-Range Voltage Interrupt Enable

Mid-Range Voltage Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

User Watchdog Timer Fault Status

The Discrete I/O function provide registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Fault Status Register descriptions.

Inter-FPGA Failure Status

Data is periodically transferred between the Lattice FPGA and the Xilinx FPGA. A CRC value is calculated and verified with each data transfer. A CRC error flag is sent from the Lattice FPGA to the Xilinx FPGA if a CRC error is detected. The Xilinx FPGA contains a counter that will increase by two when a CRC error is flagged and decremented by one when there is no CRC error. If the counter reaches ten, the Xilinx FPGA will set the Inter-FPGA Failure status bit and shut down the isolated power supply. To recover from an Inter-FPGA Failure, the module needs to be reset and re-initialized.

There are four registers associated with the Inter-FPGA Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. 0 = Normal; 0xFFF = Inter-FPGA Communication Failure. The status represents the status for

Inter-FPGA Failure Status
Function:	Sets the corresponding bit associated with the channel's Inter-FPGA Failure error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Inter-FPGA Failure Dynamic Status

Inter-FPGA Failure Latched Status

Inter-FPGA Failure Interrupt Enable

Inter-FPGA Failure Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Interrupt Vector and Steering

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table Read/Write: R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

Enhanced Functionality Registers

Refer to “Enhanced Discrete I/O, Digital I/O Functionality - Module Manual” for the Register descriptions.

Function Register Map

KEY

Configuration/Control

Measurement/Status

DISCRETE INPUT/OUTPUT REGISTERS
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1038	I/O Format Ch1-12	R/W	0x1000	I/O State	R
			0x1024	Write Outputs	R/W

DISCRETE INPUT/OUTPUT THRESHOLD PROGRAMMING REGISTERS
NOTE: Base Address - 0x4000 0000
**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x20C0	Max High Voltage Threshold Ch 1**	R/W	0x20C4	Upper Voltage Threshold Ch 1**	R/W
0x2140	Max High Voltage Threshold Ch 2**	R/W	0x2144	Upper Voltage Threshold Ch 2**	R/W
0x21C0	Max High Voltage Threshold Ch 3**	R/W	0x21C4	Upper Voltage Threshold Ch 3**	R/W
0x2240	Max High Voltage Threshold Ch 4**	R/W	0x2244	Upper Voltage Threshold Ch 4**	R/W
0x22C0	Max High Voltage Threshold Ch 5**	R/W	0x22C4	Upper Voltage Threshold Ch 5**	R/W
0x2340	Max High Voltage Threshold Ch 6**	R/W	0x2344	Upper Voltage Threshold Ch 6**	R/W
0x23C0	Max High Voltage Threshold Ch 7**	R/W	0x23C4	Upper Voltage Threshold Ch 7**	R/W
0x2440	Max High Voltage Threshold Ch 8**	R/W	0x2444	Upper Voltage Threshold Ch 8**	R/W
0x24C0	Max High Voltage Threshold Ch 9**	R/W	0x24C4	Upper Voltage Threshold Ch 9**	R/W
0x2540	Max High Voltage Threshold Ch 10**	R/W	0x2544	Upper Voltage Threshold Ch 10**	R/W
0x25C0	Max High Voltage Threshold Ch 11**	R/W	0x25C4	Upper Voltage Threshold Ch 11**	R/W
0x2640	Max High Voltage Threshold Ch 12**	R/W	0x2644	Upper Voltage Threshold Ch 12**	R/W

0x20C8	Lower Voltage Threshold Ch 1**	R/W	0x20CC	Min Low Voltage Threshold Ch 1**	R/W
0x2148	Lower Voltage Threshold Ch 2**	R/W	0x214C	Min Low Voltage Threshold Ch 2**	R/W
0x21C8	Lower Voltage Threshold Ch 3**	R/W	0x21CC	Min Low Voltage Threshold Ch 3**	R/W
0x2248	Lower Voltage Threshold Ch 4**	R/W	0x224C	Min Low Voltage Threshold Ch 4**	R/W
0x22C8	Lower Voltage Threshold Ch 5**	R/W	0x22CC	Min Low Voltage Threshold Ch 5**	R/W
0x2348	Lower Voltage Threshold Ch 6**	R/W	0x234C	Min Low Voltage Threshold Ch 6**	R/W
0x23C8	Lower Voltage Threshold Ch 7**	R/W	0x23CC	Min Low Voltage Threshold Ch 7**	R/W
0x2448	Lower Voltage Threshold Ch 8**	R/W	0x244C	Min Low Voltage Threshold Ch 8**	R/W
0x24C8	Lower Voltage Threshold Ch 9**	R/W	0x24CC	Min Low Voltage Threshold Ch 9**	R/W
0x2548	Lower Voltage Threshold Ch 10**	R/W	0x254C	Min Low Voltage Threshold Ch 10**	R/W
0x25C8	Lower Voltage Threshold Ch 11**	R/W	0x25CC	Min Low Voltage Threshold Ch 11**	R/W
0x2648	Lower Voltage Threshold Ch 12**	R/W	0x264C	Min Low Voltage Threshold Ch 12**	R/W

DISCRETE INPUT/OUTPUT MEASUREMENT REGISTERS
NOTE: Base Address - 0x4000 0000
**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x20E0	Voltage Reading Ch 1**	R	0x20E4	Current Reading Ch 1**	R
0x2160	Voltage Reading Ch 2**	R	0x2164	Current Reading Ch 2**	R
0x21E0	Voltage Reading Ch 3**	R	0x21E4	Current Reading Ch 3**	R
0x2260	Voltage Reading Ch 4**	R	0x2264	Current Reading Ch 4**	R
0x22E0	Voltage Reading Ch 5**	R	0x22E4	Current Reading Ch 5**	R
0x2360	Voltage Reading Ch 6**	R	0x2364	Current Reading Ch 6**	R
0x23E0	Voltage Reading Ch 7**	R	0x23E4	Current Reading Ch 7**	R
0x2460	Voltage Reading Ch 8**	R	0x2464	Current Reading Ch 8**	R
0x24E0	Voltage Reading Ch 9**	R	0x24E4	Current Reading Ch 9**	R
0x2560	Voltage Reading Ch 10**	R	0x2564	Current Reading Ch 10**	R
0x25E0	Voltage Reading Ch 11**	R	0x25E4	Current Reading Ch 11**	R
0x2660	Voltage Reading Ch 12**	R	0x2664	Current Reading Ch 12**	R

VCC BANK REGISTERS
NOTE: Base Address - 0x4000 0000
**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1104	Select Pullup or Pulldown	R/W

0x20D0	Pull-Up/Down Current Bank 1 (Ch1-6)**	R/W	0x20EC	VCC Voltage Reading Bank 1 (Ch 1-6)**	R
0x2150	Pull-Up/Down Current Bank 2 (Ch7-12)**	R/W	0x216C	VCC Voltage Reading Bank 2 (Ch 7-12)**	R

DISCRETE INPUT/OUTPUT CONTROL REGISTERS
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x20D4	Debounce Time Ch 1	R/W
0x2154	Debounce Time Ch 2	R/W
0x21D4	Debounce Time Ch 3	R/W
0x2254	Debounce Time Ch 4	R/W
0x22D4	Debounce Time Ch 5	R/W
0x2354	Debounce Time Ch 6	R/W
0x23D4	Debounce Time Ch 7	R/W
0x2454	Debounce Time Ch 8	R/W
0x24D4	Debounce Time Ch 9	R/W
0x2554	Debounce Time Ch 10	R/W
0x25D4	Debounce Time Ch 11	R/W
0x2654	Debounce Time Ch 12	R/W

0x1100	Overcurrent Reset	W

UNIT CONVERSION PROGRAMMING REGISTERS
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x02B4	Enable Floating Point	R/W

USER WATCHDOG TIMER PROGRAMMING REGISTERS
Refer to 'User Watchdog Timer Module Manual' for the User Watchdog Timer Status Function Register Map.

MODULE COMMON REGISTERS
Refer to 'Module Common Registers Module Manual' for the Module Common Registers Function Register Map.

CHANNEL STATUS REGISTER
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x02B0	Channel Status Enable	R/W

BIT REGISTERs
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0).
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0800	Dynamic Status	R
0x0804	Latched Status*	R/W
0x0808	Interrupt Enable	R/W
0x080C	Set Edge/Level Interrupt	R/W

0x1200	Voltage Reading Error Dynamic	R	0x1208	Driver Error Dynamic	R
0x1204	Voltage Reading Error Latched*	R/W	0x120C	Driver Error Latched*	R/W

0x0248	Test Enabled	R/W	0x02AC	Power-on BIT Complete⁺⁺	R
0x02B8	Background BIT Threshold	R/W	0x02BC	BIT Count Clear	W

⁺⁺After power-on, Power-on BIT Complete should be checked before reading the BIT Latched Status.

STATUS REGISTERS
NOTE: Base Address - 0x4000 0000
Low-to-High Transition			High-to-Low Transition
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0810	Dynamic Status	R	0x0820	Dynamic Status	R
0x0814	Latched Status*	R/W	0x0824	Latched Status*	R/W
0x0818	Interrupt Enable	R/W	0x0828	Interrupt Enable	R/W
0x081C	Set Edge/Level Interrupt	R/W	0x082C	Set Edge/Level Interrupt	R/W

Overcurrent			Above Max High Voltage
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0830	Dynamic Status	R	0x0840	Dynamic Status	R
0x0834	Latched Status*	R/W	0x0844	Latched Status*	R/W
0x0838	Interrupt Enable	R/W	0x0848	Interrupt Enable	R/W
0x083C	Set Edge/Level Interrupt	R/W	0x084C	Set Edge/Level Interrupt	R/W

Below Min Low Voltage			Mid-Range Voltage
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0850	Dynamic Status	R	0x0860	Dynamic Status	R
0x0854	Latched Status*	R/W	0x0864	Latched Status*	R/W
0x0858	Interrupt Enable	R/W	0x0868	Interrupt Enable	R/W
0x085C	Set Edge/Level Interrupt	R/W	0x086C	Set Edge/Level Interrupt	R/W

User Watchdog Timer Fault/Inter-FPGA Failure
The Discrete Modules provide registers that support User Watchdog Timer capability. Refer to 'Appendix C: Inboard Discrete I/O User Watchdog Timer Functionality' for the User Watchdog Timer Fault Status Function Register Map.

ENHANCED FUNCTIONALITY REGISTERS
Refer to 'Enhanced Discrete I/O, Digital I/O Functionality Module Manual' for the Function Register Map.

INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address Offsets. These registers are accessed using the absolute addresses listed in the table below. NOTE: Vector/Steering 1-7, 9, & 28 are allocated for the Discrete I/O function; vector/steering 17-24 are allocated for the ARINC Function; vector/steering 1 is shared between the two functions
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0500	Module 1 Interrupt Vector 1 - BIT	R/W	0x0600	Module 1 Interrupt Steering 1 - BIT	R/W
0x0504	Module 1 Interrupt Vector 2 - Low-High	R/W	0x0604	Module 1 Interrupt Steering 2 - Low-High	R/W
0x0508	Module 1 Interrupt Vector 3 - High-Low	R/W	0x0608	Module 1 Interrupt Steering 3 - High-Low	R/W
0x050C	Module 1 Interrupt Vector 4 - Overcurrent	R/W	0x060C	Module 1 Interrupt Steering 4 - Overcurrent	R/W
0x0510	Module 1 Interrupt Vector 5 - Max-High	R/W	0x0610	Module 1 Interrupt Steering 5 - Max-High	R/W
0x0514	Module 1 Interrupt Vector 6 - Min-Low	R/W	0x0614	Module 1 Interrupt Steering 6 - Min-Low	R/W
0x0518	Module 1 Interrupt Vector 7 - Mid Range	R/W	0x0618	Module 1 Interrupt Steering 7 - Mid Range	R/W
0x051C	Module 1 Interrupt Vector 8 - Reserved	R/W	0x061C	Module 1 Interrupt Steering 8 - Reserved	R/W
0x0520	Module 1 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0620	Module 1 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0524 to 0x053C	Module 1 Interrupt Vector 10 to 16 - Reserved	R/W	0x0624 to 0x063C	Module 1 Interrupt Steering 10 to 16 - Reserved	R/W
0x0540	Module 1 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0640	Module 1 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0544	Module 1 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0644	Module 1 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0548	Module 1 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0648	Module 1 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x054C	Module 1 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x064C	Module 1 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0550	Module 1 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0650	Module 1 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0554	Module 1 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0654	Module 1 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0558	Module 1 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0658	Module 1 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x055C	Module 1 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x065C	Module 1 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0560 to 0x0568	Module 1 Interrupt Vector 25 to 27 - Reserved	R/W	0x0660 to 0x0668	Module 1 Interrupt Steering 25 to 27 - Reserved	R/W
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0570 to 0x057C	Module 1 Interrupt Vector 29 to 32 - Reserved	R/W	0x0670 to 0x067C	Module 1 Interrupt Steering 29 to 32 - Reserved	R/W

0x0700	Module 2 Interrupt Vector 1 - BIT	R/W	0x0800	Module 2 Interrupt Steering 1 - BIT	R/W
0x0704	Module 2 Interrupt Vector 2 - Low-High	R/W	0x0804	Module 2 Interrupt Steering 2 - Low-High	R/W
0x0708	Module 2 Interrupt Vector 3 - High-Low	R/W	0x0808	Module 2 Interrupt Steering 3 - High-Low	R/W
0x070C	Module 2 Interrupt Vector 4 - Overcurrent	R/W	0x080C	Module 2 Interrupt Steering 4 - Overcurrent	R/W
0x0710	Module 2 Interrupt Vector 5 - Max-High	R/W	0x0810	Module 2 Interrupt Steering 5 - Max-High	R/W
0x0714	Module 2 Interrupt Vector 6 - Min-Low	R/W	0x0814	Module 2 Interrupt Steering 6 - Min-Low	R/W
0x0718	Module 2 Interrupt Vector 7 - Mid Range	R/W	0x0818	Module 2 Interrupt Steering 7 - Mid Range	R/W
0x071C	Module 2 Interrupt Vector 8 - Reserved	R/W	0x081C	Module 2 Interrupt Steering 8 - Reserved	R/W
0x0720	Module 2 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0820	Module 2 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0724 to 0x073C	Module 2 Interrupt Vector 10 to 16 - Reserved	R/W	0x0824 to 0x083C	Module 2 Interrupt Steering 10 to 16 - Reserved	R/W
0x0740	Module 2 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0840	Module 2 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0744	Module 2 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0844	Module 2 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0748	Module 2 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0848	Module 2 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x074C	Module 2 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x084C	Module 2 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0750	Module 2 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0850	Module 2 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0754	Module 2 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0854	Module 2 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0758	Module 2 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0858	Module 2 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x075C	Module 2 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x085C	Module 2 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0760 to 0x0768	Module 2 Interrupt Vector 25 to 27 - Reserved	R/W	0x0860 to 0x0868	Module 2 Interrupt Steering 25 to 27 - Reserved	R/W
0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0770 to 0x077C	Module 2 Interrupt Vector 29 to 32 - Reserved	R/W	0x0870 to 0x087C	Module 2 Interrupt Steering 29 to 32 - Reserved	R/W

0x0900	Module 3 Interrupt Vector 1 - BIT	R/W	0x0A00	Module 3 Interrupt Steering 1 - BIT	R/W
0x0904	Module 3 Interrupt Vector 2 - Low-High	R/W	0x0A04	Module 3 Interrupt Steering 2 - Low-High	R/W
0x0908	Module 3 Interrupt Vector 3 - High-Low	R/W	0x0A08	Module 3 Interrupt Steering 3 - High-Low	R/W
0x090C	Module 3 Interrupt Vector 4 - Overcurrent	R/W	0x0A0C	Module 3 Interrupt Steering 4 - Overcurrent	R/W
0x0910	Module 3 Interrupt Vector 5 - Max-High	R/W	0x0A10	Module 3 Interrupt Steering 5 - Max-High	R/W
0x0914	Module 3 Interrupt Vector 6 - Min-Low	R/W	0x0A14	Module 3 Interrupt Steering 6 - Min-Low	R/W
0x0918	Module 3 Interrupt Vector 7 - Mid Range	R/W	0x0A18	Module 3 Interrupt Steering 7 - Mid Range	R/W
0x091C	Module 3 Interrupt Vector 8 - Reserved	R/W	0x0A1C	Module 3 Interrupt Steering 8 - Reserved	R/W
0x0920	Module 3 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0A20	Module 3 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0924 to 0x093C	Module 3 Interrupt Vector 10 to 16 - Reserved	R/W	0x0A24 to 0x0A3C	Module 3 Interrupt Steering 10 to 16 - Reserved	R/W
0x0940	Module 3 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0A40	Module 3 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0944	Module 3 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0A44	Module 3 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0948	Module 3 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0A48	Module 3 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x094C	Module 3 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x0A4C	Module 3 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0950	Module 3 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0A50	Module 3 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0954	Module 3 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0A54	Module 3 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0958	Module 3 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0A58	Module 3 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x095C	Module 3 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x0A5C	Module 3 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0960 to 0x0968	Module 3 Interrupt Vector 25 to 27 - Reserved	R/W	0x0A60 to 0x0A68	Module 3 Interrupt Steering 25 to 27 - Reserved	R/W
0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0970 to 0x097C	Module 3 Interrupt Vector 29 to 32 - Reserved	R/W	0x0A70 to 0x0A7C	Module 3 Interrupt Steering 29 to 32 - Reserved	R/W

0x0B00	Module 4 Interrupt Vector 1 - BIT	R/W	0x0C00	Module 4 Interrupt Steering 1 - BIT	R/W
0x0B04	Module 4 Interrupt Vector 2 - Low-High	R/W	0x0C04	Module 4 Interrupt Steering 2 - Low-High	R/W
0x0B08	Module 4 Interrupt Vector 3 - High-Low	R/W	0x0C08	Module 4 Interrupt Steering 3 - High-Low	R/W
0x0B0C	Module 4 Interrupt Vector 4 - Overcurrent	R/W	0x0C0C	Module 4 Interrupt Steering 4 - Overcurrent	R/W
0x0B10	Module 4 Interrupt Vector 5 - Max-High	R/W	0x0C10	Module 4 Interrupt Steering 5 - Max-High	R/W
0x0B14	Module 4 Interrupt Vector 6 - Min-Low	R/W	0x0C14	Module 4 Interrupt Steering 6 - Min-Low	R/W
0x0B18	Module 4 Interrupt Vector 7 - Mid Range	R/W	0x0C18	Module 4 Interrupt Steering 7 - Mid Range	R/W
0x0B1C	Module 4 Interrupt Vector 8 - Reserved	R/W	0x0C1C	Module 4 Interrupt Steering 8 - Reserved	R/W
0x0B20	Module 4 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0C20	Module 4 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0B24 to 0x0B3C	Module 4 Interrupt Vector 10 to 16 - Reserved	R/W	0x0C24 to 0x0C3C	Module 4 Interrupt Steering 10 to 16 - Reserved	R/W
0x0B40	Module 4 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0C40	Module 4 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0B44	Module 4 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0C44	Module 4 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0B48	Module 4 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0C48	Module 4 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x0B4C	Module 4 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x0C4C	Module 4 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0B50	Module 4 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0C50	Module 4 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0B54	Module 4 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0C54	Module 4 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0B58	Module 4 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0C58	Module 4 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x0B5C	Module 4 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x0C5C	Module 4 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0B60 to 0x0B68	Module 4 Interrupt Vector 25 to 27 - Reserved	R/W	0x0C60 to 0x0C68	Module 4 Interrupt Steering 25 to 27 - Reserved	R/W
0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0B70 to 0x0B7C	Module 4 Interrupt Vector 29 to 32 - Reserved	R/W	0x0C70 to 0x0C7C	Module 4 Interrupt Steering 29 to 32 - Reserved	R/W

0x0D00	Module 5 Interrupt Vector 1 - BIT	R/W	0x0E00	Module 5 Interrupt Steering 1 - BIT	R/W
0x0D04	Module 5 Interrupt Vector 2 - Low-High	R/W	0x0E04	Module 5 Interrupt Steering 2 - Low-High	R/W
0x0D08	Module 5 Interrupt Vector 3 - High-Low	R/W	0x0E08	Module 5 Interrupt Steering 3 - High-Low	R/W
0x0D0C	Module 5 Interrupt Vector 4 - Overcurrent	R/W	0x0E0C	Module 5 Interrupt Steering 4 - Overcurrent	R/W
0x0D10	Module 5 Interrupt Vector 5 - Max-High	R/W	0x0E10	Module 5 Interrupt Steering 5 - Max-High	R/W
0x0D14	Module 5 Interrupt Vector 6 - Min-Low	R/W	0x0E14	Module 5 Interrupt Steering 6 - Min-Low	R/W
0x0D18	Module 5 Interrupt Vector 7 - Mid Range	R/W	0x0E18	Module 5 Interrupt Steering 7 - Mid Range	R/W
0x0D1C	Module 5 Interrupt Vector 8 - Reserved	R/W	0x0E1C	Module 5 Interrupt Steering 8 - Reserved	R/W
0x0D20	Module 5 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0E20	Module 5 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0D24 to 0x0D3C	Module 5 Interrupt Vector 10 to 16 - Reserved	R/W	0x0E24 to 0x0E3C	Module 5 Interrupt Steering 10 to 16 - Reserved	R/W
0x0D40	Module 5 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0E40	Module 5 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0D44	Module 5 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0E44	Module 5 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0D48	Module 5 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0E48	Module 5 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x0D4C	Module 5 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x0E4C	Module 5 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0D50	Module 5 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0E50	Module 5 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0D54	Module 5 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0E54	Module 5 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0D58	Module 5 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0E58	Module 5 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x0D5C	Module 5 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x0E5C	Module 5 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0D60 to 0x0D68	Module 5 Interrupt Vector 25 to 27 - Reserved	R/W	0x0E60 to 0x0E68	Module 5 Interrupt Steering 25 to 27 - Reserved	R/W
0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0D70 to 0x0D7C	Module 5 Interrupt Vector 29 to 32 - Reserved	R/W	0x0E70 to 0x0E7C	Module 5 Interrupt Steering 29 to 32 - Reserved	R/W

0x0F00	Module 6 Interrupt Vector 1 - BIT	R/W	0x1000	Module 6 Interrupt Steering 1 - BIT	R/W
0x0F04	Module 6 Interrupt Vector 2 - Low-High	R/W	0x1004	Module 6 Interrupt Steering 2 - Low-High	R/W
0x0F08	Module 6 Interrupt Vector 3 - High-Low	R/W	0x1008	Module 6 Interrupt Steering 3 - High-Low	R/W
0x0F0C	Module 6 Interrupt Vector 4 - Overcurrent	R/W	0x100C	Module 6 Interrupt Steering 4 - Overcurrent	R/W
0x0F10	Module 6 Interrupt Vector 5 - Max-High	R/W	0x1010	Module 6 Interrupt Steering 5 - Max-High	R/W
0x0F14	Module 6 Interrupt Vector 6 - Min-Low	R/W	0x1014	Module 6 Interrupt Steering 6 - Min-Low	R/W
0x0F18	Module 6 Interrupt Vector 7 - Mid Range	R/W	0x1018	Module 6 Interrupt Steering 7 - Mid Range	R/W
0x0F1C	Module 6 Interrupt Vector 8 - Reserved	R/W	0x101C	Module 6 Interrupt Steering 8 - Reserved	R/W
0x0F20	Module 6 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x1020	Module 6 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0F24 to 0x0F3C	Module 6 Interrupt Vector 10 to 16 - Reserved	R/W	0x1024 to 0x103C	Module 6 Interrupt Steering 10 to 16 - Reserved	R/W
0x0F40	Module 6 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x1040	Module 6 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0F44	Module 6 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x1044	Module 6 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0F48	Module 6 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x1048	Module 6 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x0F4C	Module 6 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x104C	Module 6 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0F50	Module 6 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x1050	Module 6 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0F54	Module 6 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x1054	Module 6 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0F58	Module 6 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x1058	Module 6 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x0F5C	Module 6 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x105C	Module 6 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0F60 to 0x0F68	Module 6 Interrupt Vector 25 to 27 - Reserved	R/W	0x1060 to 0x1068	Module 6 Interrupt Steering 25 to 27 - Reserved	R/W
0x106C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0F70 to 0x0F7C	Module 6 Interrupt Vector 29 to 32 - Reserved	R/W	0x1070 to 0x107C	Module 6 Interrupt Steering 29 to 32 - Reserved	R/W

ARINC 429/575 FUNCTION

The ARINC 429/575 communications function is like the standard communications function module (AR1 may be used as a reference/guide within the context of this document).

Principle of Operation

The CM2 provides (8) channels of programmable ARINC-429 communication buses (AR1 module-type). Each channel is software selectable for transmit and/or receive, high or low speed, and odd or no parity. Therefore, AR1 can support multiple ARINC 429 and 575 channels simultaneously.

Receive Operation

Serial BRZ data is decoded for logic states: one, zero or null. Once Word Gap is detected (4 null states) the receiver waits for either a zero or one state to start the serial-to-parallel shift function. If a waveform timing fault is detected before the serial/parallel function is complete, operation is terminated and the receiver returns to waiting for Word Gap detection. The serial-to-parallel output data is validated for odd parity, Label and Serial-to-Digital Interface (SDI).

If message validation (filtering) is enabled, the module compares the SDI/Label of incoming ARINC messages to a list of desired SDI/Labels in validation (match) memory and only stores messages with an SDI/Label in the list. The message is stored in the receive FIFO or mailbox, depending if the channel is in FIFO receive mode or mailbox receive mode. In FIFO Receive Mode, received ARINC messages / words are stored with an associated status word and an optional time-stamp value in the channel’s receive FIFO. Additionally, the Rx FIFO can be set for either bounded or circular mode, which determines FIFO behavior when it is full. In bounded mode, newly received ARINC messages are discarded if the FIFO is full whereas in circular mode, new ARINC messages overwrite the oldest messages in the FIFO. In mailbox mode, received ARINC words are stored in mailboxes or records in RAM that are indexed by the SDI/Label of the ARINC word. Each mailbox contains a status word associated with the message, the ARINC message / word, and an optional 32-bit timestamp value. The status word indicates parity error and new message status.

Transmit Operation

Transmitters are tri-stated when TX is not enabled. Transmit operates in one of three modes: Immediate FIFO, Triggered FIFO, and Scheduled. In immediate mode, ARINC data is sent as soon as data is written to the transmit FIFO. In Triggered FIFO mode, a write to the Transmit Trigger register is needed to start transmission of the transmit FIFO contents. Transmission continues until the FIFO is empty. To transmit more data after the FIFO empties out, issue a new trigger after filling the transmit FIFO with new data.

For either FIFO mode, a transmit FIFO Rate register is provided to control rate of transmission. The contents of this register specify the gap time between transmitted words from the FIFO. The default is the minimum ARINC gap time of 4-bit times.

Schedule mode transmits ARINC data words according to a prebuilt schedule table in Transmit Schedule RAM. In the Schedule table, various commands define what messages are sent and the duration of gaps between each message. Note that a Gap (Gap or Fixed Gap) command must be explicitly added in between each Message command otherwise a gap will not be inserted between messages. The ARINC data words and gap times are stored in the Transmit Message RAM and can be updated on the fly as the schedule executes. A write to the Transmit Trigger register initiates the schedule and commands are executed starting from the first command (address 0x0) in the Schedule RAM. While a schedule is running, an ARINC word can be transmitted asynchronously by writing the async data word to the Async Transmit Data register. After it has transmitted, the Async Data Available bit will be cleared from the Channel Status register and the Async Data Sent Interrupt will be set if enabled. The Async Data Available bit in Channel Status also gets cleared by a Stop Cmd in a schedule or if a Transmit Stop command is issued from the Transmit Stop register. Use the Fixed Gap command instead of the Gap command to disable async transmissions during the schedule gap time. Gap and Fixed Gap commands can both be used when building the transmit schedule.

Schedule Transmit Commands

ARINC 429/575 scheduling is controlled by commands that are written to the Transmit Schedule RAM. The available commands are:

Message
Gap
Fixed Gap
Pause
Schedule Interrupt
Jump
Stop

Schedule Transmit Commands

Command Name	Description
Message	This command takes a parameter that specifies the location in Transmit Message memory containing the ARINC data word to be sent. The word is transmitted when the Message command is executed. This ARINC word can be modified in Tx Message memory while the schedule is running.
Gap	This command takes a parameter that specifies the location in Transmit Message memory containing a 20-bit gap time value. Values less than 4 are invalid. If the previous command was a Message, then that message is transmitted and then the transmitter waits out the specified gap time transmitting nulls. An exception to this is if there is an async data word available. If the gap time is greater or equal to 40 bit times (4-bit gap time plus one ARINC word plus another 4-bit gap time) an async data word, if available, will be transmitted during this time. If a new async data word is made available and the remaining gap time is large enough to accommodate another async data word transmission, then the new async data word will be transmitted after a 4-bit gap time. Multiple async data word transmissions can thus occur as long as the remaining gap time is large enough to accommodate a message and the required minimum 4-bit gap time. Otherwise, the transmitter waits out the remaining gap time before executing the next command.
Fixed Gap	This command takes a parameter that specifies the location in Transmit Message memory containing a 20-bit gap time value. Values less than 4 are invalid. If the previous command was a Message, then that message is transmitted with the specified gap time appended. If the previous command was not a Message, then the transmitter waits for the specified gap time before executing the next command. The difference between the Fixed Gap and Gap command is that Fixed Gap will prevent the transmission of async data words during the gap time. Use Fixed Gap to only allow nulls to be transmitted during the gap time.
Pause	This command causes the transmitter to pause execution of the schedule after transmitting the current word. Either a Transmit Trigger command is issued to resume execution, or a Transmit Stop command is issued to halt execution.
Interrupt	This command causes the Schedule Interrupt to be set if Schedule Interrupt is enabled. An unlatched version of this flag is also visible in the channel status register
Jump	Jumps to the 9-bit address in Schedule memory pointed to by this command and resumes execution there.
Stop	This command causes the transmitter to stop execution of the schedule after transmitting the current word.

ARINC 429/575 Built-in Test

The AR1 function supports three types of built-in tests: Power-On, Continuous Background and Initiated. The results of these tests are logically ORed together and stored in the BIT Dynamic Status and BIT Latched Status registers.

Power-On Self-Test (POST) / Power-on BIT (PBIT) / Start-up BIT(SBIT)

The power-on self-test is performed on each channel automatically when power is applied and reports the results in the BIT Status register when complete. After power-on, the Power-on BIT Complete register should be checked to ensure that POST/PBIT/SBIT test is complete before reading the BIT Dynamic Status and BIT Latched Status registers.

Continuous Background Built-In Test

The background Built-In-Test or Continuous BIT (CBIT) runs in the background for each enabled channel. In Transmit operations, internal transmit data is compared to loop-back data received by the ARINC receivers. When the channel is configured for Receive operation, receive data is continuously monitored via a secondary parallel path circuit and compared to the primary input receive data. If the data does not match, the technique used by the automatic background BIT test consists of an “add-2, subtract-1” counting scheme. The BIT counter is incremented by 2 when a BIT-fault is detected and decremented by 1 when there is no BIT fault detected and the BIT counter is greater than 0. When the BIT counter exceeds the (programmed) Background BIT Threshold value, the specific channel’s fault bit in the BIT status register will be set. The “add-2, subtract-1” counting scheme effectively filters momentary or intermittent anomalies by allowing them to “come and go“ before a BIT fault status or indication is flagged (e.g. BIT faults would register when sustained). This prevents spurious faults from registering valid such as those caused by EMI and/or dirty power causing false BIT faults. Putting more “weight” on errors (“add-2”) and less “weight” on subsequent passing results (subtract-1) will result in a BIT failure indication even if a channel “oscillates” between a pass and fail state. Results of the Continuous BIT are stored in the BIT Dynamic Status and BIT Latched Status register.

Initiated Built-In Test

The Initiated Built-In-Test (IBIT) is an internal loopback available for each channel of the AR1 module. The test is initiated by setting the bit for the associated channel in the Test Enabled register to a 1. Once enabled, they must wait at least 3 msec before checking to see if the bit for the associated channel in the Test Enabled register reads a 0. When the AR1 clears the bit, it means that the test has completed, and its results can be checked. The results of the IBIT is stored in the BIT Dynamic Status and BIT Latched Status registers, a 0 indicates that the channel has passed and a 1 indicates that it failed.

Loop-Back Operation

Transmit and receive operation of an AR1 channel can be verified internally by enabling both Tx and Rx on the same channel. Tx Scheduling is not supported when the channel is placed in this mode.

Transient Protection

Transmit and receive operation of an AR1 channel can be verified internally by enabling both Tx and Rx on the same channel. Tx Scheduling is not supported when the channel is placed in this mode.

Status and Interrupts

The AR1 function of the combination module provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

Module Common Registers

The AR1 function of the combination module includes module common registers that provide access to module-level bare metal/FPGA revisions and compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for detailed information.

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

Receive Registers

The registers listed are associated with data that is received on the AR1 channels. Two modes of message storage are supported: Receive FIFO and Receive Mailbox.

Receive FIFO Mode Registers

The Receive FIFO Mode Registers contain information about ARINC messages that are received via the Receive FIFO buffer on the AR1 channel. The registers associated with this feature are:

Receive FIFO Message Buffer
Receive FIFO Message Count
Receive FIFO Almost Full Threshold
Receive FIFO Size

Receive FIFO Message Buffer
Function:	In FIFO receive mode, the received ARINC messages are stored in this buffer.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	NA
Operational Settings:	Perform two reads from this register to retrieve the Status word and the ARINC data word, respectively. If Time Stamping is enabled, perform one more read to retrieve the timestamp.

Message Status Word

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Data Word

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

*Timestamp Word (if enabled)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

PE = Parity Error	1 - Calculated parity does not match the received parity bit.
N = New message	1 - Message has not been read yet.

Receive FIFO Message Count
Function:	Contains the number of ARINC messages in the receive FIFO in Receive FIFO mode.
Type:	unsigned binary word (32-bit)
Range:	0 to 255
Read/Write:	R
Initialized Value:	0
Operational Settings:	A received message consists of the message status word and the ARINC data word. If time stamping is enabled, a 32-bit timestamp is also included in the message. For example, if this register reads 1, indicating one message is loaded in the receive FIFO, perform two reads from the Receive FIFO Message Buffer register to retrieve the full message (status word and ARINC data word) if time stamping is disabled or perform three reads from the Receive FIFO Message Buffer register to retrieve the full message (status word, ARINC data word and timestamp word) if time stamping is enabled.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Receive FIFO Almost Full Threshold
Function:	Specifies the level of the receive FIFO buffer, equal or above, at which the Rx FIFO Almost Full Status bit D1 in the Channel Status register, is flagged (High True).
Type:	unsigned binary word (32-bit)
Range:	0 to 255
Read/Write:	R/W
Initialized Value:	128 (0x0080)
Operational Settings:	If the Interrupt Enable register interrupt is enabled, a SYSTEM interrupt will be generated when the receive FIFO level increases and reaches the threshold level. This register does NOT get reset by a channel reset.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Receive FIFO Size
Function:	Specifies the size of the Rx FIFO buffer. The default size is 255 messages.
Type:	unsigned binary word (32-bit)
Range:	1 to 255
Read/Write:	R/W
Initialized Value:	255 (0xFF)
Operational Settings:	This setting affects the Rx FIFO size when the Rx FIFO is configured in either Rx FIFO Bounded or Circular mode.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Receive Mailbox Mode Registers

The Receive Mailbox Mode Registers contain information about ARINC messages that are received via mailboxes on the AR1 channel. The registers associated with this feature are:

Receive FIFO SDI/Label Buffer
Receive FIFO SDI/Label Count
Receive FIFO Almost Full Threshold
Receive FIFO Size
Mailbox Status Data
Mailbox Message Data
Mailbox Timestamp Data

Receive FIFO SDI/Label Buffer
Function:	In Mailbox receive mode, SDI/Label of received messages are stored in this buffer.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 03FF
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	In Mailbox receive mode, this FIFO contains the 10-bit SDI/Label of newly received messages. This provides a list to the user showing which mailboxes contain new messages since the last time this FIFO was read.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	A10	A9	A8	A7	A6	A5	A4	A3	A2	A1

A8-A1	Label (A8 is MSB and A1 is LSB)
A10-A9	SDI

Receive FIFO SDI/Label Count
Function:	Contains the number of newly received SDI/Labels in the receive FIFO in Receive Mailbox mode.
Type:	unsigned binary word (32-bit)
Range:	0 to 255
Read/Write:	R
Initialized Value:	0
Operational Settings:	In Mailbox receive mode, this register contains the number of newly received SDI/Labels in the receive FIFO. The user may perform this number of reads on the Receive FIFO SDI/Label Buffer register to retrieve all SDI/Labels.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Receive FIFO Almost Full Threshold
Function:	Specifies the level of the receive FIFO buffer, equal or above, at which the Rx FIFO Almost Full Status bit D1 in the Channel Status register, is flagged (High True).
Type:	unsigned binary word (32-bit)
Range:	0 to 255
Read/Write:	R/W
Initialized Value:	128 (0x0080)
Operational Settings:	If the Interrupt Enable register interrupt is enabled, a SYSTEM interrupt will be generated when the receive FIFO level increases and reaches the threshold level. This register does NOT get reset by a channel reset.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Receive FIFO Size
Function:	Specifies the size of the Rx FIFO buffer. The default size is 255 SDI/Labels.
Type:	unsigned binary word (32-bit)
Range:	1 to 255
Read/Write:	R/W
Initialized Value:	255 (0xFF)
Operational Settings:	This setting affects the Rx FIFO size when the Rx FIFO is configured in either Rx FIFO Bounded or Circular mode.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Mailbox Status Data
Function:	Stores ARINC Status data word.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 0003
Read/Write:	R
Initialized Value:	0
Operational Settings:	This is a 32-bit value that contains status information associated with the received ARINC word. D1 of 1 indicates that the received ARINC word is a new message. D0 of 1 indicates a parity error is present in the ARINC message. There are 1024 Mailbox Status Data registers, one for each SDI/Label. The user can determine which Mailbox Status Data registers contain new data based on newly received SDI/Labels in the receive FIFO.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	N	PE

PE = Parity Error	1 - Calculated parity does not match the received parity bit.
N = New message	1 - This is a new ARINC message.

Mailbox Message Data
Function:	Stores ARINC Message data word.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	This is the 32-bit ARINC data word. There are 1024 Mailbox Message Data registers, one for each SDI/Label. The user can determine which Mailbox Message Data registers contain new data based on newly received SDI/Labels in the receive FIFO.

Mailbox Timestamp Data
Function:	Stores ARINC Timestamp data word.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	This is the 32-bit timestamp associated with the received ARINC word. There are 1024 Mailbox Timestamp Data registers, one for each SDI/Label. The user can determine which Mailbox Timestamp Data registers contain new data based on newly received SDI/Labels in the receive FIFO.

Timestamp Registers

Timestamp Control
Function:	Determines the resolution of the timestamp counter.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 0007
Read/Write:	R/W
Initialized Value:	0 (1 µsec)
Operational Settings:	The LSB can have one of four time values. Set bit D2 to zero out the timestamp counter.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	Z	D	D

Timestamp Control Register
Bit(s)	Name	Description
D31:D3	Reserved	Set Reserved bits to 0.
D2	Zero Timestamp	Set the bit to zero out the timestamp counter.
D1:D0	Resolution	The following sets the Resolution: (0:0) 1 µs ` (0:1) 10 µs ` (1:0) 100 µs + (1:1) 1 ms

Timestamp Value
Function:	Reads the current 32-bit timestamp.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	NA
Operational Settings:	The time value of each LSB is determined by the resolution set in the Timestamp Control register.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Message Validation Registers

Match Enable
Function:	Enables or disables reception of ARINC words containing the associated SDI/Label.
Type:	unsigned binary word (32-bit)
Range:	0 to 1
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	D0 set to 1' enables reception of ARINC words containing the SDI/Label that is associated with the register. This register only takes effect if the MATCH ENABLE bit is set to 1 in the Channel Control Register. There are 1024 Match Enable Data Registers and each register is indexed by the SDI/Label. Note that bit D1 is a reserved bit and is fixed to 1.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	1	D

Transmit Registers

The registers listed are associated with data that is to be transmitted from the AR1 channels. Two modes of message storage are supported: Transmit FIFO and Transmit Scheduling.

Transmit FIFO Registers

The Transmit FIFO Mode Registers contain information about ARINC messages that are to be transmitted via the Transmit FIFO buffer on the AR1 channel. The registers associated with this feature are:

Transmit FIFO Message Buffer
Transmit FIFO Message Count
Transmit FIFO Almost Empty Threshold
Transmit FIFO Rate

Transmit FIFO Message Buffer
Function:	In immediate or triggered FIFO modes, ARINC messages are placed here prior to transmission.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	W
Initialized Value:	N/A
Operational Settings:	ARINC data words are 32-bits. This memory is shared with the Tx Message memory and is only available in Tx FIFO modes.

Transmit FIFO Message Count
Function:	Contains the number of ARINC 32-bit words in the transmit FIFO.
Type:	unsigned binary word (32-bit)
Range:	0 to 255
Read/Write:	R
Initialized Value:	0
Operational Settings:	Used only in the FIFO transmit modes.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Transmit FIFO Almost Empty Threshold
Function:	Specifies the level of the transmit buffer, equal or below, at which the Tx FIFO Almost Empty Status bit D5 in the Channel Status register, is flagged (High True).
Type:	unsigned binary word (32-bit)
Range:	0 to 255
Read/Write:	R/W
Initialized Value:	32 decimal (0x0020)
Operational Settings:	If the Interrupt Enable register interrupt is enabled, a SYSTEM interrupt will be generated when the receive FIFO level increases and reaches the threshold level. This register does NOT get reset by a channel reset.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

Transmit FIFO Rate
Function:	Determines the Gap time between transmitted ARINC messages in FIFO transmit modes.
Type:	unsigned binary word (32-bit)
Range:	0-0x000F FFFF
Read/Write:	R/W
Initialized Value:	4
Mode:	FIFO
Operational Settings:	Each LSB is 1 bit time. Rates less than 4 are not valid. This register does NOT get reset by a channel reset.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Transmit Scheduling Registers

The Transmit Scheduling Registers are utilized when the channel is set up to run a Transmit Schedule. The memories/registers associated with this feature are:

Transmit Schedule RAM
Transmit Message RAM
Async Transmit Data Register

Transmit Schedule RAM Command Format
Function:	The Transmit Schedule RAM consists of 256 32-bit words that are used to set up a self-running transmit schedule. These are the valid command formats for the Transmit Schedule RAM.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 FFFF
Read/Write:	R/W
Initialized Value:	N/A
Operational Settings:	Only bits 0 to 15 are utilized for schedule commands. Bits 12 to 15 specify the command type and bits 0 to 7 or 8 specify the command parameter. Only the Message, Gap, Fixed Gap and Jump commands utilize a command parameter. When the schedule starts, commands are executed sequentially starting from schedule RAM address 0x0.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16	FUNCTION
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	STOP CMD
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	0	1	0	0	0	0	MA7	MA6	MA5	MA4	MA3	MA2	MA1	MA0	MESSAGE CMD¹
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	1	0	0	0	0	0	MA7	MA6	MA5	MA4	MA3	MA2	MA1	MA0	GAP CMD¹
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	0	1	1	0	0	0	0	MA7	MA6	MA5	MA4	MA3	MA2	MA1	MA0	FIXED GAP CMD¹
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	PAUSE CMD
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	1	0	1	0	0	0	0	0	0	0	0	0	0	0	0	SCH INTERRUPT CMD
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	1	1	0	0	0	0	SA8	SA7	SA6	SA5	SA4	SA3	SA2	SA1	SA0	JUMP CMD²
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
0	1	1	1	0	0	0	0	0	0	0	0	0	0	0	0	RESERVED
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
1	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	RESERVED

¹ MA7-MA0	Address of Tx Message memory organized as 256 x 32.
² SA8-SA0	Address of next command in Tx Schedule memory organized as 256 x 32.

Transmit Message RAM Data Format
Function:	The Transmit Message RAM consists of 256 32-bit words that are used by the transmit schedule for ARINC message and gap time word storage.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	N/A
Operational Settings:	Words that are stored in Transmit Message RAM are utilized by Message, Gap, and Fixed Gap commands in the Transmit Schedule. In the case of Message commands, the command parameter specifies an address in Transmit Message RAM that contains the 32-bit ARINC message to transmit. In the case of Gap or Fixed Gap commands, the command parameter specifies an address in Transmit Message RAM that contains the gap time value.

Async Transmit Data
Function:	This memory location is the transmit async buffer.
Type:	unsigned binary word (32-bit)
Range:	0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	While a schedule is running, a single 32-bit ARINC message that is intended to be transmitted asynchronously must be written to this register. When an async data word is written to this register, the Async Data Available status bit will get set until the async data word is transmitted. If a gap (not fixed gap) time is greater or equal to 40 bit times (4-bit gap time plus one ARINC word plus another 4-bit gap time) the async data word, if available, will be transmitted during this time.

Transmit Control Registers

Control of the transmission of ARINC messages includes the ability to start/resume, pause and stop the transmission of the message.

Transmit Trigger
Function:	Sends a trigger command to the transmitter and is used to start transmission in Triggered FIFO or Scheduled Transmit modes.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 0FFF
Read/Write:	W
Initialized Value:	0
Operational Settings:	Set bit to 1 for the channel to resume transmission after a scheduled pause or Transmit pause command.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Transmit Pause
Function:	Sends a command to pause the transmitter after the current word and gap time has finished transmitting.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 0FFF
Read/Write:	W
Initialized Value:	0
Modes Affected:	Triggered FIFO and Schedule Transmit
Operational Settings:	Set bit to 1 for the channel to pause transmission in Triggered FIFO or Scheduled Transmit modes. Issue a Transmit Trigger command to resume transmission or issue a Transmit Stop command to halt transmission.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Transmit Stop
Function:	Sends a command to stop the transmitter after the current word and gap time has been transmitted.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 0FFF
Read/Write:	W
Initialized Value:	0
Modes Affected:	All Transmit modes
Operational Settings:	Set bit to 1 for the channel to stop transmission.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Control Registers

The AR1 function control registers provide the ability to reset all the channels in the AR1 module and configuring and controlling individual AR1 channels.

Channel Control
Function:	Used to configure and control the channels.
Type:	unsigned binary word (32-bit)
Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When writing to this register, the configuration bits must be maintained when setting the control bits.

Bit(s)	CONTROL FUNCTIONS	Description
D31:D22	RESERVED	Set RESERVED bits to 0.
D21	SCHEDULE INTERRUPT CLEAR	When the SCHEDULE INTERRUPT CLEAR bit is set to 1 by the user, the Schedule Interrupt bit (D10) in the Channel Status register can be cleared.
D20	RESERVED	Set RESERVED bits to 0.
D19	CHANNEL RESET	When the CHANNEL RESET bit is set to 1 by the user, the channel is held in reset until the user sets the bit to 0. The channel reset causes Tx and Rx FIFO buffers to clear out but channel configuration settings remain unchanged.
D18	MATCH MEMORY CLEAR	When the MATCH MEMORY CLEAR bit is set to 1 by the user and if MATCH ENABLE bit is set to 1, all 1024 SDI/Labels will be disabled in Rx Match Memory, which means all received ARINC messages will be filtered out and discarded. This is a self-clearing bit. After setting the bit, allow 100 us to complete.
D17	RECEIVE FIFO CLEAR	When the RECEIVE FIFO CLEAR bit is set to 1 then set to 0 by the user, the Rx FIFO buffer is cleared out and the Rx FIFO count goes to zero.
D16	TRANSMIT FIFO CLEAR	When the TRANSMIT FIFO CLEAR bit is set to 1 then set to 0 by the user, the Tx FIFO buffer is cleared out and the Tx FIFO count goes to zero.

Bit(s)	CONFIGURATION FUNCTIONS	Description/Values
D15:D11	RESERVED	Set RESERVED bits to 0.
D10	STORE ON ERROR DISABLE	If the STORE ON ERROR DISABLE bit is cleared (0) and odd parity is enabled, received words that contain a parity error will be stored in the receive buffer or mailbox. When the STORE ON ERROR DISABLE bit is set (1) and odd parity is enabled, received words that contain a parity error will NOT be stored in the receive buffer or mailbox.
D9	RESERVED	Set RESERVED bits to 0.
D8	TIMESTAMP ENABLE	When TIMESTAMP ENABLE bit is set to 1, the receiver will store a 32-bit time stamp value along with the received ARINC word. There is one time stamp counter per module, and it is used across all 8 channels. It has 4 selectable resolutions and can be reset via the Time Stamp Control register. It is recommended to clear the Receive FIFOs whenever the Receive mode or Time Stamp Enable mode is changed to ensure that extraneous data is not leftover from a previous receive operation.
D7	MATCH ENABLE	When the MATCH ENABLE bit is set to 1, the receiver will only store ARINC words which match the SDI/Labels enabled in Rx Match memory.
D6	PARITY DISABLE	The PARITY DISABLE bit when set to 0, causes ARINC bit 32 to be treated as an odd parity bit. The transmitter calculates the ARINC odd parity bit and transmits it as bit 32. The receiver will check the received ARINC word for odd parity and will flag an error if is not. When the PARITY DISABLE bit is set to 1, parity generation and checking will be disabled, and both the transmitter and receiver will treat ARINC bit 32 as data and pass it on unchanged.
D5	HIGH SPEED	The HIGH SPEED bit is used to select the data rate. 12.5 kHz = 0 + 100 kHz = 1
D4:D3	TRANSMIT MODE	The TRANSMIT MODE bits are used to select the Transmit Mode. (0:0) = Immediate FIFO mode ` (0:1) = Schedule mode ` (1:0) = Triggered FIFO mode + (1:1) = Invalid mode
D2	TRANSMIT ENABLE	The TRANSMIT ENABLE bit should be set after all transmit parameters have been set up. This is especially important in Immediate FIFO Transmit mode since this mode will start transmitting as soon as data is put into the Tx FIFO.
D1	RECEIVE MODE	The RECEIVE MODE bit is used to select the storage mode (FIFO or Mailbox) of received messages. FIFO = 0 MBOX = 1
D0	RECEIVER ENABLE	The RECEIVER ENABLE bit should be set after all receive parameters and filters have been set up. After setting this bit, the module will look for a minimum 4-bit gap time before decoding any ARINC bits to prevent it from receiving a partial ARINC word.

Module Reset
Function:	Sends a command to reset the entire 12-channel module to power up conditions.
Type:	unsigned binary word (32-bit)
Range:	0 or 1
Read/Write:	W
Initialized Value:	0
Operational Settings:	All FIFOs are cleared. However, it does not clear out any memories. Set D0 to 1 to reset the module then set to 0 to bring it out of reset.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	1

ARINC 429/575 Test Registers

The AR1 function provides the ability to run an initiated test (IBIT). Writing a 1 to the bit associated with the channel in the Test Enabled register.

Test Enabled
Function:	Set the bit corresponding to the channel you want to run Initiated Built-In-Test.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0x0000 0FFF
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	Set bit to 1 for channel to run an Initiated BIT test. Failures in the BIT test are reflected in the BIT Status registers for the corresponding channels that fail. In addition, an interrupt (if enabled in the BIT Interrupt Enable register) can be triggered when the BIT testing detects failures. Bit is self-clearing and does so upon completion of the test. Allow at least 3 ms per channel for the test enabled bits to clear after enabling. Note that running Initiated BIT test on a channel will interrupt operation of the channel and all FIFOs will get cleared. The system implementation should take this behavior into consideration.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Background BIT Threshold Programming Registers

The Background BIT Threshold register provides the ability to specify the minimum time before the BIT fault is reported in the BIT Status registers. The Reset BIT register provides the ability to reset the BIT counter used in CBIT.

Background BIT Threshold
Function:	Sets background BIT Threshold value to use for all channels for BIT failure indication.
Data Range:	1 to 65,535
Read/Write:	R/W
Initialized Value:	5
Operational Settings:	This value represents the background BIT error “count” that, when surpassed, will cause the BIT status to indicate failure.

BIT Count Clear
Function:	Resets the CBIT internal circuitry and count mechanism. Set the bit corresponding to the channel you want to clear.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0x0000 0FFF
Read/Write:	W
Initialized Value:	0
Operational Settings:	Set bit to 1 for channel to resets the CBIT mechanisms. Bit is self-clearing.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

Status and Interrupt Registers

The AR1 function provides status registers for BIT and Channel.

Channel Status Enable
Function:	Determines whether to update the status for the channels. Does NOT prevent BIT from executing; only prevents the update of results to the status registers. This feature can be used to “mask” status bit updates of unused channels in status registers that are bitmapped by channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 00FF (Channel Status)
Read/Write:	R/W
Initialized Value:	0x0000 00FF
Operational Settings:	When the bit corresponding to a given channel in the Channel Status Enabled register is not enabled (0) the status update will be masked. This applies to all statuses that are bitmapped by channel (BIT Status and Summary Status).

Note

Background BIT will continue to run even if the Channel Status Enabled is set to 0.

Note

If latched status has been set for any channel bit, disabling the channel status update will NOT clear the latched status bit. To clear latched bits and disable their status updates, follow these steps:

Disable channels in Channel Status Enable register.
Read the Latched Status register.
Clear the Latched Status register with the value read from step 2.
Read the Latched Status register; should not read any errors (0) on channels that have been disabled.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

BIT Status

There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

BIT Status
Function:	Sets the corresponding bit associated with the channel's BIT register.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

BIT Status is a shared register between the AR1 and DT4 functions. Bits D11:D0 are dedicated to the DT4 functions and bits D19:D12 are dedicated to the AR1 function.

BIT Dynamic Status

BIT Latched Status

BIT Interrupt Enable

BIT Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

AR1
Ch8

AR1
Ch7

AR1
Ch6

AR1
Ch5

D15

D14

D13

D12

D11

D10

AR1
Ch4

AR1
Ch3

AR1
Ch2

AR1
Ch1

DT4
Ch12

DT4
Ch11

DT4 Ch10

DT4
Ch9

DT4
Ch8

DT4
Ch7

DT4
Ch6

DT4
Ch5

DT4
Ch4

DT4
Ch3

DT4
Ch2

DT4
Ch1

Channel Status

There are four registers associated with the Channel Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. Use this register to read current or real-time status. The Built-In-Test Error bit is latched and will stay set once an error is detected. It can be cleared by reading the BIT Status register. The Schedule Interrupt bit can be cleared by reading the Interrupt Status register when enabled or it can be cleared via the Channel Control register. See specific registers for function description and programming.

The Rx Data Available bit is set when the receive FIFO is not empty. The Rx FIFO Overflow bit will set whenever the receiver must discard data because the receive FIFO was full and new data was received. The Async Data Available bit in Channel Status also gets cleared by a Stop Cmd in a schedule or if a Transmit Stop command is issued from the Transmit Stop register. The Tx Run bit is set whenever the transmitter is executing a schedule or actively transmitting the contents of the transmit FIFO. The Tx Pause bit is set whenever the transmitter has been paused in schedule mode. Some events are NOT latched. They are dynamic.

Channel Status
Function:	Sets the corresponding bit associated with the event type. There are separate registers for each channel.
Function:	Sets the corresponding bit associated with the event type. There are separate registers for each channel.
Type:	unsigned binary word (32-bit)
Range:	0 to 0x0000 3FFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	N/A

Channel Dynamic Status

Channel Latched Status

Channel Interrupt Enable

Channel Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Bit	Description	Configurable?	Configuration Register
D0	Rx Data Available	No
D1	Rx FIFO Almost Full	Yes	Receive FIFO Almost Full Threshold
D2	Rx FIFO Full	Yes	Receive FIFO Size
D3	Rx FIFO Overflow	Yes	Receive FIFO Size
D4	Tx FIFO Empty	No
D5	Tx FIFO Almost Empty	Yes	Transmit FIFO Almost Empty Threshold
D6	Tx FIFO Full	No
D7	Parity Error	No
D8	Receive Error	No
D9	Built-in-Test Error	No
D10	Schedule Interrupt	No
D11	Async Data Available	No
D12	Tx Run	No
D13	Tx Pause	No

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table Read/Write: R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

Function Register Map

KEY

Configuration/Control

Status

Incoming Data

Outgoing Data

RECEIVE FIFO MODE REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1104	Receive FIFO Message Buffer Ch 1	R	0x1110	Receive FIFO Message Count Ch 1	R
0x1204	Receive FIFO Message Buffer Ch 2	R	0x1210	Receive FIFO Message Count Ch 2	R
0x1304	Receive FIFO Message Buffer Ch 3	R	0x1310	Receive FIFO Message Count Ch 3	R
0x1404	Receive FIFO Message Buffer Ch 4	R	0x1410	Receive FIFO Message Count Ch 4	R
0x1504	Receive FIFO Message Buffer Ch 5	R	0x1510	Receive FIFO Message Count Ch 5	R
0x1604	Receive FIFO Message Buffer Ch 6	R	0x1610	Receive FIFO Message Count Ch 6	R
0x1704	Receive FIFO Message Buffer Ch 7	R	0x1710	Receive FIFO Message Count Ch 7	R
0x1804	Receive FIFO Message Buffer Ch 8	R	0x1810	Receive FIFO Message Count Ch 8	R

0x1108	Receive FIFO Almost Full Threshold Ch 1	R/W	0x1124	Receive FIFO Size Ch 1	R/W
0x1208	Receive FIFO Almost Full Threshold Ch 2	R/W	0x1224	Receive FIFO Size Ch 2	R/W
0x1308	Receive FIFO Almost Full Threshold Ch 3	R/W	0x1324	Receive FIFO Size Ch 3	R/W
0x1408	Receive FIFO Almost Full Threshold Ch 4	R/W	0x1424	Receive FIFO Size Ch 4	R/W
0x1508	Receive FIFO Almost Full Threshold Ch 5	R/W	0x1524	Receive FIFO Size Ch 5	R/W
0x1608	Receive FIFO Almost Full Threshold Ch 6	R/W	0x1624	Receive FIFO Size Ch 6	R/W
0x1708	Receive FIFO Almost Full Threshold Ch 7	R/W	0x1724	Receive FIFO Size Ch 7	R/W
0x1808	Receive FIFO Almost Full Threshold Ch 8	R/W	0x1824	Receive FIFO Size Ch 8	R/W

RECEIVE MAILBOX MODE REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1104	Receive FIFO SDI/Label Buffer Ch 1	R	0x1110	Receive FIFO SDI/Label Count Ch 1	R
0x1204	Receive FIFO SDI/Label Buffer Ch 2	R	0x1210	Receive FIFO SDI/Label Count Ch 2	R
0x1304	Receive FIFO SDI/Label Buffer Ch 3	R	0x1310	Receive FIFO SDI/Label Count Ch 3	R
0x1404	Receive FIFO SDI/Label Buffer Ch 4	R	0x1410	Receive FIFO SDI/Label Count Ch 4	R
0x1504	Receive FIFO SDI/Label Buffer Ch 5	R	0x1510	Receive FIFO SDI/Label Count Ch 5	R
0x1604	Receive FIFO SDI/Label Buffer Ch 6	R	0x1610	Receive FIFO SDI/Label Count Ch 6	R
0x1704	Receive FIFO SDI/Label Buffer Ch 7	R	0x1710	Receive FIFO SDI/Label Count Ch 7	R
0x1804	Receive FIFO SDI/Label Buffer Ch 8	R	0x1810	Receive FIFO SDI/Label Count Ch 8	R

0x1108	Receive FIFO Almost Full Threshold Ch 1	R/W	0x1124	Receive FIFO Size Ch 1	R/W
0x1208	Receive FIFO Almost Full Threshold Ch 2	R/W	0x1224	Receive FIFO Size Ch 2	R/W
0x1308	Receive FIFO Almost Full Threshold Ch 3	R/W	0x1324	Receive FIFO Size Ch 3	R/W
0x1408	Receive FIFO Almost Full Threshold Ch 4	R/W	0x1424	Receive FIFO Size Ch 4	R/W
0x1508	Receive FIFO Almost Full Threshold Ch 5	R/W	0x1524	Receive FIFO Size Ch 5	R/W
0x1608	Receive FIFO Almost Full Threshold Ch 6	R/W	0x1624	Receive FIFO Size Ch 6	R/W
0x1708	Receive FIFO Almost Full Threshold Ch 7	R/W	0x1724	Receive FIFO Size Ch 7	R/W
0x1808	Receive FIFO Almost Full Threshold Ch 8	R/W	0x1824	Receive FIFO Size Ch 8	R/W
![](/modules/CM2/images/CM2_Arinc_img01.png)

TIMESTAMP REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x100C	Timestamp Control	R/W	0x1010	Timestamp Value	R

MESSAGE VALIDATION REGISTERS
![](/modules/CM2/images/CM2_Arinc_img02.png)

TRANSMIT FIFO REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1100	Transmit FIFO Message Buffer Ch 1	W	0x1114	Transmit FIFO Message Count Ch 1	R
0x1200	Transmit FIFO Message Buffer Ch 2	W	0x1214	Transmit FIFO Message Count Ch 2	R
0x1300	Transmit FIFO Message Buffer Ch 3	W	0x1314	Transmit FIFO Message Count Ch 3	R
0x1400	Transmit FIFO Message Buffer Ch 4	W	0x1414	Transmit FIFO Message Count Ch 4	R
0x1500	Transmit FIFO Message Buffer Ch 5	W	0x1514	Transmit FIFO Message Count Ch 5	R
0x1600	Transmit FIFO Message Buffer Ch 6	W	0x1614	Transmit FIFO Message Count Ch 6	R
0x1700	Transmit FIFO Message Buffer Ch 7	W	0x1714	Transmit FIFO Message Count Ch 7	R
0x1800	Transmit FIFO Message Buffer Ch 8	W	0x1814	Transmit FIFO Message Count Ch 8	R

0x110C	Transmit FIFO Almost Empty Threshold Ch 1	R/W	0x111C	Transmit FIFO Rate Ch 1	R/W
0x120C	Transmit FIFO Almost Empty Threshold Ch 2	R/W	0x121C	Transmit FIFO Rate Ch 2	R/W
0x130C	Transmit FIFO Almost Empty Threshold Ch 3	R/W	0x131C	Transmit FIFO Rate Ch 3	R/W
0x140C	Transmit FIFO Almost Empty Threshold Ch 4	R/W	0x141C	Transmit FIFO Rate Ch 4	R/W
0x150C	Transmit FIFO Almost Empty Threshold Ch 5	R/W	0x151C	Transmit FIFO Rate Ch 5	R/W
0x160C	Transmit FIFO Almost Empty Threshold Ch 6	R/W	0x161C	Transmit FIFO Rate Ch 6	R/W
0x170C	Transmit FIFO Almost Empty Threshold Ch 7	R/W	0x171C	Transmit FIFO Rate Ch 7	R/W
0x180C	Transmit FIFO Almost Empty Threshold Ch 8	R/W	0x181C	Transmit FIFO Rate Ch 8	R/W

TRANSMIT SCHEDULING REGISTERS
NOTE: Base Address - 0x4010 0000
![](/modules/CM2/images/CM2_Arinc_img03.png)
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1120	Async Transmit Data Ch 1	R/W
0x1220	Async Transmit Data Ch 2	R/W
0x1320	Async Transmit Data Ch 3	R/W
0x1420	Async Transmit Data Ch 4	R/W
0x1520	Async Transmit Data Ch 5	R/W
0x1620	Async Transmit Data Ch 6	R/W
0x1720	Async Transmit Data Ch 7	R/W
0x1820	Async Transmit Data Ch 8	R/W

TRANSMIT CONTROL REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1000	Tx Trigger	R/W	0x1004	Tx Pause	R/W
0x1008	Tx Stop	R/W

CONTROL REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1118	Channel Control Ch 1	R/W	0x1014	Module Reset	W
0x1218	Channel Control Ch 2	R/W
0x1318	Channel Control Ch 3	R/W
0x1418	Channel Control Ch 4	R/W
0x1158	Channel Control Ch 5	R/W
0x1618	Channel Control Ch 6	R/W
0x1718	Channel Control Ch 7	R/W
0x1818	Channel Control Ch 8	R/W

BIT REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a '1' back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0).
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0800	Dynamic Status	R
0x0804	Latched Status*	R/W
0x0808	Interrupt Enable	R/W
0x080C	Set Edge/Level Interrupt	R/W

NOTE: Base Address - 0x4010 0000
0x02B8	Background BIT Threshold	R/W	0x02BC	BIT Count Clear	W

CHANNEL STATUS REGISTERS
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x02B0	Channel Status Enable	R/W

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a '1' back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0).
NOTE: Base Address - 0x4010 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0870	Dynamic Status Ch 1	R	0x0880	Dynamic Status Ch 2	R
0x0874	Latched Status Ch 1*	R/W	0x0884	Latched Status Ch 2*	R/W
0x0878	Interrupt Enable Ch 1	R/W	0x0888	Interrupt Enable Ch 2	R/W
0x087C	Set Edge/Level Interrupt Ch 1	R/W	0x088C	Set Edge/Level Interrupt Ch 2	R/W

0x0890	Dynamic Status Ch 3	R	0x08A0	Dynamic Status Ch 4	R
0x0894	Latched Status Ch 3*	R/W	0x08A4	Latched Status Ch 4*	R/W
0x0898	Interrupt Enable Ch 3	R/W	0x08A8	Interrupt Enable Ch 4	R/W
0x089C	Set Edge/Level Interrupt Ch 3	R/W	0x08AC	Set Edge/Level Interrupt Ch 4	R/W

0x08B0	Dynamic Status Ch 5	R	0x08C0	Dynamic Status Ch 6	R
0x08B4	Latched Status Ch 5*	R/W	0x08C4	Latched Status Ch 6*	R/W
0x08B8	Interrupt Enable Ch 5	R/W	0x08C8	Interrupt Enable Ch 6	R/W
0x08BC	Set Edge/Level Interrupt Ch 5	R/W	0x08CC	Set Edge/Level Interrupt Ch 6	R/W

0x08D0	Dynamic Status Ch 7	R	0x08E0	Dynamic Status Ch 8	R
0x08D4	Latched Status Ch 7*	R/W	0x08E4	Latched Status Ch 8*	R/W
0x08D8	Interrupt Enable Ch 7	R/W	0x08E8	Interrupt Enable Ch 8	R/W
0x08DC	Set Edge/Level Interrupt Ch 7	R/W	0x08EC	Set Edge/Level Interrupt Ch 8	R/W

INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address Offsets. These registers are accessed using the absolute addresses listed in the table below. NOTE: Vector/Steering 1-7, 9, & 28 are allocated for the Discrete I/O function; vector/steering 17-24 are allocated for the ARINC Function; vector/steering 1 is shared between the two functions
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0500	Module 1 Interrupt Vector 1 - BIT	R/W	0x0600	Module 1 Interrupt Steering 1 - BIT	R/W
0x0504	Module 1 Interrupt Vector 2 - Low-High	R/W	0x0604	Module 1 Interrupt Steering 2 - Low-High	R/W
0x0508	Module 1 Interrupt Vector 3 - High-Low	R/W	0x0608	Module 1 Interrupt Steering 3 - High-Low	R/W
0x050C	Module 1 Interrupt Vector 4 - Overcurrent	R/W	0x060C	Module 1 Interrupt Steering 4 - Overcurrent	R/W
0x0510	Module 1 Interrupt Vector 5 - Max-High	R/W	0x0610	Module 1 Interrupt Steering 5 - Max-High	R/W
0x0514	Module 1 Interrupt Vector 6 - Min-Low	R/W	0x0614	Module 1 Interrupt Steering 6 - Min-Low	R/W
0x0518	Module 1 Interrupt Vector 7 - Mid Range	R/W	0x0618	Module 1 Interrupt Steering 7 - Mid Range	R/W
0x051C	Module 1 Interrupt Vector 8 - Reserved	R/W	0x061C	Module 1 Interrupt Steering 8 - Reserved	R/W
0x0520	Module 1 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0620	Module 1 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0524 to 0x053C	Module 1 Interrupt Vector 10 to 16 - Reserved	R/W	0x0624 to 0x063C	Module 1 Interrupt Steering 10 to 16 - Reserved	R/W
0x0540	Module 1 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0640	Module 1 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0544	Module 1 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0644	Module 1 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0548	Module 1 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0648	Module 1 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x054C	Module 1 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x064C	Module 1 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0550	Module 1 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0650	Module 1 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0554	Module 1 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0654	Module 1 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0558	Module 1 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0658	Module 1 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x055C	Module 1 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x065C	Module 1 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0560 to 0x0568	Module 1 Interrupt Vector 25 to 27 - Reserved	R/W	0x0660 to 0x0668	Module 1 Interrupt Steering 25 to 27 - Reserved	R/W
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0570 to 0x057C	Module 1 Interrupt Vector 29 to 32 - Reserved	R/W	0x0670 to 0x067C	Module 1 Interrupt Steering 29 to 32 - Reserved	R/W

0x0700	Module 2 Interrupt Vector 1 - BIT	R/W	0x0800	Module 2 Interrupt Steering 1 - BIT	R/W
0x0704	Module 2 Interrupt Vector 2 - Low-High	R/W	0x0804	Module 2 Interrupt Steering 2 - Low-High	R/W
0x0708	Module 2 Interrupt Vector 3 - High-Low	R/W	0x0808	Module 2 Interrupt Steering 3 - High-Low	R/W
0x070C	Module 2 Interrupt Vector 4 - Overcurrent	R/W	0x080C	Module 2 Interrupt Steering 4 - Overcurrent	R/W
0x0710	Module 2 Interrupt Vector 5 - Max-High	R/W	0x0810	Module 2 Interrupt Steering 5 - Max-High	R/W
0x0714	Module 2 Interrupt Vector 6 - Min-Low	R/W	0x0814	Module 2 Interrupt Steering 6 - Min-Low	R/W
0x0718	Module 2 Interrupt Vector 7 - Mid Range	R/W	0x0818	Module 2 Interrupt Steering 7 - Mid Range	R/W
0x071C	Module 2 Interrupt Vector 8 - Reserved	R/W	0x081C	Module 2 Interrupt Steering 8 - Reserved	R/W
0x0720	Module 2 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0820	Module 2 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0724 to 0x073C	Module 2 Interrupt Vector 10 to 16 - Reserved	R/W	0x0824 to 0x083C	Module 2 Interrupt Steering 10 to 16 - Reserved	R/W
0x0740	Module 2 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0840	Module 2 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0744	Module 2 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0844	Module 2 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0748	Module 2 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0848	Module 2 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x074C	Module 2 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x084C	Module 2 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0750	Module 2 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0850	Module 2 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0754	Module 2 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0854	Module 2 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0758	Module 2 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0858	Module 2 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x075C	Module 2 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x085C	Module 2 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0760 to 0x0768	Module 2 Interrupt Vector 25 to 27 - Reserved	R/W	0x0860 to 0x0868	Module 2 Interrupt Steering 25 to 27 - Reserved	R/W
0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0770 to 0x077C	Module 2 Interrupt Vector 29 to 32 - Reserved	R/W	0x0870 to 0x087C	Module 2 Interrupt Steering 29 to 32 - Reserved	R/W

0x0900	Module 3 Interrupt Vector 1 - BIT	R/W	0x0A00	Module 3 Interrupt Steering 1 - BIT	R/W
0x0904	Module 3 Interrupt Vector 2 - Low-High	R/W	0x0A04	Module 3 Interrupt Steering 2 - Low-High	R/W
0x0908	Module 3 Interrupt Vector 3 - High-Low	R/W	0x0A08	Module 3 Interrupt Steering 3 - High-Low	R/W
0x090C	Module 3 Interrupt Vector 4 - Overcurrent	R/W	0x0A0C	Module 3 Interrupt Steering 4 - Overcurrent	R/W
0x0910	Module 3 Interrupt Vector 5 - Max-High	R/W	0x0A10	Module 3 Interrupt Steering 5 - Max-High	R/W
0x0914	Module 3 Interrupt Vector 6 - Min-Low	R/W	0x0A14	Module 3 Interrupt Steering 6 - Min-Low	R/W
0x0918	Module 3 Interrupt Vector 7 - Mid Range	R/W	0x0A18	Module 3 Interrupt Steering 7 - Mid Range	R/W
0x091C	Module 3 Interrupt Vector 8 - Reserved	R/W	0x0A1C	Module 3 Interrupt Steering 8 - Reserved	R/W
0x0920	Module 3 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0A20	Module 3 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0924 to 0x093C	Module 3 Interrupt Vector 10 to 16 - Reserved	R/W	0x0A24 to 0x0A3C	Module 3 Interrupt Steering 10 to 16 - Reserved	R/W
0x0940	Module 3 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0A40	Module 3 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0944	Module 3 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0A44	Module 3 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0948	Module 3 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0A48	Module 3 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x094C	Module 3 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x0A4C	Module 3 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0950	Module 3 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0A50	Module 3 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0954	Module 3 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0A54	Module 3 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0958	Module 3 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0A58	Module 3 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x095C	Module 3 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x0A5C	Module 3 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0960 to 0x0968	Module 3 Interrupt Vector 25 to 27 - Reserved	R/W	0x0A60 to 0x0A68	Module 3 Interrupt Steering 25 to 27 - Reserved	R/W
0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0970 to 0x097C	Module 3 Interrupt Vector 29 to 32 - Reserved	R/W	0x0A70 to 0x0A7C	Module 3 Interrupt Steering 29 to 32 - Reserved	R/W

0x0B00	Module 4 Interrupt Vector 1 - BIT	R/W	0x0C00	Module 4 Interrupt Steering 1 - BIT	R/W
0x0B04	Module 4 Interrupt Vector 2 - Low-High	R/W	0x0C04	Module 4 Interrupt Steering 2 - Low-High	R/W
0x0B08	Module 4 Interrupt Vector 3 - High-Low	R/W	0x0C08	Module 4 Interrupt Steering 3 - High-Low	R/W
0x0B0C	Module 4 Interrupt Vector 4 - Overcurrent	R/W	0x0C0C	Module 4 Interrupt Steering 4 - Overcurrent	R/W
0x0B10	Module 4 Interrupt Vector 5 - Max-High	R/W	0x0C10	Module 4 Interrupt Steering 5 - Max-High	R/W
0x0B14	Module 4 Interrupt Vector 6 - Min-Low	R/W	0x0C14	Module 4 Interrupt Steering 6 - Min-Low	R/W
0x0B18	Module 4 Interrupt Vector 7 - Mid Range	R/W	0x0C18	Module 4 Interrupt Steering 7 - Mid Range	R/W
0x0B1C	Module 4 Interrupt Vector 8 - Reserved	R/W	0x0C1C	Module 4 Interrupt Steering 8 - Reserved	R/W
0x0B20	Module 4 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0C20	Module 4 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0B24 to 0x0B3C	Module 4 Interrupt Vector 10 to 16 - Reserved	R/W	0x0C24 to 0x0C3C	Module 4 Interrupt Steering 10 to 16 - Reserved	R/W
0x0B40	Module 4 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0C40	Module 4 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0B44	Module 4 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0C44	Module 4 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0B48	Module 4 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0C48	Module 4 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x0B4C	Module 4 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x0C4C	Module 4 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0B50	Module 4 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0C50	Module 4 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0B54	Module 4 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0C54	Module 4 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0B58	Module 4 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0C58	Module 4 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x0B5C	Module 4 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x0C5C	Module 4 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0B60 to 0x0B68	Module 4 Interrupt Vector 25 to 27 - Reserved	R/W	0x0C60 to 0x0C68	Module 4 Interrupt Steering 25 to 27 - Reserved	R/W
0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0B70 to 0x0B7C	Module 4 Interrupt Vector 29 to 32 - Reserved	R/W	0x0C70 to 0x0C7C	Module 4 Interrupt Steering 29 to 32 - Reserved	R/W

0x0D00	Module 5 Interrupt Vector 1 - BIT	R/W	0x0E00	Module 5 Interrupt Steering 1 - BIT	R/W
0x0D04	Module 5 Interrupt Vector 2 - Low-High	R/W	0x0E04	Module 5 Interrupt Steering 2 - Low-High	R/W
0x0D08	Module 5 Interrupt Vector 3 - High-Low	R/W	0x0E08	Module 5 Interrupt Steering 3 - High-Low	R/W
0x0D0C	Module 5 Interrupt Vector 4 - Overcurrent	R/W	0x0E0C	Module 5 Interrupt Steering 4 - Overcurrent	R/W
0x0D10	Module 5 Interrupt Vector 5 - Max-High	R/W	0x0E10	Module 5 Interrupt Steering 5 - Max-High	R/W
0x0D14	Module 5 Interrupt Vector 6 - Min-Low	R/W	0x0E14	Module 5 Interrupt Steering 6 - Min-Low	R/W
0x0D18	Module 5 Interrupt Vector 7 - Mid Range	R/W	0x0E18	Module 5 Interrupt Steering 7 - Mid Range	R/W
0x0D1C	Module 5 Interrupt Vector 8 - Reserved	R/W	0x0E1C	Module 5 Interrupt Steering 8 - Reserved	R/W
0x0D20	Module 5 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x0E20	Module 5 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0D24 to 0x0D3C	Module 5 Interrupt Vector 10 to 16 - Reserved	R/W	0x0E24 to 0x0E3C	Module 5 Interrupt Steering 10 to 16 - Reserved	R/W
0x0D40	Module 5 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x0E40	Module 5 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0D44	Module 5 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x0E44	Module 5 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0D48	Module 5 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x0E48	Module 5 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x0D4C	Module 5 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x0E4C	Module 5 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0D50	Module 5 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x0E50	Module 5 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0D54	Module 5 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x0E54	Module 5 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0D58	Module 5 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x0E58	Module 5 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x0D5C	Module 5 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x0E5C	Module 5 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0D60 to 0x0D68	Module 5 Interrupt Vector 25 to 27 - Reserved	R/W	0x0E60 to 0x0E68	Module 5 Interrupt Steering 25 to 27 - Reserved	R/W
0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0D70 to 0x0D7C	Module 5 Interrupt Vector 29 to 32 - Reserved	R/W	0x0E70 to 0x0E7C	Module 5 Interrupt Steering 29 to 32 - Reserved	R/W

0x0F00	Module 6 Interrupt Vector 1 - BIT	R/W	0x1000	Module 6 Interrupt Steering 1 - BIT	R/W
0x0F04	Module 6 Interrupt Vector 2 - Low-High	R/W	0x1004	Module 6 Interrupt Steering 2 - Low-High	R/W
0x0F08	Module 6 Interrupt Vector 3 - High-Low	R/W	0x1008	Module 6 Interrupt Steering 3 - High-Low	R/W
0x0F0C	Module 6 Interrupt Vector 4 - Overcurrent	R/W	0x100C	Module 6 Interrupt Steering 4 - Overcurrent	R/W
0x0F10	Module 6 Interrupt Vector 5 - Max-High	R/W	0x1010	Module 6 Interrupt Steering 5 - Max-High	R/W
0x0F14	Module 6 Interrupt Vector 6 - Min-Low	R/W	0x1014	Module 6 Interrupt Steering 6 - Min-Low	R/W
0x0F18	Module 6 Interrupt Vector 7 - Mid Range	R/W	0x1018	Module 6 Interrupt Steering 7 - Mid Range	R/W
0x0F1C	Module 6 Interrupt Vector 8 - Reserved	R/W	0x101C	Module 6 Interrupt Steering 8 - Reserved	R/W
0x0F20	Module 6 Interrupt Vector 9 - Inter-FPGA Failure	R/W	0x1020	Module 6 Interrupt Steering 9 - Inter-FPGA Failure	R/W
0x0F24 to 0x0F3C	Module 6 Interrupt Vector 10 to 16 - Reserved	R/W	0x1024 to 0x103C	Module 6 Interrupt Steering 10 to 16 - Reserved	R/W
0x0F40	Module 6 Interrupt Vector 17 - Channel Status Ch 1	R/W	0x1040	Module 6 Interrupt Steering 17 - Channel Status Ch 1	R/W
0x0F44	Module 6 Interrupt Vector 18 - Channel Status Ch 2	R/W	0x1044	Module 6 Interrupt Steering 18 - Channel Status Ch 2	R/W
0x0F48	Module 6 Interrupt Vector 19 - Channel Status Ch 3	R/W	0x1048	Module 6 Interrupt Steering 19 - Channel Status Ch 3	R/W
0x0F4C	Module 6 Interrupt Vector 20 - Channel Status Ch 4	R/W	0x104C	Module 6 Interrupt Steering 20 - Channel Status Ch 4	R/W
0x0F50	Module 6 Interrupt Vector 21 - Channel Status Ch 5	R/W	0x1050	Module 6 Interrupt Steering 21 - Channel Status Ch 5	R/W
0x0F54	Module 6 Interrupt Vector 22 - Channel Status Ch 6	R/W	0x1054	Module 6 Interrupt Steering 22 - Channel Status Ch 6	R/W
0x0F58	Module 6 Interrupt Vector 23 - Channel Status Ch 7	R/W	0x1058	Module 6 Interrupt Steering 23 - Channel Status Ch 7	R/W
0x0F5C	Module 6 Interrupt Vector 24 - Channel Status Ch 8	R/W	0x105C	Module 6 Interrupt Steering 24 - Channel Status Ch 8	R/W
0x0F60 to 0x0F68	Module 6 Interrupt Vector 25 to 27 - Reserved	R/W	0x1060 to 0x1068	Module 6 Interrupt Steering 25 to 27 - Reserved	R/W
0x106C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault	R/W	0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault	R/W
0x0F70 to 0x0F7C	Module 6 Interrupt Vector 29 to 32 - Reserved	R/W	0x1070 to 0x107C	Module 6 Interrupt Steering 29 to 32 - Reserved	R/W

APPENDIX: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

Module Signal (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	8 CH ARINC-429 & 12 CH Discrete I/O (CM2)
DATIO1	2	10	1	2		IO-CH01
DATIO2	24	35	26	27		IO-CH02
DATIO3	3	11	2	3		IO-CH03
DATIO4	25	36	27	28		IO-CH04
DATIO5	5	13	4	5		VCC1 (1-6)
DATIO6	27	38	29	30		DT-IO-GND
DATIO7	7	14	5	6		IO-CH07
DATIO8	29	39	30	31		IO-CH08
DATIO9	8	15	6	7		IO-CH09
DATIO10	30	40	31	32		IO-CH10
DATIO11	10	17	8	9		VCC2 (7-12)
DATIO12	32	42	33	34		DT-IO-GND
DATIO13	12	18	9		17	AR429-A-CH01
DATIO14	34	43	34		42	AR429-B-CH01
DATIO15	13	19	10		18	AR429-A-CH02
DATIO16	35	44	35		43	AR429-B-CH02
DATIO17	15	21	12		20	AR429-A-CH04
DATIO18	37	46	37		45	AR429-B-CH04
DATIO19	17	22	13		21	AR429-A-CH05
DATIO20	39	47	38		46	AR429-B-CH05
DATIO21	18	23	14		22	AR429-A-CH06
DATIO22	40	48	39		47	AR429-B-CH06
DATIO23	20	25	16		24	AR429-A-CH08
DATIO24	42	50	41		49	AR429-B-CH08
DATIO25	4	12	3	4		IO-CH05
DATIO26	26	37	28	29		IO-CH06
DATIO27	9	16	7	8		IO-CH11
DATIO28	31	41	32	33		IO-CH12
DATIO29	14	20	11		19	AR429-A-CH03
DATIO30	36	45	36		44	AR429-B-CH03
DATIO31	19	24	15		23	AR429-A-CH07
DATIO32	41	49	40		48	AR429-B-CH07
DATIO33	6
DATIO34	28
DATIO35	11
DATIO36	33
DATIO37	16
DATIO38	38
DATIO39	21
DATIO40	43
N/A

DOCS.NAII REVISIONS

Revision Date	Description
2026-04-30	Initial release of CM2 manual.

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

No Clearing of Latched Status Clearing of Latched Status (Edge-Triggered) Clearing of Latched Status(Level-Triggered)
Time Dynamic Status Latched Status Action Latched Status Action Latched
T0 0x0 0x0 Read Latched Register 0x0 Read Latched Register 0x0
T1 0x1 0x1 Read Latched Register 0x1 0x1
T1 0x1 0x1 Write 0x1 to Latched Register Write 0x1 to Latched Register
T1 0x1 0x1 0x0 0x1
T2 0x0 0x1 Read Latched Register 0x0 Read Latched Register 0x1
T2 0x0 0x1 Read Latched Register 0x0 Write 0x1 to Latched Register
T2 0x0 0x1 Read Latched Register 0x0 0x0
T3 0x2 0x3 Read Latched Register 0x2 Read Latched Register 0x2
T3 0x2 0x3 Write 0x2 to Latched Register Write 0x2 to Latched Register
T3 0x2 0x3 0x0 0x2
T4 0x2 0x3 Read Latched Register 0x1 Read Latched Register 0x3
T4 0x2 0x3 Write 0x1 to Latched Register Write 0x3 to Latched Register
T4 0x2 0x3 0x0 0x2
T5 0xC 0xF Read Latched Register 0xC Read Latched Register 0xE
T5 0xC 0xF Write 0xC to Latched Register Write 0xE to Latched Register
T5 0xC 0xF 0x0 0xC
T6 0xC 0xF Read Latched Register 0x0 Read Latched 0xC
T6 0xC 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T6 0xC 0xF Read Latched Register 0x0 0xC
T7 0x4 0xF Read Latched Register 0x0 Read Latched Register 0xC
T7 0x4 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T7 0x4 0xF Read Latched Register 0x0 0x4
T8 0x4 0xF Read Latched Register 0x0 Read Latched Register 0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time Latched Status (Edge-Triggered - Clear Multi-Channel) Latched Status (Edge-Triggered - Clear Single Channel) 2+ Latched Status (Level-Triggered - Clear Multi-Channel) Action
Latched Action Latched Action Latched T1 (Int 1)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 T1 (Int 1)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x1 to Latched Register T1 (Int 1)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T2. 0x1 T3 (Int 2)
Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 T3 (Int 2)
Write 0x2 to Latched Register Write 0x2 to Latched Register Write 0x2 to Latched Register T3 (Int 2)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T4 (Int 3)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x3 T4 (Int 3)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x3 to Latched Register T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5. 0x3 T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T6 (Int 4)
Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xE T6 (Int 4)
Write 0xC to Latched Register Write 0x4 to Latched Register Write 0xE to Latched Register T6 (Int 4)
0x0 Interrupt re-triggers++``+
Write 0x8 to Latched Register 0x8 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7. 0xE T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8. 0xC T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always. 0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

The User Watchdog Timer (UWDT) Capability is available on the following modules:

AC Reference Source Modules

AC1 - 1 Channel, 2-115 Vrms, 47 Hz - 20kHz

AC2 - 2 Channels, 2-28 Vrms, 47 Hz - 20kHz

AC3 - 1 Channel, 28-115 Vrms, 47 Hz - 2.5 kHz

Differential Transceiver Modules

DF1/DF2 - 16 Channels Differential I/O

Digital-to-Analog (D/A) Modules

DA1 - 12 Channels, ±10 VDC @ 25 mA, Voltage or Current Control Modes

DA2 - 16 Channels, ±10 VDC @ 10 mA

DA3 - 4 Channels, ±40 VDC @ ±100 mA, Voltage or Current Control Modes

DA4 - 4 Channels, ±80 VDC @ 10 mA

DA5 - 4 Channels, ±65 VDC or ±2 A, Voltage or Current Control Modes

Digital-to-Synchro/Resolver (D/S) or Digital-to-L( R )VDT (D/LV) Modules

(Not supported)

Discrete I/O Modules

DT1/DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 - 60 VCC source.

DT2/DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

DT3/DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

TTL/CMOS Modules

TL1-TL8 - 24 Channels, Programmable for either input or output.

Principle of Operation

The User Watchdog Timer is optionally activated by the applications that require the module’s outputs to be disabled as a failsafe in the event of an application failure or crash. The circuit is designed such that a specific periodic write strobe pattern must be executed by the software to maintain operation and prevent the disablement from taking place.

The User Watchdog Timer is inactive until the application sends an initial strobe by writing the value 0x55AA to the UWDT Strobe register. After activating the User Watchdog Timer, the application must continually strobe the timer within the intervals specified with the configurable UWDT Quiet Time and UWDT Window registers. The timing of the strobes must be consistent with the following rules:

The application must not strobe during the Quiet time.

The application must strobe within the Window time.

The application must not strobe more than once in a single window time.

A violation of any of these rules will trigger a User Watchdog Timer fault and result in shutting down any isolated power supplies and/or disabling any active drive outputs, as applicable for the specific module. Upon a User Watchdog Timer event, recovery to the module shutting down will require the module to be reset.

The Figure 1 and Figure 2 provides an overview and an example with actual values for the User Watchdog Timer Strobes, Quiet Time and Window. As depicted in the diagrams, there are two processes that run in parallel. The Strobe event starts the timer for the beginning of the “Quiet Time”. The timer for the Previous Strobe event continues to run to ensure that no additional Strobes are received within the “Window” associated with the Previous Strobe.

The optimal target for the user watchdog strobes should be at the interval of [Quiet time + ½ Window time] after the previous strobe, which will place the strobe in the center of the window. This affords the greatest margin of safety against unintended disablement in critical operations.

Figure 1. User Watchdog Timer Overview

Figure 2. User Watchdog Timer Example

Figure 3. User Watchdog Timer Failures

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

User Watchdog Timer Registers

The registers associated with the User Watchdog Timer provide the ability to specify the UWDT Quiet Time and the UWDT Window that will be monitored to ensure that EXACTLY ONE User Watchdog Timer (UWDT) Strobe is written within the window.

UWDT Quiet Time
Function: Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.
UWDT Window
Function: Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.
UWDT Strobe
Function: Writes the strobe value to be use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0x55AA
Read/Write: W
Initialized Value: 0x0
Operational Settings: At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

Status and Interrupt

The modules that are capable of User Watchdog Timer support provide status registers for the User Watchdog Timer.

User Watchdog Timer Status

The status register that contains the User Watchdog Timer Fault information is also used to indicate channel Inter-FPGA failures on modules that have communication between FPGA components. There are four registers associated with the User Watchdog Timer Fault/Inter-FPGA Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Function: Sets the corresponding bit (D31) associated with the channel’s User Watchdog Timer Fault error.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Set Edge/Level Interrupt)
Initialized Value: 0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s) Status Description
D31 User Watchdog Timer Fault Status 0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0 Reserved for Inter-FPGA Failure Status Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function: Set an identifier for the interrupt.
Type: unsigned binary word (32-bit)
Data Range: 0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function: Sets where to direct the interrupt.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME 1
Direct Interrupt to ARM Processor (via SerDes)
(Custom App on ARM or NAI Ethernet Listener App) 2
Direct Interrupt to PCIe Bus 5
Direct Interrupt to cPCI Bus 6

Function Register Map

KEY

Configuration/Control
Measurement/Status

USER WATCHDOG TIMER REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x01C0 UWDT Quiet Time R/W
0x01C4 UWDT Window R/W
0x01C8 UWDT Strobe R/W
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x09B0 Dynamic Status R
0x09B4 Latched Status* R/W
0x09B8 Interrupt Enable R/W
0x09BC Set Edge/Level Interrupt R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x056C Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x066C Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x076C Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x086C Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x096C Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0A6C Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0B6C Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0C6C Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0D6C Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0E6C Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0F6C Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x106C Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function: FPGA firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Compile Timestamp
Function: Compile Timestamp for the FPGA firmware.
Type: unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the compile timestamp of the board's FPGA
Operational Settings: The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
day (5-bits) month (4-bits) year (6-bits) hr
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
hour (5-bits) minutes (6-bits) seconds (6-bits)

FPGA SerDes Revision
Function: FPGA SerDes revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the SerDes revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Template Revision
Function: FPGA Template revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the template revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Zynq Block Revision
Function: FPGA Zynq Block revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function: Bare Metal firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's Bare Metal
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Compile Time
Function: Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function: FSBL firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FSBL
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FSBL Compile Time
Function: Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function: Unique 128-bit identifier used to identify the interface board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the interface board
Operational Settings: This register is for information purposes only.

Functional Board Serial Number
Function: Unique 128-bit identifier used to identify the functional board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the functional board
Operational Settings: This register is for information purposes only.

Module Capability
Function: Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x0000 0107
Read/Write: R
Initialized Value: 0x0000 0107
Operational Settings: A “1” in the bit associated with the capability indicates that it is supported.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 Flt-Pt 0 0 0 0 0 Pack FIFO Blk Blk

Module Memory Map Revision
Function: Module Memory Map revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Module Memory Map Revision
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function: Measured PCB and Zynq Core temperatures on Interface Board.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Current Temperature
Function: Measured PCB temperature on Functional Board.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Interface Board Maximum Temperature
Function: Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Interface Board Minimum Temperature
Function: Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Maximum Temperature
Function: Maximum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Functional Board Minimum Temperature
Function: Minimum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function: Higher precision measured Zynq Core temperature on Interface Board.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Zynq Core temperature on Interface Board
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function: Higher precision measured Interface PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Interface PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function: Higher precision measured Functional PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Functional PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function: The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s) Sensor
D31:D6 Reserved
D5 Functional Board PCB Temperature
D4 Interface Board PCB Temperature
D3:D0 Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function: Reflects which threshold has been crossed
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s) Description
D31:D4 Reserved
D3 Exceeded Upper Critical Threshold
D2 Exceeded Upper Warning Threshold
D1 Exceeded Lower Critical Threshold
D0 Exceeded Lower Warning Threshold

Sensor Current Reading
Function: Reflects current reading of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function: Reflects minimum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function: Reflects maximum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function: Reflects lower warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function: Reflects lower critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function: Reflects upper warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function: Reflects upper critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control
Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x003C FPGA Revision R 0x0074 Bare Metal Revision R
0x0030 FPGA Compile Timestamp R 0x0080 Bare Metal Compile Time (Bit 0-31) R
0x0034 FPGA SerDes Revision R 0x0084 Bare Metal Compile Time (Bit 32-63) R
0x0038 FPGA Template Revision R 0x0088 Bare Metal Compile Time (Bit 64-95) R
0x0040 FPGA Zynq Block Revision R 0x008C Bare Metal Compile Time (Bit 96-127) R
0x0090 Bare Metal Compile Time (Bit 128-159) R
0x0094 Bare Metal Compile Time (Bit 160-191) R
0x007C FSBL Revision R
0x00B0 FSBL Compile Time (Bit 0-31) R
0x00B4 FSBL Compile Time (Bit 32-63) R
0x00B8 FSBL Compile Time (Bit 64-95) R
0x00BC FSBL Compile Time (Bit 96-127) R
0x00C0 FSBL Compile Time (Bit 128-159) R
0x00C4 FSBL Compile Time (Bit 160-191) R
0x0000 Interface Board Serial Number (Bit 0-31) R 0x0010 Functional Board Serial Number (Bit 0-31) R
0x0034 Interface Board Serial Number (Bit 32-63) R 0x0014 Functional Board Serial Number (Bit 32-63) R
0x0008 Interface Board Serial Number (Bit 64-95) R 0x0018 Functional Board Serial Number (Bit 64-95) R
0x000C Interface Board Serial Number (Bit 96-127) R 0x001C Functional Board Serial Number (Bit 96-127) R
0x0070 Module Capability R
0x01FC Module Memory Map Revision R
MODULE MEASUREMENTS REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0200 Interface Board PCB/Zynq Current Temp R 0x0208 Functional Board PCB Current Temp R
0x0218 Interface Board PCB/Zynq Max Temp R 0x0228 Functional Board PCB Max Temp R
0x0220 Interface Board PCB/Zynq Min Temp R 0x0230 Functional Board PCB Min Temp R
0x02C0 Higher Precision Zynq Core Temperature R
0x02C4 Higher Precision Interface PCB Temperature R
0x02E0 Higher Precision Functional PCB Temperature R
MODULE HEALTH MONITORING REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x07F8 Module Sensor Summary Status R
![](/_shared/images/Module_Sensor_Registers_Memory_Map.png)

REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision Revision Date Description
C 2023-08-11 ECO C10649, initial release of module common registers manual.
C1 2024-05-15 ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2 2024-07-10 ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date Description
2025-11-05 Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02 Formatting updates to document; no technical changes.
Link to original

ENHANCED INPUT/OUTPUT FUNCTIONALITY CAPABILITY

The Enhanced Input/Output Functionality Capability is available on the following modules:

Differential Transceiver Modules

DF2 - 16 Channels Differential I/O

Discrete I/O Modules

DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 – 60 VCC source.

DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

TTL/CMOS Modules

TL2, TL4, TL6 and TL8 - 24 Channels, Programmable for either input or output.

PRINCIPLE OF OPERATION

The modules listed in Enhanced Input/Output Functionality Capability provide enhanced input and output mode functionality. For incoming signals (inputs), the enhanced modes include Pulse, Frequency and Period measurements. For outputs, the enhanced modes include PWM (Pulse Width Modulation) and Pattern Generation.

Input Modes

All input modes may be configured with debounce capability. Debounce capability allows configurable filtering of noisy signals and transients. Each channel may be set to an individual debounce time value. When a debounce time is set to a non-zero value, the signal reading after a transition must remain at the same level for the debounce interval before it is propagated through, otherwise it is rejected.

The waveform shown in Figure 1 will be used to illustrate the behavior for each input mode.

Figure 1. Incoming Signal Example Used to illustrate Input Modes

Pulse Measurements

There are two Pulse Measurements features available - High Time Pulse Measurements and Low Time Pulse Measurements. The Pulse Measurement data is stored in the FIFO Buffer.

High Time Pulse Measurements

In this input mode, the data in the FIFO buffer is the measurement for each rising transition to the next falling one. Timing measurements record the time interval (in 10 µs ticks) from a pair of transitions.

Figure 2 - High Time Pulse Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

1500 (0x0000 05DC)

2500 (0x0000 09C4)

1000 (0x0000 03E8)

Time Interval Calculations High Time Pulse Measurements
1 1500 counts * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec
2 2500 counts * 10 µsec = 25000 µsec = 25.0 msec 25.0 msec
3 1000 counts * 10 µsec = 10000 µsec = 10.0 msec 10.0 msec

Low Time Pulse Measurements

In this mode, the data in the FIFO buffer is the measurement for each falling edge to the next rising edge. Timing measurements record the time interval (in 10 µs ticks) from a pair of transitions.

Figure 3. Low Time Pulse Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

2000 (0x0000 07D0)

500 (0x0000 01F4)

1500 (0x0000 05DC)

Time Interval Calculations Low Time Pulse Measurements
1 2000 counts * 10 µsec = 2000 µsec = 20.0 msec 20.0 msec
2 500 counts * 10 µsec = 5000 µsec = 5.0 msec 5.0 msec
3 1500 counts * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec

Transition Timestamps

There are three Transition Timestamp Measurements features available - Transition Timestamp for All Rising Edges, Transition Timestamp for All Falling Edges, and Transition Timestamp for All Edges. The Transition Timestamps Measurement data are store in the FIFO Buffer.

Transition Timestamp of All Rising Edges

In this mode, the data in the FIFO buffer is the Rising Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 4. Transition Timestamp of All Rising Edges Input Mode

For this example, the FIFO Word Count register will be set to 4 and the FIFO Buffer Data register will contain the following four values (counts of 10 µs):

1000 (0x0000 03E8)

4500 (0x0000 1194)

7500 (0x0000 1D4C)

10000 (0x000 2710)

This data can be interpreted as follows:

Time Interval Calculations Time Between Rising Edges
1 to 2 4500 counts * 10 µsec = 35000 µsec = 35.0 msec 35.0 msec
2 to 3 7500 counts * 10 µsec = 30000 µsec = 30.0 msec 30.0 msec
3 to 4 10000 counts * 10 µsec = 25000 µsec = 25.0 msec 25.0 msec

Transition Timestamp of All Falling Edges

In this mode, the data in the FIFO buffer is the Falling Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 5. Transition Timestamp of All Falling Edges Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

2500 (0x0000 09C4)

7000 (0x0000 1B58)

8500 (0x0000 2134)

This data can be interpreted as follows:

Time Interval Calculations Time Between Falling Edges
1 to 2 7000 - 2500 = 4500 counts = 4500 * 10 µsec = 45000 µsec = 45.0 msec 45.0 msec
2 to 3 8500 - 7000 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec

Transition Timestamp of All Edges

In this mode, the data in the FIFO buffer is the Rising and Falling Edge Timestamp. The timestamp is a 32-bit counter that is incremented at the rate of 100 kHz (in other words, counter is incremented every 10 µsec). The timestamp is can be reset by the application at any time.

Figure 6. Transition Timestamp for All Edges Input Mode

For this example, the FIFO Word Count register will be set to 7 and the FIFO Buffer Data register will contain the following seven values (counts of 10 µs):

1000 (0x0000 03E8)

2500 (0x0000 09C4)

4500 (0x0000 1194)

7000 (0x0000 1B58)

7500 (0x0000 1D4C)

8500 (0x0000 2134)

10000 (0x000 2710)

This data can be interpreted as follows:

Time Interval Calculations Time Between Edges
1 to 2 2500 - 1000 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec
2 to 3 4500 - 2500 = 2000 counts = 2000 * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
3 to 4 7000 - 4500 = 2500 counts = 2500 * 10 µsec = 25000 µsec = 25.0 msec 25.0 msec
4 to 5 7500 - 7000 = 500 counts = 500 * 10 µsec = 5000 µsec = 5.0 msec 5.0 msec
5 to 6 8500 - 7500 = 1000 counts = 1000 * 10 µsec = 10000 µsec = 10.0 msec 10.0 msec
6 to 7 10000 - 8500 = 1500 counts = 1500 * 10 µsec = 15000 µsec = 15.0 msec 15.0 msec

Transition Counter

There are three Transition Counter features available - Rising Edge Transition Counter, Falling Edge Transition Counter and All Edge Transition Counter.

Rising Edges Transition Counter

In this mode, the count of the number of Rising Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time.

Figure 7. Rising Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 4.

Falling Edges Transition Counter

In this mode, the count of the number of Falling Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time

Figure 8. Falling Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 3.

All Edges Transition Counter

In this mode, the count of the number of Rising and Falling Edges is recorded. The counter is a 32-bit counter. The counter is can be reset by the application at any time.

Figure 9. All Edges Transition Counter Input Mode

For this example, the Transition Count register will be set to 7.

Period Measurement

In this input mode, the data in the FIFO buffer is the measurement for each rising edge transition to the next rising edge transition. Timing measurements record the time interval (in 10 µs ticks).

Figure 10. Period Measurement Input Mode

For this example, the FIFO Word Count register will be set to 4 and the FIFO Buffer Data register will contain the following three values (counts of 10 µs):

2000 (0x0000 07D0)

2000 (0x0000 07D0)

2000 (0x0000 07D0)

2000 (0x0000 07D0)

Time Interval Calculations Period Measurements
1 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
2 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
3 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec
4 2000 counts * 10 µsec = 20000 µsec = 20.0 msec 20.0 msec

Frequency Measurement

In this input mode, the data in the FIFO buffer is the number of rising edge transitions for the programmable time interval programmed in the Frequency Measurement Period register.

For this example, set the Frequency Measurement Period register = 4000 (4000 * 10 µs = 40000 µs = 40 msec)

Figure 11. Frequency Measurement Input Mode

For this example, the FIFO Word Count register will be set to 3 and the FIFO Buffer Data register will contain the following three values (number of rising edges:

2 (0x0000 0002)

2 (0x0000 0002)

2 (0x0000 0002)

Time Interval Calculations Frequency Measurements
1 2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz 50 Hz
2 2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz 50 Hz
3 2 counts/40 msec = 2 counts/0.04 seconds = 50 Hz 50 Hz

Output Modes

There are three Enhanced Output Functionality modes: two PWM outputs and one Pattern Generator Output mode.

PWM Output

There are two PWM output modes, PWM Continuous and PWM Burst. The PWM timing is very precise with low jitter. In PWM Output mode, the Mode Select register is set to either “PWM Continuous or PWM Burst”. The value written to the PWM Period register specifies the period to output the PWM signal, the value written to the PWM Pulse Width register specifies the time for the “ON” state, and the value written to the PWM Output Polarity register specifies the initial edge of the output. For PWM Burst mode, the PWM Number of Cycles register specifies the number of cycles to output the signal. Note, there may be an initial “OFF” state level delay based on the Period time before the initial pulse is output.

PWM Continuous

Figure 12 and Figure 13 illustrate the PWM Continuous Output signal, one configured with PWM Output Polarity = Positive (0) and one configured with PWM Output Polarity = Negative (1). The configured PWM output is enabled and disabled with the Enable Measurements/Outputs register.

Figure 12. PWM Continuous Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Positive (0))

Figure 13. PWM Continuous Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Negative (1))

PWM Burst

Figure 14 and Figure 15 illustrate the PWM Burst Output signal with the PWM Number of Cycles = 5 pulses, one configured with PWM Output Polarity = Positive (0) and one configured with PWM Output Polarity = Negative (1). The configured PWM output is enabled with the Enable Measurements/Outputs register. Once the number of pulses that were requested is outputted, the value in the Enable Measurements/Outputs register will be reset (self-clearing) to allow for the output to be re-enabled.

Figure 14. PWM Burst Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Positive (0), PWM Number of Cycles = 5)

Figure 15. PWM Burst Output (PWM Period = 15 msec, PWM Pulse Width = 10 msec, PWM Output Polarity = Negative (1), PWM Number of Cycles = 5)

Pattern Generator

For the Pattern Generator mode, there is 64K block of unsigned 32-bit words allocated to specify the data pattern for the output channels. The data in each 32-bit word is bit-mapped per channel. The Pattern RAM Start Address and Pattern RAM End Address registers specify the starting and ending address in the 64K block to use as the data to output for each channel configured for Pattern Generator mode. The Pattern RAM Period register specifies the pattern rate. The Pattern RAM Control and Pattern RAM Number of Cycles control the Pattern Generator output - Continuous, Burst with a specified number of cycles, Pause, or External Trigger from input from Channel 1.

Note

When any channel is configured for External Trigger Pattern Generator mode, Channel 1 MUST be set as an input.

Figure 16 illustrates the output of the 24 channels for the DT4 module all configured in Pattern Generator mode

Figure 16. Pattern Generator

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

Enhanced Input/Output Functionality Registers

The onboard Discrete I/O option provides enhanced input and output mode functionality. The Mode Select and Enable Output/Measurement registers are general control registers for the different enhanced input and output modes.

Mode Select
Function: Configures the Enhanced Functionality Modes to apply to the channel.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: It is important that the channel is correctly configured to either input or output in the Input/Output Format registers to correspond to the Enhanced Functionality Mode selected. Setting a 0 to this register will configure that channel to normal operation.

Mode Select Value (Decimal) Mode Select Value (Hexadecimal) Description
0 0x0000 0000 Enhanced Functionality Disabled
Input Enhanced Functionality Mode
1 0x0000 0001 High Time Pulse Measurements
2 0x0000 0002 Low Time Pulse Measurements
3 0x0000 0003 Transition Timestamp of All Rising Edges
4 0x0000 0004 Transition Timestamp of All Falling Edges
5 0x0000 0005 Transition Timestamp of All Edges
6 0x0000 0006 Rising Edges Transition Counter
7 0x0000 0007 Falling Edges Transition Counter
8 0x0000 0008 All Edges Transition Counter
9 0x0000 0009 Period Measurement
10 0x0000 000A Frequency Measurement
Output Enhanced Functionality Mode
32 0x0000 0020 PWM Continuous
33 0x0000 0021 PWM Burst
34 0x0000 0022 Pattern Generator

Enable Measurements/Outputs
Function: Enables/starts the measurements or outputs based on the Mode Select for the channel.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Setting the bit for the associated channel to a 1 will start the measurement or output depending on the Mode Select configuration for that channel. Setting the bit for the associated channel to 0 will stop the measurements/outputs.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

Input Mode Registers

After configuring the Mode Select register, write a 1 to the Reset Timer/Counter register resets the channel’s timestamp and counter used for input modes. Write a 1 to the Enable Measurements/Outputs register to begin the measurement of the input signal. Write a 0 to the Enable Measurements/Outputs register to stop the measurement of the input signal. The data can be read either while the measurements are being made on input signals or after stopping the measurements.

Reset Timer/Counter
Function: Resets the measurement timestamp and counter for the channel.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: W
Initialized Value: 0
Operational Settings: Setting the bit for the associated channel to a 1 will: reset the timestamp used for the Pulse Measurements mode (1-2), Transition Timestamp mode (3-5), and Period Measurement mode (9) and Frequency Measurement mode (10) reset the counter used for Transition Counter mode (6-8)

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

FIFO Registers

The FIFO registers are used for the following input modes:

Pulse Measurements mode (1-2)

Transition Timestamp mode (3-5)

Period Measurement mode (9)

Frequency Measurement mode (10)

FIFO Buffer Data
Function: The data stored in the FIFO Buffer Data is dependent on the input mode.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: N/A
Operational Settings: Refer to examples in Input Modes.

FIFO Word Count
Function: This is a counter that reports the number of 32-bit words stored in the FIFO buffer.
Type: unsigned binary word (32-bit)
Data Range: 0 - 255 (0x0000 0000 to 0x0000 00FF)
Read/Write: R
Initialized Value: 0
Operational Settings: Every time a read operation is made from the FIFO Buffer Data register, the value in the FIFO Word Count register will be decremented by one. The maximum number of words that can be stored in the FIFO is 255.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 D D D D D D D D D

Clear FIFO
Function: Clears FIFO by resetting the FIFO Word Count register.
Type: unsigned binary word (32-bit)
Data Range: 0 or 1
Read/Write: W
Initialized Value: N/A
Operational Settings: Write a 1 to resets the Words in FIFO to zero; Clear FIFO register does not clear data in the buffer. A read to the buffer data will give “aged” data.

Bit Description
D31:D1 Reserved. Set to 0
D0 Set to 1 to reset the FIFO Word Count value to zero.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 D

FIFO Status
Function: Sets the corresponding bit associated with the FIFO status type; there is a separate register for each channel.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R
Initialized Value: 0

Bit Name Description
D31:D4 Reserved Set to 0
D3 Empty Set to 1 when FIFO Word Count = 0
D2 Almost Empty Set to 1 when FIFO Word Count <= 63 (25%)
D1 Almost Full Set to 1 when FIFO Word Count >= 191 (75%)
D0 Full Set to 1 when FIFO Word Count = 255

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 0 0 0 0 D D D D

Transition Count Registers

The Transition Count register are used for the following input modes:

Transition Counter mode (6-8)

Transition Count
Function: Contains the count of the transitions depending on the configuration in the Mode Select register - Rising Edges, Falling Edges or All Edges.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: 0
Operational Settings: Refer to examples in Transition Counter.

Frequency Measurement Registers

For the Frequency Measurement mode, the period to perform the frequency measurements must be specified in the Frequency Measurement Period register.

Frequency Measurement Period
Function: When the Mode Select register is programmed for Frequency Measurement mode (10), the value in the Frequency Measurement Period is used as the time interval for counting the number of rising edge transitions within that interval.
Type: unsigned binary word (32-bit)
Data Range: 0x0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the Frequency Measurement Period (LSB = 10 µs). Refer to examples in Frequency Measurement.

Output Modes Registers

After configuring the Mode Select register, write a 1 to the Enable Measurements/Outputs register to outputting the signal. Write a 0 to the Enable Measurements/Outputs register to stop the output signal.

PWM Registers

The PWM Period, PWM Pulse Width and PWM Output Polarity registers configure the PWM output signal. When the Mode Select register is configured for PWM Burst mode, the PWM Number of Cycles register is used to specify the number of cycles to repeat for the burst.

PWM Period
Function: When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Period is used as the time interval for outputting the PWM signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the PWM Period (LSB = 10 µs). The PWM Period must be greater than the value set in the PWM Pulse Width register. Refer to examples in PWM Output.

PWM Pulse Width
Function: When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Pulse Width is used as the time interval of the “ON” state for outputting the PWM signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the PWM Pulse Width (LSB = 10 µs). The PWM Pulse Width must be less than the value set in the PWM Pulse Width register. Refer to examples in PWM Output.

PWM Output Polarity
Function: When the Mode Select register is programmed for PWM Continuous or PWM Burst mode (32-33), the value in the PWM Output Polarity is used to specify whether the PWM output signal starts with a rising edge (Positive (0)), or a falling edge (Negative (1)).
Type: unsigned binary word (32-bit)
Data Range: 0x0 to 0x00FF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: The PWM Output Polarity register is used to program the starting edge of the PWM Pulse Period (rising or falling). When the PWM output Polarity is set to Positive (0), the output will start with a rising edge, when it's set to Negative (1), the output will start with a falling edge. The default is Positive (0), which is set when the PWM Polarity bit is 0. Refer to examples in PWM Output.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

PWM Number of Cycles
Function: When the Mode Select register is programmed for PWM Burst mode (33), the value in the PWM Number of Cycles is used to specify the number of times to repeat the PWM output signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the number of times to output the PWM signal. Refer to examples in PWM Output.

Pattern Generator Registers

The Pattern RAM registers are a 64K block of unsigned 32-bit words allocated to specify the data pattern for the output channels. The Pattern RAM Start Address, Pattern RAM End Address, Pattern RAM Period and Pattern RAM Control registers configure the Pattern Generator output signals. When the Pattern RAM Control register is configured for Burst, the Pattern RAM Number of Cycles specify the number of cycles to repeat the pattern for the burst.

Pattern RAM
Function: Pattern Generator Memory Block from 0x40000 to 0x7FFFC.
Type: unsigned binary word (32-bit)
Address Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: R /W
Initialized Value: 0
Operational Settings: 64K block of unsigned 32-bit words. The data in each 32-bit word is bit-mapped per channel.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch24 Ch23 Ch22 Ch21 Ch20 Ch19 Ch18 Ch17
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9 Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1

Pattern RAM Start Address
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the Pattern RAM Start Address register specifies the starting address within the Pattern RAM block registers to use for the output.
Type: unsigned binary word (32-bit)
Data Range: 0x0004 0000 to 0x0007 FFFC
Read/Write: R/W
Initialized Value: 0
Operational Settings: The value in the Pattern RAM Start Address must be LESS than the value in the Pattern RAM End Address.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 D D D
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D D D D D D D D D D D D D D D D

Pattern RAM End Address
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the Pattern RAM End Address register specifies the end address within the Pattern RAM block registers to use for the output.
Type: unsigned binary word (32-bit)
Data Range: 0x40000 to 0x7FFFC
Read/Write: R/W
Initialized Value: 0
Operational Settings: The value in the Pattern RAM End Address must be GREATER than the value in the Pattern RAM Start Address.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 D D D
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
D D D D D D D D D D D D D D D D

Pattern RAM Period
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the value in the Pattern RAM Period is used as the time interval for outputting the Pattern Generator signals.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the Pattern RAM Period (LSB = 10 µs).

Pattern RAM Control
Function: When the Mode Select register is programmed for Pattern Generator mode (34), the value in the Pattern RAM Control is used to control the outputting of the Pattern Generator signals.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: Configures the Pattern Generator for Continuous, Burst with a specified number of cycles, Pause, or External Trigger from input from Channel 1.

Note

When any channel is configured for External Trigger Pattern Generator mode, Channel 1 MUST be set as an input.

Bits Description
D31-D5 Reserved. Set to 0
D4 Falling Edge External Trigger - Channel 1 used as the input for the trigger
D3 Rising Edge External Trigger - Channel 1 used as the input for the trigger
D2 Pause
D1 Burst Mode - value in Pattern RAM Number of Cycles register defines number of cycles to output
D0 Enable Pattern Generator

Values Description
0x0000 Disable Pattern Generator, Continuous Mode, No External Trigger
0x0001 Enable Pattern Generator, Continuous Mode, No External Trigger
0x0002 Disable Pattern Generator, Burst Mode, No External Trigger
0x0003 Enable Pattern Generator, Burst Mode, No External Trigger
0x0005 Enable Pattern Generator, Continuous Mode, Pause, No External Trigger
0x0007 Enable Pattern Generator, Burst Mode, Pause, No External Trigger
0x0008 Disable Pattern Generator, Continuous Mode, Rising External Trigger
0x0009 Enable Pattern Generator, Continuous Mode, Rising External Trigger
0x000A Disable Pattern Generator, Burst Mode, Rising External Trigger
0x000B Enable Pattern Generator, Burst Mode, Rising External Trigger
0x000D Enable Pattern Generator, Continuous Mode, Pause, Rising External Trigger
0x000F Enable Pattern Generator, Burst Mode, Pause, Rising External Trigger
0x1000 Disable Pattern Generator, Continuous Mode, Falling External Trigger
0x1001 Enable Pattern Generator, Continuous Mode, Falling External Trigger
0x1002 Disable Pattern Generator, Burst Mode, Falling External Trigger
0x1003 Enable Pattern Generator, Burst Mode, Falling External Trigger
0x1005 Enable Pattern Generator, Continuous Mode, Pause, Falling External Trigger
0x1007 Enable Pattern Generator, Burst Mode, Pause, Falling External Trigger
0x0004, 0x0006, 0x000C, 0x000E, 0x1004, 0x1006, 0x1008-0x100F Invalid

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 0 0 0 0 D D D D

Pattern RAM Number of Cycles
Function: When the Mode Select register is programmed for Pattern Generator mode (34) and the Pattern RAM Control register is set for Burst mode, the value in the Pattern RAM Number of Cycles is used to specify the number of times to repeat the pattern output signal.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0001 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set the number of times to output the pattern.

FUNCTION REGISTER MAP

Key:

Configuration/Control
Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

MODE SELECT REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x300C Mode Select Ch 1 R/W
0x308C Mode Select Ch 2 R/W
0x310C Mode Select Ch 3 R/W
0x318C Mode Select Ch 4 R/W
0x320C Mode Select Ch 5 R/W
0x328C Mode Select Ch 6 R/W
0x330C Mode Select Ch 7 R/W
0x338C Mode Select Ch 8 R/W
0x340C Mode Select Ch 9 R/W
0x348C Mode Select Ch 10 R/W
0x350C Mode Select Ch 11 R/W
0x358C Mode Select Ch 12 R/W
0x360C Mode Select Ch 13 R/W
0x368C Mode Select Ch 14 R/W
0x370C Mode Select Ch 15 R/W
0x378C Mode Select Ch 16 R/W
0x380C Mode Select Ch 17 R/W
0x388C Mode Select Ch 18 R/W
0x390C Mode Select Ch 19 R/W
0x398C Mode Select Ch 20 R/W
0x3A0C Mode Select Ch 21 R/W
0x3A8C Mode Select Ch 22 R/W
0x3B0C Mode Select Ch 23 R/W
0x3B8C Mode Select Ch 24 R/W
0x2000 Enable Measurements/Outputs R/W
INPUT MODES REGISTER
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x2004 Reset Timer/Counter W
FIFO REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3000 FIFO Buffer Data Ch 1 R 0x3004 FIFO Word Count Ch 1 R
0x3080 FIFO Buffer Data Ch 2 R 0x3084 FIFO Word Count Ch 2 R
0x3100 FIFO Buffer Data Ch 3 R 0x3104 FIFO Word Count Ch 3 R
0x3180 FIFO Buffer Data Ch 4 R 0x3184 FIFO Word Count Ch 4 R
0x3200 FIFO Buffer Data Ch 5 R 0x3204 FIFO Word Count Ch 5 R
0x3280 FIFO Buffer Data Ch 6 R 0x3284 FIFO Word Count Ch 6 R
0x3300 FIFO Buffer Data Ch 7 R 0x3304 FIFO Word Count Ch 7 R
0x3380 FIFO Buffer Data Ch 8 R 0x3384 FIFO Word Count Ch 8 R
0x3400 FIFO Buffer Data Ch 9 R 0x3404 FIFO Word Count Ch 9 R
0x3480 FIFO Buffer Data Ch 10 R 0x3484 FIFO Word Count Ch 10 R
0x3500 FIFO Buffer Data Ch 11 R 0x3504 FIFO Word Count Ch 11 R
0x3580 FIFO Buffer Data Ch 12 R 0x3584 FIFO Word Count Ch 12 R
0x3600 FIFO Buffer Data Ch 13 R 0x3604 FIFO Word Count Ch 13 R
0x3680 FIFO Buffer Data Ch 14 R 0x3684 FIFO Word Count Ch 14 R
0x3700 FIFO Buffer Data Ch 15 R 0x3704 FIFO Word Count Ch 15 R
0x3780 FIFO Buffer Data Ch 16 R 0x3784 FIFO Word Count Ch 16 R
0x3800 FIFO Buffer Data Ch 17 R 0x3804 FIFO Word Count Ch 17 R
0x3880 FIFO Buffer Data Ch 18 R 0x3884 FIFO Word Count Ch 18 R
0x3900 FIFO Buffer Data Ch 19 R 0x3904 FIFO Word Count Ch 19 R
0x3980 FIFO Buffer Data Ch 20 R 0x3984 FIFO Word Count Ch 20 R
0x3A00 FIFO Buffer Data Ch 21 R 0x3A04 FIFO Word Count Ch 21 R
0x3A80 FIFO Buffer Data Ch 22 R 0x3A84 FIFO Word Count Ch 22 R
0x3B00 FIFO Buffer Data Ch 23 R 0x3B04 FIFO Word Count Ch 23 R
0x3B80 FIFO Buffer Data Ch 24 R 0x3B84 FIFO Word Count Ch 24 R
0x3008 FIFO Status Ch 1 R
0x3088 FIFO Status Ch 2 R
0x3108 FIFO Status Ch 3 R
0x3188 FIFO Status Ch 4 R
0x3208 FIFO Status Ch 5 R
0x3288 FIFO Status Ch 6 R
0x3308 FIFO Status Ch 7 R
0x3388 FIFO Status Ch 8 R
0x3408 FIFO Status Ch 9 R
0x3488 FIFO Status Ch 10 R
0x3508 FIFO Status Ch 11 R
0x3588 FIFO Status Ch 12 R
0x3608 FIFO Status Ch 13 R
0x3688 FIFO Status Ch 14 R
0x3708 FIFO Status Ch 15 R
0x3788 FIFO Status Ch 16 R
0x3808 FIFO Status Ch 17 R
0x3888 FIFO Status Ch 18 R
0x3908 FIFO Status Ch 19 R
0x3988 FIFO Status Ch 20 R
0x3A08 FIFO Status Ch 21 R
0x3A88 FIFO Status Ch 22 R
0x3B08 FIFO Status Ch 23 R
0x3B88 FIFO Status Ch 24 R
0x2008 Reset FIFO W
TRANSITION COUNT REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3000 Transition Count Ch 1 R
0x3080 Transition Count Ch 2 R
0x3100 Transition Count Ch 3 R
0x3180 Transition Count Ch 4 R
0x3200 Transition Count Ch 5 R
0x3280 Transition Count Ch 6 R
0x3300 Transition Count Ch 7 R
0x3380 Transition Count Ch 8 R
0x3400 Transition Count Ch 9 R
0x3480 Transition Count Ch 10 R
0x3500 Transition Count Ch 11 R
0x3580 Transition Count Ch 12 R
0x3600 Transition Count Ch 13 R
0x3680 Transition Count Ch 14 R
0x3700 Transition Count Ch 15 R
0x3780 Transition Count Ch 16 R
0x3800 Transition Count Ch 17 R
0x3880 Transition Count Ch 18 R
0x3900 Transition Count Ch 19 R
0x3980 Transition Count Ch 20 R
0x3A00 Transition Count Ch 21 R
0x3A80 Transition Count Ch 22 R
0x3B00 Transition Count Ch 23 R
0x3B80 Transition Count Ch 24 R
FREQUENCY MEASUREMENT REGISTERS
NOTE: Base Address - 0x9010 C000
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3014 Frequency Measurement Period Ch 1 R/W
0x3094 Frequency Measurement Period Ch 2 R/W
0x3114 Frequency Measurement Period Ch 3 R/W
0x3194 Frequency Measurement Period Ch 4 R/W
0x3214 Frequency Measurement Period Ch 5 R/W
0x3294 Frequency Measurement Period Ch 6 R/W
0x3314 Frequency Measurement Period Ch 7 R/W
0x3394 Frequency Measurement Period Ch 8 R/W
0x3414 Frequency Measurement Period Ch 9 R/W
0x3494 Frequency Measurement Period Ch 10 R/W
0x3514 Frequency Measurement Period Ch 11 R/W
0x3594 Frequency Measurement Period Ch 12 R/W
0x3614 Frequency Measurement Period Ch 13 R/W
0x3694 Frequency Measurement Period Ch 14 R/W
0x3714 Frequency Measurement Period Ch 15 R/W
0x3794 Frequency Measurement Period Ch 16 R/W
0x3814 Frequency Measurement Period Ch 17 R/W
0x3894 Frequency Measurement Period Ch 18 R/W
0x3914 Frequency Measurement Period Ch 19 R/W
0x3994 Frequency Measurement Period Ch 20 R/W
0x3A14 Frequency Measurement Period Ch 21 R/W
0x3A94 Frequency Measurement Period Ch 22 R/W
0x3B14 Frequency Measurement Period Ch 23 R/W
0x3B94 Frequency Measurement Period Ch 24 R/W
PWM REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x3014 PWM Period Ch 1 R/W 0x3010 PWM Pulse Width Ch 1 R/W
0x3094 PWM Period Ch 2 R/W 0x3090 PWM Pulse Width Ch 2 R/W
0x3114 PWM Period Ch 3 R/W 0x3110 PWM Pulse Width Ch 3 R/W
0x3194 PWM Period Ch 4 R/W 0x3190 PWM Pulse Width Ch 4 R/W
0x3214 PWM Period Ch 5 R/W 0x3210 PWM Pulse Width Ch 5 R/W
0x3294 PWM Period Ch 6 R/W 0x3290 PWM Pulse Width Ch 6 R/W
0x3314 PWM Period Ch 7 R/W 0x3310 PWM Pulse Width Ch 7 R/W
0x3394 PWM Period Ch 8 R/W 0x3390 PWM Pulse Width Ch 8 R/W
0x3414 PWM Period Ch 9 R/W 0x3410 PWM Pulse Width Ch 9 R/W
0x3494 PWM Period Ch 10 R/W 0x3490 PWM Pulse Width Ch 10 R/W
0x3514 PWM Period Ch 11 R/W 0x3510 PWM Pulse Width Ch 11 R/W
0x3594 PWM Period Ch 12 R/W 0x3590 PWM Pulse Width Ch 12 R/W
0x3614 PWM Period Ch 13 R/W 0x3610 PWM Pulse Width Ch 13 R/W
0x3694 PWM Period Ch 14 R/W 0x3690 PWM Pulse Width Ch 14 R/W
0x3714 PWM Period Ch 15 R/W 0x3710 PWM Pulse Width Ch 15 R/W
0x3794 PWM Period Ch 16 R/W 0x3790 PWM Pulse Width Ch 16 R/W
0x3814 PWM Period Ch 17 R/W 0x3810 PWM Pulse Width Ch 17 R/W
0x3894 PWM Period Ch 18 R/W 0x3890 PWM Pulse Width Ch 18 R/W
0x3914 PWM Period Ch 19 R/W 0x3910 PWM Pulse Width Ch 19 R/W
0x3994 PWM Period Ch 20 R/W 0x3990 PWM Pulse Width Ch 20 R/W
0x3A14 PWM Period Ch 21 R/W 0x3A10 PWM Pulse Width Ch 21 R/W
0x3A94 PWM Period Ch 22 R/W 0x3A90 PWM Pulse Width Ch 22 R/W
0x3B14 PWM Period Ch 23 R/W 0x3B10 PWM Pulse Width Ch 23 R/W
0x3B94 PWM Period Ch 24 R/W 0x3B90 PWM Pulse Width Ch 24 R/W
0x3018 PWM Number of Cycles Ch 1 R/W
0x3098 PWM Number of Cycles Ch 2 R/W
0x3118 PWM Number of Cycles Ch 3 R/W
0x3198 PWM Number of Cycles Ch 4 R/W
0x3218 PWM Number of Cycles Ch 5 R/W
0x3298 PWM Number of Cycles Ch 6 R/W
0x3318 PWM Number of Cycles Ch 7 R/W
0x3398 PWM Number of Cycles Ch 8 R/W
0x3418 PWM Number of Cycles Ch 9 R/W
0x3498 PWM Number of Cycles Ch 10 R/W
0x3518 PWM Number of Cycles Ch 11 R/W
0x3598 PWM Number of Cycles Ch 12 R/W
0x3618 PWM Number of Cycles Ch 13 R/W
0x3698 PWM Number of Cycles Ch 14 R/W
0x3718 PWM Number of Cycles Ch 15 R/W
0x3798 PWM Number of Cycles Ch 16 R/W
0x3818 PWM Number of Cycles Ch 17 R/W
0x3898 PWM Number of Cycles Ch 18 R/W
0x3918 PWM Number of Cycles Ch 19 R/W
0x3998 PWM Number of Cycles Ch 20 R/W
0x3A18 PWM Number of Cycles Ch 21 R/W
0x3A98 PWM Number of Cycles Ch 22 R/W
0x3B18 PWM Number of Cycles Ch 23 R/W
0x3B98 PWM Number of Cycles Ch 24 R/W
0x200C PWM Output Polarity R/W
PATTERN GENERATOR REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0004_0000 to 0x0007_FFFC Pattern RAM R/W
0x2010 Pattern RAM Period R/W 0x2014 Pattern RAM Start Address R/W
0x2018 Pattern RAM End Address R/W 0x201C Pattern RAM Control R/W
0x2020 Pattern RAM Number of Cycles R/W

REVISION HISTORY

Module Manual - Enhanced IO Functionality Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100
Link to original

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	A10	A9	A8	A7	A6	A5	A4	A3	A2	A1

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	A10	A9	A8	A7	A6	A5	A4	A3	A2	A1

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

NAI Documentation

Explorer

INTRODUCTION

CM2 Overview

Discrete I/O (DT4 Module-Type) Features

ARINC 429/575 (AR1 Module-Type) Features

DISCRETE I/O FUNCTION

Principle of Operation

Input/Output Interface

Output

Input

Input/Output Circuits

Discrete I/O Threshold Programming

Debounce Programming

Automatic Background Built-In Test (BIT)/Diagnostic Capability

Status and Interrupts

Module Common Registers

Unit Conversions

User Watchdog Timer Capability

Enhanced Functionality

Register Description

Discrete Input/Output Registers

Discrete Input/Output Voltage Threshold Programming Registers

Discrete Input/Output Measurement Registers

VCC Bank Registers

Discrete Input/Output Control Registers

Unit Conversion Programming Registers

Background BIT Threshold Programming Registers

User Watchdog Timer Programming Registers

Module Common Registers

Status and Interrupt Registers

BIT Status

Low-to-High Transition Status

High-to-Low Transition Status

Overcurrent Status

Above Max High Voltage Status

Below Min Low Voltage Status

Mid-Range Voltage Status

User Watchdog Timer Fault Status

Inter-FPGA Failure Status

Interrupt Vector and Steering

Enhanced Functionality Registers

Function Register Map

ARINC 429/575 FUNCTION

Principle of Operation

Receive Operation

Transmit Operation

Schedule Transmit Commands

Schedule Transmit Commands

ARINC 429/575 Built-in Test

Power-On Self-Test (POST) / Power-on BIT (PBIT) / Start-up BIT(SBIT)

Continuous Background Built-In Test

Initiated Built-In Test

Loop-Back Operation

Transient Protection

Status and Interrupts

Module Common Registers

Register Descriptions

Receive Registers

Receive FIFO Mode Registers

Receive Mailbox Mode Registers

Timestamp Registers

Message Validation Registers

Transmit Registers

Transmit FIFO Registers

Transmit Scheduling Registers

Transmit Control Registers

Control Registers

ARINC 429/575 Test Registers

Background BIT Threshold Programming Registers

Module Common Registers

Status and Interrupt Registers

BIT Status

Channel Status

Interrupt Vector and Steering

Function Register Map

APPENDIX: PIN-OUT DETAILS

STATUS AND INTERRUPTS

Interrupt Vector and Steering

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	A10	A9	A8	A7	A6	A5	A4	A3	A2	A1

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	D	D	D	D	D	D	D	D
