This module manual provides information about the North Atlantic Industries, Inc. (NAI) Strain Gauge (SG) Measurement Function Module: SG1.
This module is compatible with all latest generation NAI motherboards.
The SG1 provides four differential input channels for load cell & accelerometer measurement.
FEATURES
Four independent, isolated input A/Ds
Designed to read output signals from a completed Wheatstone bridge
Used in applications requiring pressure, weight and stress transducers interface/measurement.
On-chip digital filtering for wide dynamic range signal measurement
DC excitation for load and accelerometer gauge interface (programmable from 2-12 VDC)
Onboard management of A/D interface, register access and sample timing
Internal and system calibration included
PRINCIPLE OF OPERATION

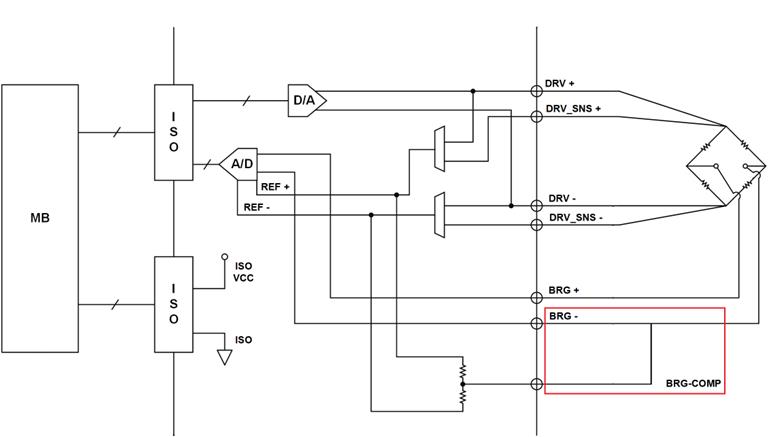

The SG1 module is NAI’s latest generation Strain Gauge Measurement Module. This intelligent, four-channel module is used on our multifunction
embedded boards and SBCs to provide load cell and accelerometer element measurement interfaces.
While there are several methods of measuring mechanical strain, the most common is with a strain gauge. The gauge provides electrical
resistance that varies in proportion to the amount of strain in the device. The most widely used gauge is the bonded metallic strain gauge. To
measure such small changes in resistance, strain gauges are almost always used in a bridge configuration with a voltage excitation source. The
general Wheatstone bridge (conventional, 4-arm bridge) consists of four resistive arms with an excitation voltage, Vexc, that is applied across the
bridge.
The SG1 module uses four independent, isolated input A/Ds. This module is designed to read output signals from a completed Wheatstone bridge
(i.e., it can be used with one or more strain gauge elements as a completed 4-arm Wheatstone bridge) and is commonly used in applications
requiring pressure, weight, and stress transducers interface/measurement. Each channel incorporates a Σ–Δ (Sigma-Delta) modulator, a PGA,
and on-chip digital filtering intended for the measurement of wide dynamic range signals. Each channel also contains a fourth order digital filter,
with several programmable filter options. When properly applied, the filter has deep notches at either 50 or 60 Hz.
The SG1 module provides a DC excitation, programmable from 2 - 12 VDC for interfacing to most load and accelerometer gauges.
The on-board processor/FPGA resources remove the user from the details of managing the A/D interface, register access, and sample timing.
The processor firmware provides the user with a simpler user interface with high-level commands and post-calibration data. The module also
contains internal factory calibration values stored in Flash.
Automatic Background Built-in Test (BIT)/Diagnostic Capability
Automatic background BIT testing is provided. Each channel is checked at periodic intervals for correct A/D operation. Any failure triggers an
interrupt if enabled, with the results available in the status registers. The testing is transparent to the user and has no effect on the operation of
this module.
Status and Interrupts
The SG Strain Gauge Measurement Module provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for
the Principle of Operation description.
Module Common Registers
The SG Strain Gauge Measurement Module includes module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.
REGISTER DESCRIPTIONS
The register descriptions provide the Register Name, Type, Data Range, Read or Write information, power on default initialized values, a
description of the function and a data table where applicable.
SG1 Measurement Registers
The SG1 measurement registers provide Vout/Vexc ratio measurements, strain measurements, and minimum/maximum strain readings.
Vout/Vexc
Function:
Measures the ratio of the bridge output voltage to the excitation voltage.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1.0 to +1.0
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
Vout/Vexc measurement in V/V
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
Strain
Function:
Measures the level of mechanical strain.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
Strain is calculated based on the Vout/Vexc reading, bridge configuration type, nominal strain gauge resistance, gauge factor, Poisson ratio, and lead resistance. Units are in micro-strain (µε).
Minimum Strain
Function:
Stores the minimum strain level. When a new strain reading is lower than the value in this register, it will replace it.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
Reset this value to zero by writing to the min/max reset register.
Maximum Strain
Function:
Stores the maximum strain level. When a new strain reading is higher than the value in this register, it will replace it.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
Reset this value to zero by writing to the min/max reset register
SG1 Control Registers
The SG1 control registers provide the ability to configure the channels for the strain gauge interface and application.

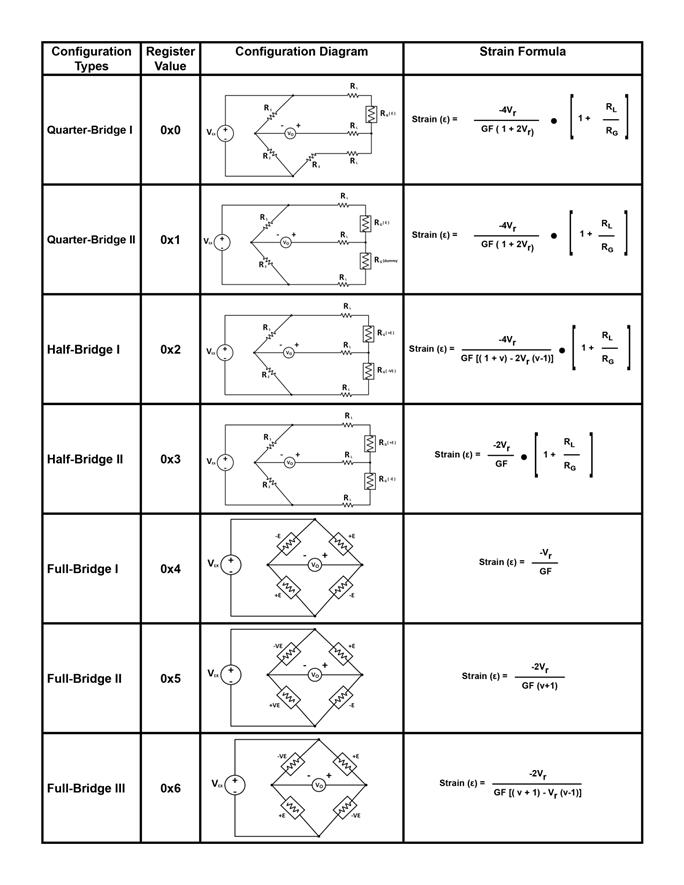

Bridge Configuration Type
Function:
Selects the bridge and strain gauge configuration.
Type:
unsigned binary word (32-bit)
Data Range:
0x0 to 0x6
Read/Write:
R/W
Initialized Value:
0x0 (Quarter Bridge 1)
Operational Settings:
See below table for compatible configurations.
PGA
Function:
Sets the gain of the A/D.
Type:
unsigned binary word (32-bit)
Data Range:
0x0 to 0x5 (See table)
Read/Write:
R/W
Initialized Value:
0x2 (4V/V)
Operational Settings:
Set the value based on the PGA table
PGA Register Value
Gain (V/V)
0x0
1
0x1
2
0x2
4
0x3
8
0x4
16
0x5
32
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
Sample Rate
Function:
Sets the sampling rate of the A/D.
Type:
unsigned binary word (32-bit)
Data Range:
0x0 to 0xF (See table)
Read/Write:
R/W
Initialized Value:
0x0 (2.5 SPS)
Operational Settings:
Set the value based on Sample Rate table. Note: lower rates provide greater stability and accuracy in the readings. Per channel configuration.
Sample Rate Register Value
Sample Rate (SPS)
Bandwidth (Hz)
0x0
2.5
1.25
0x1
5
2.5
0x2
10
5
0x3
16.6666 8.3333
0x4
20
10
0x5
50
25
0x6
60
30
0x7
100
50
0x8
400
200
0x9
1200
600
0xA
2400
1200
0xB
4800
2400
0xC
7200
3600
0xD
14400
7200
0xE
19200
9600
0xF
38400
19200
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
D
Nominal Strain Gauge Resistance
Function:
User defined resistance of the strain gauge in an unstrained condition.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
350.0 (programmed in ohms)
Operational Settings:
Sets the user defined nominal strain gauge resistance to be used for strain calculation.
Gauge Factor
Function:
User defined ratio of the fractional change in resistance to the fractional change in strain.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
2.0
Operational Settings:
Sets the user defined gauge factor to be used for strain calculation.
Poisson Ratio
Function:
User defined negative ratio of the strain in the transverse direction to the strain in the axial direction.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
0.3
Operational Settings:
Sets the user defined Poisson ratio to be used for strain calculation.
Lead Resistance
Function:
User defined resistance of the wires connecting the bridge to the module.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
0.0 (programmed in ohms)
Operational Settings:
Sets the user defined lead resistance to be used for strain calculation.
Excitation Voltage
Function:
User defined bridge excitation voltage.
Type:
unsigned binary word (32-bit)
Data Range:
0x0 to 0xFFF (0.0V to 12V)
Read/Write:
R/W
Initialized Value:
0x0 (off)
Operational Settings:
Programmable bridge excitation voltage up to 12V. 12-bit value, LSB is calculated by 12V / (2^12 -1) and is approximately 2.93mV.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
D
D
D
D
D
D
D
D
D
D
D
D
Wire Select Mode
Function:
Selects where to sense the excitation voltage. A 6-wire connection is required to sense the excitation voltage at the bridge. If the voltage sensing is done internally, only 4 wires are required.
Type:
unsigned binary word (32-bit)
Data Range:
0x4, 0x6
Read/Write:
R/W
Initialized Value:
0x4 (internal sensing)
Operational Settings:
Set the Wire Measurement Mode as specified in the table.
Wire Select Mode Value
Description
0x4
4-wire configuration, internal sensing
0x6
6-wire configuration, remote sensing
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
Reset Minimum and Maximum Strain
Function:
Resets the channel’s minimum and maximum strain readings.
Type:
unsigned binary word (32-bit)
Data Range:
0x0 to 0xF
Read/Write:
W
Initialized Value:
0x0
Operational Settings:
Writing a 1 resets the channel’s minimum and maximum strain readings to 0.0. Bit-mapped by channel.
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
D
Use Internal Bridge Completion
Function:
Enables the bridge completion circuitry. When enabled, the user needs only to connect a half-bridge, and connect the bridge completion pin to the sense low pin.
Type:
unsigned binary word (32-bit)
Data Range:
0x0 to 0xF
Read/Write:
R/W
Initialized Value:
0x0
Operational Settings:
If configured with two arms of the Wheatstone bridge external to the module, the user must complete the bridge using the module’s internal half-bridge. This is accomplished by wiring the BRG-COMP pin to the BRG - pin (as shown below). Writing a 1 enables the bridge completion circuit for the channel. Bit-mapped per channel.
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
D
Strain Alert Detect Programming
The SG1 Strain Alert registers provide the ability to program four strain thresholds that will result in strain alerts.
Strain Alert Detect 1
A “low” and a “high” threshold value is specified for each strain threshold that will be used to set the Strain Alert statuses. The Low Strain Alert 1
register sets the threshold value to use to set the Low Strain Alert 1 status bit when the Strain reading is less than or equal to the low strain
threshold value. Conversely, the High Strain Alert 1 register sets the threshold values to use to set the High Strain Alert 1 status bit when the
Strain reading is greater than or equal to the high strain threshold value. These threshold values are individually configurable on a per channel
basis.
Low Strain Alert 1
Function:
Sets Low Strain Alert 1 value in micro-strain (µε) for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R/W
Initialized Value:
0.0
Operational Settings:
If the measured strain is less than or equal to the set value, then a Low Strain Alert 1 Status will be set. An interrupt will occur if the Low Strain Alert 1 Interrupt Enable register is set to 1.
High Strain Alert 1
Function:
Sets High Strain Alert 1 value in micro-strain (µε) for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R/W
Initialized Value:
0.0
Operational Settings:
If the measured strain is greater than or equal to the set value, then a High Strain Alert 1 Status will be set. An interrupt will occur if the High Strain Alert 1 Interrupt Enable register is set to 1.
Strain Alert Detect 2
A “low” and a “high” threshold value is specified for each strain threshold that will be used to set the Strain Alert statuses. The Low Strain Alert 2
register sets the threshold value to use to set the Low Strain Alert 2 status bit when the Strain reading is less than or equal to the low strain
threshold value. Conversely, the High Strain Alert 2 register sets the threshold values to use to set the High Strain Alert 2 status bit when the
Strain reading is greater than or equal to the high strain threshold value. These threshold values are individually configurable on a per channel
basis.
Low Strain Alert 2
Function:
Sets Low Strain Alert 2 value in micro-strain (µε) for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R/W
Initialized Value:
0.0
Operational Settings:
If the measured strain is less than or equal to the set value, then a Low Strain Alert 2 Status will be set. An interrupt will occur if the Low Strain Alert 2 Interrupt Enable register is set to 1.
High Strain Alert 2
Function:
Sets High Strain Alert 2 value in micro-strain (µε) for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
-1000.0 to 1000.0
Read/Write:
R/W
Initialized Value:
0.0
Operational Settings:
If the measured strain is greater than or equal to the set value, then a High Strain Alert 2 Status will be set. An interrupt will occur if the High Strain Alert 2 Interrupt Enable register is set to 1.
Module Common Registers
Refer to “Module Common Registers Module Manual” for the register
descriptions.
Status and Interrupt Registers
The SG1 Module provides status registers for BIT, and Strain Alert.
BIT Loop Status
Function:
This test represents the dynamic status of the BIT Loop test that checks the A/D interface and A/D operation health
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 000F
Read/Write:
R
Initialized Value:
0
Operational Settings:
The logic OR of this status along with the BIT Amp Status makes up the overall BIT status.
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
Ch4
Ch3
Ch2
Ch1
BIT Amp Status
Function:
This test represents the dynamic status of the BIT Amp test that checks the front-end circuitry of the channel
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 000F
Read/Write:
R
Initialized Value:
0
Operational Settings:
The logic OR of this status along with the BIT Loop Status makes up the overall BIT status
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
Ch4
Ch3
Ch2
Ch1
BIT Status
There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.
Function:
Indicates the corresponding channel BIT status or configuration
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 000F
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
BIT Dynamic Status
BIT Latched Status
BIT Interrupt Enable
BIT Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
Ch4
Ch3
Ch2
Ch1
Strain Alert Status
There are four registers associated with each of the Strain Alert Statuses: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.
Function:
Sets the corresponding bit associated with the channel’s Strain Alert indication for strain readings that are below or above the associated thresholds.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 000F
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
Strain Alert Low 1 Dynamic Status
Strain Alert Low 1 Latched Status
Strain Alert Low 1 Interrupt Enable
Strain Alert Low 1 Set Edge/Level Interrupt
Strain Alert High 1 Dynamic Status
Strain Alert High 1 Latched Status
Strain Alert High 1 Interrupt Enable
Strain Alert High 1 Set Edge/Level Interrupt
Strain Alert Low 2 Dynamic Status
Strain Alert Low 2 Latched Status
Strain Alert Low 2 Interrupt Enable
Strain Alert Low 2 Set Edge/Level Interrupt
Strain Alert High 2 Dynamic Status
Strain Alert High 2 Latched Status
Strain Alert High 2 Interrupt Enable
Strain Alert High 2 Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
Ch4
Ch3
Ch2
Ch1
Summary Status
There are four registers associated with the Summary Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt
Function:
Sets the corresponding bit when a fault is detected for BIT on that channel.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 000F
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
Summary Status Dynamic Status
Summary Status Latched Status
Summary Status Interrupt Enable
Summary Status Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D2
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
Ch4
Ch3
Ch2
Ch1
Interrupt Vector and Steering
When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.
In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.
Note
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).
Interrupt Vector
Function:
Set an identifier for the interrupt.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R/W
Initialized Value:
0
Operational Settings:
When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function:
Sets where to direct the interrupt.
Type:
unsigned binary word (32-bit)
Data Range:
See table
Read/Write:
R/W
Initialized Value:
0
Operational Settings:
When an interrupt occurs, the interrupt is sent as specified:
Direct Interrupt to VME
1
Direct Interrupt to ARM Processor (via SerDes) + (Custom App on ARM or NAI Ethernet Listener App)
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).
~ Data is always in Floating Point.
SG1 Measurement Registers
Addr (Hex)
Name
Read/Write
0x2034
Vout/Vexc Ch 1~
R
0x2134
Vout/Vexc Ch 2~
R
0x2234
Vout/Vexc Ch 3~
R
0x2334
Vout/Vexc Ch 4~
R
Addr (Hex)
Name
Read/Write
0x2038
Strain (µε) Ch 1~
R
0x2138
Strain (µε) Ch 2~
R
0x2238
Strain (µε) Ch 3~
R
0x2338
Strain (µε) Ch 4~
R
Addr (Hex)
Name
Read/Write
0x203C
Minimum Strain (µε) Ch 1~
R
0x213C
Minimum Strain (µε) Ch 2~
R
0x223C
Minimum Strain (µε) Ch 3~
R
0x233C
Minimum Strain (µε) Ch 4~
R
Addr (Hex)
Name
Read/Write
0x2040
Maximum Strain (µε) Ch 1~
R
0x2140
Maximum Strain (µε) Ch 2~
R
0x2240
Maximum Strain (µε) Ch 3~
R
0x2340
Maximum Strain (µε) Ch 4~
R
SG1 Control Registers
Addr (Hex)
Name
Read/Write
0x2000
Bridge Configuration Type Ch 1
R/W
0x2100
Bridge Configuration Type Ch 2
R/W
0x2200
Bridge Configuration Type Ch 3
R/W
0x2300
Bridge Configuration Type Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x2044
PGA Ch 1
R/W
0x2144
PGA Ch 2
R/W
0x2244
PGA Ch 3
R/W
0x2344
PGA Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x201C
Sample Rate Ch 1
R/W
0x211C
Sample Rate Ch 2
R/W
0x221C
Sample Rate Ch 3
R/W
0x231C
Sample Rate Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x2004
Nominal Strain Gauge Resistance Ch 1
R/W
0x2104
Nominal Strain Gauge Resistance Ch 2
R/W
0x2204
Nominal Strain Gauge Resistance Ch 3
R/W
0x2304
Nominal Strain Gauge Resistance Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x2008
Gauge Factor Ch 1
R/W
0x2108
Gauge Factor Ch 2
R/W
0x2208
Gauge Factor Ch 3
R/W
0x2308
Gauge Factor Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x200C
Poisson Ratio Ch 1
R/W
0x210C
Poisson Ratio Ch 2
R/W
0x220C
Poisson Ratio Ch 3
R/W
0x230C
Poisson Ratio Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x2010
Lead Resistance Type Ch 1
R/W
0x2110
Lead Resistance Type Ch 2
R/W
0x2210
Lead Resistance Type Ch 3
R/W
0x2310
Lead Resistance Type Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x2014
Excitation Voltage Ch 1
R/W
0x2114
Excitation Voltage Ch 2
R/W
0x2214
Excitation Voltage Ch 3
R/W
0x2314
Excitation Voltage Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x2018
4-Wire/6-Wire Select Ch 1
R/W
0x2118
4-Wire/6-Wire Select Ch 2
R/W
0x2218
4-Wire/6-Wire Select Ch 3
R/W
0x2318
4-Wire/6-Wire Select Ch 4
R/W
Addr (Hex)
Name
Read/Write
0x1000
Reset Minimum and Maximum Strain Ch 1-4
R/W
Addr (Hex)
Name
Read/Write
0x1004
Use Internal Bridge Completion Ch 1-4
R/W
Strain Alert Detect Programming Registers
Addr (Hex)
Name
Read/Write
0x2028
Low Strain Alert 1 Ch 1~
R
0x2128
Low Strain Alert 1 Ch 2~
R
0x2228
Low Strain Alert 1 Ch 2~
R
0x2328
Low Strain Alert 1 Ch 2~
R
Addr (Hex)
Name
Read/Write
0x202C
Low Strain Alert 2 Ch 1~
R
0x212C
Low Strain Alert 2 Ch 2~
R
0x222C
Low Strain Alert 2 Ch 2~
R
0x232C
Low Strain Alert 2 Ch 2~
R
Addr (Hex)
Name
Read/Write
0x2020
High Strain Alert 1 Ch 1~
R
0x2120
High Strain Alert 1 Ch 2~
R
0x2220
High Strain Alert 1 Ch 2~
R
0x2320
High Strain Alert 1 Ch 2~
R
Addr (Hex)
Name
Read/Write
0x2024
High Strain Alert 2 Ch 1~
R
0x2124
High Strain Alert 2 Ch 2~
R
0x2224
High Strain Alert 2 Ch 2~
R
0x2324
High Strain Alert 2 Ch 2~
R
Module Common Registers
Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map.
Status Registers
Addr (Hex)
Name
Read/Write
0x1100
BIT Loop Status Ch 1-4
R/W
Addr (Hex)
Name
Read/Write
0x1104
BIT Amp Status Ch 1-4
R/W
BIT Registers
Addr (Hex)
Name
Read/Write
0x0800
Dynamic Status
R
0x0804
Latched Status*
R/W
0x0808
Interrupt Enable
R/W
0x080C
Set Edge/Level Interrupt
R/W
Status Registers
High Strain Alert 1
Addr (Hex)
Name
Read/Write
0x0820
Dynamic Status
R
0x0824
Latched Status*
R/W
0x0828
Interrupt Enable
R/W
0x082C
Set Edge/Level Interrupt
R/W
High Strain Alert 1
Addr (Hex)
Name
Read/Write
0x0830
Dynamic Status
R
0x0834
Latched Status*
R/W
0x0838
Interrupt Enable
R/W
0x083C
Set Edge/Level Interrupt
R/W
Low Strain Alert 1
Addr (Hex)
Name
Read/Write
0x0840
Dynamic Status
R
0x0844
Latched Status*
R/W
0x0848
Interrupt Enable
R/W
0x084C
Set Edge/Level Interrupt
R/W
Low Strain Alert 2
Addr (Hex)
Name
Read/Write
0x0850
Dynamic Status
R
0x0854
Latched Status*
R/W
0x0858
Interrupt Enable
R/W
0x085C
Set Edge/Level Interrupt
R/W
Error Summary
Addr (Hex)
Name
Read/Write
0x09A0
Dynamic Status
R
0x09A4
Latched Status*
R/W
0x09A8
Interrupt Enable
R/W
0x09AC
Set Edge/Level Interrupt
R/W
Interrupt Registers
The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address
Offsets. These registers are accessed using the absolute addresses listed in the table below.
Module 6 Interrupt Steering 5 - Strain Alert High 1
R/W
0x1014
Module 6 Interrupt Steering 6 - Strain Alert High 2
R/W
0x1018 to 0x1064
Module 6 Interrupt Steering 7-26 - Reserved
R/W
0x1068
Module 6 Interrupt Steering 27 - Summary
R/W
0x106C to 0x107C
Module 6 Interrupt Steering 28-32 - Reserved
R/W
APPENDIX: PIN-OUT DETAILS
Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.
Module Signal (Ref Only)
44-Pin I/O
50-Pin I/O (Mod Slot 1-J3)
50-Pin I/O (Mod Slot 2-J4)
50-Pin I/O (Mod Slot 3-J3)
50-Pin I/O (Mod Slot 3-J4)
Strain Gauge (SG1)
DATIO1
2
10
1
2
BRG-H-CH1
DATIO2
24
35
26
27
BRG-L-CH1
DATIO3
3
11
2
3
DRV-H-SNS-CH1
DATIO4
25
36
27
28
DRV-L-SNS-CH1
DATIO5
5
13
4
5
DRV-H-CH1
DATIO6
27
38
29
30
DRV-L-CH1
DATIO7
7
14
5
6
BRG-H-CH2
DATIO8
29
39
30
31
BRG-L-CH2
DATIO9
8
15
6
7
DRV-H-SNS-CH2
DATIO10
30
40
31
32
DRV-L-SNS-CH2
DATIO11
10
17
8
9
DRV-H-CH2
DATIO12
32
42
33
34
DRV-L-CH2
DATIO13
12
18
9
17
BRG-H-CH3
DATIO14
34
43
34
42
BRG-L-CH3
DATIO15
13
19
10
18
DRV-H-SNS-CH3
DATIO16
35
44
35
43
DRV-L-SNS-CH3
DATIO17
15
21
12
20
DRV-H-CH3
DATIO18
37
46
37
45
DRV-L-CH3
DATIO19
17
22
13
21
BRG-H-CH4
DATIO20
39
47
38
46
BRG-L-CH4
DATIO21
18
23
14
22
DRV-H-SNS-CH4
DATIO22
40
48
39
47
DRV-L-SNS-CH4
DATIO23
20
25
16
24
DRV-H-CH4
DATIO24
42
50
41
49
DRV-L-CH4
DATIO25
4
12
3
4
BRG-L-COMP-CH1
DATIO26
26
37
28
29
DATIO27
9
16
7
8
BRG-L-COMP-CH2
DATIO28
31
41
32
33
DATIO29
14
20
11
19
BRG-L-COMP-CH3
DATIO30
36
45
36
44
DATIO31
19
24
15
23
BRG-L-COMP-CH4
DATIO32
41
49
40
48
DATIO33
6
DATIO34
28
DATIO35
11
DATIO36
33
DATIO37
16
DATIO38
38
DATIO39
21
DATIO40
43
N/A
REVISION HISTORY
Motherboard Manual - SG1 Revision History
Revision
Revision Date
Description
C
2022-10-11
EC0 C09714, transition to docbuilder format. Pg.5 thru 7, changed "Delta-Sigma" to "Sigma-Delta". Pg.6, remove FIR filter mode reference from Output Data Rate. Pg.7, added Status and Interrupts paragraph. Pg.13, changed Reset Min & Max Strain from R/W to W. Added Appendix: Pin-Out Details.
DOCS.NAII REVISIONS
Revision Date
Description
2025-03-13
Updated module pinout table to add module I/O pinouts for 44- & 50-pin connectors.
STATUS AND INTERRUPTS
Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.
For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.
Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.
Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).
Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.
Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).
Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.
Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.
Interrupt Vector and Steering
When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.
Interrupt Trigger Types
In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.
Example 1: Fault detection
This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.
Example 2: Threshold detection
This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.
Dynamic and Latched Status Registers Examples
The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.
Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States
No Clearing of Latched Status
Clearing of Latched Status (Edge-Triggered)
Clearing of Latched Status(Level-Triggered)
Time
Dynamic Status
Latched Status
Action
Latched Status
Action
Latched
T0
0x0
0x0
Read Latched Register
0x0
Read Latched Register
0x0
T1
0x1
0x1
Read Latched Register
0x1
0x1
T1
0x1
0x1
Write 0x1 to Latched Register
Write 0x1 to Latched Register
T1
0x1
0x1
0x0
0x1
T2
0x0
0x1
Read Latched Register
0x0
Read Latched Register
0x1
T2
0x0
0x1
Read Latched Register
0x0
Write 0x1 to Latched Register
T2
0x0
0x1
Read Latched Register
0x0
0x0
T3
0x2
0x3
Read Latched Register
0x2
Read Latched Register
0x2
T3
0x2
0x3
Write 0x2 to Latched Register
Write 0x2 to Latched Register
T3
0x2
0x3
0x0
0x2
T4
0x2
0x3
Read Latched Register
0x1
Read Latched Register
0x3
T4
0x2
0x3
Write 0x1 to Latched Register
Write 0x3 to Latched Register
T4
0x2
0x3
0x0
0x2
T5
0xC
0xF
Read Latched Register
0xC
Read Latched Register
0xE
T5
0xC
0xF
Write 0xC to Latched Register
Write 0xE to Latched Register
T5
0xC
0xF
0x0
0xC
T6
0xC
0xF
Read Latched Register
0x0
Read Latched
0xC
T6
0xC
0xF
Read Latched Register
0x0
Write 0xC to Latched Register
T6
0xC
0xF
Read Latched Register
0x0
0xC
T7
0x4
0xF
Read Latched Register
0x0
Read Latched Register
0xC
T7
0x4
0xF
Read Latched Register
0x0
Write 0xC to Latched Register
T7
0x4
0xF
Read Latched Register
0x0
0x4
T8
0x4
0xF
Read Latched Register
0x0
Read Latched Register
0x4
Interrupt Examples
The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.
Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled
Time
Latched Status (Edge-Triggered - Clear Multi-Channel)
Latched Status (Edge-Triggered - Clear Single Channel) 2+
Latched Status (Level-Triggered - Clear Multi-Channel)
Action
Latched
Action
Latched
Action
Latched
T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x1
T1 (Int 1)
Write 0x1 to Latched Register
Write 0x1 to Latched Register
Write 0x1 to Latched Register
T1 (Int 1)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T2.
0x1
T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers
0x2
Interrupt Generated++``+ Read Latched Registers
0x2
Interrupt Generated++``+ Read Latched Registers
0x2
T3 (Int 2)
Write 0x2 to Latched Register
Write 0x2 to Latched Register
Write 0x2 to Latched Register
T3 (Int 2)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.
0x2
T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x3
T4 (Int 3)
Write 0x1 to Latched Register
Write 0x1 to Latched Register
Write 0x3 to Latched Register
T4 (Int 3)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.
0x3
T4 (Int 3)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.
0x2
T6 (Int 4)
Interrupt Generated++``+ Read Latched Registers
0xC
Interrupt Generated++``+ Read Latched Registers
0xC
Interrupt Generated++``+ Read Latched Registers
0xE
T6 (Int 4)
Write 0xC to Latched Register
Write 0x4 to Latched Register
Write 0xE to Latched Register
T6 (Int 4)
0x0
Interrupt re-triggers++``+ Write 0x8 to Latched Register
0x8
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.
0xE
T6 (Int 4)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.
0xC
T6 (Int 4)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.
0x4
REVISION HISTORY
Motherboard Manual - Status and Interrupts Revision History
Revision
Revision Date
Description
C
2021-11-30
C08896; Transition manual to docbuilder format - no technical info change.
DOCS.NAII REVISIONS
Revision Date
Description
2026-03-02
Formatting updates to document; no technical changes.
The registers described in this document are common to all NAI Generation 5 modules.
Module Information Registers
The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.
FPGA Version Registers
The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.
FPGA Revision
Function:
FPGA firmware revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FPGA Compile Timestamp
Function:
Compile Timestamp for the FPGA firmware.
Type:
unsigned binary word (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:
The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
day (5-bits)
month (4-bits)
year (6-bits)
hr
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
hour (5-bits)
minutes (6-bits)
seconds (6-bits)
FPGA SerDes Revision
Function:
FPGA SerDes revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FPGA Template Revision
Function:
FPGA Template revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the template revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FPGA Zynq Block Revision
Function:
FPGA Zynq Block revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
Bare Metal Version Registers
The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.
Bare Metal Revision
Function:
Bare Metal firmware revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the revision of the board's Bare Metal
Operational Settings:
The upper 16-bits are the major revision and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
Bare Metal Compile Time
Function:
Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type:
24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings:
The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32
Note
little-endian order of ASCII values
Word 1 (Ex. 0x2079614D)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Month ('y' - 0x79)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Month ('a' - 0x61)
Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Year ('2' - 0x32)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Day ('7' - 0x37)
Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Year ('9' - 0x39)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Year ('1' - 0x31)
Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Hour ('1' - 0x31)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
'a' (0x74)
't' (0x61)
Word 5 (Ex. 0x38333A35)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Minute ('8' - 0x38)
Minute ('3' - 0x33)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
':' (0x3A)
Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
NULL (0x00)
Seconds ('2' - 0x32)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Seconds ('3' - 0x33)
':' (0x3A)
FSBL Version Registers
The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).
FSBL Revision
Function:
FSBL firmware revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the revision of the board's FSBL
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FSBL Compile Time
Function:
Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type:
24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings:
The six 32-bit words provide an ASCII representation of the Date/Time.
The hexadecimal values in the field below represent: May 17 2019 at 15:38:32
Note
little-endian order of ASCII values
Word 1 (Ex. 0x2079614D)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Month ('y' - 0x79)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Month ('a' - 0x61)
Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Year ('2' - 0x32)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Day ('7' - 0x37)
Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Year ('9' - 0x39)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Year ('1' - 0x31)
Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Hour ('1' - 0x31)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
'a' (0x74)
't' (0x61)
Word 5 (Ex. 0x38333A35)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Minute ('8' - 0x38)
Minute ('3' - 0x33)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
':' (0x3A)
Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
NULL (0x00)
Seconds ('2' - 0x32)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Seconds ('3' - 0x33)
':' (0x3A)
Module Serial Number Registers
The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.
Interface Board Serial Number
Function:
Unique 128-bit identifier used to identify the interface board.
Type:
16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Serial number of the interface board
Operational Settings:
This register is for information purposes only.
Functional Board Serial Number
Function:
Unique 128-bit identifier used to identify the functional board.
Type:
16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Serial number of the functional board
Operational Settings:
This register is for information purposes only.
Module Capability
Function:
Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 0107
Read/Write:
R
Initialized Value:
0x0000 0107
Operational Settings:
A “1” in the bit associated with the capability indicates that it is supported.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
Flt-Pt
0
0
0
0
0
Pack
FIFO Blk
Blk
Module Memory Map Revision
Function:
Module Memory Map revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the Module Memory Map Revision
Operational Settings:
The upper 16-bits are the major revision and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
Module Measurement Registers
The registers in this section provide module temperature measurement information.
Temperature Readings Registers
The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.
Interface Board Current Temperature
Function:
Measured PCB and Zynq Core temperatures on Interface Board.
Type:
signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:
0x0000 0000 to 0x0000 FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings:
The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
PCB Temperature
Zynq Core Temperature
Functional Board Current Temperature
Function:
Measured PCB temperature on Functional Board.
Type:
signed byte (8-bits) for PCB
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB on the table below
Operational Settings:
The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
PCB Temperature
Interface Board Maximum Temperature
Function:
Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:
signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:
0x0000 0000 to 0x0000 FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:
The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
PCB Temperature
Zynq Core Temperature
Interface Board Minimum Temperature
Function:
Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:
signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:
0x0000 0000 to 0x0000 FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:
The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
PCB Temperature
Zynq Core Temperature
Functional Board Maximum Temperature
Function:
Maximum PCB temperature on Functional Board since power-on.
Type:
signed byte (8-bits) for PCB
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB on the table below
Operational Settings:
The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
PCB Temperature
Functional Board Minimum Temperature
Function:
Minimum PCB temperature on Functional Board since power-on.
Type:
signed byte (8-bits) for PCB
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB on the table below
Operational Settings:
The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
PCB Temperature
Higher Precision Temperature Readings Registers
These registers provide higher precision readings of the current Zynq and PCB temperatures.
Higher Precision Zynq Core Temperature
Function:
Higher precision measured Zynq Core temperature on Interface Board.
Type:
signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Measured Zynq Core temperature on Interface Board
Operational Settings:
The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.
signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Measured Interface PCB temperature
Operational Settings:
The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.
signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Measured Functional PCB temperature
Operational Settings:
The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Signed Integer Part of Temperature
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Fractional Part of Temperature
Module Health Monitoring Registers
The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.
Module Sensor Summary Status
Function:
The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type:
unsigned binary word (32-bits)
Data Range:
See table below
Read/Write:
R
Initialized Value:
0
Operational Settings:
This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.
Bit(s)
Sensor
D31:D6
Reserved
D5
Functional Board PCB Temperature
D4
Interface Board PCB Temperature
D3:D0
Reserved
Module Sensor Registers
The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.
Sensor Threshold Status
Function:
Reflects which threshold has been crossed
Type:
unsigned binary word (32-bits)
Data Range:
See table below
Read/Write:
R
Initialized Value:
0
Operational Settings:
The associated bit is set when the sensor reading exceed the corresponding threshold settings.
Bit(s)
Description
D31:D4
Reserved
D3
Exceeded Upper Critical Threshold
D2
Exceeded Upper Warning Threshold
D1
Exceeded Lower Critical Threshold
D0
Exceeded Lower Warning Threshold
Sensor Current Reading
Function:
Reflects current reading of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Sensor Minimum Reading
Function:
Reflects minimum value of temperature sensor since power up
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Sensor Maximum Reading
Function:
Reflects maximum value of temperature sensor since power up
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Sensor Lower Warning Threshold
Function:
Reflects lower warning threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default lower warning threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.
Sensor Lower Critical Threshold
Function:
Reflects lower critical threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default lower critical threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.
Sensor Upper Warning Threshold
Function:
Reflects upper warning threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default upper warning threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.
Sensor Upper Critical Threshold
Function:
Reflects upper critical threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default upper critical threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.
Motherboard Manual - Module Common Registers Revision History
Revision
Revision Date
Description
C
2023-08-11
ECO C10649, initial release of module common registers manual.
C1
2024-05-15
ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2
2024-07-10
ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.
DOCS.NAII REVISIONS
Revision Date
Description
2025-11-05
Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02
Formatting updates to document; no technical changes.
North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.
We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.
Please visit us at: www.naii.com or select one of the following for immediate assistance:
Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States
Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled
