DA3 Manual

INTRODUCTION

As a leading manufacturer of smart function modules, NAI offers over 100 different modules that cover a wide range of I/O, measurement and simulation, communications, Ethernet switch, and SBC functions. Our DA3 module provides four independent Digital-to-Analog (D/A) output channels with a full-scale range ±40 VDC (V-control mode) and ±100 mA (I-control mode). Linearity/accuracy is ±0.10% FS range over temperature. The DA3 provides either voltage or current control loop modes, which are programmable for the application. This user manual is designed to help you get the most out of our DA3 smart function module.

Data Sheet

DA3 Overview

NAI’s DA3 modules offers several features designed to suit a variety of system requirements, including:

Four (4) Channels of Digital-to-Analog I/O Interface: The DA3 provides four channels of high-quality 16-bit D/A output offering a full-scale range of ±40 VDC (V-control mode) and ±100 mA (I-control mode).

Designed to meet IEC 801-2 Level 2 testing requirements: The DA3 ensures reliable performance and compliance with industry standards by meeting the testing requirements of IEC 801-2 Level 2. This capability guarantees that the module can effectively handle electromagnetic compatibility challenges, highlighting the product’s resilience in various operating environments..

Continuous Built-In Test (BIT): The module incorporates continuous BIT functionality, providing self-diagnostics and monitoring capabilities to ensure reliable operation and easy troubleshooting.

Automatic Shutdown Protection: The DA3 module utilizes an automatic shutdown protection feature to enhance operational safety by swiftly responding to potentially harmful conditions. This functionality not only safeguards the module from damage but also provides users with clear and immediate feedback by displaying the results in a status word, ensuring efficient troubleshooting and maintenance processes.

Extended D/A FIFO Buffering Capabilities: The extended D/A output FIFO buffering capabilities of the DA3 module facilitate efficient signal processing and management, ensuring smooth operation and accurate output generation. By offering a buffering mechanism, the module can handle fluctuations in data flow, reducing the risk of data loss or distortion. This feature is particularly advantageous in applications requiring precise timing or synchronization, enhancing overall system performance and reliability.

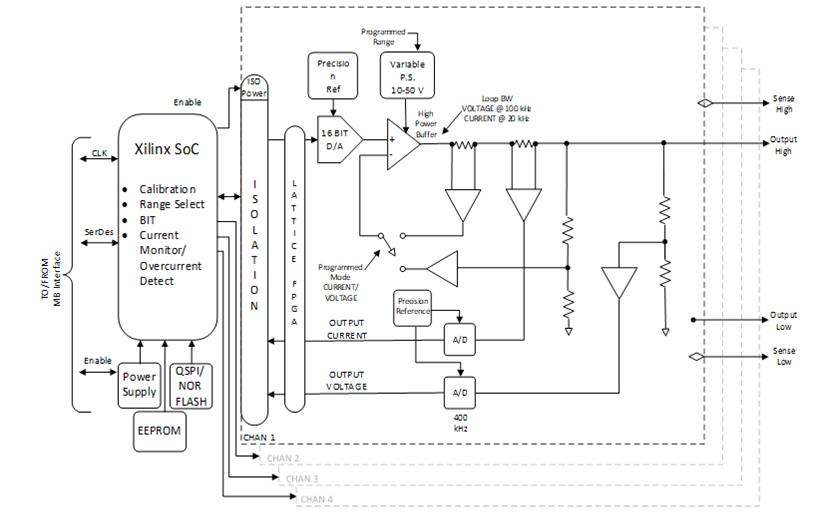

PRINCIPLE OF OPERATION

In addition to the functions and features already described, this module includes extensive background BIT/diagnostics that run in the background in normal operation without user intervention. In addition to output signal read-back (wrap) capabilities, overloaded outputs will be detected with automatic channel shutdown protection, with the results displayed in a status word. The modules also include D/A FIFO Buffering for greater control of the output voltage and signal data. The FIFO D/A buffer will accept, store and output the voltage commands, once enabled and triggered, for applications requiring simulation of waveform generation; single or periodic. The output data command word is formatted as a percentage of the full scale (FS) range selection, which allows maximum resolution and accuracy at lower voltage ranges.

Built-In Test (BIT)/Diagnostic Capability

The DA3 module supports three types of built-in tests: Power-On, Continuous Background and Initiated. The results of these tests are logically OR’d together and stored in the BIT Dynamic Status and BIT Latched Status registers.

Power-On Self-Test (POST)/Power-On BIT (PBIT)/Start-Up BIT(SBIT)

The power-on self-test is performed on each channel automatically when power is applied and report the results in the BIT Status register when complete. After power-on, the Power-on BIT Complete register should be checked to ensure that POST/PBIT/SBIT test is complete before reading the BIT Dynamic Status and BIT Latched Status registers.

Continuous Background Built-In Test (CBIT)

The background Built-In-Test or Continuous BIT (CBIT) (“D2”) runs in the background where each channel is checked to a test accuracy of 0.2% FS. The testing is totally transparent to the user, requires no external programming, and has no effect on the operation of the module or card.The technique used by the continuous background BIT (CBIT) test consists of an “add-2, subtract-1” counting scheme. The BIT counter is incremented by 2 when a BIT-fault is detected and decremented by 1 when there is no BIT fault detected and the BIT counter is greater than 0: When the BIT counter exceeds the (programmed) Background BIT Threshold value, the specific channel’s fault bit in the BIT status register will be set. Note, the interval at which BIT is performed is dependent and differs between module types. Rather than specifying the BIT Threshold as a “count”, the BIT Threshold is specified as a time in milliseconds. The module will convert the time specified to the BIT Threshold “count” based on the BIT interval for that module. The “add-2, subtract-1” counting scheme effectively filters momentary or intermittent anomalies by allowing them to “come and go“ before a BIT fault status or indication is flagged (e.g. BIT faults would register when sustained; i.e. at a ten second interval, not a 10-millisecond interval). This prevents spurious faults from registering valid such as those caused by EMI and/or dirty power causing false BIT faults. Putting more “weight” on errors (“add-2”) and less “weight” on subsequent passing results (subtract-1) will result in a BIT failure indication even if a channel “oscillates” between a pass and fail state.

Initiated Built-In Test (IBIT)

The DA3 module supports an off-line Initiated Built-in Test (IBIT) (“D3”).

The IBIT test uses an internal A/D that measures all D/A channels while they remain connected to the I/O and cycle through 16 signal levels from -FS to +FS. Each channel will be checked to a test accuracy of 0.2% FS. Test cycle is completed within 45 seconds (depending on update rate) and results can be read from the Status registers when IBIT bit changes from 1 to 0. This test requires no user programming and can be enabled via the bus.

Voltage Feedback Sense Lines

The DA3 includes two voltage feedback sense lines for each output channel. They provide automatic output drive voltage compensation during higher current applications that may induce voltage drops in the wiring. It is always recommended that the sense lines be utilized and connected at the external load to provide maximum measurement accuracy (which ensures that the commanded voltage is applied at the load). Sense (Hi) should be connected to Output (Hi), and Sense (Lo) should be connected to Output (Lo).

Channels that are programmed for voltage command mode are required to utilize the sense lines for maximum accuracy. If additional wiring is prohibitive in the application, the sense lines may alternately be terminated at the connector.

Channels that are programmed for current command mode may utilize the sense lines, but it is not required. Current mode is controlled via internal feedback, making the compensated voltage at the load irrelevant.

D/A FIFO Buffering/Pattern Buffer

The DA3 module provides the ability to use memory buffers either as a Pattern buffer, (addressable RAM used for creating an output pattern (or cycling)) or as a FIFO buffer. These buffers provide greater control of the output voltage and signal data. The D/A buffers will accept, store and output the voltage (and/or current) commands, once enabled and triggered, for applications requiring simulation of waveform generation; single or periodic. The output data command word is formatted as a percentage of the full scale (FS) range selection, which allows maximum resolution and accuracy at lower voltage ranges.

Status and Interrupts

The D/A Module provides registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

Module Common Registers

The D/A Module includes module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.

Engineering Scaling Conversions

The D/A Module Data, Voltage and Current Measurement registers can be programmed to be utilized as single precision floating point values (IEEE754) or as a 32-bit integer value.

When the Enable Floating Point Mode register is set to 1 (Floating Point Mode) the following registers are formatted as Single Precision Floating Point Value (IEEE-754):

• Wrap Voltage (Volts)
• Wrap Current (mA)
• DAC Value (Voltage (Volts) or Current (mA))*
• FIFO Buffer Data/Pattern RAM Buffer*

*When the Enable Floating Point Mode register is set to 1, it is important that these registers are updated with the Single Precision Floating Point (IEEE-754) representation of the value for proper operation of the channel. Conversely, when the Enable Floating Point Mode register is set to 0, these registers must be updated with the Integer 32-bit representation of the value.

Note

When changing the Enable Floating Point Mode from Integer Mode to Floating Point Mode or vice versa, the following step should be followed to avoid faults from falsely being generated because interior registers have an incorrect binary representation of the values:

1. Set the Enable Floating Point Mode register to the desired mode (Integer or Floating Point).
2. Wait for the Floating Point State register to match the value for the requested Floating Point Mode (Integer = 0, Floating Point = 1); this indicates that the module’s conversion of the register values and internal values is complete. Data registers will be converted to the units specified and can be read in that specified format.
3. Initialize configuration and control registers with the values in the units specified (Integer or Floating Point).

It is very often necessary to relate D/A voltage and current to other engineering units such as PSI (Pounds per Square Inch). When the Enable Floating Point Mode register is set to 1, the values entered for the Floating Point Offset register and the Floating-Point Scale register will be used to convert the D/A data from engineering units to voltage or current values. The purpose of this is to offload the processing that is normally performed by the mission processor to convert the physical quantity to voltage or current values for the DAC Value register and the FIFO Buffer Data register. When enabled, the module will compute the D/A data as follows:

  D/A Value as Volts/Current (Floating Point) =

        (D/A Value in Engineering Units (Floating Point) + **Floating Point Offset**) * **Floating Point Scale**

Note

When Enable Floating Point Mode is set to 1 (Floating Point Mode) the listed registers below are formatted as Single Precision Floating Point Value (IEEE-754) and the values specified in the Floating Point Offset register and the Float Point Scale register are applied:

• DAC Value
• FIFO Buffer Data/ Pattern RAM Buffer

Watchdog Timer Capability

The Digital-to-Analog Modules provide support for Watchdog Timer capability. Refer to “Watchdog Timer Module Manual” for the Principle of Operation description.

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

D/A Output Registers

The D/A output is normally in terms of voltage or current depending on the voltage/current mode. When the Enable Floating Point Mode is enabled, the register value is formatted as a Single Precision Floating Point Value (IEEE-754). In addition, the D/A output value can be specified in engineering units rather than voltage by setting the Floating Point Scale and Floating Point Offset register values to reflect the conversion algorithm.

DAC Value

Function: Sets the output voltage or current for the channel.

Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)

Data Range: DAC values are dependent on Voltage Range/Current Range setting for the channel

Enable Floating Point Mode: 0 (Integer Mode)

  Unipolar: 0x0000 0000 to 0x0000 FFFF;

  Bipolar (2's compliment. 16-bit value sign extended to 32 bits): 0xFFFF 8000 to 0x0000 7FFF

Enable Floating Point Mode: 1 (Floating Point Mode)

  Single Precision Floating Point Value (IEEE-754)

Read/Write: R/W

Initialized Value: 0

Operational Settings: Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples

D/A Control Registers

The D/A control registers provide the ability to specify whether the D/A channel is outputting voltage or current, polarity and voltage range, update rate, and the enabling or disabling of the power to the D/A channel. The D/A channels are monitored to detect overcurrent conditions and will automatically disable the D/A output. In the event of an overcurrent condition, the D/A channel needs to be “reset” by writing to the Overcurrent Reset register. The D/A Overcurrent Value register provides that ability to programmatically change the threshold of the overcurrent detection.

Voltage/Current Mode

Function: Sets each channel for voltage-control or current-control mode.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R/W

Initialized Value: 0 (Voltage Mode for all channels)

Operational Settings: Write a 1 to set the channel for current-control mode. Write a 0 to set the channel for voltage-control mode. Bit-mapped per channel.

Note

Both the Voltage and Current command mode rely on the Voltage Range setting to establish the internal power supply (±VCC) output driver power supply rail voltages. The ±VCC internal power supply rails must be adequately set for the output voltage required by the load, even when operating in current command mode.

Voltage/Current Mode

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Voltage Range

Function: Sets voltage polarity and range for each channel. If the channel is set for voltage-control mode, the value written to the DAC Value register (or values coming from the memory buffer) will correlate to the voltage range set in this register.

Note

If the Enable Floating Point Mode register is set to 1, the Floating Point Scale register must be set to the reciprocal of Voltage Range.

Type: unsigned binary word (32-Bit)

Data Range: See table below.

Read/Write: R/W

Initialized Value: 0 (Unipolar: 0-20 V)

Operational Settings: Write to the register with a value from the table to select the range. Ex: for the 0-20V unipolar range write a 0x0.

Note

The voltage range setting also sets the module/channels internal power supply ±VCC rails for the output driver when either voltage or current mode is selected. The multiple internal power VCC settings optimize the power efficiency for the expected operating range.

Reg Value	Voltage Range	FOR REFERENCE Internal Power ± VCC Setting
0x0	Unipolar: 0 - 20 V	± 20 V
0x1	Unipolar: 0 - 40 V	± 40 V
0x2	Bipolar: ± 10 V	± 10 V
0x3	Bipolar: ± 20 V	± 20 V
0x4	Bipolar: ± 40 V	± 40 V

Voltage Range

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	D	D	D

Current Range

Function: Sets current polarity and range for each channel. If the channel is set for current-control mode, the value written to the DAC Value register (or values coming from the memory buffer) will correlate to the current range set in this register.

Note

If the Enable Floating Point Mode register is set to 1, the Floating Point Scale register must be set to the reciprocal of Current Range.

Type: unsigned binary word (32-Bit)

Data Range: See table below.

Read/Write: R/W

Initialized Value: 0 (Unipolar: 0-50 mA)

Operational Settings: Write to the register with a value from the table to select the range.

For example, for the ±50 mA bipolar range write 0x3 to the register. If this current range is exceeded and the Current Range Exceeded Interrupt Enable register is enabled, then a Current Range Exceeded Status interrupt will occur. If the Voltage Range register is set to 40V but the Current Range register is set to 50 mA maximum if 50 mA is exceeded then an interrupt will occur. Overcurrent conditions are always checked for at the maximum range (±100 mA).

Note

The Voltage Range setting determines the internal power supply rails (±VCC) for the output driver when commanding voltage or current. In current command mode, ensure that the selected range aligns with the required rail voltages (±10 V, ±20 V, or ±40 V) for the commanded current range and external load impedance. The internal VCC power supply rails must be set to exceed the voltage required for the commanded current.

Example: For a ±30 mA current into a 200-ohm load, Vmax(load) = (30 mA x 200) = 6 V, one could leave the Voltage Range as the default ‘Initialized Value: 0 (Unipolar: 0-20 V)” or it can be set to “Bipolar: ±10 V” for better/optimal power dissipation efficiency. For a 1000-ohm load, Vmax(load) = 30 V, set Voltage Range to either “Unipolar: 0 - 40 V” or “Bipolar: ±40 V” to set the required internal power supply VCC rails to ±40 V.

If the Voltage Range register is set with the internal power supply rails (±VCC) lower than demanded by the current command and load, the output drive will be current ‘clipped’, triggering a BIT fault. Overcurrent is checked at the maximum range (±100 mA). either voltage or current mode is selected. The multiple internal power VCC settings optimize the power efficiency for the expected operating range.

Reg Value	Current Range
0x0	Unipolar: 0 - 50 mA
0x1	Unipolar: 0 - 100 mA
0x2	Bipolar: ± 25 mA
0x3	Bipolar: ± 50 mA
0x4	Bipolar: ± 100 mA

Current Range

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	D	D	D

Power Enable

Function: Enables the DAC’s channel power.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R/W

Initialized Value: 0x0000 000F (Channel power is enabled)

Operational Settings: Set bit to 1 to enable the power. Set bit to 0 to disable the power.

Power Enable

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Update Rate

Function: Sets the output rate for the DAC output, FIFO Data Output and RAM Output.

Type: unsigned binary word (32bit)

Data Range: 0x001E 8480 to 0x0003 0D40; 500ns (2MHz) to 5µs (200kHz).

Read/Write: R/W

Initialized Value: 0x001E 8480 (500ns) (2MHz)

Operational Settings: This setting is the output rate for each DAC. One update rate applies to all channels.

Overcurrent Reset

Function: Resets over loaded channels based on the Overcurrent Status register.

Type: unsigned binary word (32-bit)

Data Range: 0 or 1

Read/Write: W

Initialized Value: 0

Operational Settings: Set to 1 to reset over loaded channels. Writing a 1 to this register will re-enable over loaded channels.

Overcurrent Reset

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Overcurrent Value

Function: Sets the overcurrent value to be used to determine the overcurrent condition.

Type: unsigned binary word (32-bit)

Data Range: 0x0001 to 0x0078; 1 mA to 120 mA.

Read/Write: R/W

Initialized Value: 0x0078 (120 mA); Note - steady state current rating for each channel is still 100mA

Operational Settings: LSB = 1 mA. This setting is the value that is used to determine the overcurrent condition for each channel. This value is applied to both positive and negative currents. Note, the maximum value for the overcurrent value is 120 mA; values greater than this will be forced to the maximum value.

D/A Measurement Registers

The measured voltage and current for the D/A output can be read from the Wrap Voltage and Wrap Current registers.

Wrap Voltage

Function: Wrap voltage reading from the channel’s output. Also used in conjunction with BIT to verify that the output voltage is within range of the user set DAC value (voltage-control mode). Accuracy is 0.2% FS.

Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)

Data Range:

Enable Floating Point Mode: 0 (Integer Mode)

  Unipolar: 0x0000 0000 to 0x0003 FFFF

  Bipolar (2's compliment. 18-bit value sign extended to 32 bits): 0xFFFE 0000 to 0x0001 7FFF

Enable Floating Point Mode: 1 (Floating Point Mode)

  Single Precision Floating Point Value (IEEE-754)

Read/Write: R

Initialized Value: 0

Operational Settings: To calculate the LSB subtract the minimum voltage range from the maximum voltage range then divide by 2^16. For example, if the value in the Voltage Range Register is range 0-10V then the LSB would have value (10-0)/2^16 = .153 mV. Sign bit = D17 for bipolar ranges.

Wrap Voltage (Enable Floating Point Mode: Integer Mode)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Wrap Voltage (Enable Floating Point Mode: Floating Point Mode)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Wrap Current

Function: Wrap current reading from the channel’s output. Reads current values of D/A outputs being delivered per channel. Also, used in conjunction with BIT to verify that the output current is within range of the user set DAC value (current-control mode). Accuracy is 0.2% FS.

Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)

Data Range:

Enable Floating Point Mode: 0 (Integer Mode)

  Unipolar: 0x0000 0000 to 0x0003 FFFF

  Bipolar (2's compliment. 18-bit value sign extended to 32 bits): 0xFFFE 0000 to 0x0001 7FFF

Enable Floating Point Mode: 1 (Floating Point Mode)

  Single Precision Floating Point Value (IEEE-754)

Read/Write: R

Initialized Value: 0

Operational Settings: To calculate the LSB subtract the minimum range from the maximum range then divide by 2^16. Sign bit = D17 for bipolar ranges. In Voltage mode, the range is fixed to 100mA.

Wrap Current (Enable Floating Point Mode: Integer Mode)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Wrap Current (Enable Floating Point Mode: Floating Point Mode)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D/A Test Registers

Two different tests, one on-line (CBIT) and one off-line (IBIT), can be selected.

Test Enabled

Function: Sets bit to enable the associated CBIT (“D2”) or IBIT (“D3”).

Note

CBIT cannot be disabled

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000C

Read/Write: R/W

Initialized Value: 0x4 (CBIT Test Enabled)

Operational Settings: BIT tests include an on-line CBIT and an off-line IBIT tests. Failures in the BIT test are reflected in the BIT Status registers for the corresponding channels that fail. In addition, an interrupt (if enabled in the BIT Interrupt Enable register) can be triggered when the BIT testing detects failures.

Test Enabled

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	IBIT Test D	CBIT Test 1	0	0

FIFO/RAM Registers

Data Mode

Function: Sets the data mode of the channel. The output can be based on either the DAC Value register or the RAM Buffer.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R/W

Initialized Value: 0 (The output will reflect the DAC Value register value)

Operational Settings: Write a 1 to use the memory buffer. Bit-mapped per channel.

Data Mode

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Buffer Mode

Function: Selects how the memory buffer will be used; either as a Pattern buffer (addressable RAM used for creating an output pattern (or cycling)) or FIFO buffer.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R/W

Initialized Value: 0 (RAM Mode)

Operational Settings: Write a 1 to use the buffer for the channel as a FIFO. Write a 0 to use the buffer as Pattern RAM. To use the memory buffer, ensure that the Data Mode register is set properly. Bit-mapped per channel.

Buffer Mode

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

FIFO Registers

FIFO Buffer Data

Function: Data in the form of DAC values are written to this register one word at a time (16-bits), and will be outputted to the channel’s output once triggered. Buffer will be emptied one value at a time when triggered.

Type: signed binary word (32-bits) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)

Data Range:

Enable Floating Point Mode: 0 (Integer Mode)

  Unipolar: 0x0000 0000 to 0x0000 FFFF

  Bipolar (2's compliment. 16-bit value sign extended to 32 bits): 0xFFFF 8000 to 0x0000 7FFF

Enable Floating Point Mode: 1 (Floating Point Mode)

  Single Precision Floating Point Value (IEEE-754)

Read/Write: W

Initialized Value: N/A

Operational Settings: Data is held in FIFO until triggered. FIFO size is 32767 words per channel (each channel has its own buffer).

FIFO Word Count

Function: Reports the number of words stored in the FIFO buffer.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 7FFF (empty to 32767)

Read/Write: R

Initialized Value: 0 (FIFO is empty)

Operational Settings: Each time a value is written to the FIFO buffer this count is incremented by 1. Once the FIFO is triggered, after each value is outputted to the DAC, this count will be decremented by 1. Watermarks and threshold values can be setup to trigger interrupts when this count crosses user defined values. The maximum number of words that can be stored in the FIFO is 32767 words.

FIFO Thresholds

The FIFO Almost Empty, FIFO Low Watermark, FIFO High Watermark, and FIFO Almost Full sets the threshold limits that are used to set the bits in the FIFO Status register.

FIFO Almost Empty

Function: This register enables the user to set the limit for the “almost empty” status.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 7FFF

Read/Write: R/W

Initialized Value: 0x400 (1024)

Operational Settings: When the FIFO Word Count is less than or equal to the value stored in the FIFO Almost Empty Value register, the “almost empty” bit (D1) of the FIFO Status register will be set. When the FIFO Count is greater than the value stored in the register, the “almost empty” bit (D1) of the FIFO Status register will be cleared.

FIFO Low Watermark

Function: The FIFO low watermark threshold enables the user to set the limit for the “low watermark” status.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 7FFF

Read/Write: R/W

Initialized Value: 0x2000 (8192)

Operational Settings: When the FIFO Count is less than or equal than the value stored in the FIFO Low Watermark Value register, the “low watermark” bit (D2) of the FIFO Status register will be set. When the FIFO Count is greater than the value stored in the register, the “low watermark” bit (D2) of the FIFO Status register will be cleared.

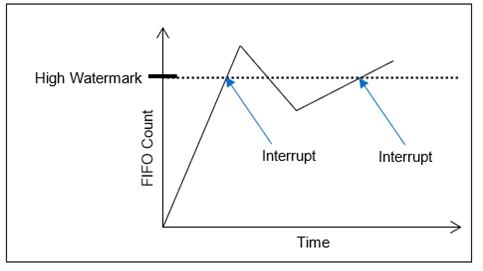

FIFO High Watermark

Function: The FIFO high watermark threshold enables the user to set the limit for the “high watermark” status.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 7FFF

Read/Write: R/W

Initialized Value: 0x6000 (24576)

Operational Settings: When the FIFO Count is greater than or equal to the value stored in the FIFO High Watermark Value register, the “high watermark” bit (D3) of the FIFO Status register will be set. When the FIFO Count counter is less than the value stored in the register, the “high watermark” bit (D3) of the FIFO Status register will be cleared.

FIFO Almost Full

Function: This register enables the user to set the limits for the “almost full” status.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 7FFF

Read/Write: R/W

Initialized Value: 0x7C00 (31744)

Operational Settings: When the FIFO Count register is greater than or equal to the value stored in the FIFO Almost Full Value register, the “almost full” bit (D4) of the FIFO Status register will be set. When the FIFO Count is less than the value stored in the FIFO Almost Full Value register, the “almost full” bit (D4) of the FIFO Status register will be cleared

Clear FIFO

Function: Clears the FIFO buffer.

Type: unsigned binary word (32-bit)

Data Range: 0 or 1

Read/Write: W

Initialized Value: 0

Operational Settings: Writing a 1 will clear the FIFO buffer and reset the count in the FIFO Word Count register.

Clear FIFO

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

FIFO Software Trigger

Function: If the memory buffer is enabled writing the trigger value to this register will start the output. Values stored in the FIFO will be output at the set update rate until the FIFO is empty.

Type: unsigned binary word (32-bit)

Data Range: 0 or 1

Read/Write: R/W

Initialized Value: 0

Operational Settings: To initiate output from the FIFO Data register the Use FIFO register must be enabled. Then write a 1 to the FIFO Control register to begin outputting data. The 1 will clear once the FIFO empties.

FIFO Software Trigger

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Pattern Registers

Pattern Control

Function: Control the RAM data output.

Type: unsigned binary word (32-bit)

Data Range: N/A

Read/Write: R/W

Initialized Value: 0

Operational Settings: The Pattern Start Address register determines where the Pattern output will begin when enabled. The Pattern End Address register determines where the Pattern output will end when enabled. After the pattern at the Pattern End Address is outputted, it will loop back to the start address.

Description
D0	Enable. This bit will enable or disable continuous pattern looping. Write 0x1 to enable and 0x0 to disable the pattern.
D1	Burst Mode: Writing 0x3 (D0 and D1) will burst the pattern from the start address to the end address for N number of times. N is determined by the value written in the Pattern Number of Cycles register.
D2	Pause: Set this bit to pause the pattern when enabled

Pattern RAM Control

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	D	D	D

Pattern Start Address

Function: Programs the starting address for the Pattern output buffer. There are 32767 address locations.

Type: unsigned binary word (32-bit)

Data Range: Ch 1: 0x0002 0000 to 0x0003 FFFC; Ch 2: 0x0004 0000 to 0x0005 FFFC; Ch 3: 0x0006 0000 to 0x0007 FFFC; Ch 4: 0x0008 0000 to 0x0009 FFFC

Read/Write: R/W

Initialized Value: Ch 1: 0x0002 0000; Ch 2: 0x0004 0000; Ch 3: 0x0006 0000; Ch 4: 0x0008 0000;

Operational Settings: Address where the Pattern buffer will start when it is enabled.

Pattern End Address

Function: Programs the ending address for the Pattern output buffer. There are 32767 address locations.

Type: unsigned binary word (32-bit)

Data Range: Ch 1: 0x0002 0000 to 0x0003 FFFC; Ch 2: 0x0004 0000 to 0x0005 FFFC; Ch 3: 0x0006 0000 to 0x0007 FFFC; Ch 4: 0x0008 0000 to 0x0009 FFFC

Read/Write: R/W

Initialized Value: Ch 1: 0x0002 0000; Ch 2: 0x0004 0000; Ch 3: 0x0006 0000; Ch 4: 0x0008 0000;

Operational Settings: Address where the Pattern buffer will end when it is enabled. After the DAC value that is stored at this address is outputted, the buffer will jump back to the Pattern Start Address.

Pattern Number of Cycles

Function: Set the number of Pattern cycles for a channel.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0001 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: When the Pattern buffer is enabled in burst mode, it will loop from the Pattern Start Address to the Pattern End Address the number of times that is set in this register.

Engineering Scaling Conversion Registers

The D/A Module Data, Voltage and Current Measurement registers can be programmed to be utilized as an IEEE 754 single-precision floating- point value or as a 32-bit integer value.

Enable Floating Point Mode

Function: Sets all channels for floating point mode or integer module.

Type: unsigned binary word (32-bit)

Data Range: 0 or 1

Read/Write: R/W

Initialized Value: 0 (Integer mode)

Operational Settings: Set bit to 1 to enable Floating Point Mode and 0 for Integer Mode.

Floating Point Offset

Function: This register sets the floating-point offset to add to DA output.

Type: Single Precision Floating Point Value (IEEE-754)

Data Range: N/A

Read/Write: R/W

Initialized Value: 0.0

Operational Settings: Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point examples.

Floating Point Scale

Function: This register sets the floating-point scale to multiple to the DA output.

Type: Single Precision Floating Point Value (IEEE-754)

Data Range: N/A Read/Write: R/W Initialized Value: 0.0

Operational Settings: When changing the Voltage Range or Current Range, the Floating Point Scale needs to be adjusted in order for the Wrap Voltage and Wrap Current floating point representation to be scaled correctly.

Floating Point State

Function: Indicates whether the module’s internal processing is converting the register values and internal values to the binary representation of the mode selected (Integer or Floating Point).

Type: unsigned binary word (32-bit)

Data Range: 0 to 1

Read/Write: R

Initialized Value: 0

Operational Settings: Indicates the whether the module registers are in Integer (0) or Floating Point Mode (1). When the Enable Floating Point Mode is modified, the application must wait until this register’s value matches the requested mode before changing the values of the configuration and control registers with the values in the units specified (Integer or Floating Point).

Floating Point State

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Background BIT Threshold Registers

The Background BIT Threshold register provides the ability to specify the minimum time before the BIT fault is reported in the BIT Status registers. The Reset BIT register provides the ability to reset the BIT counter used in CBIT.

Background BIT Threshold

Function: Sets BIT Threshold value (in milliseconds) to use for all channels for BIT failure indication.

Type: unsigned binary word (32-bit) Data Range: 1 ms to 2^32 ms

Read/Write: R/W

Initialized Value: 0x5 (5ms)

Operational Settings: The interval at which BIT is performed is dependent and differs between module types. Rather than specifying the BIT Threshold as a “count”, the BIT Threshold is specified as a time in milliseconds. The module will convert the time specified to the BIT Threshold “count” based on the BIT interval for that module.

Reset BIT

Function: Resets the CBIT internal circuitry and count mechanism. Set the bit corresponding to the channel you want to clear.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: W

Initialized Value: 0

Operational Settings: Set bit to 1 for channel to resets the CBIT mechanisms. Bit is self-clearing.

Reset BIT

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Watchdog Timer Registers

Refer to “Watchdog Timer Module Manual” for the Watchdog Timer Register Descriptions.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

Status and Interrupt Registers

The DA3 Module provides status registers for BIT, Overcurrent, Current Range Exceeded, External Power Under Voltage, Inter-FPGA Failure, and FIFO.

Channel Status Enabled

Function: Determines whether to update the status for the channels. This feature can be used to “mask” status bits of unused channels in status registers that are bitmapped by channel.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F (Channel Status)

Read/Write: R/W

Initialized Value: 0x0000 000F

Operational Settings: When the bit corresponding to a given channel in the Channel Status Enabled register is not enabled (0) the status will be masked and report “0” or “no failure”.

This applies to all statuses that are bitmapped by channel (BIT Status, Overcurrent Status and Summary Status).

Note

Background BIT will continue to run even if the Channel Status Enabled is set to ‘0’.

Channel Status Enabled

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

BIT Status

There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. The BIT Status register will indicate an error when the D/A conversion is outside 0.2% FS accuracy spec.

BIT Status

BIT Dynamic Status
BIT Latched Status
BIT Interrupt Enable
BIT Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Function: Sets the corresponding bit associated with the channel’s BIT error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Note

BIT Status is part of background testing and the status register may be checked or polled at any given time

Overcurrent Status

There are four registers associated with the Overcurrent Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Overcurrent Status

Overcurrent Dynamic Status
Overcurrent Latched Status
Overcurrent Interrupt Enable
Overcurrent Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Function: Sets the corresponding bit associated with the channel’s BIT error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Current Range Exceeded Status

There are four registers associated with the Overcurrent Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Current Range Exceeded Status

Current Range Exceeded Dynamic Status
Current Range Exceeded Latched Status
Current Range Exceeded Interrupt Enable
Current Range Exceeded Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Function: Sets the corresponding bit associated with the channel’s Current Range Exceeded error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

External Power Under Voltage

There are four registers associated with the External Power Under Voltage Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

D0 = +12V External Power Under Voltage

D1 = -12V External Power Under Voltage

External Power Under Voltage

External Power Under Voltage Dynamic Status
External Power Under Voltage Latched Status
External Power Under Voltage Interrupt Enable
External Power Under Voltage Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	-12V	+12V

Function: Sets the corresponding bit associated with the channel’s External Power Under Voltage error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Inter-FPGA Failure Status/Watchdog Timer Fault

Data is periodically transferred between the processing module and functional module within the FPGA. A CRC value is calculated and verified with each data transfer. In order to recover from an Inter-FPGA Failure, the module needs to be reset and re-initialized.

There are four registers associated with the Inter-FPGA Status/Watchdog Timer Fault: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

The lower 16-bits represent the Inter-FPGA Failure Status: 0 = Normal; 0x000F = Inter-FPGA Communication Failure. The status represents the status for all channels on the module.

Bit 31 represents the Watchdog Timer Fault: 0 = Normal; 1 = Watchdog Timer Fault.

Inter-FPGA Failure Status/Watchdog Timer Fault

Inter-FPGA Failure/Watchdog Timer Fault Dynamic Status
Inter-FPGA Failure/Watchdog Timer Fault Latched Status
Inter-FPGA Failure/Watchdog Timer Fault Interrupt Enable
Inter-FPGA Failure/Watchdog Timer Fault Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

Function: Sets the corresponding bit associated with the channel’s Inter-FPGA Failure and Watchdog Timer Fault error.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

Summary Status

There are four registers associated with the Summary Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Summary Status

Summary Status Dynamic Status
Summary Status Latched Status
Summary Status Interrupt Enable
Summary Status Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	Ch4	Ch3	Ch2	Ch1

Function: Sets the corresponding bit when a fault is detected for BIT, Overcurrent, Current Range Exceeded, External Power Under Voltage or Inter-FPGA Failure on that channel.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 000F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 0

FIFO Status

There are four registers associated with the FIFO Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. D0-D5 is used to show the different conditions of the buffer.

Bit	Description	Configurable?
D0	Empty; 1 when FIFO Word Count = 0	No
D1	Almost Empty; 1 when FIFO Word Count ≤ “FIFO Almost Empty” register	Yes
D2	Low Watermark; 1 when FIFO Word Count ≤ “FIFO Low Watermark” register	Yes
D3	High Watermark; 1 when FIFO Word Count ≥ “FIFO High Watermark” register	Yes
D4	Almost Full; 1 when FIFO Word Count ≥ “FIFO Almost Full” register	Yes
D5	Full; 1 when FIFO Word Count = 32767 Words (0x0000 7FFF)	No

FIFO Status

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	D	D	D	D	D	D

Function: Sets the corresponding bit associated with the FIFO status type; there are separate registers for each channel.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0x0000 003F

Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)

Initialized Value: 1 (Empty)

Note

Shown below is an example of interrupts generated for the High Watermark. As shown, the interrupt is generated as the FIFO Word Count crosses the High Watermark. The interrupt will not be generated a second time until the count goes below the watermark and then above it again.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector

Function: Set an identifier for the interrupt.

Type: unsigned binary word (32-bit)

Data Range: 0x0000 0000 to 0xFFFF FFFF

Read/Write: R/W

Initialized Value: 0

Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering

Function: Sets where to direct the interrupt.

Type: unsigned binary word (32-bit)

Data Range: See table Read/Write: R/W

Initialized Value: 0

Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

FUNCTION REGISTER MAP

Key:

Bold Italic = Configuration/Control

Bold Underline = Measurement/Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

**Data is available in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode.

~ Data is always in Floating Point.

D/A Output Registers

0x2004	DAC Value Ch 1****	R/W
0x2104	DAC Value Ch 2****	R/W
0x2204	DAC Value Ch 3****	R/W
0x2304	DAC Value Ch 4****	R/W

D/A Control Registers

0x1000	Voltage/Current Mode Ch 1-4	R/W

0x2000	Voltage Range Ch 1	R/W
0x2100	Voltage Range Ch 2	R/W
0x2200	Voltage Range Ch 3	R/W
0x2300	Voltage Range Ch 4	R/W

0x0250	Power Enable Ch 1-4	R/W

0x100C	Update Rate Ch 1-4	R/W

0x1010	Overcurrent Reset Ch 1-4	R/W

0x2048	Overcurrent Value Ch 1	R/W
0x2148	Overcurrent Value Ch 2	R/W
0x2248	Overcurrent Value Ch 3	R/W
0x2348	Overcurrent Value Ch 4	R/W

0x2040	Current Range Ch 1	R/W
0x2140	Current Range Ch 2	R/W
0x2240	Current Range Ch 3	R/W
0x2340	Current Range Ch 4	R/W

D/A Measurement Registers

0x2008	Wrap Voltage Ch 1****	R
0x2108	Wrap Voltage Ch 2****	R
0x2208	Wrap Voltage Ch 3****	R
0x2308	Wrap Voltage Ch 4****	R

0x200C	Wrap Current Ch 1****	R
0x210C	Wrap Current Ch 2****	R
0x220C	Wrap Current Ch 3****	R
0x230C	Wrap Current Ch 4****	R

FIFO/RAM Registers

FIFO/RAM Controls

0x1004	Use Memory Ch 1-4	R/W

0x1008	RAM/FIFO Mode Ch 1-4	R/W

FIFO Registers

0x2018	FIFO Buffer Data Ch 1****	W
0x2118	FIFO Buffer Data Ch 2****	W
0x2218	FIFO Buffer Data Ch 3****	W
0x2318	FIFO Buffer Data Ch 4****	W

0x201C	FIFO Word Count Ch 1	R
0x211C	FIFO Word Count Ch 2	R
0x221C	FIFO Word Count Ch 3	R
0x231C	FIFO Word Count Ch 4	R

0x2010	Clear FIFO Ch 1	W
0x2110	Clear FIFO Ch 2	W
0x2210	Clear FIFO Ch 3	W
0x2310	Clear FIFO Ch 4	W

0x2014	FIFO Software Trigger Ch 1	W
0x2114	FIFO Software Trigger Ch 2	W
0x2214	FIFO Software Trigger Ch 3	W
0x2314	FIFO Software Trigger Ch 4	W

FIFO Thresholds

0x2020	FIFO Almost Empty Value Ch 1	W
0x2120	FIFO Almost Empty Value Ch 2	W
0x2220	FIFO Almost Empty Value Ch 3	W
0x2320	FIFO Almost Empty Value Ch 4	W

FIFO High Watermark

0x2028	FIFO High Watermark Value Ch 1	W
0x2128	FIFO High Watermark Value Ch 2	W
0x2228	FIFO High Watermark Value Ch 3	W
0x2328	FIFO High Watermark Value Ch 4	W

FIFO Low Watermark

0x2024	FIFO Low Watermark Value Ch 1	W
0x2124	FIFO Low Watermark Value Ch 2	W
0x2224	FIFO Low Watermark Value Ch 3	W
0x2324	FIFO Low Watermark Value Ch 4	W

FIFO Almost Full

0x202C	FIFO Almost Full Value Ch 1	W
0x212C	FIFO Almost Full Value Ch 2	W
0x222C	FIFO Almost Full Value Ch 3	W
0x232C	FIFO Almost Full Value Ch 4	W

Pattern Registers

0x2030	Pattern Control Ch 1	R/W
0x2130	Pattern Control Ch 2	R/W
0x2230	Pattern Control Ch 3	R/W
0x2330	Pattern Control Ch 4	R/W

0x2038	Pattern End Address Ch 1	R/W
0x2138	Pattern End Address Ch 2	R/W
0x2238	Pattern End Address Ch 3	R/W
0x2338	Pattern End Address Ch 4	R/W

0x2034	Pattern Start Address Ch 1	R/W
0x2134	Pattern Start Address Ch 2	R/W
0x2234	Pattern Start Address Ch 3	R/W
0x2334	Pattern Start Address Ch 4	R/W

0x203C	Pattern Number of Cycles Ch 1	R/W
0x213C	Pattern Number of Cycles Ch 2	R/W
0x223C	Pattern Number of Cycles Ch 3	R/W
0x233C	Pattern Number of Cycles Ch 4	R/W

0x0002 0000 to 0x0003 FFFC	Pattern RAM Data Space Ch 1****	W
0x0004 0000 to 0x0005 FFFC	Pattern RAM Data Space Ch 2****	W
0x0006 0000 to 0x0007 FFFC	Pattern RAM Data Space Ch 3****	W
0x0008 0000 to 0x0009 FFFC	Pattern RAM Data Space Ch 4****	W

Engineering Scaling Conversion Registers

0x02B4	Enable Floating Point	R/W
0x0264	Floating Point State	R

0x2050	Floating Point Offset Ch 1~	R/W
0x2150	Floating Point Offset Ch 2~	R/W
0x2250	Floating Point Offset Ch 3~	R/W
0x2350	Floating Point Offset Ch 4~	R/W

0x2054	Floating Point Scale Ch 1~	R/W
0x2154	Floating Point Scale Ch 2~	R/W
0x2254	Floating Point Scale Ch 3~	R/W
0x2354	Floating Point Scale Ch 4~	R/W

Watchdog Timer Registers

The D/A Modules provide registers that support Watchdog Timer capability. Refer to “Watchdog Timer Module Manual” for the Watchdog Timer Function Register Map.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map.

Status Registers

0x02B0	Channel Status Enabled	R/W

BIT Status

0x0800	Dynamic Status	R
0x0804	Latched Status*	R/W
0x0808	Interrupt Enable	R/W
0x080C	Set Edge/Level Interrupt	R/W

D/A Test Registers

0x0248	Test Enabled	R/W

Background BIT Threshold Registers

0x02B8	Background BIT Threshold	R/W
0x02BC	Reset BIT	W

0x02AC	Power-on BIT Complete++	R

⁺⁺After power-on, Power-on BIT Complete should be checked before reading the BIT Latched Status.

Status Registers

Overcurrent Status

0x0910	Dynamic Status	R
0x0914	Latched Status*	R/W
0x0918	Interrupt Enable	R/W
0x091C	Set Edge/Level Interrupt	R/W

Current Range Exceeded Status

0x0920	Dynamic Status	R
0x0924	Latched Status*	R/W
0x0928	Interrupt Enable	R/W
0x092C	Set Edge/Level Interrupt	R/W

External Power Under Voltage Status

0x0930	Dynamic Status	R
0x0934	Latched Status*	R/W
0x0938	Interrupt Enable	R/W
0x093C	Set Edge/Level Interrupt	R/W

Watchdog Timer Fault/Inter-FPGA Failure

0x09B0	Dynamic Status	R
0x09B4	Latched Status*	R/W
0x09B8	Interrupt Enable	R/W
0x09BC	Set Edge/Level Interrupt	R/W

Summary Status

0x09A0	Dynamic Status	R
0x09A4	Latched Status*	R/W
0x09A8	Interrupt Enable	R/W
0x09AC	Set Edge/Level Interrupt	R/W

FIFO Status

Ch 1
0x0810	Dynamic Status	R
0x0814	Latched Status*	R/W
0x0818	Interrupt Enable	R/W
0x081C	Set Edge/Level Interrupt	R/W
Ch 2
0x0820	Dynamic Status	R
0x0824	Latched Status*	R/W
0x0828	Interrupt Enable	R/W
0x082C	Set Edge/Level Interrupt	R/W
Ch 3
0x0830	Dynamic Status	R
0x0834	Latched Status*	R/W
0x0838	Interrupt Enable	R/W
0x083C	Set Edge/Level Interrupt	R/W
Ch 4
0x0840	Dynamic Status	R
0x0844	Latched Status*	R/W
0x0848	Interrupt Enable	R/W
0x084C	Set Edge/Level Interrupt	R/W

Interrupt Registers

The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address Offsets. These registers are accessed using the absolute addresses listed in the table below.

0x0500	Module 1 Interrupt Vector 1 - BIT	R/W
0x0504	Module 1 Interrupt Vector 2 - FIFO Ch 1	R/W
0x0508	Module 1 Interrupt Vector 3 - FIFO Ch 2	R/W
0x050C	Module 1 Interrupt Vector 4 - FIFO Ch 3	R/W
0x0510	Module 1 Interrupt Vector 5 - FIFO Ch 4	R/W
0x0514 to 0x0540	Module 1 Interrupt Vector 6-17 - Reserved	R/W
0x0544	Module 1 Interrupt Vector 18 - Overcurrent	R/W
0x0548	Module 1 Interrupt Vector 19 - Current Range Exceeded	R/W
0x054C	Module 1 Interrupt Vector 20 - External Power Under Voltage	R/W
0x0550 to 0x0564	Module 1 Interrupt Vector 21-26 - Reserved	R/W
0x0568	Module 1 Interrupt Vector 27 - Summary	R/W
0x056C	Module 1 Interrupt Vector 28 - Watchdog Timer/Inter-FPGA	R/W
0x0570 to 0x057C	Module 1 Interrupt Vector 29-32 - Reserved	R/W

0x0600	Module 1 Interrupt Steering 1 - BIT	R/W
0x0604	Module 1 Interrupt Steering 2 - FIFO Ch 1	R/W
0x0608	Module 1 Interrupt Steering 3 - FIFO Ch 2	R/W
0x060C	Module 1 Interrupt Steering 4 - FIFO Ch 3	R/W
0x0610	Module 1 Interrupt Steering 5 - FIFO Ch 4	R/W
0x0614 to 0x0640	Module 1 Interrupt Steering 6-17 - Reserved	R/W
0x0644	Module 1 Interrupt Steering 18 - Overcurrent	R/W
0x0648	Module 1 Interrupt Steering 19 - Current Range Exceeded	R/W
0x064C	Module 1 Interrupt Steering 20 - External Power Under Voltage	R/W
0x0650 to 0x0664	Module 1 Interrupt Steering 21-26 - Reserved	R/W
0x0668	Module 1 Interrupt Steering 27 - Summary	R/W
0x066C	Module 1 Interrupt Steering 28 - Watchdog Timer/Inter-FPGA	R/W
0x0670 to 0x067C	Module 1 Interrupt Steering 29-32 - Reserved	R/W

0x0700	Module 2 Interrupt Vector 1 - BIT	R/W
0x0704	Module 2 Interrupt Vector 2 - FIFO Ch 1	R/W
0x0708	Module 2 Interrupt Vector 3 - FIFO Ch 2	R/W
0x070C	Module 2 Interrupt Vector 4 - FIFO Ch 3	R/W
0x0710	Module 2 Interrupt Vector 5 - FIFO Ch 4	R/W
0x0714 to 0x0740	Module 2 Interrupt Vector 6-17 - Reserved	R/W
0x0744	Module 2 Interrupt Vector 18 - Overcurrent	R/W
0x0748	Module 2 Interrupt Vector 19 - Current Range Exceeded	R/W
0x074C	Module 2 Interrupt Vector 20 - External Power Under Voltage	R/W
0x0750 to 0x0764	Module 2 Interrupt Vector 21-26 - Reserved	R/W
0x0768	Module 2 Interrupt Vector 27 - Summary	R/W
0x076C	Module 2 Interrupt Vector 28 - Watchdog Timer/Inter-FPGA	R/W
0x0770 to 0x077C	Module 2 Interrupt Vector 29-32 - Reserved	R/W

0x0800	Module 2 Interrupt Steering 1 - BIT	R/W
0x0804	Module 2 Interrupt Steering 2 - FIFO Ch 1	R/W
0x0808	Module 2 Interrupt Steering 3 - FIFO Ch 2	R/W
0x080C	Module 2 Interrupt Steering 4 - FIFO Ch 3	R/W
0x0810	Module 2 Interrupt Steering 5 - FIFO Ch 4	R/W
0x0814 to 0x0840	Module 2 Interrupt Steering 6-17 - Reserved	R/W
0x0844	Module 2 Interrupt Steering 18 - Overcurrent	R/W
0x0848	Module 2 Interrupt Steering 19 - Current Range Exceeded	R/W
0x084C	Module 2 Interrupt Steering 20 - External Power Under Voltage	R/W
0x0850 to 0x0864	Module 2 Interrupt Steering 21-26 - Reserved	R/W
0x0868	Module 2 Interrupt Steering 27 - Summary	R/W
0x086C	Module 2 Interrupt Steering 28 - Watchdog Timer/Inter-FPGA	R/W
0x0870 to 0x087C	Module 2 Interrupt Steering 29-32 - Reserved	R/W

0x0900	Module 3 Interrupt Vector 1 - BIT	R/W
0x0904	Module 3 Interrupt Vector 2 - FIFO Ch 1	R/W
0x0908	Module 3 Interrupt Vector 3 - FIFO Ch 2	R/W
0x090C	Module 3 Interrupt Vector 4 - FIFO Ch 3	R/W
0x0910	Module 3 Interrupt Vector 5 - FIFO Ch 4	R/W
0x0914 to 0x0940	Module 3 Interrupt Vector 6-17 - Reserved	R/W
0x0944	Module 3 Interrupt Vector 18 - Overcurrent	R/W
0x0948	Module 3 Interrupt Vector 19 - Current Range Exceeded	R/W
0x094C	Module 3 Interrupt Vector 20 - External Power Under Voltage	R/W
0x0950 to 0x0964	Module 3 Interrupt Vector 21-26 - Reserved	R/W
0x0968	Module 3 Interrupt Vector 27 - Summary	R/W
0x096C	Module 3 Interrupt Vector 28 - Watchdog Timer/Inter-FPGA	R/W
0x0970 to 0x097C	Module 3 Interrupt Vector 29-32 - Reserved	R/W

0x0A00	Module 3 Interrupt Steering 1 - BIT	R/W
0x0A04	Module 3 Interrupt Steering 2 - FIFO Ch 1	R/W
0x0A08	Module 3 Interrupt Steering 3 - FIFO Ch 2	R/W
0x0A0C	Module 3 Interrupt Steering 4 - FIFO Ch 3	R/W
0x0A10	Module 3 Interrupt Steering 5 - FIFO Ch 4	R/W
0x0A14 to 0x0A40	Module 3 Interrupt Steering 6-17 - Reserved	R/W
0x0A44	Module 3 Interrupt Steering 18 - Overcurrent	R/W
0x0A48	Module 3 Interrupt Steering 19 - Current Range Exceeded	R/W
0x0A4C	Module 3 Interrupt Steering 20 - External Power Under Voltage	R/W
0x0A50 to 0x0A64	Module 3 Interrupt Steering 21-26 - Reserved	R/W
0x0A68	Module 3 Interrupt Steering 27 - Summary	R/W
0x0A6C	Module 3 Interrupt Steering 28 - Watchdog Timer/Inter-FPGA	R/W
0x0A70 to 0x0A7C	Module 3 Interrupt Steering 29-32 - Reserved	R/W

0x0B00	Module 4 Interrupt Vector 1 - BIT	R/W
0x0B04	Module 4 Interrupt Vector 2 - FIFO Ch 1	R/W
0x0B08	Module 4 Interrupt Vector 3 - FIFO Ch 2	R/W
0x0B0C	Module 4 Interrupt Vector 4 - FIFO Ch 3	R/W
0x0B10	Module 4 Interrupt Vector 5 - FIFO Ch 4	R/W
0x0B14 to 0x0B40	Module 4 Interrupt Vector 6-17 - Reserved	R/W
0x0B44	Module 4 Interrupt Vector 18 - Overcurrent	R/W
0x0B48	Module 4 Interrupt Vector 19 - Current Range Exceeded	R/W
0x0B4C	Module 4 Interrupt Vector 20 - External Power Under Voltage	R/W
0x0B50 to 0x0B64	Module 4 Interrupt Vector 21-26 - Reserved	R/W
0x0B68	Module 4 Interrupt Vector 27 - Summary	R/W
0x0B6C	Module 4 Interrupt Vector 28 - Watchdog Timer/Inter-FPGA	R/W
0x0B70 to 0x0B7C	Module 4 Interrupt Vector 29-32 - Reserved	R/W

0x0C00	Module 4 Interrupt Steering 1 - BIT	R/W
0x0C04	Module 4 Interrupt Steering 2 - FIFO Ch 1	R/W
0x0C08	Module 4 Interrupt Steering 3 - FIFO Ch 2	R/W
0x0C0C	Module 4 Interrupt Steering 4 - FIFO Ch 3	R/W
0x0C10	Module 4 Interrupt Steering 5 - FIFO Ch 4	R/W
0x0C14 to 0x0C40	Module 4 Interrupt Steering 6-17 - Reserved	R/W
0x0C44	Module 4 Interrupt Steering 18 - Overcurrent	R/W
0x0C48	Module 4 Interrupt Steering 19 - Current Range Exceeded	R/W
0x0C4C	Module 4 Interrupt Steering 20 - External Power Under Voltage	R/W
0x0C50 to 0x0C64	Module 4 Interrupt Steering 21-26 - Reserved	R/W
0x0C68	Module 4 Interrupt Steering 27 - Summary	R/W
0x0C6C	Module 4 Interrupt Steering 28 - Watchdog Timer/Inter-FPGA	R/W
0x0C70 to 0x0C7C	Module 4 Interrupt Steering 29-32 - Reserved	R/W

0x0D00	Module 5 Interrupt Vector 1 - BIT	R/W
0x0D04	Module 5 Interrupt Vector 2 - FIFO Ch 1	R/W
0x0D08	Module 5 Interrupt Vector 3 - FIFO Ch 2	R/W
0x0D0C	Module 5 Interrupt Vector 4 - FIFO Ch 3	R/W
0x0D10	Module 5 Interrupt Vector 5 - FIFO Ch 4	R/W
0x0D14 to 0x0D40	Module 5 Interrupt Vector 6-17 - Reserved	R/W
0x0D44	Module 5 Interrupt Vector 18 - Overcurrent	R/W
0x0D48	Module 5 Interrupt Vector 19 - Reserved	R/W
0x0D4C	Module 5 Interrupt Vector 20 - External Power Under Voltage	R/W
0x0D50 to 0x0D64	Module 5 Interrupt Vector 21-26 - Reserved	R/W
0x0D68	Module 5 Interrupt Vector 27 - Summary	R/W
0x0D6C	Module 5 Interrupt Vector 28 - Watchdog Timer/Inter-FPGA	R/W
0x0D70 to 0x0D7C	Module 5 Interrupt Vector 29-32 - Reserved	R/W

0x0E00	Module 5 Interrupt Steering 1 - BIT	R/W
0x0E04	Module 5 Interrupt Steering 2 - FIFO Ch 1	R/W
0x0E08	Module 5 Interrupt Steering 3 - FIFO Ch 2	R/W
0x0E0C	Module 5 Interrupt Steering 4 - FIFO Ch 3	R/W
0x0E10	Module 5 Interrupt Steering 5 - FIFO Ch 4	R/W
0x0E14 to 0x0E40	Module 5 Interrupt Steering 6-17 - Reserved	R/W
0x0E44	Module 5 Interrupt Steering 18 - Overcurrent	R/W
0x0E48	Module 5 Interrupt Steering 19 - Reserved	R/W
0x0E4C	Module 5 Interrupt Steering 20 - External Power Under Voltage	R/W
0x0E50 to 0x0E64	Module 5 Interrupt Steering 21-26 - Reserved	R/W
0x0E68	Module 5 Interrupt Steering 27 - Summary	R/W
0x0E6C	Module 5 Interrupt Steering 28 - Watchdog Timer/Inter-FPGA	R/W
0x0E70 to 0x0E7C	Module 5 Interrupt Steering 29-32 - Reserved	R/W

0x0F00	Module 6 Interrupt Vector 1 - BIT	R/W
0x0F04	Module 6 Interrupt Vector 2 - FIFO Ch 1	R/W
0x0F08	Module 6 Interrupt Vector 3 - FIFO Ch 2	R/W
0x0F0C	Module 6 Interrupt Vector 4 - FIFO Ch 3	R/W
0x0F10	Module 6 Interrupt Vector 5 - FIFO Ch 4	R/W
0x0F14 to 0x0F40	Module 6 Interrupt Vector 6-17 - Reserved	R/W
0x0F44	Module 6 Interrupt Vector 18 - Overcurrent	R/W
0x0F48	Module 6 Interrupt Vector 19 - Reserved	R/W
0x0F4C	Module 6 Interrupt Vector 20 - External Power Under Voltage	R/W
0x0F50 to 0x0F64	Module 6 Interrupt Vector 21-26 - Reserved	R/W
0x0F68	Module 6 Interrupt Vector 27 - Summary	R/W
0x0F6C	Module 6 Interrupt Vector 28 - Watchdog Timer/Inter-FPGA	R/W
0x0F70 to 0x0F7C	Module 6 Interrupt Vector 29-32 - Reserved	R/W

0x1000	Module 6 Interrupt Steering 1 - BIT	R/W
0x1004	Module 6 Interrupt Steering 2 - FIFO Ch 1	R/W
0x1008	Module 6 Interrupt Steering 3 - FIFO Ch 2	R/W
0x100C	Module 6 Interrupt Steering 4 - FIFO Ch 3	R/W
0x1010	Module 6 Interrupt Steering 5 - FIFO Ch 4	R/W
0x1014 to 0x1040	Module 6 Interrupt Steering 6-17 - Reserved	R/W
0x1044	Module 6 Interrupt Steering 18 - Overcurrent	R/W
0x1048	Module 6 Interrupt Steering 19 - Reserved	R/W
0x104C	Module 6 Interrupt Steering 20 - External Power Under Voltage	R/W
0x1050 to 0x1064	Module 6 Interrupt Steering 21-26 - Reserved	R/W
0x1068	Module 6 Interrupt Steering 27 - Summary	R/W
0x106C	Module 6 Interrupt Steering 28 - Watchdog Timer/Inter-FPGA	R/W
0x1070 to 0x107C	Module 6 Interrupt Steering 29-32 - Reserved	R/W

APPENDIX A: INTEGER/FLOATING POINT MODE PROGRAMMING

Integer Mode Programming

The following registers should be configured as follows:

Register	Value	Description
Voltage Range	0x4	±20 volts
Enable Floating Point	0	Disable for Floating Point Mode

Note: LSB for Bipolar ±20-volt range:

LSB = 20/0x00007FFF

LSB = 10/32767=610uV

DAC Value (Integer)	DAC Voltage Output
1.000 of FS = 0x0000 7FFF	32767 * LSB = 10.0 volts
0.5 of FS = 0x0000 4000	16384 * LSB = 5.0 volts
0.0 of FS = 0x0000 0000	0 * LSB = 0.0 volts
-0.5 of FS = 0xFFFF C000	-16384 * LSB = -10.0 volts
-1.0 of FS = 0xFFFF 8000	-32768 * LSB = -20.0 volts

Floating Point Mode Voltage Programming

The following registers should be configured as follows:

Register	Value	Description
Voltage Range	0x3	±20 volts
Enable Floating Point	1	Enable for Floating Point Mode
Floating Point Scale	0.05	Scale = 1 / (Full Range) = 1 / 20.0 = 0.05
Floating Point Offset	0.0	No Offset

Note: LSB for Bipolar ±20-volt range:

LSB = 20/0x00007FFF = 20/32767=610uV

DAC Value (volts) (Floating Point)	DAC Value (Calculated by Module)	DAC Value (Integer)	DAC Voltage Output
20.0	(20.0 + 0.0) **0.5 = 1 (FS)	FS = 0x0000 7FFF	32767 ** LSB = 20.0 volts
10.0	(10.0 + 0.0) **0.5 = 0.5 of FS	0.5 of FS = 0x0000 4000	16384 ** LSB = 10.0 volts
0.0	(0.0 + 0.0) **0.05 = 0.0 of FS	0.0 of FS = 0x0000 0000	0 ** LSB = 0.0 volts
-10.0	(-10.0 + 0.0) **0.5 = -0.5 of FS	-0.5 of FS = 0xFFFF C000	-16384 ** LSB = -10.0 volts
-20.0	(-20.0 + 0.0) **0.5 = -1 (-FS)	-1.0 of FS = 0xFFFF 8000	-32768 ** LSB = -20. volts

Floating Point Mode Engineering Units Programming

Example #1:

An application wants to associate -20 to 20 volts to -5 to 5 inches.

The following registers should be configured as follows

Register	Value	Description
Voltage Range	0x3	±20 volts
Enable Floating Point	1	Enable for Floating Point Mode
Floating Point Scale	0.2	Scale = 1 / inches range = 1 / 5 = 0.2
Floating Point Offset	0.0	No Offset

Note: LSB for Bipolar ±20-volt range:

LSB = 20/0x00007FFF = 20/32767=610uV

DAC Value (in) (Floating Point)	DAC Value (Calculated by Module)	DAC Value (Integer)	DAC Voltage Output
5.0	(5.0 + 0.0) * 0.2 = 1 (FS)	FS = 0x0000 7FFF	32767 * LSB = 20.0 volts
2.5	(2.5 + 0.0) * 0.2 = .5 of FS	0.5 of FS = 0x0000 4000	16384 * LSB = 10.0 volts
0.0	(0.0 + 0.0) * 0.2 = 0	0.0 of FS = 0x0000 0000	0 * LSB = 0.0 volts
-2.5	(-2.5 + 0.0) * 0.2 = -.5 of FS	-0.5 of FS = 0xFFFF C000	-16384 * LSB = -10.0 volts
-5.0	(-5.0 + 0.0) * 0.2 = -1 (-FS)	-FS = 0xFFFF 8000	-32768 * LSB = -20. volts

Example #2:

An application wants to associate 0 to 10 volts to 0 to 50 feet with a bias of 0.5 feet (in other words 0.5 feet is equivalent to 0 volts).

The following registers should be configured as follows:

Register	Value	Description
Voltage Range	0x0	Unipolar 0-20 volts
Enable Floating Point	1	Enable for Floating Point Mode
Floating Point Scale	0.02	Scale = 1 / feet range = 1 / 50 = 0.02
Floating Point Offset	-0.50	Bias (0.5 feet) that is equivalent to 0 volts

The following are sample outputs:

Note: LSB for Unipolar 20-volt range:

LSB = 20/0x0000FFFF = 20/65535=305uV

DAC Value (ft) (Floating Point)	DAC Value (Calculated by Module)	DAC Value (Integer)	DAC Voltage Output
50.00	(50.0 - 0.50) * 0.02 = 0.99 of FS	0.99 of FS = 0x0000 FD70	64880 * LSB = 19.80 volts
25.00	(25.00 - 0.50) * 0.02 = 0.49 of FS	0.49 of FS = 0x0000 7D70	32112 * LSB = 9.80 volts
5.50	(5.50 - 0.50) * 0.02 = 0.10 of FS	0.10 of FS = 0x0000 199A	6554 * LSB = 2.00 volts
0.50	(0.50 - 0.50) * 0.02 = 0.00 of FS	0.00 of FS = 0x0000 0000	0 * LSB = 0.0 volts

APPENDIX B: REGISTER NAME CHANGES FROM PREVIOUS RELEASES

This section provides a mapping of the register names used in this document against register names used in previous releases.

Rev B - Register Names	Rev A - Register Names
D/A Output Registers
DAC Value	DAC Value
D/A Control Registers
Voltage Range	Voltage Range
Output Enable	Enable Output
Update Rate	Sample Rate
Overcurrent Reset	Overcurrent Reset
Overcurrent Value
D/A Measurement Registers
Wrap Voltage	Wrap Voltage
Wrap Current	Wrap Current
D/A Test Registers
Test Enabled	Test Enable
FIFO Registers
Data Mode	Use Memory
Buffer Mode	RAM/FIFO Mode
FIFO Buffer Data	FIFO Buffer Data
FIFO Word Count	FIFO Word Count
FIFO Almost Empty	FIFO Almost Empty
FIFO Low Watermark	FIFO Low Watermark
FIFO High Watermark	FIFO High Watermark
FIFO Almost Full	FIFO Almost Full
Clear FIFO	FIFO Reset
FIFO Software Trigger	FIFO Trigger
Pattern Register
Pattern Control	Ram Control
Pattern Start Address	Ram Start Address
Pattern End Address	Ram End Address
Pattern Number of Cycles	Ram Number of Cycles
Engineering Scaling Conversion Registers
Enable Floating Point Mode
Floating Point Offset
Floating Point Scale
Floating Point State
Background BIT Threshold Programming Registers
Background BIT Threshold
Reset BIT
Status and Interrupt Registers
Channel Status Enabled
BIT Dynamic Status	BIT Dynamic Status
BIT Latched Status	BIT Latched Status
BIT Interrupt Enable	BIT Interrupt Enable
BIT Set Edge/Level Interrupt	BIT Set Edge/Level Interrupt
Overcurrent Dynamic Status	Overcurrent Dynamic Status
Overcurrent Latched Status	Overcurrent Latched Status
Overcurrent Interrupt Enable	Overcurrent Interrupt Enable
Overcurrent Set Edge/Level Interrupt	Overcurrent Set Edge/Level Interrupt
Current Range Exceeded Dynamic Status	Current Range Exceeded Dynamic Status
Current Range Exceeded Latched Status	Current Range Exceeded Latched Status
Current Range Exceeded Interrupt Enable	Current Range Exceeded Interrupt Enable
Current Range Exceeded Set Edge/Level Interrupt	Current Range Exceeded Set Edge/Level Interrupt
External Power Under Voltage Dynamic Status	External Power Loss Dynamic Status
External Power Under Voltage Latched Status	External Power Loss Latched Status
External Power Under Voltage Interrupt Enable	External Power Loss Interrupt Enable
External Power Under Voltage Set Edge/Level Interrupt	External Power Loss Set Edge/Level Interrupt
Inter-FPGA Failure Dynamic Status
Inter-FPGA Failure Latched Status
Inter-FPGA Failure Interrupt Enable
Inter-FPGA Failure Set Edge/Level Interrupt
Summary Dynamic Status
Summary Latched Status
Summary Interrupt Enable
Summary Set Edge/Level Interrupt
FIFO Dynamic Status	FIFO Dynamic Status
FIFO Latched Status	FIFO Latched Status
FIFO Interrupt Enable	FIFO Interrupt Enable
FIFO Set Edge/Level Interrupt	FIFO Set Edge/Level Interrupt
Interrupt Vector
Interrupt Steering

APPENDIX C: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

Module Signal (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	DA-HI-CURR & VOLT (DA3)
DATIO1	2	10	1	2
DATIO2	24	35	26	27
DATIO3	3	11	2	3		SENSE-H_CH1
DATIO4	25	36	27	28		SENSE-L_CH1
DATIO5	5	13	4	5		OUT-H_CH1
DATIO6	27	38	29	30		OUT-L_CH1
DATIO7	7	14	5	6		EXT-SYNC_P
DATIO8	29	39	30	31		EXT-SYNC_N
DATIO9	8	15	6	7		SENSE-H_CH2
DATIO10	30	40	31	32		SENSE-L_CH2
DATIO11	10	17	8	9		OUT-H_CH2
DATIO12	32	42	33	34		OUT-L_CH2
DATIO13	12	18	9		17
DATIO14	34	43	34		42
DATIO15	13	19	10		18	SENSE-H_CH3
DATIO16	35	44	35		43	SENSE-L_CH3
DATIO17	15	21	12		20	OUT-H_CH3
DATIO18	37	46	37		45	OUT-L_CH3
DATIO19	17	22	13		21
DATIO20	39	47	38		46
DATIO21	18	23	14		22	SENSE-H_CH4
DATIO22	40	48	39		47	SENSE-L_CH4
DATIO23	20	25	16		24	OUT-H_CH4
DATIO24	42	50	41		49	OUT-L_CH4
DATIO25	4	12	3	4
DATIO26	26	37	28	29
DATIO27	9	16	7	8
DATIO28	31	41	32	33
DATIO29	14	20	11		19
DATIO30	36	45	36		44
DATIO31	19	24	15		23
DATIO32	41	49	40		48
DATIO33	6
DATIO34	28
DATIO35	11
DATIO36	33
DATIO37	16
DATIO38	38
DATIO39	21
DATIO40	43
N/A

D/A HARDWARE BLOCK DIAGRAM

Figure 1. DA3 Hardware Block Diagram

FIRMWARE REVISION NOTES

This section identifies the firmware revision in which specific features were released. Prior revisions of the firmware would not support the features listed.

Feature	FPGA		Bare Metal (BM)
	Firmware Revision	Release Date	Firmware Revision	Release Date
Power-On Self-Test (POST) / Power-on BIT (PBIT) / Start-up BIT(SBIT)	1.8 and later	10/29/2019	2.9 and later	03/04/2020
Engineering Scaling Conversions	1.8 and later	10/29/2019	2.9 and later	03/04/2020
Background BIT Threshold Programming	1.8 and later	10/29/2019	2.9 and later	03/04/2020
Watchdog Timer Capability	1.8 and later	10/29/2019	2.9 and later	03/04/2020
Channel Status Enabled and Summary Status	1.8 and later	10/29/2019	2.9 and later	03/04/2020

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

• Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

• Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

---

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

		No Clearing of Latched Status	Clearing of Latched Status (Edge-Triggered)		Clearing of Latched Status(Level-Triggered)
Time	Dynamic Status	Latched Status	Action	Latched Status	Action	Latched
T0	0x0	0x0	Read Latched Register	0x0	Read Latched Register	0x0
T1	0x1	0x1	Read Latched Register	0x1		0x1
T1	0x1	0x1	Write 0x1 to Latched Register		Write 0x1 to Latched Register
T1	0x1	0x1		0x0		0x1
T2	0x0	0x1	Read Latched Register	0x0	Read Latched Register	0x1
T2	0x0	0x1	Read Latched Register	0x0	Write 0x1 to Latched Register
T2	0x0	0x1	Read Latched Register	0x0		0x0
T3	0x2	0x3	Read Latched Register	0x2	Read Latched Register	0x2
T3	0x2	0x3	Write 0x2 to Latched Register		Write 0x2 to Latched Register
T3	0x2	0x3		0x0		0x2
T4	0x2	0x3	Read Latched Register	0x1	Read Latched Register	0x3
T4	0x2	0x3	Write 0x1 to Latched Register		Write 0x3 to Latched Register
T4	0x2	0x3		0x0		0x2
T5	0xC	0xF	Read Latched Register	0xC	Read Latched Register	0xE
T5	0xC	0xF	Write 0xC to Latched Register		Write 0xE to Latched Register
T5	0xC	0xF		0x0		0xC
T6	0xC	0xF	Read Latched Register	0x0	Read Latched	0xC
T6	0xC	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T6	0xC	0xF	Read Latched Register	0x0		0xC
T7	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0xC
T7	0x4	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T7	0x4	0xF	Read Latched Register	0x0		0x4
T8	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time	Latched Status (Edge-Triggered - Clear Multi-Channel)		Latched Status (Edge-Triggered - Clear Single Channel) 2+		Latched Status (Level-Triggered - Clear Multi-Channel)	Action
	Latched	Action	Latched	Action	Latched	T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	T1 (Int 1)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x1 to Latched Register		T1 (Int 1)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T2.	0x1	T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	T3 (Int 2)
Write 0x2 to Latched Register		Write 0x2 to Latched Register		Write 0x2 to Latched Register		T3 (Int 2)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.	0x2	T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x3	T4 (Int 3)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x3 to Latched Register		T4 (Int 3)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.	0x3	T4 (Int 3)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.	0x2	T6 (Int 4)
Interrupt Generated++``+ Read Latched Registers	0xC	Interrupt Generated++``+ Read Latched Registers	0xC	Interrupt Generated++``+ Read Latched Registers	0xE	T6 (Int 4)
Write 0xC to Latched Register		Write 0x4 to Latched Register		Write 0xE to Latched Register		T6 (Int 4)
	0x0	Interrupt re-triggers++``+ Write 0x8 to Latched Register	0x8	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.	0xE	T6 (Int 4)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.	0xC	T6 (Int 4)
	0x0		0x0	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.	0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date	Description
2026-03-02	Formatting updates to document; no technical changes.

Link to original

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

The User Watchdog Timer (UWDT) Capability is available on the following modules:

• AC Reference Source Modules

  • AC1 - 1 Channel, 2-115 Vrms, 47 Hz - 20kHz
  • AC2 - 2 Channels, 2-28 Vrms, 47 Hz - 20kHz
  • AC3 - 1 Channel, 28-115 Vrms, 47 Hz - 2.5 kHz

• Differential Transceiver Modules

  • DF1/DF2 - 16 Channels Differential I/O

• Digital-to-Analog (D/A) Modules

  • DA1 - 12 Channels, ±10 VDC @ 25 mA, Voltage or Current Control Modes
  • DA2 - 16 Channels, ±10 VDC @ 10 mA
  • DA3 - 4 Channels, ±40 VDC @ ±100 mA, Voltage or Current Control Modes
  • DA4 - 4 Channels, ±80 VDC @ 10 mA
  • DA5 - 4 Channels, ±65 VDC or ±2 A, Voltage or Current Control Modes

• Digital-to-Synchro/Resolver (D/S) or Digital-to-L( R )VDT (D/LV) Modules

  • (Not supported)

• Discrete I/O Modules

  • DT1/DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 - 60 VCC source.

  • DT2/DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

  • DT3/DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

• TTL/CMOS Modules

  • TL1-TL8 - 24 Channels, Programmable for either input or output.

Principle of Operation

The User Watchdog Timer is optionally activated by the applications that require the module’s outputs to be disabled as a failsafe in the event of an application failure or crash. The circuit is designed such that a specific periodic write strobe pattern must be executed by the software to maintain operation and prevent the disablement from taking place.

The User Watchdog Timer is inactive until the application sends an initial strobe by writing the value 0x55AA to the UWDT Strobe register. After activating the User Watchdog Timer, the application must continually strobe the timer within the intervals specified with the configurable UWDT Quiet Time and UWDT Window registers. The timing of the strobes must be consistent with the following rules:

• The application must not strobe during the Quiet time.
• The application must strobe within the Window time.
• The application must not strobe more than once in a single window time.

A violation of any of these rules will trigger a User Watchdog Timer fault and result in shutting down any isolated power supplies and/or disabling any active drive outputs, as applicable for the specific module. Upon a User Watchdog Timer event, recovery to the module shutting down will require the module to be reset.

The Figure 1 and Figure 2 provides an overview and an example with actual values for the User Watchdog Timer Strobes, Quiet Time and Window. As depicted in the diagrams, there are two processes that run in parallel. The Strobe event starts the timer for the beginning of the “Quiet Time”. The timer for the Previous Strobe event continues to run to ensure that no additional Strobes are received within the “Window” associated with the Previous Strobe.

The optimal target for the user watchdog strobes should be at the interval of [Quiet time + ½ Window time] after the previous strobe, which will place the strobe in the center of the window. This affords the greatest margin of safety against unintended disablement in critical operations.

Figure 1. User Watchdog Timer Overview

Figure 2. User Watchdog Timer Example

Figure 3. User Watchdog Timer Failures

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

User Watchdog Timer Registers

The registers associated with the User Watchdog Timer provide the ability to specify the UWDT Quiet Time and the UWDT Window that will be monitored to ensure that EXACTLY ONE User Watchdog Timer (UWDT) Strobe is written within the window.

UWDT Quiet Time
Function:	Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.
UWDT Window
Function:	Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.
UWDT Strobe
Function:	Writes the strobe value to be use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0x55AA
Read/Write:	W
Initialized Value:	0x0
Operational Settings:	At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

Status and Interrupt

The modules that are capable of User Watchdog Timer support provide status registers for the User Watchdog Timer.

User Watchdog Timer Status

The status register that contains the User Watchdog Timer Fault information is also used to indicate channel Inter-FPGA failures on modules that have communication between FPGA components. There are four registers associated with the User Watchdog Timer Fault/Inter-FPGA Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit (D31) associated with the channel’s User Watchdog Timer Fault error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Set Edge/Level Interrupt)
Initialized Value:	0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s)	Status	Description
D31	User Watchdog Timer Fault Status	0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0	Reserved for Inter-FPGA Failure Status	Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

Function Register Map

KEY

Configuration/Control

Measurement/Status

USER WATCHDOG TIMER REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x01C0	UWDT Quiet Time	R/W
0x01C4	UWDT Window	R/W
0x01C8	UWDT Strobe	R/W
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x09B0	Dynamic Status	R
0x09B4	Latched Status*	R/W
0x09B8	Interrupt Enable	R/W
0x09BC	Set Edge/Level Interrupt	R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W
0x0F6C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date	Description
2026-03-02	Formatting updates to document; no technical changes.

Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function:	FPGA firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FPGA Compile Timestamp
Function:	Compile Timestamp for the FPGA firmware.
Type:	unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:	The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

day (5-bits)

month (4-bits)

year (6-bits)

hr

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

hour (5-bits)

minutes (6-bits)

seconds (6-bits)

FPGA SerDes Revision
Function:	FPGA SerDes revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FPGA Template Revision
Function:	FPGA Template revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the template revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FPGA Zynq Block Revision
Function:	FPGA Zynq Block revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function:	Bare Metal firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's Bare Metal
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

Bare Metal Compile Time
Function:	Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type:	24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings:	The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Month ('y' - 0x79)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Month ('a' - 0x61)

Month ('M' - 0x4D)

Word 2 (Ex. 0x32203731)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Year ('2' - 0x32)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Day ('7' - 0x37)

Day ('1' - 0x31)

Word 3 (Ex. 0x20393130)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Year ('9' - 0x39)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Year ('1' - 0x31)

Year ('0' - 0x30)

Word 4 (Ex. 0x31207461)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Hour ('1' - 0x31)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

'a' (0x74)

't' (0x61)

Word 5 (Ex. 0x38333A35)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Minute ('8' - 0x38)

Minute ('3' - 0x33)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

':' (0x3A)

Hour ('5' - 0x35)

Word 6 (Ex. 0x0032333A)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

NULL (0x00)

Seconds ('2' - 0x32)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Seconds ('3' - 0x33)

':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function:	FSBL firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FSBL
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

FSBL Compile Time
Function:	Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type:	24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings:	The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Month ('y' - 0x79)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Month ('a' - 0x61)

Month ('M' - 0x4D)

Word 2 (Ex. 0x32203731)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Year ('2' - 0x32)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Day ('7' - 0x37)

Day ('1' - 0x31)

Word 3 (Ex. 0x20393130)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Space (0x20)

Year ('9' - 0x39)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Year ('1' - 0x31)

Year ('0' - 0x30)

Word 4 (Ex. 0x31207461)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Hour ('1' - 0x31)

Space (0x20)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

'a' (0x74)

't' (0x61)

Word 5 (Ex. 0x38333A35)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Minute ('8' - 0x38)

Minute ('3' - 0x33)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

':' (0x3A)

Hour ('5' - 0x35)

Word 6 (Ex. 0x0032333A)

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

NULL (0x00)

Seconds ('2' - 0x32)

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Seconds ('3' - 0x33)

':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function:	Unique 128-bit identifier used to identify the interface board.
Type:	16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Serial number of the interface board
Operational Settings:	This register is for information purposes only.

Functional Board Serial Number
Function:	Unique 128-bit identifier used to identify the functional board.
Type:	16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Serial number of the functional board
Operational Settings:	This register is for information purposes only.

Module Capability
Function:	Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0107
Read/Write:	R
Initialized Value:	0x0000 0107
Operational Settings:	A “1” in the bit associated with the capability indicates that it is supported.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	Flt-Pt	0	0	0	0	0	Pack	FIFO Blk	Blk

Module Memory Map Revision
Function:	Module Memory Map revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Module Memory Map Revision
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Major Revision Number

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function:	Measured PCB and Zynq Core temperatures on Interface Board.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

PCB Temperature

Zynq Core Temperature

Functional Board Current Temperature
Function:	Measured PCB temperature on Functional Board.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Interface Board Maximum Temperature
Function:	Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

PCB Temperature

Zynq Core Temperature

Interface Board Minimum Temperature
Function:	Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

PCB Temperature

Zynq Core Temperature

Functional Board Maximum Temperature
Function:	Maximum PCB temperature on Functional Board since power-on.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Functional Board Minimum Temperature
Function:	Minimum PCB temperature on Functional Board since power-on.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function:	Higher precision measured Zynq Core temperature on Interface Board.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Zynq Core temperature on Interface Board
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Signed Integer Part of Temperature

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function:	Higher precision measured Interface PCB temperature.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Interface PCB temperature
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Signed Integer Part of Temperature

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function:	Higher precision measured Functional PCB temperature.
Type:	signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Measured Functional PCB temperature
Operational Settings:	The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Signed Integer Part of Temperature

D15

D14

D13

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function:	The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type:	unsigned binary word (32-bits)
Data Range:	See table below
Read/Write:	R
Initialized Value:	0
Operational Settings:	This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s)	Sensor
D31:D6	Reserved
D5	Functional Board PCB Temperature
D4	Interface Board PCB Temperature
D3:D0	Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function:	Reflects which threshold has been crossed
Type:	unsigned binary word (32-bits)
Data Range:	See table below
Read/Write:	R
Initialized Value:	0
Operational Settings:	The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s)	Description
D31:D4	Reserved
D3	Exceeded Upper Critical Threshold
D2	Exceeded Upper Warning Threshold
D1	Exceeded Lower Critical Threshold
D0	Exceeded Lower Warning Threshold

Sensor Current Reading
Function:	Reflects current reading of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function:	Reflects minimum value of temperature sensor since power up
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function:	Reflects maximum value of temperature sensor since power up
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function:	Reflects lower warning threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default lower warning threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function:	Reflects lower critical threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default lower critical threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function:	Reflects upper warning threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default upper warning threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function:	Reflects upper critical threshold of temperature sensor
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	Default upper critical threshold (value dependent on specific sensor)
Operational Settings:	The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control

Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x003C	FPGA Revision	R	0x0074	Bare Metal Revision	R
0x0030	FPGA Compile Timestamp	R	0x0080	Bare Metal Compile Time (Bit 0-31)	R
0x0034	FPGA SerDes Revision	R	0x0084	Bare Metal Compile Time (Bit 32-63)	R
0x0038	FPGA Template Revision	R	0x0088	Bare Metal Compile Time (Bit 64-95)	R
0x0040	FPGA Zynq Block Revision	R	0x008C	Bare Metal Compile Time (Bit 96-127)	R
			0x0090	Bare Metal Compile Time (Bit 128-159)	R
			0x0094	Bare Metal Compile Time (Bit 160-191)	R
0x007C	FSBL Revision	R
0x00B0	FSBL Compile Time (Bit 0-31)	R
0x00B4	FSBL Compile Time (Bit 32-63)	R
0x00B8	FSBL Compile Time (Bit 64-95)	R
0x00BC	FSBL Compile Time (Bit 96-127)	R
0x00C0	FSBL Compile Time (Bit 128-159)	R
0x00C4	FSBL Compile Time (Bit 160-191)	R
0x0000	Interface Board Serial Number (Bit 0-31)	R	0x0010	Functional Board Serial Number (Bit 0-31)	R
0x0034	Interface Board Serial Number (Bit 32-63)	R	0x0014	Functional Board Serial Number (Bit 32-63)	R
0x0008	Interface Board Serial Number (Bit 64-95)	R	0x0018	Functional Board Serial Number (Bit 64-95)	R
0x000C	Interface Board Serial Number (Bit 96-127)	R	0x001C	Functional Board Serial Number (Bit 96-127)	R
0x0070	Module Capability	R
0x01FC	Module Memory Map Revision	R
MODULE MEASUREMENTS REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0200	Interface Board PCB/Zynq Current Temp	R	0x0208	Functional Board PCB Current Temp	R
0x0218	Interface Board PCB/Zynq Max Temp	R	0x0228	Functional Board PCB Max Temp	R
0x0220	Interface Board PCB/Zynq Min Temp	R	0x0230	Functional Board PCB Min Temp	R
0x02C0	Higher Precision Zynq Core Temperature	R
0x02C4	Higher Precision Interface PCB Temperature	R
0x02E0	Higher Precision Functional PCB Temperature	R
MODULE HEALTH MONITORING REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x07F8	Module Sensor Summary Status	R


REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision	Revision Date	Description
C	2023-08-11	ECO C10649, initial release of module common registers manual.
C1	2024-05-15	ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2	2024-07-10	ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date	Description
2025-11-05	Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02	Formatting updates to document; no technical changes.

Link to original

Revision History

Module Manual - DA3 Revision History

Revision	Revision Date	Description
C	2021-11-30	C08895; Clarified derating for gain error specification at extended high temperature. Transition manual to docbuilder format.
C1	2024-03-18	ECO C11334, pg.8, updated Introduction/product overview. Pg.9/22/30, added module common registers. Pg.12, added note to Voltage/Current Mode. Pg.12, added note to Voltage Range; added +/- VCC Setting column to table. Pg.13, added note to Current Range. Pg.26, remove summary events table. Module Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change. Module Manual - User Watchdog Timer Revision Hisory
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change. Module Manual - Module Common Registers Revision History
Revision	Revision Date	Description
C	2023-08-11	ECO C10649, initial release of module common registers manual.

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100

Link to original
