DA1 Manual

INTRODUCTION

This module manual provides information about the North Atlantic Industries, Inc. (NAI) Digital-to-Analog Function Module: DA1. This module is compatible with all NAI Generation 5 motherboards.

Digital-to-Analog (D/A) module DA1 provides 12 independent D/A output channels with a full-scale range of 0 to ±10 VDC (V-control mode) or 0 to ±25 mA (I-control mode). Linearity/accuracy is ±0.05% FS range over temperature. The DA1 provides either voltage or current control loop modes, which are programmable for the particular application. The DA1 module also provides external trigger/synchronization signal (RS-422/485) capability (pending), which provides/accepts a trigger signal to/from other module(s).

FEATURES

• High-quality D/A conversion, 16-Bit/channel • Designed to meet the testing requirements of IEC 801-2 Level 2 • Continuous background BIT • External trigger/synchronization
• Automatic shutdown protection with the results displayed in a status word • Extended D/A FIFO buffering capabilities

SPECIFICATIONS

Module DA1 – 12-Channel Digital-to-Analog (±10.0 VDC or ±25mA)

Resolution:	16-bit/channel for either voltage (V) or current (I) command modes.
Output Format:	Single-ended
Output Range:	±10 VDC, ±5 VDC, ±2.5 VDC, ±1.25 VDC (V-control mode bipolar) or 0 to10 VDC, 0 to 5 VDC, 0 to 2.5 VDC, 0 to 1.25 VDC (V-control mode unipolar). 0 to ±25 mA (I-control mode, bipolar only)
Output Impedance:	< 1 Ω
System Protection:	Output is set to 0 V at reset or Power-On.
Linearity Error:	±0.05% FS range over temperature (Voltage mode) ±0.1% FS range @ 25º C; derates linearly to ±0.2% FS range at -40 ºC & 85 ºC (Current mode)
Offset Error:	±5 mV / ±12.5 µA
Gain Error:	±0.03% FS range
Settling Time:	10 µs typical (15 µs max.)
Data Buffer:	See Operations Manual for details.
Load:	Can drive a capacitive load of 0.1 µF, 25 mA/CH max. (Source or Sink). Short circuit protected. When current exceeds 25 mA for any channel, for > 50 ms, that channel is set to 0 V (mA) and a flag is set.
Update Rate:	5 µs per channel
External Sync:(pending)	Module is provided with RS-485/422 transceiver for external channel output triggering and/or synchronization capabilities (provides or accepts trigger signal from other module(s).
ESD Protection:	Designed to meet the testing requirements of IEC 801-2 Level 2. (4 kV transient with a peak current of 7.5 A and a time constant of approximately 60 ns).
Power:	5 VDC @ 300 mA typical (est.); ±12 VDC @ 200 mA (est. quiescent) Add 2 mA per 1 mA load per channel.
Ground:	All channel returns (CH-Lo (-)) are common, but are isolated (250 Vpeak) from system ground
Weight:	1.5 oz. (42 g)

*Specifications are subject to change without notice.

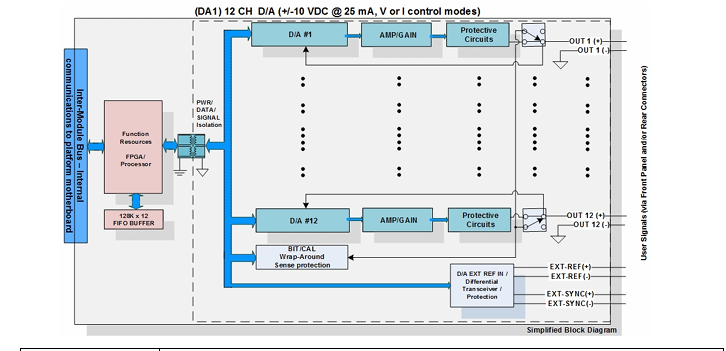

PRINCIPLE OF OPERATION

In addition to the functions and features already described, each module includes extensive background BIT/diagnostics that run in the background in normal operation without user intervention. In addition to output signal read-back (wrap) capabilities, overloaded outputs will be detected with automatic channel shutdown protection, with the results displayed in a status word. The modules also include D/A FIFO Buffering for greater control of the output voltage and signal data. The FIFO D/A buffer will accept, store and output the voltage (and/or current) commands, once enabled and triggered, for applications requiring simulation of waveform generation; single or periodic (pending). The output data command word is formatted as a percentage of the full scale (FS) range selection, which allows maximum resolution and accuracy at lower voltage ranges.

Built-In Test (BIT)/Diagnostic Capability

Two different tests, one online (D2) and one offline (D3), may be selected:

The online (D2) test initiates automatic background BIT testing, where each channel is checked to a test accuracy of 0.2% FS and monitored for shorted output. Any failure triggers an Interrupt (if enabled) with the results available in status registers. The testing is totally transparent to the user, requires no external programming, has no effect on the operation of this card and can be enabled or disabled via the bus.

The offline (D3) test uses an internal A/D that measures all D/A channels while they remain connected to the I/O and cycle through a number of signal levels. Each channel will be checked to a test accuracy of 0.2% FS. Test cycle is completed within 45 seconds and results can be read from the Status registers when D3 changes from 1 to 0. The test can be stopped at any time. This test requires no user programming and can be enabled or disabled via the bus.

Warning

D/A Outputs are active during D3 test. Check connected loads for interaction. D/A Overcurrent (short circuit) monitoring is disabled during D3 testing.

Note

If DA1 is set for Current Mode, and there is no load connected, BIT might be triggered.

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Register Offset, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

Set D/A Data

Function:	Sets each channel for either unipolar or bipolar mode.
Type:	binary word (16-bit)
Data Range:	Unipolar: 0 to 0x0000 FFFF + Bipolar: 0xFFFF 8000 to 0x0000 7FFF
Read/Write:	R/W
Initialized Value:	0x0000 0000
Operational Settings:	Two’s complement format for bipolar mode. See Data Range values above for unipolar and bipolar modes.
Default:	0x0000 0000

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Polarity & Range

Function:	Sets input format for polarity and range for each channel.
Type:	binary word
Data Range:	NA
Read/Write:	R/W
Initialized Value:	0x0000000
Operational Settings:	Set the range using bits D0, D1, D2 and D3. See table below.
Default:	Bipolar

Note

For bipolar/unipolar selection, program D4 to 0 for unipolar or 1 for bipolar.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

Polarity	Range
Mode	Bit 4 + (D4)	Bit 3 + (D3)	Bit 2 + (D2)	Bit 1 + (D1)	Bit 0 + (D0)
Mode	0	0	0	0	0
Unipolar 10 VDC/±25 mA range	1	0	0	0	0
Bipolar 10 VDC/±25 mA range	0	0	0	0	1
Unipolar 5 VDC/±12.5 mA range	1	0	0	0	1
Bipolar 5 VDC/±12.5 mA range	0	0	0	1	0
Unipolar 2.5 VDC/±6.25 mA range	1	0	0	1	0
Bipolar 2.5 VDC/±6.25 mA range	0	0	0	1	1
Unipolar 1.25 VDC/±3.125 mA range	1	0	0	1	1
Bipolar 1.25 VDC/±3.125 mA range

Capacitor/Bandwidth Select

Function:	Filters output to provide a smooth analog waveform for each channel.
Type:	binary word
Data Range:	NA
Read/Write:	R/W
Initialized Value:	0x0000 0000
Operational Settings:	0x00=off (3.3us) 0x10=1500 pF (122us) 0x11=0.015 uF (1.32ms) 0x12=0.15 uF (11.2ms) 0x13=0.47 uF (21ms). See table below.
Default:	0x0000 0000

Note

Set D4 to 0 to Disable or 1 to Enable register. Set D1 and D0 (Bandwidth Select) as indicated above.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

Polarity	Range
Mode	Bit 4 + (D4)	Bit 3 + (D3)	Bit 2 + (D2)	Bit 1 + (D1)	Bit 0 + (D0)
Mode	0	0	0	0	0
Disabled (3.3 µs)	1	0	0	0	0
Enabled 1500 pF (122 µs)	1	0	0	0	1
Enabled 0.015 µF (1.32 ms)	1	0	0	1	0
Enabled 0.15 µF (11.2 ms)	1	0	0	1	1
Enabled 0.47 µF (21 ms)

Wrap Voltage

Function:	Used to read the measured output voltage.
Type:	binary word (32-bit)
Data Range:	0xFFFF 8000 to 0x0000 7FFF
Read/Write:	R
Initialized Value:	0x0000 0000
Operational Settings:	Fixed in bipolar mode with no ranges - 0x7FFF= 13 V.
Default:	0x0000 0000

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Current Reading

Function:	Reads current values of D/A outputs being delivered per channel. (Bipolar mode only.)
Type:	binary word (32-bit)
Data Range:	For bipolar mode: 0xFFFF 8000 to 0x0000 7FFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	Fixed in bipolar mode with no ranges - 0x7FFF = 25 mA.
Default:	0x0000 0000

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Trigger Control

Function:	Starts/triggers FIFO when FIFO registers are enabled or writes D/A data that was previously written when the Output Data Trigger register is enabled. FIFO can be started/triggered by different sources.
Data Range:	0x0 to 0xFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	See the tables that follow for settings.
Default:	Disabled Trigger

B[1..0]	Trigger Type
0	Continuous
1	Single Sample
2	X
3	X
X= Don’t care

B[5..4]	Trigger Edge
0	Hardware Trigger - Positive Edge (Pending)
1	Hardware Trigger - Negative Edge (Pending)
2	Hardware Trigger - Either Edge (Pending)
3	Software Trigger

B8	Trigger Enable
0	Not Enabled / Stop Trigger
1	Enable Trigger

B[8..0]	Description
0x100	Use FIFO continuously once there is a positive edge on the Hardware Trigger
0x101	Use single FIFO sample once there is a positive edge on the Hardware Trigger
0x110	Use FIFO continuously once there is a negative edge on the Hardware Trigger
0x111	Use single FIFO sample once there is a negative edge on the Hardware Trigger
0x120	Use FIFO continuously once there is a positive or negative edge on Hardware Trigger
0x121	Use single FIFO sample once there is a positive or negative edge on Hardware Trigger
0x130	Use FIFO continuously once there is a Software Trigger
0x131	Use single FIFO sample once there is a Software Trigger
0x0XX	Disable Trigger (will stop FIFO from storing data if continuously running)

Output Data Trigger

Function:	Sets up trigger control for D/A outputs for each channel.
Type:	binary word (32-bit)
Data Range:	0 to 0x0000 0001
Read/Write:	R
Initialized Value:	0
Operational Settings:	D/A output voltages can be programmed to change only with a synchronizing trigger, or to constantly update, based on the settings of the register. 0 = Constant Update; 1 = Trigger. When in trigger mode, the trigger control register is used to set up what kind of trigger condition (hardware, software, which edge, etc.). Once that trigger condition is met, the data in the D/A data is updated. If in constant update mode, the D/A data is update immediately upon writing the data.
Default:	0

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	Constant
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	D	Constant

Software Trigger

Function:	Software trigger is used to kick start the FIFO buffer and the output of data or the output of the Set D/A Data depending if the FIFO buffer control is enabled or not.
Data Range:	0 to 0x0000 0001
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	In order to use this operation, the Trigger Control register must be set up as described in the Trigger Control register and the Output Data Trigger register must be enabled. Write a 1 to trigger FIFO output for each channel (bitmapped for each channel).
Default:	Not Triggered

DA Sample Rate

Function:	Single 32-bit register that sets the desired sample rate for all channels.
Data Range:	0x186A0 to 0x61A80
Read/Write:	R/W
Initialized Value:	400 kHz
Operational Settings:	Sets sampling rate for all channels. Range is 100 kHz to 400 kHz.
Default:	Initialized to 400 kHz sampling rate per channel

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16	FUNCTION
16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	Channel
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	D=DATE BIT
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
16	15	14	13	12	11	10	9	8	7	6	5	4	3	2	1	Channel
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	D	LSB=1 Hz=DATA BIT=D

VI Control

Function:	Sets each channel for voltage mode or current mode.
Register Offset(s):	0x1280
Data Range:	0 to 0xFFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set bit to 1 for Current mode and 0 for Voltage mode.
Default:	Voltage mode

Test Enable

Function:	Enables D0, D2 and D3 BIT testing
Register Offset(s) Ch1-Ch12:	0x0248
Data Range:	NA
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	0 = Disabled + 1 = Enabled
Default:	0

FIFO Buffer Data

Function:	Data is written to this register and can be retrieved, one word at a time (16-bits), in the Register Offset(s) Ch1-Ch12 addresses listed below. Buffer can be completely emptied when triggered. Data Range: For bipolar mode: 7FFFh = +FS, 8000h = -FS. For unipolar mode, range is from 0h to FFFFh = FS.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The data is presented depending upon how the Set D/A Data register is set, (either unipolar or bipolar). Data is held in FIFO until triggered.
Default:	Nothing in FIFO

FIFO Word Count

Function:	This is a counter that reports the number of 16-bit words stored in the FIFO buffer.
Type:	binary word (32-bit)
Data Range:	0 to 0x001F FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	Every time a FIFO Buffer Data register word is sent out after triggering, its corresponding FIFO Word Count register will be decremented by one. The maximum number of words that can be stored in the FIFO is 1 mega words (2 M pending).
Default:	Nothing in FIFO (empty)

FIFO Buffer Clear

Function:	Clears FIFO whenever clear memory is set or reset for the individual channel in the Register Offset Ch1-Ch12 addresses listed below.
Data Range:	0x0000 0000 to 0x0000 0001
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Any write operation will clear FIFO Buffer Data register.
Default:	Not clearing

FIFO Empty Mark

Function:	This register enables the user to set the limits for the “almost empty” status.
Type:	binary word (32-bit)
Data Range:	0 to 0x001F FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When the FIFO Word Count register is less than or equal to the value stored in the FIFO Empty Mark register, the “almost empty” bit (B0) of the FIFO Status register will be set. When the Words in FIFO counter is greater than the value stored in the register, the almost empty bit (B1) of the FIFO Status register will be reset. Set = logical 1 + Reset = logical 0
Default:	Not set

FIFO Low Mark

Function:	The FIFO Low Mark (low-threshold level) is used to set or reset the low limit bit (B2) of the individual FIFO Status register in the Register Offset Ch1-Ch12 addresses listed below.
Data Range:	0 to 0x001F FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When the FIFO Word Count register is less than or equal than the value stored in the FIFO Low Mark register, the low limit bit (B2) of the FIFO Status register will be set. When the FIFO Word Count counter is greater than or equal to the value stored in the register, the low limit bit (B2) of the FIFO Status register will be reset. Set = logical 1 + Reset = logical 0
Default:	Not set

FIFO High Mark

Function:	The FIFO High Mark (hi-threshold level) is used to set the high limit bit (B3) of the individual channel FIFO Status register in the Register Offset Ch1-Ch12 addresses listed below.
Data Range:	0 to 0x001F FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When the FIFO Word Count register is greater than or equal to the value stored in the FIFO High Mark register, the high limit bit(B3) of the FIFO Status register will be set. When the FIFO Word Count register is less than the value stored in the hi-threshold, the high limit bit (B3) of the FIFO Status register will be reset. Set = logical 1 + Reset = logical 0
Default:	Not set

FIFO Full Mark

Function:	This register enables the user to set the limits for the “almost full” status.
Data Range:	0 to 0x001F FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When the FIFO Word Count register is greater than or equal to the value stored in the FIFO Full register, the almost full bit (B4) of the FIFO Status register will be set. When the Words in FIFO counter is less than the value stored in the register, the almost full bit (B4) of the FIFO Status register will be reset. Set = logical 1 + Reset = logical 0
Default:	Not set

FIFO Buffer Control

Function:	Enables the usage of the FIFO buffer and the FIFO mode. B0: FIFO Enable + B1: Enable Repeat Mode (Pending)
Data Range:	0 to 0x000 000FF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	FIFO Enable (B0) enables using the FIFO registers as the source for output of data to the D/A converters. Enable Repeat Mode (B1) functionality is pending and will be implemented at a later date.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	X	X	X	X	B1	B0

Status and Interrupt Registers

The registers may be set for any or all channels and will latch if a transition is detected on a channel or channels. Each channel(s) will remain latched until the channel is cleared. Multiple channels may be cleared simultaneously, if desired. Each channel bit in the register is polled for a read status. Any subsequent channel(s) transition, if detected, will propagate through to be read (rolling-latch).

Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel) location (bit mapped per channel), will “clear” the bit (set the bit to 0) if the actual interruptible event condition has cleared. If the interruptible condition “event” is still persistent while clearing, this may retrigger the interrupt.

There is a corresponding Interrupt Enable and vector associated with each “Latched” Status. Each status type may be “polled” (at any time), or is “interruptible” when interrupts are enabled and the associated Interrupt Service Routine (ISR) vectors are programmed accordingly. When programmed for “interruptible” status, interrupts are typically generated and flagged with the programmed vector available as data. The host or single board computer (SBC) typically services the interrupt by a general or specific ISR, which reads the (typically) unique programmed vector (identifier of which status generated the interrupt), reads the associated status register to determine which channel in the status register was “flagged” and then “clears” the status register. This essentially resets the interrupt mechanism, which is now ready to be triggered by the next status register detected event “flag”. “Latched Status” will trigger on either “sense on edge” or “sense on level” based on the settings of the associated Set Edge/Level Interrupt register. Sense on “edge” requires a change from low to high state to trigger the status detection, while sense on “level” is independent of the previous state. Unless otherwise specified, all status or fault indications are bit set per channel.

BIT Dynamic Status

Function:	Continuously reports the status of the Built In Self Tests.
Read/Write:	R
Initialized Value:	0
Operational Settings:	0 = Normal + 1 = Non-compliant D/A conversion (outside 0.2% FS range accuracy spec).

Note

BIT Status is part of background testing and the status register may be checked or polled at any given time.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

BIT Latched Status

Function:	Latches high when there’s a non-compliant status until cleared.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	0 = Normal + 1 = Non-compliant D/A conversion (outside 0.2% FS range accuracy spec). Write a 1 to this register to clear status.

Note

BIT Status is part of background testing and the status register may be checked or polled at any given time.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

BIT Interrupt Enable

Function:	Sets the bit to enable interrupts for the corresponding channel.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When enabled, a non-compliant channel will trigger an interrupt.
Default:	00h to disable all channels

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

BIT Set Edge/Level Interrupt

Function:	When the BIT Interrupt Enable register is enabled, this register determines whether the interrupt will be generated for either “sense on edge” or “sense on level” event detection.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write a 1 to sense on level and a 0 to sense on edge.
Default:	Sense on edge (0)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

FIFO Dynamic Status

Function:	Checks the corresponding bit for a channel’s FIFO Status. The FIFO Dynamic Interrupt Status register indicates the current condition of the FIFO buffer.
Type:	binary word (32-bit)
Data Range:	0 to 0x0000 007F
Read/Write:	R
Initialized Value:	0
Operational Settings:	D0-D6 is used to show the different conditions of the buffer.

Bit	Description	Configurable?
D0	Empty; 1 when FIFO Count = 0	No
D1	Almost Empty; 1 when FIFO Count ≤ AE register	Yes
D2	Low Watermark; 1 when FIFO Count ≤ LWM register	Yes
D3	High Watermark; 1 when FIFO Count ≥ HWM register	Yes
D4	Almost Full; 1 when FIFO Count ≥ AF register	Yes
D5	Full; 1 when FIFO Count = 1 Mega Words (2 M pending)	No
D6	Sample Done; 1 when FIFO Count “FIFO Buffer Size” register	Yes

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16	FUNCTION
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	D=DATA BIT
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	X	X	X	X	X	X	X	X	D	D	D	D	D	D	D	D=DATA BIT

FIFO Latched Status

Function:	Checks the corresponding bit for a channel’s FIFO Status. The FIFO Latched Interrupt Status register maintains the last condition of the FIFO buffer, until cleared.
Type:	binary word (32-bit)
Data Range:	0 to 0x0000 007F
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	D0-D6 is used to show the different conditions of the buffer. Write a 1 to this register to clear status.

Bit	Description	Configurable?
D0	Empty; 1 when FIFO Count = 0	No
D1	Almost Empty; 1 when FIFO Count ≤ AE register	Yes
D2	Low Watermark; 1 when FIFO Count ≤ LWM register	Yes
D3	High Watermark; 1 when FIFO Count ≥ HWM register	Yes
D4	Almost Full; 1 when FIFO Count ≥ AF register	Yes
D5	Full; 1 when FIFO Count = 1 Mega Words (2 M pending)	No
D6	Sample Done; 1 when FIFO Count “FIFO Buffer Size” register	Yes

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16	FUNCTION
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	D=DATA BIT
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0	FUNCTION
X	X	X	X	X	X	X	X	X	D	D	D	D	D	D	D	D=DATA BIT

FIFO Status Interrupt Enable

Function:	Sets the corresponding channel bit to enable an interrupt for each of the conditions indicated in the FIFO Status register (D0..D6).
Data Range:	0 to 0x7FFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When enabled, an interrupt will be generated for each of the following conditions. Each channel may be set for a different condition.

Bit	Description	Configurable?
D0	Empty; 1 when FIFO Count = 0	No
D1	Almost Empty; 1 when FIFO Count ≤ AE register	Yes
D2	Low Watermark; 1 when FIFO Count ≤ LWM register	Yes
D3	High Watermark; 1 when FIFO Count ≥ HWM register	Yes
D4	Almost Full; 1 when FIFO Count ≥ AF register	Yes
D5	Full; 1 when FIFO Count = 1 Mega Words (2 M pending)	No
D6	Sample Done; 1 when FIFO Count “FIFO Buffer Size” register	Yes

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

FIFO Set Edge/Level Interrupt

Function:	When the FIFO Mask Status Interrupt Enable register is enabled, this register determines whether the interrupt will be generated for either “sense on edge” or “sense on level” event detection.
Data Range:	0 to 0x7FFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write a 1 to sense on level and a 0 to sense on edge.
Default:	Sense on edge (0)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

Overcurrent Dynamic Status

Function:	Continuously reports the overcurrent status of each channel.
Read/Write:	R
Initialized Value:	0
Operational Settings:	0 = Normal + 1 = Overcurrent

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

Overcurrent Latched Status

Function:	Latches high when an overcurrent condition occurs until cleared.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	0 = Normal + 1 = Overcurrent. Write a 1 to this register to clear status.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

Overcurrent Interrupt Enable

Function:	Sets the corresponding channel bit to enable an interrupt for an overcurrent condition as specified in the Current Reading register.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When enabled, a non-compliant channel will trigger an interrupt.
Default:	00h to disable all channels

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

Overcurrent Set Edge/Level Interrupt

Function:	When the Overcurrent Mask Status Interrupt Enable register is enabled, this register determines whether the interrupt will be generated for either “sense on edge” or “sense on level” event detection.
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write a 1 to sense on level and a 0 to sense on edge.
Default:	Sense on edge (0)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch 1

FUNCTION REGISTER MAP

0x1000	Set D/A Data Ch. 1	R/W
0x1004	Set D/A Data Ch. 2	R/W
0x1008	Set D/A Data Ch. 3	R/W
0x100C	Set D/A Data Ch. 4	R/W
0x1010	Set D/A Data Ch. 5	R/W
0x1014	Set D/A Data Ch. 6	R/W
0x1018	Set D/A Data Ch. 7	R/W
0x101C	Set D/A Data Ch. 8	R/W
0x1020	Set D/A Data Ch. 9	R/W
0x1024	Set D/A Data Ch. 10	R/W
0x1028	Set D/A Data Ch. 11	R/W
0x102C	Set D/A Data Ch. 12	R/W

0x1100	Wrap Voltage Ch.1	R
0x1104	Wrap Voltage Ch.2	R
0x1108	Wrap Voltage Ch.3	R
0x110C	Wrap Voltage Ch.4	R
0x1110	Wrap Voltage Ch.5	R
0x1114	Wrap Voltage Ch.6	R
0x1118	Wrap Voltage Ch.7	R
0x111C	Wrap Voltage Ch.8	R
0x1120	Wrap Voltage Ch.9	R
0x1124	Wrap Voltage Ch.10	R
0x1128	Wrap Voltage Ch.11	R
0x112C	Wrap Voltage Ch.12	R

0x1200	Output Data Trigger Ch. 1	R/W
0x1204	Output Data Trigger Ch. 2	R/W
0x1208	Output Data Trigger Ch. 3	R/W
0x120C	Output Data Trigger Ch. 4	R/W
0x1210	Output Data Trigger Ch. 5	R/W
0x1214	Output Data Trigger Ch.6	R/W
0x1218	Output Data Trigger Ch.7	R/W
0x121C	Output Data Trigger Ch. 8	R/W
0x1220	Output Data Trigger Ch. 9	R/W
0x1224	Output Data Trigger Ch. 10	R/W
0x1228	Output Data Trigger Ch. 11	R/W
0x122C	Output Data Trigger Ch. 12	R/W

0x1080	Polarity & Range Ch.1 & 2	R/W
0x1084	Polarity & Range Ch.3 & 4	R/W
0x1088	Polarity & Range Ch.5 & 6	R/W
0x108C	Polarity & Range Ch.7 & 8	R/W
0x1090	Polarity & Range Ch.9 & 10	R/W
0x1094	Polarity & Range Ch.11 & 12	R/W

0x10C0	Capacitor/Bandwidth Select Ch.1 & 2	R/W
0x10C4	Capacitor/Bandwidth Select Ch.3 & 4	R/W
0x10C8	Capacitor/Bandwidth Select Ch.5 & 6	R/W
0x10CC	Capacitor/Bandwidth Select Ch.7 & 8	R/W
0x10D0	Capacitor/Bandwidth Select Ch.9 & 10	R/W
0x10D4	Capacitor/Bandwidth Select Ch.11 & 12	R/W

0x1180	Current Reading Ch. 1	R
0x1184	Current Reading Ch. 2	R
0x1188	Current Reading Ch. 3	R
0x118C	Current Reading Ch. 4	R
0x1190	Current Reading Ch. 5	R
0x1194	Current Reading Ch. 6	R
0x1198	Current Reading Ch. 7	R
0x119C	Current Reading Ch. 8	R
0x11A0	Current Reading Ch. 9	R
0x11A4	Current Reading Ch. 10	R
0x11A8	Current Reading Ch. 11	R
0x11AC	Current Reading Ch. 12	R

0x1380	FIFO Buffer Data Ch. 1	R/W
0x1384	FIFO Buffer Data Ch. 2	R/W
0x1388	FIFO Buffer Data Ch. 3	R/W
0x138C	FIFO Buffer Data Ch. 4	R/W
0x1390	FIFO Buffer Data Ch. 5	R/W
0x1394	FIFO Buffer Data Ch.6	R/W
0x1398	FIFO Buffer Data Ch.7	R/W
0x139C	FIFO Buffer Data Ch. 8	R/W
0x13A0	FIFO Buffer Data Ch. 9	R/W
0x13A4	FIFO Buffer Data Ch. 10	R/W
0x13A8	FIFO Buffer Data Ch. 11	R/W
0x13AC	FIFO Buffer Data Ch. 12	R/W

0x1400	FIFO Word Count Ch. 1	R
0x1404	FIFO Word Count Ch. 2	R
0x1408	FIFO Word Count Ch. 3	R
0x140C	FIFO Word Count Ch. 4	R
0x1410	FIFO Word Count Ch. 5	R
0x1414	FIFO Word Count Ch. 6	R
0x1418	FIFO Word Count Ch. 7	R
0x141C	FIFO Word Count Ch. 8	R
0x1420	FIFO Word Count Ch. 9	R
0x1424	FIFO Word Count Ch. 10	R
0x1428	FIFO Word Count Ch. 11	R
0x142C	FIFO Word Count Ch. 12	R

FIFO Empty Mark

0x1500	FIFO E Mark Ch. 1	R/W
0x1504	FIFO E Mark Ch. 2	R/W
0x1508	FIFO E Mark Ch. 3	R/W
0x150C	FIFO E Mark Ch. 4	R/W
0x1510	FIFO E Mark Ch. 5	R/W
0x1514	FIFO E Mark Ch. 6	R/W
0x1518	FIFO E Mark Ch. 7	R/W
0x151C	FIFO E Mark Ch. 8	R/W
0x1520	FIFO E Mark Ch. 9	R/W
0x1524	FIFO E Mark Ch. 10	R/W
0x1528	FIFO E Mark Ch. 11	R/W
0x152C	FIFO E Mark Ch. 12	R/W

FIFO High Mark

0x1600	FIFO Hi Mark Ch. 1	R/W
0x1604	FIFO Hi Mark Ch. 2	R/W
0x1608	FIFO Hi Mark Ch. 3	R/W
0x160C	FIFO Hi Mark Ch. 4	R/W
0x1610	FIFO Hi Mark Ch. 5	R/W
0x1614	FIFO Hi Mark Ch.6	R/W
0x1618	FIFO Hi Mark Ch.7	R/W
0x161C	FIFO Hi Mark Ch. 8	R/W
0x1620	FIFO Hi Mark Ch. 9	R/W
0x1624	FIFO Hi Mark Ch. 10	R/W
0x1628	FIFO Hi Mark Ch. 11	R/W
0x162C	FIFO Hi Mark Ch. 12	R/W

0x1480	FIFO Buffer Clear Ch. 1	R/W
0x1484	FIFO Buffer Clear Ch. 2	R/W
0x1488	FIFO Buffer Clear Ch. 3	R/W
0x148C	FIFO Buffer Clear Ch. 4	R/W
0x1490	FIFO Buffer Clear Ch. 5	R/W
0x1494	FIFO Buffer Clear Ch.6	R/W
0x1498	FIFO Buffer Clear Ch.7	R/W
0x149C	FIFO Buffer Clear Ch. 8	R/W
0x14A0	FIFO Buffer Clear Ch. 9	R/W
0x14A4	FIFO Buffer Clear Ch. 10	R/W
0x14A8	FIFO Buffer Clear Ch. 11	R/W
0x14AC	FIFO Buffer Clear Ch. 12	R/W

FIFO Low Mark

0x1580	FIFO Lo Mark Ch. 1	R/W
0x1584	FIFO Lo Mark Ch. 2	R/W
0x1588	FIFO Lo Mark Ch. 3	R/W
0x158C	FIFO Lo Mark Ch. 4	R/W
0x1590	FIFO Lo Mark Ch. 5	R/W
0x1594	FIFO Lo Mark Ch.6	R/W
0x1598	FIFO Lo Mark Ch.7	R/W
0x159C	FIFO Lo Mark Ch. 8	R/W
0x15A0	FIFO Lo Mark Ch. 9	R/W
0x15A4	FIFO Lo Mark Ch. 10	R/W
0x15A8	FIFO Lo Mark Ch. 11	R/W
0x15AC	FIFO Lo Mark Ch. 12	R/W

FIFO Full Mark

0x1680	FIFO Mark Ch. 1	R/W
0x1684	FIFO Mark Ch. 2	R/W
0x1688	FIFO Mark Ch. 3	R/W
0x168C	FIFO Mark Ch. 4	R/W
0x1690	FIFO Mark Ch. 5	R/W
0x1694	FIFO Mark Ch. 6	R/W
0x1698	FIFO Mark Ch. 7	R/W
0x169C	FIFO Mark Ch. 8	R/W
0x16A0	FIFO Mark Ch. 9	R/W
0x16A4	FIFO Mark Ch. 10	R/W
0x16A8	FIFO Mark Ch. 11	R/W
0x16AC	FIFO Mark Ch. 12	R/W

0x1880	FIFO Buffer Control Ch. 1	R/W
0x1884	FIFO Buffer Control Ch. 2	R/W
0x1888	FIFO Buffer Control Ch. 3	R/W
0x188C	FIFO Buffer Control Ch. 4	R/W
0x1890	FIFO Buffer Control Ch. 5	R/W
0x1894	FIFO Buffer Control Ch. 6	R/W
0x1898	FIFO Buffer Control Ch. 7	R/W
0x189C	FIFO Buffer Control Ch. 8	R/W
0x18A0	FIFO Buffer Control Ch. 9	R/W
0x18A4	FIFO Buffer Control Ch. 10	R/W
0x18A8	FIFO Buffer Control Ch. 11	R/W
0x18AC	FIFO Buffer Control Ch. 12	R/W

0x1280	VI Mode	R/W
0x1294	DA Sample Rate	R/W
0x129C	Software Trigger	R/W
0x0248	Test Enable	R/W

Trigger Control

0x1900	Trig Control Ch. 1	R/W
0x1904	Trig Control Ch. 2	R/W
0x1908	Trig Control Ch. 3	R/W
0x190C	Trig Control Ch. 4	R/W
0x1910	Trig Control Ch. 5	R/W
0x1914	Trig Control Ch.6	R/W
0x1918	Trig Control Ch.7	R/W
0x191C	Trig Control Ch. 8	R/W
0x1920	Trig Control Ch. 9	R/W
0x1924	Trig Control Ch. 10	R/W
0x1928	Trig Control Ch. 11	R/W
0x192C	Trig Control Ch. 12	R/W

Status Registers

BIT Dynamic Status

0x0800	Dynamic Status	R

BIT Latched Status

0x0804	Latched Status	R/W

BIT Interrupt Enable

0x0808	Interrupt Enable	R/W

BIT Set Edge/Level Interrupt

0x080C	Set Edge/Level Interrupt	R/W

FIFO Dynamic Status

0x0810	FIFO Dynamic Status Ch 1.	R
0x0820	FIFO Dynamic Status Ch 2.	R
0x0830	FIFO Dynamic Status Ch 3.	R
0x0840	FIFO Dynamic Status Ch 4.	R
0x0850	FIFO Dynamic Status Ch 5.	R
0x0860	FIFO Dynamic Status Ch 6.	R
0x0870	FIFO Dynamic Status Ch 7.	R
0x0880	FIFO Dynamic Status Ch 8.	R
0x0890	FIFO Dynamic Status Ch 9.	R
0x08A0	FIFO Dynamic Status Ch 10.	R
0x08B0	FIFO Dynamic Status Ch 11.	R
0x08C0	FIFO Dynamic Status Ch 12.	R

FIFO Latched Status

0x0814	FIFO Latched Status Ch 1.	R/W
0x0824	FIFO Latched Status Ch 2.	R/W
0x0834	FIFO Latched Status Ch 3.	R/W
0x0844	FIFO Latched Status Ch 4.	R/W
0x0854	FIFO Latched Status Ch 5.	R/W
0x0864	FIFO Latched Status Ch 6.	R/W
0x0874	FIFO Latched Status Ch 7.	R/W
0x0884	FIFO Latched Status Ch 8.	R/W
0x0894	FIFO Latched Status Ch 9.	R/W
0x08A4	FIFO Latched Status Ch 10.	R/W
0x08B4	FIFO Latched Status Ch 11.	R/W
0x08C4	FIFO Latched Status Ch 12.	R/W

FIFO Interrupt Enable

0x0818	FIFO Interrupt Enable Ch 1.	R/W
0x0828	FIFO Interrupt Enable Ch 2.	R/W
0x0838	FIFO Interrupt Enable Ch 3.	R/W
0x0848	FIFO Interrupt Enable Ch 4.	R/W
0x0858	FIFO Interrupt Enable Ch 5.	R/W
0x0868	FIFO Interrupt Enable Ch 6.	R/W
0x0878	FIFO Interrupt Enable Ch 7.	R/W
0x0888	FIFO Interrupt Enable Ch 8.	R/W
0x0898	FIFO Interrupt Enable Ch 9.	R/W
0x08A8	FIFO Interrupt Enable Ch 10.	R/W
0x08B8	FIFO Interrupt Enable Ch 11.	R/W
0x08C8	FIFO Interrupt Enable Ch 12.	R/W

FIFO Set Edge/Level Interrupt

0x081C	Set Edge/Level Interrupt Ch 1.	R/W
0x082C	Set Edge/Level Interrupt Ch 2.	R/W
0x083C	Set Edge/Level Interrupt Ch 3.	R/W
0x084C	Set Edge/Level Interrupt Ch 4.	R/W
0x085C	Set Edge/Level Interrupt Ch 5.	R/W
0x086C	Set Edge/Level Interrupt Ch 6.	R/W
0x087C	Set Edge/Level Interrupt Ch 7.	R/W
0x088C	Set Edge/Level Interrupt Ch 8.	R/W
0x089C	Set Edge/Level Interrupt Ch 9.	R/W
0x08AC	Set Edge/Level Interrupt Ch 10.	R/W
0x08BC	Set Edge/Level Interrupt Ch 11.	R/W
0x08CC	Set Edge/Level Interrupt Ch 12.	R/W

Overcurrent

0x0910	Dynamic Status	R
0x0914	Latch Status	R/W
0x0918	Interrupt Enable	R/W
0x091C	Set Edge/Level Interrupt	R/W

APPENDIX: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

Module Signal (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	D/A (12 CH) (DA1)
DATIO1	2	10	1	2		OUT_CH01+
DATIO2	24	35	26	27		OUT_CH01-
DATIO3	3	11	2	3		OUT_CH02+
DATIO4	25	36	27	28		OUT_CH02-
DATIO5	5	13	4	5		OUT_CH03+
DATIO6	27	38	29	30		OUT_CH03-
DATIO7	7	14	5	6		OUT_CH04+
DATIO8	29	39	30	31		OUT_CH04-
DATIO9	8	15	6	7		OUT_CH05+
DATIO10	30	40	31	32		OUT_CH05-
DATIO11	10	17	8	9		OUT_CH06+
DATIO12	32	42	33	34		OUT_CH06-
DATIO13	12	18	9		17	OUT_CH07+
DATIO14	34	43	34		42	OUT_CH07-
DATIO15	13	19	10		18	OUT_CH08+
DATIO16	35	44	35		43	OUT_CH08-
DATIO17	15	21	12		20	OUT_CH09+
DATIO18	37	46	37		45	OUT_CH09-
DATIO19	17	22	13		21	OUT_CH10+
DATIO20	39	47	38		46	OUT_CH10-
DATIO21	18	23	14		22	OUT_CH11+
DATIO22	40	48	39		47	OUT_CH11-
DATIO23	20	25	16		24	OUT_CH12+
DATIO24	42	50	41		49	OUT_CH12-
DATIO25	4	12	3	4		(EXT-SYNC+)
DATIO26	26	37	28	29		(EXT-SYNC-)
DATIO27	9	16	7	8		(EXT-REF+)
DATIO28	31	41	32	33		(EXT-REF-)
DATIO29	14	20	11		19
DATIO30	36	45	36		44
DATIO31	19	24	15		23
DATIO32	41	49	40		48
DATIO33	6
DATIO34	28
DATIO35	11
DATIO36	33
DATIO37	16
DATIO38	38
DATIO39	21
DATIO40	43
N/A

Note

Parentheses (or asterisk) indicate reserved pins. Reserved pins are no-connect for the end user and are used only for factory test or future functions.

REVISION HISTORY

Module Manual - DA1
Revision Date	Description
2025-09-29	Added parentheses to EXT-SYNC/EXT-REF pinouts to denote 'no-connect/reserved'; added NOTE to explain 'no-connect/reserved' pinouts.

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

No Clearing of Latched Status Clearing of Latched Status (Edge-Triggered) Clearing of Latched Status(Level-Triggered)
Time Dynamic Status Latched Status Action Latched Status Action Latched
T0 0x0 0x0 Read Latched Register 0x0 Read Latched Register 0x0
T1 0x1 0x1 Read Latched Register 0x1 0x1
T1 0x1 0x1 Write 0x1 to Latched Register Write 0x1 to Latched Register
T1 0x1 0x1 0x0 0x1
T2 0x0 0x1 Read Latched Register 0x0 Read Latched Register 0x1
T2 0x0 0x1 Read Latched Register 0x0 Write 0x1 to Latched Register
T2 0x0 0x1 Read Latched Register 0x0 0x0
T3 0x2 0x3 Read Latched Register 0x2 Read Latched Register 0x2
T3 0x2 0x3 Write 0x2 to Latched Register Write 0x2 to Latched Register
T3 0x2 0x3 0x0 0x2
T4 0x2 0x3 Read Latched Register 0x1 Read Latched Register 0x3
T4 0x2 0x3 Write 0x1 to Latched Register Write 0x3 to Latched Register
T4 0x2 0x3 0x0 0x2
T5 0xC 0xF Read Latched Register 0xC Read Latched Register 0xE
T5 0xC 0xF Write 0xC to Latched Register Write 0xE to Latched Register
T5 0xC 0xF 0x0 0xC
T6 0xC 0xF Read Latched Register 0x0 Read Latched 0xC
T6 0xC 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T6 0xC 0xF Read Latched Register 0x0 0xC
T7 0x4 0xF Read Latched Register 0x0 Read Latched Register 0xC
T7 0x4 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T7 0x4 0xF Read Latched Register 0x0 0x4
T8 0x4 0xF Read Latched Register 0x0 Read Latched Register 0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time Latched Status (Edge-Triggered - Clear Multi-Channel) Latched Status (Edge-Triggered - Clear Single Channel) 2+ Latched Status (Level-Triggered - Clear Multi-Channel) Action
Latched Action Latched Action Latched T1 (Int 1)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 T1 (Int 1)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x1 to Latched Register T1 (Int 1)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T2. 0x1 T3 (Int 2)
Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 T3 (Int 2)
Write 0x2 to Latched Register Write 0x2 to Latched Register Write 0x2 to Latched Register T3 (Int 2)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T4 (Int 3)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x3 T4 (Int 3)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x3 to Latched Register T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5. 0x3 T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T6 (Int 4)
Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xE T6 (Int 4)
Write 0xC to Latched Register Write 0x4 to Latched Register Write 0xE to Latched Register T6 (Int 4)
0x0 Interrupt re-triggers++``+
Write 0x8 to Latched Register 0x8 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7. 0xE T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8. 0xC T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always. 0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

The User Watchdog Timer (UWDT) Capability is available on the following modules:

AC Reference Source Modules

AC1 - 1 Channel, 2-115 Vrms, 47 Hz - 20kHz

AC2 - 2 Channels, 2-28 Vrms, 47 Hz - 20kHz

AC3 - 1 Channel, 28-115 Vrms, 47 Hz - 2.5 kHz

Differential Transceiver Modules

DF1/DF2 - 16 Channels Differential I/O

Digital-to-Analog (D/A) Modules

DA1 - 12 Channels, ±10 VDC @ 25 mA, Voltage or Current Control Modes

DA2 - 16 Channels, ±10 VDC @ 10 mA

DA3 - 4 Channels, ±40 VDC @ ±100 mA, Voltage or Current Control Modes

DA4 - 4 Channels, ±80 VDC @ 10 mA

DA5 - 4 Channels, ±65 VDC or ±2 A, Voltage or Current Control Modes

Digital-to-Synchro/Resolver (D/S) or Digital-to-L( R )VDT (D/LV) Modules

(Not supported)

Discrete I/O Modules

DT1/DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 - 60 VCC source.

DT2/DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

DT3/DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

TTL/CMOS Modules

TL1-TL8 - 24 Channels, Programmable for either input or output.

Principle of Operation

The User Watchdog Timer is optionally activated by the applications that require the module’s outputs to be disabled as a failsafe in the event of an application failure or crash. The circuit is designed such that a specific periodic write strobe pattern must be executed by the software to maintain operation and prevent the disablement from taking place.

The User Watchdog Timer is inactive until the application sends an initial strobe by writing the value 0x55AA to the UWDT Strobe register. After activating the User Watchdog Timer, the application must continually strobe the timer within the intervals specified with the configurable UWDT Quiet Time and UWDT Window registers. The timing of the strobes must be consistent with the following rules:

The application must not strobe during the Quiet time.

The application must strobe within the Window time.

The application must not strobe more than once in a single window time.

A violation of any of these rules will trigger a User Watchdog Timer fault and result in shutting down any isolated power supplies and/or disabling any active drive outputs, as applicable for the specific module. Upon a User Watchdog Timer event, recovery to the module shutting down will require the module to be reset.

The Figure 1 and Figure 2 provides an overview and an example with actual values for the User Watchdog Timer Strobes, Quiet Time and Window. As depicted in the diagrams, there are two processes that run in parallel. The Strobe event starts the timer for the beginning of the “Quiet Time”. The timer for the Previous Strobe event continues to run to ensure that no additional Strobes are received within the “Window” associated with the Previous Strobe.

The optimal target for the user watchdog strobes should be at the interval of [Quiet time + ½ Window time] after the previous strobe, which will place the strobe in the center of the window. This affords the greatest margin of safety against unintended disablement in critical operations.

Figure 1. User Watchdog Timer Overview

Figure 2. User Watchdog Timer Example

Figure 3. User Watchdog Timer Failures

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

User Watchdog Timer Registers

The registers associated with the User Watchdog Timer provide the ability to specify the UWDT Quiet Time and the UWDT Window that will be monitored to ensure that EXACTLY ONE User Watchdog Timer (UWDT) Strobe is written within the window.

UWDT Quiet Time
Function: Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.
UWDT Window
Function: Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.
UWDT Strobe
Function: Writes the strobe value to be use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0x55AA
Read/Write: W
Initialized Value: 0x0
Operational Settings: At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

Status and Interrupt

The modules that are capable of User Watchdog Timer support provide status registers for the User Watchdog Timer.

User Watchdog Timer Status

The status register that contains the User Watchdog Timer Fault information is also used to indicate channel Inter-FPGA failures on modules that have communication between FPGA components. There are four registers associated with the User Watchdog Timer Fault/Inter-FPGA Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Function: Sets the corresponding bit (D31) associated with the channel’s User Watchdog Timer Fault error.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Set Edge/Level Interrupt)
Initialized Value: 0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s) Status Description
D31 User Watchdog Timer Fault Status 0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0 Reserved for Inter-FPGA Failure Status Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function: Set an identifier for the interrupt.
Type: unsigned binary word (32-bit)
Data Range: 0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function: Sets where to direct the interrupt.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME 1
Direct Interrupt to ARM Processor (via SerDes)
(Custom App on ARM or NAI Ethernet Listener App) 2
Direct Interrupt to PCIe Bus 5
Direct Interrupt to cPCI Bus 6

Function Register Map

KEY

Configuration/Control
Measurement/Status

USER WATCHDOG TIMER REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x01C0 UWDT Quiet Time R/W
0x01C4 UWDT Window R/W
0x01C8 UWDT Strobe R/W
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x09B0 Dynamic Status R
0x09B4 Latched Status* R/W
0x09B8 Interrupt Enable R/W
0x09BC Set Edge/Level Interrupt R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x056C Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x066C Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x076C Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x086C Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x096C Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0A6C Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0B6C Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0C6C Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0D6C Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0E6C Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0F6C Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x106C Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function: FPGA firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Compile Timestamp
Function: Compile Timestamp for the FPGA firmware.
Type: unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the compile timestamp of the board's FPGA
Operational Settings: The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
day (5-bits) month (4-bits) year (6-bits) hr
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
hour (5-bits) minutes (6-bits) seconds (6-bits)

FPGA SerDes Revision
Function: FPGA SerDes revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the SerDes revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Template Revision
Function: FPGA Template revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the template revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Zynq Block Revision
Function: FPGA Zynq Block revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function: Bare Metal firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's Bare Metal
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Compile Time
Function: Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function: FSBL firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FSBL
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FSBL Compile Time
Function: Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function: Unique 128-bit identifier used to identify the interface board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the interface board
Operational Settings: This register is for information purposes only.

Functional Board Serial Number
Function: Unique 128-bit identifier used to identify the functional board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the functional board
Operational Settings: This register is for information purposes only.

Module Capability
Function: Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x0000 0107
Read/Write: R
Initialized Value: 0x0000 0107
Operational Settings: A “1” in the bit associated with the capability indicates that it is supported.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 Flt-Pt 0 0 0 0 0 Pack FIFO Blk Blk

Module Memory Map Revision
Function: Module Memory Map revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Module Memory Map Revision
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function: Measured PCB and Zynq Core temperatures on Interface Board.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Current Temperature
Function: Measured PCB temperature on Functional Board.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Interface Board Maximum Temperature
Function: Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Interface Board Minimum Temperature
Function: Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Maximum Temperature
Function: Maximum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Functional Board Minimum Temperature
Function: Minimum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function: Higher precision measured Zynq Core temperature on Interface Board.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Zynq Core temperature on Interface Board
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function: Higher precision measured Interface PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Interface PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function: Higher precision measured Functional PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Functional PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function: The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s) Sensor
D31:D6 Reserved
D5 Functional Board PCB Temperature
D4 Interface Board PCB Temperature
D3:D0 Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function: Reflects which threshold has been crossed
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s) Description
D31:D4 Reserved
D3 Exceeded Upper Critical Threshold
D2 Exceeded Upper Warning Threshold
D1 Exceeded Lower Critical Threshold
D0 Exceeded Lower Warning Threshold

Sensor Current Reading
Function: Reflects current reading of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function: Reflects minimum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function: Reflects maximum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function: Reflects lower warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function: Reflects lower critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function: Reflects upper warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function: Reflects upper critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control
Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x003C FPGA Revision R 0x0074 Bare Metal Revision R
0x0030 FPGA Compile Timestamp R 0x0080 Bare Metal Compile Time (Bit 0-31) R
0x0034 FPGA SerDes Revision R 0x0084 Bare Metal Compile Time (Bit 32-63) R
0x0038 FPGA Template Revision R 0x0088 Bare Metal Compile Time (Bit 64-95) R
0x0040 FPGA Zynq Block Revision R 0x008C Bare Metal Compile Time (Bit 96-127) R
0x0090 Bare Metal Compile Time (Bit 128-159) R
0x0094 Bare Metal Compile Time (Bit 160-191) R
0x007C FSBL Revision R
0x00B0 FSBL Compile Time (Bit 0-31) R
0x00B4 FSBL Compile Time (Bit 32-63) R
0x00B8 FSBL Compile Time (Bit 64-95) R
0x00BC FSBL Compile Time (Bit 96-127) R
0x00C0 FSBL Compile Time (Bit 128-159) R
0x00C4 FSBL Compile Time (Bit 160-191) R
0x0000 Interface Board Serial Number (Bit 0-31) R 0x0010 Functional Board Serial Number (Bit 0-31) R
0x0034 Interface Board Serial Number (Bit 32-63) R 0x0014 Functional Board Serial Number (Bit 32-63) R
0x0008 Interface Board Serial Number (Bit 64-95) R 0x0018 Functional Board Serial Number (Bit 64-95) R
0x000C Interface Board Serial Number (Bit 96-127) R 0x001C Functional Board Serial Number (Bit 96-127) R
0x0070 Module Capability R
0x01FC Module Memory Map Revision R
MODULE MEASUREMENTS REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0200 Interface Board PCB/Zynq Current Temp R 0x0208 Functional Board PCB Current Temp R
0x0218 Interface Board PCB/Zynq Max Temp R 0x0228 Functional Board PCB Max Temp R
0x0220 Interface Board PCB/Zynq Min Temp R 0x0230 Functional Board PCB Min Temp R
0x02C0 Higher Precision Zynq Core Temperature R
0x02C4 Higher Precision Interface PCB Temperature R
0x02E0 Higher Precision Functional PCB Temperature R
MODULE HEALTH MONITORING REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x07F8 Module Sensor Summary Status R
![](/_shared/images/Module_Sensor_Registers_Memory_Map.png)

REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision Revision Date Description
C 2023-08-11 ECO C10649, initial release of module common registers manual.
C1 2024-05-15 ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2 2024-07-10 ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date Description
2025-11-05 Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02 Formatting updates to document; no technical changes.
Link to original

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100
Link to original

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	X	X	X	X	B1	B0

		No Clearing of Latched Status	Clearing of Latched Status (Edge-Triggered)		Clearing of Latched Status(Level-Triggered)
Time	Dynamic Status	Latched Status	Action	Latched Status	Action	Latched
T0	0x0	0x0	Read Latched Register	0x0	Read Latched Register	0x0
T1	0x1	0x1	Read Latched Register	0x1		0x1
T1	0x1	0x1	Write 0x1 to Latched Register		Write 0x1 to Latched Register
T1	0x1	0x1		*0x0*		*0x1*
T2	0x0	0x1	Read Latched Register	0x0	Read Latched Register	0x1
T2	0x0	0x1	Read Latched Register	0x0	Write 0x1 to Latched Register
T2	0x0	0x1	Read Latched Register	0x0		*0x0*
T3	0x2	0x3	Read Latched Register	0x2	Read Latched Register	0x2
T3	0x2	0x3	Write 0x2 to Latched Register		Write 0x2 to Latched Register
T3	0x2	0x3		*0x0*		*0x2*
T4	0x2	0x3	Read Latched Register	0x1	Read Latched Register	0x3
T4	0x2	0x3	Write 0x1 to Latched Register		Write 0x3 to Latched Register
T4	0x2	0x3		*0x0*		*0x2*
T5	0xC	0xF	Read Latched Register	0xC	Read Latched Register	0xE
T5	0xC	0xF	Write 0xC to Latched Register		Write 0xE to Latched Register
T5	0xC	0xF		*0x0*		*0xC*
T6	0xC	0xF	Read Latched Register	0x0	Read Latched	0xC
T6	0xC	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T6	0xC	0xF	Read Latched Register	0x0		*0xC*
T7	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0xC
T7	0x4	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T7	0x4	0xF	Read Latched Register	0x0		*0x4*
T8	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0x4

Time	Latched Status (Edge-Triggered - Clear Multi-Channel)		Latched Status (Edge-Triggered - Clear Single Channel) 2+		Latched Status (Level-Triggered - Clear Multi-Channel)	Action
Time	Latched	Action	Latched	Action	Latched	T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	T1 (Int 1)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x1 to Latched Register		T1 (Int 1)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T2.	*0x1*	T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	T3 (Int 2)
Write 0x2 to Latched Register		Write 0x2 to Latched Register		Write 0x2 to Latched Register		T3 (Int 2)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T7.	*0x2*	T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x3	T4 (Int 3)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x3 to Latched Register		T4 (Int 3)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.	*0x3*	T4 (Int 3)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T7.	*0x2*	T6 (Int 4)
*Interrupt Generated*++``+ Read Latched Registers	0xC	*Interrupt Generated*++``+ Read Latched Registers	0xC	*Interrupt Generated*++``+ Read Latched Registers	0xE	T6 (Int 4)
Write 0xC to Latched Register		Write 0x4 to Latched Register		Write 0xE to Latched Register		T6 (Int 4)
	*0x0*	*Interrupt re-triggers*++``+ Write 0x8 to Latched Register	*0x8*	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.	*0xE*	T6 (Int 4)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.	*0xC*	T6 (Int 4)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.	*0x4*

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

UWDT Quiet Time
Function:	Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.

UWDT Window
Function:	Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.

UWDT Strobe
Function:	Writes the strobe value to be use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0x55AA
Read/Write:	W
Initialized Value:	0x0
Operational Settings:	At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	X	X	X	X	B1	B0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s)	Status	Description
D31	User Watchdog Timer Fault Status	0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0	Reserved for Inter-FPGA Failure Status	Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

USER WATCHDOG TIMER REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x01C0	UWDT Quiet Time	R/W
0x01C4	UWDT Window	R/W
0x01C8	UWDT Strobe	R/W

STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x09B0	Dynamic Status	R
0x09B4	Latched Status*	R/W
0x09B8	Interrupt Enable	R/W
0x09BC	Set Edge/Level Interrupt	R/W

INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x0F6C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

NAI Documentation

Explorer

INTRODUCTION

FEATURES

SPECIFICATIONS

PRINCIPLE OF OPERATION

Built-In Test (BIT)/Diagnostic Capability

REGISTER DESCRIPTIONS

Set D/A Data

Polarity & Range

Capacitor/Bandwidth Select

Wrap Voltage

Current Reading

Trigger Control

Output Data Trigger

Software Trigger

DA Sample Rate

VI Control

Test Enable

FIFO Buffer Data

FIFO Word Count

FIFO Buffer Clear

FIFO Empty Mark

FIFO Low Mark

FIFO High Mark

FIFO Full Mark

FIFO Buffer Control

Status and Interrupt Registers

BIT Dynamic Status

BIT Latched Status

BIT Interrupt Enable

BIT Set Edge/Level Interrupt

FIFO Dynamic Status

FIFO Latched Status

FIFO Status Interrupt Enable

FIFO Set Edge/Level Interrupt

Overcurrent Dynamic Status

Overcurrent Latched Status

Overcurrent Interrupt Enable

Overcurrent Set Edge/Level Interrupt

FUNCTION REGISTER MAP

Status Registers

APPENDIX: PIN-OUT DETAILS

REVISION HISTORY

STATUS AND INTERRUPTS

Interrupt Vector and Steering

Interrupt Trigger Types

Dynamic and Latched Status Registers Examples

Interrupt Examples

REVISION HISTORY

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

Principle of Operation

Register Descriptions

User Watchdog Timer Registers

Status and Interrupt

User Watchdog Timer Status

Interrupt Vector and Steering

Function Register Map

REVISION HISTORY

MODULE COMMON REGISTERS

Module Information Registers

FPGA Version Registers

Bare Metal Version Registers

FSBL Version Registers

Module Serial Number Registers

Module Measurement Registers

Temperature Readings Registers

Higher Precision Temperature Readings Registers

Module Health Monitoring Registers

Module Sensor Registers

FUNCTION REGISTER MAP

REVISION HISTORY

NAI Cares

Documentation

FAQ

Application Notes

Calibration and Repairs

Call Us

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
X	X	X	X	X	X	X	X	X	X	X	X	X	X	X	X
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
X	X	X	X	X	X	X	X	X	X	X	X	X	X	B1	B0

FPGA Revision
Function:	FPGA firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

FPGA Compile Timestamp
Function:	Compile Timestamp for the FPGA firmware.
Type:	unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:	The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

FPGA SerDes Revision
Function:	FPGA SerDes revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

FPGA Template Revision
Function:	FPGA Template revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the template revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
