ADE-ADF Manual

INTRODUCTION

As a leading manufacturer of smart function modules, NAI offers over 100 different modules that cover a wide range of I/O, measurement and simulation, communications, Ethernet switch, and SBC functions. Our Analog-to-Digital (A/D) function modules provide fast, accurate, and reliable conversion performance that is ideally suited for military, industrial, and commercial applications. With nine different A/D smart function modules to choose from, our products offer a variety of A/D converters with different available channels, architecture types, and sampling rates to meet your specific circuit design needs. This user manual is designed to help you get the most out of our A/D smart function modules.

For a brief description of the modules and complete list of specifications, click here for the ADE-ADF data sheet.

ADE-ADF Overview

NAI’s Analog-to-Digital modules ADE,and ADF are high-performance smart function modules designed for use in military, industrial, and commercial applications. These modules feature 16 channels with up to 16-bit Successive Approximation Register (SAR) A/D converters, simultaneous sampling. The maximum programmable, expected full-scale range input for the modules is ±10V (ADE), and ±100V (ADF), respectively.

The A/D converters have programmable sample rates of up to 200 kHz. The input range and gain are also field-programmable for each channel, with the ability to set lower expected, full-scale voltage gain ranges to assure the use of full resolution. Each channel includes a fixed, second-order, anti-aliasing filter and a digital post filter with a programmable breakpoint that enables users to field-adjust the filtering for each channel.

The extended A/D FIFO buffering capabilities of these modules support greater storage/management of the incoming signal samples (data) for post-processing applications. Data samples can be stored in the buffer either at the maximum programmed base A/D sample rate or by an integer-divided sample rate, with programmable FIFO buffer thresholds maximizing data flow control (movement in and out of the FIFO). Incremental relative time-stamping between samples is also provided as a programmable option.

All A/D channels are self-aligning and continuous Background Built-in-Test (BIT) status is provided for channel health and operation feedback. On a rotating basis, each channel is automatically trimmed/tested for optimal conversion and reliability to eliminate offset and gain errors throughout the entire operating envelope (temperature and drift control). Open inputs are sensed and flagged, making these smart function modules an ideal choice for precise and reliable data acquisition and signal processing in a wide range of applications.

PRINCIPLE OF OPERATION

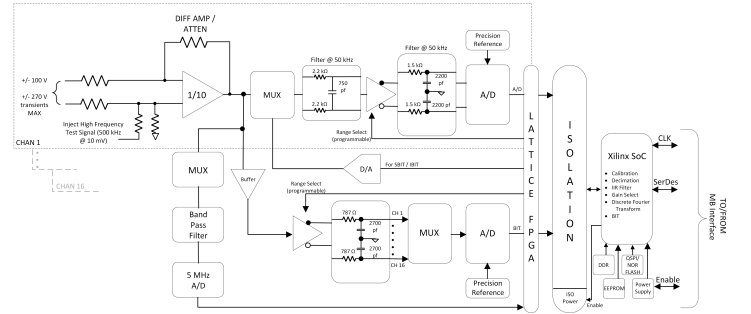

Analog-to-Digital modules ADE and ADF are 16-Channel A/D modules that feature independent 16-bit Successive Approximation Register (SAR) A/Ds.

Module	ADE	ADF
Full Scale Range Inputs*	10.0 V	100.0 V
	5.0 V	50 V
	2.5 V	25 V
	1.25 V	12.5 V
	0.625 V	6.25 V

*Programmable, per channel, as Full Scale (FS) range inputs, where range is -FS to +FS or 0 to FS VDC. The ability to set lower voltages for FS assures the utilization of the maximum resolution.

The module(s) provide true simultaneous sampling A/D converters for all 16 channels with programmable full-scale range inputs. The A/D converters have programmable sample rates of up to 200 kHz. Additional features include FIFO sample data storage with trigger/capture options, IIR filtering, open-line and over-voltage detection. Additional BIT capabilities include front end differential-amplifier malfunction detection (ADF). Taking advantage of the fast and simultaneous sampling SAR A/D architecture, the module provides an effective A/D interface for applications requiring control loop integration and parallel data acquisition.

Built-In Test (BIT)/Diagnostic Capability

The AD module supports three types of built-in tests: Power-On, Continuous Background and Initiated. The results of these tests are logically OR’d together and stored in the BIT Dynamic Status and BIT Latched Status registers.

In addition to BIT, the AD module tests for loss of +12V and -12V power, and inter-FPGA data transfer errors between the Lattice FPGA and Xilinx FPGA. On the ADE module, the module tests for Open/Over-voltage conditions on the positive and negative connections. On the ADF module, the module continually tests the channel’s Front-end Amplifier to ensure it is working properly.

Power-On Self-Test (POST)/Power-On BIT (PBIT)/Start-Up BIT (SBIT)

the PBIT test definition is defined at the Initiated BIT (IBIT). This is automatically performed on power-up, with the results posted. The power-on self-test is performed on each channel automatically when power is applied and report the results in the BIT Status register when complete. After power-on, the Power-on BIT Complete register should be checked to ensure that POST/PBIT/SBIT test is complete before reading the BIT Dynamic Status and BIT Latched Status registers.

Continuous Background Built-In Test

The background Built-In-Test or Continuous BIT (CBIT) (“D2”) runs in the background where each channel is checked to a test accuracy of 0.2% FS. The testing is totally transparent to the user, requires no external programming, and has no effect on the operation of the module or card. For the ADE module, all channels are monitored for open input during the CBIT test. The technique used by the CBIT test consists of an “add-2, subtract-1” counting scheme. The BIT counter is incremented by 2 when a BIT-fault is detected and decremented by 1 when there is no BIT fault detected and the BIT counter is greater than 0. When the BIT counter exceeds the (programmed) Background BIT Threshold value, the specific channel’s fault bit in the BIT status register will be set. Note, the interval at which BIT is performed is dependent and differs between module types. Rater than specifying the BIT Threshold as a “count”, the BIT Threshold is specified as a time in milliseconds. The module will convert the time specified to the BIT Threshold “count” based on the BIT interval for that module. The “add-2, subtract-1” counting scheme effectively filters momentary or intermittent anomalies by allowing them to “come and go“ before a BIT fault status or indication is flagged. This prevents spurious faults from registering valid such as those caused by EMI and/or dirty power causing false BIT faults. Putting more “weight” on errors (“add-2”) and less “weight” on subsequent passing results (subtract-1) will result in a BIT failure indication even if a channel “oscillates” between a pass and fail state.

Initiated Built-In Test

The AD module supports two off-line Initiated Built-in Test, User Initiated BIT (UBIT) (“D0”) and Initiated BIT (IBIT) (“D3”).

UBIT test is used to check the card and interface. This test disconnects all A/D channels from the I/O and connects them across an internal D/A. Test voltage is controlled by the user by setting the desired voltage in the UBIT Test Data register. External reference voltage is not required. While UBIT test is enabled, the A/D Reading register will reflect the value entered for the test voltage. Note the units of the A/D Reading may represent voltage, current or engineering units depending on the mode specified by setting the Enable Floating Point Mode register.

IBIT test starts an initiated BIT test that disconnects all A/D’s from the I/O and then connects them across an internal stimulus. Each channel will be checked to a test accuracy of 0.2% FS and monitored for open inputs. The IBIT test cycle is completed within 20 seconds (depending on the sample rate) and results can be read from the BIT Status registers after the IBIT bit changes from 1 to 0 indicating that the IBIT test is complete. The test can be enabled or disabled at any time by writing to the appropriate register.

A/D FIFO Buffering

The Analog-to-Digital modules include A/D FIFO Buffering for greater control of the incoming signal (data) for analysis and display. When initialized and triggered, the A/D buffer will accept/store the data based on the same Sample Rate register combined with the number of active channels, or at a lower rate when utilizing the FIFO Skip Count feature. Programmable buffer sample thresholds can be utilized for data flow control.

Threshold and Saturation Programming

The Analog-to-Digital Modules provide registers that support threshold and saturation detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the Principle of Operation description.

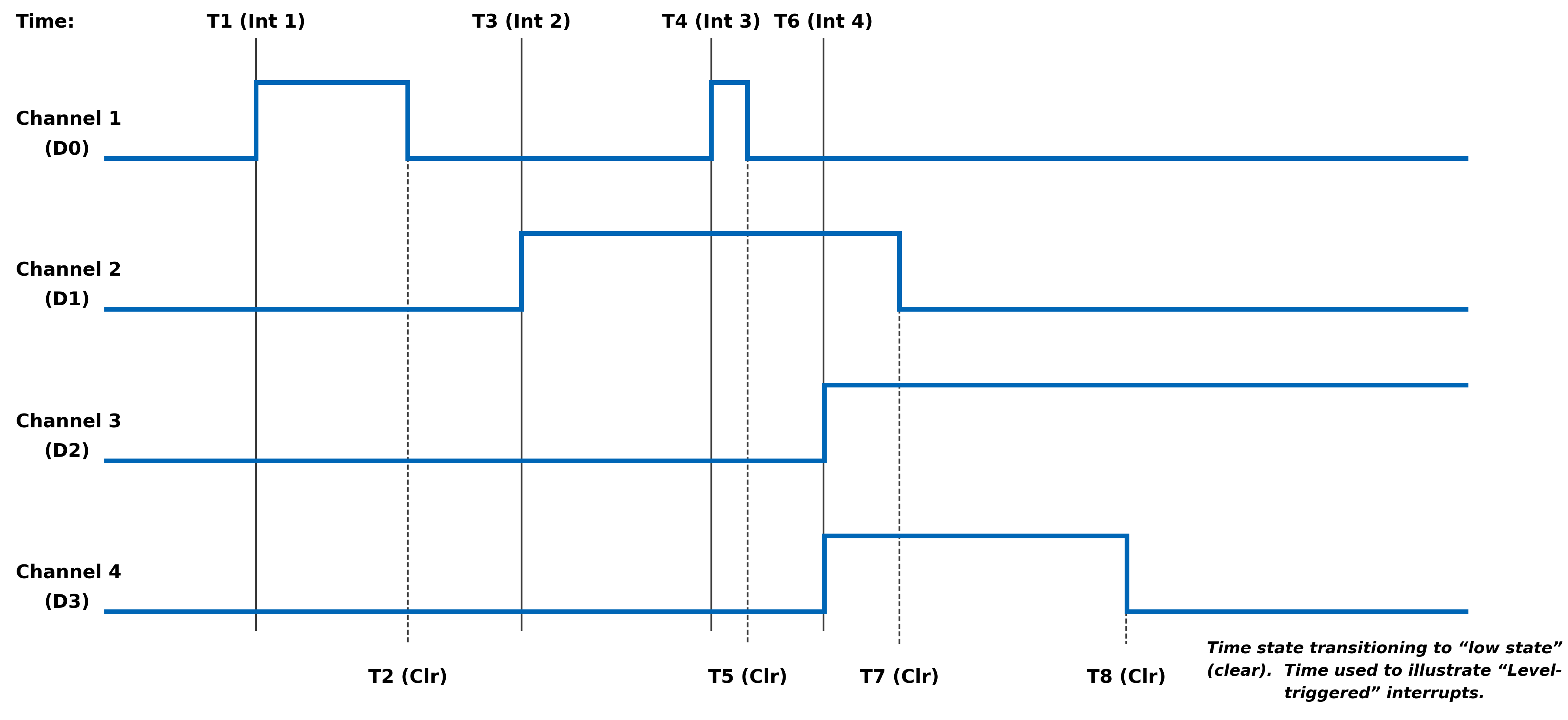

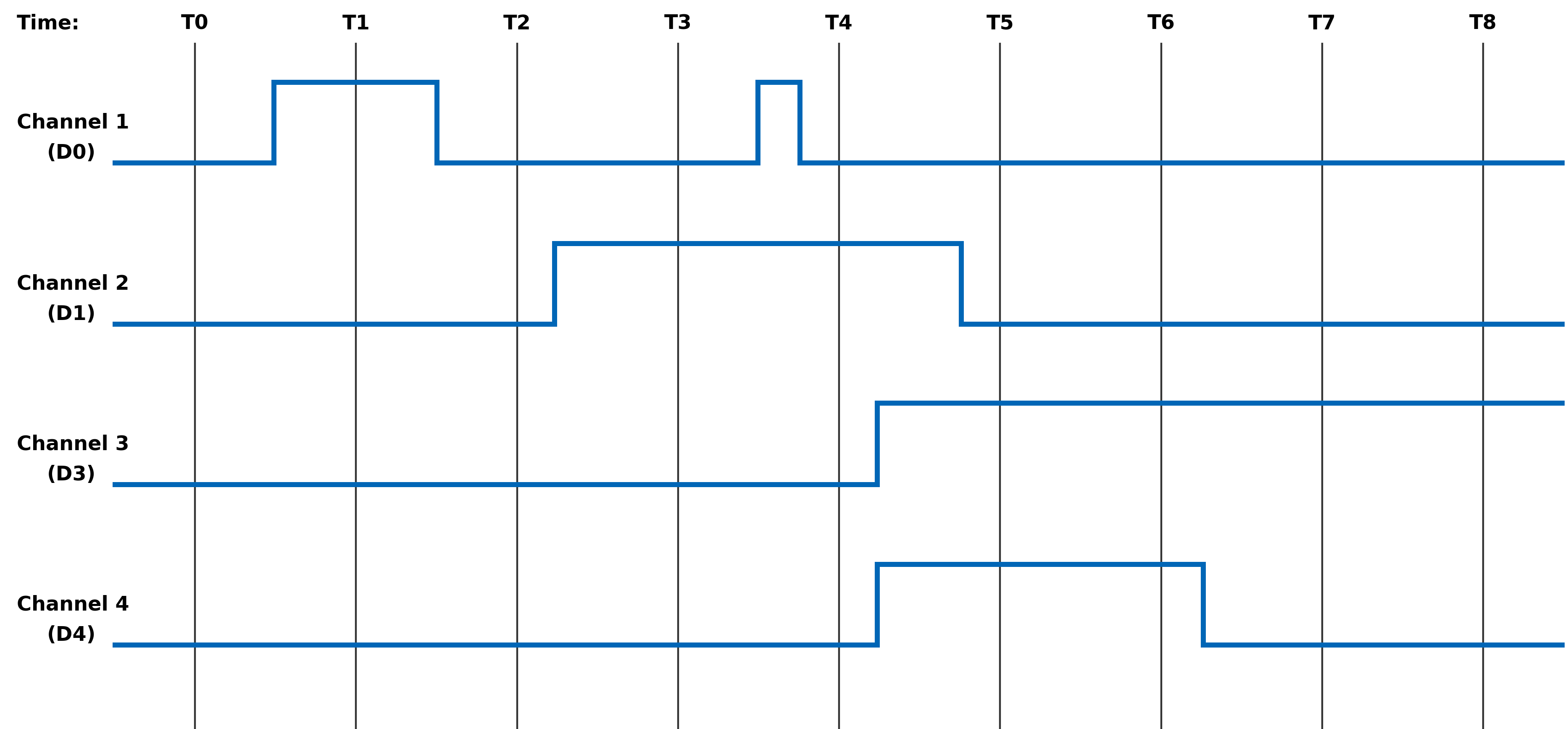

Status and Interrupts

The Analog-to-Digital Modules provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

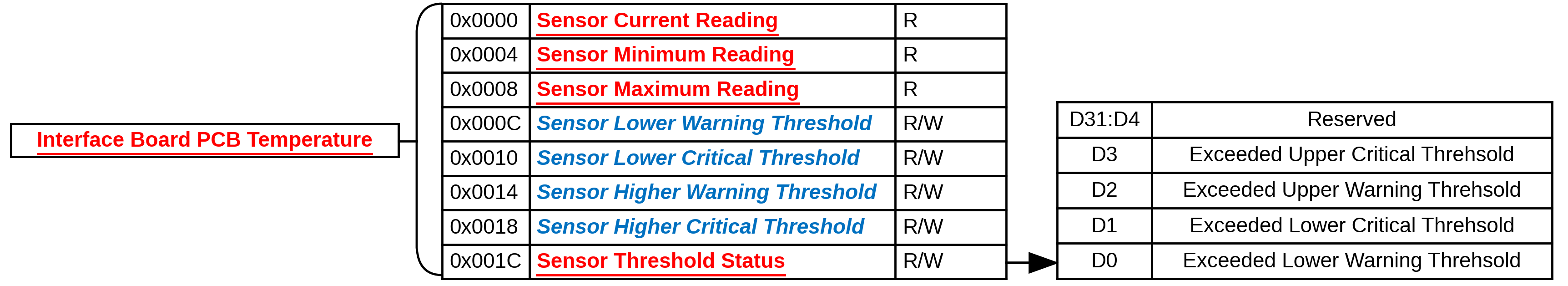

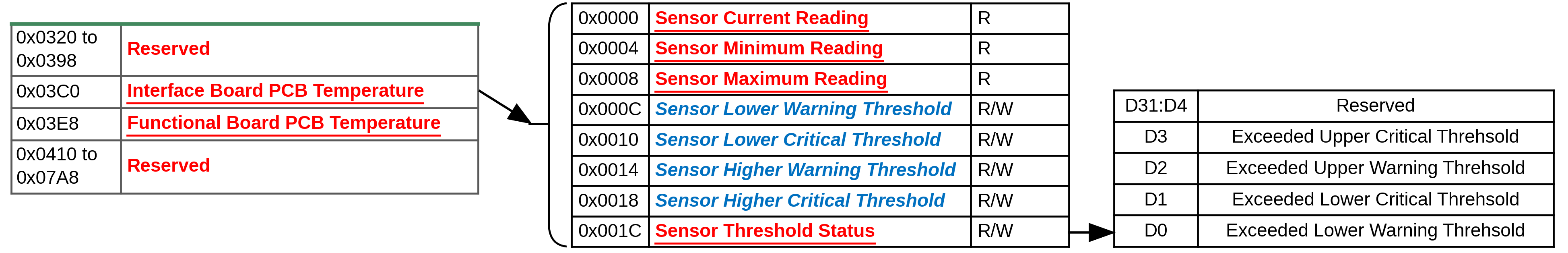

Module Common Registers

The Analog-to-Digital Modules include module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.

Engineering Scaling Conversions

The A/D Module Threshold, Saturation and Measurement registers can be programmed to be utilized as single precision floating point values (IEEE-754) or as 32-bit integer values.

It is very often necessary to convert a voltage or current reading into a more useful value such as PSI (Pounds per Square Inch), GPM (Gallons per Minute), LBS (pounds), etc. For example, when measuring force, it would be more beneficial to read the data as LBS (pounds) instead of volts. Other examples would be reading the data as PSI for pressure or GPM for flow. When the Enable Floating Point Mode register is set to 1, the values entered for the Floating Point Scale register and Floating Point Offset register will be used to convert the current or voltage measurement (i.e., A/D Reading and FIFO Buffer Data registers) to the associated engineering unit as follows:

AD Data in Engineering Units (Floating Point) =
                    (AD Value (Volts/Current) * Floating Point Scale) + Floating Point Offset

The purpose for providing this feature is to offload the processing that is normally performed by the mission processor to convert the integer values to engineering unit values.

When the Enable Floating Point Mode register is set to 1 (Floating Point Mode) the following registers are formatted as Single Precision Floating Point Value (IEEE-754):

A/D Reading
FIFO Buffer Data
Threshold Detect Level*
Upper and Lower Saturation*

*When the Enable Floating Point Mode register is set to 1, it is important that these registers are updated with the Single Precision Floating Point (IEEE-754) representation of the value for proper operation of the channel. Conversely, when the Enable Floating Point Mode register is set to 0, these registers must be updated with the Integer 32-bit representation of the value.

Note

when changing the Enable Floating Point Mode from Integer Mode to Floating Point Mode or vice versa, the following steps are followed to avoid faults from falsely being generated:

Set the Enable Floating Point Mode register to the desired mode (Integer or Floating Point).
The application waits for the Floating Point State register to match the value for the requested Floating Point Mode (Integer = 0, Floating Point = 1); this indicates that the module’s conversion of the register values and internal values is complete. Data registers will be converted to the units specified and can be read in that specified format.

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

A/D Measurement Registers

The A/D readings are normally in terms of voltage or current. When the Enable Floating Point Mode is enabled, the register value formatted as Single Precision Floating Point Value (IEEE-754), in addition the Floating Point Scale and Floating Point Offset will be applied to convert the voltage or current to engineering units.

A/D Reading
Function:	The value represents voltage, current or engineering units depending on mode.
Type:	signed binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Values are dependent on Polarity and Range settings for the channel Enable Floating Point Mode: 0 (Integer Mode) Unipolar: 0x0000 0000 to 0x0000 FFFF Bipolar (2's complement. 16-bit value sign extended to 32 bits): 0xFFFF 8000 to 0x0000 7FFF Enable Floating Point Mode: 1 (Floating Point Mode) Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	NA
Operational Settings:	Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples.

A/D Control Registers

The A/D control registers provide the ability to specify the polarity and range, the sample rate and the filter break frequency. The A/D Latch control register provides the ability to latch any of the A/D channels to the current sample capture.

Polarity & Range
Function:	Sets input format for polarity and range for each channel. Note, if the Enable Floating Point Mode register is set to 1, the Floating Point Scale register must be set to the Range.
Type:	unsigned binary word (32-bit)
Data Range:	See table below.
Read/Write:	R/W
Initialized Value:	0x0000 0010 (ADE: ± 10 V, ADF: ± 100 V)
Operational Settings:	For bipolar/unipolar selection, program D4 bit as 0 for unipolar and 1 for bipolar as shown in table below.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

	Range
Reg Value	ADE	ADF
0x04	0 - 0.625 V	0 - 6.25 V
0x03	0 - 1.25 V	0 - 12.5 V
0x02	0 - 2.5 V	0 - 25 V
0x01	0 - 5 V	0 - 50 V
0x00	0 - 10 V	0 - 100 V
0x14	± 0.625 V	± 6.25 V
0x13	± 1.25 V	± 12.5 V
0x12	± 2.5 V	± 25 V
0x11	± 5 V	± 50 V
0x10	± 10 V	± 100 V

Sample Rate
Function:	Sets the desired sample rate for all channels.
Type:	unsigned binary word (32-bit)
Data Range:	1000 - 200000 (0x0000 03E8 to 0x0003 0D40)
Read/Write:	R/W
Initialized Value:	200000 (0x0003 0D40)
Operational Settings:	LSB is 1Hz. Sample rate applies to all channels.

Filter Break Frequency
Function:	The break frequency is the 3 dB point of a digital, second-order, IIR low-pass filter.
Type:	unsigned binary word (32-bit)
Data Range:	0 Hz to 90 kHz (0x0000 0000 to 0x0001 5F90)
Read/Write:	R/W
Initialized Value:	20 kHz (0x0000 4E20)
Operational Settings:	LSB is 1 Hz. The break frequency must not be less than 1% of the clock rate frequency. (Example: For a clock rate frequency of 2 kHz, the Filter Break Frequency should be no less than 20 Hz). Set to 0 to disables filter.

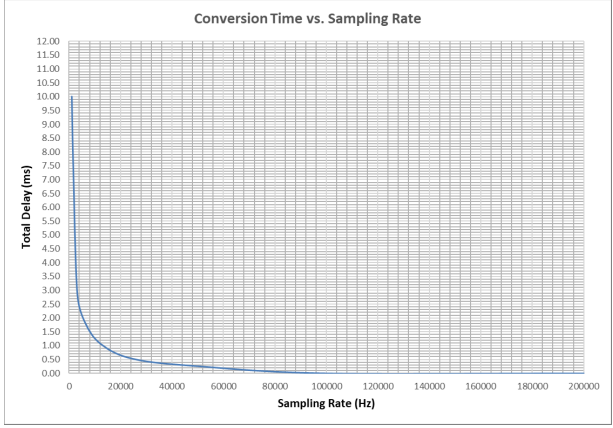

Acquisition & Conversion Time

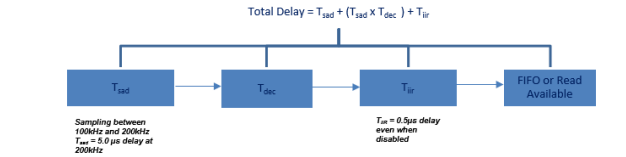

Acquisition & Conversion Time: Total time required to obtain digital result. It consists of acquisition, decimator group delay when engaged, and IIR filter.

Acquisition & Conversion time will vary depending on the programmed sample rates. Expect a total delay of 5.5μs when sampling at 200kHz (max). Refer to the following chart for lower sample rates:

Latch All A/D Channels
Function:	Latches all A/D channels.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Set 1 to latch all A/D channels and 0 to unlatch all A/D channels.

Note

The channel’s A/D Reading register will maintain the same reading while the Latch A/D bit is set to 1. Sampling for the channel will resume for that channel only when the bit is set to 0.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Overcurrent Reset
Function:	Resets over loaded channels (i.e., channels where an overcurrent condition has been detected).
Type:	unsigned binary word (32-bit)
Data Range:	0 or 1
Read/Write:	W
Initialized Value:	0
Operational Settings:	Set to 1 to reset over loaded channels. Writing a 1 to this register will re-enable channels in which an overcurrent condition was detected.

A/D Test Registers

Three different tests, one on-line (CBIT) and two off-line (UBIT, IBIT), can be selected. External reference voltage is not required for any of these tests.

Test Enabled
Function:	Sets bit to enable the associated Built-In Self-Test (BIST): IBIT, CBIT and UBIT.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 000F
Read/Write:	R/W
Initialized Value:	0x4 (CBIT Test Enabled)
Operational Settings:	BIT tests include an on-line (CBIT) test and two off-line (UBIT, IBIT) tests. Failures in the BIT test are reflected in the BIT Status registers for the corresponding channels that fail. In addition, an interrupt (if enabled in the BIT Interrupt Enable register) can be triggers when the BIT testing detects failures.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	IBIT Test D	CBIT Test 1	0	UBIT Test D

UBIT Test Data
Function:	Specifies voltage to be applied for the A/D UBIT off-line test.
Type:	signed binary word (32-bit)
Data Range:	Voltage and Current values are dependent on Polarity and Range settings for the channel. Unipolar: 0x0000 to 0x0000 FFFF Bipolar (2's complement. 16-bit value sign extended to 32 bits): 0xFFFF 8000 to 0x0000 7FFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	LSB is dependent on the Range setting. Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples.

FIFO Registers

The FIFO registers are configurable for each channel.

FIFO Buffer Data
Function:	Available data in the FIFO buffer can be retrieved, one word at a time. (LSB for 16-bit word resolution is dependent on the Polarity and Range setting).
Type:	signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Enable Floating Point Mode: 0 (Integer Mode) Unipolar: 0x0000 0000 to 0x0000 FFFF Bipolar (2's complement. 16-bit value sign extended to 32 bits): 0xFFFF 8000 to 0x0000 7FFF Enable Floating Point Mode: 1 (Floating Point Mode) Single Precision Floating Point Value (IEEE-754)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples.

FIFO Word Count
Function:	This is a counter that reports the number of 16-bit words stored in the FIFO buffer.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	Every time a read operation is made from the A/D Data memory address, its corresponding Words in FIFO counter will be decremented by one. The maximum number of words that can be stored in the FIFO is 1 mega words.

FIFO Thresholds

The FIFO Almost Empty, FIFO Low Watermark, FIFO High Watermark, FIFO Almost Full and FIFO Buffer Size sets the threshold limits that are used to set the bits in the FIFO Status register.

FIFO Almost Empty
Function:	The FIFO Almost Empty is used to set the limits for the “almost empty” status.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R/W
Initialized Value:	Not set
Operational Settings:	When the Words in FIFO counter is greater than or equal to the value stored in the FIFO Almost Empty register, the “almost empty” bit (D1) of the FIFO Status register will be set. When the Words in FIFO counter is less than the value stored in the register, the “almost empty” bit (D1) of the FIFO Status register will be reset.

FIFO Low Watermark
Function:	The FIFO Low Watermark (low-threshold level) is used to set the limits for the “low watermark” status.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R/W
Initialized Value:	Not set
Operational Settings:	When the Words in FIFO counter is less than or equal to the value stored in the FIFO Low Watermark register, the “low watermark” bit (D2) of the FIFO Status register will be set. When the Words in FIFO counter is greater than the value stored in the register, the “low watermark” bit (D2) of the FIFO Status register will be reset.

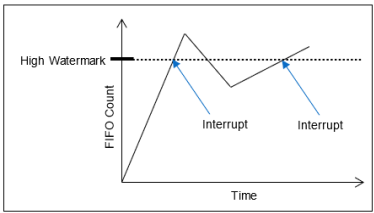

FIFO High Watermark
Function:	The FIFO High Watermark (high-threshold level) is used to set the limits for the “high watermark” status.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R/W
Initialized Value:	Not set
Operational Settings:	When the Words in FIFO counter is greater than or equal to the value stored in the FIFO High Watermark register, the “high watermark” bit (D3) of the FIFO Status register will be set. When the Words in FIFO counter is less than the value stored in the high-threshold, the “high watermark” bit (D3) of the FIFO Status register will be reset.

FIFO Almost Full
Function:	The FIFO Almost Full is used to set the limits for the “almost full” status.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R/W
Initialized Value:	Not set
Operational Settings:	When the Words in FIFO counter is greater than or equal to the value stored in the FIFO Almost Full register, the “almost full” bit (D4) of the FIFO Status register will be set. When the Words in FIFO counter is less than the value stored in the register, the “almost full” bit (D4) of the FIFO Status register will be reset.

FIFO Buffer Size
Function:	Sets the number of samples to be taken and placed into the FIFO when a trigger occurs.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x000F FFFF
Read/Write:	R/W
Initialized Value:	0x000F FFFF
Operational Settings:	The size of each sample (number of words written to the FIFO per sample) is determined by the sample format described by the FIFO Buffer Control register. When the Words in FIFO counter reaches the FIFO Buffer Size, the “sample done” bit (D6) is set and no additional samples will be placed in the FIFO. When Words in FIFO counter is less than FIFO Buffer Size, the “sample done” bit (D6) will be reset.

Data Control
Function:	Sets the format of the samples to be stored in the FIFO buffer which is determined by the bitmapped table.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0014
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The Time Stamp data format (D4) requires one word of storage space from the FIFO buffer. For example, if (D4) is set to 0 and the FIFO Buffer Size register is set to 1, a FIFO write will put one word of data in the FIFO memory space per sample and discard the timestamp (sample counter). Since the maximum physical size of FIFO is 1M words for each channel, the value in the FIFO Buffer Size and Data Control registers could cause an overflow to the FIFO buffer. When an overflow condition occurs, any data that is not placed in the FIFO will be lost.

Bit	Description
D31:D5	Reserved. Set to 0
D4	Time Stamp. An integer counter that counts from 0 to 65,535 and wraps around when it overflows.
D3	Reserved. Set to 0
D2	Data Type. 0 = Raw (unfiltered); 1 = Filtered (post-programmable IIR).
D1	Reserved. Set to 0
D0	Reserved. Set to 0

FIFO Sample Delay
Function:	Sets the number of delay samples before the actual FIFO data collection begins.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	not set
Operational Settings:	The data collected during the delay period will be discarded.

FIFO Skip Count
Function:	Sets how many samples to skip over when storing data in FIFO.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0 (No Skip Count (FIFO stores every sample))
Operational Settings:	If the sample rate for a channel is 10 kHz, there would be a new sample every 100μs. By setting the FIFO skip count to 1, the FIFO will store a new sample every 200 μs, or at a 5 kHz rate.

Clear FIFO
Function:	Clears FIFO by resetting the Words in FIFO count.
Type:	unsigned binary word (32-bit)
Data Range:	0 or 1
Read/Write:	W
Initialized Value:	N/A
Operational Settings:	This resets the Words in FIFO to zero; Clear FIFO register does not clear data in the buffer. A read to the buffer data will give “aged” data. Write a 1 to reset the Words in FIFO for the channel.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

FIFO Trigger Control
Function:	Starts/triggers FIFO. FIFO can be started/triggered by different sources.
Type:	unsigned binary word (32-bit)
Data Range:	0x0 to 0x1FF
Read/Write:	R/W
Initialized Value:	0 (Disable Trigger)
Operational Settings:	For the current implementation, triggering of FIFO is by Software Trigger only. Hardware triggering will be implemented in a future release. Hardware triggering will be platform dependent based on pin-outs and I/O availability. See the tables that follow for the current and pending settings.

D8	Trigger Enable
0	Not Enabled / Stop Trigger
1	Enable Trigger

D[5..4]	Trigger Edge
0	RESERVED for Hardware Trigger (Positive Edge)
1	RESERVED for Hardware Trigger (Negative Edge)
2	RESERVED for Hardware Trigger (Either Edge)
3	Software Trigger

D[1..0]	Trigger Type
0	Continuous
1	Single Sample
2	X (Don’t care)
3	X (Don’t care)

D[8..0]	Summary Description
0x130	Store continuously once there is a Software Trigger.
0x131	Store single sample once there is a Software Trigger
0x0XX	Disable Trigger (will stop FIFO from storing data if continuously running)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	D	D	D	D	D	D	D	D	D

FIFO Software Trigger
Function:	Software trigger is used to start the FIFO buffer and the collection of data.
Type:	unsigned binary word (32-bit)
Data Range:	0 or 1
Read/Write:	W
Initialized Value:	0 (Not Triggered)
Operational Settings:	To use this operation, the FIFO Trigger Control register must be set up as described in the FIFO Trigger Control register. Write a 1 to trigger FIFO collection for all channels.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Threshold Detect Programming Registers

The Analog-to-Digital Modules provide registers that support threshold detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the register descriptions.

Saturation Programming Registers

The Analog-to-Digital Modules provide registers that support saturation detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the register descriptions.

Engineering Scaling Conversions Registers

The A/D Module Threshold, Saturation, and Measurement registers can be programmed to be utilized as a Single Precision Floating Point Value (IEEE-754) or as a 32-bit integer value.

Enable Floating Point Mode
Function:	Sets all channels for floating point mode or integer module.
Type:	unsigned binary word (32-bit)
Data Range:	0 or 1
Read/Write:	R/W
Initialized Value:	0 (Integer mode)
Operational Settings:	Set bit to 1 to enable Floating Point Mode and 0 for Integer Mode. Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Floating Point Offset
Function:	This register sets the floating point offset to add to AD data.
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	N/A
Read/Write:	R/W
Initialized Value:	0.0
Operational Settings:	Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples.

Floating Point Scale
Function:	This register sets the floating point scale to multiple to the AD data.
Type:	Single Precision Floating Point Value (IEEE-754)
Data Range:	N/A
Read/Write:	R/W
Initialized Value:	Default Voltage Range (ADE: 10 V, ADF: 100 V)
Operational Settings:	Refer to section Appendix A: Integer/Floating Point Mode Programming for Integer and Floating Point Mode examples.

Floating Point State
Function:	Indicates whether the module's internal processing is converting the register values and internal values to the binary representation of the mode selected (Integer or Floating Point).
Type:	unsigned binary word (32-bit)
Data Range:	0 to 1
Read/Write:	R
Initialized Value:	0
Operational Settings:	Indicates the whether the module registers are in Integer (0) or Floating Point Mode (1). When the Enable Floating Point Mode is modified, the application must wait until this register's value matches the requested mode before changing the values of the configuration and control registers with the values in the units specified (Integer or Floating Point).

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Background BIT Threshold Programming Registers

The Background BIT Threshold register provides the ability to specify the minimum time before the BIT fault is reported in the BIT Status registers. The BIT Count Clear register provides the ability to reset the BIT counter used in CBIT.

Background BIT Threshold
Function:	Sets BIT Threshold value (in milliseconds) to use for all channels for BIT failure indication.
Type:	unsigned binary word (32-bit)
Data Range:	1 ms to 65 seconds
Read/Write:	R/W
Initialized Value:	5 ms
Operational Settings:	The interval at which BIT is performed is dependent and differs between module types. Rather than specifying the BIT Threshold as a “count”, the BIT Threshold is specified as a time in milliseconds. The module will convert the time specified to the BIT Threshold “count” based on the BIT interval for that module.

BIT Count Clear
Function:	Resets the CBIT internal circuitry and count mechanism. Set the bit corresponding to the channel you want to clear.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	W
Initialized Value:	0
Operational Settings:	Set bit to 1 for channel to resets the CBIT mechanisms. Bit is self-clearing.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

Status and Interrupt Registers

The AD modules provide status registers for BIT, FIFO, Overcurrent, Open, External Power Loss, Threshold Detect, Saturation, Inter-FPGA Failure and Summary.

Channel Status Enable
Function:	Determines whether to update the status for the channels. This feature can be used to “mask” status bits of unused channels in status registers that are bitmapped by channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF (Channel Status)
Read/Write:	R/W
Initialized Value:	0x0000 FFFF
Operational Settings:	When the bit corresponding to a given channel in the Channel Status Enable register is not enabled (0) the status will be masked and report “0” or “no failure”. This applies to all statuses that are bitmapped by channel (BIT Status, Overcurrent Status, Front-end Amplifier Failure Status and Summary Status).

Note

Background BIT will continue to run even if the Channel Status Enable is set to 0.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

BIT Status

There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. The BIT Status register will indicate an error when the voltage read is not within the error of the set value.

BIT Status
Function:	Sets the corresponding bit associated with the channel's BIT error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

BIT Dynamic Status

BIT Latched Status

BIT Interrupt Enable

BIT Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

BIT Diagnostic

Upon detection of a BIT error, the following registers provide additional information about the error:

Power-on BIT Error (Dynamic and Latched)
Anti-Aliasing Filter Error (Dynamic and Latched)
Voltage Reading Accuracy Error (Dynamic and Latched)

The diagnostic Dynamic register indicates the current condition of the channel’s BIT error status. The diagnostic Latched Status register will maintain the last condition of the channel’s BIT error status. The diagnostic Latched Status will be cleared when the BIT Latched Status register is cleared.

Power-on BIT Error
Function:	The Power-on BIT Error register is set when a failure is detected during the power-on self-test (POST) sequence.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	1 is read when a fault is detected. 0 indicates no fault detected.

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Anti-Aliasing Filter Error
Function:	The Anti-Aliasing Filter Error register is set when the front-end amplifier fails an internal common-mode rejection ratio (CMRR) test.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	1 is read when a fault is detected. 0 indicates no fault detected.

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

Note

Clearing the latched BIT status will also clear this error register.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Voltage Reading Accuracy Error
Function:	The Voltage Reading Accuracy Error register is set when a redundant voltage measurement is inconsistent with the input voltage level detected.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	0
Operational Settings:	1 is read when a fault is detected. 0 indicates no fault detected.

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

Note

Clearing the latched BIT status will also clear this error register.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

FIFO Status

There are four registers associated with the FIFO Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. D0-D6 is used to show the different conditions of the buffer.

FIFO Status
Function:	Sets the corresponding bit associated with the FIFO status type; there is a separate register for each channel.
Type:	binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 007F
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Shown below is an example of interrupts generated for the High Watermark. As shown, the interrupt is generated as the FIFO count crosses the High Watermark. The interrupt will not be generated a second time until the count goes below the watermark and then above it again.

FIFO Dynamic Status

FIFO Latched Status

FIFO Interrupt Enable

FIFO Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Bit	Description	Configurable?
D0	Empty; 1 when FIFO Count = 0	No
D1	Almost Empty; 1 when FIFO Count <= “FIFO Almost Empty” register	Yes
D2	Low Watermark; 1 when FIFO Count <= “FIFO Low Watermark” register	Yes
D3	High Watermark; 1 when FIFO Count >= “FIFO High Watermark” register	Yes
D4	Almost Full; 1 when FIFO Count >= “FIFO Almost Full” register	Yes
D5	Full; 1 when FIFO Count = 1 Mega Words (0x000F FFFF)	No
D6	Sample Done; 1 when FIFO Count "FIFO Buffer Size" register	Yes

Open/Over-Voltage Status

There are four registers associated with the Open/Over-Voltage Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. These registers are only applicable to Module ADE.

Note

the channel 16 negative pin on the I/O connector MUST be tied to ground for the open detection circuitry to function properly. Failure to connect the channel 16 negative pin to ground will cause intermittent open-detect behavior on all channels.

Note

both ends of any unused channels (Pos/Neg) should be tied to the channel 16 negative pin, referred to as the Common Mode Reference Point (CMRP; isolated from system power/ground). Tying only one end of a channel, while leaving the opposing end open, may cause Open Circuit Detection to deliver unwanted voltages to your channels in use.

Open/Over-Voltage Status
Function:	Sets the corresponding bit associated with the channel's Open/Over-Voltage error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Open/Over-Voltage Dynamic Status

Open/Over-Voltage Latched Status

Open/Over-Voltage Interrupt Enable

Open/Over-Voltage Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

Ch12

Ch11

Ch10

Ch9

Pos

Neg

Pos

Neg

Pos

Neg

Pos

Neg

D15

D14

D13

D12

D11

D10

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Pos

Neg

Pos

Neg

Pos

Neg

Pos

Neg

Pos

Neg

Pos

Neg

Pos

Neg

Pos

Neg

External Power Loss Status

There are four registers associated with the External Power Loss Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

External Power Loss Status
Function:	Sets the corresponding bit associated with the channel's External Power Loss error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0003
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

D0 = +12V External Power Loss
D1 = -12V External Power Loss

External Power Loss Dynamic Status
External Power Loss Latched Status
External Power Loss Interrupt Enable
External Power Loss Set Edge/Level Interrupt
D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	-12V	+12V

Threshold Detect Status

The Analog-to-Digital Modules provide registers that support threshold detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the register descriptions.

Saturation Status

The Analog-to-Digital Modules provide registers that support saturation detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the register descriptions.

Front-End Amplifier Failure Status

There are four registers associated with the Front-end Amplifier Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Note

These registers are only applicable to Module ADF.

Front-end Amplifier Failure Status
Function:	Sets the corresponding bit associated with the channel's Front-end Amplifier Failure error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Front-end Amplifier Failure Dynamic Status

Front-end Amplifier Failure Latched Status

Front-end Amplifier Failure Interrupt Enable

Front-end Amplifier Failure Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Inter-FPGA Failure Status

Data is periodically transferred between the Lattice FPGA and the Xilinx FPGA. A CRC value is calculated and verified with each data transfer. A CRC error flag is sent from the Lattice FPGA to the Xilinx FPGA if a CRC error is detected. The Xilinx FPGA contains a counter that will increase by two when a CRC error is flagged and decremented by one when there is no CRC error. If the counter reaches ten, the Xilinx FPGA will set the Inter-FPGA Failure status bit and shut down the isolated power supply. In order to recover from an Inter-FPGA Failure, the module needs to be reset and re-initialized.

There are four registers associated with the Inter-FPGA Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt. 0 = Normal; 0x0FFF = Inter-FPGA Communication Failure. The status represents the status for all channels on the module.

Inter-FPGA Failure Status
Function:	Sets the corresponding bit associated with the channel's Inter-FPGA Failure error.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Inter-FPGA Failure Dynamic Status

Inter-FPGA Failure Latched Status

Inter-FPGA Failure Interrupt Enable

Inter-FPGA Failure Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Summary Status

There are four registers associated with the Summary Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Summary Status
Function:	Sets the corresponding bit if any fault (BIT, Overcurrent, Open, External Power Loss, or Inter-FPGA Failure) occurs on that channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Summary Dynamic Status

Summary Latched Status

Summary Interrupt Enable

Summary Set Edge/Level Interrupt

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) + (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

FUNCTION REGISTER MAP

KEY

Configuration/Control

State/Measurement/Status

A/D MEASUREMENT REGISTERS
**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1).
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1000	A/D Reading Ch 1**	R
0x1004	A/D Reading Ch 2**	R
0x1008	A/D Reading Ch 3**	R
0x100C	A/D Reading Ch 4**	R
0x1010	A/D Reading Ch 5**	R
0x1014	A/D Reading Ch 6**	R
0x1018	A/D Reading Ch 7**	R
0x101C	A/D Reading Ch 8**	R
0x1020	A/D Reading Ch 9**	R
0x1024	A/D Reading Ch 10**	R
0x1028	A/D Reading Ch 11**	R
0x102C	A/D Reading Ch 12**	R
0x1030	A/D Reading Ch 13**	R
0x1034	A/D Reading Ch 14**	R
0x1038	A/D Reading Ch 15**	R
0x103C	A/D Reading Ch 16**	R

A/D CONTROL REGISTER
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1080	Polarity & Range Ch 1	R/W	0x1100	Filter Break Frequency Ch 1	R/W
0x1084	Polarity & Range Ch 2	R/W	0x1104	Filter Break Frequency Ch 2	R/W
0x1088	Polarity & Range Ch 3	R/W	0x1108	Filter Break Frequency Ch 3	R/W
0x108C	Polarity & Range Ch 4	R/W	0x110C	Filter Break Frequency Ch 4	R/W
0x1090	Polarity & Range Ch 5	R/W	0x1110	Filter Break Frequency Ch 5	R/W
0x1094	Polarity & Range Ch 6	R/W	0x1114	Filter Break Frequency Ch 6	R/W
0x1098	Polarity & Range Ch 7	R/W	0x1118	Filter Break Frequency Ch 7	R/W
0x109C	Polarity & Range Ch 8	R/W	0x111C	Filter Break Frequency Ch 8	R/W
0x10A0	Polarity & Range Ch 9	R/W	0x1120	Filter Break Frequency Ch 9	R/W
0x10A4	Polarity & Range Ch 10	R/W	0x1124	Filter Break Frequency Ch 10	R/W
0x10A8	Polarity & Range Ch 11	R/W	0x1128	Filter Break Frequency Ch 11	R/W
0x10AC	Polarity & Range Ch 12	R/W	0x112C	Filter Break Frequency Ch 12	R/W
0x10B0	Polarity & Range Ch 13	R/W	0x1130	Filter Break Frequency Ch 13	R/W
0x10B4	Polarity & Range Ch 14	R/W	0x1134	Filter Break Frequency Ch 14	R/W
0x10B8	Polarity & Range Ch 15	R/W	0x1138	Filter Break Frequency Ch 15	R/W
0x10BC	Polarity & Range Ch 16	R/W	0x113C	Filter Break Frequency Ch 16	R/W

0x188C	Sample Rate	R/W

0x1880	Latch All A/D Channels	R/W
0x189C	Overcurrent Reset	R/W

FIFO REGISTERS
**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1).
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1180	FIFO Buffer Data Ch 1**	R	0x1200	FIFO Word Count Ch 1	R
0x1184	FIFO Buffer Data Ch 2**	R	0x1204	FIFO Word Count Ch 2	R
0x1188	FIFO Buffer Data Ch 3**	R	0x1208	FIFO Word Count Ch 3	R
0x118C	FIFO Buffer Data Ch 4**	R	0x120C	FIFO Word Count Ch 4	R
0x1190	FIFO Buffer Data Ch 5**	R	0x1210	FIFO Word Count Ch 5	R
0x1194	FIFO Buffer Data Ch 6**	R	0x1214	FIFO Word Count Ch 6	R
0x1198	FIFO Buffer Data Ch 7**	R	0x1218	FIFO Word Count Ch 7	R
0x119C	FIFO Buffer Data Ch 8**	R	0x121C	FIFO Word Count Ch 8	R
0x11A0	FIFO Buffer Data Ch 9**	R	0x1220	FIFO Word Count Ch 9	R
0x11A4	FIFO Buffer Data Ch 10**	R	0x1224	FIFO Word Count Ch 10	R
0x11A8	FIFO Buffer Data Ch 11**	R	0x1228	FIFO Word Count Ch 11	R
0x11AC	FIFO Buffer Data Ch 12**	R	0x122C	FIFO Word Count Ch 12	R
0x11B0	FIFO Buffer Data Ch 13**	R	0x1230	FIFO Word Count Ch 13	R
0x11B4	FIFO Buffer Data Ch 14**	R	0x1234	FIFO Word Count Ch 14	R
0x11B8	FIFO Buffer Data Ch 15**	R	0x1238	FIFO Word Count Ch 15	R
0x11BC	FIFO Buffer Data Ch 16**	R	0x123C	FIFO Word Count Ch 16	R

0x1480	FIFO Sample Delay Ch 1	R/W	0x1580	FIFO Skip Count Ch 1	R/W
0x1484	FIFO Sample Delay Ch 2	R/W	0x1584	FIFO Skip Count Ch 2	R/W
0x1488	FIFO Sample Delay Ch 3	R/W	0x1588	FIFO Skip Count Ch 3	R/W
0x148C	FIFO Sample Delay Ch 4	R/W	0x158C	FIFO Skip Count Ch 4	R/W
0x1490	FIFO Sample Delay Ch 5	R/W	0x1590	FIFO Skip Count Ch 5	R/W
0x1494	FIFO Sample Delay Ch 6	R/W	0x1594	FIFO Skip Count Ch 6	R/W
0x1498	FIFO Sample Delay Ch 7	R/W	0x1598	FIFO Skip Count Ch 7	R/W
0x149C	FIFO Sample Delay Ch 8	R/W	0x159C	FIFO Skip Count Ch 8	R/W
0x14A0	FIFO Sample Delay Ch 9	R/W	0x15A0	FIFO Skip Count Ch 9	R/W
0x14A4	FIFO Sample Delay Ch 10	R/W	0x15A4	FIFO Skip Count Ch 10	R/W
0x14A8	FIFO Sample Delay Ch 11	R/W	0x15A8	FIFO Skip Count Ch 11	R/W
0x14AC	FIFO Sample Delay Ch 12	R/W	0x15AC	FIFO Skip Count Ch 12	R/W
0x14B0	FIFO Sample Delay Ch 13	R/W	0x15B0	FIFO Skip Count Ch 13	R/W
0x14B4	FIFO Sample Delay Ch 14	R/W	0x15B4	FIFO Skip Count Ch 14	R/W
0x14B8	FIFO Sample Delay Ch 15	R/W	0x15B8	FIFO Skip Count Ch 15	R/W
0x14BC	FIFO Sample Delay Ch 16	R/W	0x15BC	FIFO Skip Count Ch 16	R/W

0x1600	Clear FIFO Ch 1	W	0x1680	Data Control Ch 1	R/W
0x1604	Clear FIFO Ch 2	W	0x1684	Data Control Ch 2	R/W
0x1608	Clear FIFO Ch 3	W	0x1688	Data Control Ch 3	R/W
0x160C	Clear FIFO Ch 4	W	0x168C	Data Control Ch 4	R/W
0x1610	Clear FIFO Ch 5	W	0x1690	Data Control Ch 5	R/W
0x1614	Clear FIFO Ch 6	W	0x1694	Data Control Ch 6	R/W
0x1618	Clear FIFO Ch 7	W	0x1698	Data Control Ch 7	R/W
0x161C	Clear FIFO Ch 8	W	0x169C	Data Control Ch 8	R/W
0x1620	Clear FIFO Ch 9	W	0x16A0	Data Control Ch 9	R/W
0x1624	Clear FIFO Ch 10	W	0x16A4	Data Control Ch 10	R/W
0x1628	Clear FIFO Ch 11	W	0x16A8	Data Control Ch 11	R/W
0x162C	Clear FIFO Ch 12	W	0x16AC	Data Control Ch 12	R/W
0x1630	Clear FIFO Ch 13	W	0x16B0	Data Control Ch 13	R/W
0x1634	Clear FIFO Ch 14	W	0x16B4	Data Control Ch 14	R/W
0x1638	Clear FIFO Ch 15	W	0x16B8	Data Control Ch 15	R/W
0x163C	Clear FIFO Ch 16	W	0x16BC	Data Control Ch 16	R/W

0x1884	FIFO Trigger Control	R/W
0x1888	FIFO Software Trigger	W

FIFO THRESHOLDS
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x1280	FIFO Almost Empty Ch 1	R/W	0x1380	FIFO Low Watermark Ch 1	R/W
0x1284	FIFO Almost Empty Ch 2	R/W	0x1384	FIFO Low Watermark Ch 2	R/W
0x1288	FIFO Almost Empty Ch 3	R/W	0x1388	FIFO Low Watermark Ch 3	R/W
0x128C	FIFO Almost Empty Ch 4	R/W	0x138C	FIFO Low Watermark Ch 4	R/W
0x1290	FIFO Almost Empty Ch 5	R/W	0x1390	FIFO Low Watermark Ch 5	R/W
0x1294	FIFO Almost Empty Ch 6	R/W	0x1394	FIFO Low Watermark Ch 6	R/W
0x1298	FIFO Almost Empty Ch 7	R/W	0x1398	FIFO Low Watermark Ch 7	R/W
0x129C	FIFO Almost Empty Ch 8	R/W	0x139C	FIFO Low Watermark Ch 8	R/W
0x12A0	FIFO Almost Empty Ch 9	R/W	0x13A0	FIFO Low Watermark Ch 9	R/W
0x12A4	FIFO Almost Empty Ch 10	R/W	0x13A4	FIFO Low Watermark Ch 10	R/W
0x12A8	FIFO Almost Empty Ch 11	R/W	0x13A8	FIFO Low Watermark Ch 11	R/W
0x12AC	FIFO Almost Empty Ch 12	R/W	0x13AC	FIFO Low Watermark Ch 12	R/W
0x12B0	FIFO Almost Empty Ch 13	R/W	0x13B0	FIFO Low Watermark Ch 13	R/W
0x12B4	FIFO Almost Empty Ch 14	R/W	0x13B4	FIFO Low Watermark Ch 14	R/W
0x12B8	FIFO Almost Empty Ch 15	R/W	0x13B8	FIFO Low Watermark Ch 15	R/W
0x12BC	FIFO Almost Empty Ch 16	R/W	0x13BC	FIFO Low Watermark Ch 16	R/W

0x1300	FIFO Almost Full Ch 1	R/W	0x1400	FIFO High Watermark Ch 1	R/W
0x1304	FIFO Almost Full Ch 2	R/W	0x1404	FIFO High Watermark Ch 2	R/W
0x1308	FIFO Almost Full Ch 3	R/W	0x1408	FIFO High Watermark Ch 3	R/W
0x130C	FIFO Almost Full Ch 4	R/W	0x140C	FIFO High Watermark Ch 4	R/W
0x1310	FIFO Almost Full Ch 5	R/W	0x1410	FIFO High Watermark Ch 5	R/W
0x1314	FIFO Almost Full Ch 6	R/W	0x1414	FIFO High Watermark Ch 6	R/W
0x1318	FIFO Almost Full Ch 7	R/W	0x1418	FIFO High Watermark Ch 7	R/W
0x131C	FIFO Almost Full Ch 8	R/W	0x141C	FIFO High Watermark Ch 8	R/W
0x1320	FIFO Almost Full Ch 9	R/W	0x1420	FIFO High Watermark Ch 9	R/W
0x1324	FIFO Almost Full Ch 10	R/W	0x1424	FIFO High Watermark Ch 10	R/W
0x1328	FIFO Almost Full Ch 11	R/W	0x1428	FIFO High Watermark Ch 11	R/W
0x132C	FIFO Almost Full Ch 12	R/W	0x142C	FIFO High Watermark Ch 12	R/W
0x1330	FIFO Almost Full Ch 13	R/W	0x1430	FIFO High Watermark Ch 13	R/W
0x1334	FIFO Almost Full Ch 14	R/W	0x1434	FIFO High Watermark Ch 14	R/W
0x1338	FIFO Almost Full Ch 15	R/W	0x1438	FIFO High Watermark Ch 15	R/W
0x133C	FIFO Almost Full Ch 16	R/W	0x143C	FIFO High Watermark Ch 16	R/W

0x1500	FIFO Buffer Size Ch 1	R/W
0x1504	FIFO Buffer Size Ch 2	R/W
0x1508	FIFO Buffer Size Ch 3	R/W
0x150C	FIFO Buffer Size Ch 4	R/W
0x1510	FIFO Buffer Size Ch 5	R/W
0x1514	FIFO Buffer Size Ch 6	R/W
0x1518	FIFO Buffer Size Ch 7	R/W
0x151C	FIFO Buffer Size Ch 8	R/W
0x1520	FIFO Buffer Size Ch 9	R/W
0x1524	FIFO Buffer Size Ch 10	R/W
0x1528	FIFO Buffer Size Ch 11	R/W
0x152C	FIFO Buffer Size Ch 12	R/W
0x1530	FIFO Buffer Size Ch 13	R/W
0x1534	FIFO Buffer Size Ch 14	R/W
0x1538	FIFO Buffer Size Ch 15	R/W
0x153C	FIFO Buffer Size Ch 16	R/W

THRESHOLD DETECT PROGRAMMING REGISTERS
The Analog-to-Digital Modules provide registers that support threshold detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual" for the Threshold Detect Programming Function Register Map.

SATURATION PROGRAMMING REGISTERS
The Analog-to-Digital Modules provide registers that support saturation. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual" for the Saturation Programming Function Register Map.

ENGINEERING SCALING CONVERSIONS REGISTERS
**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1).
~ Data is always in Floating Point.
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x02B4	Enable Floating Point	R/W	0x0264	Floating Point State	R

0x1700	Floating Point Offset Ch 1~	R/W	0x1780	Floating Point Scale Ch 1~	R/W
0x1704	Floating Point Offset Ch 2~	R/W	0x1784	Floating Point Scale Ch 2~	R/W
0x1708	Floating Point Offset Ch 3~	R/W	0x1788	Floating Point Scale Ch 3~	R/W
0x170C	Floating Point Offset Ch 4~	R/W	0x178C	Floating Point Scale Ch 4~	R/W
0x1710	Floating Point Offset Ch 5~	R/W	0x1790	Floating Point Scale Ch 5~	R/W
0x1714	Floating Point Offset Ch 6~	R/W	0x1794	Floating Point Scale Ch 6~	R/W
0x1718	Floating Point Offset Ch 7~	R/W	0x1798	Floating Point Scale Ch 7~	R/W
0x171C	Floating Point Offset Ch 8~	R/W	0x179C	Floating Point Scale Ch 8~	R/W
0x1720	Floating Point Offset Ch 9~	R/W	0x17A0	Floating Point Scale Ch 9~	R/W
0x1724	Floating Point Offset Ch 10~	R/W	0x17A4	Floating Point Scale Ch 10~	R/W
0x1728	Floating Point Offset Ch 11~	R/W	0x17A8	Floating Point Scale Ch 11~	R/W
0x172C	Floating Point Offset Ch 12~	R/W	0x17AC	Floating Point Scale Ch 12~	R/W
0x1730	Floating Point Offset Ch 13~	R/W	0x17B0	Floating Point Scale Ch 13~	R/W
0x1734	Floating Point Offset Ch 14~	R/W	0x17B4	Floating Point Scale Ch 14~	R/W
0x1738	Floating Point Offset Ch 15~	R/W	0x17B8	Floating Point Scale Ch 15~	R/W
0x173C	Floating Point Offset Ch 16~	R/W	0x17BC	Floating Point Scale Ch 16~	R/W

BACKGROUND BIT THRESHOLD REGISTERS
NOTE: Base Address - 0x4000 0000
0x02B8	Background BIT Threshold	R/W	0x02BC	BIT Count Clear	W

MODULE COMMON REGISTERS
Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map.

STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0).
NOTE: Base Address - 0x4000 0000
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x02B0	Channel Status Enable	R/W

0x0800	BIT Dynamic Status	R
0x0804	BIT Latched Status*	R/W
0x0808	BIT Interrupt Enable	R/W
0x080C	BIT Set Edge/Level Interrupt	R/W

0x1808	Anti-Aliasing Filter Error Dynamic Status	R
0x180C	Anti-Aliasing Filter Error Latched Status	R/W
0x1810	Voltage Reading Accuracy Error Dynamic Status	R/W
0x1814	Voltage Reading Accuracy Error Latched Status	R/W

0x0248	Test Enabled	R/W	0x0294	UBIT Polarity	R/W
0x024C	Test CBIT Verify	R/W	0x0298	UBIT Test Data	R/W

0x02AC	Power-on BIT Complete⁺⁺	R	0x1800	Power-on BIT Error Dynamic Status	R
			0x1804	Power-on BIT Error Latched Status	R
⁺⁺After power-on, Power-on BIT Complete should be checked before reading the BIT Latched Status.

Open/Over-Voltage (ADE only)			External Power Loss
0x0920	Dynamic Status	R	0x0930	Dynamic Status	R
0x0924	Latched Status*	R/W	0x0934	Latched Status*	R/W
0x0928	Interrupt Enable	R/W	0x0938	Interrupt Enable	R/W
0x092C	Set Edge/Level Interrupt	R/W	0x093C	Set Edge/Level Interrupt

THRESHOLD DETECT STATUS — The Analog-to-Digital Modules provide registers that support threshold detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the Threshold Status Function Register Map.

SATURATION PROGRAMMING REGISTERS — The Analog-to-Digital Modules provide registers that support saturation detection. Refer to “Analog-to-Digital Threshold and Saturation Programming Module Manual” for the Saturation Status Function Register Map.

Front-End Amplifier (ADF only)			Inter-FPGA Failure
0x0950	Dynamic Status	R	0x09B0	Dynamic Status	R
0x0954	Latched Status*	R/W	0x09B4	Latched Status*	R/W
0x0958	Interrupt Enable	R/W	0x09B8	Interrupt Enable	R/W
0x095C	Set Edge/Level Interrupt	R/W	0x09BC	Set Edge/Level Interrupt	R/W

Summary
0x09A0	Dynamic Status	R
0x09A4	Latched Status*	R/W
0x09A8	Interrupt Enable	R/W
0x09AC	Set Edge/Level Interrupt	R/W

FIFO Status Ch 1			FIFO Status Ch 2
0x0810	Dynamic Status	R	0x0820	Dynamic Status	R
0x0814	Latched Status*	R/W	0x0824	Latched Status*	R/W
0x0818	Interrupt Enable	R/W	0x0828	Interrupt Enable	R/W
0x081C	Set Edge/Level Interrupt	R/W	0x082C	Set Edge/Level Interrupt	R/W
FIFO Status Ch 3			FIFO Status Ch 4
0x0830	Dynamic Status	R	0x0840	Dynamic Status	R
0x0834	Latched Status*	R/W	0x0844	Latched Status*	R/W
0x0838	Interrupt Enable	R/W	0x0848	Interrupt Enable	R/W
0x083C	Set Edge/Level Interrupt	R/W	0x084C	Set Edge/Level Interrupt	R/W
FIFO Status Ch 5			FIFO Status Ch 6
0x0850	Dynamic Status	R	0x0860	Dynamic Status	R
0x0854	Latched Status*	R/W	0x0864	Latched Status*	R/W
0x0858	Interrupt Enable	R/W	0x0868	Interrupt Enable	R/W
0x085C	Set Edge/Level Interrupt	R/W	0x086C	Set Edge/Level Interrupt	R/W
FIFO Status Ch 7			FIFO Status Ch 8
0x0870	Dynamic Status	R	0x0880	Dynamic Status	R
0x0874	Latched Status*	R/W	0x0884	Latched Status*	R/W
0x0878	Interrupt Enable	R/W	0x0888	Interrupt Enable	R/W
0x087C	Set Edge/Level Interrupt	R/W	0x088C	Set Edge/Level Interrupt	R/W
FIFO Status Ch 9			FIFO Status Ch 10
0x0890	Dynamic Status	R	0x08A0	Dynamic Status	R
0x0894	Latched Status*	R/W	0x08A4	Latched Status*	R/W
0x0898	Interrupt Enable	R/W	0x08A8	Interrupt Enable	R/W
0x089C	Set Edge/Level Interrupt	R/W	0x08AC	Set Edge/Level Interrupt	R/W
FIFO Status Ch 11			FIFO Status Ch 12
0x08B0	Dynamic Status	R	0x08C0	Dynamic Status	R
0x08B4	Latched Status*	R/W	0x08C4	Latched Status*	R/W
0x08B8	Interrupt Enable	R/W	0x08C8	Interrupt Enable	R/W
0x08BC	Set Edge/Level Interrupt	R/W	0x08CC	Set Edge/Level Interrupt	R/W
FIFO Status Ch 13			FIFO Status Ch 14
0x08D0	Dynamic Status	R	0x08E0	Dynamic Status	R
0x08D4	Latched Status*	R/W	0x08E4	Latched Status*	R/W
0x08D8	Interrupt Enable	R/W	0x08E8	Interrupt Enable	R/W
0x08DC	Set Edge/Level Interrupt	R/W	0x08EC	Set Edge/Level Interrupt	R/W
FIFO Status Ch 15			FIFO Status Ch 16
0x08F0	Dynamic Status	R	0x0900	Dynamic Status	R
0x08F4	Latched Status*	R/W	0x0904	Latched Status*	R/W
0x08F8	Interrupt Enable	R/W	0x0908	Interrupt Enable	R/W
0x08FC	Set Edge/Level Interrupt	R/W	0x090C	Set Edge/Level Interrupt	R/W

INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address Offsets. These registers are accessed using the absolute addresses listed in the table below.
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x0500	Module 1 Interrupt Vector 1 - BIT	R/W	0x0600	Module 1 Interrupt Steering 1 - BIT	R/W
0x0504	Module 1 Interrupt Vector 2 - FIFO Status Ch 1	R/W	0x0604	Module 1 Interrupt Steering 2 - FIFO Status Ch 1	R/W
0x0508	Module 1 Interrupt Vector 3 - FIFO Status Ch 2	R/W	0x0608	Module 1 Interrupt Steering 3 - FIFO Status Ch 2	R/W
0x050C	Module 1 Interrupt Vector 4 - FIFO Status Ch 3	R/W	0x060C	Module 1 Interrupt Steering 4 - FIFO Status Ch 3	R/W
0x0510	Module 1 Interrupt Vector 5 - FIFO Status Ch 4	R/W	0x0610	Module 1 Interrupt Steering 5 - FIFO Status Ch 4	R/W
0x0514	Module 1 Interrupt Vector 6 - FIFO Status Ch 5	R/W	0x0614	Module 1 Interrupt Steering 6 - FIFO Status Ch 5	R/W
0x0518	Module 1 Interrupt Vector 7 - FIFO Status Ch 6	R/W	0x0618	Module 1 Interrupt Steering 7 - FIFO Status Ch 6	R/W
0x051C	Module 1 Interrupt Vector 8 - FIFO Status Ch 7	R/W	0x061C	Module 1 Interrupt Steering 8 - FIFO Status Ch 7	R/W
0x0520	Module 1 Interrupt Vector 9 - FIFO Status Ch 8	R/W	0x0620	Module 1 Interrupt Steering 9 - FIFO Status Ch 8	R/W
0x0524	Module 1 Interrupt Vector 10 - FIFO Status Ch 9	R/W	0x0624	Module 1 Interrupt Steering 10 - FIFO Status Ch 9	R/W
0x0528	Module 1 Interrupt Vector 11 - FIFO Status Ch 10	R/W	0x0628	Module 1 Interrupt Steering 11 - FIFO Status Ch 10	R/W
0x052C	Module 1 Interrupt Vector 12 - FIFO Status Ch 11	R/W	0x062C	Module 1 Interrupt Steering 12 - FIFO Status Ch 11	R/W
0x0530	Module 1 Interrupt Vector 13 - FIFO Status Ch 12	R/W	0x0630	Module 1 Interrupt Steering 13 - FIFO Status Ch 12	R/W
0x0534	Module 1 Interrupt Vector 14 - FIFO Status Ch 13	R/W	0x0634	Module 1 Interrupt Steering 14 - FIFO Status Ch 13	R/W
0x0538	Module 1 Interrupt Vector 15 - FIFO Status Ch 14	R/W	0x0638	Module 1 Interrupt Steering 15 - FIFO Status Ch 14	R/W
0x053C	Module 1 Interrupt Vector 16 - FIFO Status Ch 15	R/W	0x063C	Module 1 Interrupt Steering 16 - FIFO Status Ch 15	R/W
0x0540	Module 1 Interrupt Vector 17 - FIFO Status Ch 16	R/W	0x0640	Module 1 Interrupt Steering 17 - FIFO Status Ch 16	R/W
0x0544	Module 1 Interrupt Vector 18 - Reserved	R/W	0x0644	Module 1 Interrupt Steering 18 - Resereved	R/W
0x0548	Module 1 Interrupt Vector 19 - Open Status	R/W	0x0648	Module 1 Interrupt Steering 19 - Open Status	R/W
0x054C	Module 1 Interrupt Vector 20 - ExtPwerLoss Status	R/W	0x064C	Module 1 Interrupt Steering 20 - ExtPwerLoss Status	R/W
0x0550	Module 1 Interrupt Vector 21 - Threshold Status	R/W	0x0650	Module 1 Interrupt Steering 21 - Threshold Status	R/W
0x0554	Module 1 Interrupt Vector 22 - Reserved	R/W	0x0654	Module 1 Interrupt Steering 22 - Reserved	R/W
0x0558	Module 1 Interrupt Vector 23 - Saturation Status	R/W	0x0658	Module 1 Interrupt Steering 23 - Saturation Status	R/W
0x055C to 0x0564	Module 1 Interrupt Vector 24 to 26 - Reserved	R/W	0x065C to 0x0664	Module 1 Interrupt Steering 24 to 26 - Reserved	R/W
0x0568	Module 1 Interrupt Vector 27 - Summary Status	R/W	0x0668	Module 1 Interrupt Steering 27 - Summary Status	R/W
0x056C	Module 1 Interrupt Vector 28 - Inter-FPGA Status	R/W	0x066C	Module 1 Interrupt Steering 28 - Inter-FPGA Status	R/W
0x0570 to 0x057C	Module 1 Interrupt Vector 29 to 32 - Reserved	R/W	0x0670 to 0x067C	Module 1 Interrupt Steering 29 to 32 - Reserved	R/W

0x0700	Module 2 Interrupt Vector 1 - BIT	R/W	0x0800	Module 2 Interrupt Steering 1 - BIT	R/W
0x0704	Module 2 Interrupt Vector 2 - FIFO Status Ch 1	R/W	0x0804	Module 2 Interrupt Steering 2 - FIFO Status Ch 1	R/W
0x0708	Module 2 Interrupt Vector 3 - FIFO Status Ch 2	R/W	0x0808	Module 2 Interrupt Steering 3 - FIFO Status Ch 2	R/W
0x070C	Module 2 Interrupt Vector 4 - FIFO Status Ch 3	R/W	0x080C	Module 2 Interrupt Steering 4 - FIFO Status Ch 3	R/W
0x0710	Module 2 Interrupt Vector 5 - FIFO Status Ch 4	R/W	0x0810	Module 2 Interrupt Steering 5 - FIFO Status Ch 4	R/W
0x0714	Module 2 Interrupt Vector 6 - FIFO Status Ch 5	R/W	0x0814	Module 2 Interrupt Steering 6 - FIFO Status Ch 5	R/W
0x0718	Module 2 Interrupt Vector 7 - FIFO Status Ch 6	R/W	0x0818	Module 2 Interrupt Steering 7 - FIFO Status Ch 6	R/W
0x071C	Module 2 Interrupt Vector 8 - FIFO Status Ch 7	R/W	0x081C	Module 2 Interrupt Steering 8 - FIFO Status Ch 7	R/W
0x0720	Module 2 Interrupt Vector 9 - FIFO Status Ch 8	R/W	0x0820	Module 2 Interrupt Steering 9 - FIFO Status Ch 8	R/W
0x0724	Module 2 Interrupt Vector 10 - FIFO Status Ch 9	R/W	0x0824	Module 2 Interrupt Steering 10 - FIFO Status Ch 9	R/W
0x0728	Module 2 Interrupt Vector 11 - FIFO Status Ch 10	R/W	0x0828	Module 2 Interrupt Steering 11 - FIFO Status Ch 10	R/W
0x072C	Module 2 Interrupt Vector 12 - FIFO Status Ch 11	R/W	0x082C	Module 2 Interrupt Steering 12 - FIFO Status Ch 11	R/W
0x0730	Module 2 Interrupt Vector 13 - FIFO Status Ch 12	R/W	0x0830	Module 2 Interrupt Steering 13 - FIFO Status Ch 12	R/W
0x0734	Module 2 Interrupt Vector 14 - FIFO Status Ch 13	R/W	0x0834	Module 2 Interrupt Steering 14 - FIFO Status Ch 13	R/W
0x0738	Module 2 Interrupt Vector 15 - FIFO Status Ch 14	R/W	0x0838	Module 2 Interrupt Steering 15 - FIFO Status Ch 14	R/W
0x073C	Module 2 Interrupt Vector 16 - FIFO Status Ch 15	R/W	0x083C	Module 2 Interrupt Steering 16 - FIFO Status Ch 15	R/W
0x0740	Module 2 Interrupt Vector 17 - FIFO Status Ch 16	R/W	0x0840	Module 2 Interrupt Steering 17 - FIFO Status Ch 16	R/W
0x0744	Module 2 Interrupt Vector 18 - Reserved	R/W	0x0844	Module 2 Interrupt Steering 18 - Reserved	R/W
0x0748	Module 2 Interrupt Vector 19 - Open Status	R/W	0x0848	Module 2 Interrupt Steering 19 - Open Status	R/W
0x074C	Module 2 Interrupt Vector 20 - ExtPwerLoss Status	R/W	0x084C	Module 2 Interrupt Steering 20 - ExtPwerLoss Status	R/W
0x0750	Module 2 Interrupt Vector 21 - Threshold Status	R/W	0x0850	Module 2 Interrupt Steering 21 - Threshold Status	R/W
0x0754	Module 2 Interrupt Vector 22 - Reserved	R/W	0x0854	Module 2 Interrupt Steering 22 - Reserved	R/W
0x0758	Module 2 Interrupt Vector 23 - Saturation Status	R/W	0x0858	Module 2 Interrupt Steering 23 - Saturation Status	R/W
0x075C to 0x0764	Module 2 Interrupt Vector 24 to 26 - Reserved	R/W	0x085C to 0x0864	Module 2 Interrupt Steering 24 to 26 - Reserved	R/W
0x0768	Module 2 Interrupt Vector 27 - Summary Status	R/W	0x0868	Module 2 Interrupt Steering 27 - Summary Status	R/W
0x076C	Module 2 Interrupt Vector 28 - Inter-FPGA Status	R/W	0x086C	Module 2 Interrupt Steering 28 - Inter-FPGA Status	R/W
0x0770 to 0x077C	Module 2 Interrupt Vector 29 to 32 - Reserved	R/W	0x0870 to 0x087C	Module 2 Interrupt Steering 29 to 32 - Reserved	R/W

0x0900	Module 3 Interrupt Vector 1 - BIT	R/W	0x0A00	Module 3 Interrupt Steering 1 - BIT	R/W
0x0904	Module 3 Interrupt Vector 2 - FIFO Status Ch 1	R/W	0x0A04	Module 3 Interrupt Steering 2 - FIFO Status Ch 1	R/W
0x0908	Module 3 Interrupt Vector 3 - FIFO Status Ch 2	R/W	0x0A08	Module 3 Interrupt Steering 3 - FIFO Status Ch 2	R/W
0x090C	Module 3 Interrupt Vector 4 - FIFO Status Ch 3	R/W	0x0A0C	Module 3 Interrupt Steering 4 - FIFO Status Ch 3	R/W
0x0910	Module 3 Interrupt Vector 5 - FIFO Status Ch 4	R/W	0x0A10	Module 3 Interrupt Steering 5 - FIFO Status Ch 4	R/W
0x0914	Module 3 Interrupt Vector 6 - FIFO Status Ch 5	R/W	0x0A14	Module 3 Interrupt Steering 6 - FIFO Status Ch 5	R/W
0x0918	Module 3 Interrupt Vector 7 - FIFO Status Ch 6	R/W	0x0A18	Module 3 Interrupt Steering 7 - FIFO Status Ch 6	R/W
0x091C	Module 3 Interrupt Vector 8 - FIFO Status Ch 7	R/W	0x0A1C	Module 3 Interrupt Steering 8 - FIFO Status Ch 7	R/W
0x0920	Module 3 Interrupt Vector 9 - FIFO Status Ch 8	R/W	0x0A20	Module 3 Interrupt Steering 9 - FIFO Status Ch 8	R/W
0x0924	Module 3 Interrupt Vector 10 - FIFO Status Ch 9	R/W	0x0A24	Module 3 Interrupt Steering 10 - FIFO Status Ch 9	R/W
0x0928	Module 3 Interrupt Vector 11 - FIFO Status Ch 10	R/W	0x0A28	Module 3 Interrupt Steering 11 - FIFO Status Ch 10	R/W
0x092C	Module 3 Interrupt Vector 12 - FIFO Status Ch 11	R/W	0x0A2C	Module 3 Interrupt Steering 12 - FIFO Status Ch 11	R/W
0x0930	Module 3 Interrupt Vector 13 - FIFO Status Ch 12	R/W	0x0A30	Module 3 Interrupt Steering 13 - FIFO Status Ch 12	R/W
0x0934	Module 3 Interrupt Vector 14 - FIFO Status Ch 13	R/W	0x0A34	Module 3 Interrupt Steering 14 - FIFO Status Ch 13	R/W
0x0938	Module 3 Interrupt Vector 15 - FIFO Status Ch 14	R/W	0x0A38	Module 3 Interrupt Steering 15 - FIFO Status Ch 14	R/W
0x093C	Module 3 Interrupt Vector 16 - FIFO Status Ch 15	R/W	0x0A3C	Module 3 Interrupt Steering 16 - FIFO Status Ch 15	R/W
0x0940	Module 3 Interrupt Vector 17 - FIFO Status Ch 16	R/W	0x0A40	Module 3 Interrupt Steering 17 - FIFO Status Ch 16	R/W
0x0944	Module 3 Interrupt Vector 18 - Reserved	R/W	0x0A44	Module 3 Interrupt Steering 18 - Reserved	R/W
0x0948	Module 3 Interrupt Vector 19 - Open Status	R/W	0x0A48	Module 3 Interrupt Steering 19 - Open Status	R/W
0x094C	Module 3 Interrupt Vector 20 - ExtPwerLoss Status	R/W	0x0A4C	Module 3 Interrupt Steering 20 - ExtPwerLoss Status	R/W
0x0950	Module 3 Interrupt Vector 21 - Threshold Status	R/W	0x0A50	Module 3 Interrupt Steering 21 - Threshold Status	R/W
0x0954	Module 3 Interrupt Vector 22 - Reserved	R/W	0x0A54	Module 3 Interrupt Steering 22 - Reserved	R/W
0x0958	Module 3 Interrupt Vector 23 - Saturation Status	R/W	0x0A58	Module 3 Interrupt Steering 23 - Saturation Status	R/W
0x095C to 0x0964	Module 3 Interrupt Vector 24 to 26 - Reserved	R/W	0x0A5C to 0x0A64	Module 3 Interrupt Steering 24 to 26 - Reserved	R/W
0x0968	Module 3 Interrupt Vector 27 - Summary Status	R/W	0x0A68	Module 3 Interrupt Steering 27 - Summary Status	R/W
0x096C	Module 3 Interrupt Vector 28 - Inter-FPGA Status	R/W	0x0A6C	Module 3 Interrupt Steering 28 - Inter-FPGA Status	R/W
0x0970 to 0x097C	Module 3 Interrupt Vector 29 to 32 - Reserved	R/W	0x0A70 to 0x0A7C	Module 3 Interrupt Steering 29 to 32 - Reserved	R/W

0x0B00	Module 4 Interrupt Vector 1 - BIT	R/W	0x0C00	Module 4 Interrupt Steering 1 - BIT	R/W
0x0B04	Module 4 Interrupt Vector 2 - FIFO Status Ch 1	R/W	0x0C04	Module 4 Interrupt Steering 2 - FIFO Status Ch 1	R/W
0x0B08	Module 4 Interrupt Vector 3 - FIFO Status Ch 2	R/W	0x0C08	Module 4 Interrupt Steering 3 - FIFO Status Ch 2	R/W
0x0B0C	Module 4 Interrupt Vector 4 - FIFO Status Ch 3	R/W	0x0C0C	Module 4 Interrupt Steering 4 - FIFO Status Ch 3	R/W
0x0B10	Module 4 Interrupt Vector 5 - FIFO Status Ch 4	R/W	0x0C10	Module 4 Interrupt Steering 5 - FIFO Status Ch 4	R/W
0x0B14	Module 4 Interrupt Vector 6 - FIFO Status Ch 5	R/W	0x0C14	Module 4 Interrupt Steering 6 - FIFO Status Ch 5	R/W
0x0B18	Module 4 Interrupt Vector 7 - FIFO Status Ch 6	R/W	0x0C18	Module 4 Interrupt Steering 7 - FIFO Status Ch 6	R/W
0x0B1C	Module 4 Interrupt Vector 8 - FIFO Status Ch 7	R/W	0x0C1C	Module 4 Interrupt Steering 8 - FIFO Status Ch 7	R/W
0x0B20	Module 4 Interrupt Vector 9 - FIFO Status Ch 8	R/W	0x0C20	Module 4 Interrupt Steering 9 - FIFO Status Ch 8	R/W
0x0B24	Module 4 Interrupt Vector 10 - FIFO Status Ch 9	R/W	0x0C24	Module 4 Interrupt Steering 10 - FIFO Status Ch 9	R/W
0x0B28	Module 4 Interrupt Vector 11 - FIFO Status Ch 10	R/W	0x0C28	Module 4 Interrupt Steering 11 - FIFO Status Ch 10	R/W
0x0B2C	Module 4 Interrupt Vector 12 - FIFO Status Ch 11	R/W	0x0C2C	Module 4 Interrupt Steering 12 - FIFO Status Ch 11	R/W
0x0B30	Module 4 Interrupt Vector 13 - FIFO Status Ch 12	R/W	0x0C30	Module 4 Interrupt Steering 13 - FIFO Status Ch 12	R/W
0x0B34	Module 4 Interrupt Vector 14 - FIFO Status Ch 13	R/W	0x0C34	Module 4 Interrupt Steering 14 - FIFO Status Ch 13	R/W
0x0B38	Module 4 Interrupt Vector 15 - FIFO Status Ch 14	R/W	0x0C38	Module 4 Interrupt Steering 15 - FIFO Status Ch 14	R/W
0x0B3C	Module 4 Interrupt Vector 16 - FIFO Status Ch 15	R/W	0x0C3C	Module 4 Interrupt Steering 16 - FIFO Status Ch 15	R/W
0x0B40	Module 4 Interrupt Vector 17 - FIFO Status Ch 16	R/W	0x0C40	Module 4 Interrupt Steering 17 - FIFO Status Ch 16	R/W
0x0B44	Module 4 Interrupt Vector 18 - Reserved	R/W	0x0C44	Module 4 Interrupt Steering 18 - Reserved	R/W
0x0B48	Module 4 Interrupt Vector 19 - Open Status	R/W	0x0C48	Module 4 Interrupt Steering 19 - Open Status	R/W
0x0B4C	Module 4 Interrupt Vector 20 - ExtPwerLoss Status	R/W	0x0C4C	Module 4 Interrupt Steering 20 - ExtPwerLoss Status	R/W
0x0B50	Module 4 Interrupt Vector 21 - Threshold Status	R/W	0x0C50	Module 4 Interrupt Steering 21 - Threshold Status	R/W
0x0B54	Module 4 Interrupt Vector 22 - Reserved	R/W	0x0C54	Module 4 Interrupt Steering 22 - Reserved	R/W
0x0B58	Module 4 Interrupt Vector 23 - Saturation Status	R/W	0x0C58	Module 4 Interrupt Steering 23 - Saturation Status	R/W
0x0B5C to 0x0B64	Module 4 Interrupt Vector 24 to 26 - Reserved	R/W	0x0C5C to 0x0C64	Module 4 Interrupt Steering 24 to 26 - Reserved	R/W
0x0B68	Module 4 Interrupt Vector 27 - Summary Status	R/W	0x0C68	Module 4 Interrupt Steering 27 - Summary Status	R/W
0x0B6C	Module 4 Interrupt Vector 28 - Inter-FPGA Status	R/W	0x0C6C	Module 4 Interrupt Steering 28 - Inter-FPGA Status	R/W
0x0B70 to 0x0B7C	Module 4 Interrupt Vector 29 to 32 - Reserved	R/W	0x0C70 to 0x0C7C	Module 4 Interrupt Steering 29 to 32 - Reserved	R/W

0x0D00	Module 5 Interrupt Vector 1 - BIT	R/W	0x0E00	Module 5 Interrupt Steering 1 - BIT	R/W
0x0D04	Module 5 Interrupt Vector 2 - FIFO Status Ch 1	R/W	0x0E04	Module 5 Interrupt Steering 2 - FIFO Status Ch 1	R/W
0x0D08	Module 5 Interrupt Vector 3 - FIFO Status Ch 2	R/W	0x0E08	Module 5 Interrupt Steering 3 - FIFO Status Ch 2	R/W
0x0D0C	Module 5 Interrupt Vector 4 - FIFO Status Ch 3	R/W	0x0E0C	Module 5 Interrupt Steering 4 - FIFO Status Ch 3	R/W
0x0D10	Module 5 Interrupt Vector 5 - FIFO Status Ch 4	R/W	0x0E10	Module 5 Interrupt Steering 5 - FIFO Status Ch 4	R/W
0x0D14	Module 5 Interrupt Vector 6 - FIFO Status Ch 5	R/W	0x0E14	Module 5 Interrupt Steering 6 - FIFO Status Ch 5	R/W
0x0D18	Module 5 Interrupt Vector 7 - FIFO Status Ch 6	R/W	0x0E18	Module 5 Interrupt Steering 7 - FIFO Status Ch 6	R/W
0x0D1C	Module 5 Interrupt Vector 8 - FIFO Status Ch 7	R/W	0x0E1C	Module 5 Interrupt Steering 8 - FIFO Status Ch 7	R/W
0x0D20	Module 5 Interrupt Vector 9 - FIFO Status Ch 8	R/W	0x0E20	Module 5 Interrupt Steering 9 - FIFO Status Ch 8	R/W
0x0D24	Module 5 Interrupt Vector 10 - FIFO Status Ch 9	R/W	0x0E24	Module 5 Interrupt Steering 10 - FIFO Status Ch 9	R/W
0x0D28	Module 5 Interrupt Vector 11 - FIFO Status Ch 10	R/W	0x0E28	Module 5 Interrupt Steering 11 - FIFO Status Ch 10	R/W
0x0D2C	Module 5 Interrupt Vector 12 - FIFO Status Ch 11	R/W	0x0E2C	Module 5 Interrupt Steering 12 - FIFO Status Ch 11	R/W
0x0D30	Module 5 Interrupt Vector 13 - FIFO Status Ch 12	R/W	0x0E30	Module 5 Interrupt Steering 13 - FIFO Status Ch 12	R/W
0x0D34	Module 5 Interrupt Vector 14 - FIFO Status Ch 13	R/W	0x0E34	Module 5 Interrupt Steering 14 - FIFO Status Ch 13	R/W
0x0D38	Module 5 Interrupt Vector 15 - FIFO Status Ch 14	R/W	0x0E38	Module 5 Interrupt Steering 15 - FIFO Status Ch 14	R/W
0x0D3C	Module 5 Interrupt Vector 16 - FIFO Status Ch 15	R/W	0x0E3C	Module 5 Interrupt Steering 16 - FIFO Status Ch 15	R/W
0x0D40	Module 5 Interrupt Vector 17 - FIFO Status Ch 16	R/W	0x0E40	Module 5 Interrupt Steering 17 - FIFO Status Ch 16	R/W
0x0D44	Module 5 Interrupt Vector 18 - Reserved	R/W	0x0E44	Module 5 Interrupt Steering 18 - Reserved	R/W
0x0D48	Module 5 Interrupt Vector 19 - Open Status	R/W	0x0E48	Module 5 Interrupt Steering 19 - Open Status	R/W
0x0D4C	Module 5 Interrupt Vector 20 - ExtPwerLoss Status	R/W	0x0E4C	Module 5 Interrupt Steering 20 - ExtPwerLoss Status	R/W
0x0D50	Module 5 Interrupt Vector 21 - Threshold Status	R/W	0x0E50	Module 5 Interrupt Steering 21 - Threshold Status	R/W
0x0D54	Module 5 Interrupt Vector 22 - Reserved	R/W	0x0E54	Module 5 Interrupt Steering 22 - Reserved	R/W
0x0D58	Module 5 Interrupt Vector 23 - Saturation Status	R/W	0x0E58	Module 5 Interrupt Steering 23 - Saturation Status	R/W
0x0D5C to 0x0D64	Module 5 Interrupt Vector 24 to 26 - Reserved	R/W	0x0E5C to 0x0E64	Module 5 Interrupt Steering 24 to 26 - Reserved	R/W
0x0D68	Module 5 Interrupt Vector 27 - Summary Status	R/W	0x0E68	Module 5 Interrupt Steering 27 - Summary Status	R/W
0x0D6C	Module 5 Interrupt Vector 28 - Inter-FPGA Status	R/W	0x0E6C	Module 5 Interrupt Steering 28 - Inter-FPGA Status	R/W
0x0D70 to 0x0D7C	Module 5 Interrupt Vector 29 to 32 - Reserved	R/W	0x0E70 to 0x0E7C	Module 5 Interrupt Steering 29 to 32 - Reserved	R/W

0x0F00	Module 6 Interrupt Vector 1 - BIT	R/W	0x1000	Module 6 Interrupt Steering 1 - BIT	R/W
0x0F04	Module 6 Interrupt Vector 2 - FIFO Status Ch 1	R/W	0x1004	Module 6 Interrupt Steering 2 - FIFO Status Ch 1	R/W
0x0F08	Module 6 Interrupt Vector 3 - FIFO Status Ch 2	R/W	0x1008	Module 6 Interrupt Steering 3 - FIFO Status Ch 2	R/W
0x0F0C	Module 6 Interrupt Vector 4 - FIFO Status Ch 3	R/W	0x100C	Module 6 Interrupt Steering 4 - FIFO Status Ch 3	R/W
0x0F10	Module 6 Interrupt Vector 5 - FIFO Status Ch 4	R/W	0x1010	Module 6 Interrupt Steering 5 - FIFO Status Ch 4	R/W
0x0F14	Module 6 Interrupt Vector 6 - FIFO Status Ch 5	R/W	0x1014	Module 6 Interrupt Steering 6 - FIFO Status Ch 5	R/W
0x0F18	Module 6 Interrupt Vector 7 - FIFO Status Ch 6	R/W	0x1018	Module 6 Interrupt Steering 7 - FIFO Status Ch 6	R/W
0x0F1C	Module 6 Interrupt Vector 8 - FIFO Status Ch 7	R/W	0x101C	Module 6 Interrupt Steering 8 - FIFO Status Ch 7	R/W
0x0F20	Module 6 Interrupt Vector 9 - FIFO Status Ch 8	R/W	0x1020	Module 6 Interrupt Steering 9 - FIFO Status Ch 8	R/W
0x0F24	Module 6 Interrupt Vector 10 - FIFO Status Ch 9	R/W	0x1024	Module 6 Interrupt Steering 10 - FIFO Status Ch 9	R/W
0x0F28	Module 6 Interrupt Vector 11 - FIFO Status Ch 10	R/W	0x1028	Module 6 Interrupt Steering 11 - FIFO Status Ch 10	R/W
0x0F2C	Module 6 Interrupt Vector 12 - FIFO Status Ch 11	R/W	0x102C	Module 6 Interrupt Steering 12 - FIFO Status Ch 11	R/W
0x0F30	Module 6 Interrupt Vector 13 - FIFO Status Ch 12	R/W	0x1030	Module 6 Interrupt Steering 13 - FIFO Status Ch 12	R/W
0x0F34	Module 6 Interrupt Vector 14 - FIFO Status Ch 13	R/W	0x1034	Module 6 Interrupt Steering 14 - FIFO Status Ch 13	R/W
0x0F38	Module 6 Interrupt Vector 15 - FIFO Status Ch 14	R/W	0x1038	Module 6 Interrupt Steering 15 - FIFO Status Ch 14	R/W
0x0F3C	Module 6 Interrupt Vector 16 - FIFO Status Ch 15	R/W	0x103C	Module 6 Interrupt Steering 16 - FIFO Status Ch 15	R/W
0x0F40	Module 6 Interrupt Vector 17 - FIFO Status Ch 16	R/W	0x1040	Module 6 Interrupt Steering 17 - FIFO Status Ch 16	R/W
0x0F44	Module 6 Interrupt Vector 18 - Reserved	R/W	0x1044	Module 6 Interrupt Steering 18 - Reserved	R/W
0x0F48	Module 6 Interrupt Vector 19 - Open Status	R/W	0x1048	Module 6 Interrupt Steering 19 - Open Status	R/W
0x0F4C	Module 6 Interrupt Vector 20 - ExtPwerLoss Status	R/W	0x104C	Module 6 Interrupt Steering 20 - ExtPwerLoss Status	R/W
0x0F50	Module 6 Interrupt Vector 21 - Threshold Status	R/W	0x1050	Module 6 Interrupt Steering 21 - Threshold Status	R/W
0x0F54	Module 6 Interrupt Vector 22 - Reserved	R/W	0x1054	Module 6 Interrupt Steering 22 - Reserved	R/W
0x0F58	Module 6 Interrupt Vector 23 - Saturation Status	R/W	0x1058	Module 6 Interrupt Steering 23 - Saturation Status	R/W
0x0F5C to 0x0F64	Module 6 Interrupt Vector 24 to 26 - Reserved	R/W	0x105C to 0x1064	Module 6 Interrupt Steering 24 to 26 - Reserved	R/W
0x0F68	Module 6 Interrupt Vector 27 - Summary Status	R/W	0x1068	Module 6 Interrupt Steering 27 - Summary Status	R/W
0x0F6C	Module 6 Interrupt Vector 28 - Inter-FPGA Status	R/W	0x106C	Module 6 Interrupt Steering 28 - Inter-FPGA Status	R/W
0x0F70 to 0x0F7C	Module 6 Interrupt Vector 29 to 32 - Reserved	R/W	0x1070 to 0x107C	Module 6 Interrupt Steering 29 to 32 - Reserved	R/W

APPENDIX A: INTEGER/FLOATING POINT MODE PROGRAMMING

Integer Mode Programming

When in Integer Mode, the values in the following registers are dependent on the Polarity and Range settings:

A/D Reading and FIFO Buffer Data
UBIT Test Data
Threshold Level and Threshold Hysteresis
Low and High Saturation

A/D Reading and FIFO Buffer Data

The LSB for the 16-bit word resolution for the A/D Reading register and the FIFO Buffer Data register is dependent on the Polarity and Range setting. The 32-bit binary value in these registers use the two’s complement form to represent the positive and negative values.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 7FFF = 10.0 / 2<sup>15</sup> = **10.0 / 32768**

If the register value is 14745 (binary equivalent for this value is **0x0000 3999**), conversion to the voltage value is 14745 * (10.0 / 32768) = **4.50 V**.

If the register value is -100 (binary equivalent for this value is **0xFFFF FF9C**), conversion to the voltage value is -100 * (10.0 / 32768) = **-0.0305 V**.

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 FFFF = 10.0 / 2<sup>16</sup> = **10.0 / 65536**

If the register value is 14745 (binary equivalent for this value is 0x0000 3999), conversion to the voltage value is 14745 * (10.0 / 65536) = 2.25 V.

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 7FFF = 100.0 / 2<sup>15</sup> = **100.0 / 32768**

If the register value is 14745 (binary equivalent for this value is **0x0000 3999**), conversion to the voltage value is 14745 * (100.0 / 32768) = **45.0 V**.

If the register value is -100 (binary equivalent for this value is **0xFFFF FF9C**), conversion to the voltage value is -100 * (100.0 / 32768) = **-0.305 V**.

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 FFFF = 100.0 / 2<sup>16</sup> = **100.0 / 65536**

If the register value is 14745 (binary equivalent for this value is 0x0000 3999), conversion to the voltage value is 14745 * (100.0 / 65536) = 22.5 V.

UBIT Test Programming

The value to set in the UBIT Test Data register is dependent on the Polarity and Range setting. In the Integer mode, the A/D Reading register will represent the voltage (ADE, ADF) measured as the result of setting the UBIT test value.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 7FFF = 10.0 / 2<sup>15</sup> = **10.0 / 32768**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Reading (volts)	Binary Value
3.0	3.0 * (32768/10.0) = 9830 = 0x0000 2666	2.96	2.96 * (32768/10.0) = 9699 = 0x0000 25E3
-3.0	-3.0 * (32768/10.0) = -9830 = 0xFFFF D99A	-2.96	-2.96 * (32768/10.0) = -9699 = 0xFFFF DA1D

* Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0 V**)

  LSB = 10.0 / 0x0000 FFFF = 10.0 / 2<sup>16</sup> = **10.0 / 65536**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Reading (volts)	Binary Value
3.0	3.0 * (65536/10.0) = 19661 = 0x0000 4CCD	2.96	2.96 * (65536/10.0) = 19399 = 0x0000 4BC7

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V ) LSB = 100.0 / 0x0000 7FFF = 100.0 / 2¹⁵ = 100.0 / 32768

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Reading (volts)	Binary Value
30.0	30.0 * (32768/100.0) = 9830 = 0x0000 2666	29.6	29.6 * (32768/100.0) = 9699 = 0x0000 25E3
-30.0	-30.0 * (32768/100.0) = -9830 = 0xFFFF D99A	-29.6	-29.6 * (32768/100.0) = -9699 = 0xFFFF DA1D

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 FFFF = 100.0 / 2<sup>16</sup> = **100.0 / 65536**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Reading (volts)	Binary Value
30.0	30.0 * (65536/100.0) = 19661 = 0x0000 4CCD	29.6	29.6 * (65536/100.0) = 19399 = 0x0000 4BC7

Threshold Programming

The LSB for the 16-bit word resolution for the Threshold Detect Level and Threshold Detect Hysteresis registers is dependent on the Polarity and Range setting. The 32-bit binary value in these registers use the two’s complement form to represent the positive and negative values.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 7FFF = 10.0 / 2<sup>15</sup> = **10.0 / 32768**

Threshold Detect Level Value (volts)		Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value	Binary Value	Hysteresis	Binary Value
7.5	7.5 * (32768/10.0) = 24576 = 0x0000 6000	0.25	0.25 * (32768/10.0) = 819 = 0x0000 0333
-7.5	-7.5 * (32768/10.0) = -24576 = 0xFFFF A000	0.15	0.15 * (32768/10.0) = 492 = 0x0000 01EC

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 FFFF = 10.0 / 2<sup>16</sup> = **10.0 / 65536**

Threshold Detect Level Value (volts)		Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value	Binary Value	Hysteresis	Binary Value
7.5	7.5 * (65536/10.0) = 49152 = 0x0000 C000	0.25	0.25 * (65536/10.0) = 1638 = 0x0000 0666

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 7FFF = 100.0 / 2<sup>15</sup> = **100.0 / 32768**

Threshold Detect Level Value (volts)		Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value	Binary Value	Hysteresis	Binary Value
75.0	75.0 * (32768/100.0) = 24576 = 0x0000 6000	2.5	2.5 * (32768/100.0) = 819 = 0x0000 0333
-75.0	-75.0 * (32768/100.0) = -24576 = 0xFFFF A000	1.5	1.5 * (32768/100.0) = 492 = 0x0000 01EC

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 FFFF = 100.0 / 2<sup>16</sup> = **100.0 / 65536**

Threshold Detect Level Value (volts)		Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value	Binary Value	Hysteresis	Binary Value
75.0	75.0 * (65536/100.0) = 49152 = 0x0000 C000	2.5	2.5 * (65536/100.0) = 1638 = 0x0000 0666

Saturation Programming

The LSB for the 16-bit word resolution for the Low and High Saturation registers is dependent on the Polarity and Range setting. The 32-bit binary value in these registers use the two’s complement form to represent the positive and negative values.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 7FFF = 10.0 / 2<sup>15</sup> = **10.0 / 32768**

Low Saturation Value (volts)		High Saturation Value (volts)
Value	Binary Value	Value	Binary Value
-7.5	-7.5 * (32768/10.0) = -24576 = 0xFFFF A000	7.5	7.5 * (32768/10.0) = 24576 = 0x0000 6000

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 FFFF = 10.0 / 2<sup>16</sup> = **10.0 / 65536**

Low Saturation Value (volts)		High Saturation Value (volts)
Value	Binary Value	Value	Binary Value
1.5	1.5 * (65536/10.0) = 9830 = 0x0000 2666	7.5	7.5 * (65536/10.0) = 49152 = 0x0000 C000

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 7FFF = 100.0 / 2<sup>15</sup> = **100.0 / 32768**

Low Saturation Value (volts)		High Saturation Value (volts)
Value	Binary Value	Value	Binary Value
-75.0	-75.0 * (32768/100.0) = -24576 = 0xFFFF A000	75.0	75.0 * (32768/100.0) = 24576 = 0x0000 6000

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 FFFF = 100.0 / 2<sup>16</sup> = **100.0 / 65536**

Low Saturation Value (volts)		High Saturation Value (volts)
Value	Binary Value	Value	Binary Value
15.0	15.0 * (65536/100.0) = 9830 = 0x0000 2666	75.0	75.0 * (65536/100.0) = 49152 = 0x0000 C000

Floating Point Mode Voltage/Current Programming

When in Floating Point Mode, the registers listed in the Integer Mode Programming section are still dependent on the Polarity and Range settings, however, the module handles the conversion of the 32-bit binary value to Single Precision Floating Point Value (IEEE-754) format. The values in the Floating Point Scale register and Floating Point Offset register are used in the conversion. For results to represent voltage (ADE, ADF modules):

Set Floating Point Scale register to Range
Set Floating Point Offset register to 0

A/D Reading and FIFO Buffer Data

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V)

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

Example of Internal A/D Reading Value	Applying Floating PointScale and Offset (volts)	Single Precision Floating Point Value (IEEE-754)
14745 / 32768 = 0.45 (0x0000 3999/0x0000 7FFF)	(0.45 * 10.0) + 0.0 = 4.50	0x4090 0000
-100 / 32768 = -0.00305 (0xFFFF FF9C/0x0000 7FFF)	(-0.00305 * 10.0) + 0.0 = -0.0305	0xBCF9 DB23

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 10.0 V)

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

Example of Internal A/D Reading Value	Applying Floating PointScale and Offset (volts)	Single Precision Floating Point Value (IEEE-754)
14745 / 65536 = 0.225 0x0000 3999/0x0000 FFFF)	(0.225 * 10.0) + 0.0 = 2.25	0x4010 0000

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V)

Floating Point Scale = **100.0** = **100.0 V**

Floating Point Offset = **0**

Example of Internal A/D Reading Value	Applying Floating PointScale and Offset (volts)	Single Precision Floating Point Value (IEEE-754)
14745 / 32768 = 0.45 (0x0000 3999/0x0000 7FFF)	(0.45 * 100.0) + 0.0 = 45.0	0x4234 0000
-100 / 32768 = -0.00305 (0xFFFF FF9C/0x0000 7FFF)	(-0.00305 * 100.0) + 0.0 = -0.305	0xBE9C 28F6

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 10.0 V)

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

Example of Internal A/D Reading Value	Applying Floating PointScale and Offset (volts)	Single Precision Floating Point Value (IEEE-754)
14745 / 65536 = 0.225 0x0000 3999/0x0000 FFFF)	(0.225 * 100.0) + 0.0 = 22.5	0x41B4 0000

UBIT Test Programming

The value to set in the UBIT Test Data register is dependent on the Polarity and Range settings and these settings will determine the 32-bit value to set in this register. In the Floating Point mode, the A/D Reading register will represent the voltage measured as the result of setting the UBIT test value.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 7FFF = 10.0 / 2<sup>15</sup> = **10.0 / 32768**

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Internal A/D Reading Value	Reading (Volts)	Single Precision Floating Point Value (IEEE-754)
3.0	3.0 * (32768/10.0) = 9830 = 0x0000 2666	9699 / 32768 = 0.296 (0x0000 25E3/0x0000 7FFF)	(0.296 * 10.0) + 0.0 = 2.96	0x403D 70A4
-3.0	-3.0 * (32768/10.0) = -9830 = 0xFFFF D99A	-9699 / 32768 = -0.296 (0xFFFF DA1D/0x0000 7FFF)	(-0.296 * 10.0) + 0.0 = -2.96	0xC03D 70A4

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 10.0 V)

LSB = 10.0 / 0x0000 FFFF = 10.0 / 2<sup>16</sup> = **10.0 / 65536**

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Internal A/D Reading Value	Reading (Volts)	Single Precision Floating Point Value (IEEE-754)
3.0	3.0 * (65536/10.0) = 19661 = 0x0000 4CCD	19399 / 65536 = 0.296 (0x0000 4BC7/0x0000 FFFF)	(0.296 * 10.0) + 0.0 = 2.96	0x403D 70A4

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 7FFF = 100.0 / 2<sup>15</sup> = **100.0 / 32768**

Floating Point Scale = **100.0** = **100.0 V**

Floating Point Offset = **0**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Internal A/D Reading Value	Reading (Volts)	Single Precision Floating Point Value (IEEE-754)
30.0	30.0 * (32768/100.0) = 9830 = 0x0000 2666	9699 / 32768 = 0.296 (0x0000 25E3/0x0000 7FFF)	(0.296 * 100.0) + 0.0 = 29.6	0x41EC CCCD
-30.0	-30.0 * (32768/100.0) = -9830 = 0xFFFF D99A	-9699 / 32768 = -0.296 (0xFFFF DA1D/0x0000 7FFF)	(-0.296 * 100.0) + 0.0 = -29.6	0xC1EC CCCD

Polarity & Range Register = 0x00 (Polarity = Unipolar & Range = 100.0 V)

LSB = 100.0 / 0x0000 FFFF = 100.0 / 2<sup>16</sup> = **100.0 / 65536**

Floating Point Scale = **100.0** = **100.0 V**

Floating Point Offset = **0**

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Internal A/D Reading Value	Reading (Volts)	Single Precision Floating Point Value (IEEE-754)
30.0	30.0 * (65536/100.0) = 19661 = 0x0000 4CCD	19399 / 65536 = 0.296 (0x0000 4BC7/0x0000 FFFF)	(0.296 * 100.0) + 0.0 = 29.6	0x41EC CCCD

Threshold Programming

In Floating Point mode, the Threshold Detect Level and Threshold Detect Hysteresis values should be entered in Single Precision Floating Point Value (IEEE-754) format.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V) OR

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0V**)

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

Threshold Detect Level Value (volts)		Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value	Single Precision Floating Point Value (IEEE-754)	Hysteresis	Single Precision Floating Point Value (IEEE-754)
7.5	0x40F0 0000	0.25	0x3E80 0000
-7.5	0xC0F0 0000	0.15	0x3E19 999A

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V) OR

Polarity & Range Register = 0x00 (Polarity = **Unipolar** & Range = **100.0V**)

Floating Point Scale = **100.0** = **100.0 V**

Floating Point Offset = **0**

Threshold Detect Level Value (volts)		Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value	Single Precision Floating Point Value (IEEE-754)	Hysteresis	Single Precision Floating Point Value (IEEE-754)
75.0	0x4296 000	2.5	0x4020 0000
-75.0	0xC296 0000	1.5	0x3FC0 0000

Saturation Programming

In Floating Point mode, the Low and High Saturation values should be entered in Single Precision Floating Point Value (IEEE-754) format.

For example:

ADE Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 10.0 V) OR

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0V**)

Floating Point Scale = **10.0** = **10.0 V**

Floating Point Offset = **0**

Low Saturation Value (volts)		High Saturation Value (volts)
Value	Single Precision Floating Point Value (IEEE-754)	Values	Single Precision Floating Point Value (IEEE-754)
-7.5	0xC0F0 0000	7.5	0x40F0 0000

ADF Modules:

Polarity & Range Register = 0x10 (Polarity = Bipolar & Range = 100.0 V) OR

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **100.0V**)

Floating Point Scale = **100.0** = **100.0 V**

Floating Point Offset = **0**

Low Saturation Value (volts)		High Saturation Value (volts)
Value	Single Precision Floating Point Value (IEEE-754)	Values	Single Precision Floating Point Value (IEEE-754)
-75.0	0xC296 0000	75.0	0x4296 0000

Floating Point Mode Engineering Units Programming

When in Floating Point Mode, the registers listed in the Integer Mode Programming section are still dependent on the Polarity and Range settings, however, the module handles the conversion of the 32-bit binary value to Single Precision Floating Point Value (IEEE 754) format. The values in the Floating Point Scale register and Floating Point Offset register are used in the conversion. For results to be represent engineering units:

Set Floating Point Scale register to *Range ** Engineering Unit Conversion
Set Floating Point Offset register to Engineering Unit Conversion Bias

A/D Readings

The following calculation is used to convert A/D Reading to engineering units:

        AD Data in Engineering Units (Floating Point) =

              (AD Value (Volts/Current) * **Floating Point Scale**) + **Floating Point Offset**

For example:

ADE Modules:

A signal of -10V to 10V indicate a displacement from -38.5mm to 38.5 mm respectively.

Polarity & Range Register = **0x10** (Polarity = **Bipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10.0** * **3.85** = **38.5**

Floating Point Offset = **0.0**

Voltage (volts)	Example of Internal A/D Reading Value	Applying Floating Point Scale and Offset (mm)	Single Precision Floating Point Value (IEEE-754)
10.0	32768 / 32768 = 1.0 (0x0000 7FFF/0x0000 7FFF)	(1.0 * 38.5) + 0.0 = 38.5	0x421A 0000
5.0	16384 / 32768 = 0.5 (0x0000 4000/0x0000 7FFF)	(0.5 * 38.5) + 0.0 = 19.25	0x419A 0000
4.5	14745 / 32768 = 0.45 (0x0000 3999/0x0000 7FFF)	(0.45 * 38.5) + 0.0 = 17.325	0x418A 999A
0.0	0 /32768 = 0.0 (0x0000 0000/0x0000 7FFF)	(0.0 * 38.5) + 0.0 = 0.0	0x0000 0000
-0.0305	-100 / 32768 = -0.00305 (0xFFFF FF9C/0x0000 7FFF)	(-0.00305 * 38.5) + 0.0 = 0.117425	0x3DF0 7C85
-5.0	-16384 / 32768 = -0.5 (0xFFFF C000/0x0000 7FFF)	(-0.5 * 38.5) + 0.0 = -19.25	0xC19A 0000
-10.0	-32768 / 32768 = -1.0 (0xFFFF 8000/0x0000 7FFF)	(-1.0 * 38.5) + 0.0 = -38.5	0xC21A 0000

A pressure sensor is used to measure 0-500 PSI where the voltage reading are 1-5 volts.

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10** * **125** = **1250**

Floating Point Offset = **-125**

Note

Set Low Saturation Value to the equivalent of 1 volt and High Saturation Value to the equivalent to 5 volts.

Voltage (volts)	Example of Internal A/D Reading Value	Applying Floating Point Scale and Offset (mm)	Single Precision Floating Point Value (IEEE-754)
5.0	32768 / 65536 = 0.5 (0x0000 8000/0x0000 FFFF)	(0.5 * 1250) + (-125) = 500.0	0x43FA 0000
4.0	26214 / 65536= 0.4 (0x0000 6666/0x0000 FFFF)	(0.4 * 1250) + (-125) = 375.0	0x43BB 8000
3.0	19661 / 65536= 0.3 (0x0000 4CCD/0x0000 FFFF)	(0.3 * 1250) + (-125) = 250.0	0x437A 0000
2.5	16384 / 65536= 0.25 (0x0000 4000/0x0000 FFFF)	(0.25 * 1250) + (-125) = 187.5	0x433B 8000
2.0	13107 / 65536= 0.2 (0x0000 3333/0x0000 FFFF)	(0.2 * 1250) + (-125) = 125.0	0x42FA 0000
1.0	6554 / 65536= 0.1 (0x0000 199A/0x0000 FFFF)	(0.1 * 1250) + (-125) = 0.0	0x0000 0000

UBIT Test Programming

The value to set in the UBIT Test Data register is dependent on the Polarity and Range settings and these settings will determine the 32-bit value to set in this register. In the Floating Point mode, the A/D Reading register will represent the voltage (ADE, ADF) measured and converted to engineering units as the result of setting the UBIT test value.

For example:

ADE Modules:

A signal of -10V to 10V indicate a displacement from -38.5mm to 38.5 mm respectively.

Polarity & Range Register = **0x10** (Polarity = **Bipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10.0** * **3.85** = **38.5**

Floating Point Offset = **0.0**

UBIT Test Value		Example of A/D Reading
Test Value(volts)	Binary Value	Internal A/D Reading Value	Reading (mm)	Single Precision Floating Point Value (IEEE-754)
3.0	3.0 * (32768/10.0) = 9830 = 0x0000 2666	9699 / 32768 = 0.296 (0x0000 25E3/0x0000 7FFF)	(0.296 * 38.5) + 0.0 = 11.396	0x4136 5604
-3.0	-3.0 * (32768/10.0) = -9830 = 0xFFFF D99A	-9699 / 32768 = -0.296 (0xFFFF DA1D/0x0000 7FFF)	(-0.296 * 38.5) + 0.0 = -11.396	0xC136 5604

A pressure sensor is used to measure 0-500 PSI where the voltage reading are 1-5 volts.

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10** * **125** = **1250**

Floating Point Offset = -125

UBIT Test Value		Example of A/D Reading
Test Value (volts)	Binary Value	Internal A/D Reading Value	Reading (mm)	Single Precision Floating Point Value (IEEE-754)
3.0	3.0 * (65536/10.0) = 19661 = 0x0000 4CCD	19399 / 65536 = 0.296 (0x0000 4BC7/0x0000 FFFF)	(0.296 * 1250) + 0.0 = 370.0	0x43B9 0000

Threshold Programming

In Floating Point mode, the Threshold Detect Level and Threshold Detect Hysteresis values should be entered in Single Precision Floating Point Value (IEEE-754) format in terms of engineering units.

For example:

ADE Modules:

A signal of -10V to 10V indicate a displacement from -38.5mm to 38.5 mm respectively.

Polarity & Range Register = **0x10** (Polarity = **Bipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10.0** * **3.85** = **38.5**

Floating Point Offset = **0.0**

Threshold Detect Level Value Threshold Detect Hysteresis Value (volts) (must be positive)

Threshold Detect Level Value			Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)	Hysteresis (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)
7.5	24576 / 32768 = 0.75 (0x0000 6000/0x0000 7FFF)	(0.75 * 38.5) + 0 = 28.875 0x41E7 0000	0.25	819 / 32768 = 0.025 (0x0000 0333/0x0000 7FFF)	(0.025 * 38.5) + 0 = 0.9625 0x3F76 6666
-7.5	-24576 / 32768 = -0.75 (0xFFFF A000/0x0000 7FFF)	(-0.75 * 38.5) + 0 = -28.875 0xC1E7 0000	0.15	492 / 32768 = 0.015 (0x0000 01EC/0x0000 7FFF)	(0.015 * 38.5) + 0 = 0.5775 0x3F13 D70A

A pressure sensor is used to measure 0-500 PSI where the voltage reading are 1-5 volts.

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10** * **125** = **1250**

Floating Point Offset = **-125**

Note

Set Low Saturation Value to the equivalent of 1 volt and High Saturation Value to the equivalent to 5 volts.

Threshold Detect Level Value			Threshold Detect Hysteresis Value (volts) (must be positive)
Level Value (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)	Hysteresis (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)
7.5	49152 / 65536 = 0.75 (0x0000 C000/0x0000 FFFF)	(0.75 * 38.5) + 0 = 28.875 0x41E7 0000	0.25	1638 / 65536 = 0.025 (0x0000 0666/0x0000 FFFF)	(0.025 * 38.5) + 0 = 0.9625 0x3F76 6666
-7.5	-49152 / 65536 = -0.75 (0xFFFF 4000/0x0000 7FFF)	(-0.75 * 38.5) + 0 = -28.875 0xC1E7 0000	0.15	983 / 65536 = 0.015 (0x0000 03D7/0x0000 FFFF)	(0.015 * 38.5) + 0 = 0.5775 0x3F13 D70A

Saturation Programming

In Floating Point mode, the Low and High Saturation values should be entered in Single Precision Floating Point Value (IEEE-754) format.

For example:

ADE Modules:

A signal of -10V to 10V indicate a displacement from -38.5mm to 38.5 mm respectively.

Polarity & Range Register = **0x10** (Polarity = **Bipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10.0** * **3.85** = **38.5**

Floating Point Offset = **0.0**

Low Saturation Value			High Saturation Value
Level Value (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)	Level Value (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)
-9.5	-31130 / 32768 = -0.95 (0xFFFF 8666/0x0000 7FFF)	(-0.95 * 38.5) + 0 = -36.575 0xC212 4CCD	9.5	31130 / 32768 = 0.95 (0x0000 799A/0x0000 7FFF)	(0.95 * 38.5) + 0 = 36.575 0x4212 4CCD

A pressure sensor is used to measure 0-500 PSI where the voltage reading are 1-5 volts.

Polarity & Range Register = **0x00** (Polarity = **Unipolar** & Range = **10.0 V**)

Floating Point Scale = **Range ** Scale Conversion* = **10** * **125** = **1250**

Floating Point Offset = **-125**

Note

Set Low Saturation Value to the equivalent of 1 volt and High Saturation Value to the equivalent to 5 volts.

Low Saturation Value			High Saturation Value
Level Value (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)	Level Value (volts)	Binary Value	Applying Floating Point Scale and Offset (mm)
1.0	6554 / 65536 = 0.1 (0x0000 1990/0x0000 FFFF)	(0.1 * 1250) + (-125) = 0.0 0x0000 0000	5.0	32768 / 65536 = 0.5 (0x0000 0333/0x0000 FFFF)	(0.5 * 1250) + (-125) = 500.0 0x43FA 0000

APPENDIX B: REGISTER NAME CHANGES FROM PREVIOUS RELEASES

This section provides a mapping of the register names used in this document against register names used in previous releases.

Rev C3 - Register Names	Rev C2 - Register Names
A/D Measurement Registers
A/D Reading	A/D Reading
A/D Control Registers
Polarity & Range	Polarity & Range
Sample Rate	Sample Rate
Filter Break Frequency	Filter Break Frequency
Acquisition/Conversion Time	Acquisition/Conversion Time
Latch A/D Channels	Latch A/D Channels
Overcurrent Reset	Overcurrent Reset
A/D Test Registers
Test Enabled	Test Enabled
UBIT Test Data	UBIT Test Data
FIFO Registers
FIFO Buffer Data	FIFO Buffer Data
FIFO Word Count	FIFO Word Count
FIFO Almost Empty	FIFO Almost Empty
FIFO Low Watermark	FIFO Low Watermark
FIFO High Watermark	FIFO High Watermark
FIFO Almost Full	FIFO Almost Full
FIFO Buffer Size	FIFO Buffer Size
Data Control	Data Control
FIFO Sample Delay	FIFO Buffer Delay
FIFO Skip Count	FIFO Skip Count
Clear FIFO	Clear FIFO
FIFO Trigger Control	FIFO Trigger Control
FIFO Software Trigger	FIFO Software Trigger
Threshold Detect Programming RegisterS
Threshold Detect Level 1	Threshold Detect Level 1
Threshold Detect Level 2	Threshold Detect Level 2
Threshold Detect Hysteresis 1	Threshold Detect Hysteresis 1
Threshold Detect Hysteresis 2	Threshold Detect Hysteresis 2
Threshold Detect Control	Threshold Detect Control
Saturation Programming Registers
Low Saturation	Low Saturation
High Saturation	High Saturation
Saturation Control	Saturation Control
Engineering Scaling Conversions Registers
Enable Floating Point Mode	Enable Floating Point Mode
Floating Point Offset	Floating Point Offset
Floating Point Scale	Floating Point Scale
Floating Point State	Floating Point State
Background BIT Threshold Programming Registers
Background BIT Threshold	Background BIT Threshold
BIT Count Clear	BIT Count Clear
Status and Interrupt Registers
Channel Status Enable	Channel Status Enable
BIT Dynamic Status	BIT Dynamic Status
BIT Latched Status	BIT Latched Status
BIT Interrupt Enable	BIT Interrupt Enable
BIT Set Edge/Level Interrupt	BIT Set Edge/Level Interrupt
Power-on BIT Error Dynamic Status
Power-on BIT Error Latched Status
Anti-Aliasing Filter Error Dynamic Status	Anti-Aliasing Filter Error Dynamic Status
Anti-Aliasing Filter Error Latched Status	Anti-Aliasing Filter Error Latched Status
Voltage Reading Accuracy Error Dynamic Status	Voltage Reading Accuracy Error Dynamic Status
Voltage Reading Accuracy Error Latched Status	Voltage Reading Accuracy Error Latched Status
FIFO Dynamic Status	FIFO Dynamic Status
FIFO Latched Status	FIFO Latched Status
FIFO Interrupt Enable	FIFO Interrupt Enable
FIFO Set Edge/Level Interrupt	FIFO Set Edge/Level Interrupt
Open/Over-Voltage Dynamic Status	Open/Over-Voltage Dynamic Status
Open/Over-Voltage Latched Status	Open/Over-Voltage Latched Status
Open/Over-Voltage Interrupt Enable	Open/Over-Voltage Interrupt Enable
Open/Over-Voltage Set Edge/Level Interrupt	Open/Over-Voltage Set Edge/Level Interrupt
External Power Loss Dynamic Status	External Power Loss Dynamic Status
External Power Loss Latched Status	External Power Loss Latched Status
External Power Loss Interrupt Enable	External Power Loss Interrupt Enable
External Power Loss Set Edge/Level Interrupt	External Power Loss Set Edge/Level Interrupt
Threshold Detect Dynamic Status Threshold Detect Dynamic Status	Threshold Detect Latched Status
Threshold Detect Latched Status	Threshold Detect Interrupt Enable
Threshold Interrupt Enable	Threshold Detect Set Edge/Level Interrupt
Threshold Set Edge/Level Interrupt	Front-end Amplifier Failure Dynamic Status
Front-end Amplifier Failure Dynamic Status	Front-end Amplifier Failure Latched Status
Front-end Amplifier Failure Latched Status	Front-end Amplifier Failure Interrupt Enable
Front-end Amplifier Failure Interrupt Enable	Front-end Amplifier Failure Set Edge/Level Interrupt
Front-end Amplifier Failure Set Edge/Level Interrupt	Saturation Dynamic Status
Saturation Dynamic Status	Saturation Latched Status
Saturation Latched Status	Saturation Interrupt Enable
Saturation Interrupt Enable	Saturation Set Edge/Level Interrupt
Saturation Set Edge/Level Interrupt	Inter-FPGA Failure Dynamic Status
Inter-FPGA Failure Dynamic Status	Inter-FPGA Failure Latched Status
Inter-FPGA Failure Latched Status	Inter-FPGA Failure Interrupt Enable
Inter-FPGA Failure Interrupt Enable	Inter-FPGA Failure Set Edge/Level Interrupt
Inter-FPGA Failure Set Edge/Level Interrupt	Summary Dynamic Status
Summary Dynamic Status	Summary Latched Status
Summary Latched Status	Summary Interrupt Enable
Summary Interrupt Enable	Summary Set Edge/Level Interrupt
Summary Set Edge/Level Interrupt	Interrupt Vector
Interrupt Vector	Interrupt Steering
Interrupt Steering

APPENDIX C: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

[columns = “1,1,1,1,1,1,1”]

Module Signal + (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	A/D (16 CH) + (ADE-F)
DATIO1	2	10	1	2		IN_CH01+
DATIO2	24	35	26	27		IN_CH01-
DATIO3	3	11	2	3		IN_CH02+
DATIO4	25	36	27	28		IN_CH02-
DATIO5	5	13	4	5		IN_CH04+
DATIO6	27	38	29	30		IN_CH04-
DATIO7	7	14	5	6		IN_CH05+
DATIO8	29	39	30	31		IN_CH05-
DATIO9	8	15	6	7		IN_CH06+
DATIO10	30	40	31	32		IN_CH06-
DATIO11	10	17	8	9		IN_CH08+
DATIO12	32	42	33	34		IN_CH08-
DATIO13	12	18	9		17	IN_CH09+
DATIO14	34	43	34		42	N_CH09-
DATIO15	13	19	10		18	IN_CH10+
DATIO16	35	44	35		43	IN_CH10-
DATIO17	15	21	12		20	IN_CH12+
DATIO18	37	46	37		45	IN_CH12-
DATIO19	17	22	13		21	IN_CH13+
DATIO20	39	47	38		46	IN_CH13-
DATIO21	18	23	14		22	IN_CH14+
DATIO22	40	48	39		47	IN_CH14-
DATIO23	20	25	16		24	IN_CH16+
DATIO24	42	50	41		49	IN16- (CMRP)
DATIO25	4	12	3	4		IN_CH03+
DATIO26	26	37	28	29		IN_CH03-
DATIO27	9	16	7	8		IN_CH07+
DATIO28	31	41	32	33		IN_CH07-
DATIO29	14	20	11		19	IN_CH11+
DATIO30	36	45	36		44	IN_CH11-
DATIO31	19	24	15		23	IN_CH15+
DATIO32	41	49	40		48	IN_CH15-
DATIO33	6					EXT-SYNC+
DATIO34	28					EXT-SYNC-
DATIO35	11
DATIO36	33
DATIO37	16
DATIO38	38
DATIO39	21
DATIO40	43
N/A

Notes

(CMRP)

The Common Mode Reference Point (CMRP) is an isolated reference connection for all the A/D channels. For expected high common mode voltage applications, it is
recommended that the pin designated as CMRP be referenced (direct or resistor coupled) to the signal source GND reference (must have current path between CMRP and signal
source generator) to minimize common mode voltage within the acceptable specification range. All channels within the module are independent but share a common CMRP, which
is isolated from system/power GND.

BOLD TEXT

N/C or Pending

A/D HARDWARE BLOCK DIAGRAM

FIRMWARE REVISION NOTES

This section identifies the firmware revision in which specific features were released. Prior revisions of the firmware would not support the features listed. Feature FPGA Bare Metal (BM)

Feature	FPGA		Bare Metal (BM)
	Firmware Revision	Release Date	Firmware Revision	Release Date
POST/PBIT/SBIT	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25
BIT Diagnostic (Power-on BIT Error)	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25
Background BIT Threshold Programming	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25
Threshold and Saturation Programming	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25
Engineering Scaling Conversions	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25
Channel Status Enabled	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25
Summary Status	2.00006	1/16/2020 11:54:07 AM	2.7	Jan 09 2020 at 08:09:25

REVISION HISTORY

Module Manual - ADE-ADF Revision History

Revision	Revision Date	Description
C	2023-06-20	EC0 C10476, removed all ADG module references from manual. Pg.8, updated Introduction. Pg.8, replaced ‘Features’ with ‘ADE-ADF Overview’. Pg.17, changed FIFO Buffer Control to Data Control; updated Op Settings; added (post-programmable IIR) to Data Control bit D2; added bit D4 definition. Pg.24, added 2nd note to Open/Over-Voltage Status. Pg.30, changed FIFO Buffer Control to Data Control. Pg.55-57, updated Appendix B. Pg.62, updated block diagram (from +10 to 1/10; add line between D/A & MUX; from 3 MHz to 50 kHz; from 499 ohms to 1.5 kohms; from 4700 to 2200 pf).
C1	2024-01-12	ADE-F ECO C11152, pg.9/21/32, added module common registers.
C2	2024-05-01	ECO C11476, pg.10, updated Note. Pg.16, updated FIFO Low Watermark operational settings description (from ‘equal than’ to ‘equal to’; from ‘greater than or equal to’ to ‘greater than’). Pg.17, updated Data Control operational settings (from ‘timestamp’ to ‘timestamp (sample counter)). Pg.21/32/55, changed Reset BIT to BIT Count Clear. Pg.22/32/55, changed Channel Status Enabled to Channel Status Enable.
C3	2024-06-05	ECO C11590, pg.23 - added register definition/details for Power-on BIT Error. Pg.23 - added register definition/details for Anti-Aliasing Filter Error. Pg.23 - added register definition/details for Voltage Reading Accuracy Error. Pg.33 - corrected read/write for Anti-Aliasing Filter Error offset (from ‘R/W’ to ‘R’). Pg.33 - corrected read/write for Voltage Reading Accuracy Error offset (from ’R/W’ to ‘R’). Pg.34 - added Power-on BIT Error dynamic/latched status offsets. Pg.56 - added Power-on BIT Error dynamic/latched status errors to registers table.

DOCS.NAII REVISIONS

Revision Date	Description
2026-04-27	Formatting updates throughout manual (non-technical changes).

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

No Clearing of Latched Status Clearing of Latched Status (Edge-Triggered) Clearing of Latched Status(Level-Triggered)
Time Dynamic Status Latched Status Action Latched Status Action Latched
T0 0x0 0x0 Read Latched Register 0x0 Read Latched Register 0x0
T1 0x1 0x1 Read Latched Register 0x1 0x1
T1 0x1 0x1 Write 0x1 to Latched Register Write 0x1 to Latched Register
T1 0x1 0x1 0x0 0x1
T2 0x0 0x1 Read Latched Register 0x0 Read Latched Register 0x1
T2 0x0 0x1 Read Latched Register 0x0 Write 0x1 to Latched Register
T2 0x0 0x1 Read Latched Register 0x0 0x0
T3 0x2 0x3 Read Latched Register 0x2 Read Latched Register 0x2
T3 0x2 0x3 Write 0x2 to Latched Register Write 0x2 to Latched Register
T3 0x2 0x3 0x0 0x2
T4 0x2 0x3 Read Latched Register 0x1 Read Latched Register 0x3
T4 0x2 0x3 Write 0x1 to Latched Register Write 0x3 to Latched Register
T4 0x2 0x3 0x0 0x2
T5 0xC 0xF Read Latched Register 0xC Read Latched Register 0xE
T5 0xC 0xF Write 0xC to Latched Register Write 0xE to Latched Register
T5 0xC 0xF 0x0 0xC
T6 0xC 0xF Read Latched Register 0x0 Read Latched 0xC
T6 0xC 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T6 0xC 0xF Read Latched Register 0x0 0xC
T7 0x4 0xF Read Latched Register 0x0 Read Latched Register 0xC
T7 0x4 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T7 0x4 0xF Read Latched Register 0x0 0x4
T8 0x4 0xF Read Latched Register 0x0 Read Latched Register 0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time Latched Status (Edge-Triggered - Clear Multi-Channel) Latched Status (Edge-Triggered - Clear Single Channel) 2+ Latched Status (Level-Triggered - Clear Multi-Channel) Action
Latched Action Latched Action Latched T1 (Int 1)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 T1 (Int 1)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x1 to Latched Register T1 (Int 1)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T2. 0x1 T3 (Int 2)
Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 T3 (Int 2)
Write 0x2 to Latched Register Write 0x2 to Latched Register Write 0x2 to Latched Register T3 (Int 2)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T4 (Int 3)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x3 T4 (Int 3)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x3 to Latched Register T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5. 0x3 T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T6 (Int 4)
Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xE T6 (Int 4)
Write 0xC to Latched Register Write 0x4 to Latched Register Write 0xE to Latched Register T6 (Int 4)
0x0 Interrupt re-triggers++``+
Write 0x8 to Latched Register 0x8 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7. 0xE T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8. 0xC T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always. 0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

THRESHOLD AND SATURATION CAPABILITY

The Threshold and Saturation Capability is available on the following modules:

Analog-to-Digital (A/D) Modules

AD1 - 12 Channels Analog-to-Digital (Voltage Input Only) (±10 to ±1.25 VDC FSR)

AD2 - 12 Channels Analog-to-Digital (Voltage Input Only) (±100 to ±12.5 VDC FSR)

AD3 - 12 Channels Analog-to-Digital (Current Input Only) (±25 mA FSR)

AD4 - 16 Channels Analog-to-Digital (±10.0 to ±1.25 VDC or ±25 mA FSR)

AD5 - 16 Channels Analog-to-Digital (±50.0 to ±6.25 VDC FSR)

AD6 - 16 Channels Analog-to-Digital (±100 to ±12.5 VDC FSR)

ADE - 16 Channels Analog-to-Digital (Voltage Input Only) (±10 to ±0.625 VDC FSR)

ADF - 16 Channels Analog-to-Digital (Voltage Input Only) (±100 to ±6.25 VDC FSR)

PRINCIPLE OF OPERATION

The AD modules provide the ability to monitor the acquired data and set a status when the specific thresholds are reached.

Threshold Detect

There are two thresholds that can be independently programmed on the A/D modules. These thresholds are used to monitor the acquired data and set a status when the specified thresholds are reached. A configurable hysteresis may also be set to determine when the Threshold Detect registers are cleared. The threshold detection can be configured as a FIFO trigger to capture data based on a specified event. Refer to Figure 1 and Figure 2 for illustrations for Threshold Detect Programming.

Figure 1. Threshold Programming with Hysteresis

Figure 2. Threshold Programming with No Hysteresis

Saturation Programming

A low and high saturation setting that can be independently programmed on the A/D modules. These saturation values are used to monitor the acquired data and set a status when the specified saturation is reached as well as setting the A/D reading to the saturation value. Saturation programming can be used to prevent the A/D reading from exceeding the saturation value. Refer to Figure 3 for illustrations of Saturation Programming

Figure 3. Saturation Programming

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

Threshold Detect Programming Registers

There are two threshold and hysteresis registers that can be independently programmed on the A/D modules.

Threshold Detect Level

The Threshold Detect Level registers sets the first and second threshold level values.

Threshold Detect Level 1

Function: Sets the first threshold level value
Type: signed binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range: Voltage Threshold Level values are dependent on Polarity and Range settings for the channel. Enable Floating Point Mode: 0 (Integer Mode) ` Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF ` (AD1-AD3): 0x0000 0000 to 0x00FF FFFF ` Bipolar (2's complement. 24-bit value sign extended to 32 bits): ` (AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF; ` (AD1-AD3): 0xFF80 0000 to 0x007F FFFF Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: 90% of full scale (bipolar)

Threshold Detect Level 2

Function: Sets the second threshold level value.
Type: signed binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range: Voltage Threshold Level values are dependent on Polarity and Range settings for the channel.
Enable Floating Point Mode: 0 (Integer Mode)
Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF
(AD1-AD3): 0x0000 0000 to 0x00FF FFFF
Bipolar (2’s complement. 24-bit value sign extended to 32 bits):
(AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF;
(AD1-AD3): 0xFF80 0000 to 0x007F FFFF
Enable Floating Point Mode: 1 (Floating Point Mode)
Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: -90% of full scale (bipolar)

Threshold Detect Hysteresis

The Threshold Detect Hysteresis registers sets the first and second threshold hysteresis values. Note, the hysteresis value must be a positive value.

Threshold Detect Hysteresis 1

Function: Sets the first threshold hysteresis value. This value must be positive.
Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range: Voltage Threshold Hysteresis values are dependent on Polarity and Range settings for the channel.
Enable Floating Point Mode: 0 (Integer Mode)
Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF
(AD1-AD3): 0x0000 0000 to 0x00FF FFFF
Bipolar (2’s complement. 24-bit value sign extended to 32 bits):
(AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF;
(AD1-AD3): 0xFF80 0000 to 0x007F FFFF
Enable Floating Point Mode: 1 (Floating Point Mode)
Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: 0

Threshold Detect Hysteresis 2

Function: Sets the second threshold hysteresis value. This value must be positive.
Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range: Voltage Threshold Hysteresis values are dependent on Polarity and Range settings for the channel.
Enable Floating Point Mode: 0 (Integer Mode)
Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF
(AD1-AD3): 0x0000 0000 to 0x00FF FFFF
Bipolar (2’s complement. 24-bit value sign extended to 32 bits):
(AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF; +
(AD1-AD3): 0xFF80 0000 to 0x007F FFFF
Read/Write: R/W
Initialized Value: 0

Threshold Detect Control

Function: Sets up detect control for the two thresholds for each channel.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set bit to 0 to detect above the threshold level. Set bit to 1 to detect below the threshold level.

AD1-AD3
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch12 Ch11 Ch10 Ch9
T2 T1 T2 T1 T2 T1 T2 T1
D D D D D D D D
AD4-AD6 and ADE-ADF
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9
T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1
D D D D D D D D D D D D D D D D
All A/D Modules
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1
T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1
D D D D D D D D D D D D D D D D

Saturation Programming Registers

A low and high saturation setting that can be independently programmed on the A/D modules.

Saturation Value

The Low Saturation Value registers sets value to report as A/D reading and sets the Saturation Status bit when the A/D data is below the low saturation value. The High Saturation Value registers sets value to report as A/D reading and sets the Saturation Status bit when the A/D data is above the high saturation value.

Low Saturation

Function: Sets the low saturation value.
Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range: Saturation Voltage values are dependent on Polarity and Range settings for the channel.
Enable Floating Point Mode: 0 (Integer Mode)
Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF
(AD1-AD3): 0x0000 0000 to 0x00FF FFFF
Bipolar (2’s complement. 24-bit value sign extended to 32 bits):
(AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF;
(AD1-AD3): 0xFF80 0000 to 0x007F FFFF
Enable Floating Point Mode: 1 (Floating Point Mode)
Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: 0

High Saturation

Function: Sets the high saturation value.
Type: signed binary word (32-bit) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range: Saturation Voltage values are dependent on Polarity and Range settings for the channel.
Enable Floating Point Mode: 0 (Integer Mode)
Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF
(AD1-AD3): 0x0000 0000 to 0x00FF FFFF
Bipolar (2’s complement. 24-bit value sign extended to 32 bits):
(AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF;
(AD1-AD3): 0xFF80 0000 to 0x007F FFFF
Enable Floating Point Mode: 1 (Floating Point Mode)
Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: 0

Saturation Control

Function: Sets up saturation control for the two saturation levels for each channel.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: Set bits to 1 to enable Saturation Control. Set bits to 0 to disable Saturation Control. Each channel control consists of two bits: Low Saturation Control (“Even’ bits (B0, B2, B4,…)) and High Saturation Control (“Odd’ bits (B1, B3, B5,…)).

AD1-AD3
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch12 Ch11 Ch10 Ch9
High Low High Low High Low High Low
D D D D D D D D
AD4-AD6 and ADE-ADF
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9
High Low High Low High Low High Low High Low High Low High Low High Low
D D D D D D D D D D D D D D D D
All A/D Modules
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1
High Low High Low High Low High Low High Low High Low High Low High Low
D D D D D D D D D D D D D D D D

Status and Interrupt

The A/D Module provides status registers for Threshold Detect and Saturation.

Threshold Detect Status

There are four registers associated with the Threshold Detect Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

0 = Normal; 1 = Outside of threshold range. The status is created based on the values set in the Threshold Detect 1 and Threshold Detect 2 registers. Bits D0 and D1 represent if channel 1 is outside the threshold for Threshold Detect 1 and Threshold Detect 2 respectively, Bits D2 and D3 represent if channel 2 is outside the threshold for Threshold Detect 1 and Threshold Detect 2 respectively, etc. This pattern continues for all channels.

Function: Sets the corresponding bit associated with the channel’s Threshold Detect error.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value: 0

Threshold Detect Dynamic Status
Threshold Detect Latched Status
Threshold Detect Interrupt Enable
Threshold Detect Set Edge/Level Interrupt
AD1-AD3
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch12 Ch11 Ch10 Ch9
T2 T1 T2 T1 T2 T1 T2 T1
D D D D D D D D
AD4-AD6 and ADE-ADF
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9
T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1
D D D D D D D D D D D D D D D D
All A/D Modules
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1
T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1 T2 T1
D D D D D D D D D D D D D D D D

Saturation Status

There are four registers associated with the Saturation Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

0 = Normal; 1 = Outside of saturation range. The status is created based on the values set in the Low Saturation and High Saturation registers. Bits D0 and D1 represent if channel 1 is outside the voltage for Low Saturation and High Saturation respectively, Bits D2 and D3 represent if channel 2 is outside the voltage for Low Saturation and High Saturation respectively, etc. This pattern continues for all channels.

Function: Sets the corresponding bit associated with the channel’s Saturation error.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x00FF FFFF
Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value: 0

Saturation Dynamic Status
Saturation Latched Status
Saturation Interrupt Enable
Saturation Set Edge/Level Interrupt
AD1-AD3
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 Ch12 Ch11 Ch10 Ch9
High Low High Low High Low High Low
D D D D D D D D
AD4-AD6 and ADE-ADF
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Ch16 Ch15 Ch14 Ch13 Ch12 Ch11 Ch10 Ch9
High Low High Low High Low High Low High Low High Low High Low High Low
D D D D D D D D D D D D D D D D
All A/D Modules
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Ch8 Ch7 Ch6 Ch5 Ch4 Ch3 Ch2 Ch1
High Low High Low High Low High Low High Low High Low High Low High Low
D D D D D D D D D D D D D D D D

FUNCTION REGISTER MAP

Key:

Bold Italic = Configuration/Control
Bold Underline = State/Measurement/Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

**Data is represented in Floating Point if Enable Floating Point Mode register is set to Floating Point Mode (1)

Threshold Detect Programming Registers

Addr (Hex) Name Read/Write Addr (Hex) Name Read/Write
All A/D Modules
0x1980 Threshold Detect Level 1 Ch 1 R/W 0x1A00 Threshold Detect Level 1 Hysteresis Ch 1 R/W
0x1984 Threshold Detect Level 1 Ch 2 R/W 0x1A04 Threshold Detect Level 2 Hysteresis Ch 1 R/W
0x1988 Threshold Detect Level 1 Ch 3 R/W 0x1A08 Threshold Detect Level 3 Hysteresis Ch 1 R/W
0x198C Threshold Detect Level 1 Ch 4 R/W 0x1A0C Threshold Detect Level 4 Hysteresis Ch 1 R/W
0x1990 Threshold Detect Level 1 Ch 5 R/W 0x1A10 Threshold Detect Level 5 Hysteresis Ch 1 R/W
0x1994 Threshold Detect Level 1 Ch 6 R/W 0x1A14 Threshold Detect Level 6 Hysteresis Ch 1 R/W
0x1998 Threshold Detect Level 1 Ch 7 R/W 0x1A18 Threshold Detect Level 7 Hysteresis Ch 1 R/W
0x199C Threshold Detect Level 1 Ch 8 R/W 0x1A1C Threshold Detect Level 8 Hysteresis Ch 1 R/W
0x19A0 Threshold Detect Level 1 Ch 9 R/W 0x1A20 Threshold Detect Level 9 Hysteresis Ch 1 R/W
0x19A4 Threshold Detect Level 1 Ch 10 R/W 0x1A24 Threshold Detect Level 10 Hysteresis Ch 1 R/W
0x19A8 Threshold Detect Level 1 Ch 11 R/W 0x1A28 Threshold Detect Level 11 Hysteresis Ch 1 R/W
0x19AC Threshold Detect Level 1 Ch 12 R/W 0x1A2C Threshold Detect Level 12 Hysteresis Ch 1 R/W
AD4-AD6, ADE-ADF
0x19B0 Threshold Detect Level 1 Ch 13 R/W 0x1A30 Threshold Detect Level 13 Hysteresis Ch 1 R/W
0x19B4 Threshold Detect Level 1 Ch 14 R/W 0x1A34 Threshold Detect Level 14 Hysteresis Ch 1 R/W
0x19B8 Threshold Detect Level 1 Ch 15 R/W 0x1A38 Threshold Detect Level 15 Hysteresis Ch 1 R/W
0x19BC Threshold Detect Level 1 Ch 16 R/W 0x1A3C Threshold Detect Level 16 Hysteresis Ch 1 R/W

Addr (Hex) Name Read/Write Addr (Hex) Name Read/Write
All A/D Modules
0x1A80 Threshold Detect Level 1 Ch 1 R/W 0x1B00 Threshold Detect Level 1 Hysteresis Ch 1 R/W
0x1A84 Threshold Detect Level 1 Ch 2 R/W 0x1B04 Threshold Detect Level 2 Hysteresis Ch 1 R/W
0x1A88 Threshold Detect Level 1 Ch 3 R/W 0x1B08 Threshold Detect Level 3 Hysteresis Ch 1 R/W
0x1A8C Threshold Detect Level 1 Ch 4 R/W 0x1B0C Threshold Detect Level 4 Hysteresis Ch 1 R/W
0x1A90 Threshold Detect Level 1 Ch 5 R/W 0x1B10 Threshold Detect Level 5 Hysteresis Ch 1 R/W
0x1A94 Threshold Detect Level 1 Ch 6 R/W 0x1B14 Threshold Detect Level 6 Hysteresis Ch 1 R/W
0x1A98 Threshold Detect Level 1 Ch 7 R/W 0x1B18 Threshold Detect Level 7 Hysteresis Ch 1 R/W
0x1A9C Threshold Detect Level 1 Ch 8 R/W 0x1B1C Threshold Detect Level 8 Hysteresis Ch 1 R/W
0x1AA0 Threshold Detect Level 1 Ch 9 R/W 0x1B20 Threshold Detect Level 9 Hysteresis Ch 1 R/W
0x1AA4 Threshold Detect Level 1 Ch 10 R/W 0x1B24 Threshold Detect Level 10 Hysteresis Ch 1 R/W
0x1AA8 Threshold Detect Level 1 Ch 11 R/W 0x1B28 Threshold Detect Level 11 Hysteresis Ch 1 R/W
0x1AAC Threshold Detect Level 1 Ch 12 R/W 0x1B2C Threshold Detect Level 12 Hysteresis Ch 1 R/W
AD4-AD6, ADE-ADF
0x1AB0 Threshold Detect Level 1 Ch 13 R/W 0x1B30 Threshold Detect Level 13 Hysteresis Ch 1 R/W
0x1AB4 Threshold Detect Level 1 Ch 14 R/W 0x1B34 Threshold Detect Level 14 Hysteresis Ch 1 R/W
0x1AB8 Threshold Detect Level 1 Ch 15 R/W 0x1B38 Threshold Detect Level 15 Hysteresis Ch 1 R/W
0x1ABC Threshold Detect Level 1 Ch 16 R/W 0x1B3C Threshold Detect Level 16 Hysteresis Ch 1 R/W

Addr (Hex) Name Read/Write
0x1C80 Threshold Detect Control R/W

Saturation Programming Registers

Addr (Hex) Name Read/Write Addr (Hex) Name Read/Write
All A/D Modules
0x1B80 Low Saturation Value Ch 1 R/W 0x1B00 High Saturation Value Ch 1 R/W
0x1B84 Low Saturation Value Ch 2 R/W 0x1B04 High Saturation Value Ch 2 R/W
0x1B88 Low Saturation Value Ch 3 R/W 0x1B08 High Saturation Value Ch 3 R/W
0x1B8C Low Saturation Value Ch 4 R/W 0x1B0C High Saturation Value Ch 4 R/W
0x1B90 Low Saturation Value Ch 5 R/W 0x1B10 High Saturation Value Ch 5 R/W
0x1B94 Low Saturation Value Ch 6 R/W 0x1B14 High Saturation Value Ch 6 R/W
0x1B98 Low Saturation Value Ch 7 R/W 0x1B18 High Saturation Value Ch 7 R/W
0x1B9C Low Saturation Value Ch 8 R/W 0x1B1C High Saturation Value Ch 8 R/W
0x1BA0 Low Saturation Value Ch 9 R/W 0x1B20 High Saturation Value Ch 9 R/W
0x1BA4 Low Saturation Value Ch 10 R/W 0x1B24 High Saturation Value Ch 10 R/W
0x1BA8 Low Saturation Value Ch 11 R/W 0x1B28 High Saturation Value Ch 11 R/W
0x1BAC Low Saturation Value Ch 12 R/W 0x1B2C High Saturation Value Ch 12 R/W
AD4-AD6, ADE-ADF
0x1BB0 Low Saturation Value Ch 13 R/W 0x1B30 High Saturation Value Ch 13 R/W
0x1BB4 Low Saturation Value Ch 14 R/W 0x1B34 High Saturation Value Ch 14 R/W
0x1BB8 Low Saturation Value Ch 15 R/W 0x1B38 High Saturation Value Ch 15 R/W
0x1BBC Low Saturation Value Ch 16 R/W 0x1B3C High Saturation Value Ch 16 R/W

Addr (Hex) Name Read/Write
0x1C90 Saturation Control R/W

Status Registers

Threshold

Addr (Hex) Name Read/Write
0x0940 Dynamic Status R
0x0944 Latched Status* R/W
0x0948 Interrupt Enable R/W
0x094C Set Edge/Level Interrupt R/W

Saturation

Addr (Hex) Name Read/Write
0x0960 Dynamic Status R
0x0964 Latched Status* R/W
0x0968 Interrupt Enable R/W
0x096C Set Edge/Level Interrupt R/W

Interrupt Registers

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on

the module slot position. In other words, do not apply the Module Address offset to these addresses.

Addr (Hex) Name Read/Write Addr (Hex) Name Read/Write
0x0550 Module 1 Interrupt Vector 21 - Threshold R/W 0x0650 Module 1 Interrupt Steering 21 - Threshold R/W
0x0558 Module 1 Interrupt Vector 23 - Saturation R/W 0x0658 Module 1 Interrupt Steering 23 - Saturation R/W
0x0750 Module 2 Interrupt Vector 21 - Threshold R/W 0x0850 Module 2 Interrupt Steering 21 - Threshold R/W
0x0758 Module 2 Interrupt Vector 23 - Saturation R/W 0x0858 Module 2 Interrupt Steering 23 - Saturation R/W
0x0950 Module 3 Interrupt Vector 21 - Threshold R/W 0x0A50 Module 3 Interrupt Steering 21 - Threshold R/W
0x0958 Module 3 Interrupt Vector 23 - Saturation R/W 0x0A58 Module 3 Interrupt Steering 23 - Saturation R/W
0x0B50 Module 3 Interrupt Vector 21 - Threshold R/W 0x0C50 Module 3 Interrupt Steering 21 - Threshold R/W
0x0B58 Module 4 Interrupt Vector 23 - Saturation R/W 0x0C58 Module 4 Interrupt Steering 23 - Saturation R/W
0x0D50 Module 5 Interrupt Vector 21 - Threshold R/W 0x0D50 Module 5 Interrupt Steering 21 - Threshold R/W
0x0D58 Module 5 Interrupt Vector 23 - Saturation R/W 0x0D58 Module 5 Interrupt Steering 23 - Saturation R/W
0x0F50 Module 6 Interrupt Vector 21 - Threshold R/W 0x1050 Module 6 Interrupt Steering 21 - Threshold R/W
0x0F58 Module 6 Interrupt Vector 23 - Saturation R/W 0x1058 Module 6 Interrupt Steering 23 - Saturation R/W

REVISION HISTORY

Module Manual - AD Threshold and Saturation Programming Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical information change.
C1 2022-03-16 C09163, pg.15-17, changed "AD4-AD4" to "AD4-AD6".
C2 2023-01-24 ECO C010010, pg.8-9/11, added 24-bit integer mode data ranges.
C3 2 023-06-20 ECO C10476, removed all ADG module references from manual.
C4 2024-04-18 ECO C11441, spelling correction ('2's compliment' to '2's complement); no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
- -
Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function: FPGA firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Compile Timestamp
Function: Compile Timestamp for the FPGA firmware.
Type: unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the compile timestamp of the board's FPGA
Operational Settings: The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
day (5-bits) month (4-bits) year (6-bits) hr
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
hour (5-bits) minutes (6-bits) seconds (6-bits)

FPGA SerDes Revision
Function: FPGA SerDes revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the SerDes revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Template Revision
Function: FPGA Template revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the template revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Zynq Block Revision
Function: FPGA Zynq Block revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function: Bare Metal firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's Bare Metal
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Compile Time
Function: Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function: FSBL firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FSBL
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FSBL Compile Time
Function: Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function: Unique 128-bit identifier used to identify the interface board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the interface board
Operational Settings: This register is for information purposes only.

Functional Board Serial Number
Function: Unique 128-bit identifier used to identify the functional board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the functional board
Operational Settings: This register is for information purposes only.

Module Capability
Function: Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x0000 0107
Read/Write: R
Initialized Value: 0x0000 0107
Operational Settings: A “1” in the bit associated with the capability indicates that it is supported.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 Flt-Pt 0 0 0 0 0 Pack FIFO Blk Blk

Module Memory Map Revision
Function: Module Memory Map revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Module Memory Map Revision
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function: Measured PCB and Zynq Core temperatures on Interface Board.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Current Temperature
Function: Measured PCB temperature on Functional Board.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Interface Board Maximum Temperature
Function: Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Interface Board Minimum Temperature
Function: Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Maximum Temperature
Function: Maximum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Functional Board Minimum Temperature
Function: Minimum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function: Higher precision measured Zynq Core temperature on Interface Board.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Zynq Core temperature on Interface Board
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function: Higher precision measured Interface PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Interface PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function: Higher precision measured Functional PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Functional PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function: The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s) Sensor
D31:D6 Reserved
D5 Functional Board PCB Temperature
D4 Interface Board PCB Temperature
D3:D0 Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function: Reflects which threshold has been crossed
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s) Description
D31:D4 Reserved
D3 Exceeded Upper Critical Threshold
D2 Exceeded Upper Warning Threshold
D1 Exceeded Lower Critical Threshold
D0 Exceeded Lower Warning Threshold

Sensor Current Reading
Function: Reflects current reading of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function: Reflects minimum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function: Reflects maximum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function: Reflects lower warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function: Reflects lower critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function: Reflects upper warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function: Reflects upper critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control
Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x003C FPGA Revision R 0x0074 Bare Metal Revision R
0x0030 FPGA Compile Timestamp R 0x0080 Bare Metal Compile Time (Bit 0-31) R
0x0034 FPGA SerDes Revision R 0x0084 Bare Metal Compile Time (Bit 32-63) R
0x0038 FPGA Template Revision R 0x0088 Bare Metal Compile Time (Bit 64-95) R
0x0040 FPGA Zynq Block Revision R 0x008C Bare Metal Compile Time (Bit 96-127) R
0x0090 Bare Metal Compile Time (Bit 128-159) R
0x0094 Bare Metal Compile Time (Bit 160-191) R
0x007C FSBL Revision R
0x00B0 FSBL Compile Time (Bit 0-31) R
0x00B4 FSBL Compile Time (Bit 32-63) R
0x00B8 FSBL Compile Time (Bit 64-95) R
0x00BC FSBL Compile Time (Bit 96-127) R
0x00C0 FSBL Compile Time (Bit 128-159) R
0x00C4 FSBL Compile Time (Bit 160-191) R
0x0000 Interface Board Serial Number (Bit 0-31) R 0x0010 Functional Board Serial Number (Bit 0-31) R
0x0034 Interface Board Serial Number (Bit 32-63) R 0x0014 Functional Board Serial Number (Bit 32-63) R
0x0008 Interface Board Serial Number (Bit 64-95) R 0x0018 Functional Board Serial Number (Bit 64-95) R
0x000C Interface Board Serial Number (Bit 96-127) R 0x001C Functional Board Serial Number (Bit 96-127) R
0x0070 Module Capability R
0x01FC Module Memory Map Revision R
MODULE MEASUREMENTS REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0200 Interface Board PCB/Zynq Current Temp R 0x0208 Functional Board PCB Current Temp R
0x0218 Interface Board PCB/Zynq Max Temp R 0x0228 Functional Board PCB Max Temp R
0x0220 Interface Board PCB/Zynq Min Temp R 0x0230 Functional Board PCB Min Temp R
0x02C0 Higher Precision Zynq Core Temperature R
0x02C4 Higher Precision Interface PCB Temperature R
0x02E0 Higher Precision Functional PCB Temperature R
MODULE HEALTH MONITORING REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x07F8 Module Sensor Summary Status R
![](/_shared/images/Module_Sensor_Registers_Memory_Map.png)

REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision Revision Date Description
C 2023-08-11 ECO C10649, initial release of module common registers manual.
C1 2024-05-15 ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2 2024-07-10 ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date Description
2025-11-05 Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02 Formatting updates to document; no technical changes.
Link to original

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100
Link to original

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

		No Clearing of Latched Status	Clearing of Latched Status (Edge-Triggered)		Clearing of Latched Status(Level-Triggered)
Time	Dynamic Status	Latched Status	Action	Latched Status	Action	Latched
T0	0x0	0x0	Read Latched Register	0x0	Read Latched Register	0x0
T1	0x1	0x1	Read Latched Register	0x1		0x1
T1	0x1	0x1	Write 0x1 to Latched Register		Write 0x1 to Latched Register
T1	0x1	0x1		*0x0*		*0x1*
T2	0x0	0x1	Read Latched Register	0x0	Read Latched Register	0x1
T2	0x0	0x1	Read Latched Register	0x0	Write 0x1 to Latched Register
T2	0x0	0x1	Read Latched Register	0x0		*0x0*
T3	0x2	0x3	Read Latched Register	0x2	Read Latched Register	0x2
T3	0x2	0x3	Write 0x2 to Latched Register		Write 0x2 to Latched Register
T3	0x2	0x3		*0x0*		*0x2*
T4	0x2	0x3	Read Latched Register	0x1	Read Latched Register	0x3
T4	0x2	0x3	Write 0x1 to Latched Register		Write 0x3 to Latched Register
T4	0x2	0x3		*0x0*		*0x2*
T5	0xC	0xF	Read Latched Register	0xC	Read Latched Register	0xE
T5	0xC	0xF	Write 0xC to Latched Register		Write 0xE to Latched Register
T5	0xC	0xF		*0x0*		*0xC*
T6	0xC	0xF	Read Latched Register	0x0	Read Latched	0xC
T6	0xC	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T6	0xC	0xF	Read Latched Register	0x0		*0xC*
T7	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0xC
T7	0x4	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T7	0x4	0xF	Read Latched Register	0x0		*0x4*
T8	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0x4

Time	Latched Status (Edge-Triggered - Clear Multi-Channel)		Latched Status (Edge-Triggered - Clear Single Channel) 2+		Latched Status (Level-Triggered - Clear Multi-Channel)	Action
Time	Latched	Action	Latched	Action	Latched	T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	T1 (Int 1)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x1 to Latched Register		T1 (Int 1)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T2.	*0x1*	T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	T3 (Int 2)
Write 0x2 to Latched Register		Write 0x2 to Latched Register		Write 0x2 to Latched Register		T3 (Int 2)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T7.	*0x2*	T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x3	T4 (Int 3)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x3 to Latched Register		T4 (Int 3)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.	*0x3*	T4 (Int 3)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T7.	*0x2*	T6 (Int 4)
*Interrupt Generated*++``+ Read Latched Registers	0xC	*Interrupt Generated*++``+ Read Latched Registers	0xC	*Interrupt Generated*++``+ Read Latched Registers	0xE	T6 (Int 4)
Write 0xC to Latched Register		Write 0x4 to Latched Register		Write 0xE to Latched Register		T6 (Int 4)
	*0x0*	*Interrupt re-triggers*++``+ Write 0x8 to Latched Register	*0x8*	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.	*0xE*	T6 (Int 4)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.	*0xC*	T6 (Int 4)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.	*0x4*

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

Function:	Sets the first threshold level value
Type:	signed binary word (32-bit) (Integer Mode) or Single Precision Floating Point Value (IEEE-754) (Floating Point Mode)
Data Range:	Voltage Threshold Level values are dependent on Polarity and Range settings for the channel. Enable Floating Point Mode: 0 (Integer Mode) ` Unipolar: (AD4-AD6, ADE-ADF) 0x0000 0000 to 0x0000 FFFF ` (AD1-AD3): 0x0000 0000 to 0x00FF FFFF ` Bipolar (2's complement. 24-bit value sign extended to 32 bits): ` (AD4-AD6, ADE-ADF) 0xFFFF 8000 to 0x0000 7FFF; ` (AD1-AD3): 0xFF80 0000 to 0x007F FFFF Enable Floating Point Mode: 1 (Floating Point Mode) ` Single Precision Floating Point Value (IEEE-754)
Read/Write:	R/W
Initialized Value:	90% of full scale (bipolar)

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

Addr (Hex)	Name	Read/Write	Addr (Hex)	Name	Read/Write
All A/D Modules
0x1980	*Threshold Detect Level 1 Ch 1*	R/W	0x1A00	*Threshold Detect Level 1 Hysteresis Ch 1*	R/W
0x1984	*Threshold Detect Level 1 Ch 2*	R/W	0x1A04	*Threshold Detect Level 2 Hysteresis Ch 1*	R/W
0x1988	*Threshold Detect Level 1 Ch 3*	R/W	0x1A08	*Threshold Detect Level 3 Hysteresis Ch 1*	R/W
0x198C	*Threshold Detect Level 1 Ch 4*	R/W	0x1A0C	*Threshold Detect Level 4 Hysteresis Ch 1*	R/W
0x1990	*Threshold Detect Level 1 Ch 5*	R/W	0x1A10	*Threshold Detect Level 5 Hysteresis Ch 1*	R/W
0x1994	*Threshold Detect Level 1 Ch 6*	R/W	0x1A14	*Threshold Detect Level 6 Hysteresis Ch 1*	R/W
0x1998	*Threshold Detect Level 1 Ch 7*	R/W	0x1A18	*Threshold Detect Level 7 Hysteresis Ch 1*	R/W
0x199C	*Threshold Detect Level 1 Ch 8*	R/W	0x1A1C	*Threshold Detect Level 8 Hysteresis Ch 1*	R/W
0x19A0	*Threshold Detect Level 1 Ch 9*	R/W	0x1A20	*Threshold Detect Level 9 Hysteresis Ch 1*	R/W
0x19A4	*Threshold Detect Level 1 Ch 10*	R/W	0x1A24	*Threshold Detect Level 10 Hysteresis Ch 1*	R/W
0x19A8	*Threshold Detect Level 1 Ch 11*	R/W	0x1A28	*Threshold Detect Level 11 Hysteresis Ch 1*	R/W
0x19AC	*Threshold Detect Level 1 Ch 12*	R/W	0x1A2C	*Threshold Detect Level 12 Hysteresis Ch 1*	R/W
AD4-AD6, ADE-ADF
0x19B0	*Threshold Detect Level 1 Ch 13*	R/W	0x1A30	*Threshold Detect Level 13 Hysteresis Ch 1*	R/W
0x19B4	*Threshold Detect Level 1 Ch 14*	R/W	0x1A34	*Threshold Detect Level 14 Hysteresis Ch 1*	R/W
0x19B8	*Threshold Detect Level 1 Ch 15*	R/W	0x1A38	*Threshold Detect Level 15 Hysteresis Ch 1*	R/W
0x19BC	*Threshold Detect Level 1 Ch 16*	R/W	0x1A3C	*Threshold Detect Level 16 Hysteresis Ch 1*	R/W

Addr (Hex)	Name	Read/Write
0x0960	Dynamic Status	R
0x0964	Latched Status*	R/W
0x0968	*Interrupt Enable*	R/W
0x096C	*Set Edge/Level Interrupt*	R/W

Module Manual - AD Threshold and Saturation Programming Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical information change.
C1	2022-03-16	C09163, pg.15-17, changed "AD4-AD4" to "AD4-AD6".
C2	2023-01-24	ECO C010010, pg.8-9/11, added 24-bit integer mode data ranges.
C3 2	023-06-20	ECO C10476, removed all ADG module references from manual.
C4	2024-04-18	ECO C11441, spelling correction ('2's compliment' to '2's complement); no technical info change.

FPGA Revision
Function:	FPGA firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

NAI Documentation

Explorer

INTRODUCTION

ADE-ADF Overview

PRINCIPLE OF OPERATION

Built-In Test (BIT)/Diagnostic Capability

Power-On Self-Test (POST)/Power-On BIT (PBIT)/Start-Up BIT (SBIT)

Continuous Background Built-In Test

Initiated Built-In Test

A/D FIFO Buffering

Threshold and Saturation Programming

Status and Interrupts

Module Common Registers

Engineering Scaling Conversions

REGISTER DESCRIPTIONS

A/D Measurement Registers

A/D Control Registers

Acquisition & Conversion Time

A/D Test Registers

FIFO Registers

FIFO Thresholds

Threshold Detect Programming Registers

Saturation Programming Registers

Engineering Scaling Conversions Registers

Background BIT Threshold Programming Registers

Module Common Registers

Status and Interrupt Registers

BIT Status

BIT Diagnostic

FIFO Status

Open/Over-Voltage Status

External Power Loss Status

Threshold Detect Status

Saturation Status

Front-End Amplifier Failure Status

Inter-FPGA Failure Status

Summary Status

Interrupt Vector and Steering

FUNCTION REGISTER MAP

APPENDIX A: INTEGER/FLOATING POINT MODE PROGRAMMING

Integer Mode Programming

A/D Reading and FIFO Buffer Data

UBIT Test Programming

Threshold Programming

Saturation Programming

Floating Point Mode Voltage/Current Programming

A/D Reading and FIFO Buffer Data

UBIT Test Programming

Threshold Programming

Saturation Programming

Floating Point Mode Engineering Units Programming

A/D Readings

UBIT Test Programming

Threshold Programming

Saturation Programming

APPENDIX B: REGISTER NAME CHANGES FROM PREVIOUS RELEASES

APPENDIX C: PIN-OUT DETAILS

A/D HARDWARE BLOCK DIAGRAM

FIRMWARE REVISION NOTES

REVISION HISTORY

STATUS AND INTERRUPTS

Interrupt Vector and Steering

Interrupt Trigger Types

Dynamic and Latched Status Registers Examples

Interrupt Examples

REVISION HISTORY

THRESHOLD AND SATURATION CAPABILITY

PRINCIPLE OF OPERATION

Threshold Detect

Saturation Programming

REGISTER DESCRIPTIONS

Threshold Detect Programming Registers

Threshold Detect Level

Threshold Detect Level 1

Threshold Detect Level 2

Threshold Detect Hysteresis

Threshold Detect Hysteresis 1

Threshold Detect Hysteresis 2

Threshold Detect Control

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	D	D	D	D	D	D	D	D	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	D

FPGA Compile Timestamp
Function:	Compile Timestamp for the FPGA firmware.
Type:	unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:	The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

FPGA SerDes Revision
Function:	FPGA SerDes revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

FPGA Template Revision
Function:	FPGA Template revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the template revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

FPGA Zynq Block Revision
Function:	FPGA Zynq Block revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
