68RT-SOSA-DEBUG Data Sheet

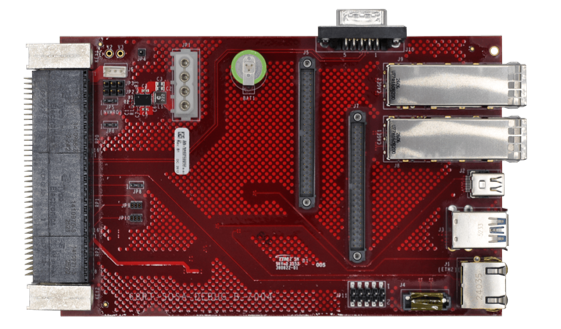

FUNCTION/FEATURES

• Designed for debug and validation of SOSA™-aligned VPX cards
• Industry standard commercial connectors, where applicable

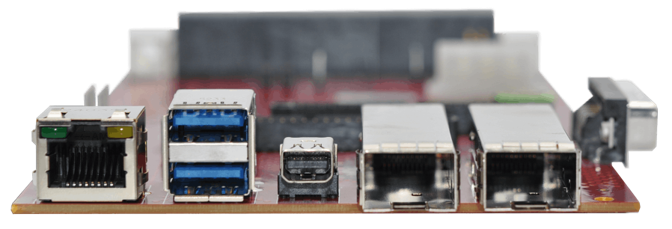

• Dual SFP+ cages for 10GbE KX SerDes signal access (J8, J9)
• RJ45 GbE (J1), USB 3.0 (J3), Mini DisplayPort video (J2) (9-pin D-Sub RS-232 console (J10), IPMB I2C, SATA debug)

DESCRIPTION

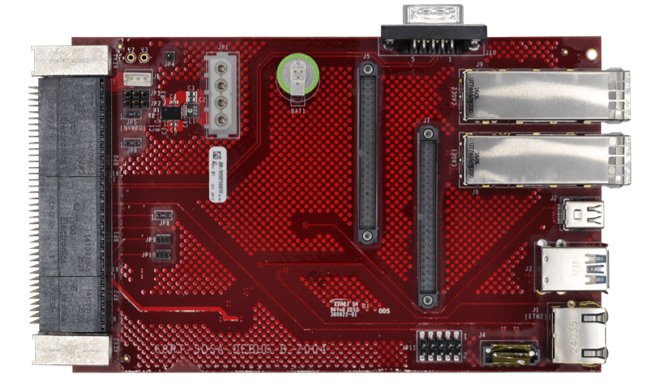

The 68RT-SOSA-DEBUG is the SOSA™-aligned 3U OpenVPX Debug RTM designed for engineering validation and debug of SOSA-aligned VPX SBCs. The 68RT-SOSA-DEBUG routes all RP0, RP1, and RP2 rear I/O signals to industry-standard front-panel connectors including dual SFP+, RJ45 GbE, stacked USB 3.0, Mini DisplayPort, and 9-pin D-Sub serial, providing comprehensive signal access during development and qualification testing.

The 68RT-SOSA-DEBUG is a non-standard ‘extended’ RTM size and does not have proper mechanical securing/interface in a standard commercial chassis.

SPECIFICATIONS

Operating Temperature:	0°C to 70°C (typical usage, contact factory for extended temperature range)
Storage Temperature:	-40°C to 85°C
Humidity:	95% RH, non-condensing
Protective Covering:	Both sides of the board are protected/covered with solder mask (Conformal coat available on special order – Contact Factory)
I/O Connector Configuration:	One RJ45 jack for GbE (ETH2) (J1) One panel mini DisplayPort receptacle for HDMI/DDP video (J2) Two panel USB-3-A receptacles, stacked, for USB Port 1 & Port 2 (J3) One inboard SATA-II/III capable data connector (J4) Two inboard function module 44-pin NAI-XMC I/O Header (J5, J7) One inboard power header, +12V for low current accessory use (e.g., fan) (J6) Two inboard SFP+ receptacles for 10GbE KX SerDes signal (J8, J9) One inboard 9-pin connector, SER (J10) Two IPMB (A & B) 3-pin Headers (JP2 & JP3) One inboard 1-pin header, SYS GND Reference point (JP4) One inboard 2-pin header, jumper, NVMRO (JP5) One inboard 2-pin header for RTC_STDBY, external or 3.3V battery select (JP6) One inboard 2-pin header, jumper, MRSTn (JP8) Two inboard 3-pin socket, SER (JP9, JP10) One inboard 5-pin header, jumper, TTL_CH1-4/GDiscrete (JP11)
Size:	3.93” (99.8 mm H) x 6.18” (157 mm D) x 0.06” (1.52 mm W) (approx.)
Weight:	5 oz. (142 g) (approx.)

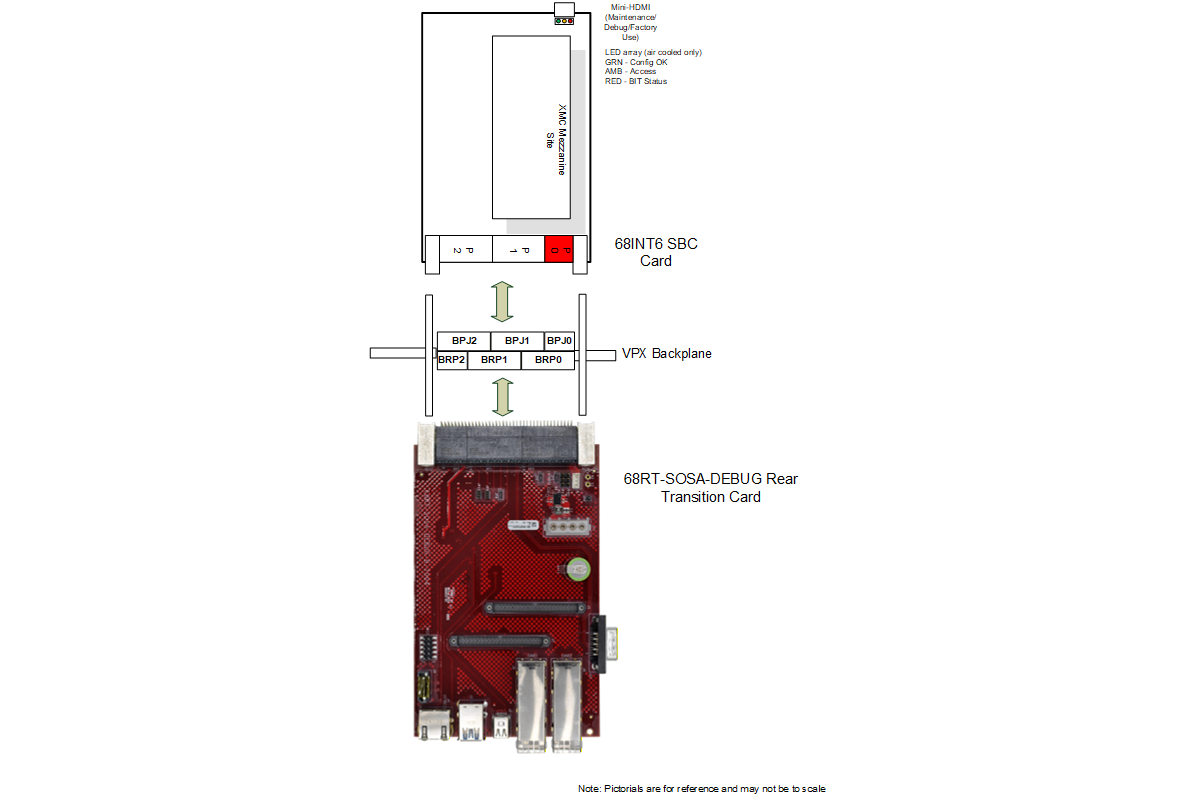

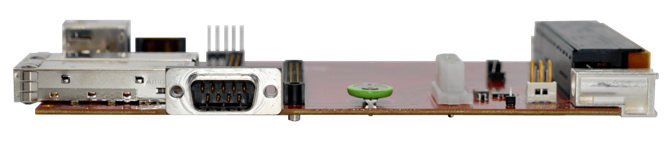

68RT-SOSA-DEBUG INSTALLATION

Note

For reference only.

68RT-SOSA-DEBUG CONNECTOR/PIN-OUT INFORMATION

I/O Connectors

User and defined I/O is available through panel mounted and inboard header connectors via the VPX RP0, RP1 & RP2 user defined rear I/O backplane connectors. The 68RT-SOSA-DEBUG RTM is designed for debug and validation of SOSA™-aligned 3U OpenVPX SBC I/O cards. All RP0, RP1, and RP2 signals are routed to accessible front-panel and inboard connectors for engineering debug and validation.

Caution

Do not connect to any undesignated or n/c pins.

Note

The following notes apply unless otherwise specified:

1. Maximum ratings for the VPX MultiGig-RT2 type rear I/O connectors are as follows (per TE connectivity 108-2072, Rev F):
       • Operating Voltage: 166 volts AC peak or DC
       • Current: Signal Wafers: 1.5 ampere at <30°C (Single circuit, free air)
2. This document provides signal names for reference only and may be referring to the 68RT-SOSA-DEBUG board.

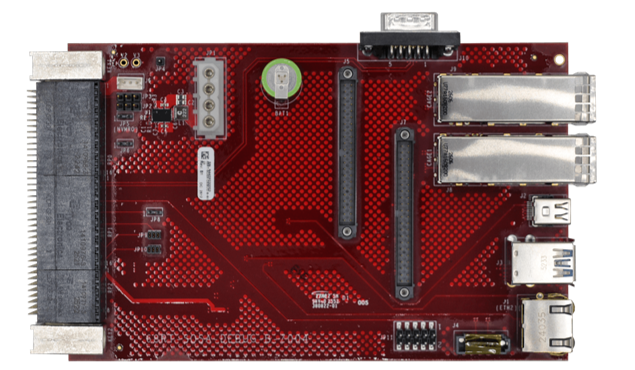

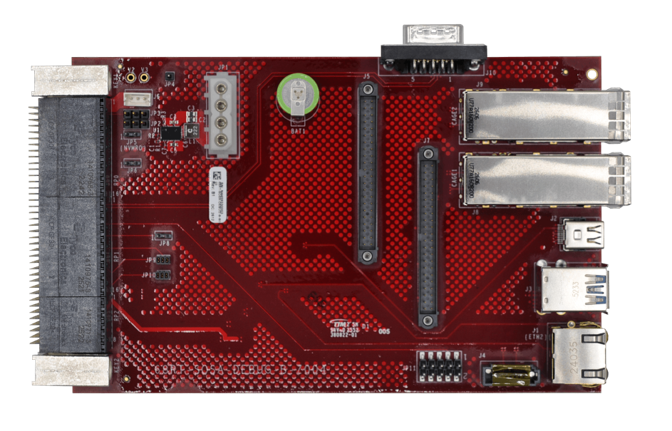

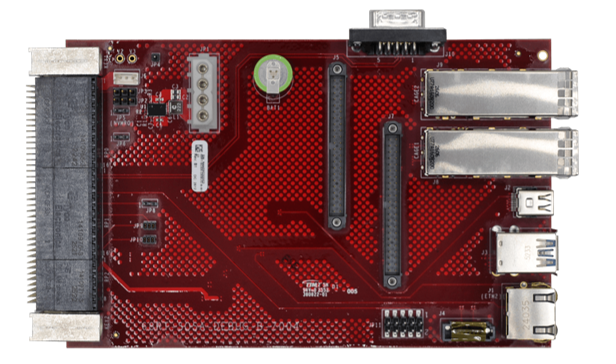

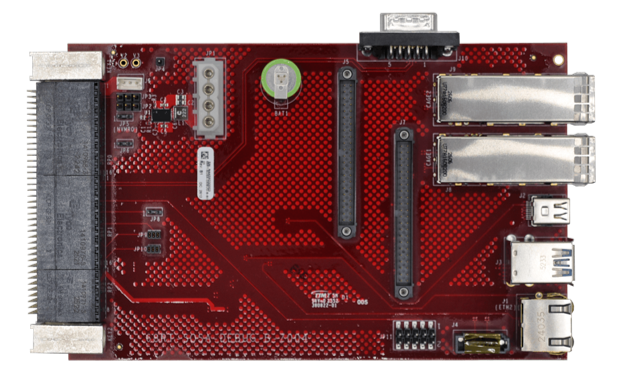

RTM CONNECTORS POSITIONING AND LAYOUT

RTM DEFINED I/O PIN-OUTS

RTM VPX RP0 I/O Definition

	Row	Row	Row	Row	Row	Row	Row
RP0	A	B	C	D	E	F	G
1	n/c	n/c	n/c	n/c	+12V	+12V	+12V
2	n/c	n/c	n/c	n/c	+12V	+12V	+12V
3	n/c	n/c	n/c	n/c	n/c	n/c	n/c
4	NVMRO	P0_SYSRST#	GND	n/c	GND	IPMB_SDA_B	IPMB_SCL_B
5	IPMB_SDA_A	IPMB_SCL_A	GND	+3V3_AUX	GND	n/c	n/c
6	n/c	n/c	GND	n/c	GND	n/c	n/c
7	n/c	n/c	GND	n/c	n/c	GND	n/c
8	GND	n/c	n/c	GND	n/c	n/c	GND
9	n/c	n/c	GND	n/c	n/c	GND	GDISCRETE1
10	GND	n/c	n/c	GND	n/c	n/c	GND
11	n/c	n/c	GND	n/c	n/c	GND	RTC_STDBY
12	GND	n/c	n/c	GND	n/c	n/c	GND
13	n/c	n/c	GND	n/c	n/c	GND	n/c
14	GND	n/c	n/c	GND	n/c	n/c	GND
15	n/c	n/c	GND	n/c	n/c	GND	+5V_USB1
16	GND	n/c	n/c	GND	n/c	n/c	GND

KEY

	= Maintenance		= IPMB Bus A
	= USB1 (3.0 capable)		= IPMB Bus B

RTM VPX RP1 I/O Definition

	Row	Row	Row	Row	Row	Row	Row
RP1	A	B	C	D	E	F	G
1	MOD1_DATIO4	MOD1_DATIO3	GND	MOD1_DATIO2	MOD1_DATIO1	GND	n/c (SER_TXD)
2	GND	MOD1_DATIO8	MOD1_DATIO7	GND	MOD1_DATIO6	MOD1_DATIO5	GND
3	MOD1_DATIO12	MOD1_DATIO11	GND	MOD1_DATIO10	MOD1_DATIO9	GND	n/c (SER_RXD)
4	GND	MOD1_DATIO16	MOD1_DATIO15	GND	MOD1_DATIO14	MOD1_DATIO13	GND
5	MOD1_DATIO20	MOD1_DATIO19	GND	MOD1_DATIO18	MOD1_DATIO17	GND	TTL-CH1
6	GND	MOD1_DATIO24	MOD1_DATIO23	GND	MOD1_DATIO22	MOD1_DATIO21	GND
7	KX_S3_IN_P	KX_S3_IN_N	GND	KX_S3_OUT_P	KX_S3_OUT_N	GND	n/c (MRSTn)
8	GND	KX_S1_IN_P	KX_S1_IN_N	GND	KX_S1_OUT_P	KX_S1_OUT_N	GND
9	DDP_B0_D_P	DDP_B0_D_N	GND	DDP_B1_D_P	DDP_B1_D_N	GND	n/c (SER_TXD0)
10	GND	DDP_B2_D_P	DDP_B2_D_N	GND	DDP_B3_D_P	DDP_B3_D_N	GND
11	HDMI_SCL_AUXP	HDMI_SDA_AUXN	GND	HDMI_HPD	+V5S_VIDEO	GND	n/c (SER_TXD2)
12	GND	USB1_P	USB1_N	GND	USB2_P	USB2_N	GND
13	USB1_SSRX_P	USB1_SSRX_N	GND	USB1_SSTX_P	USB1_SSTX_N	GND	n/c (SER_RXD0)
14	GND	VPX_SATA1_RX_P	VPX_SATA1_RX_N	GND	VPX_SATA1_TX_P	VPX_SATA1_TX_N	GND
15	ETH2_TP0_P	ETH2_TP0_N	GND	ETH2_TP1_P	ETH2_TP1_N	GND	n/c (SER_RXD2)
16	GND	ETH2_TP2_P	ETH2_TP2_N	GND	ETH2_TP3_P	ETH2_TP3_N	GND

KEY

	= USB1 (3.0 capable)		= DisplayPort
	= USB2 (2.0)		= TTL
	= MODULE (2) Standard I/O		= SATA III
	= Ethernet 2		= 10GBase-KR

RTM VPX RP2 I/O Definition

	Row	Row	Row	Row	Row	Row	Row
RP2	A	B	C	D	E	F	G
1	MOD2_DATIO12	MOD2_DATIO11	GND	MOD2_DATIO6	MOD2_DATIO5	GND	+5V_USB2
2	GND	MOD2_DATIO30	MOD2_DATIO29	GND	MOD2_DATIO18	MOD2_DATIO17	GND
3	MOD2_DATIO22	MOD2_DATIO21	GND	MOD2_DATIO20	MOD2_DATIO19	GND	TTL_CH2
4	GND	MOD2_DATIO32	MOD2_DATIO31	GND	MOD2_DATIO24	MOD2_DATIO23	GND
5	MOD2_DATIO4	MOD2_DATIO3	GND	MOD2_DATIO2	MOD2_DATIO1	GND	TTL_CH3
6	GND	MOD2_DATIO26	MOD2_DATIO25	GND	MOD2_DATIO14	MOD2_DATIO13	GND
7	MOD2_DATIO10	MOD2_DATIO9	GND	MOD2_DATIO8	MOD2_DATIO7	GND	TTL_CH4
8	GND	MOD2_DATIO28	MOD2_DATIO27	GND	MOD2_DATIO16	MOD2_DATIO15	GND

KEY

	= MODULE (2) Standard I/O
	= USB2 (2.0)
	= TTL

J1, RJ45 GbE (ETH2) Jack

One RJ45 jack for GbE (ETH2)
MFG: 2-406549-4, TE Connectivity, RJ45 8-pin module jack, or equivalent

68RT-SOSA-DEBUG J1 RJ45 Module Jack

VPX-RP	Signal (REF)	RJ45 Jack J1
RP1-A15	ETH2-TP0+	1
RP1-B15	ETH2-TP0-	2
RP1-D15	ETH2-TP1+	3
RP1-B16	ETH2-TP2+	4
RP1-C16	ETH2-TP2-	5
RP1-E15	ETH2-TP1-	6
RP1-E16	ETH2-TP3+	7
RP1-F16	ETH2-TP3-	8
	LED1-C	9
	LED1-A	10
	LED2-C	11
	LED2-A	12
	N/C	13
	N/C	14
	GND	15
	GND	16

KEY

= Port 2 / 10/100/1000Base-T (option)

J2, DisplayPort

One panel mini DisplayPort receptacle for HDMI/DDP video (J2)
MFG: E9320-001-01, Pulse (or equivalent)

68RT-SOSA-DEBUG J2 Mini-DisplayPort Video

VPX RP	Signal (REF)	Mini DisplayPort J2
	GND	1
RP1-D11	HDMI_HPD	2
RP1-A9	DDP_B0_D_P	3
	n/c	4
PR1-B9	DDP_B0_D_N	5
	n/c	6
	GND	7
	GND	8
RP1-D9	DDP_B1_D_P	9
RP1-E10	DDP_B3_D_P	10
RP1-E9	DDP_B1_D_N	11
RP1-F10	DDP_B3_D_N	12
	GND	13
	GND	14
RP1-B10	DDP_B2_D_P	15
RP1-A11	HDMI_SCL_AUXP	16
RP1-C10	DDP_B2_D_N	17
RP1-B11	HDMI_SDA_AUXN	18
	GND	19
RP1-E11	+V5S_VIDEO	20

J3, USB

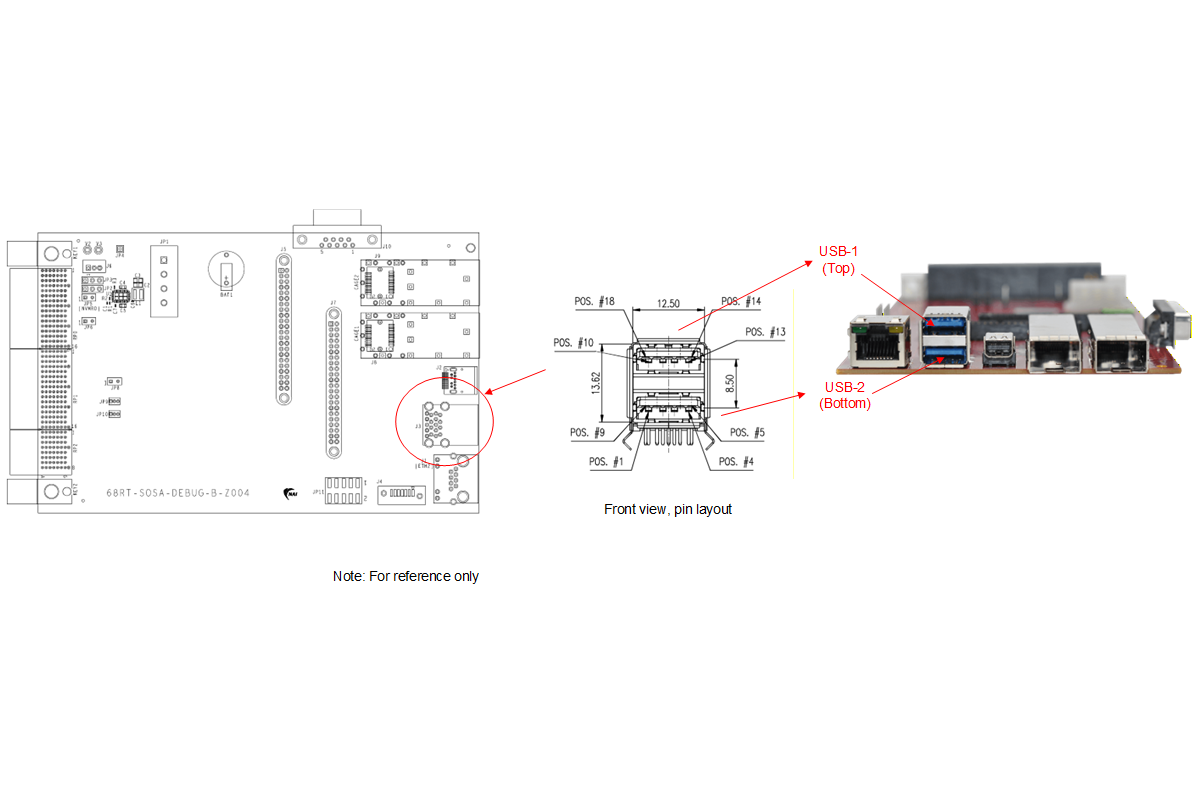

Two panel USB-A receptacles (stacked), for USB Port 1 & Port 2 (J3, A & B)
MFG: GSB311231HR, AMPHENOL; Connector, USB 3.0 STD A Stacked, or equivalent
(2x USB Type A)

68RT-SOSA-DEBUG J3 USB

VPX RP	Signal (REF)	USB Type-A J3
RP0-G15	+5V_USB1	1
RP1-C12	USB1_N	2
RP1-B12	USB1_P	3
	GND	4
RP1-B13	USB1_SSRX_N	5
RP1-A13	USB1_SSRX_P	6
	GND	7
RP1-E13	USB1_SSTX_N	8
RP1-D13	USB1_SSTX_P	9
RP2-G1	+5V_USB2	10
RP1-F12	USB2_N	11
RP1-E12	USB2_P	12
	GND	13
	n/c	14
	n/c	15
	GND	16
	n/c	17
	n/c	18

KEY

	= USB1 (3.0 capable)
	= USB2 (2.0)

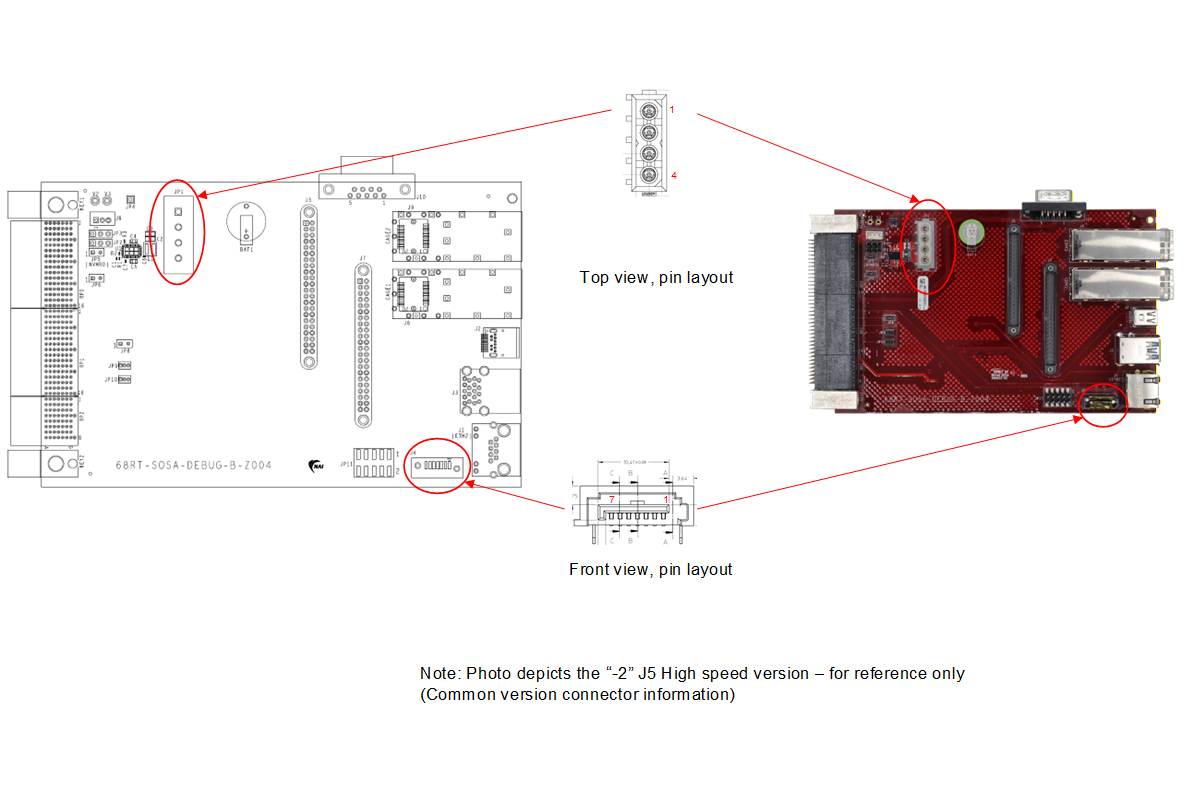

J4 & JP1, SATA & SATA Power

One inboard SATA-II/III capable data connector (J4)
MFG: 47306-5005, Molex; CONN, 7 Pin, High-Speed Connector, 1.27mm, Vertical, SM, or equivalent

One inboard SATA-power receptacle (JP1)
MFG: 794285-1, TE Connectivity, Header, 4 x 1, 5.08mm, Vertical, TH

68RT-SOSA-DEBUG J4 SATA Data & JP1 SATA Power

VPX RP	Signal (REF)	SATA J4		VPX RP	Signal (REF)	SATA JP1
	GND	1			+12V	1
RP1-E14	VPX_SATA1_TX_P	2			GND	2
RP1-F14	VPX_SATA1_TX_N	3			GND	3
	GND	4			+5V	4
RP1-C14	VPX_SATA1_RX_N	5
RP1-B14	VPX_SATA1_RX_P	6
	GND	7

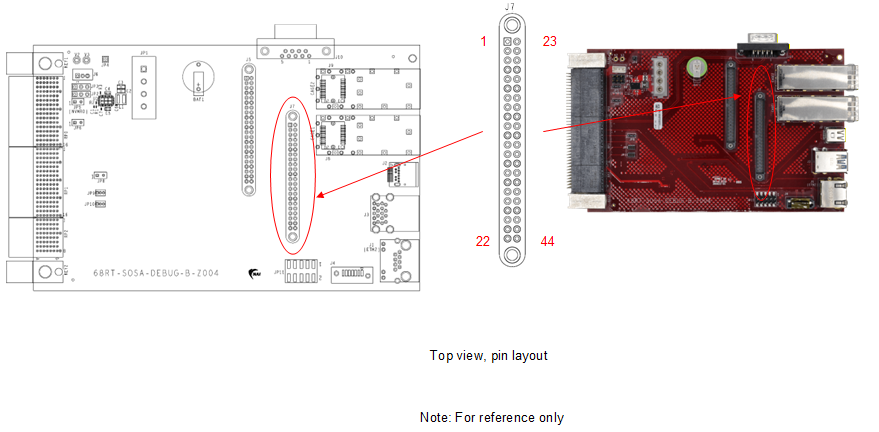

J5 & J7, Inboard Module Function I/O Connector Interfaces

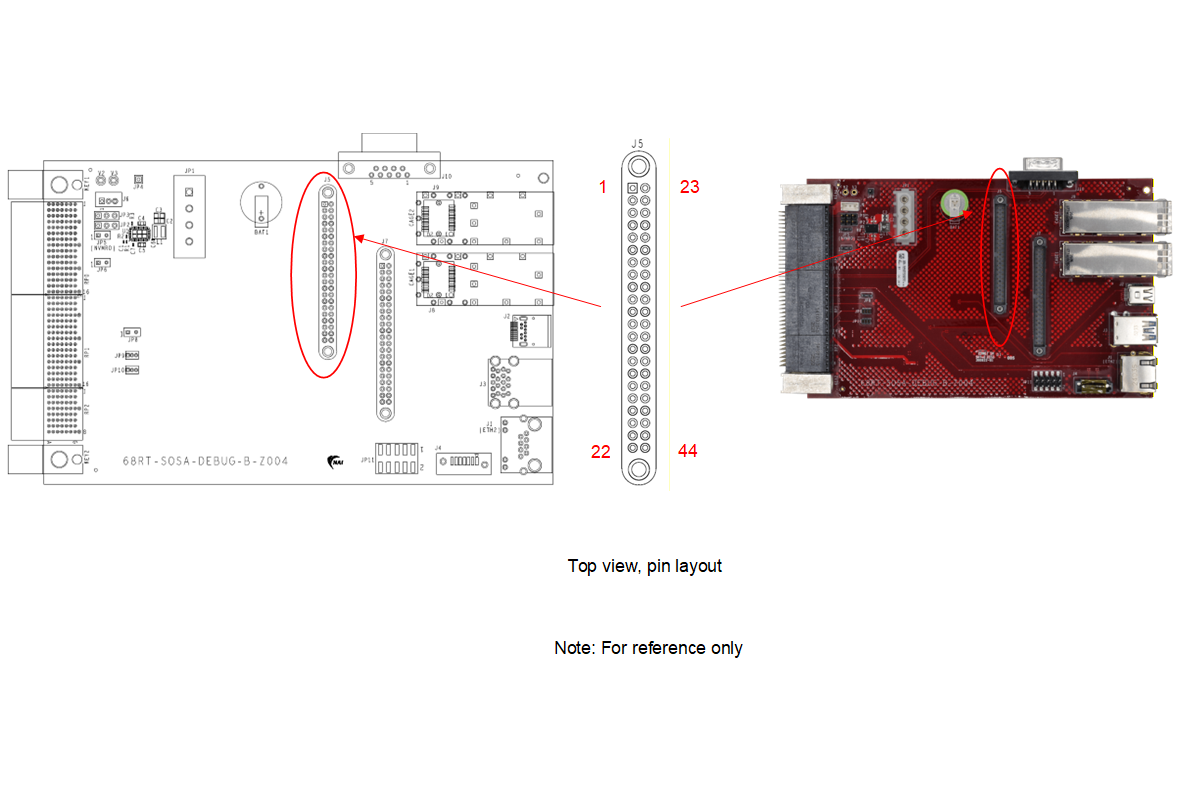

Two inboard 44-pin Header, Module Standard I/O interface (J5, J7)
MFG: M80-5114422, Harwin; CONN, 44Pin, Male, Vertical, 2MM Spacing, or equivalent

68RT-SOSA-DEBUG J5 (M1) Inboard Module Standard I/O

VPX RP		J5 Inboard I/O			VPX RP
	GND	1	23	GND
RP1-E1	MOD1-DATIO01	2	24	MOD1-DATIO02	RP1-D1
RP1-B1	MOD1-DATIO03	3	25	MOD1-DATIO04	RP1-A1
	n/c	4	26	n/c
RP1-F2	MOD1-DATIO05	5	27	MOD1-DATIO06	RP1-E2
	n/c	6	28	n/c
RP1-C2	MOD1-DATIO07	7	29	MOD1-DATIO08	RP1-B2
RP1-E3	MOD1-DATIO09	8	30	MOD1-DATIO10	RP1-D3
	n/c	9	31	n/c
RP1-B3	MOD1-DATIO11	10	32	MOD1-DATIO12	RP1-A3
	n/c	11	33	n/c
RP1-F4	MOD1-DATIO13	12	34	MOD1-DATIO14	RP1-E4
RP1-C4	MOD1-DATIO15	13	35	MOD1-DATIO16	RP1-B4
	n/c	14	36	n/c
RP1-E5	MOD1-DATIO17	15	37	MOD1-DATIO18	RP1-D5
	n/c	16	38	n/c
RP1-B5	MOD1-DATIO19	17	39	MOD1-DATIO20	RP1-A5
RP1-F6	MOD1-DATIO21	18	40	MOD1-DATIO22	RP1-E6
	n/c	19	41	n/c
RP1-C6	MOD1-DATIO23	20	42	MOD1-DATIO24	RP1-B6
	n/c	21	43	n/c
	n/c	22	44	n/c

68RT-SOSA-DEBUG J7 (M2) Inboard Module Standard I/O

VPX RP		J7 Inboard I/O			VPX RP
	GND	1	23	GND
RP2-E5	MOD2-DATIO01	2	24	MOD2-DATIO02	RP2-D5
RP2-B5	MOD2-DATIO03	3	25	MOD2-DATIO04	RP2-A5
RP2-C6	MOD2-DATIO25	4	26	MOD2-DATIO26	RP2-B6
RP2-E1	MOD2-DATIO05	5	27	MOD2-DATIO06	RP2-D1
	n/c	6	28	n/c
RP2-E7	MOD2-DATIO07	7	29	MOD2-DATIO08	RP2-D7
RP2-B7	MOD2-DATIO09	8	30	MOD2-DATIO10	RP2-A7
RP2-C8	MOD2-DATIO27	9	31	MOD2-DATIO28	RP2-B8
RP2-B1	MOD2-DATIO11	10	32	MOD2-DATIO12	RP2-A1
	n/c	11	33	n/c
RP2-F6	MOD2-DATIO13	12	34	MOD2-DATIO14	RP2-E6
RP2-F8	MOD2-DATIO15	13	35	MOD2-DATIO16	RP2-E8
RP2-C2	MOD2-DATIO29	14	36	MOD2-DATIO30	RP2-B2
RP2-F2	MOD2-DATIO17	15	37	MOD2-DATIO18	RP2-E2
	n/c	16	38	n/c
RP2-E3	MOD2-DATIO19	17	39	MOD2-DATIO20	RP2-D3
RP2-B3	MOD2-DATIO21	18	40	MOD2-DATIO22	RP2-A3
RP2-C4	MOD2-DATIO31	19	41	MOD2-DATIO32	RP2-B4
RP2-F4	MOD2-DATIO23	20	42	MOD2-DATIO24	RP2-E4
	n/c	21	43	n/c
	n/c	22	44	n/c

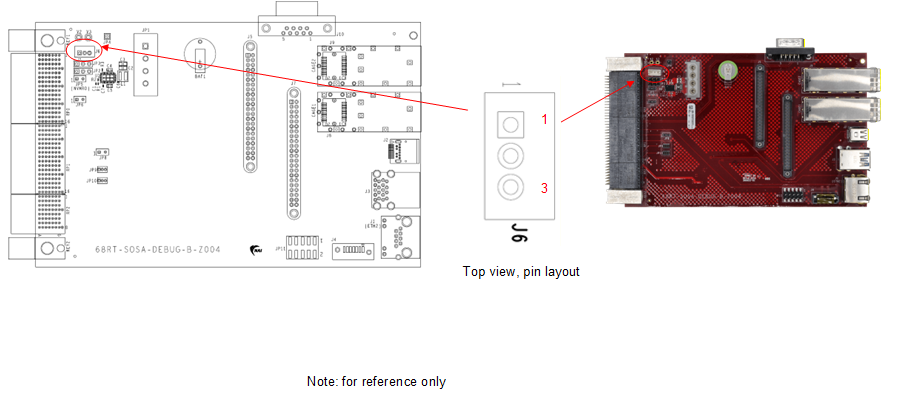

J6, +12V Accessory Power

One inboard power header, +12V for low current accessory use (e.g., fan)
MFG: 53014-0310, Molex, CONN, 3-pin Microblade, 2mm spacing, or equivalent

68RT-SOSA-DEBUG J6 +12V Accessory Power

VPX RP	Signal (REF)	+12V Acc Pwr J6
	+12V	1
	GND	2
	n/c	3

J8 & J9, High Speed I/O Connector Interfaces

Two inboard 20-pin receptacle, for 10GBase-KX (J8, J9)
MFG: UE76-A20-5000T, Amphenol; CONN, SFP+ receptacle, 20 position, Right Angle, or equivalent

68RT SOSA-DEBUG J8, J9 High-Speed I/O Connectors

VPX RP		J8 Connector			VPX RP
	n/c	1	11	GND
	n/c	2	12	KX_S1_IN_N	RP1-C8
	n/c	3	13	KX_S1_IN_P	RP1-B8
	n/c	4	14	GND
	n/c	5	15	n/c
	n/c	6	16	n/c
	n/c	7	17	GND
	n/c	8	18	KX_S1_OUT_P	RP1-E8
	n/c	9	19	KX_S1_OUT_N	RP1-F8
	n/c	10	20	GND
VPX RP		J9 Connector			VPX RP
	n/c	1	11	GND
	n/c	2	12	KX_S3_IN_N	RP1-B7
	n/c	3	13	KX_S3_IN_P	RP1-A7
	n/c	4	14	GND
	n/c	5	15	n/c
	n/c	6	16	n/c
	n/c	7	17	GND
	n/c	8	18	KX_S3_OUT_P	RP1-D7
	n/c	9	19	KX_S3_OUT_N	RP1-E7
	n/c	10	20	GND

J10, Serial Plug

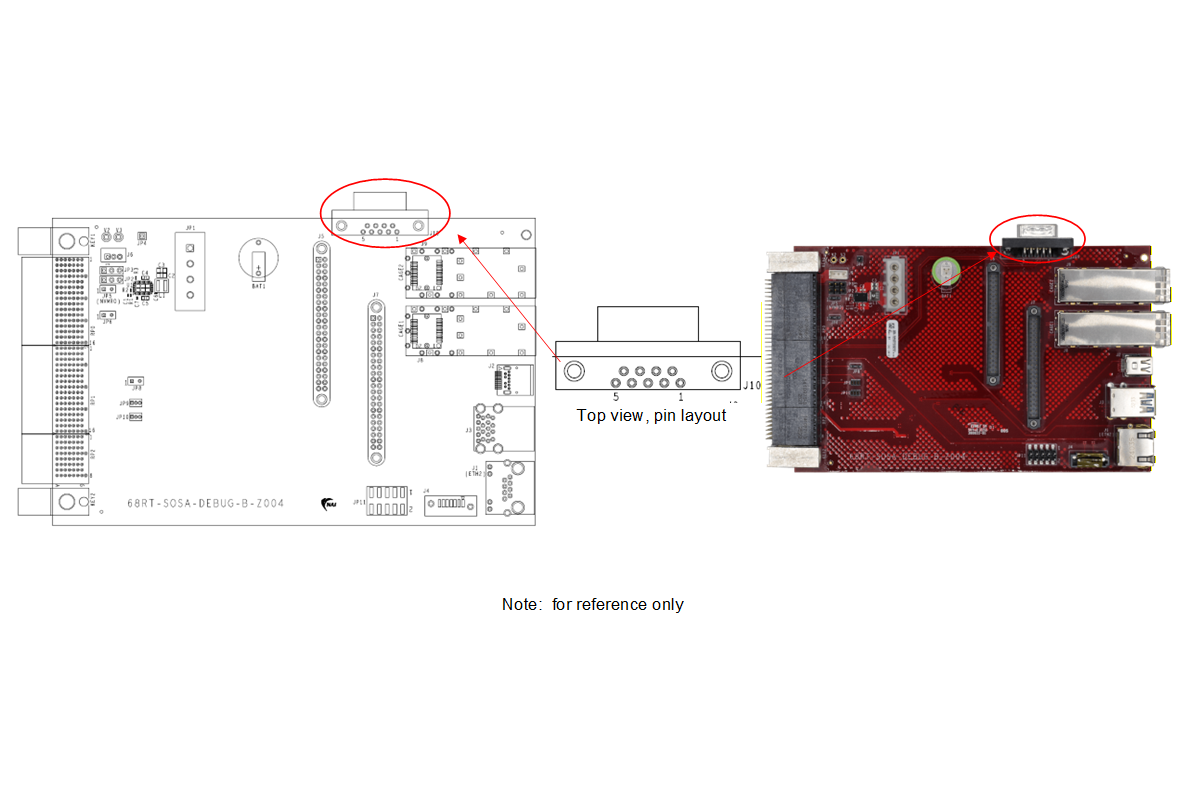

9-pin DSub Connector (J10)
MFG: 5177597-9, TE Connectivity; CONN, 9Pin, Male, DSub, U-Slim, RTAngle, or equivalent

68RT-SOSA-DEBUG J10, Serial Connector

VPX RP	Signal (REF)	Serial J10
	n/c	1
RP1-G3	SER_RXD	2
RP1-G1	SER_TXD	3
	n/c	4
	GND	5
	n/c	6
	n/c	7
	n/c	8
	n/c	9

JP2, & JP3 IPMB Headers

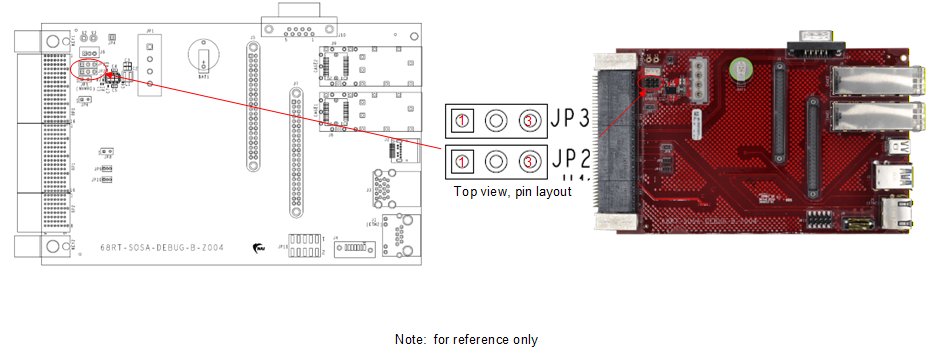

Two IPMB (A & B) 3-pin Headers (JP2, JP3)
MFG: TWS-103-14-G-S, SAMTEC; HDR, 3x 1, 0.100”, Low Profile, Vertical, or equivalent

68RT-SOSA-DEBUG JP2 & JP3, IPMB jumper/shunts

VPX RP	Signal (REF)	IPMB BUSA JP2
RP0-B5	IPMB_SCL_A	1
RP0-A5	IPMB_SDA_A	2
	GND	3
VPX RP	Signal (REF)	IPMB BUSB JP3
RP0-G4	IPMB_SCL_B	1
RP0-F4	IPMB_SDA_B	2
	GND	3

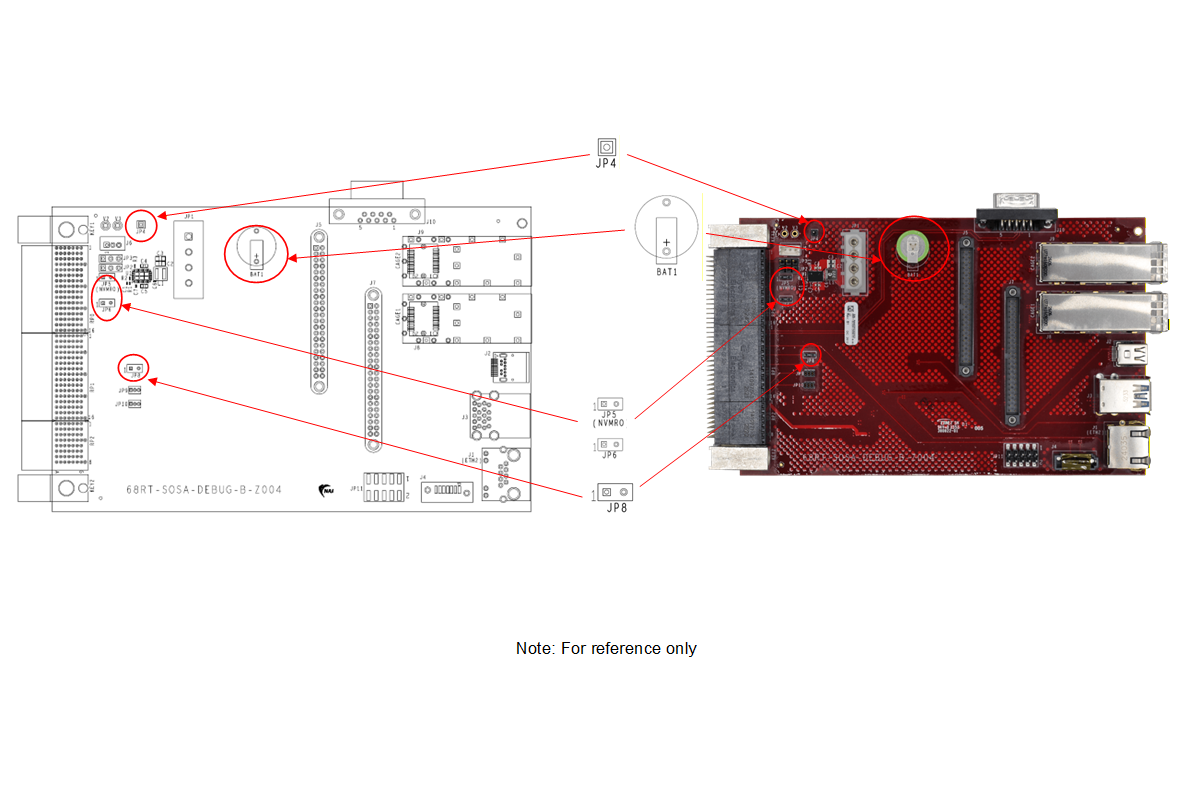

JP4, JP5, JP6, & JP8 Ancillary Select jumper/shunts and SYS GND reference point

One inboard 2-pin header, jumper, NVMRO (JP5)
One inboard 2-pin header for RTC_STDBY, external or 3.3V battery select (JP6)
One inboard 2-pin header, jumper, MRSTn (JP8)
MFG: TMS-101-51-T-D (x2), SAMTEC; HDR,1x 2, 0.05”, Vertical, TH or equivalent

BAT1: BR-1225A/HBN, Panasonic; Battery, 3V, 48mAh, Lithium, or equivalent

One inboard 1-pin header, SYS GND Reference point (JP4)
MFG: TSW-101-06-T-S, SAMTEC; CONN, HDR,1X1, .100, VERTICAL, TH

68RT-SOSA-DEBUG JP5, JP6, JP8 & JP4, Ancillary Select jumper/shunts

VPX RP	Signal (REF)	NVMRO JP5
RP0-A4	NVMRO	1
	GND	2

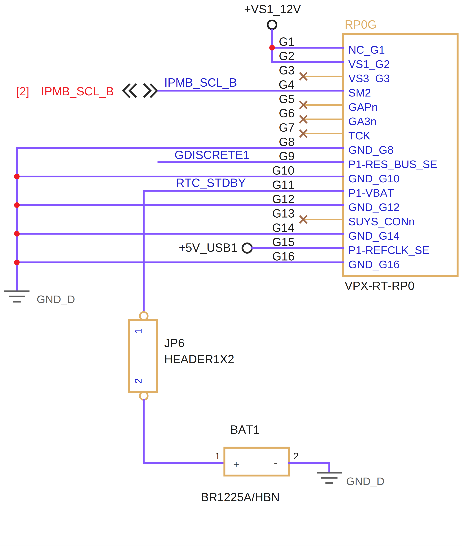

VPX RP	Signal (REF)	RTC_STDBY JP6
RP0-G11	RTC_STBY	1
	BAT1 @ +3.3V	2
VPX RP	Signal (REF)	MRSTn JP8
RP1-G7	MRSTn	1
	GND	2
	Signal (REF)	SYS GND JP4
	GND	1

NVMRO = Non-volatile memory read only
MRSTn = Master Reset

JP9 & JP10, SER Sockets

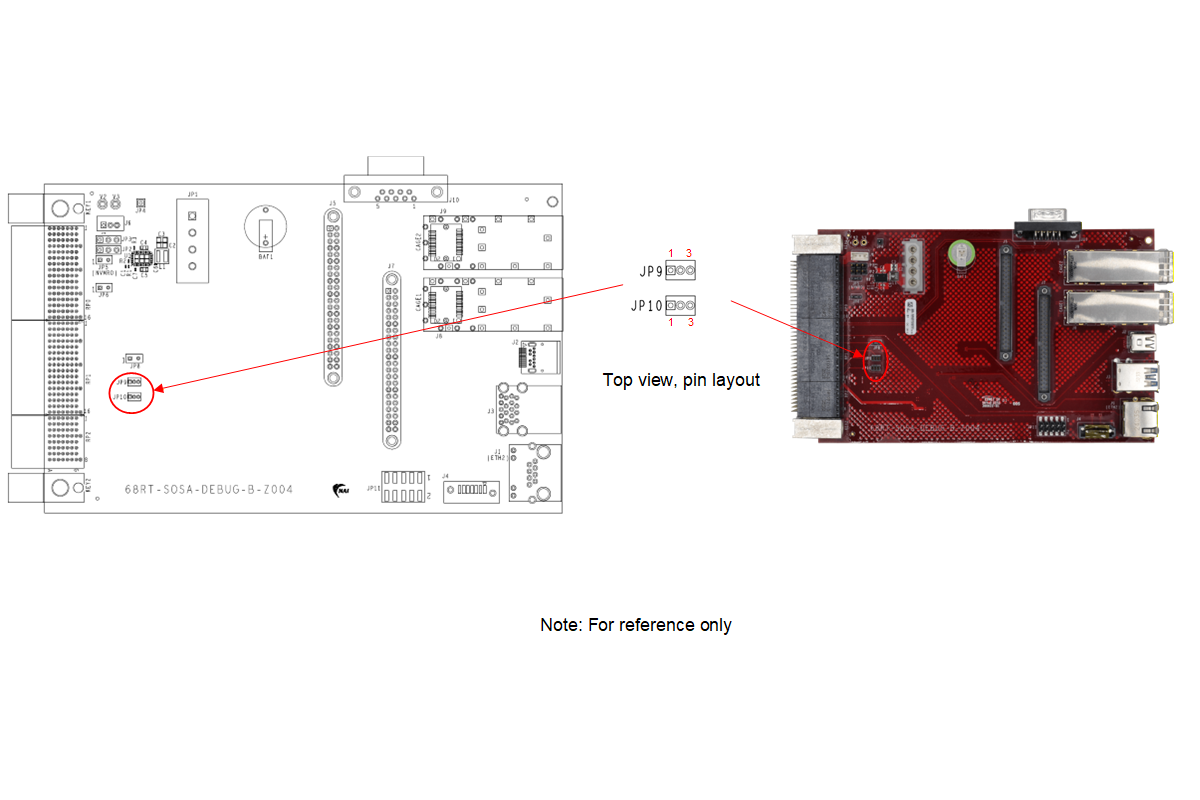

Two Serial (SER0 & SER2) 3-pin Sockets (JP9 & JP10)
MFG: SLM-103-01-G-S, Samtec; SOC, 3x1, 1.27 mm Low Profile, Vertical, or equivalent

68RT-SOSA-DEBUG JP9 & JP10 Serial Interface Sockets

VPX RP	Signal (REF)	SER0 JP9	VPX RP	Signal (REF)	SER2 JP10
RP1-G13	SER_RXD0	1	RP1-G15	SER_RXD2	1
RP1-G9	SER_TXD0	2	RP1-G11	SER_TXD2	2
	GND	3		GND	3

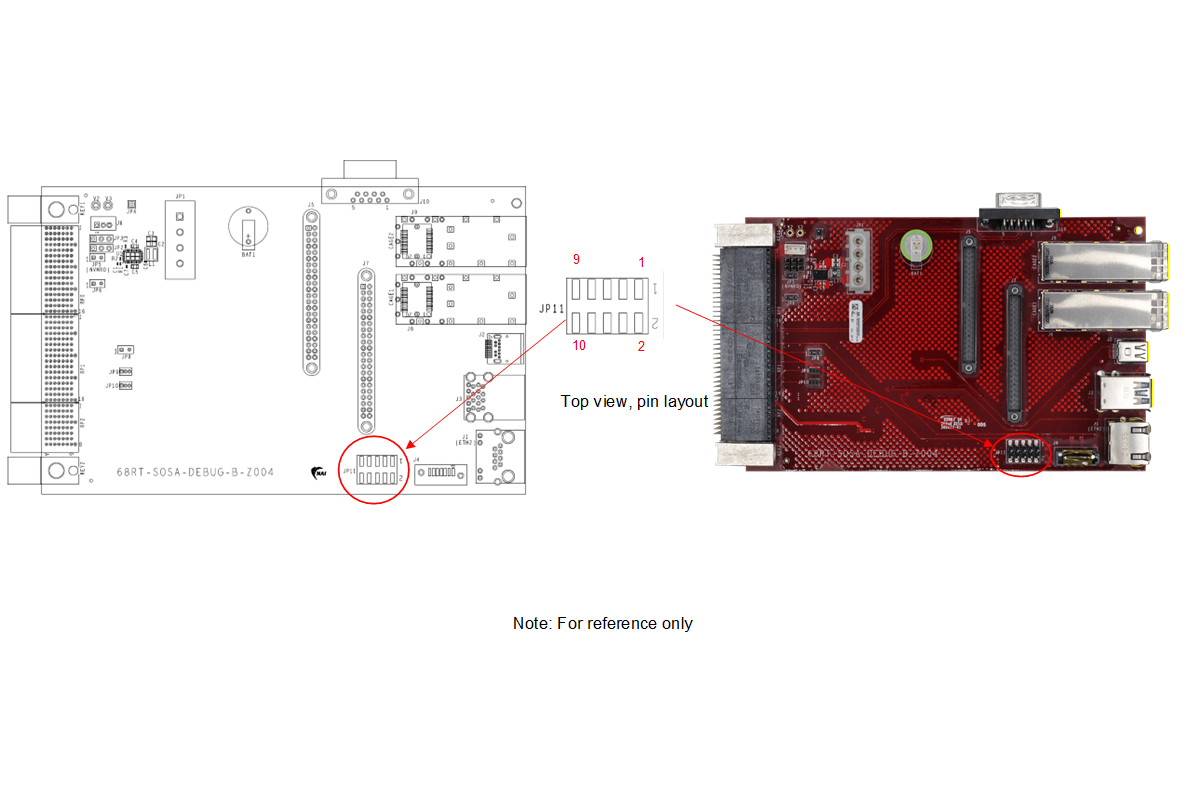

JP11, TTL_CH1-4, GDiscrete Jumper/Header

One inboard 5-pin header, jumper, TTL_CH1-4, GDiscrete (JP11)
MFG: TSM-105-02-T-DV, Samtec; HDR, 5x2, 0.100” spacing, Vertical, SM or equivalent

68RT-SOSA-DEBUG JP11, TTL_CH1-4, GDiscrete jumper/header

VPX RP	Signal (REF)	TTL/GDiscrete JP11
RP0-G9	GDISCRETE1	1
	System GND	2
RP1-G5	TTL_CH1	3
	System GND	4
RP2-G3	TTL_CH2	5
	System GND	6
RP2-G5	TTL_CH3	7
	System GND	8
RP2-G7	TTL_CH4	9
	System GND	10

PART NUMBER DESIGNATION

68RT-SOSA-DEBUG-B-B003 is the default part number:

Standard Product Part Number(s): 68RT-SOSA-DEBUG-B-B003

• Supports standard function module I/O & routing. • J5/J7 = Harwin 44-pin type header

Specifications are subject to change without notice.

REVISION HISTORY

68RT SOSA DEBUG Data Sheet Revision History
Revision	Revision Date	Description
1	2026-04-13	Draft data sheet.
A	2026-07-27	ECO C13565, initial release of data sheet.

DOCS.NAII REVISIONS

Revision Date	Description
2026-08-20	Updated documentation to docs.naii format.

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100

Link to original
