RT1 Overview
NAI’s RT1 module offers a range of advanced features tailored to meet the demands of precision measurement applications, particularly in scenarios with temperatures below 600°C where accuracy and repeatability are paramount. Designed with meticulous attention to detail, this
module offers a comprehensive solution for electrical engineers seeking top-tier performance.
RTD Measurement:
Higher Accuracy and Repeatability: The RT1 module excels in accuracy and repeatability when compared to thermocouples, making it an ideal choice for applications with operating temperatures below 600°C. This characteristic ensures that critical measurements
are obtained with the utmost precision.
Wire Modes: The module provides flexibility with two, three, or four-wire modes, allowing users to adapt to various measurement setups and requirements, enhancing versatility in different scenarios.
Factory Calibration: NAI takes precision seriously by calibrating channels at the factory for Pt100, Pt500, Pt1000, and Pt2000 RTDs. This ensures that the module is ready for precise measurements right out of the box, saving time and effort in calibration.
Data Format: The module utilizes the Single Precision Floating Point Value (IEEE-754) format for data representation, enabling compatibility and ease of integration with other systems and equipment.
Open Sensor Detection: The RT1 module is equipped with a built-in feature to detect and report open sensor connections. This safeguards against inaccurate measurements caused by sensor failures, promoting data integrity.
Excitation Sources: To accommodate various RTD ranges, the module provides excitation sources of 1 mA, 500 μA, 250 μA, and 100 μA for Pt100, Pt500, Pt1000, and Pt2000 ranges. This feature ensures precise measurements across a wide range of applications.
Independently Programmable: The RT1 module offers the capability to independently program up to 8 RTD channels. This feature is invaluable for engineers working on complex systems with multiple measurement points, allowing for tailored configuration and control.
Programmable Sample Rate: Users can set the sampling rate of the analog-to-digital converter (A/D) to match the specific needs of their application. This programmable sample rate ensures that data acquisition is optimized for accuracy and efficiency.
Offset Temperature: The offset temperature feature provides engineers with the means to nullify system-induced measurement errors. This is crucial in achieving the highest level of measurement precision and reliability, especially in critical applications where accuracy is paramount.
PRINCIPLE OF OPERATION
The RT1 provides 8 RTD measurement channels. Each channel is configurable for use with 4-wire, 3-wire, or 2-wire connections to the RTD sensors. All RTD channels are calibrated at the factory and measurement results provided in Single Precision Floating Point Value (IEEE-754)
format.
Open sensor connections are detected and reported in an Open status word. A 1mA excitation source is used for resistance measurement in the lowest range setting (Pt100). For the Pt500, Pt1000 and Pt2000 ranges, the excitation current sources are 500µA, 250µA, and 100µA
respectively.
Lead resistance correction is available in 2-wire mode, allowing for user compensation of cabling resistance in the measurement system. Resistance values may be entered for individual channels, which are subtracted from the measurement. The temperature measurements will
reflect the compensated resistance values for the RTD for direct readout of the corrected temperature readings.
As with the Thermocouple mode, the temperature offset provisions allow for the same nulling of the temperature offsets in the system and operate
similarly.

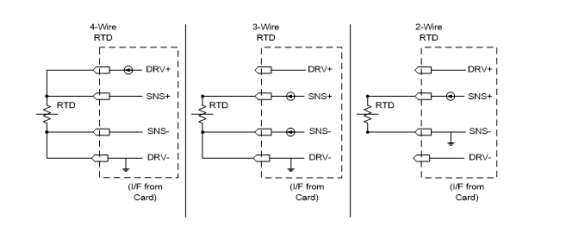

2-Wire is the simplest resistance measurement configuration, requiring only two wires per sensor. Measurements will be very sensitive to test cabling, as the excitation current and voltage measurements are through the same wires. Short or low resistance test leads are needed for accurate readings. Provisions for nulling the test lead resistances are provided via individual 2-wire offset resistance registers, allowing direct readings of the compensated measurements on a per channel basis.
3-Wire configuration relies on balanced test lead resistance on the Sense (+) and Sense (-) wires, so the voltage drop across each of the two current source lines are equal and cancel each other out. The differential voltage reading between the two sense lines along with the excitation current through the resistor is used in the resulting calculation of the sensor resistance. The test lead wire length will not affect the measurement provided the two lines are equal in resistance and is often the best compromise between wiring requirements and accuracy. In 3-Wire mode, the excitation current is split in half. Half of the total current flows on each of the sense lines (see 3-Wire RTD connection diagram).
4-Wire configuration provides optimal accuracy, allowing precise measurements without any constraints of short or balanced test leads, but requires 4 wires per sensor. The two sense wires measure the voltage at the sensor independently without undue influence of voltage drops due to the excitation current. This configuration is recommended where accuracy is a priority over the additional wiring requirements.
Built-In-Test (BIT)/Diagnostic Capability
Automatic background BIT testing is provided. Each channel is checked for correct A/D operation using an on-board 100 Ω nominal resistor. The open input detection test applies a 0.5 µA current to the A/D converter inputs. The FPGA then tests for a full-scale reading, indicating an open circuit. Any failure triggers an interrupt, if enabled, with the results available in the status registers. The testing is totally transparent to the user and has no effect on the operation of this module. It can be enabled or disabled. It is enabled by default.
Temperature Threshold Detect Programming
The RT1 provides the ability to program two temperature thresholds that will result in temperature alerts. For each threshold, a “low” and a “high” threshold value is specified that will be used to set the Temperature Alert statuses. The Temperature Threshold Low registers sets the threshold values to use to set the Temperature Alert Low status bit when the Temperature reading is below the low temperature threshold value. Conversely, the Temperature Threshold High registers sets the threshold values to use to set the Temperature Alert High status bit when the Temperature reading is above the high temperature threshold value. These threshold values are individually configurable on a per channel basis.
A possible usage of the two temperature thresholds is to use the first threshold detection levels as an early warning pre-alarm level and the second threshold detection levels as an alarm limit value. For this purpose, the Detect 2 thresholds should be set at larger deviation values from the nominal temperature than the Detect 1 thresholds.
For example:
(Threshold Low 2) < (Threshold Low 1) < (Nominal Temperature) < (Threshold High 1) < (Threshold High 2)
This allows the Detect 1 thresholds to serve as a pre-alert warning of temperature excursion, while Detect 2 may represent an alarm condition. Note: these detect thresholds are not necessarily set in this order and may be independently set either way.
Status and Interrupts
The RT1 Function Module provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of
Operation description.
Module Common Registers
The RT1 Function Module includes module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the
detailed information.
REGISTER DESCRIPTIONS
|The register descriptions provide the register name, Function Address Offset, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.
RT1 Measurement Registers
Temperature (°C)
Function:
Measures the temperature of the RTD sensor.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
RTD temperature measurement in degrees Celsius.
Temperature (°F)
Function:
Measures the temperature of the thermocouple/ RTD sensor.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
RTD temperature measurement in degrees Fahrenheit.
Resistance
Function:
Measures resistance of the RTD sensor.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
Measures resistance in ohms. This measurement may optionally be adjusted through a user entry of a 2-wire lead resistance compensation value.
RT1 Control Registers
RTD or Thermocouple
Function:
Indicates whether the module is an RTD or Thermocouple.
Data Range:
0 or 1
Read/Write:
R
Initialized Value:
1 (RTD Mode)
Operational Settings:
On the RT1 the value of the RTD or Thermocouple register is set to 1 for Resistance Temperature Detector (RTD) mode.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D
Sample Rate
Function:
Sets the sampling rate of the sensor.
Type:
unsigned binary word (32-bit)
Data Range:
0x00 to 0x27 (See table)
Read/Write:
R/W
Initialized Value:
0x27 (3 Hz)
Operational Settings:
Set the value based on Sample Rate table. Note: lower rates provide greater stability and accuracy in the readings. Per channel configuration.
Sample Rate Register Value
Update Frequency ` (Hz) .21`
Sample Rate Register Value
Update Frequency + (Hz)
0x0
4800
0x14
75
0x1
2400
0x15
64
0x2
1600
0x16
60
0x3
1200
0x17
50
0x4
960
0x18
48
0x5
800
0x19
40
0x6
600
0x1A
32
0x7
480
0x1B
30
0x8
400
0x1C
25
0x9
320
0x1D
24
0xA
300
0x1E
20
0xB
240
0x1F
16
0xC
200
0x20
15
0xD
192
0x21
12
0xE
160
0x22
10
0xF
150
0x23
8
0x10
120
0x24
6
0x11
100
0x25
5
0x12
96
0x26
4
0x13
80
0x27
3
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
D
D
RTD Type
Function:
RTD nominal resistance at 0°C.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
See table
Read/Write:
R/W
Initialized Value:
100.0 (0x42C8 0000 in floating point)
Operational Settings:
Set the RTD Type as specified in the table.
RTD Type
Description
Pt100
0-100 Ω RTD; resistance range of 0 Ω to approximately 500 Ω
Pt500
0-500 Ω RTD; resistance range of 0 Ω to approximately 2000 Ω
Pt1000
0-1000 Ω.RTD; resistance range of 0 Ω to approximately 4000 Ω
Pt2000
0-2000 Ω.RTD; resistance range of 0 Ω to approximately 8000 Ω
Wire Measurement Mode
Function:
Sets the RTD sensor configuration: 2, 3 or 4 wire.
Type:
unsigned binary word (32-bit)
Data Range:
2 - 4
Read/Write:
R/W
Initialized Value:
2 (Value is set to 2-wire default whenever channel configuration mode is changed to RTD)
Operational Settings:
Set the Wire Measurement Mode as specified in the table.
Wire Measurement Mode Value
Description
2
2-wire configuration
3
3-wire configuration
4
4-wire configuration
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
0
0
0
0
0
D
D
D
2-Wire Lead Resistance Compensation
Function:
Set a user defined compensation resistance in ohms, primarily required for channels that are configured for 2-wire configuration in the Wire Measurement Mode register. This allows test lead or cabling resistances to be cancelled out when using a 2-wire configuration. The Resistance measurement reading is adjusted by subtracting the value set in this register to null test lead and cabling resistance. This resistance offset is also applied in 3- and 4-wire modes, though typically not required in those modes. NOTE: the applied offsets will also affect the corresponding temperature readings as the adjusted resistance values are used for the internal calculation of temperature for the RTD sensors.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
0.0
Operational Settings:
Set the TOTAL lead resistance to be subtracted from the resistance measurement and reported in the Resistance register.
The default configuration of the module is to run periodic self-test and calibration at 30 second intervals. During these operations, updates to the measurement readings are briefly suspended. For time critical measurements, such as using a channel for low voltage A/D measurements, the periodic internal processes may optionally be suspended for continuous and uninterrupted readings. During this suspended time, the maintenance operations for open-line detect may be triggered manually by the application at suitable intervals.
Suspend Background Maintenance Operations
Function:
Holds off the performance of periodic maintenance routines for open line status checking and built in test (BIT). Used for dynamic measurements for continuous reading updates without interruption from the brief maintenance operations.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R/W
Initialized Value:
0 (All channels run maintenance operations on a scheduled basis)
Operational Settings:
Suspends periodic operations for open line status check and BIT. Set to 0 to perform periodic operations for channel (default). Set bit to 1 to suspend the background maintenance operations for the specified channel.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Run Open-Line Check
Function:
Triggers check for open or unconnected channels to update the open status indication. This is only used when the periodic schedule has been disabled for time critical measurements. This allows the application to run the routine in between measurement sessions.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R/W
Initialized Value:
0
Operational Settings:
Write a 1 to the corresponding bit for the channel. Bit is self-clearing and will reset to zero on completion of the routine.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Run BIT
Function:
Triggers Built-In-Test to detect out of tolerance conditions on the measurement circuitry. Only used when the periodic schedule for the channel has been disabled for time critical measurements. This allows the user to run the routine in between measurement sessions.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R/W
Initialized Value:
0
Operational Settings:
Write a 1 to the corresponding bit for the channel. Bit is self-clearing and will reset to zero on completion of the routine.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Temperature Threshold Detect Programming
The RTD Temperature Threshold registers provide the ability program two temperature thresholds that will result in temperature alerts.
Temperature Threshold Detect 1/2
A “low” and a “high” threshold value is specified for each temperature threshold that will be used to set the Temperature Alert statuses. The Temperature Threshold Low 1 & 2 register sets the threshold value to use to set the Temperature Alert Low 1 & 2 status bit when the Temperature reading is below the low temperature threshold value. Conversely, the Temperature Threshold High 1 & 2 register sets the threshold values to use to set the Temperature Alert High 1 status bit when the Temperature reading is above the high temperature threshold value. These threshold values are individually configurable on a per channel basis.
Temperature Threshold Low 1
Function:
Sets Temperature Threshold Low 1 value in degrees Celsius for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
-40° C
Operational Settings:
If the temperature drops below this set value, then a Temperature Alert Low 1 Status will be set. An interrupt will occur if the Temperature Alert Low 1 Interrupt Enable register is set to 1.
Temperature Threshold High 1
Function:
Sets Temperature Threshold High 1 value in degrees Celsius for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
25° C
Operational Settings:
If the temperature exceeds the set value, then a Temperature Alert High 1 Status will be set. An interrupt will occur if the Temperature Alert High 1 Interrupt Enable register is set to 1.
Temperature Threshold Low 2
Function:
Sets Temperature Threshold Low 2 value in degrees Celsius for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
0°C
Operational Settings:
If the temperature drops below the set value, then a Temperature Alert Low 2 Status will be set. An interrupt will occur if the Temperature Alert Low 2 Interrupt Enable register is set to 1.
Temperature Threshold High 2
Function:
Sets Alert Temperature High 2 value in degrees Celsius for each channel.
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
N/A
Read/Write:
R/W
Initialized Value:
100° C
Operational Settings:
If the temperature exceeds the set value, then a Temperature Alert High 2 Status will be set. An interrupt will occur if the Temperature Alert High 2 Interrupt Enable register is set to 1.
Module Common Registers
Refer to “Module Common Registers Module Manual” for the register descriptions.
Status and Interrupt Registers
The RT1 Module provides status registers for BIT, Open, and Temperature Alert.
Channel Status Enabled
Channel Status Enabled
Function:
Determines whether to update the status for the channels. This feature can be used to “mask” status bits of unused channels in status registers that are bitmapped by channel.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF (Channel Status)
Read/Write:
R/W
Initialized Value:
0x0000 00FF
Operational Settings:
When the bit corresponding to a given channel in the Channel Status Enabled register is not enabled (0) the status will be masked and report “0” or “no failure”. This applies to all statuses that are bitmapped by channel (BIT Status, Open Status, Temperature Alerts and Summary Status).
Note
Background BIT will continue to run even if the Channel Status Enabled is set to 0.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
BIT Status
There are four registers associated with the BIT Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.
BIT Status
Function:
Indicates the corresponding channels associated with the channel's BIT status or configuration
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
BIT Dynamic Status
BIT Latched Status
BIT Interrupt Enable
BIT Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Open Status
There are four registers associated with the Open Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.
Open Status
Function:
Sets the corresponding bit associated with the channel's Open status indication for an unconnected input.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
Open Dynamic Status
Open Latched Status
Open Interrupt Enable
Open Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Temperature Alert Status
There are four registers associated with each of the Temperature Alert Statuses: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.
Temperature Alert Status
Function:
Sets the corresponding bit associated with the channel's Temperature Alert indication for temperature readings that are below or above the associated thresholds.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
Temperature Alert Low 1 Dynamic Status
Temperature Alert Low 1 Latched Status
Temperature Alert Low 1 Interrupt Enable
Temperature Alert Low 1 Set Edge/Level Interrupt
Temperature Alert High 1 Dynamic Status
Temperature Alert High 1 Latched Status
Temperature Alert High 1 Interrupt Enable
Temperature Alert High 1 Set Edge/Level Interrupt
Temperature Alert Low 2 Dynamic Status
Temperature Alert Low 2 Latched Status
Temperature Alert Low 2 Interrupt Enable
Temperature Alert Low 2 Set Edge/Level Interrupt
Temperature Alert High 2 Dynamic Status
Temperature Alert High 2 Latched Status
Temperature Alert High 2 Interrupt Enable
Temperature Alert High 2 Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Summary Status
There are four registers associated with the Summary Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.
Summary Status
Function:
Sets the corresponding bit when a fault is detected for BIT or Open on that channel.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:
0
Summary Dynamic Status
Summary Latched Status
Summary Interrupt Enable
Summary Set Edge/Level Interrupt
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
Ch8
Ch7
Ch6
Ch5
Ch4
Ch3
Ch2
Ch1
Interrupt Vector and Steering
When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.
In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.
Note
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).
Interrupt Vector
Function:
Set an identifier for the interrupt.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R/W
Initialized Value:
0
Operational Settings:
When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function:
Sets where to direct the interrupt.
Type:
unsigned binary word (32-bit)
Data Range:
See table
Read/Write:
R/W
Initialized Value:
0
Operational Settings:
When an interrupt occurs, the interrupt is sent as specified:
Direct Interrupt to VME
1
Direct Interrupt to ARM Processor (via SerDes) + (Custom App on ARM or NAI Ethernet Listener App)
2
Direct Interrupt to PCIe Bus
5
Direct Interrupt to cPCI Bus
6
FUNCTION REGISTER MAP
KEY
Configuration/Control
Measurement/Status
MEASUREMENT REGISTERS
NOTE: Base Address - 0x4000 0000
NOTE: ~ Data is always in Floating Point.
OFFSET
REGISTER NAME
ACCESS
OFFSET
REGISTER NAME
ACCESS
0x1004
Temperature (ºC) Ch 1~
R
0x1008
Temperature (ºF) Ch 1~
R
0x1044
Temperature (ºC) Ch 2~
R
0x1048
Temperature (ºF) Ch 2~
R
0x1084
Temperature (ºC) Ch 3~
R
0x1088
Temperature (ºF) Ch 3~
R
0x10C4
Temperature (ºC) Ch 4~
R
0x10C8
Temperature (ºF) Ch 4~
R
0x1104
Temperature (ºC) Ch 5~
R
0x1108
Temperature (ºF) Ch 5~
R
0x1144
Temperature (ºC) Ch 6~
R
0x1148
Temperature (ºF) Ch 6~
R
0x1184
Temperature (ºC) Ch 7~
R
0x1188
Temperature (ºF) Ch 7~
R
0x11C4
Temperature (ºC) Ch 8~
R
0x11C8
Temperature (ºF) Ch 8~
R
0x1000
Resistance Ch 1~
R
0x1040
Resistance Ch 2~
R
0x1080
Resistance Ch 3~
R
0x10C0
Resistance Ch 4~
R
0x1100
Resistance Ch 5~
R
0x1140
Resistance Ch 6~
R
0x1180
Resistance Ch 7~
R
0x11C0
Resistance Ch 8~
R
CONTROL REGISTERS
NOTE: Base Address - 0x4000 0000
NOTE: ~ Data is always in Floating Point.
OFFSET
REGISTER NAME
ACCESS
OFFSET
REGISTER NAME
ACCESS
0x2000
RTD or Thermocouple
R
0x1028
Sample Rate Ch 1
R/W
0x100C
RTD Type Ch 1
R/W
0x1068
Sample Rate Ch 2
R/W
0x104C
RTD Type Ch 2
R/W
0x10A8
Sample Rate Ch 3
R/W
0x108C
RTD Type Ch 3
R/W
0x10E8
Sample Rate Ch 4
R/W
0x10CC
RTD Type Ch 4
R/W
0x1128
Sample Rate Ch 5
R/W
0x110C
RTD Type Ch 5
R/W
0x1168
Sample Rate Ch 6
R/W
0x114C
RTD Type Ch 6
R/W
0x11A8
Sample Rate Ch 7
R/W
0x118C
RTD Type Ch 7
R/W
0x11E8
Sample Rate Ch 8
R/W
0x11CC
RTD Type Ch 8
R/W
0x1010
Wire Measurement Mode Ch 1
R/W
0x1014
2-Wire Lead Resistance Compensation Ch 1~
R/W
0x1050
Wire Measurement Mode Ch 2
R/W
0x1054
2-Wire Lead Resistance Compensation Ch 2~
R/W
0x1090
Wire Measurement Mode Ch 3
R/W
0x1094
2-Wire Lead Resistance Compensation Ch 3~
R/W
0x10D0
Wire Measurement Mode Ch 4
R/W
0x10D4
2-Wire Lead Resistance Compensation Ch 4~
R/W
0x1110
Wire Measurement Mode Ch 5
R/W
0x1114
2-Wire Lead Resistance Compensation Ch 5~
R/W
0x1150
Wire Measurement Mode Ch 6
R/W
0x1154
2-Wire Lead Resistance Compensation Ch 6~
R/W
0x1190
Wire Measurement Mode Ch 7
R/W
0x1194
2-Wire Lead Resistance Compensation Ch 7~
R/W
0x11D0
Wire Measurement Mode Ch 8
R/W
0x11D4
2-Wire Lead Resistance Compensation Ch 8~
R/W
0x2008
Suspend Background Operations
R/W
0x2010
Run Open-Line Check
R/W
0x2014
Run BIT
R/W
TEMPERATURE THRESHOLD DETECT PROGRAMMING REGISTERS
NOTE: Base Address - 0x4000 0000
NOTE: ~ Data is always in Floating Point.
0x1018
Alert Temperature Low 1 Ch 1~
R/W
0x101C
Alert Temperature Low 2 Ch 1~
R/W
0x1058
Alert Temperature Low 1 Ch 2~
R/W
0x105C
Alert Temperature Low 2 Ch 2~
R/W
0x1098
Alert Temperature Low 1 Ch 3~
R/W
0x109C
Alert Temperature Low 2 Ch 3~
R/W
0x10D8
Alert Temperature Low 1 Ch 4~
R/W
0x10DC
Alert Temperature Low 2 Ch 4~
R/W
0x1118
Alert Temperature Low 1 Ch 5~
R/W
0x111C
Alert Temperature Low 2 Ch 5~
R/W
0x1158
Alert Temperature Low 1 Ch 6~
R/W
0x115C
Alert Temperature Low 2 Ch 6~
R/W
0x1198
Alert Temperature Low 1 Ch 7~
R/W
0x119C
Alert Temperature Low 2 Ch 7~
R/W
0x11D8
Alert Temperature Low 1 Ch 8~
R/W
0x11DC
Alert Temperature Low 2 Ch 8~
R/W
0x1020
Alert Temperature High 1 Ch 1~
R/W
0x1024
Alert Temperature High 2 Ch 1~
R/W
0x1060
Alert Temperature High 1 Ch 2~
R/W
0x1064
Alert Temperature High 2 Ch 2~
R/W
0x10A0
Alert Temperature High 1 Ch 3~
R/W
0x10A4
Alert Temperature High 2 Ch 3~
R/W
0x10E0
Alert Temperature High 1 Ch 4~
R/W
0x10E4
Alert Temperature High 2 Ch 4~
R/W
0x1120
Alert Temperature High 1 Ch 5~
R/W
0x1124
Alert Temperature High 2 Ch 5~
R/W
0x1160
Alert Temperature High 1 Ch 6~
R/W
0x1164
Alert Temperature High 2 Ch 6~
R/W
0x11A0
Alert Temperature High 1 Ch 7~
R/W
0x11A4
Alert Temperature High 2 Ch 7~
R/W
0x11E0
Alert Temperature High 1 Ch 8~
R/W
0x11E4
Alert Temperature High 2 Ch 8~
R/W
MODULE COMMON REGISTERS
Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map.
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0).
NOTE: Base Address - 0x4000 0000
OFFSET
REGISTER NAME
ACCESS
OFFSET
REGISTER NAME
ACCESS
0x02B4
Channel Status Enabled
R/W
0x0800
BIT Dynamic Status
R
0x0804
BIT Latched Status*
R/W
0x0808
BIT Interrupt Enable
R/W
0x080C
BIT Set Edge/Level Interrupt
R/W
Open
0x0810
Dynamic Status
R
0x0814
Latched Status*
R/W
0x0818
Interrupt Enable
R/W
0x081C
Set Edge/Level Interrupt
R/W
Temperature Alert Low 1
Temperature Alert Low 2
0x0820
Dynamic Status
R
0x0830
Dynamic Status
R
0x0824
Latched Status*
R/W
0x0834
Latched Status*
R/W
0x0828
Interrupt Enable
R/W
0x0838
Interrupt Enable
R/W
0x082C
Set Edge/Level Interrupt
R/W
0x083C
Set Edge/Level Interrupt
R/W
Temperature Alert High 1
Temperature Alert High 2
0x0840
Dynamic Status
R
0x0850
Dynamic Status
R
0x0844
Latched Status*
R/W
0x0854
Latched Status*
R/W
0x0848
Interrupt Enable
R/W
0x0858
Interrupt Enable
R/W
0x084C
Set Edge/Level Interrupt
R/W
0x085C
Set Edge/Level Interrupt
R/W
Summary
0x09A0
Dynamic Status
R
0x09A4
Latched Status*
R/W
0x09A8
Interrupt Enable
R/W
0x09AC
Set Edge/Level Interrupt
R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are located on the Motherboard Memory Space and do not require any Module Address Offsets. These registers are accessed using the absolute addresses listed in the table below.
OFFSET
REGISTER NAME
ACCESS
OFFSET
REGISTER NAME
ACCESS
0x0500
Module 1 Interrupt Vector 1 - BIT
R/W
0x0600
Module 1 Interrupt Steering 1 - BIT
R/W
0x0504
Module 1 Interrupt Vector 2 - Open
R/W
0x0604
Module 1 Interrupt Steering 2 - Open
R/W
0x0508
Module 1 Interrupt Vector 3 - Temperature Alert Low 1
R/W
0x0608
Module 1 Interrupt Steering 3 - Temperature Alert Low 1
R/W
0x050C
Module 1 Interrupt Vector 4 - Temperature Alert Low 2
R/W
0x060C
Module 1 Interrupt Steering 4 - Temperature Alert Low 2
R/W
0x0510
Module 1 Interrupt Vector 5 - Temperature Alert High 1
R/W
0x0610
Module 1 Interrupt Steering 5 - Temperature Alert High 1
R/W
0x0514
Module 1 Interrupt Vector 6 - Temperature Alert High 2
R/W
0x0614
Module 1 Interrupt Steering 6 - Temperature Alert High 2
R/W
0x0518 to 0x0564
Module 1 Interrupt Vector 7 to 26 - Reserved
R/W
0x0618 to 0x0664
Module 1 Interrupt Steering 7 to 26 - Reserved
R/W
0x0568
Module 1 Interrupt Vector 27 - Summary
R/W
0x0668
Module 1 Interrupt Steering 27 - Summary
R/W
0x056C to 0x057C
Module 1 Interrupt Vector 28 to 32 - Reserved
R/W
0x066C to 0x067C
Module 1 Interrupt Steering 28 to 32 - Reserved
R/W
0x0700
Module 2 Interrupt Vector 1 - BIT
R/W
0x0800
Module 2 Interrupt Steering 1 - BIT
R/W
0x0704
Module 2 Interrupt Vector 2 - Open
R/W
0x0804
Module 2 Interrupt Steering 2 - Open
R/W
0x0708
Module 2 Interrupt Vector 3 - Temperature Alert Low 1
R/W
0x0808
Module 2 Interrupt Steering 3 - Temperature Alert Low 1
R/W
0x070C
Module 2 Interrupt Vector 4 - Temperature Alert Low 2
R/W
0x080C
Module 2 Interrupt Steering 4 - Temperature Alert Low 2
R/W
0x0710
Module 2 Interrupt Vector 5 - Temperature Alert High 1
R/W
0x0810
Module 2 Interrupt Steering 5 - Temperature Alert High 1
R/W
0x0714
Module 2 Interrupt Vector 6 - Temperature Alert High 2
R/W
0x0814
Module 2 Interrupt Steering 6 - Temperature Alert High 2
R/W
0x0718 to 0x0764
Module 2 Interrupt Vector 7 to 26 - Reserved
R/W
0x0818 to 0x0864
Module 2 Interrupt Steering 7 to 26 - Reserved
R/W
0x0768
Module 2 Interrupt Vector 27 - Summary
R/W
0x0868
Module 2 Interrupt Steering 27 - Summary
R/W
0x076C to 0x077C
Module 2 Interrupt Vector 28 to 32 - Reserved
R/W
0x086C to 0x087C
Module 2 Interrupt Steering 28 to 32 - Reserved
R/W
0x0900
Module 3 Interrupt Vector 1 - BIT
R/W
0x0A00
Module 3 Interrupt Steering 1 - BIT
R/W
0x0904
Module 3 Interrupt Vector 2 - Open
R/W
0x0A04
Module 3 Interrupt Steering 2 - Open
R/W
0x0908
Module 3 Interrupt Vector 3 - Temperature Alert Low 1
R/W
0x0A08
Module 3 Interrupt Steering 3 - Temperature Alert Low 1
R/W
0x090C
Module 3 Interrupt Vector 4 - Temperature Alert Low 2
R/W
0x0A0C
Module 3 Interrupt Steering 4 - Temperature Alert Low 2
R/W
0x0910
Module 3 Interrupt Vector 5 - Temperature Alert High 1
R/W
0x0A10
Module 3 Interrupt Steering 5 - Temperature Alert High 1
R/W
0x0914
Module 3 Interrupt Vector 6 - Temperature Alert High 2
R/W
0x0A14
Module 3 Interrupt Steering 6 - Temperature Alert High 2
R/W
0x0918 to 0x0964
Module 3 Interrupt Vector 7 to 26 - Reserved
R/W
0x0A18 to 0x0A64
Module 3 Interrupt Steering 7 to 26 - Reserved
R/W
0x0968
Module 3 Interrupt Vector 27 - Summary
R/W
0x0A68
Module 3 Interrupt Steering 27 - Summary
R/W
0x096C to 0x097C
Module 3 Interrupt Vector 28 to 32 - Reserved
R/W
0x0A6C to 0x0A7C
Module 3 Interrupt Steering 28 to 32 - Reserved
R/W
0x0B00
Module 4 Interrupt Vector 1 - BIT
R/W
0x0C00
Module 4 Interrupt Steering 1 - BIT
R/W
0x0B04
Module 4 Interrupt Vector 2 - Open
R/W
0x0C04
Module 4 Interrupt Steering 2 - Open
R/W
0x0B08
Module 4 Interrupt Vector 3 - Temperature Alert Low 1
R/W
0x0C08
Module 4 Interrupt Steering 3 - Temperature Alert Low 1
R/W
0x0B0C
Module 4 Interrupt Vector 4 - Temperature Alert Low 2
R/W
0x0C0C
Module 4 Interrupt Steering 4 - Temperature Alert Low 2
R/W
0x0B10
Module 4 Interrupt Vector 5 - Temperature Alert High 1
R/W
0x0C10
Module 4 Interrupt Steering 5 - Temperature Alert High 1
R/W
0x0B14
Module 4 Interrupt Vector 6 - Temperature Alert High 2
R/W
0x0C14
Module 4 Interrupt Steering 6 - Temperature Alert High 2
R/W
0x0B18 to 0x0B64
Module 4 Interrupt Vector 7 to 26 - Reserved
R/W
0x0C18 to 0x0C64
Module 4 Interrupt Steering 7 to 26 - Reserved
R/W
0x0B68
Module 4 Interrupt Vector 27 - Summary
R/W
0x0C68
Module 4 Interrupt Steering 27 - Summary
R/W
0x0B6C to 0x0B7C
Module 4 Interrupt Vector 28 to 32 - Reserved
R/W
0x0C6C to 0x0C7C
Module 4 Interrupt Steering 28 to 32 - Reserved
R/W
0x0D00
Module 5 Interrupt Vector 1 - BIT
R/W
0x0E00
Module 5 Interrupt Steering 1 - BIT
R/W
0x0D04
Module 5 Interrupt Vector 2 - Open
R/W
0x0E04
Module 5 Interrupt Steering 2 - Open
R/W
0x0D08
Module 5 Interrupt Vector 3 - Temperature Alert Low 1
R/W
0x0E08
Module 5 Interrupt Steering 3 - Temperature Alert Low 1
R/W
0x0D0C
Module 5 Interrupt Vector 4 - Temperature Alert Low 2
R/W
0x0E0C
Module 5 Interrupt Steering 4 - Temperature Alert Low 2
R/W
0x0D10
Module 5 Interrupt Vector 5 - Temperature Alert High 1
R/W
0x0E10
Module 5 Interrupt Steering 5 - Temperature Alert High 1
R/W
0x0D14
Module 5 Interrupt Vector 6 - Temperature Alert High 2
R/W
0x0E14
Module 5 Interrupt Steering 6 - Temperature Alert High 2
R/W
0x0D18 to 0x0D64
Module 5 Interrupt Vector 7 to 26 - Reserved
R/W
0x0E18 to 0x0E64
Module 5 Interrupt Steering 7 to 26 - Reserved
R/W
0x0D68
Module 5 Interrupt Vector 27 - Summary
R/W
0x0E68
Module 5 Interrupt Steering 27 - Summary
R/W
0x0D6C to 0x0D7C
Module 5 Interrupt Vector 28 to 32 - Reserved
R/W
0x0E6C to 0x0E7C
Module 5 Interrupt Steering 28 to 32 - Reserved
R/W
0x0F00
Module 6 Interrupt Vector 1 - BIT
R/W
0x1000
Module 6 Interrupt Steering 1 - BIT
R/W
0x0F04
Module 6 Interrupt Vector 2 - Open
R/W
0x1004
Module 6 Interrupt Steering 2 - Open
R/W
0x0F08
Module 6 Interrupt Vector 3 - Temperature Alert Low 1
R/W
0x1008
Module 6 Interrupt Steering 3 - Temperature Alert Low 1
R/W
0x0F0C
Module 6 Interrupt Vector 4 - Temperature Alert Low 2
R/W
0x100C
Module 6 Interrupt Steering 4 - Temperature Alert Low 2
R/W
0x0F10
Module 6 Interrupt Vector 5 - Temperature Alert High 1
R/W
0x1010
Module 6 Interrupt Steering 5 - Temperature Alert High 1
R/W
0x0F14
Module 6 Interrupt Vector 6 - Temperature Alert High 2
R/W
0x1014
Module 6 Interrupt Steering 6 - Temperature Alert High 2
R/W
0x0F18 to 0x0F64
Module 6 Interrupt Vector 7 to 26 - Reserved
R/W
0x1018 to 0x1064
Module 6 Interrupt Steering 7 to 26 - Reserved
R/W
0x0F68
Module 6 Interrupt Vector 27 - Summary
R/W
0x1068
Module 6 Interrupt Steering 27 - Summary
R/W
0x0F6C to 0x0F7C
Module 6 Interrupt Vector 28 to 32 - Reserved
R/W
0x106C to 0x107C
Module 6 Interrupt Steering 28 to 32 - Reserved
R/W
APPENDIX: PIN-OUT DETAILS
Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard
Operational Manuals.
Module Signal (Ref Only)
44-Pin I/O
50-Pin I/O (Mod Slot 1-J3)
50-Pin I/O (Mod Slot 2-J4)
50-Pin I/O (Mod Slot 3-J3)
50-Pin I/O (Mod Slot 3-J4)
RTD + (RT1)
DATIO1
2
10
1
2
SENSE+_CH1
DATIO2
24
35
26
27
SENSE-_CH1
DATIO3
3
11
2
3
DRIVE+_CH1
DATIO4
25
36
27
28
DRIVE-_CH1
DATIO5
5
13
4
5
DRIVE+_CH2
DATIO6
27
38
29
30
DRIVE-_CH2
DATIO7
7
14
5
6
SENSE+_CH2
DATIO8
29
39
30
31
SENSE-_CH2
DATIO9
8
15
6
7
SENSE+_CH3
DATIO10
30
40
31
32
SENSE-_CH3
DATIO11
10
17
8
9
DRIVE+_CH3
DATIO12
32
42
33
34
DRIVE-_CH3
DATIO13
12
18
9
17
SENSE+_CH5
DATIO14
34
43
34
42
SENSE-_CH5
DATIO15
13
19
10
18
DRIVE+_CH5
DATIO16
35
44
35
43
DRIVE-_CH5
DATIO17
15
21
12
20
DRIVE+_CH6
DATIO18
37
46
37
45
DRIVE-_CH6
DATIO19
17
22
13
21
SENSE+_CH6
DATIO20
39
47
38
46
SENSE-_CH6
DATIO21
18
23
14
22
SENSE+_CH7
DATIO22
40
48
39
47
SENSE-_CH7
DATIO23
20
25
16
24
DRIVE+_CH7
DATIO24
42
50
41
49
DRIVE-_CH7
DATIO25
4
12
3
4
DRIVE+_CH4
DATIO26
26
37
28
29
DRIVE-_CH4
DATIO27
9
16
7
8
SENSE+_CH4
DATIO28
31
41
32
33
SENSE-_CH4
DATIO29
14
20
11
19
DRIVE+_CH8
DATIO30
36
45
36
44
DRIVE-_CH8
DATIO31
19
24
15
23
SENSE+_CH8
DATIO32
41
49
40
48
SENSE-_CH8
DATIO33
6
DATIO34
28
DATIO35
11
DATIO36
33
DATIO37
16
DATIO38
38
DATIO39
21
DATIO40
43
N/A
REVISION HISTORY
Motherboard Manual - RT1 Revision History
Revision
Revision Date
Description
C
2022-09-15
ECO C09637, transition to docbuilder format. Replaced "Specifications" with "Data Sheet". Pg.6, added Pt2000 to RTD interface & excitation specs. Pg.6, changed 4-wire accuracy to 0.1%. Pg.6, changed Update Rate to Sample Rate; updated spec. Pg.6, changed Power to 450 mA. Pg.7, removed (default) from 'four-wire mode' in Introduction. Pg.7, added Pt2000 range & excitation current source. Pg.8, added 3-wire mode excitation current description. Pg.8, added Temp Threshold Detect & Status and Interrupts. Pg.10, changed Update Rate to Sample Rate. Pg.11, added Pt2000 to RTD Type. Pg.12, added Suspend Background Maintenance Operations Register sub-section. Pg.16, added Summary Status. Pg.18, changed Update Rate to Sample Rate. Pg.19, added Suspend Background Maintenance Operations/Run Open-Line/Run BIT offsets. Pg.21, added Summary Status offsets. Pg.22-24, added Interrupt Registers offsets.
C1
2023-11-16
ECO C10974, pg.7, updated Introduction; added RT1 Overview. Pg.9/15/21, added module common registers. Pg.12, added note to 2-Wire Lead Resistance Compensation. Pg.17, removed summary events table.
DOCS.NAII REVISIONS
Revision Date
Description
2025-03-12
Updated module pinout table to add module I/O pinouts for 44- & 50-pin connectors.
2026-03-30
Formatting updates throughout manual (non-technical changes); added data sheet link.
STATUS AND INTERRUPTS
Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.
For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.
Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.
Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).
Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.
Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).
Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.
Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.
Interrupt Vector and Steering
When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.
Interrupt Trigger Types
In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.
Example 1: Fault detection
This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.
Example 2: Threshold detection
This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.
Dynamic and Latched Status Registers Examples
The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.
Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States
No Clearing of Latched Status
Clearing of Latched Status (Edge-Triggered)
Clearing of Latched Status(Level-Triggered)
Time
Dynamic Status
Latched Status
Action
Latched Status
Action
Latched
T0
0x0
0x0
Read Latched Register
0x0
Read Latched Register
0x0
T1
0x1
0x1
Read Latched Register
0x1
0x1
T1
0x1
0x1
Write 0x1 to Latched Register
Write 0x1 to Latched Register
T1
0x1
0x1
0x0
0x1
T2
0x0
0x1
Read Latched Register
0x0
Read Latched Register
0x1
T2
0x0
0x1
Read Latched Register
0x0
Write 0x1 to Latched Register
T2
0x0
0x1
Read Latched Register
0x0
0x0
T3
0x2
0x3
Read Latched Register
0x2
Read Latched Register
0x2
T3
0x2
0x3
Write 0x2 to Latched Register
Write 0x2 to Latched Register
T3
0x2
0x3
0x0
0x2
T4
0x2
0x3
Read Latched Register
0x1
Read Latched Register
0x3
T4
0x2
0x3
Write 0x1 to Latched Register
Write 0x3 to Latched Register
T4
0x2
0x3
0x0
0x2
T5
0xC
0xF
Read Latched Register
0xC
Read Latched Register
0xE
T5
0xC
0xF
Write 0xC to Latched Register
Write 0xE to Latched Register
T5
0xC
0xF
0x0
0xC
T6
0xC
0xF
Read Latched Register
0x0
Read Latched
0xC
T6
0xC
0xF
Read Latched Register
0x0
Write 0xC to Latched Register
T6
0xC
0xF
Read Latched Register
0x0
0xC
T7
0x4
0xF
Read Latched Register
0x0
Read Latched Register
0xC
T7
0x4
0xF
Read Latched Register
0x0
Write 0xC to Latched Register
T7
0x4
0xF
Read Latched Register
0x0
0x4
T8
0x4
0xF
Read Latched Register
0x0
Read Latched Register
0x4
Interrupt Examples
The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.
Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled
Time
Latched Status (Edge-Triggered - Clear Multi-Channel)
Latched Status (Edge-Triggered - Clear Single Channel) 2+
Latched Status (Level-Triggered - Clear Multi-Channel)
Action
Latched
Action
Latched
Action
Latched
T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x1
T1 (Int 1)
Write 0x1 to Latched Register
Write 0x1 to Latched Register
Write 0x1 to Latched Register
T1 (Int 1)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T2.
0x1
T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers
0x2
Interrupt Generated++``+ Read Latched Registers
0x2
Interrupt Generated++``+ Read Latched Registers
0x2
T3 (Int 2)
Write 0x2 to Latched Register
Write 0x2 to Latched Register
Write 0x2 to Latched Register
T3 (Int 2)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.
0x2
T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x1
Interrupt Generated++``+ Read Latched Registers
0x3
T4 (Int 3)
Write 0x1 to Latched Register
Write 0x1 to Latched Register
Write 0x3 to Latched Register
T4 (Int 3)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.
0x3
T4 (Int 3)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear until T7.
0x2
T6 (Int 4)
Interrupt Generated++``+ Read Latched Registers
0xC
Interrupt Generated++``+ Read Latched Registers
0xC
Interrupt Generated++``+ Read Latched Registers
0xE
T6 (Int 4)
Write 0xC to Latched Register
Write 0x4 to Latched Register
Write 0xE to Latched Register
T6 (Int 4)
0x0
Interrupt re-triggers++``+ Write 0x8 to Latched Register
0x8
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.
0xE
T6 (Int 4)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.
0xC
T6 (Int 4)
0x0
0x0
Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.
0x4
REVISION HISTORY
Motherboard Manual - Status and Interrupts Revision History
Revision
Revision Date
Description
C
2021-11-30
C08896; Transition manual to docbuilder format - no technical info change.
DOCS.NAII REVISIONS
Revision Date
Description
2026-03-02
Formatting updates to document; no technical changes.
The registers described in this document are common to all NAI Generation 5 modules.
Module Information Registers
The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.
FPGA Version Registers
The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.
FPGA Revision
Function:
FPGA firmware revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FPGA Compile Timestamp
Function:
Compile Timestamp for the FPGA firmware.
Type:
unsigned binary word (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:
The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
day (5-bits)
month (4-bits)
year (6-bits)
hr
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
hour (5-bits)
minutes (6-bits)
seconds (6-bits)
FPGA SerDes Revision
Function:
FPGA SerDes revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FPGA Template Revision
Function:
FPGA Template revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the template revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FPGA Zynq Block Revision
Function:
FPGA Zynq Block revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
Bare Metal Version Registers
The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.
Bare Metal Revision
Function:
Bare Metal firmware revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the revision of the board's Bare Metal
Operational Settings:
The upper 16-bits are the major revision and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
Bare Metal Compile Time
Function:
Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type:
24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings:
The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32
Note
little-endian order of ASCII values
Word 1 (Ex. 0x2079614D)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Month ('y' - 0x79)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Month ('a' - 0x61)
Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Year ('2' - 0x32)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Day ('7' - 0x37)
Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Year ('9' - 0x39)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Year ('1' - 0x31)
Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Hour ('1' - 0x31)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
'a' (0x74)
't' (0x61)
Word 5 (Ex. 0x38333A35)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Minute ('8' - 0x38)
Minute ('3' - 0x33)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
':' (0x3A)
Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
NULL (0x00)
Seconds ('2' - 0x32)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Seconds ('3' - 0x33)
':' (0x3A)
FSBL Version Registers
The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).
FSBL Revision
Function:
FSBL firmware revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the revision of the board's FSBL
Operational Settings:
The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
FSBL Compile Time
Function:
Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type:
24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings:
The six 32-bit words provide an ASCII representation of the Date/Time.
The hexadecimal values in the field below represent: May 17 2019 at 15:38:32
Note
little-endian order of ASCII values
Word 1 (Ex. 0x2079614D)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Month ('y' - 0x79)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Month ('a' - 0x61)
Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Year ('2' - 0x32)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Day ('7' - 0x37)
Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Space (0x20)
Year ('9' - 0x39)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Year ('1' - 0x31)
Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Hour ('1' - 0x31)
Space (0x20)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
'a' (0x74)
't' (0x61)
Word 5 (Ex. 0x38333A35)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Minute ('8' - 0x38)
Minute ('3' - 0x33)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
':' (0x3A)
Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
NULL (0x00)
Seconds ('2' - 0x32)
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Seconds ('3' - 0x33)
':' (0x3A)
Module Serial Number Registers
The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.
Interface Board Serial Number
Function:
Unique 128-bit identifier used to identify the interface board.
Type:
16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Serial number of the interface board
Operational Settings:
This register is for information purposes only.
Functional Board Serial Number
Function:
Unique 128-bit identifier used to identify the functional board.
Type:
16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:
N/A
Read/Write:
R
Initialized Value:
Serial number of the functional board
Operational Settings:
This register is for information purposes only.
Module Capability
Function:
Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0x0000 0107
Read/Write:
R
Initialized Value:
0x0000 0107
Operational Settings:
A “1” in the bit associated with the capability indicates that it is supported.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
Flt-Pt
0
0
0
0
0
Pack
FIFO Blk
Blk
Module Memory Map Revision
Function:
Module Memory Map revision
Type:
unsigned binary word (32-bit)
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the Module Memory Map Revision
Operational Settings:
The upper 16-bits are the major revision and the lower 16-bits are the minor revision.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Major Revision Number
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Minor Revision Number
Module Measurement Registers
The registers in this section provide module temperature measurement information.
Temperature Readings Registers
The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.
Interface Board Current Temperature
Function:
Measured PCB and Zynq Core temperatures on Interface Board.
Type:
signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:
0x0000 0000 to 0x0000 FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings:
The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
PCB Temperature
Zynq Core Temperature
Functional Board Current Temperature
Function:
Measured PCB temperature on Functional Board.
Type:
signed byte (8-bits) for PCB
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB on the table below
Operational Settings:
The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
PCB Temperature
Interface Board Maximum Temperature
Function:
Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:
signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:
0x0000 0000 to 0x0000 FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:
The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
PCB Temperature
Zynq Core Temperature
Interface Board Minimum Temperature
Function:
Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:
signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:
0x0000 0000 to 0x0000 FFFF
Read/Write:
R
Initialized Value:
Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:
The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
PCB Temperature
Zynq Core Temperature
Functional Board Maximum Temperature
Function:
Maximum PCB temperature on Functional Board since power-on.
Type:
signed byte (8-bits) for PCB
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB on the table below
Operational Settings:
The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
PCB Temperature
Functional Board Minimum Temperature
Function:
Minimum PCB temperature on Functional Board since power-on.
Type:
signed byte (8-bits) for PCB
Data Range:
0x0000 0000 to 0x0000 00FF
Read/Write:
R
Initialized Value:
Value corresponding to the measured PCB on the table below
Operational Settings:
The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
0
0
0
0
PCB Temperature
Higher Precision Temperature Readings Registers
These registers provide higher precision readings of the current Zynq and PCB temperatures.
Higher Precision Zynq Core Temperature
Function:
Higher precision measured Zynq Core temperature on Interface Board.
Type:
signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Measured Zynq Core temperature on Interface Board
Operational Settings:
The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.
signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Measured Interface PCB temperature
Operational Settings:
The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.
signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range:
0x0000 0000 to 0xFFFF FFFF
Read/Write:
R
Initialized Value:
Measured Functional PCB temperature
Operational Settings:
The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
Signed Integer Part of Temperature
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Fractional Part of Temperature
Module Health Monitoring Registers
The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.
Module Sensor Summary Status
Function:
The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type:
unsigned binary word (32-bits)
Data Range:
See table below
Read/Write:
R
Initialized Value:
0
Operational Settings:
This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.
Bit(s)
Sensor
D31:D6
Reserved
D5
Functional Board PCB Temperature
D4
Interface Board PCB Temperature
D3:D0
Reserved
Module Sensor Registers
The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.
Sensor Threshold Status
Function:
Reflects which threshold has been crossed
Type:
unsigned binary word (32-bits)
Data Range:
See table below
Read/Write:
R
Initialized Value:
0
Operational Settings:
The associated bit is set when the sensor reading exceed the corresponding threshold settings.
Bit(s)
Description
D31:D4
Reserved
D3
Exceeded Upper Critical Threshold
D2
Exceeded Upper Warning Threshold
D1
Exceeded Lower Critical Threshold
D0
Exceeded Lower Warning Threshold
Sensor Current Reading
Function:
Reflects current reading of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Sensor Minimum Reading
Function:
Reflects minimum value of temperature sensor since power up
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Sensor Maximum Reading
Function:
Reflects maximum value of temperature sensor since power up
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R
Initialized Value:
N/A
Operational Settings:
The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.
Sensor Lower Warning Threshold
Function:
Reflects lower warning threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default lower warning threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.
Sensor Lower Critical Threshold
Function:
Reflects lower critical threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default lower critical threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.
Sensor Upper Warning Threshold
Function:
Reflects upper warning threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default upper warning threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.
Sensor Upper Critical Threshold
Function:
Reflects upper critical threshold of temperature sensor
Type:
Single Precision Floating Point Value (IEEE-754)
Data Range:
Single Precision Floating Point Value (IEEE-754)
Read/Write:
R/W
Initialized Value:
Default upper critical threshold (value dependent on specific sensor)
Operational Settings:
The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.
Motherboard Manual - Module Common Registers Revision History
Revision
Revision Date
Description
C
2023-08-11
ECO C10649, initial release of module common registers manual.
C1
2024-05-15
ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2
2024-07-10
ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.
DOCS.NAII REVISIONS
Revision Date
Description
2025-11-05
Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02
Formatting updates to document; no technical changes.
North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.
We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.
Please visit us at: www.naii.com or select one of the following for immediate assistance:
Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States
Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled
