INTRODUCTION

North Atlantic Industries’ (NAI) Sensor Interface Unit (SIU36) is a rugged base-plate conduction-cooled or air/convection cooled chassis that leverages and integrates NAI’s Configurable Open Systems Architecture™ (COSA ®) rugged conduction-cooled 3U OpenVPX SBC, multifunction I/O boards and power supply products. The SIU36 provides a compact, high density, processing & graphics capable data distribution system solution for I/O intensive, mission or control systems applications. The SIU36 supports board-level processing and full I/O control and communication over Ethernet. With local processing, MIL-STD-1553, ARINC 429/575, Serial or ARINC 825 CAN bus are also available as primary communications interfaces when the boards are configured as such. PowerPC, Intel® or ARM Single Board Computer (SBC) processors can be added for a complete processing and I/O solution. The SIU36 is designed to support up to six NAI multi-function pre-configurable SBC/multifunction I/O boards, with or without processing, that support a wide variety of interface and communications smart function modules, all fitted/housed in a single rugged multi-board slot SIU system chassis, which is “delivered” pre-integrated and fully tested as a system.

OBJECTIVES

This manual provides the user with basic hardware implementation and information regarding the operation and interface of the SIU36. Each SIU36 is fitted with either one to six 3U OpenVPX boards and a single mil-standard power supply unit. Additional PSU option for “hold-up” power/time is available.

SCOPE

This manual only covers the operation of the SIU36 as a stand-alone I/O subsystem. This manual does not cover specific details relating to the operation of the specific I/O boards and function module fitted within the SIU36. Please reference the board specific documentation for details regarding the board level configuration(s).

CONVENTIONS USED IN THIS MANUAL

WARNINGS, CAUTIONS, and NOTES

Note

An operating procedure, practice, or condition, etc., that is essential to emphasize.

All numbers are expressed in decimal format unless otherwise noted.

GENERAL SAFETY NOTICES

The following general safety notices supplement the specific warnings and cautions appearing elsewhere in the manual. They are recommended precautions that must be understood and applied during operation and maintenance of the instrument covered herein.

Serious injury may result if personnel fail to observe safety precautions. Dependent on configuration, some modules (e.g. Synchro / Resolver or AC signal sources) can generate output signals with high voltages. Be careful not to contact high-voltage connections when installing, operating or maintaining this instrument.

The SIU36 is delivered as a standalone system with no accessible or serviceable parts.

REPAIR

DO NOT ATTEMPT REPAIR. Under no circumstances should repair of this instrument be attempted. All repairs to this chassis must be accomplished at the factory.

HIGH VOLTAGE

HIGH VOLTAGE may be used in the operation of this equipment.

INPUT POWER ALWAYS ON

Note

The design of the model SIU36 is such that input power is continuously supplied to internal circuits when connected to a main power source. To disconnect the SIU36 from external power, the external power source should first be de-energized. The power input cable can then be disconnected.

Website https://www.naii.com/

SYSTEM SPECIFICATIONS AND DETAILS

Introduction

The model SIU36 is a next generation rugged systems chassis joining the NAI Sensor Interface Unit (SIU) system chassis family pedigree. The SIU36 is configured to support a wide variety of SBC and multifunction I/O boards that can be configured to support a variety of processing, communications and I/O functions that are supported under the NAI Configurable Open Systems Architecture ™ (COSA®) product families.

The SIU36 can function either as a centralized or distributed system. It can also be used to supplement existing legacy systems by easily adding sensor data acquisition as well as general I/O and communication interfaces without expensive legacy chassis and backplane redesign. It has been designed with rugged embedded industrial, military and aerospace applications in mind.

Leveraging NAI’s field-proven, unique modular architecture, the SIU36 supports standard 3U OpenVPX board-level compatible boards that can be fitted with a wide selection of different Intelligent I/O, motion simulation/measurement and communications functions such as:

A/D ConverterD/A ConverterI/O TTL/CMOSRTDI/O Discrete
I/O Differential TransceiverSynchro/Resolver LVDT/RVDT MeasurementSynchro/Resolver LVDT/RVDT SimulationStrain GaugeEncoder
Dual-Channel Dual Redundant BC/RT/MT MIL-STD-1553High-Speed Sync/Async RS232/422/423/485ARINC 429/575CAN busI/O Relay
AC ReferenceEthernet SwitchSSD/FlashCheck w/ NAI's factory or website for latest selection of available func ons

This approach provides unprecedented flexibility for supporting existing or new applications where there are specific interfacing requirements. Significant application benefits include:

  • Independent (pre-processed) I/O functionality targeted to specific data acquisition/control areas

  • Additional capabilities, technology insertion and sensor interfacing to existing fielded applications

  • Minimal integration risk based on current field-proven, deployed technologies

Specifications

The SIU36 is designed to meet the following general product specifications and is provided as a reference. Actual configuration and usage may affect size, weight and power (SWaP) specifications. Please contact NAI for discerning/defining SWaP considerations regarding specific program configurations. See additional details herein.

General

SIU36 General SWaP Specifications

Input Voltage:Standard/Default: DC: 18 to 36 VDC (28 VDC nominal)
Power (Base unit):~10 W (PSU efficiency, at 100W load) @ 28 VDC nominal
Then, add the power calculated for the configuration specific boards module(s) power (see separate specific boards and module(s) specifications).
I/O Signal GND reference is isolated from main power source return and chassis.
Power/Heat Dissipation:Conduction Cooled (CC):
~150 watts (maximum) when properly mounted to a cold plate, which must be maintained at a temperature not to exceed 71°C.
Air/Convection cooled (AC)
Contact/consult with NAI for configuration and power dissipation. SIU Air/Convection version maximum power dissipation is dependent, but not limited to, configuration, power dissipation, air flow, program and other environmental considerations.
NOTE: The total SIU36 power dissipation is dependent on the configuration of the boards and function module types fitted in the SIU36. Environmental and other operating characteristic variable considerations should be considered.
Temperature, Operating:-40°C to 71°C
Conduction cooled: As measured at primary thermal transfer interface.
Air/Convection cooled: Air/ambient temp as specified.
Temperature, Storage:-55°C to 105°C
Size:Height: ~5.0” (127 mm) CC or
~6.4” (163 mm) AC (w/ additional heat dissipator fin height)
Depth: ~9.5” (241 mm) +
Width: ~9.0” (229 mm)
Weight:The weight of an SIU36 system is dependent on the configuration. The approximate weight of the SIU36 is based on the selection of the PSU, boards and functional module(s).
The approximate weight of a configured SIU36 is:
~13.21 lbs. unpopulated Chassis/backplane/rigid flex & connector boards/PSU (conduction cooled)
~14.41 lbs. unpopulated Chassis/backplane/rigid flex & connector boards/PSU (air/convection cooled)
(1 includes ~2.2 lbs. for PSU)
~21.32 lbs. fully populated (conduction cooled)
~22.52 lbs. fully populated (air/convection cooled)
(2 includes ~1.35 lbs. for each additional fully function module populated board)

UNPACKING AND INSPECTION

Unpacking

The SIU36 packing materials were designed specifically for transport protection of the SIU36. When receiving the shipment container, inspect packaging for any evidence of physical damage. If damage is evident, it is recommended that the carrier agent is present when opening the shipping container. It is further recommended that all packing material is retained in the event the SIU36 needs to be shipped elsewhere.

System/Chassis Identification

An identification label, indicating part number, unique serial number and Ethernet PHY MACs / default IP address(es) is affixed to the system chassis.

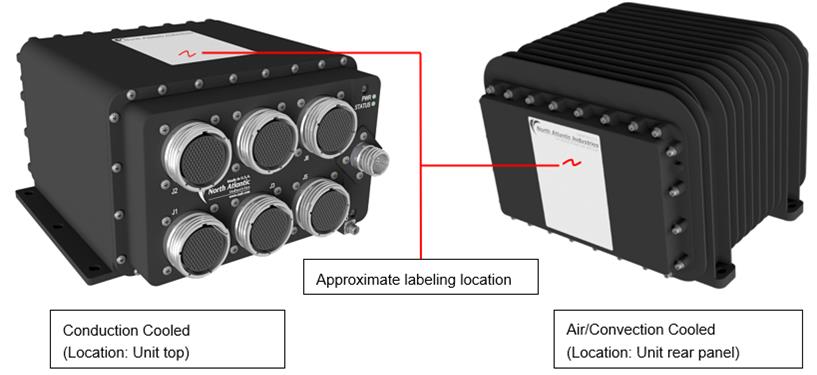

Figure 1. SIU36 Unit Identification Label Location

Label information provided:

 Unit Level Part Number
 Unit Level Serial Number
 Unit Level Date Code

Also, typically provided with:

 Slot/Board configuration(s) as applicable
 Slot/Board serial numbers and D/C
 Slot/Board IP address / MAC address (if applicable)

Special labeling requirements are also considered (i.e. UID matrix, customer part number, etc.). Contact factory for special labeling requirements.

Inspection

Inspect the chassis and connectors to ensure that they were not damaged during transit.

MECHANICAL INTERFACE

Mechanical Description

The standard SIU36 is a rugged milled 6061 aerospace grade aluminum alloy stock. Conduction cooled version is expected to be mounted to a thermally conductive surface to maintain the specified temperature. The system thermal management design considerations should ensure that the chassis thermal interface (SIU36 bottom surface) does not exceed 71°C. Mounting holes are provided on the chassis bottom housing flanges (as depicted).

The SIU36 is also available in an air/convection cooled version. This version is built with integrated cooling fins milled into the primary chassis housing. Air/convection cooled version must maintain the chassis temperatures at the specified temperature (operational and environmental consideration variables include, but are not limited to chassis configuration power dissipation, air temperature and air flow available.

Maximum power and heat dissipation are dependent on the board and function compliment chosen. Contact NAI for application guidance. See the reference outline drawing(s) below.

Mounting Requirements

Conduction Cooled

Refer to SIU36 Outline and Installation Drawing (OID) for details on mounting and installing the SIU36. It is available for download from NAI’s website (NOTE: availability pending, contact factory for mounting/installation details). The SIU36 is conduction cooled and must be mounted in accordance with the drawing. The OID provides recommended hardware, torque, cold-plate flatness and surface finish specifications, and thermal conductivity requirements.

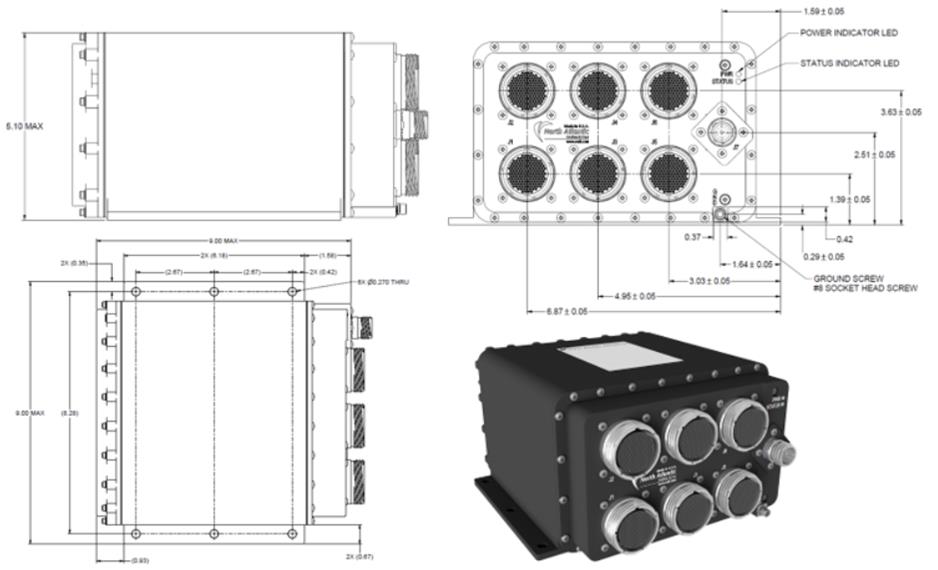

Figure 2. SIU36 Conduction Cooled Outline Dimensions & Mounting Pattern (Reference Only)

NOTES:

  1. For reference only (refer to the product web page for the latest revision SIU36 Outline and Installation Drawing (OID).
  2. Unless otherwise specified, dimensions are in inches (mm); tolerances are:
    - 2 PL DEC ±0.01; 3 PL DEC ±0.005
    - FRACT ±1/64 (0.4); ANGLES ±1/2 (12.7)

Air/Convection Cooled

Refer to SIU36 Outline and Installation Drawing (OID) for details on mounting and installing the SIU36. It is available for download from NAI’s website. The SIU36 is air/convection cooled and must be mounted in accordance with the drawing. The OID provides recommended hardware, torque, cold-plate flatness and surface finish specifications, and thermal conductivity requirements.

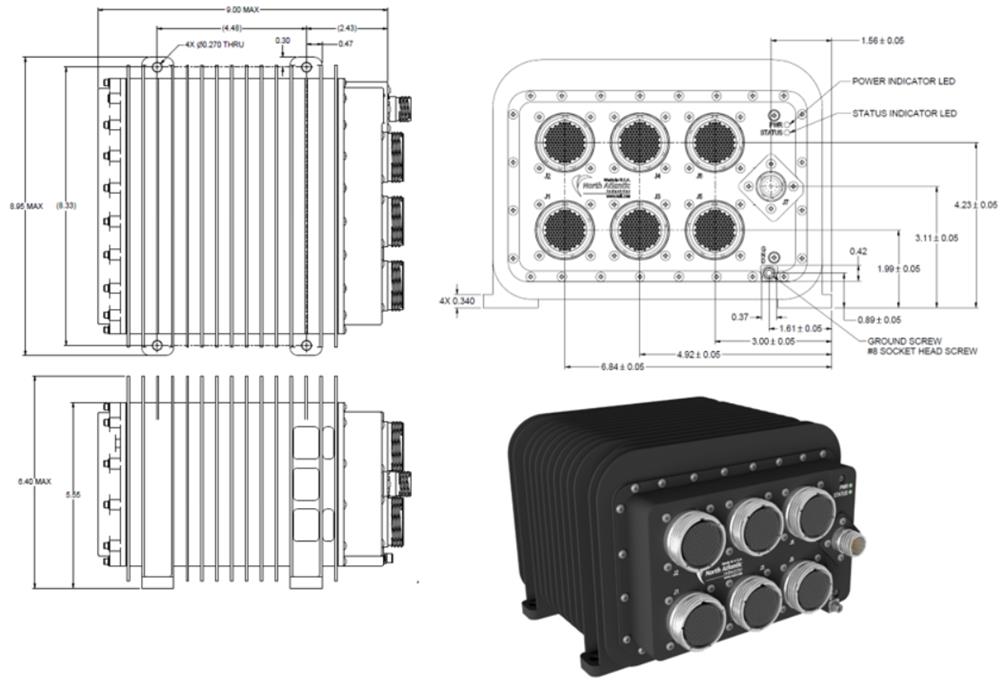

Figure 3. SIU36 Air Cooled Outline Dimensions & Mounting Pattern (Reference Only)

NOTES:

  1. For reference only (refer to the product web page for the latest revision SIU36 Outline and Installation Drawing (OID).
  2. Unless otherwise specified, dimensions are in inches (mm); tolerances are:
    - 2 PL DEC ±0.01; 3 PL DEC ±0.005
    - FRACT ±1/64 (0.4); ANGLES ±1/2 (12.7)

Chassis (Earth) GND

Chassis ground point threaded insert location is on the connector face (front) of the SIU36 as shown.

Conduction cooled as shown, but air/convection version GND point is in similar location.

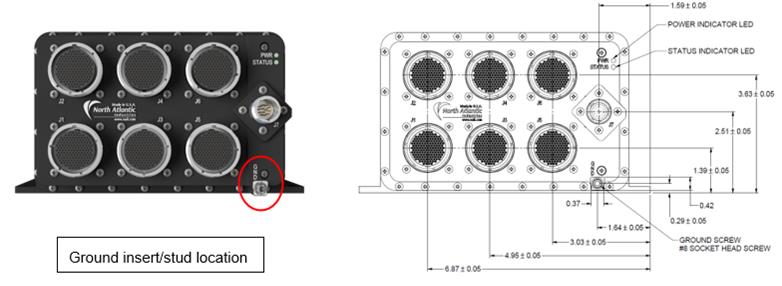

Figure 4. SIU36 Outline Dimensions/Chassis GND location

NOTE:

A Chassis GND braid or equivalent is expected to be secured by the following hardware or equivalent (delivered/installed with the SIU36 assembly):

  • SCREW, SOCKET HEAD CAP, 8-32, ½” LONG, 18-8 SS
  • Lock Washer, #8, 0.174” ID, 0.293” OD, 18-8 SS
  • Flat Washer, #8, 0.172” ID, 0.375” OD, 18-8 SS

Securing information:

  • The chassis is designed/built with a helical insert: NAS1130-08-15 or equivalent (8-32 Helical Insert, 0.246” Length, 18-8 Stainless Steel)
  • Maximum screw/insert hole depth is 0.4”
  • Recommended torque for the SIU36 Chassis GND screw: 15 in-lbs. (170 N-cm)

Finish

Unless otherwise specified, the following standard finish, or equivalent per NAI process requirements applies:

  1. PRE-TREATMENT: CHEMICAL FILM COATING IAW MIL-DTL-5541, TYPE II, CLASS 3, ALL OVER.

  2. PAINT PRIMER COAT: IAW-MIL-PRF-23377, TYPE II, CLASS 2, WITH A 0.9MIL MINIMUM DRY FILM THICKNESS TO EXTERIOR SURFACES SHOWN IN PAINT MASKING FIGURES.

  3. PAINT FINISH COAT: APPLY MEDIUM TEXTURE USING PER MIL-PRF-85285, TYPE I, CLASS 2, SEMI-GLOSS BLACK WITH A DRY FILM THICKNESS OF 0.0008 TO 0.0012 TO EXTERIOR SURFACES.

  4. FINISH NOTES 2 AND 3 OMITTED FROM THERMAL INTERFACE SURFACE INDICATED & FROM ALL HARDWARE.

CONNECTOR DESIGNATIONS, LOCATIONS & DESCRIPTIONS

The Power, I/O Interface and Ethernet connectors are located on the SIU36 front panel housing.

Conduction cooled as shown, but air/convection version GND point is in similar location.

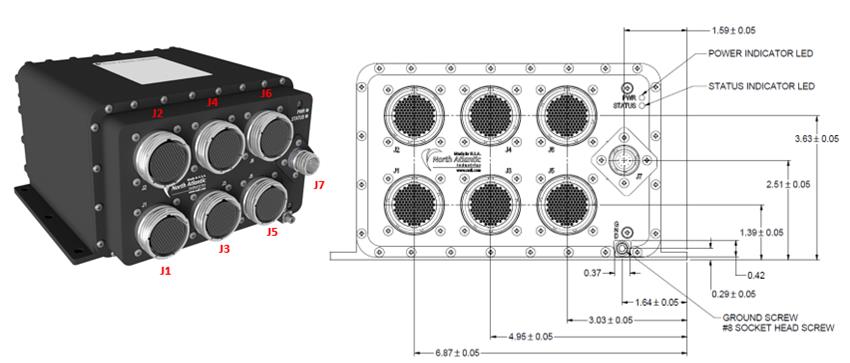

Figure 5. SIU36 (Front Panel Connector Placement)

SIU36 Connector Designation and Description

REF. DES.KEYMANUFACTURER / MIL-DTL SPEC. (or Equiv.)P/NMATE P/N
J1NAMPHENOLTVP02RF-151SN(S2ADTV06RF-23-151PN
J2AAMPHENOLTVP02RF-151SA(S2ADTV06RF-23-151PA
J3DAMPHENOLTVP02RF-151SD(S2AD)TV06RF-23-151PD
J4BAMPHENOLTVP02RF-151SB(S2AD)TV06RF-23-151PB
J5EAMPHENOLTVP02RF-151SE(S2AD)TV06RF-23-151PE
J6CAMPHENOLTVP02RF-151SC(S2AD)TV06RF-23-151PC
J7BMIL-DTL-D38999 TypeD38999/20FB35PND38999/26WB35SN

CONNECTOR DETAILS AND PINOUTS

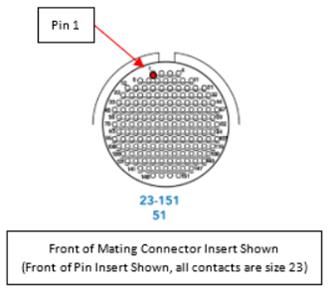

Generic pinout. See module I/O section or contact factory regarding any special module I/O configuration.

J7, Primary Power Connector

Primary input power is supported on the SIU36 via the J7 connector. Power input for the SIU36: 28 VDC (standard, default).

28 VDC Input Connector

Part Number: TVP02RW-11-35PN, (w/ 10,000 pf conn filtering)

Equivalent to MIL-DTL-D38999 Series III and insert arrangement IAW MIL-STD-1560: Shell size 11-35 (Insert 35), “N” (Normal) key, 13 pins.

Input Mating Connector: D38999/26WB35SN or equivalent

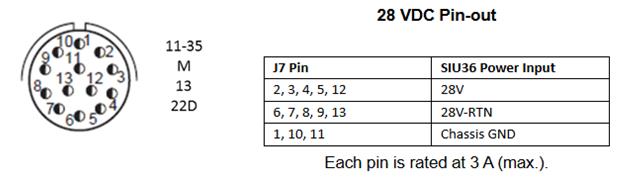

Figure 6. 28 VDC Pin Insert Arrangement, Front View

CONNECTOR DETAILS AND PINOUTS

I/O Connectors (J1 to J6) and SLOT Designations

Connectors J1 to J6 route all the I/O from the six OpenVPX boards within the SIU36. The I/O pins from the boards (user defined, and factory configured) are designated from the 3U board slot locations. The Slot-X P1 and P2 connectors of the OpenVPX cards are routed through the backplane to the SIU36 front panel connector rigid-flex assemblies. The specific I/O pin-out information for the J1 to J6 is defined by the configuration of the OpenVPX boards and function modules fitted to the OpenVPX boards.

Jx DesignationSIU36 Connector MFG. P/N (or equivalent)Board #NAI Conn P/N
J1TVP02RF-23-151S(S2AD)Slot-105-0473-COM
J2TVP02RF-23-151SA(S2AD)Slot-205-0468-COM
J3TVP02RF-23-151SD(S2AD)Slot-305-0471-COM
J4TVP02RF-23-151SB(S2AD)Slot-405-0469-COM
J5TVP02RF-23-151SE(S2AD)Slot-505-0472-COM
J6TVP02RF-23-151SC(S2AD)Slot-605-0470-COM
J7(D38999/20FB35PN)PSU05-0509-COM

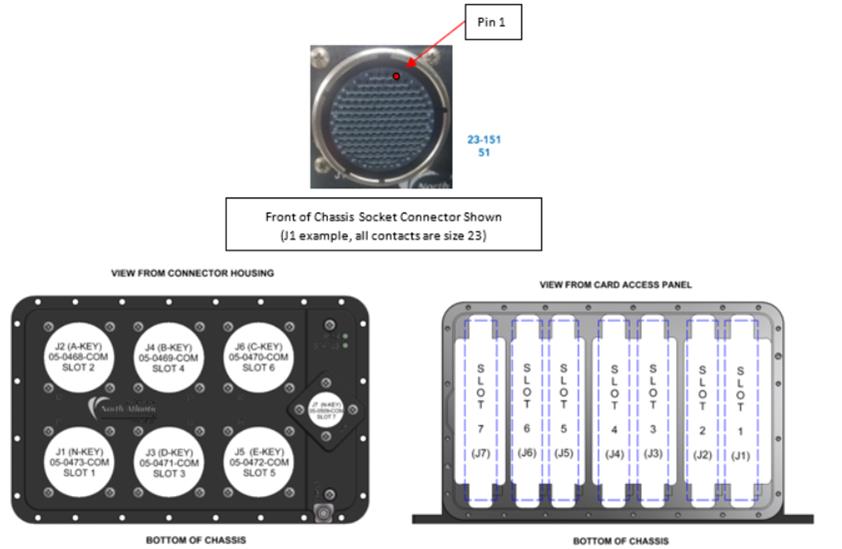

Figure 7. SIU36 Slot and Connector Association Details

Mating Connector Information

Mating Connector Kit; NAI P/N: SIU36-CONN-KIT

Available as an optional separate line item. The mating connector kit includes 1 each (or equivalent):

J1 MateNAI P/N: 05-0480-COM
HD38999 Type III / TV06RF23-151PN / EN, 151-pin, N-Key
J2 MateNAI P/N : 05-0475-COM
HD38999 Type III / TV06RF23-151PA / EN, 151-pin, A-Key
J3 MateNAI P/N : 05-0478-COM
HD38999 Type III / TV06RF23-151PD / EN, 151-pin, D-Key
J4 MateNAI P/N: 05-0476-COM
HD38999 Type III / TV06RF23-151PB / EN, 151-pin, B-Key
J5 MateNAI P/N : 05-0479-COM
HD38999 Type III / TV06RF23-151PE / EN, 151-pin, E-Key
J6 MateNAI P/N: 05-0477-COM
HD38999 Type III / TV06RF23-151PC / EN, 151-pin, C-Key
J7 MateNAI P/N : 05-0289-COM
D38999/26WB35SN / OD, 13-pin, N-Key
EN: Electroless Nickel; OD: Olive drab, Cadmium plated

POWER-UP AND BASIC OPERATIONS

Panel LEDs & Functions

Front Panel Power & Status LED Indicators

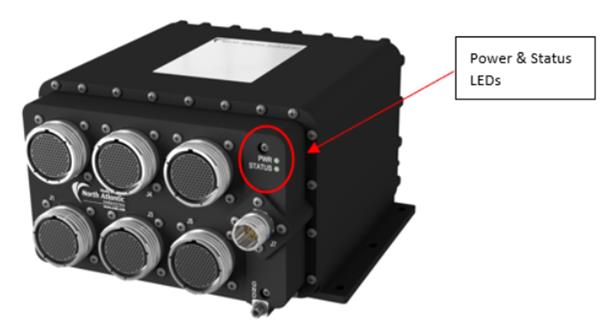

Figure 8. SIU36 Status LEDs Location

SIU36 Status LEDs Function

LEDSTATUS / FUNCTION
ILLUMINATEDEXTINGUISHED
POWER GRNBlinking: Initializing Steady On: Power-On/ReadyPower-off
*STATUS REDModule BIT (Attention required)No Module BIT Attention Required

*Status LED operations: Unless otherwise specified, default Status LED operations is controlled by the Slot-1 SBC/Root Complex card over the internal I2C communications link and functionally defined by the customer applied software application.

Elapsed Time Counter (ETC)

Integrated within the SIU36 backplane is an Elapsed Time Counter (ETC) IC, which records the accumulated time that the elapsed time recorder’s Event pin has been held high (in 250 ms increments). The ETC is stored on the chip from registers 0x0A-0x0D and read by the Slot-1 SBC/Root Complex card over the internal I2C communications link (the register is 0x6B).

Basic Operations

The SIU36 is delivered as a tested unit. All pins and operation have been verified. It is recommended that Power and Ethernet connections be made to verify operation of the boards fitted within the SIU36 by making use of NAI’s Embedded Soft Panel based GUI sample application that can be utilized as a board level “exercising” tool (if the SIU36 card configuration supports). The example process below describes the use of NAI’s Ethernet communications software tool.

After applying appropriate power to the SIU36, connect a host computer (laptop or similar running Windows XX (or Linux), to the appropriate Ethernet enabled/configured board (configured/populated in slot 1) Port A or Port B. The selection of Ethernet Port A or B is dependent on Slot-1 OpenVPX board configuration.

Note

Ethernet port assignments, MAC address, and factory default IP address are indicated on the chassis label.

For detailed supplement, please visit the NAI web-site specific product page(s).

QUALIFICATION

The SIU36 has been designed to meet the following general specifications. Cooling type, size, weight, power and environmental characteristics may affect the program requirements and the specifications as applied. Contact factory for the SIU36 Qualification Test status.

Environmental

Environmental Qualification Testing Specifications

Environmental MIL-STD-810 (1) (unless otherwise specified)
No.DescriptionProcedureCyclesTableFigureComments
514Random VibeMethod 514.6, 0.1g2/Hz from 100 to 1K Hz., -3dB octave 5-100 Hz and -6dB 1K-2K Hz,(operational)
514Sinusoidal VibeTBD
501Temp (High)33 periods (@ 4 hrs. ea.) within 24 hrs. cycle at 71 ºC baseplate
502Temp (Low)13 periods (@ 4 hrs. ea.) within 24 hrs. cycle at -40 ºC baseplate
503Temp (Shock)33 x 1 hr. each hot & cold cycle
507HumidityII10507.5-7507.5-IXCyclic high humidity (Cycle B2)
500Altitude (50K)II1n/an/a10m/s to 50,000ft for 1 hr.
513AccelerationII1513.6-IIn/aCarrier-based Aircraft (18g's max)
516Shock - OperatingI3516.6-In/a40g's, 1 min each x 6 axis
516Shock - CrashV3516.6-In/a75g's, 1 min each x 6 axis
Ingress Protection IEC 60529 (1, **2)**
No.DescriptionProcedureCyclesTableFigureComments
IP54Dust Protection(other - pending characterization / contact factory)
IP54Water Splashing(other - pending characterization / contact factory)
IP65Dust Tight(other - pending characterization / contact factory)
IP65Water Jets(other - pending characterization / contact factory)

EMI/EMC Specifications

EMI/EMC Qualification Testing Specifications

EMC / MIL-STD-461 (1, 2) (unless otherwise specified)*
MIL-STD-461FMethod/Curve/ProcedureComments
CE102Conducted, Emissions, Power Leads, 10K - 10M Hz
CS101Conducted, Susceptibility, Power Leads, 30 - 150K Hz
CS106Conducted, Susceptibility, Power Leads
CS114Conducted, Susceptibility, Power Leads, 10K - 10M Hz
CS115Conducted, Susceptibility, Bulk Injection
CS116Conducted, Susceptibility, SIN Transient 10K - 100M Hz
RE101Radiated, Emissions, Magnetic Field, 30 - 100K Hz
RE102Radiated, Emissions, Electric Field, 10K - 1.25G Hz
RS101Radiated, Susceptibility, Magnetic Field, 30 - 100K Hz
RS103Radiated, Susceptibility, Electric Field, 2M - 18G Hz

Notes:

*1 - Designed to meet / Generic Test Reports Available
*2 - Utilizing proper shielded cables and system grounding practices

HEAT DISSIPATION

The SIU36 is capable of dissipating up to a total of 150 Watts when properly mounted. Generally, the conduction cooled version thermal interface or the air/convection cooled version chassis must be maintained at a temperature not to exceed 71°C. Other operating and environmental factors and variable must be considered when specifying for a higher-level system platform integration. The total SIU36 power dissipation is dependent on the configuration of the OpenVPX boards and power supply fitted in the SIU36.

RELIABILITY

The reliability of the SIU36 is dependent on the configuration of the OpenVPX boards and power supply fitted within it. The Mean Time between Failures listed below is for the SIU36 configured with chassis, backplane, EMI Filter and connectors.

MTBF

The Mean Time between Failures is configuration, environment and temperature dependent. Please contact factory regarding calculations based on the specific configuration and program requirements.

REFDescriptionCalculation ModelMTBF (hours)*EnvironmentTemp (°C)
SIU36 - BP/FLTSIU36 Chassis/backplane/filter assemblyMIL-HDBK-217FN2 and ANSI/VITA 51.0 & 51.1-2008. RELIABILITY PREDICTION SUBSIDIARY SPECIFICATION657,336GM41
516,765NS40
322,651AIC55

*Calculation estimate only (to be validated)

SIGNAL PIN-OUTS

The following pinouts provides a general use guideline as an example, only. Pinout routing will be dependent on card type/configuration for optimal I/O usage. Consult NAI factory for assistance in determining specific configuration signal definitions as applicable.

Pin-Out / General / I/O Connector (Slot 1)

The following pinout is an example of a SIU36 Slot-1 populated with a 68PPC2 SBC fitted with an EM1, high-speed I/O 2-port Ethernet NIC and a CM5, combination 2-Channel dual redundant MIL-STD-1553 and 8-Channel ARINC 429 communications function modules.

J1 D38999 Connector68PPC2 (as configured)BP PinBP Signal NameMOD-1 / EM1MOD-2 / CM5Signal Description
1TX2-TP2PJ1-A13TX2-TP2P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
2TX2-TP2NJ1-B13TX2-TP2N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
3TX2-TP3PJ1-E13TX2-TP3P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
4TX2-TP3NJ1-F13TX2-TP3N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair
5TX1-TP3PJ1-G14TX1-TP3P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
6TX1-TP3NJ1-H14TX1-TP3N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
7MOD2-DATIO06J2-B11MOD2-DATIO06CH1-RT-ADDR3/ANN1MIL-STD-1553, Discrete RT Addressing, GND/OPEN
8MOD2-DATIO11J2-G12MOD2-DATIO11CH1-STANDARD/BNP1MIL-STD-1553, Discrete Special Mode Select, GND/OPEN
9MOD2-DATIO12J2-H12MOD2-DATIO12CH1-MODE0/BNN1MIL-STD-1553, Discrete Special Mode Select, GND/OPEN
10USB3_SSRXP_DN1J1-G12USB3_SSRXP_DN1LV-Differential, ~ 600 mV, pk-pk
11USB3_SSRXN_DN1J1-H12USB3_SSRXN_DN1LV-Differential, ~ 600 mV, pk-pk
12MOD2-DATIO04J2-H10MOD2-DATIO04BUSBN-CH1MIL-STD-1553, BUS, 24Vp-p (typ)
13MOD2-DATIO03J2-G10MOD2-DATIO03BUSBP-CH1MIL-STD-1553, BUS, 24Vp-p (typ)
14TTL-CH1J2-I01P2-G1TTL, 0-5V, GND REF
15TTL-CH2J2-I03P2-G3TTL, 0-5V, GND REF
16MOD2-DATIO05J2-A11MOD2-DATIO05CH1-RT-ADDR2/ANP1MIL-STD-1553, Discrete RT Addressing, GND/OPEN
17+5V-USB3_2J1-G10+5V-USB3_25V, 0.5A max (pending)
18GNDGNDGND Reference (signal/system GND)
19SER-GND2J1-I13SER-GND2GND Reference (signal/system GND)
20USB3_SSRXP_DN2J1-E09USB3_SSRXP_DN2LV-Differential, ~ 600 mV, pk-pk
21USB3_SSRXN_DN2J1-F09USB3_SSRXN_DN2LV-Differential, ~ 600 mV, pk-pk
22TTL-CH4J2-I07P2-G7TTL, 0-5V, GND REF
23TTL-CH3J2-I05P2-G5TTL, 0-5V, GND REF
24MOD2-DATIO16J2-F13MOD2-DATIO16AR429-B-CH02±10V, Bipolar, Return-to-Zero (RZ)
25MOD2-DATIO15J2-E13MOD2-DATIO15AR429-A-CH02±10V, Bipolar, Return-to-Zero (RZ)
26N/Cn/c
27N/Cn/c
28USB3-2_GNDJ1-H10USB3-2_GNDGND Reference (signal/system GND)
29N/Cn/c
30N/Cn/c
31(high speed)J2-E05MOD1-ETH3-TP0PShieldShield drain, cable, GbE (EM1)
32(high speed)J2-F05MOD1-ETH3-TP0N(n/c)N/A
33+5V-USB3_1J1-E11+5V-USB3_15V, 0.5A max (pending)
34USB3-1_GNDJ1-F11USB3-1_GNDGND Reference (signal/system GND)
35MOD2-DATIO28J2-H16MOD2-DATIO28CH1-RT-PARITY/BPN1MIL-STD-1553, Discrete RT Addressing, GND/OPEN
36MOD2-DATIO27J2-G16MOD2-DATIO27CH1-RT-ADDR4/BPP1MIL-STD-1553, Discrete RT Addressing, GND/OPEN
37N/Cn/c
38N/Cn/c
39N/Cn/c
40MOD2-DATIO31J2-I11MOD2-DATIO31AR429-A-CH07±10V, Bipolar, Return-to-Zero (RZ)
41MOD2-DATIO23J2-E15MOD2-DATIO23AR429-A-CH08±10V, Bipolar, Return-to-Zero (RZ)
42MOD2-DATIO24J2-F15MOD2-DATIO24AR429-B-CH08±10V, Bipolar, Return-to-Zero (RZ)
43(high speed)J2-H04MOD1-ETH3-TP2N(n/c)N/A
44(high speed)J2-G04MOD1-ETH3-TP2P(n/c)N/A
45MOD2-DATIO18J2-D14MOD2-DATIO18AR429-B-CH04±10V, Bipolar, Return-to-Zero (RZ)
46MOD2-DATIO17J2-C14MOD2-DATIO17AR429-A-CH04±10V, Bipolar, Return-to-Zero (RZ)
47MOD2-DATIO19J2-G14MOD2-DATIO19AR429-A-CH05±10V, Bipolar, Return-to-Zero (RZ)
48MOD2-DATIO20J2-H14MOD2-DATIO20AR429-B-CH05±10V, Bipolar, Return-to-Zero (RZ)
49GNDGNDGND Reference (signal/system GND)
50N/Cn/c
51N/Cn/c
52MOD2-DATIO32J2-I09MOD2-DATIO32AR429-B-CH07 ±10V, Bipolar,Return-to-Zero (RZ)
53(high speed)J2-F09MOD1-DATIO02EM1-ETH2-TP0-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
54(high speed)J2-E09MOD1-DATIO01EM1-ETH2-TP0+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
55GNDGNDGND Reference (signal/system GND)
56(high speed)J2-F03MOD1-ETH4-TP0N(n/c)N/A
57(high speed)J2-E03MOD1-ETH4-TP0P(n/c)N/A
58USB3_2NJ1-D10USB3_2NLV-Differential, ~ 600 mV, pk-pk
59USB3_2PJ1-C10USB3_2PLV-Differential, ~ 600 mV, pk-pk
60MOD2-DATIO26J2-D16MOD2-DATIO26CH1-RT-ADDR1/APN1MIL-STD-1553, Discrete RT Addressing, GND/OPEN
61MOD2-DATIO25J2-C16MOD2-DATIO25CH1-RT-ADDR0/APP1MIL-STD-1553, Discrete RT Addressing, GND/OPEN
62N/Cn/c
63N/Cn/c
64N/Cn/c
65GNDGNDGND Reference (signal/system GND)
66N/Cn/c
67N/Cn/c
68(high speed)J2-H02MOD1-ETH4-TP2N(n/c)N/A
69(high speed)J2-G02MOD1-ETH4-TP2P(n/c)N/A
70USB3_SSTXN_DN1J1-D12USB3_SSTXN_DN1LV-Differential, ~ 600 mV, pk-pk
71USB3_SSTXP_DN1J1-C12USB3_SSTXP_DN1LV-Differential, ~ 600 mV, pk-pk
72MOD2-DATIO13J2-A13MOD2-DATIO13AR429-A-CH01±10V, Bipolar, Return-to-Zero (RZ)
73MOD2-DATIO09J2-C12MOD2-DATIO09BUSBP-CH2MIL-STD-1553, BUS, 24Vp-p (typ)
74MOD2-DATIO10J2-D12MOD2-DATIO10BUSBN-CH2MIL-STD-1553, BUS, 24Vp-p (typ)
75N/Cn/c
76N/Cn/c
77NVMROJ1-I01N/C (P1-Res_Bus_SE)NVMRO (Write_Enable#), Open/GND
78N/Cn/c
79GNDGNDGND Reference (signal/system GND)
80N/Cn/c
81BKPLN-SATA-TXPJ2-E01BKPLN-SATA-TXPLVDS, ~ 250 mV, pk-pk (pending)
82BKPLN-SATA-TXNJ2-F01BKPLN-SATA-TXNLVDS, ~ 250 mV, pk-pk (pending)
83USB3_SSTXN_DN2J1-B09USB3_SSTXN_DN2LV-Differential, ~ 600 mV, pk-pk
84USB3_SSTXP_DN2J1-A09USB3_SSTXP_DN2LV-Differential, ~ 600 mV, pk-pk
85MOD2-DATIO14J2-B13MOD2-DATIO14AR429-B-CH01±10V, Bipolar Return-to-Zero (RZ)
86GNDGNDGND Reference (signal/system GND)
87N/Cn/c
88N/Cn/c
89N/Cn/c
90N/Cn/c
91N/Cn/c
92N/Cn/c
93N/Cn/c
94(high speed)J2-A07MOD1-DATIO11EM1-ETH1-TP1+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
95USB3_1NJ1-B11USB3_1NLV-Differential, ~ 600 mV, pk-pk
96USB3_1PJ1-A11USB3_1PLV-Differential, ~ 600 mV, pk-pk
97MOD2-DATIO21J2-A15MOD2-DATIO21AR429-A-CH06±10V, Bipolar, Return-to-Zero (RZ)
98MOD2-DATIO22J2-B15MOD2-DATIO22AR429-B-CH06±10V, Bipolar, Return-to-Zero (RZ)
99N/Cn/c
100N/Cn/c
101N/Cn/c
102N/Cn/c
103(high speed)J2-D08MOD1-DATIO08EM1-ETH2-TP3-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
104(high speed)J2-C08MOD1-DATIO07EM1-ETH2-TP3+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
105MOD2-DATIO02J2-D10MOD2-DATIO02BUSAN-CH1MIL-STD-1553, BUS, 24Vp-p (typ)
106MOD2-DATIO01J2-C10MOD2-DATIO01BUSAP-CH1MIL-STD-1553, BUS, 24Vp-p (typ)
107(high speed)J2-B07MOD1-DATIO12EM1-ETH1-TP1-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
108TX1-TP2NJ1-D14TX1-TP2N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
109TX1-TP2PJ1-C14TX1-TP2P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
110(high speed)J2-B09MOD1-DATIO04EM1-ETH2-TP1-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
111(high speed)J2-A09MOD1-DATIO03EM1-ETH2-TP1+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
112(high speed)J2-C06MOD1-DATIO15EM1-ETH1-TP3+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
113(high speed)J2-D06MOD1-DATIO16EM1-ETH1-TP3-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
114N/Cn/c
115MOD2-DATIO29J2-I15MOD2-DATIO29AR429-A-CH03±10V, Bipolar, Return-to-Zero (RZ)
116MOD2-DATIO30J2-I13MOD2-DATIO30AR429-B-CH03±10V, Bipolar, Return-to-Zero (RZ)
117N/Cn/c
118(high speed)J2-A05MOD1-ETH3-TP1P(n/c)N/A
119(high speed)J2-B05MOD1-ETH3-TP1N(n/c)N/A
120TX2-TP0NJ1-B15TX2-TP0N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
121TX2-TP0PJ1-A15TX2-TP0P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
122(high speed)J2-E07MOD1-DATIO09EM1-ETH1-TP0+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
123(high speed)J2-F07MOD1-DATIO10EM1-ETH1-TP0-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
124(high speed)J2-G08MOD1-DATIO05EM1-ETH2-TP2+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
125(high speed)J2-H08MOD1-DATIO06EM1-ETH2-TP2-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
126MRSTnJ1-I15MRSTn(+)3.3/GND signal typ.
127RTC_STDBYJ1-I03RTC_STDBY(+)3.3V typ. (external sourced)
128N/Cn/c
129(high speed)J2-C04MOD1-ETH3-TP3P(n/c)N/A
130high speed)J2-D04MOD1-ETH3-TP3N(n/c)N/A
131TX1-TP0NJ1-D16TX1-TP0N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
132TX1-TP0PJ1-C16TX1-TP0P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
133(high speed)J2-G06MOD1-DATIO13EM1-ETH1-TP2+10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
134(high speed)J2-H06MOD1-DATIO14EM1-ETH1-TP2-10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
135MOD2-DATIO07J2-E11MOD2-DATIO07BUSAP-CH2MIL-STD-1553, BUS, 24Vp-p (typ)
136GNDGNDGND Reference (signal/system GND)
137N/Cn/c
138N/Cn/c
139TX1-TP1NJ1-H16TX1-TP1N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
140TX1-TP1PJ1-G16TX1-TP1P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
141BP-SATA-RXNJ2-B01BP-SATA-RXNLVDS, ~ 250 mV, pk-pk (pending)
142BP-SATA-RXPJ2-A01BP-SATA-RXPLVDS, ~ 250 mV, pk-pk (pending)
143MOD2-DATIO08J2-F11MOD2-DATIO08BUSAN-CH2MIL-STD-1553, BUS, 24Vp-p (typ)
144SER-TXD1J1-I11SER-TXD1RS-232 signal, (+/-12V) typ.
145SER-RXD1J1-I09SER-RXD1RS-232 signal, (+/-12V) typ.
146TX2-TP1NJ1-F15TX2-TP1N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
147TX2-TP1PJ1-E15TX2-TP1P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
148(high speed)J2-C02MOD1-ETH4-TP3P(n/c)N/A
149(high speed)J2-D02MOD1-ETH4-TP3N(n/c)N/A
150(high speed)J2-A03MOD1-ETH4-TP1P(n/c)N/A
151(high speed)J2-B03MOD1-ETH4-TP1N(n/c)N/A

Pin-Out / General / I/O Connector (Slot 2-6)

The following pinout is an example of a SIU36 Slot-2 through Slot-6 (SX) populated with a 68G5. Please contact NAI for assistance/consult in generating a configuration specific pinout.

J2-J6 D38999 Connector68G5 - default68G5 PinBackplane (BP) PinBP Signal NameSignal Description
1N/C (ETH2-TXP)P1-D11J1-E11SX-ETH2-TXPN/C
2N/C (ETH2-TXN)P1-E11J1-F11SX-ETH2-TXNN/C
3N/C (ETH1-RXP)P1-B12J1-C12SX-ETH1-RXPN/C
4N/C (ETH1-RXN)P1-C12J1-D12SX-ETH1-RXNN/C
5N/C (ETH2-RXP)P1-A11J1-A11SX-ETH2-RXPN/C
6N/C (ETH2-RXN)P1-B11J1-B11SX-ETH2-RXNN/C
7MOD3-DATIO20P2-F12J2-H12SX-M3-D20Configuration/Function Specific
8MOD3-DATIO07P2-D15J2-E15SX-M3-D07Configuration/Function Specific
9MOD3-DATIO08P2-E15J2-F15SX-M3-D08Configuration/Function Specific
10N/C (ETH1-TXP)P1-E12J1-G12SX-ETH1-TXPN/C
11N/C (ETH1-TXN)P1-F12J1-H12SX-ETH1-TXNN/C
12ETH2-TP1PP1-D13J1-E13SX-ETH2-TP1PN/C
13ETH2-TP1NP1-E13J1-F13SX-ETH2-TP1NN/C
14MOD1-DATIO37P2-G01J2-I01SX-M1-D37Configuration/Function Specific
15MOD1-DATIO38P2-G03J2-I03SX-M1-D38Configuration/Function Specific
16MOD3-DATIO19P2-E12J2-G12SX-M3-D19Configuration/Function Specific
17MOD1-DATIO03P1-E10J1-G10SX-M1-D03Configuration/Function Specific
18GNDGNDGND Reference (signal/system GND)
19SER-GNDP1-G13J1-I13SX-SER-GND(N/A, RS232 Debug, if configured)
20SER-RXDP1-G09J1-I09SX-SER-RXD(N/A, RS232 Debug, if configured)
21SER-TXDP1-G11J1-I11SX-SER-TXD(N/A, RS232 Debug, if configured)
22ETH2-TP0+P1-A13J1-A13SX-ETH2-TP0PN/C
23ETH2-TP0-P1-B13J1-B13SX-ETH2-TP0NN/C
24MOD3-DATIO27P2-E10J2-G10SX-M3-D27Configuration/Function Specific
25MOD3-DATIO28P2-F10J2-H10SX-M3-D28Configuration/Function Specific
26MOD1-DATIO40P2-G07J2-I07SX-M1-D40Configuration/Function Specific
27MOD2-DATIO19P2-E04J2-G04SX-M2-D19Configuration/Function Specific
28MOD1-DATIO04P1-F10J1-H10SX-M1-D04Configuration/Function Specific
29MOD3-DATIO02P2-C16J2-D16SX-M3-D02Configuration/Function Specific
30MOD3-DATIO01P2-B16J2-C16SX-M3-D01Configuration/Function Specific
31MOD3-DATIO18P2-C12J2-D12SX-M3-D18Configuration/Function Specific
32MOD3-DATIO17P2-B12J2-C12SX-M3-D17Configuration/Function Specific
33ETH2-TP3PP1-E14J1-G14SX-ETH2-TP3PN/C
34ETH2-TP3NP1-F14J1-H14SX-ETH2-TP3NN/C
35MOD3-DATIO15P2-D13J2-E13SX-M3-D15Configuration/Function Specific
36MOD3-DATIO16P2-E13J2-F13SX-M3-D16Configuration/Function Specific
37MOD1-DATIO39P2-G05J2-I05SX-M1-D39Configuration/Function Specific
38MOD2-DATIO20P2-F04J2-H04SX-M2-D20Configuration/Function Specific
39MOD2-DATIO10P2-C06J2-D06SX-M2-D10Configuration/Function Specific
40MOD1-DATIO07P1-D09J1-E09SX-M1-D07Configuration/Function Specific
41MOD3-DATIO22P2-B11J2-B11SX-M3-D22Configuration/Function Specific
42MOD3-DATIO21P2-A11J2-A11SX-M3-D21Configuration/Function Specific
43MOD1-DATIO12P1-F08J1-H08SX-M1-D12Configuration/Function Specific
44MOD1-DATIO11P1-E08J1-G08SX-M1-D11Configuration/Function Specific
45ETH2-TP2PP1-B14J1-C14SX-ETH2-TP2PN/C
46ETH2-TP2NP1-C14J1-D14SX-ETH2-TP2NN/C
47MOD3-DATIO25P2-B10J2-C10SX-M3-D25Configuration/Function Specific
48MOD3-DATIO26P2-C10J2-D10SX-M3-D26Configuration/Function Specific
49GNDGNDGND Reference (signal/system GND)
50MOD2-DATIO03P2-E08J2-G08SX-M2-D03Configuration/Function Specific
51MOD2-DATIO09P2-B06J2-C06SX-M2-D09Configuration/Function Specific
52MOD1-DATIO08P1-E09J1-F09SX-M1-D08Configuration/Function Specific
53MOD3-DATIO32P2-E09J2-F09SX-M3-D32Configuration/Function Specific
54MOD3-DATIO31P2-D09J2-E09SX-M3-D31Configuration/Function Specific
55GNDGNDGND Reference (signal/system GND)
56MOD1-DATIO24P1-E05J1-F05SX-M1-D24Configuration/Function Specific
57MOD1-DATIO23P1-D05J1-E05SX-M1-D23Configuration/Function Specific
58MOD3-DATIO05P2-A15J2-A15SX-M3-D05Configuration/Function Specific
59MOD3-DATIO06P2-B15J2-B15SX-M3-D06Configuration/Function Specific
60MOD2-DATIO28P2-F02J2-H02SX-M2-D28Configuration/Function Specific
61MOD2-DATIO27P2-E02J2-G02SX-M2-D27Configuration/Function Specific
62MOD2-DATIO04P2-F08J2-H08SX-M2-D04Configuration/Function Specific
63N/Cn/c
64N/Cn/c
65GNDGNDGND Reference (signal/system GND)
66MOD2-DATIO01P2-B08J2-C08SX-M2-D01Configuration/Function Specific
67MOD2-DATIO26P2-C02J2-D02SX-M2-D26Configuration/Function Specific
68MOD1-DATIO06P1-B09J1-B09SX-M1-D06Configuration/Function Specific
69MOD1-DATIO05P1-A09J1-A09SX-M1-D05Configuration/Function Specific
70MOD3-DATIO09P2-B14J2-C14SX-M3-D09Configuration/Function Specific
71MOD3-DATIO10P2-C14J2-D14SX-M3-D10Configuration/Function Specific
72MOD3-DATIO13P2-A13J2-A13SX-M3-D13Configuration/Function Specific
73MOD3-DATIO04P2-F16J2-H16SX-M3-D04Configuration/Function Specific
74MOD3-DATIO03P2-E16J2-G16SX-M3-D03Configuration/Function Specific
75N/Cn/c
76N/Cn/c
77N/Cn/c
78MOD2-DATIO02P2-C08J2-D08SX-M2-D02Configuration/Function Specific
79GNDGNDGND Reference (signal/system GND)
80MOD2-DATIO25P2-B02J2-C02SX-M2-D25Configuration/Function Specific
81MOD1-DATIO18P1-C06J1-D06SX-M1-D18Configuration/Function Specific
82MOD1-DATIO17P1-B06J1-C06SX-M1-D17Configuration/Function Specific
83MOD3-DATIO23P2-D11J2-E11SX-M3-D23Configuration/Function Specific
84MOD3-DATIO24P2-E11J2-F11SX-M3-D24Configuration/Function Specific
85MOD3-DATIO14P2-B13J2-B13SX-M3-D14Configuration/Function Specific
86GNDGNDGND Reference (signal/system GND)
87N/Cn/c
88N/Cn/c
89MOD1-DATIO02P1-C10J1-D10SX-M1-D02Configuration/Function Specific
90MOD2-DATIO08P2-E07J2-F07SX-M2-D08Configuration/Function Specific
91MOD2-DATIO07P2-D07J2-E07SX-M2-D07Configuration/Function Specific
92MOD3-DATIO30P2-B09J2-B09SX-M3-D30Configuration/Function Specific
93MOD3-DATIO29P2-A09J2-A09SX-M3-D29Configuration/Function Specific
94MOD2-DATIO05P2-A07J2-A07SX-M2-D05Configuration/Function Specific
95MOD2-DATIO17P2-B04J2-C04SX-M2-D17Configuration/Function Specific
96MOD2-DATIO18P2-C04J2-D04SX-M2-D18Configuration/Function Specific
97MOD1-DATIO31P1-D03J1-E03SX-M1-D31Configuration/Function Specific
98MOD1-DATIO27P1-E04J1-G04SX-M1-D27Configuration/Function Specific
99N/Cn/c
100N/Cn/c
101MOD1-DATIO01P1-B10J1-C10SX-M1-D01Configuration/Function Specific
102MOD1-DATIO34P1-C02J1-D02SX-M1-D34Configuration/Function Specific
103MOD1-DATIO33P1-B02J1-C02SX-M1-D33Configuration/Function Specific
104MOD2-DATIO16P2-E05J2-F05SX-M2-D16Configuration/Function Specific
105MOD2-DATIO13P2-A05J2-A05SX-M2-D13Configuration/Function Specific
106MOD2-DATIO14P2-B05J2-B05SX-M2-D14Configuration/Function Specific
107MOD2-DATIO06P2-B07J2-B07SX-M2-D06Configuration/Function Specific
108MOD3-DATIO11P2-E14J2-G14SX-M3-D11Configuration/Function Specific
109MOD3-DATIO12P2-F14J2-H14SX-M3-D12Configuration/Function Specific
110MOD1-DATIO32P1-E03J1-F03SX-M1-D32Configuration/Function Specific
111MOD1-DATIO28P1-F04J1-H04SX-M1-D28Configuration/Function Specific
112MOD1-DATIO09P1-B08J1-C08SX-M1-D09Configuration/Function Specific
113MOD1-DATIO14P1-A07J1-A07SX-M1-D14Configuration/Function Specific
114MOD2-DATIO30P2-B01J2-B01SX-M2-D30Configuration/Function Specific
115MOD1-DATIO19P1-E06J1-G06SX-M1-D19Configuration/Function Specific
116MOD2-DATIO22P2-B03J2-B03SX-M2-D22Configuration/Function Specific
117MOD2-DATIO15P2-D05J2-E05SX-M2-D15Configuration/Function Specific
118MOD2-DATIO24P2-E03J2-F03SX-M2-D24Configuration/Function Specific
119N/C (+5V-USB-)P2-G13J2-I13+5V-USB-SX(N/A)
120MOD1-DATIO35P1-E02J1-G02SX-M1-D35Configuration/Function Specific
121MOD1-DATIO36P1-F02J1-H02SX-M1-D36Configuration/Function Specific
122MOD1-DATIO22P1-A05J1-A05SX-M1-D22Configuration/Function Specific
123MOD1-DATIO21P1-B05J1-B05SX-M1-D21Configuration/Function Specific
124MOD1-DATIO10P1-C08J1-D08SX-M1-D10Configuration/Function Specific
125MOD1-DATIO13P1-B07J1-B07SX-M1-D13Configuration/Function Specific
126MOD2-DATIO29P2-A01J2-A01SX-M2-D29Configuration/Function Specific
127MOD1-DATIO20P1-F06J1-H06SX-M1-D20Configuration/Function Specific
128MOD2-DATIO21P2-A03J2-A03SX-M2-D21Configuration/Function Specific
129MOD2-DATIO23P2-D03J2-E03SX-M2-D23Configuration/Function Specific
130N/C (USB-GND-)P2-G15J2-I15USB-GND-SX(N/A)
131MOD2-DATIO12P2-F06J2-H06SX-M2-D12Configuration/Function Specific
132MOD2-DATIO11P2-E06J2-G06SX-M2-D11Configuration/Function Specific
133MOD1-DATIO25P1-B04J1-C04SX-M1-D25Configuration/Function Specific
134MOD1-DATIO26P1-C04J1-D04SX-M1-D26Configuration/Function Specific
135MOD1-DATIO29P1-B03J1-B03SX-M1-D29Configuration/Function Specific
136GNDGNDGND Reference (signal/system GND)
137MOD2-DATIO31P2-D01J2-E01SX-M2-D31Configuration/Function Specific
138MOD2-DATIO32P2-E01J2-F01SX-M2-D32Configuration/Function Specific
139N/C (-USB-DP)P2-G09J2-I09SX-USB-DP(N/A)
140N/C (-USB-DM)P2-G11J2-I11SX-USB-DM(N/A)
141ETH1-TP1NP1-E15J1-F15SX-ETH1-TP1N(N/A)
142ETH1-TP1PP1-D15J1-E15SX-ETH1-TP1P(N/A)
143MOD1-DATIO30P1-A03J1-A03SX-M1-D30Configuration/Function Specific
144MOD1-DATIO15P1-D07J1-E07SX-M1-D15Configuration/Function Specific
145MOD1-DATIO16P1-E07J1-F07SX-M1-D16Configuration/Function Specific
146ETH1-TP2NP1-C16J1-D16SX-ETH1-TP2N(N/A)
147ETH1-TP2PP1-B16J1-C16SX-ETH1-TP2P(N/A)
148ETH1-TP0-P1-B15J1-B15SX-ETH1-TP0N(N/A)
149ETH1-TP0+P1-A15J1-A15SX-ETH1-TP0P(N/A)
150ETH1-TP3NP1-F16J1-H16SX-ETH1-TP3N(N/A)
151ETH1-TP3PP1-E16J1-G16SX-ETH1-TP3P(N/A)

General System Functions

PS-ON/OFF#

SIU36 PSU is strapped to be always “ON”. The unit will power-on if external +28V power is applied.

SYSRST#

[GND] or Logic-level “Low” (referenced to internal System GND of the SIU36) initiates/applies an active low assertion to the OpenVPX SYSRST# signal on the cards. Applied and once released, this will effectively introduce a root ‘system/card’ reset. SYSRST# signal is typically accessed from the SLOT-1 card, J1 MIL-connector.

Note

SYSRST# function is dependent on slot 1 card type/configuration; SYSRST# is typically routed to the “MRSTn” reset input of the SBC (root-complex) /Slot-1 card. If/as applicable, the card issues the RSTn signal on the backplane to all other “end-point” cards within the chassis when SYSRST# is asserted.

PART NUMBER DESIGNATION

Standard Product = SIU36-XXXXX

XXXXX = NAI/Factory assigned unique configuration identifier

Standard Product = SIU36-XXXXX

Chassis FamilySIU36
Chassis VersionXXXXX
- Standard 3U OpenVPX 6-slot card version (plus dedicated PSU slot). - Pre-Configured Card, Function, Slot Designation and PSU Definitions*. - Unique product specific configuration code assignment / identifier. Contact factory for other than standard version**.

Specifications are subject to change without notice.

Notes

*Factory assigned X-digit code will reference the complete SIU configuration information in the NAI Master Code List (MCL) or Part Number Configurator, as assigned and documented at the factory.

SIU mating connector kit part number:

OpenVPX Systems; 6x 151-pin (unique keys) & 1x 13-pin

28 VDC Power: SIU36-CONN-KIT

**If your configuration option is not listed please contact factory at 1-631-567-1100

REVISION HISTORY

Hardware Manual - SIU36 Revision History
RevisionRevision DateDescription
C2022-01-18ECO C09005, Transition manual to docbuilder format. Pg.5, Revised simplified block diagram (updated profiles for Slots 4 & 6)
C12023-04-11ECO C10276, pg.5, update weight. Pg.5/10, updated CC height from 5.1 to 5.0. Pg.5/10, updated CC/AC depth from 9.0 to 9.5. Pg.10, changed 'length' to 'width'. Pg.10, updated unpopulated weight (incl. PSU); added fully populated weight. Pg.18, added ETC details.
C22023-05-25ECO C10418, pg.5, changed product image to conduction-cooled.

DOCS.NAII REVISIONS

Revision DateDescription
2025-09-16Removed extraneous product image from General Safety Notices section; added links for to CC/AC mechanical drawings; changed ‘conduction’ to ‘air/convection’ in Air/Convection Cooled section of Mounting Requirements; corrected P/N in Connector/Slot Designation table (SIU34 to SIU36); fixed formatting of MTBF table; corrected MTBF (hours) specs for AIC and GM environments.
2025-09-29Corrected ‘Input Power Always On’ note (SIU34S to SIU36); added Notes to both CC & AC OID images; added input mating connector info to J7 connector section; corrected J7 board number in slot designation table (Slot-5 to PSU) & removed parentheses; correct PSU mate # in Mating Connector Info table (J5 to J7) & added abbreviation descriptions; highlighted ‘not to exceed’ in ‘Heat Dissipation’ for emphasis; corrected part number desgination (4x to 6x; SIU34-CONN-KIT to SIU36).

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100

Link to original

NAI Docs Assistant
Was this document helpful?

Backlinks
