SIU35 DATA SHEET

Click here for the SIU35 data sheet

INTRODUCTION

North Atlantic Industries’ (NAI) Sensor Interface Unit (SIU35) is a rugged base-plate conduction-cooled that takes advantage of NAI’s rugged conduction-cooled 3U cPCI multi-function I/O boards and power supply product architecture. The SIU35 provides a high density, compact data distribution system solution for I/O intensive and/or processing applications. The SIU35 supports full I/O control and communication over Ethernet. MIL-STD-1553, ARINC 429/575, Serial or CANBus interfaces are also available as primary interfaces when the boards are configured as such. PowerPC, Intel® Core™-i7, Intel ATOM™ or ARM Single Board Computer (SBC) processors can be added for a complete processing and I/O solution. The SIU35 is designed to support up to five NAI multi-function pre-configurable I/O boards, with or without processing, that support a wide variety of interface and communications function modules, all fitted/housed in a single rugged multi-board slot SIU system chassis, which is “delivered” pre-integrated and fully tested as a system.

OBJECTIVES

This manual provides the user with basic hardware implementation and information regarding the operation and interface of the SIU35. Each SIU35 is fitted with either one to five 3U cPCI boards and a AC or DC power supply unit. Additional PSU option for “hold-up” power/time is available.

SCOPE

This manual only covers the operation of the SIU35 as a stand-alone I/O subsystem. This manual does not cover specific details relating to the operation of the specific I/O boards and function modules fitted within the SIU35. Please reference the board specific documentation for details regarding the board level configuration(s).

CONVENTIONS USED IN THIS MANUAL

NOTE An operating procedure, practice, or condition, etc., that is essential to emphasize.

All numbers are expressed in decimal format unless otherwise noted.

GENERAL SAFETY NOTICES

The following general safety notices supplement the specific warnings and cautions appearing elsewhere in the manual. They are recommended precautions that must be understood and applied during operation and maintenance of the instrument covered herein.

The SIU35 is delivered as a standalone system. Besides removing the rear cover to access a board’s front panel I/O, if required, NAI recommends that the boards and power supply NOT be removed from the chassis.

REPAIR

DO NOT ATTEMPT REPAIR. Under no circumstances should repair of this instrument be attempted. All repairs to this chassis must be accomplished at the factory.

HIGH VOLTAGE

HIGH VOLTAGE may be used in the operation of this equipment.

INPUT POWER ALWAYS ON

Note

The design of the model SIU36 is such that input power is continuously supplied to internal circuits when connected to a main power source. To disconnect the SIU34S from external power, the external power source should first be de-energized. The power input cable can then be disconnected.

Website

https://www.naii.com/

SYSTEM SPECIFICATIONS AND DETAILS

Introduction

The model SIU35 is a next generation rugged systems chassis joining the NAI Sensor Interface Unit (SIU) system chassis family pedigree. The SIU35 is configured to support a wide variety of SBC and multifunction I/O boards that can be configured to support a variety of processing, communications and I/O functions that are supported under the NAI Configurable Open Systems Architecture ™ (COSA®) product families.

The SIU35 can function either as a centralized or distributed system. It can also be used to supplement existing legacy systems by easily adding sensor data acquisition as well as general I/O and communication interfaces without expensive legacy chassis and backplane redesign. It has been designed with rugged embedded industrial, military and aerospace applications in mind.

Leveraging NAI’s field-proven, unique modular architecture, the SIU35 supports standard 3U cPCI board-level compatible boards that can be fitted with a wide selection of different Intelligent I/O, motion simulation/measurement and communications functions such as:

A/D ConverterD/A ConverterI/O TTL/CMOSRTDI/O Discrete
I/O Differential TransceiverSynchro/Resolver LVDT/RVDT MeasurementSynchro/Resolver LVDT/RVDT SimulationStrain GaugeEncoder
Dual-Channel Dual Redundant BC/RT/MT MIL-STD-1553High-Speed Sync/Async RS232/422/423/485ARINC 429/575CAN busI/O Relay
AC ReferenceEthernet SwitchSSD/FlashCheck w/ NAI's factory or website for latest selection of available func ons

This approach provides unprecedented flexibility for supporting existing or new applications where there are specific interfacing requirements. Significant application benefits include:

  • Independent (pre-processed) I/O functionality targeted to specific data acquisition/control areas

  • Additional capabilities, technology insertion and sensor interfacing to existing fielded applications

  • Minimal integration risk based on current field-proven, deployed technologies

Specifications

The SIU35 is designed to meet the following general product specifications and is provided as a reference. Actual configuration and usage may affect size, weight and power (SWaP) specifications. Please contact NAI for discerning/defining SWaP considerations regarding specific program configurations. See additional details herein.

General

SIU35 General SWaP Specifications

Input Voltage:Standard/Default: DC: 18 to 36 VDC (28 VDC nominal)
Power (Base unit):~10 W (PSU efficiency, at 100W load) @ 28 VDC nominal
Then, add the power calculated for the configuration specific boards module(s) power (see separate specific boards and module(s) specifications).
I/O Signal GND reference is isolated from main power source return and chassis.
Power/Heat Dissipation:Conduction Cooled (CC):
~150 watts (maximum) when properly mounted to a cold plate, which must be maintained at a temperature not to exceed 71°C.
NOTE: The total SIU35 power dissipation is dependent on the configuration of the boards and function module types fixed in the SIU35. Environmental and other operating characteristic variable considerations should be considered.
Temperature, Operating:-40°C to 71°C
Conduction cooled: As measured at primary thermal transfer interface.
Temperature, Storage:-55°C to 105°C
Size:Height: ~4.8” (122 mm)
Depth: ~8.7” (221 mm)
Width: ~7.1” (180 mm)
Weight:The weight of an SIU35 system is dependent on the configuration. The approximate weight of the SIU35 is based on the selection of the PSU, boards and functional module(s).
The approximate weight of a configured SIU35 is:
~7.5 lbs. unpopulated - Chassis/backplane/rigid flex & connector boards (conduction cooled)
~1.4 lbs. for PSU
~1.25 lbs. for each additional fully function module populated board or SBC
~15.1 lbs. fully populated

UNPACKING AND INSPECTION

Unpacking

The SIU35 packing materials were designed specifically for transport protection of the SIU35. When receiving the shipment container, inspect packaging for any evidence of physical damage. If damage is evident, it is recommended that the carrier agent is present when opening the shipping container. It is further recommended that all packing material is retained in the event the SIU35 needs to be shipped elsewhere.

System/Chassis Identification

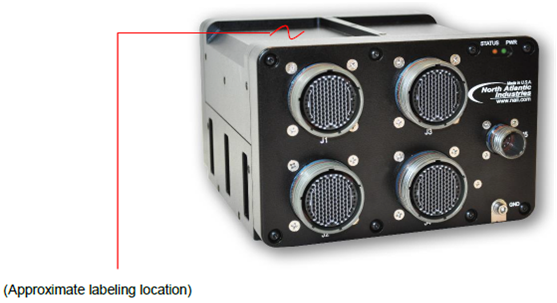

An identification label, indicating part number, unique serial number and Ethernet PHY MACs / default IP address(es) is affixed to the system chassis.

Label information provided:

 Unit Level Part Number

 Unit Level Serial Number

 Unit Level Date Code

Also, typically provided with:

 Slot/Board configuration(s) as applicable

 Slot/Board serial numbers and D/C

 Slot/Board IP address / MAC address (if applicable)

Special labeling requirements are also considered (i.e. UID matrix, customer part number, etc.). Contact factory for special labeling requirements.

Inspection

Inspect the chassis and connectors to ensure that they were not damaged during transit.

MECHANICAL INTERFACE

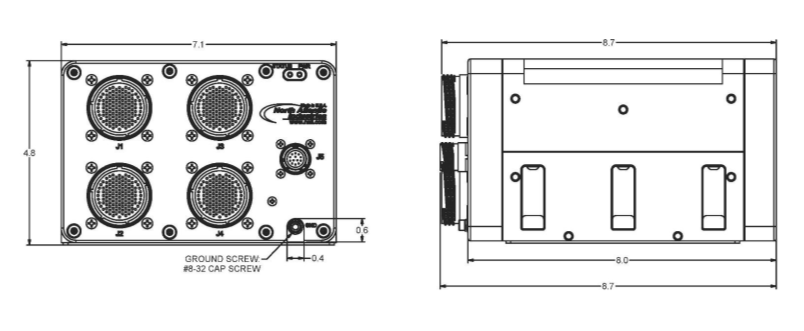

Mechanical Description

The SIU35 is a rugged, aluminum, conduction-cooled chassis that requires proper mounting to a cold-plate or surface that is maintained at 71°C or less. Three mounting holes are provided along each side of the SIU35. See the outline drawings below. Note that hardware is not supplied.

Maximum power and heat dissipation are dependent on the board and function complement chosen. Contact NAI for application guidance. See the reference outline drawing(s) below.

Mounting Requirements

The SIU35 is conduction cooled and must be mounted in accordance with the drawing. The Outline and Installation Drawing (OID) provides recommended hardware, torque, cold-plate flatness and surface finish specifications, and thermal conductivity requirements.

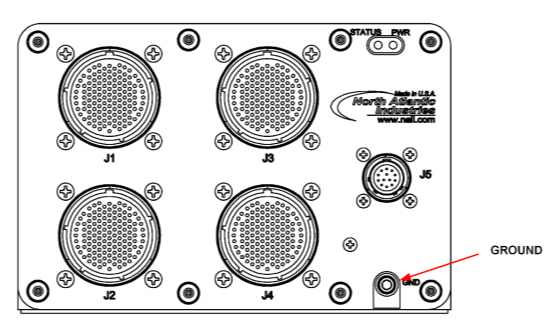

Chassis (Earth) GND

Chassis ground point threaded insert location is on the connector face (front) of the SIU35 as shown.

Finish

Unless otherwise specified, the following standard finish, or equivalent per NAI process requirements applies:

  1. PRE-TREATMENT: CHEMICAL FILM COATING IAW MIL-DTL-5541, TYPE II, CLASS 3, ALL OVER.

  2. PAINT PRIMER COAT: IAW-MIL-PRF-23377, TYPE II, CLASS 2, WITH A 0.9MIL MINIMUM DRY FILM THICKNESS TO EXTERIOR SURFACES SHOWN IN PAINT MASKING FIGURES.

  3. PAINT FINISH COAT: APPLY MEDIUM TEXTURE USING PER MIL-PRF-85285, TYPE I, CLASS 2, SEMI-GLOSS BLACK WITH A DRY FILM THICKNESS OF 0.0008 TO 0.0012 TO EXTERIOR SURFACES.

  4. FINISH NOTES 2 AND 3 OMITTED FROM THERMAL INTERFACE SURFACE INDICATED & FROM ALL HARDWARE.

CONNECTOR DESIGNATIONS, LOCATIONS & DESCRIPTIONS

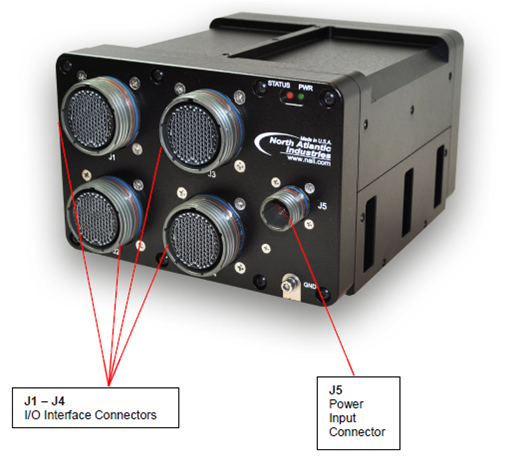

The Power, I/O Interface and Ethernet connectors are located on the SIU35 front panel housing.

REF. DES.KEYMANUFACTURER / MIL-DTL SPEC. (or Equiv.)P/NMATE P/N
J1NAMPHENOLAMP 88-569779-35SND38999/26WJ35P
J2AAMPHENOLAMP 88-569779-35SAD38999/26WJ35PA
J3BAMPHENOLAMP 88-569779-35SBD38999/26WJ35PB
J4CAMPHENOLAMP 88-569779-35SCD38999/26WJ35PC
J7NMIL-DTL-D38999 TypeAMP 88-569772-35PND38999/26WB35SN

CONNECTOR DETAILS AND PINOUTS

Generic pinout. See module I/O section or contact factory regarding any special module I/O configuration.

J5, Primary Power Connector

Primary input power is supported on the SIU35 via the J5 connector. There are three input power options for the SIU35: 28 VDC, 115/230 1ø VAC or 270 VDC. Two unique power connectors are used; one for the 28 VDC input and one for the 115/230 1ø VAC or 270 VDC input.

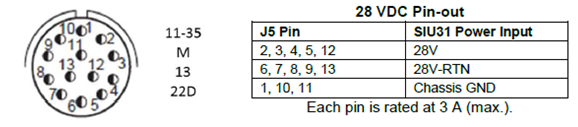

28 VDC Input Connector

If 28 VDC is specified:

Part Number: TVP02RW-11-35PN, (w/ 10,000 pf conn filtering)

Equivalent to MIL-DTL-D38999 Series III and insert arrangement IAW MIL-STD-1560: Shell size 11-35 (Insert 35), “N” (Normal) key, 13 pins.

Input Mating Connector: D38999/26WB35SN or equivalent

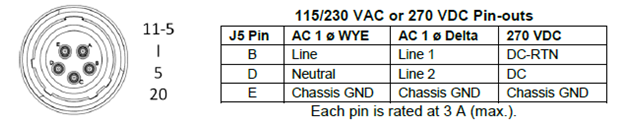

115/230 1ø VAC and 270 VDC Connector

If 115/230 1ø VAC and 270 VDC is specified:

Part Number: H9300W11-05PN110Y, (w/ 10,000 pf conn filtering)

Equivalent to MIL-DTL-D38999 Series III and insert arrangement IAW MIL-STD-1560: Shell size 11-5 (Insert 5), “N” (Normal) key, 5 pins.

Input Mating Connector: D38999/26W115SN or equivalent

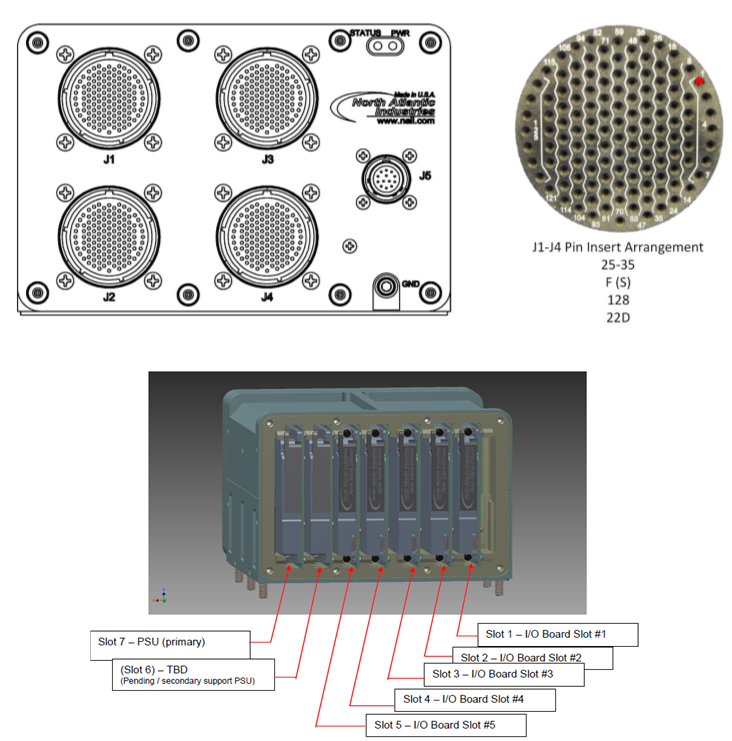

I/O Connectors (J1 to J4) and SLOT Designations

Connectors J1 to J4 route all the I/O from the four cPCI boards within the SIU35. The I/O pins from the cPCI (user defined and factory configured) SlotX_P2 connectors of the cPCI cards are routed through the backplane to the SIU35 front panel connectors. I/O pin-out information for the J1 to J4 is defined by the configuration of the cPCI boards and function modules fitted to the cPCI boards.

Jx DesignationSIU35 Connector MFG. P/N (or equivalent)Board #NAI Conn P/NKey
J1AMP 88-569779-35SSlot-105-0270key (N)
J2AMP 88-569779-35SASlot-2/305-0271key (A)
J3AMP 88-569779-35SBSlot-3/405-0272key (B)
J4AMP 88-569779-35SCSlot-4/505-0273key (C)
(J5)AMP 88-569772-35PN[ PSU (Slot-7) ](05-279)

Mating Connector Information

Mating Connector Kit: NAI P/N: SIU35-CONN-KIT

Available as an optional separate line item. The mating connector kit includes 1 each (or equivalent):

J1 MateNAI P/N: 05-0280-COM
HD38999 Type III / D38999/26WJ35P / EN, 128-pin, N-Key
J2 MateNAI P/N : 05-0281-COM
HD38999 Type III / D38999/26WJ35PA / EN, 128-pin, A-Key
J3 MateNAI P/N : 05-0282-COM
HD38999 Type III / D38999/26WJ35PB / EN, 128-pin, B-Key
J4 MateNAI P/N: 05-0283-COM
HD38999 Type III / D38999/26WJ35PC / EN, 128-pin, C-Key
J5 MateNAI P/N : 05-0289-COM
D38999/26WB35SN / OD, 13-pin, N-Key

POWER-UP AND BASIC OPERATIONS

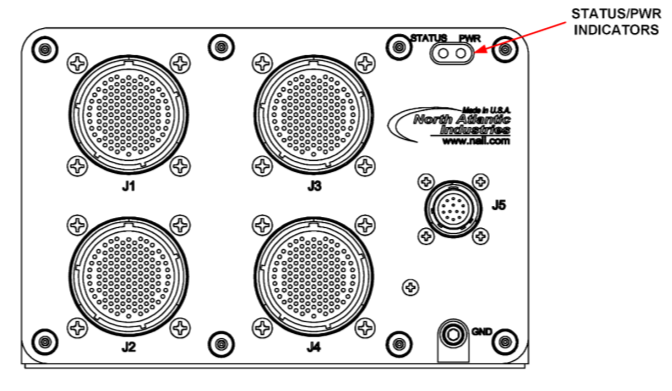

Panel LEDs & Functions

Front Panel Power & Status LED Indicators

STATUSIndicationPOWERIndication
[extinguished]Default[extinguished]OFF / Power Fault
GRN(Status 1)GRNON / Power OK
RED(Status 2)xx

Status LED

  1. Single Board Computer (SBC) inserted in Slot 1, for example: 75PPC1.

A. If the primary processor and associated peripherals are powered on and configuration status is OK, AND, the board configured I/O function module(s) are reported as configuration status “OK”, then the status LED will illuminate GRN (typically, within 10 seconds of SIU35 power-on). B. If the primary processor and associated peripherals are powered on and configuration status is OK, AND, the board configured I/O function module(s) are reported as configuration status NOT “OK”, then the status LED will illuminate RED (typically, within 10 seconds of SIU35 power-on). C. If the primary processor and associated peripherals are powered on but the configuration status is NOT “OK”, then the status LED will remain extinguished (typically, after 10 seconds of SIU35 power-on).

  1. Non-processor card inserted in Slot 1, for example: 75G5.

    NONE (STATUS LED is extinguished).

Power LED

Provided from power supply unit (PSU) or strapped accordingly - SIU35 power “ON” indication

Basic Operations

The SIU35 is delivered as a tested unit. All pins and operation have been verified. It is recommended that Power and Ethernet connections be made to verify operation of the boards fitted within the SIU35 by making use of NAI’s Embedded Soft Panel based GUI sample application that can be utilized as a board level “exercising” tool (if the SIU35 card configuration supports). The example process below describes the use of NAI’s Ethernet communications software tool.

After applying appropriate power to the SIU35, connect a host computer (laptop or similar running Windows or Linux), to the appropriate Ethernet enabled/configured board (configured/populated in slot 1) Port A or Port B. The selection of Ethernet Port A or B is dependent on Slot-1 cPCI board configuration.

Note

Ethernet port assignments, MAC address, and factory default IP address are indicated on the chassis label

For detailed supplement, please visit the NAI web-site specific product page(s).

QUALIFICATION

The SIU35 has been designed to meet the following general specifications. Cooling type, size, weight, power and environmental characteristics may affect the program requirements and the specifications as applied. Contact factory for the SIU35 Qualification Test status.

Environmental

Environmental Qualification Testing Specifications

Environmental MIL-STD-810 (1) (unless otherwise specified)
No.DescriptionProcedureCyclesTableFigureComments
514Random VibeMethod 514.6, 0.1g2/Hz from 100 to 1K Hz., -3dB octave 5-100 Hz and -6dB 1K-2K Hz,(operational)
514Sinusoidal VibeTBD
501Temp (High)33 periods (@ 4 hrs. ea.) within 24 hrs. cycle at 71 ºC baseplate
502Temp (Low)13 periods (@ 4 hrs. ea.) within 24 hrs. cycle at -40 ºC baseplate
503Temp (Shock)33 x 1 hr. each hot & cold cycle
507HumidityII10507.5-7507.5-IXCyclic high humidity (Cycle B2)
500Altitude (50K)II1n/an/a10m/s to 50,000ft for 1 hr.
513AccelerationII1513.6-IIn/aCarrier-based Aircraft (18g's max)
516Shock - OperatingI3516.6-In/a40g's, 1 min each x 6 axis
516Shock - CrashV3516.6-In/a75g's, 1 min each x 6 axis
Ingress Protection IEC 60529 (1, **2)**
No.DescriptionProcedureCyclesTableFigureComments
IP54Dust Protection(other - pending characterization / contact factory)
IP54Water Splashing(other - pending characterization / contact factory)
IP65Dust Tight(other - pending characterization / contact factory)
IP65Water Jets(other - pending characterization / contact factory)

EMI/EMC Specifications

EMI/EMC Qualification Testing Specifications

EMC / MIL-STD-461 (1, 2) (unless otherwise specified)*
MIL-STD-461FMethod/Curve/ProcedureComments
CE102Conducted, Emissions, Power Leads, 10K - 10M Hz
CS101Conducted, Susceptibility, Power Leads, 30 - 150K Hz
CS106Conducted, Susceptibility, Power Leads
CS114Conducted, Susceptibility, Power Leads, 10K - 10M Hz
CS115Conducted, Susceptibility, Bulk Injection
CS116Conducted, Susceptibility, SIN Transient 10K - 100M Hz
RE101Radiated, Emissions, Magnetic Field, 30 - 100K Hz
RE102Radiated, Emissions, Electric Field, 10K - 1.25G Hz
RS101Radiated, Susceptibility, Magnetic Field, 30 - 100K Hz
RS103Radiated, Susceptibility, Electric Field, 2M - 18G Hz

Notes:

*1 - Designed to meet / Generic Test Reports Available

*2 - Utilizing proper shielded cables and system grounding practices

HEAT DISSIPATION

The SIU35 is capable of dissipating up to a total of 125 Watts when properly mounted. Generally, the conduction cooled version thermal interface must be maintained at a temperature not to exceed 71°C. Other operating and environmental factors and variable must be considered when specifying for a higher-level system platform integration. The total SIU35 power dissipation is dependent on the configuration of the cPCI boards and power supply fitted in the SIU35.

RELIABILITY

The reliability of the SIU35 is dependent on the configuration of the OpenVPX boards and power supply fitted within it. The Mean Time between Failures is for the SIU34 configured with chassis, backplane, EMI Filter and connectors.

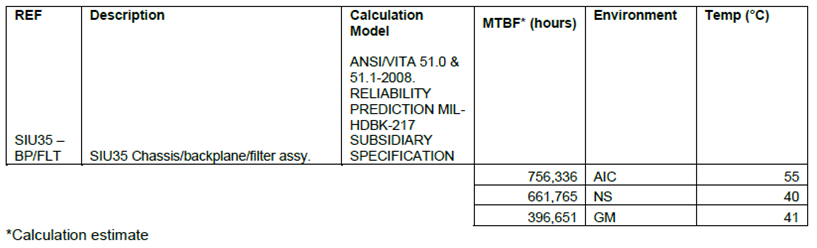

MTBF

The Mean Time between Failures is configuration, environment and temperature dependent. Please contact factory regarding calculations based on the specific configuration and program requirements.

SIGNAL PIN-OUTS

The following pinouts provides a general use guideline as an example, only. Pinout routing will be dependent on card type/configuration for optimal I/O usage. Consult NAI factory for assistance in determining specific configuration signal definitions as applicable.

Pin-Out / General / I/O Connector (Slot 1)

J1J2J3J4SIU35 Generic I/O 75G5-Z00Z00Z001WX4X
Master with 2x Gig E
J1-1SLOT1-M1-D1MOD1-DATIO1
J1-2SLOT1-M1-D2MOD1-DATIO2
J1-3SLOT1-M1-D3MOD1-DATIO3
J1-4SLOT1-M1-D4MOD1-DATIO4
J1-8SLOT1-M1-D5MOD1-DATIO5
J1-16SLOT1-M1-D6MOD1-DATIO6
J1-9SLOT1-M1-D7MOD1-DATIO7
J1-17SLOT1-M1-D8MOD1-DATIO8
J1-10SLOT1-M1-D9MOD1-DATIO9
J1-18SLOT1-M1-D10MOD1-DATIO10
J1-11SLOT1-M1-D11MOD1-DATIO11
J1-19SLOT1-M1-D12MOD1-DATIO12
J1-15SLOT1-M1-D13MOD1-DATIO13
J1-25SLOT1-M1-D14MOD1-DATIO14
J1-26SLOT1-M1-D15MOD1-DATIO15
J1-38SLOT1-M1-D16MOD1-DATIO16
J1-27SLOT1-M1-D17MOD1-DATIO17
J1-39SLOT1-M1-D18MOD1-DATIO18
J1-28SLOT1-M1-D19MOD1-DATIO19
J1-40SLOT1-M1-D20MOD1-DATIO20
J1-29SLOT1-M1-D21MOD1-DATIO21
J1-41SLOT1-M1-D22MOD1-DATIO22
J1-36SLOT1-M1-D23MOD1-DATIO23
J1-37SLOT1-M1-D24MOD1-DATIO24
J1-50SLOT1-M1-D25MOD1-DATIO25
J1-62SLOT1-M1-D26MOD1-DATIO26
J1-51SLOT1-M1-D27MOD1-DATIO27
J1-63SLOT1-M1-D28MOD1-DATIO28
J1-52SLOT1-M1-D29MOD1-DATIO29
J1-64SLOT1-M1-D30MOD1-DATIO30
J1-61SLOT1-M1-D31MOD1-DATIO31
J1-73SLOT1-M1-D32MOD1-DATIO32
J1-5SLOT1-M2-D1MOD2-DATIO1
J1-13SLOT1-M2-D2MOD2-DATIO2
J1-6SLOT1-M2-D3MOD2-DATIO3
J1-7SLOT1-M2-D4MOD2-DATIO4
J1-12SLOT1-M2-D5MOD2-DATIO5
J1-20SLOT1-M2-D6MOD2-DATIO6
J1-14SLOT1-M2-D7MOD2-DATIO7
J1-24SLOT1-M2-D8MOD2-DATIO8
J1-21SLOT1-M2-D9MOD2-DATIO9
J1-32SLOT1-M2-D10MOD2-DATIO10
J1-22SLOT1-M2-D11MOD2-DATIO11
J1-33SLOT1-M2-D12MOD2-DATIO12
J1-23SLOT1-M2-D13MOD2-DATIO13
J1-34SLOT1-M2-D14MOD2-DATIO14
J1-35SLOT1-M2-D15MOD2-DATIO15
J1-47SLOT1-M2-D16MOD2-DATIO16
J1-30SLOT1-M2-D17MOD2-DATIO17
J1-42SLOT1-M2-D18MOD2-DATIO18
J1-31SLOT1-M2-D19MOD2-DATIO19
J1-43SLOT1-M2-D20MOD2-DATIO20
J1-44SLOT1-M2-D21MOD2-DATIO21
J1-56SLOT1-M2-D22MOD2-DATIO22
J1-45SLOT1-M2-D23MOD2-DATIO23
J1-57SLOT1-M2-D24MOD2-DATIO24
J1-68SLOT1-M3-D1MOD3-DATIO1
J1-69SLOT1-M3-D2MOD3-DATIO2
J1-70SLOT1-M3-D3MOD3-DATIO3
J1-81SLOT1-M3-D4MOD3-DATIO4
J1-77SLOT1-M3-D5MOD3-DATIO5
J1-88SLOT1-M3-D6MOD3-DATIO6
J1-78SLOT1-M3-D7MOD3-DATIO7
J1-89SLOT1-M3-D8MOD3-DATIO8
J1-79SLOT1-M3-D9MOD3-DATIO9
J1-90SLOT1-M3-D10MOD3-DATIO10
J1-80SLOT1-M3-D11MOD3-DATIO11
J1-91SLOT1-M3-D12MOD3-DATIO12
J1-92SLOT1-M3-D13MOD3-DATIO13
J1-103SLOT1-M3-D14MOD3-DATIO14
J1-93SLOT1-M3-D15MOD3-DATIO15
J1-104SLOT1-M3-D16MOD3-DATIO16
J1-100SLOT1-M3-D17MOD3-DATIO17
J1-111SLOT1-M3-D18MOD3-DATIO18
J1-101SLOT1-M3-D19MOD3-DATIO19
J1-112SLOT1-M3-D20MOD3-DATIO20
J1-102SLOT1-M3-D21MOD3-DATIO21
J1-113SLOT1-M3-D22MOD3-DATIO22
J1-110SLOT1-M3-D23MOD3-DATIO23
J1-119SLOT1-M3-D24MOD3-DATIO24
J1-83SLOT1-ETH1-R-TP0-ETH1-TP0-
J1-82SLOT1-ETH1-R-TP0+ETH1-TP0+
J1-71SLOT1-ETH1-R-TP1+ETH1-TP1+
J1-72SLOT1-ETH1-R-TP1-ETH1-TP1-
J1-49SLOT1-ETH1-R-TP2-ETH1-TP2-
J1-48SLOT1-ETH1-R-TP2+ETH1-TP2+
J1-60SLOT1-ETH1-R-TP3-ETH1-TP3-
J1-59SLOT1-ETH1-R-TP3+ETH1-TP3+
J1-84SLOT1-ETH2-R-TP0+ETH2-TP0+
J1-85SLOT1-ETH2-R-TP0-ETH2-TP0-
J1-97SLOT1-ETH2-R-TP1-ETH2-TP1-
J1-96SLOT1-ETH2-R-TP1+ETH2-TP1+
J1-95SLOT1-ETH2-R-TP2-ETH2-TP2-
J1-94SLOT1-ETH2-R-TP2+ETH2-TP2+
J1-106SLOT1-ETH2-R-TP3-ETH2-TP3-
J1-105SLOT1-ETH2-R-TP3+ETH2-TP3+
J1-116DEBUG (I2C Clock)N/C
J1-115DEBUG (I2C Data)N/C
J1-117DEBUG (cPCI-PRSTn)N/C
J1-107DEBUG (HDW WP)N/C
J1-74SerialSER-TXD1
J1-75SerialSER-RXD1
J1-76SerialSER-GND
J1-109DEBUG (RTC_STDBY)N/C

Note

Typical assignments for NAI processor card for SLOT 1.

Pin-Out / General / I/O Connector (Slot 2)

J1J2J3J4SIU35 Generic I/O75G5-Z00Z00Z000WX0X
Slave board
J2-48SLOT2-M1-D1MOD1-DATIO1
J2-59SLOT2-M1-D2MOD1-DATIO2
J2-49SLOT2-M1-D3MOD1-DATIO3
J2-60SLOT2-M1-D4MOD1-DATIO4
J2-71SLOT2-M1-D5MOD1-DATIO5
J2-82SLOT2-M1-D6MOD1-DATIO6
J2-72SLOT2-M1-D7MOD1-DATIO7
J2-83SLOT2-M1-D8MOD1-DATIO8
J2-84SLOT2-M1-D9MOD1-DATIO9
J2-95SLOT2-M1-D10MOD1-DATIO10
J2-74SLOT2-M1-D11MOD1-DATIO11
J2-85SLOT2-M1-D12MOD1-DATIO12
J2-75SLOT2-M1-D13MOD1-DATIO13
J2-86SLOT2-M1-D14MOD1-DATIO14
J2-76SLOT2-M1-D15MOD1-DATIO15
J2-87SLOT2-M1-D16MOD1-DATIO16
J2-94SLOT2-M1-D17MOD1-DATIO17
J2-105SLOT2-M1-D18MOD1-DATIO18
J2-96SLOT2-M1-D19MOD1-DATIO19
J2-106SLOT2-M1-D20MOD1-DATIO20
J2-97SLOT2-M1-D21MOD1-DATIO21
J2-107SLOT2-M1-D22MOD1-DATIO22
J2-98SLOT2-M1-D23MOD1-DATIO23
J2-108SLOT2-M1-D24MOD1-DATIO24
J2-99SLOT2-M1-D25MOD1-DATIO25
J2-109SLOT2-M1-D26MOD1-DATIO26
J2-115SLOT2-M1-D27MOD1-DATIO27
J2-122SLOT2-M1-D28MOD1-DATIO28
J2-116SLOT2-M1-D29MOD1-DATIO29
J2-123SLOT2-M1-D30MOD1-DATIO30
J2-117SLOT2-M1-D31MOD1-DATIO31
J2-124SLOT2-M1-D32MOD1-DATIO32
J2-68SLOT2-M2-D1MOD2-DATIO1
J2-69SLOT2-M2-D2MOD2-DATIO2
J2-70SLOT2-M2-D3MOD2-DATIO3
J2-81SLOT2-M2-D4MOD2-DATIO4
J2-77SLOT2-M2-D5MOD2-DATIO5
J2-88SLOT2-M2-D6MOD2-DATIO6
J2-78SLOT2-M2-D7MOD2-DATIO7
J2-89SLOT2-M2-D8MOD2-DATIO8
J2-79SLOT2-M2-D9MOD2-DATIO9
J2-90SLOT2-M2-D10MOD2-DATIO10
J2-80SLOT2-M2-D11MOD2-DATIO11
J2-91SLOT2-M2-D12MOD2-DATIO12
J2-92SLOT2-M2-D13MOD2-DATIO13
J2-103SLOT2-M2-D14MOD2-DATIO14
J2-93SLOT2-M2-D15MOD2-DATIO15
J2-104SLOT2-M2-D16MOD2-DATIO16
J2-100SLOT2-M2-D17MOD2-DATIO17
J2-111SLOT2-M2-D18MOD2-DATIO18
J2-101SLOT2-M2-D19MOD2-DATIO19
J2-112SLOT2-M2-D20MOD2-DATIO20
J2-102SLOT2-M2-D21MOD2-DATIO21
J2-113SLOT2-M2-D22MOD2-DATIO22
J2-110SLOT2-M2-D23MOD2-DATIO23
J2-119SLOT2-M2-D24MOD2-DATIO24
J2-114SLOT2-M2-D25MOD2-DATIO25
J2-121SLOT2-M2-D26MOD2-DATIO26
J2-118SLOT2-M2-D27MOD2-DATIO27
J2-125SLOT2-M2-D28MOD2-DATIO28
J2-120SLOT2-M2-D29MOD2-DATIO29
J2-126SLOT2-M2-D30MOD2-DATIO30
J2-127SLOT2-M2-D31MOD2-DATIO31
J2-128SLOT2-M2-D32MOD2-DATIO32
J2-1SLOT2-M3-D1MOD3-DATIO1
J2-2SLOT2-M3-D2MOD3-DATIO2
J2-3SLOT2-M3-D3MOD3-DATIO3
J2-4SLOT2-M3-D4MOD3-DATIO4
J2-8SLOT2-M3-D5MOD3-DATIO5
J2-16SLOT2-M3-D6MOD3-DATIO6
J2-9SLOT2-M3-D7MOD3-DATIO7
J2-17SLOT2-M3-D8MOD3-DATIO8
J2-10SLOT2-M3-D9MOD3-DATIO9
J2-18SLOT2-M3-D10MOD3-DATIO10
J2-11SLOT2-M3-D11MOD3-DATIO11
J2-19SLOT2-M3-D12MOD3-DATIO12
J2-15SLOT2-M3-D13MOD3-DATIO13
J2-25SLOT2-M3-D14MOD3-DATIO14
J2-26SLOT2-M3-D15MOD3-DATIO15
J2-38SLOT2-M3-D16MOD3-DATIO16
J2-27SLOT2-M3-D17MOD3-DATIO17
J2-39SLOT2-M3-D18MOD3-DATIO18
J2-28SLOT2-M3-D19MOD3-DATIO19
J2-40SLOT2-M3-D20MOD3-DATIO20
J2-29SLOT2-M3-D21MOD3-DATIO21
J2-41SLOT2-M3-D22MOD3-DATIO22
J2-36SLOT2-M3-D23MOD3-DATIO23
J2-37SLOT2-M3-D24MOD3-DATIO24
J2-50SLOT2-M3-D25MOD3-DATIO25
J2-62SLOT2-M3-D26MOD3-DATIO26
J2-51SLOT2-M3-D27MOD3-DATIO27
J2-63SLOT2-M3-D28MOD3-DATIO28
J2-52SLOT2-M3-D29MOD3-DATIO29
J2-64SLOT2-M3-D30MOD3-DATIO30
J2-61SLOT2-M3-D31MOD3-DATIO31
J2-73SLOT2-M3-D32MOD3-DATIO32

Pin-Out / General / I/O Connector (Slot 3)

J1J2J3J4SIU35 Generic I/O75G5-Z00Z00Z000WX0X
Slave board
J3-48SLOT3-M1-D1MOD1-DATIO1
J3-59SLOT3-M1-D2MOD1-DATIO2
J3-49SLOT3-M1-D3MOD1-DATIO3
J3-60SLOT3-M1-D4MOD1-DATIO4
J3-71SLOT3-M1-D5MOD1-DATIO5
J3-82SLOT3-M1-D6MOD1-DATIO6
J3-72SLOT3-M1-D7MOD1-DATIO7
J3-83SLOT3-M1-D8MOD1-DATIO8
J3-84SLOT3-M1-D9MOD1-DATIO9
J3-95SLOT3-M1-D10MOD1-DATIO10
J3-74SLOT3-M1-D11MOD1-DATIO11
J3-85SLOT3-M1-D12MOD1-DATIO12
J3-75SLOT3-M1-D13MOD1-DATIO13
J3-86SLOT3-M1-D14MOD1-DATIO14
J3-76SLOT3-M1-D15MOD1-DATIO15
J3-87SLOT3-M1-D16MOD1-DATIO16
J3-94SLOT3-M1-D17MOD1-DATIO17
J3-105SLOT3-M1-D18MOD1-DATIO18
J3-96SLOT3-M1-D19MOD1-DATIO19
J3-106SLOT3-M1-D20MOD1-DATIO20
J3-97SLOT3-M1-D21MOD1-DATIO21
J3-107SLOT3-M1-D22MOD1-DATIO22
J3-98SLOT3-M1-D23MOD1-DATIO23
J3-108SLOT3-M1-D24MOD1-DATIO24
J3-99SLOT3-M1-D25MOD1-DATIO25
J3-109SLOT3-M1-D26MOD1-DATIO26
J3-115SLOT3-M1-D27MOD1-DATIO27
J3-122SLOT3-M1-D28MOD1-DATIO28
J3-116SLOT3-M1-D29MOD1-DATIO29
J3-123SLOT3-M1-D30MOD1-DATIO30
J3-117SLOT3-M1-D31MOD1-DATIO31
J3-124SLOT3-M1-D32MOD1-DATIO32
J3-68SLOT3-M2-D1MOD2-DATIO1
J3-69SLOT3-M2-D2MOD2-DATIO2
J3-70SLOT3-M2-D3MOD2-DATIO3
J3-81SLOT3-M2-D4MOD2-DATIO4
J3-77SLOT3-M2-D5MOD2-DATIO5
J3-88SLOT3-M2-D6MOD2-DATIO6
J3-78SLOT3-M2-D7MOD2-DATIO7
J3-89SLOT3-M2-D8MOD2-DATIO8
J3-79SLOT3-M2-D9MOD2-DATIO9
J3-90SLOT3-M2-D10MOD2-DATIO10
J3-80SLOT3-M2-D11MOD2-DATIO11
J3-91SLOT3-M2-D12MOD2-DATIO12
J3-92SLOT3-M2-D13MOD2-DATIO13
J3-103SLOT3-M2-D14MOD2-DATIO14
J3-93SLOT3-M2-D15MOD2-DATIO15
J3-104SLOT3-M2-D16MOD2-DATIO16
J3-100SLOT3-M2-D17MOD2-DATIO17
J3-111SLOT3-M2-D18MOD2-DATIO18
J3-101SLOT3-M2-D19MOD2-DATIO19
J3-112SLOT3-M2-D20MOD2-DATIO20
J3-102SLOT3-M2-D21MOD2-DATIO21
J3-113SLOT3-M2-D22MOD2-DATIO22
J3-110SLOT3-M2-D23MOD2-DATIO23
J3-119SLOT3-M2-D24MOD2-DATIO24
J3-114SLOT3-M2-D25MOD2-DATIO25
J3-121SLOT3-M2-D26MOD2-DATIO26
J3-118SLOT3-M2-D27MOD2-DATIO27
J3-125SLOT3-M2-D28MOD2-DATIO28
J3-120SLOT3-M2-D29MOD2-DATIO29
J3-126SLOT3-M2-D30MOD2-DATIO30
J3-127SLOT3-M2-D31MOD2-DATIO31
J3-128SLOT3-M2-D32MOD2-DATIO32
J2-5SLOT3-M3-D1MOD3-DATIO1
J2-13SLOT3-M3-D2MOD3-DATIO2
J2-6SLOT3-M3-D3MOD3-DATIO3
J2-7SLOT3-M3-D4MOD3-DATIO4
J2-12SLOT3-M3-D5MOD3-DATIO5
J2-20SLOT3-M3-D6MOD3-DATIO6
J2-14SLOT3-M3-D7MOD3-DATIO7
J2-24SLOT3-M3-D8MOD3-DATIO8
J2-21SLOT3-M3-D9MOD3-DATIO9
J2-32SLOT3-M3-D10MOD3-DATIO10
J2-22SLOT3-M3-D11MOD3-DATIO11
J2-33SLOT3-M3-D12MOD3-DATIO12
J2-23SLOT3-M3-D13MOD3-DATIO13
J2-34SLOT3-M3-D14MOD3-DATIO14
J2-35SLOT3-M3-D15MOD3-DATIO15
J2-47SLOT3-M3-D16MOD3-DATIO16
J2-30SLOT3-M3-D17MOD3-DATIO17
J2-42SLOT3-M3-D18MOD3-DATIO18
J2-31SLOT3-M3-D19MOD3-DATIO19
J2-43SLOT3-M3-D20MOD3-DATIO20
J2-44SLOT3-M3-D21MOD3-DATIO21
J2-56SLOT3-M3-D22MOD3-DATIO22
J2-45SLOT3-M3-D23MOD3-DATIO23
J2-57SLOT3-M3-D24MOD3-DATIO24
J2-46SLOT3-M3-D25MOD3-DATIO25
J2-58SLOT3-M3-D26MOD3-DATIO26
J2-53SLOT3-M3-D27MOD3-DATIO27
J2-65SLOT3-M3-D28MOD3-DATIO28
J2-54SLOT3-M3-D29MOD3-DATIO29
J2-66SLOT3-M3-D30MOD3-DATIO30
J2-55SLOT3-M3-D31MOD3-DATIO31
J2-67SLOT3-M3-D32MOD3-DATIO32

Pin-Out / General / I/O Connector (Slot 4)

J1J2J3J4SIU35 Generic I/O75G5-Z00Z00Z000WX0X
Slave board
J3-1SLOT4-M1-D1MOD1-DATIO1
J3-2SLOT4-M1-D2MOD1-DATIO2
J3-3SLOT4-M1-D3MOD1-DATIO3
J3-4SLOT4-M1-D4MOD1-DATIO4
J3-8SLOT4-M1-D5MOD1-DATIO5
J3-16SLOT4-M1-D6MOD1-DATIO6
J3-9SLOT4-M1-D7MOD1-DATIO7
J3-17SLOT4-M1-D8MOD1-DATIO8
J3-10SLOT4-M1-D9MOD1-DATIO9
J3-18SLOT4-M1-D10MOD1-DATIO10
J3-11SLOT4-M1-D11MOD1-DATIO11
J3-19SLOT4-M1-D12MOD1-DATIO12
J3-15SLOT4-M1-D13MOD1-DATIO13
J3-25SLOT4-M1-D14MOD1-DATIO14
J3-26SLOT4-M1-D15MOD1-DATIO15
J3-38SLOT4-M1-D16MOD1-DATIO16
J3-27SLOT4-M1-D17MOD1-DATIO17
J3-39SLOT4-M1-D18MOD1-DATIO18
J3-28SLOT4-M1-D19MOD1-DATIO19
J3-40SLOT4-M1-D20MOD1-DATIO20
J3-29SLOT4-M1-D21MOD1-DATIO21
J3-41SLOT4-M1-D22MOD1-DATIO22
J3-36SLOT4-M1-D23MOD1-DATIO23
J3-37SLOT4-M1-D24MOD1-DATIO24
J3-50SLOT4-M1-D25MOD1-DATIO25
J3-62SLOT4-M1-D26MOD1-DATIO26
J3-51SLOT4-M1-D27MOD1-DATIO27
J3-63SLOT4-M1-D28MOD1-DATIO28
J3-52SLOT4-M1-D29MOD1-DATIO29
J3-64SLOT4-M1-D30MOD1-DATIO30
J3-61SLOT4-M1-D31MOD1-DATIO31
J3-73SLOT4-M1-D32MOD1-DATIO32
J3-5SLOT4-M2-D1MOD2-DATIO1
J3-13SLOT4-M2-D2MOD2-DATIO2
J3-6SLOT4-M2-D3MOD2-DATIO3
J3-7SLOT4-M2-D4MOD2-DATIO4
J3-12SLOT4-M2-D5MOD2-DATIO5
J3-20SLOT4-M2-D6MOD2-DATIO6
J3-14SLOT4-M2-D7MOD2-DATIO7
J3-24SLOT4-M2-D8MOD2-DATIO8
J3-21SLOT4-M2-D9MOD2-DATIO9
J3-32SLOT4-M2-D10MOD2-DATIO10
J3-22SLOT4-M2-D11MOD2-DATIO11
J3-33SLOT4-M2-D12MOD2-DATIO12
J3-23SLOT4-M2-D13MOD2-DATIO13
J3-34SLOT4-M2-D14MOD2-DATIO14
J3-35SLOT4-M2-D15MOD2-DATIO15
J3-47SLOT4-M2-D16MOD2-DATIO16
J3-30SLOT4-M2-D17MOD2-DATIO17
J3-42SLOT4-M2-D18MOD2-DATIO18
J3-31SLOT4-M2-D19MOD2-DATIO19
J3-43SLOT4-M2-D20MOD2-DATIO20
J3-44SLOT4-M2-D21MOD2-DATIO21
J3-56SLOT4-M2-D22MOD2-DATIO22
J3-45SLOT4-M2-D23MOD2-DATIO23
J3-57SLOT4-M2-D24MOD2-DATIO24
J3-46SLOT4-M2-D25MOD2-DATIO25
J3-58SLOT4-M2-D26MOD2-DATIO26
J3-53SLOT4-M2-D27MOD2-DATIO27
J3-65SLOT4-M2-D28MOD2-DATIO28
J3-54SLOT4-M2-D29MOD2-DATIO29
J3-66SLOT4-M2-D30MOD2-DATIO30
J3-55SLOT4-M2-D31MOD2-DATIO31
J3-67SLOT4-M2-D32MOD2-DATIO32
J4-68SLOT4-M3-D1MOD3-DATIO1
J4-69SLOT4-M3-D2MOD3-DATIO2
J4-70SLOT4-M3-D3MOD3-DATIO3
J4-81SLOT4-M3-D4MOD3-DATIO4
J4-77SLOT4-M3-D5MOD3-DATIO5
J4-88SLOT4-M3-D6MOD3-DATIO6
J4-78SLOT4-M3-D7MOD3-DATIO7
J4-89SLOT4-M3-D8MOD3-DATIO8
J4-79SLOT4-M3-D9MOD3-DATIO9
J4-90SLOT4-M3-D10MOD3-DATIO10
J4-80SLOT4-M3-D11MOD3-DATIO11
J4-91SLOT4-M3-D12MOD3-DATIO12
J4-92SLOT4-M3-D13MOD3-DATIO13
J4-103SLOT4-M3-D14MOD3-DATIO14
J4-93SLOT4-M3-D15MOD3-DATIO15
J4-104SLOT4-M3-D16MOD3-DATIO16
J4-100SLOT4-M3-D17MOD3-DATIO17
J4-111SLOT4-M3-D18MOD3-DATIO18
J4-101SLOT4-M3-D19MOD3-DATIO19
J4-112SLOT4-M3-D20MOD3-DATIO20
J4-102SLOT4-M3-D21MOD3-DATIO21
J4-113SLOT4-M3-D22MOD3-DATIO22
J4-110SLOT4-M3-D23MOD3-DATIO23
J4-119SLOT4-M3-D24MOD3-DATIO24
J4-114SLOT4-M3-D25MOD3-DATIO25
J4-121SLOT4-M3-D26MOD3-DATIO26
J4-118SLOT4-M3-D27MOD3-DATIO27
J4-125SLOT4-M3-D28MOD3-DATIO28
J4-120SLOT4-M3-D29MOD3-DATIO29
J4-126SLOT4-M3-D30MOD3-DATIO30
J4-127SLOT4-M3-D31MOD3-DATIO31
J4-128SLOT4-M3-D32MOD3-DATIO32

Pin-Out / General / I/O Connector (Slot 5)

J1J2J3J4SIU35 Generic I/O75G5-Z00Z00Z000WX0X
Slave board
J4-48SLOT5-M1-D1MOD1-DATIO1
J4-59SLOT5-M1-D2MOD1-DATIO2
J4-49SLOT5-M1-D3MOD1-DATIO3
J4-60SLOT5-M1-D4MOD1-DATIO4
J4-71SLOT5-M1-D5MOD1-DATIO5
J4-82SLOT5-M1-D6MOD1-DATIO6
J4-72SLOT5-M1-D7MOD1-DATIO7
J4-83SLOT5-M1-D8MOD1-DATIO8
J4-84SLOT5-M1-D9MOD1-DATIO9
J4-95SLOT5-M1-D10MOD1-DATIO10
J4-74SLOT5-M1-D11MOD1-DATIO11
J4-85SLOT5-M1-D12MOD1-DATIO12
J4-75SLOT5-M1-D13MOD1-DATIO13
J4-86SLOT5-M1-D14MOD1-DATIO14
J4-76SLOT5-M1-D15MOD1-DATIO15
J4-87SLOT5-M1-D16MOD1-DATIO16
J4-94SLOT5-M1-D17MOD1-DATIO17
J4-105SLOT5-M1-D18MOD1-DATIO18
J4-96SLOT5-M1-D19MOD1-DATIO19
J4-106SLOT5-M1-D20MOD1-DATIO20
J4-97SLOT5-M1-D21MOD1-DATIO21
J4-107SLOT5-M1-D22MOD1-DATIO22
J4-98SLOT5-M1-D23MOD1-DATIO23
J4-108SLOT5-M1-D24MOD1-DATIO24
J4-99SLOT5-M1-D25MOD1-DATIO25
J4-109SLOT5-M1-D26MOD1-DATIO26
J4-115SLOT5-M1-D27MOD1-DATIO27
J4-122SLOT5-M1-D28MOD1-DATIO28
J4-116SLOT5-M1-D29MOD1-DATIO29
J4-123SLOT5-M1-D30MOD1-DATIO30
J4-117SLOT5-M1-D31MOD1-DATIO31
J4-124SLOT5-M1-D32MOD1-DATIO32
J4-1SLOT5-M2-D1MOD2-DATIO1
J4-2SLOT5-M2-D2MOD2-DATIO2
J4-3SLOT5-M2-D3MOD2-DATIO3
J4-4SLOT5-M2-D4MOD2-DATIO4
J4-8SLOT5-M2-D5MOD2-DATIO5
J4-16SLOT5-M2-D6MOD2-DATIO6
J4-9SLOT5-M2-D7MOD2-DATIO7
J4-17SLOT5-M2-D8MOD2-DATIO8
J4-10SLOT5-M2-D9MOD2-DATIO9
J4-18SLOT5-M2-D10MOD2-DATIO10
J4-11SLOT5-M2-D11MOD2-DATIO11
J4-19SLOT5-M2-D12MOD2-DATIO12
J4-15SLOT5-M2-D13MOD2-DATIO13
J4-25SLOT5-M2-D14MOD2-DATIO14
J4-26SLOT5-M2-D15MOD2-DATIO15
J4-38SLOT5-M2-D16MOD2-DATIO16
J4-27SLOT5-M2-D17MOD2-DATIO17
J4-39SLOT5-M2-D18MOD2-DATIO18
J4-28SLOT5-M2-D19MOD2-DATIO19
J4-40SLOT5-M2-D20MOD2-DATIO20
J4-29SLOT5-M2-D21MOD2-DATIO21
J4-41SLOT5-M2-D22MOD2-DATIO22
J4-36SLOT5-M2-D23MOD2-DATIO23
J4-37SLOT5-M2-D24MOD2-DATIO24
J4-50SLOT5-M2-D25MOD2-DATIO25
J4-62SLOT5-M2-D26MOD2-DATIO26
J4-51SLOT5-M2-D27MOD2-DATIO27
J4-63SLOT5-M2-D28MOD2-DATIO28
J4-52SLOT5-M2-D29MOD2-DATIO29
J4-64SLOT5-M2-D30MOD2-DATIO30
J4-61SLOT5-M2-D31MOD2-DATIO31
J4-73SLOT5-M2-D32MOD2-DATIO32
J4-5SLOT5-M3-D1MOD3-DATIO1
J4-13SLOT5-M3-D2MOD3-DATIO2
J4-6SLOT5-M3-D3MOD3-DATIO3
J4-7SLOT5-M3-D4MOD3-DATIO4
J4-12SLOT5-M3-D5MOD3-DATIO5
J4-20SLOT5-M3-D6MOD3-DATIO6
J4-14SLOT5-M3-D7MOD3-DATIO7
J4-24SLOT5-M3-D8MOD3-DATIO8
J4-21SLOT5-M3-D9MOD3-DATIO9
J4-32SLOT5-M3-D10MOD3-DATIO10
J4-22SLOT5-M3-D11MOD3-DATIO11
J4-33SLOT5-M3-D12MOD3-DATIO12
J4-23SLOT5-M3-D13MOD3-DATIO13
J4-34SLOT5-M3-D14MOD3-DATIO14
J4-35SLOT5-M3-D15MOD3-DATIO15
J4-47SLOT5-M3-D16MOD3-DATIO16
J4-30SLOT5-M3-D17MOD3-DATIO17
J4-42SLOT5-M3-D18MOD3-DATIO18
J4-31SLOT5-M3-D19MOD3-DATIO19
J4-43SLOT5-M3-D20MOD3-DATIO20
J4-44SLOT5-M3-D21MOD3-DATIO21
J4-56SLOT5-M3-D22MOD3-DATIO22
J4-45SLOT5-M3-D23MOD3-DATIO23
J4-57SLOT5-M3-D24MOD3-DATIO24
J4-46SLOT5-M3-D25MOD3-DATIO25
J4-58SLOT5-M3-D26MOD3-DATIO26
J4-53SLOT5-M3-D27MOD3-DATIO27
J4-65SLOT5-M3-D28MOD3-DATIO28
J4-54SLOT5-M3-D29MOD3-DATIO29
J4-66SLOT5-M3-D30MOD3-DATIO30
J4-55SLOT5-M3-D31MOD3-DATIO31
J4-67SLOT5-M3-D32MOD3-DATIO32

Pin-Out / General System Functions

J1-36PS-ON/OFF#
J1-58cPCI-SYSRST#

PS-ON/OFF#

Logic level open or “High” (+5V) (referenced to Input Power Return of the SIU35) enables power output of the internal PSU effectively applying power to the SLOT-1 and SLOT-5 I/O cards.

Logic level low (GND) (referenced to Input Power Return of the SIU35), disables power output of the internal PSU effectively removing power from (shutting off) SLOT-1 and SLOT-5 I/O cards.

SYSRST#

Logic level GND (referenced to internal system GND of the SIU35) initiates/applies active low assertion to the cPCI SYSRST# signal on the cards; once released, will effectively introduce a ‘system/card’ reset.

Note

SYSRST# function is dependent on slot 1 card type/configuration; if slot 1 card is a “controller” type card (e.g. 75PPC1 or 75G5 w/ ARM capability, then SYSRST# is routed to the “push-button” reset input of the card, and the card issues the RSTn signal on the backplane to all other “slave” cards within the chassis when SYSRST# is asserted. If the slot 1 card is a “master” type card only (e.g. 75G5-master, etc.), then the SYSRST# signal is hardwired to all cards within the chassis (all cards will have RSTn applied simultaneously).

PART NUMBER DESIGNATION

Current Part Number Designation

Current P/N designation, DOM 2019 and later.

Standard Product = SIU35-XXXX

XXXX = NAI/Factory assigned unique configuration identifier

Legacy Part Number Designation

Note

For reference only - legacy, pre-current P/N designation, DOM earlier 2019.

Standard Product = SIU35-VC-XXXX

SIU35-VC-XXXX
Chassis Family A = Standard 3U cPCI 5-slot card version (plus dedicated PSU slot) Contact factory for other than standard version
Configuration A = Standard Configuration B Generation-V (GEN5) optimized backplane configuration
Pre-Configured Card, Function, Slot Designation and PSU Definitions* Unique product specific configuration code assignment / identifier - contact factory.

Specifications are subject to change without notice.

Notes

*Factory assigned X-digit code will reference the complete SIU configuration information in the NAI Master Code List (MCL) or Part Number Configurator, as assigned and documented at the factory.

SIU mating connector kit part number:

cPCI Systems; 4x 128-pin & 1x 13-pin (or 1x 5-pin for AC/270 DC power input):

28 VDC Power: SIU35-CONN-KIT; 115/230 VAC / 270 VDC Power - SIU35-AC-CONN-KIT

**If your configuration option is not listed please contact factory at 1-631-567-1100

NAI Docs Assistant
Was this document helpful?

Backlinks
