SIU34 DATA SHEET

Click here for the SIU34 data sheet

INTRODUCTION

North Atlantic Industries’ (NAI) Sensor Interface Unit (SIU34) is a rugged base-plate conduction-cooled chassis that leverages and integrates NAI’s Configurable Open Systems Architecture™ (COSA ®) rugged conduction-cooled 3U OpenVPX SBC, multi-function I/O boards and power supply products. The SIU34 provides a compact, high density, processing & graphics capable data distribution system solution for I/O intensive, mission or control systems applications. The SIU34 supports board-level processing and full I/O control and communication over Ethernet. With local processing, MIL-STD-1553, ARINC 429/575, Serial or ARINC 825 CAN bus are also available as primary communications interfaces when the boards are configured as such. PowerPC, Intel® or ARM Single Board Computer (SBC) processors can be added for a complete processing and I/O solution. The SIU34 is designed to support up to four NAI multi-function pre-configurable SBC/multifunction I/O boards, with or without processing, that support a wide variety of interface and communications smart function modules, all fitted/housed in a single rugged multi-board slot SIU system chassis, which is “delivered” pre-integrated and fully tested as a system.

OBJECTIVES

This manual provides the user with basic hardware implementation and information regarding the operation and interface of the SIU34. Each SIU34 is fitted with either one to four 3U OpenVPX boards and a single mil-standard power supply unit. Additional PSU option for “hold-up” power/time is available.

SCOPE

This manual only covers the operation of the SIU34 as a stand-alone I/O subsystem. This manual does not cover specific details relating to the operation of the specific I/O boards and function module fitted within the SIU34. Please reference the board specific documentation for details regarding the board level configuration(s).

CONVENTIONS USED IN THIS MANUAL

WARNINGS, CAUTIONS, and NOTES

Note

An operating procedure, practice, or condition, etc., that is essential to emphasize. All numbers are expressed in decimal format unless otherwise noted.

GENERAL SAFETY NOTICES

The following general safety notices supplement the specific warnings and cautions appearing elsewhere in the manual. They are recommended precautions that must be understood and applied during operation and maintenance of the instrument covered herein.

Serious injury may result if personnel fail to observe safety precautions. Dependent on configuration, some modules (e.g. Synchro / Resolver or AC signal sources) can generate output signals with high voltages. Be careful not to contact high-voltage connections when installing, operating or maintaining this instrument.

The SIU34 is delivered as a standalone system with no accessible or serviceable parts.

REPAIR

DO NOT ATTEMPT REPAIR. Under no circumstances should repair of this instrument be attempted. All repairs to this chassis must be accomplished at the factory.

HIGH VOLTAGE

HIGH VOLTAGE may be used in the operation of this equipment.

INPUT POWER ALWAYS ON

Note

The design of the model SIU34 is such that input power is continuously supplied to internal circuits when connected to a main power source. To disconnect the SIU34S from external power, the external power source should first be de-energized. The power input cable can then be disconnected.

Website https://www.naii.com/

SYSTEM SPECIFICATIONS AND DETAILS

Introduction

The model SIU34 is a next generation rugged systems chassis joining the NAI Sensor Interface Unit (SIU) system chassis family pedigree. The SIU34 is configured to support a wide variety of SBC and multifunction I/O boards that can be configured to support a variety of processing, communications and I/O functions that are supported under the NAI Configurable Open Systems Architecture ™ (COSA®) product families.

The SIU34 can function either as a centralized or distributed system. It can also be used to supplement existing legacy systems by easily adding sensor data acquisition as well as general I/O and communication interfaces without expensive legacy chassis and backplane redesign. It has been designed with rugged embedded industrial, military and aerospace applications in mind.

Leveraging NAI’s field-proven, unique modular architecture, the SIU34 supports standard 3U OpenVPX board-level compatible boards that can be fitted with a wide selection of different Intelligent I/O, motion simulation/measurement and communications functions such as:

A/D ConverterD/A ConverterI/O TTL/CMOSRTDI/O Discrete
I/O Differential TransceiverSynchro/Resolver LVDT/RVDT MeasurementSynchro/Resolver LVDT/RVDT SimulationStrain GaugeEncoder
Dual-Channel Dual Redundant BC/RT/MT MIL-STD-1553High-Speed Sync/Async RS232/422/423/485ARINC 429/575CAN busI/O Relay
AC ReferenceEthernet SwitchSSD/FlashCheck w/ NAI’s factory or website for latest selection of available func ons

This approach provides unprecedented flexibility for supporting existing or new applications where there are specific interfacing requirements. Significant application benefits include:

  • Independent (pre-processed) I/O functionality targeted to specific data acquisition/control areas

  • Additional capabilities, technology insertion and sensor interfacing to existing fielded applications

  • Minimal integration risk based on current field-proven, deployed technologies

Specifications

The SIU34 is designed to meet the following general product specifications and is provided as a reference. Actual configuration and usage may affect size, weight and power (SWaP) specifications. Please contact NAI for discerning/defining SWaP considerations regarding specific program configurations. See additional details herein.

General

SIU34 General SWaP Specifications

Input Voltage:Standard/Default: DC: 18 to 36 VDC (28 VDC nominal)
Power (Base unit):~10 W (PSU efficiency, at 100W load) @ 28 VDC nominal
Then, add the power calculated for the configuration specific boards module(s) power (see separate specific boards and module(s) specifications).
I/O Signal GND reference is isolated from main power source return and chassis.
Power/Heat Dissipation:Conduction Cooled (CC):
~130 watts (maximum) when properly mounted to a cold plate, which must be maintained at a temperature not to exceed 71°C.
NOTE: The total SIU34 power dissipation is dependent on the configuration of the boards and function module types fixed in the SIU34. Environmental and other operating characteristic variable considerations should be considered.
Temperature, Operating:-40°C to 71°C
Conduction cooled: As measured at primary thermal transfer interface.
Temperature, Storage:-55°C to 105°C
Size:Height: ~5.9” (150 mm)
Depth: ~9.4” (239 mm)
Width: ~5.7” (145 mm)
Weight:The weight of an SIU34 system is dependent on the configuration. The approximate weight of the SIU34 is based on the selection of the PSU, boards and functional module(s).
The approximate weight of a configured SIU34 is:
~9.7 lbs. unpopulated1 - Chassis/backplane/rigid flex & connector boards/PSU (conduction cooled)
(1 includes ~2.2 lbs. for PSU)
~15.1 lbs. fully populated2
(2 includes ~1.35 lbs. for each additional fully function module populated board)

UNPACKING AND INSPECTION

Unpacking

The SIU34 packing materials were designed specifically for transport protection of the SIU34. When receiving the shipment container, inspect packaging for any evidence of physical damage. If damage is evident, it is recommended that the carrier agent is present when opening the shipping container. It is further recommended that all packing material is retained in the event the SIU34 needs to be shipped elsewhere.

System/Chassis Identification

An identification label, indicating part number, unique serial number and Ethernet PHY MACs / default IP address(es) is affixed to the system chassis.

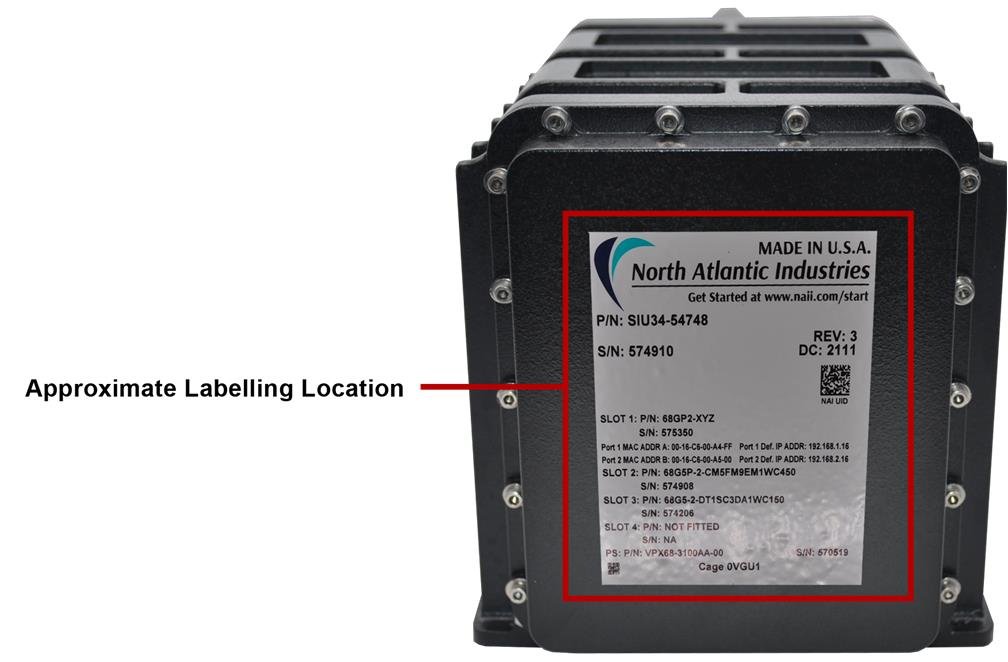

Figure 1. SIU34 Unit Identification Label Location

Label information provided:

 Unit Level Part Number

 Unit Level Serial Number

 Unit Level Date Code

Also, typically provided with:

 Slot/Board configuration(s) as applicable

 Slot/Board serial numbers and D/C

 Slot/Board IP address / MAC address (if applicable)

Special labeling requirements are also considered (i.e. UID matrix, customer part number, etc.). Contact factory for special labeling requirements.

Inspection

Inspect the chassis and connectors to ensure that they were not damaged during transit.

MECHANICAL INTERFACE

Mechanical Description

The standard SIU34 is a rugged milled 6061 aerospace grade aluminum alloy stock. Conduction cooled version is expected to be mounted to a thermally conductive surface to maintain the specified temperature. The system thermal management design considerations should ensure that the chassis thermal interface (SIU34 bottom surface) does not exceed 71°C. Mounting holes are provided on the chassis bottom housing flanges (as depicted).

Maximum power and heat dissipation are dependent on the board and function complement chosen. Contact NAI for application guidance. See the reference outline drawing(s) below.

Mounting Requirements

The SIU34 is conduction cooled and must be mounted in accordance with the drawing. The Outline and Installation Drawing (OID) provides recommended hardware, torque, cold-plate flatness and surface finish specifications, and thermal conductivity requirements.

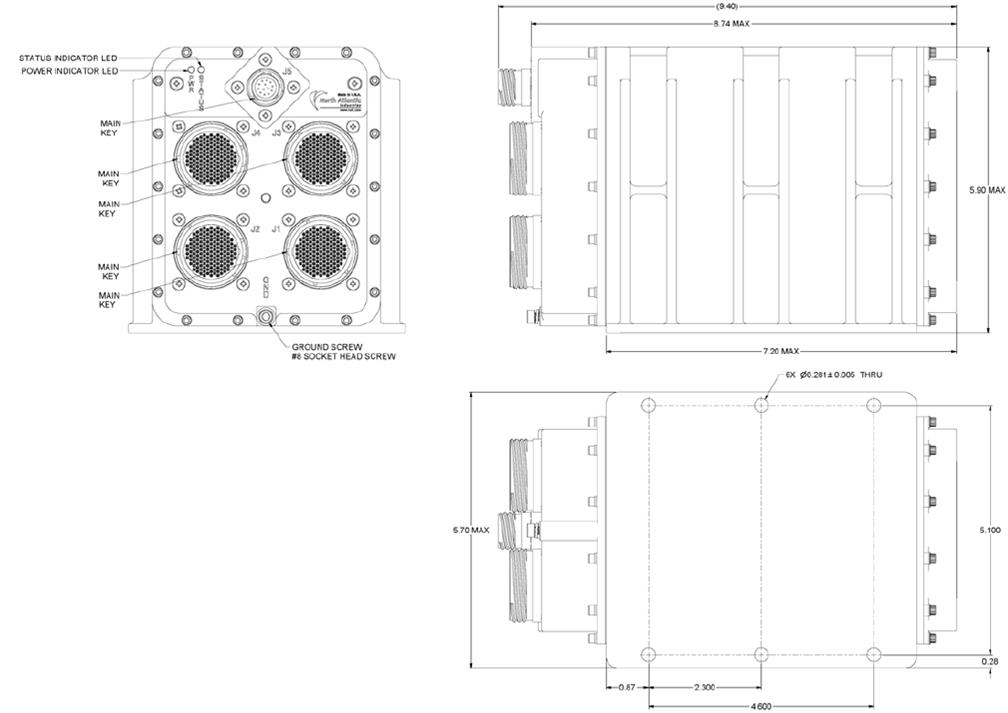

Figure 2. SIU34 Conduction Cooled Outline Dimensions & Mounting Pattern (Reference Only)

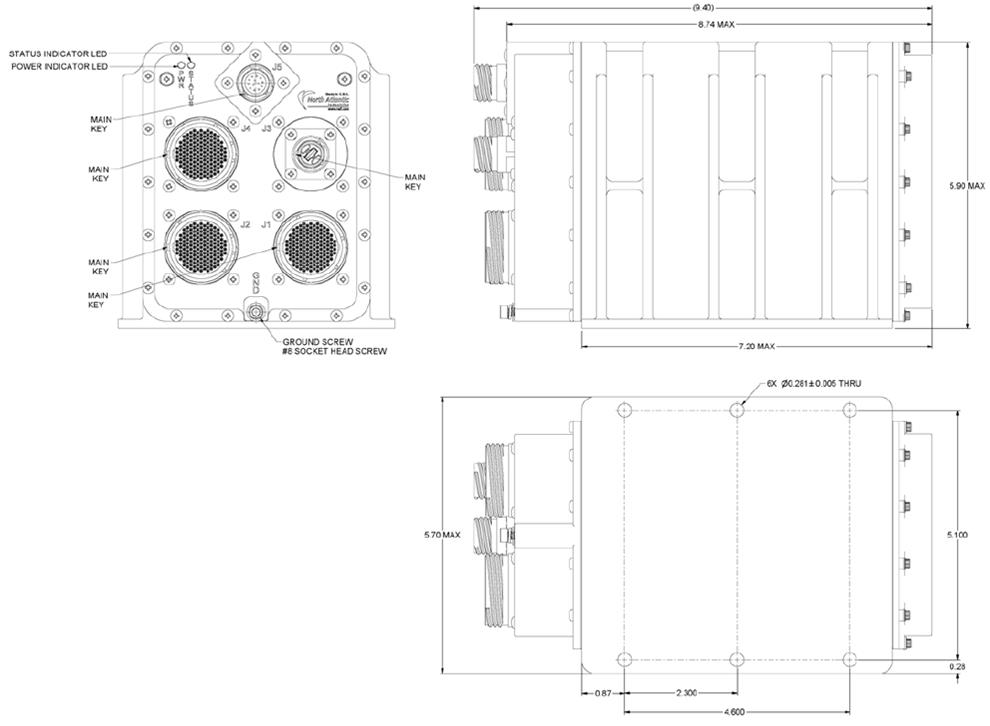

Figure 3. SIU34 Conduction Cooled w/Fiber Optic Option Outline Dimensions & Mounting Pattern (Reference Only)

Chassis (Earth) GND

Chassis ground point threaded insert location is on the connector face (front) of the SIU34 as shown.

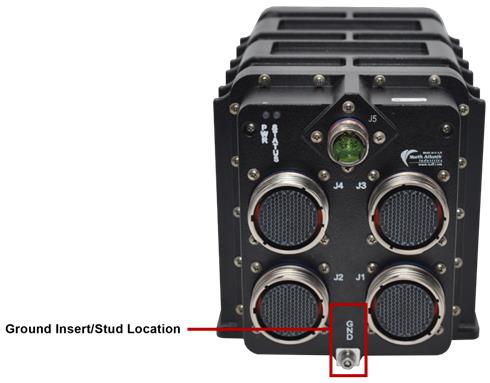

Figure 4. SIU34 Outline Dimensions/Chassis GND location

NOTE:

A Chassis GND braid or equivalent is expected to be secured by the following hardware or equivalent (delivered/installed with the SIU34 assembly):

  • SCREW, SOCKET HEAD CAP, 8-32, ½” LONG, 18-8 SS

  • Lock Washer, #8, 0.174” ID, 0.293” OD, 18-8 SS

  • Flat Washer, #8, 0.172” ID, 0.375” OD, 18-8 SS

Securing information:

  • The chassis is designed/built with a helical insert: NAS1130-08-15 or equivalent (8-32 Helical Insert, 0.246” Length, 18-8 Stainless Steel)

  • Maximum screw/insert hole depth is 0.4”

  • Recommended torque for the SIU34 Chassis GND screw: 15 in-lbs. (170 N-cm)

Finish

Unless otherwise specified, the following standard finish, or equivalent per NAI process requirements applies:

  1. PRE-TREATMENT: CHEMICAL FILM COATING IAW MIL-DTL-5541, TYPE II, CLASS 3, ALL OVER.

  2. PAINT PRIMER COAT: IAW-MIL-PRF-23377, TYPE II, CLASS 2, WITH A 0.9MIL MINIMUM DRY FILM THICKNESS TO EXTERIOR SURFACES SHOWN IN PAINT MASKING FIGURES.

  3. PAINT FINISH COAT: APPLY MEDIUM TEXTURE USING PER MIL-PRF-85285, TYPE I, CLASS 2, SEMI-GLOSS BLACK WITH A DRY FILM THICKNESS OF 0.0008 TO 0.0012 TO EXTERIOR SURFACES.

  4. FINISH NOTES 2 AND 3 OMITTED FROM THERMAL INTERFACE SURFACE INDICATED & FROM ALL HARDWARE.

CONNECTOR DESIGNATIONS, LOCATIONS & DESCRIPTIONS

The Power, I/O Interface and Ethernet connectors are located on the SIU34 front panel housing.

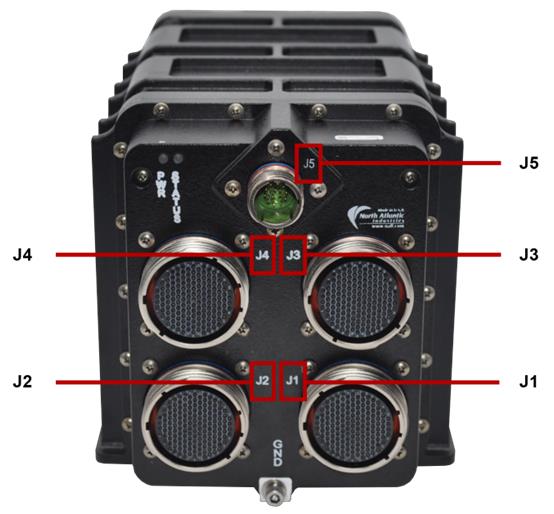

Figure 5. SIU34 (Front Panel Connector Placement)

SIU34 Connector Designation and Description

REF. DES.KEYMANUFACTURER / MIL-DTL SPEC. (or Equiv.)P/NMATE P/N
J1NAMPHENOLTVP02RF-23-151S(S2AD)TV06RF-23-151P
J2AAMPHENOLTVP02RF-23-151SA(S2AD)TV06RF-23-151PA
J3DAMPHENOLTVP02RF-23-151SD(S2AD)TV06RF-23-151PD
J4BAMPHENOLTVP02RF-23-151SB(S2AD)TV06RF-23-151PB
J7NMIL-DTL-D38999 TypeD38999/20FB35PND38999/26WB35SN

CONNECTOR DETAILS AND PINOUTS

Generic pinout. See module I/O section or contact factory regarding any special module I/O configuration.

J5, Primary Power Connector

Primary input power is supported on the SIU34 via the J5 connector. Power input for the SIU34: 28 VDC (standard, default).

28 VDC Input Connector

Part Number: TVP02RW-11-35PN, (w/ 10,000 pf conn filtering)

Equivalent to MIL-DTL-D38999 Series III and insert arrangement IAW MIL-STD-1560: Shell size 11-35 (Insert 35), “N” (Normal) key, 13 pins.

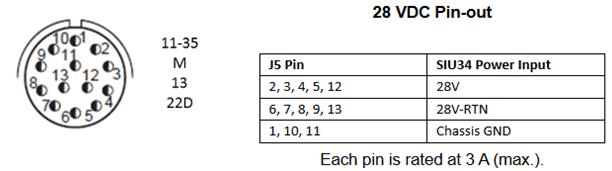

Figure 6. 28 VDC Pin Insert Arrangement, Front View

I/O Connectors (J1 to J4) and SLOT Designations

Connectors J1 to J4 route all the I/O from the four OpenVPX boards within the SIU34. The I/O pins from the boards (user defined, and factory configured) are designated from the 3U board slot locations. The Slot-X P1 and P2 connectors of the OpenVPX cards are routed through the backplane to the SIU34 front panel connector rigid-flex assemblies. The specific I/O pin-out information for the J1 to J4 is defined by the configuration of the OpenVPX boards and function modules fitted to the OpenVPX boards.

Jx DesignationSIU34 Connector MFG. P/N (or equivalent)Board #NAI Conn P/N
J1TVP02RF-23-151S(S2AD)Slot-105-0473-COM
J2TVP02RF-23-151SA(S2AD)Slot-205-0468-COM
J3TVP02RF-23-151SD(S2AD)Slot-305-0471-COM
J4TVP02RF-23-151SB(S2AD)Slot-405-0469-COM
(J5)(D38999/20FB35PN)[ PSU (Slot-5) ](05-0509-COM)

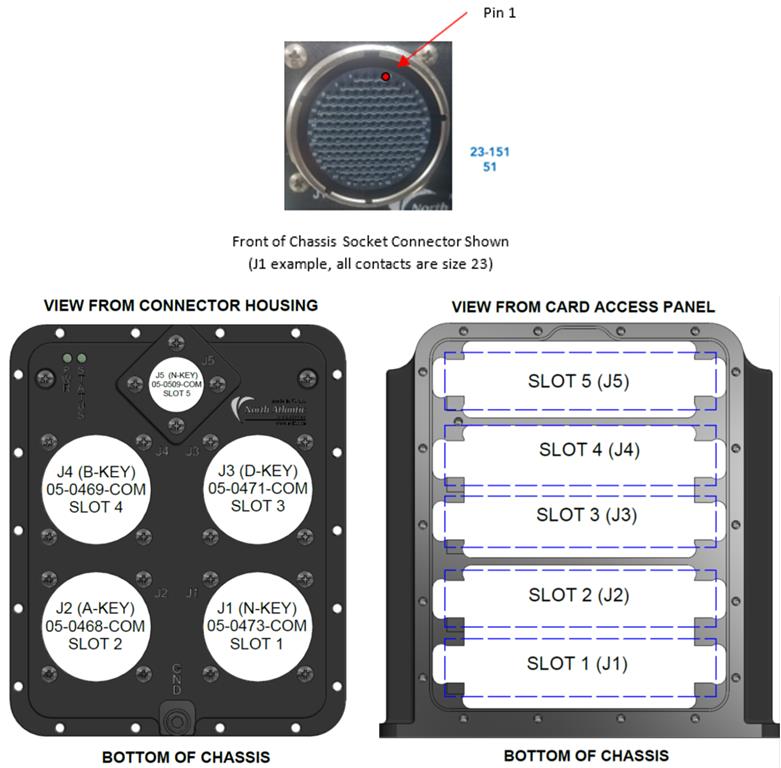

Figure 7. SIU34 Slot and Connector Association Details

Mating Connector Information

Mating Connector Kit: NAI P/N: SIU34-CONN-KIT

Available as an optional separate line item. The mating connector kit includes 1 each (or equivalent):

J1 MateNAI P/N: 05-0480-COM
HD38999 Type III / TV06RF23-151PN / EN, 151-pin, N-Key
J2 MateNAI P/N : 05-0475-COM
HD38999 Type III / TV06RF23-151PA / EN, 151-pin, A-Key
J3 MateNAI P/N : 05-0478-COM
HD38999 Type III / TV06RF23-151PD / EN, 151-pin, D-Key
J4 MateNAI P/N: 05-0476-COM
HD38999 Type III / TV06RF23-151PB / EN, 151-pin, B-Key
J5 MateNAI P/N : 05-0289-COM
D38999/26WB35SN / OD, 13-pin, N-Key

POWER-UP AND BASIC OPERATIONS

Panel LEDs & Functions

Front Panel Power & Status LED Indicators

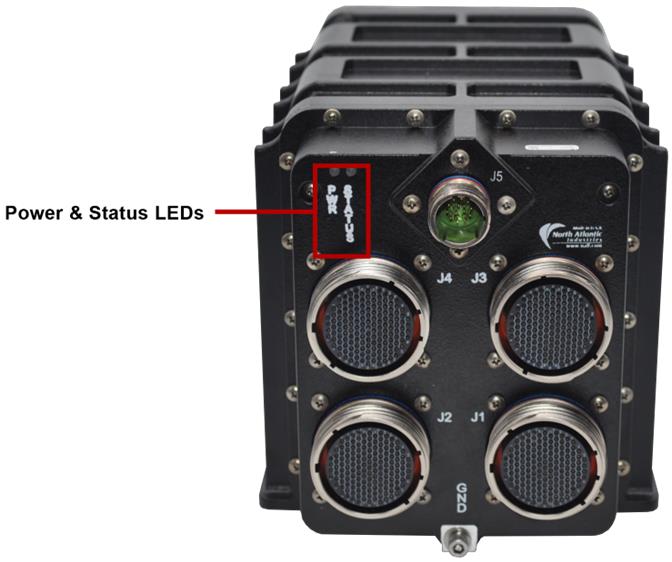

Figure 8. SIU34 Status LEDs Location

SIU34 Status LEDs Function

LEDSTATUS / FUNCTION
ILLUMINATEDEXTINGUISHED
POWER GRNBlinking: Initializing Steady On: Power-On/ReadyPower-off
* STATUS REDModule BIT (Attention required)No Module BIT Attention Required

*Status LED operations: Unless otherwise specified, default Status LED operations is controlled by the Slot-1 SBC/Root Complex card over the internal I2C communications link and functionally defined by the customer applied software application (the register is 0x38).

Elapsed Time Counter (ETC)

Integrated within the SIU34 backplane is an Elapsed Time Counter (ETC) IC, which records the accumulated time that the elapsed time recorder’s Event pin has been held high (in 250 ms increments). The ETC is stored on the chip from registers 0x0A-0x0D and read by the Slot-1 SBC/Root Complex card over the internal I2C communications link (the register is 0x6B).

Basic Operations

The SIU34 is delivered as a tested unit. All pins and operation have been verified. It is recommended that Power and Ethernet connections be made to verify operation of the boards fitted within the SIU34 by making use of NAI’s Embedded Soft Panel based GUI sample application that can be utilized as a board level “exercising” tool (if the SIU34 card configuration supports). The example process below describes the use of NAI’s Ethernet communications software tool.

After applying appropriate power to the SIU34, connect a host computer (laptop or similar running Windows or Linux), to the appropriate Ethernet enabled/configured board (configured/populated in slot 1) Port A or Port B. The selection of Ethernet Port A or B is dependent on Slot-1 OpenVPX board configuration.

Note

Ethernet port assignments, MAC address, and factory default IP address are indicated on the chassis label

QUALIFICATION

The SIU34 has been designed to meet the following general specifications. Cooling type, size, weight, power and environmental characteristics may affect the program requirements and the specifications as applied. Contact factory for the SIU34 Qualification Test status.

Environmental

Environmental Qualification Testing Specifications

Environmental MIL-STD-810 (1) (unless otherwise specified)
No.DescriptionProcedureCyclesTableFigureComments
514Random VibeMethod 514.6, 0.1g2/Hz from 100 to 1K Hz., -3dB octave 5-100 Hz and -6dB 1K-2K Hz,(operational)
514Sinusoidal VibeTBD
501Temp (High)33 periods (@ 4 hrs. ea.) within 24 hrs. cycle at 71 ºC baseplate
502Temp (Low)13 periods (@ 4 hrs. ea.) within 24 hrs. cycle at -40 ºC baseplate
503Temp (Shock)33 x 1 hr. each hot & cold cycle
507HumidityII10507.5-7507.5-IXCyclic high humidity (Cycle B2)
500Altitude (50K)II1n/an/a10m/s to 50,000ft for 1 hr.
513AccelerationII1513.6-IIn/aCarrier-based Aircraft (18g's max)
516Shock - OperatingI3516.6-In/a40g's, 1 min each x 6 axis
516Shock - CrashV3516.6-In/a75g's, 1 min each x 6 axis
Ingress Protection IEC 60529 (1, **2)**
No.DescriptionProcedureCyclesTableFigureComments
IP54Dust Protection(other - pending characterization / contact factory)
IP54Water Splashing(other - pending characterization / contact factory)
IP65Dust Tight(other - pending characterization / contact factory)
IP65Water Jets(other - pending characterization / contact factory)

EMI/EMC Specifications

EMI/EMC Qualification Testing Specifications

EMC / MIL-STD-461 (1, 2) (unless otherwise specified)*
MIL-STD-461FMethod/Curve/ProcedureComments
CE102Conducted, Emissions, Power Leads, 10K - 10M Hz
CS101Conducted, Susceptibility, Power Leads, 30 - 150K Hz
CS106Conducted, Susceptibility, Power Leads
CS114Conducted, Susceptibility, Power Leads, 10K - 10M Hz
CS115Conducted, Susceptibility, Bulk Injection
CS116Conducted, Susceptibility, SIN Transient 10K - 100M Hz
RE101Radiated, Emissions, Magnetic Field, 30 - 100K Hz
RE102Radiated, Emissions, Electric Field, 10K - 1.25G Hz
RS101Radiated, Susceptibility, Magnetic Field, 30 - 100K Hz
RS103Radiated, Susceptibility, Electric Field, 2M - 18G Hz

Notes:

*1 - Designed to meet / Generic Test Reports Available

*2 - Utilizing proper shielded cables and system grounding practices

HEAT DISSIPATION

The SIU34 is capable of dissipating up to a total of 130 Watts when properly mounted. Generally, the conduction cooled version thermal interface must be maintained at a temperature not to exceed 71°C. Other operating and environmental factors and variable must be considered when specifying for a higher-level system platform integration. The total SIU34 power dissipation is dependent on the configuration of the OpenVPX boards and power supply fitted in the SIU34.

RELIABILITY

The reliability of the SIU34 is dependent on the configuration of the OpenVPX boards and power supply fitted within it. The Mean Time between Failures is for the SIU34 configured with chassis, backplane, EMI Filter and connectors.

MTBF

The Mean Time between Failures is configuration, environment and temperature dependent. Please contact factory regarding calculations based on the specific configuration and program requirements.

SIGNAL PIN-OUTS

The following pinouts provides a general use guideline as an example, only. Pinout routing will be dependent on card type/configuration for optimal I/O usage. Consult NAI factory for assistance in determining specific configuration signal definitions as applicable.

Pin-Out / General / I/O Connector (Slot 1)

The following pinout is an example of a SIU34 Slot-1 populated with a 68ARM2 SBC fitted with two SC3, 8-Channel Serial Communication function modules and a DT1, 24-Channel discrete input/output function module.

J1 D38999 Connector68PPC2 (as configured)BP PinBP Signal NameMOD-1 / SC3MOD-2 / DT1MOD-3 / SC3Signal Description
1ETH2-TP2PJ1-A13TX2-TP2P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
2ETH2-TP2NJ1-B13TX2-TP2N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
3ETH2-TP3PJ1-E13TX2-TP3P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
4ETH2-TP3NJ1-F13TX2-TP3N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
5ETH1-TP3PJ1-G14TX1-TP3P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
6ETH1-TP3NJ1-H14TX1-TP3N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
7MOD3-DATIO06J2-D10MOD2-DATIO02RXDHI-CH2RS-232/422/485 signal levels, programmable
8MOD3-DATIO11J2-E11MOD2-DATIO07TXDLO-CH3RS-232/422/485 signal levels, programmable
9MOD3-DATIO12J2-F11MOD2-DATIO08TXDHI-CH3RS-232/422/485 signal levels, programmable
10MOD2-DATIO23J1-G12USB3_SSRXP_DN1VCC4 (CH19-24)Discrete I/O, 0-60Vdc, programmable Input/Output
11MOD2-DATIO24J1-H12USB3_SSRXN_DN1DT-IO-GNDDiscrete I/O, 0-60Vdc, programmable Input/Output
12MOD3-DATIO04J2-F09MOD1-DATIO02TXDHI-CH1RS-232/422/485 signal levels, programmable
13MOD3-DATIO03J2-E09MOD1-DATIO01TXDLO-CH1RS-232/422/485 signal levels, programmable
14TTL1J2-I01P2-G1TTL, 0-5V, GND REF
15TTL2J2-I03P2-G3TTL, 0-5V, GND REF
16MOD3-DATIO05J2-C10MOD2-DATIO01RXDLO-CH2RS-232/422/485 signal levels, programmable
17MOD2-DATIO15J1-G10+5V-USB3_2IO-CH15Discrete I/O, 0-60Vdc, programmable Input/Output
18GNDGNDGND Reference (signal/system GND)
19SER-GNDJ1-I13SER-GND2RS232 Serial Debug
20MOD2-DATIO11J1-E09USB3_SSRXP_DN2VCC2 (CH7-12)Discrete I/O, 0-60Vdc, programmable Input/Output
21MOD2-DATIO12J1-F09USB3_SSRXN_DN2DT-IO-GNDDiscrete I/O, 0-60Vdc, programmable Input/Output
22TTL4J2-I07P2-G7TTL, 0-5V, GND REF
23TTL3J2-I05P2-G5TTL, 0-5V, GND REF
24MOD3-DATIO16J2-H12MOD2-DATIO12TXDHI-CH5RS-232/422/485 signal levels, programmable
25MOD3-DATIO15J2-G12MOD2-DATIO11TXDLO-CH5RS-232/422/485 signal levels, programmable
26MOD2-DATIO07J1-G08IO-CH7Discrete I/O, 0-60Vdc, programmable Input/Output
27MOD2-DATIO08J1-H08IO-CH8Discrete I/O, 0-60Vdc, programmable Input/Output
28MOD2-DATIO16J1-H10USB3-2_GNDIO-CH16Discrete I/O, 0-60Vdc, programmable Input/Output
29N/CN/C
30N/CN/C
31MOD1-DATIO17J2-A05MOD1-ETH3-TP0PRXDLO-CH6RS-232/422/485 signal levels, programmable
32MOD1-DATIO18J2-B05MOD1-ETH3-TP0NRXDHI-CH6RS-232/422/485 signal levels, programmable
33MOD2-DATIO19J1-E11+5V-USB3_1IO-CH19Discrete I/O, 0-60Vdc, programmable Input/Output
34MOD2-DATIO20J1-F11USB3-1_GNDIO-CH20Discrete I/O, 0-60Vdc, programmable Input/Output
35MOD3-DATIO28J2-F15MOD2-DATIO24TXDHI-CH4RS-232/422/485 signal levels, programmable
36MOD3-DATIO27J2-E15MOD2-DATIO23TXDLO-CH4RS-232/422/485 signal levels, programmable
37N/CN/C
38N/CN/C
39N/CN/C
40MOD3-DATIO31J2-G16MOD2-DATIO27TXDLO-CH8RS-232/422/485 signal levels, programmable
41MOD3-DATIO23J2-G14MOD2-DATIO19TXDLO-CH7RS-232/422/485 signal levels, programmable
42MOD3-DATIO24J2-H14MOD2-DATIO20TXDHI-CH7RS-232/422/485 signal levels, programmable
43MOD1-DATIO21J2-C06MOD1-DATIO15RXDLO-CH7RS-232/422/485 signal levels, programmable
44MOD1-DATIO22J2-D06MOD1-DATIO16RXDHI-CH7RS-232/422/485 signal levels, programmable
45MOD3-DATIO18J2-B13MOD2-DATIO14RXDHI-CH6RS-232/422/485 signal levels, programmable
46MOD3-DATIO17J2-A13MOD2-DATIO13RXDLO-CH6RS-232/422/485 signal levels, programmable
47MOD3-DATIO19J2-E13MOD2-DATIO15TXDLO-CH6RS-232/422/485 signal levels, programmable
48MOD3-DATIO20J2-F13MOD2-DATIO16TXDHI-CH6RS-232/422/485 signal levels, programmable
49GNDGNDGND Reference (signal/system GND)
50N/CN/C
51N/CN/C
52MOD3-DATIO32J2-H16MOD2-DATIO28TXDHI-CH8RS-232/422/485 signal levels, programmable
53MOD1-DATIO02J2-B01BP-SATA-RXNRXDHI-CH1RS-232/422/485 signal levels, programmable
54MOD1-DATIO01J2-A01BP-SATA-RXPRXDLO-CH1RS-232/422/485 signal levels, programmable
55GNDGNDN/C
56MOD1-DATIO25J2-A07MOD1-DATIO11RXDLO-CH4RS-232/422/485 signal levels, programmable
57MOD1-DATIO26J2-B07MOD1-DATIO12RXDHI-CH4RS-232/422/485 signal levels, programmable
58MOD2-DATIO14J1-D10USB3_2NIO-CH14Discrete I/O, 0-60Vdc, programmable Input/Output
59MOD2-DATIO13J1-C10USB3_2PIO-CH13Discrete I/O, 0-60Vdc, programmable Input/Output
60MOD3-DATIO26J2-B15MOD2-DATIO22RXDHI-CH4RS-232/422/485 signal levels, programmable
61MOD3-DATIO25J2-A15MOD2-DATIO21RXDLO-CH4RS-232/422/485 signal levels, programmable
62MOD2-DATIO03J1-E07IO-CH3Discrete I/O, 0-60Vdc, programmable Input/Output
63MOD2-DATIO04J1-F07IO-CH4Discrete I/O, 0-60Vdc, programmable Input/Output
64N/CN/C
65GNDGNDGND Reference (signal/system GND)
66TTL7J2-I13MOD2-DATIO30TTL, 0-5V, GND REF
67TTL8J2-I15MOD2-DATIO29TTL, 0-5V, GND REF
68MOD1-DATIO29J2-C08MOD1-DATIO07RXDLO-CH8RS-232/422/485 signal levels, programmable
69MOD1-DATIO30J2-D08MOD1-DATIO08RXDHI-CH8RS-232/422/485 signal levels, programmable
70MOD2-DATIO22J1-D12USB3_SSTXN_DN1IO-CH22Discrete I/O, 0-60Vdc, programmable Input/Output
71MOD2-DATIO21J1-C12USB3_SSTXP_DN1IO-CH21Discrete I/O, 0-60Vdc, programmable Input/Output
72MOD3-DATIO13J2-C12MOD2-DATIO09RXDLO-CH5RS-232/422/485 signal levels, programmable
73MOD3-DATIO09J2-A11MOD2-DATIO05RXDLO-CH3RS-232/422/485 signal levels, programmable
74MOD3-DATIO10J2-B11MOD2-DATIO06RXDHI-CH3RS-232/422/485 signal levels, programmable
75N/CN/C
76N/CN/C
77NVMRON/CNVMRO (+3.3 or OPEN/GND signal typ.)
78N/CN/C
79GNDGNDGND Reference (signal/system GND)
80N/CN/C
81N/CN/CN/C
82N/CN/CN/C
83MOD2-DATIO10J1-B09USB3_SSTXN_DN2IO-CH10Discrete I/O, 0-60Vdc, programmable Input/Output
84MOD2-DATIO09J1-A09USB3_SSTXP_DN2IO-CH9Discrete I/O, 0-60Vdc, programmable Input/Output
85MOD3-DATIO14J2-D12MOD2-DATIO10RXDHI-CH5RS-232/422/485 signal levels, programmable
86GNDGNDGND Reference (signal/system GND)
87MOD2-DATIO05J1-C08VCC1 (CH1-6)Discrete I/O, 0-60Vdc, programmable Input/Output
88MOD2-DATIO06J1-D08DT-IO-GNDDiscrete I/O, 0-60Vdc, programmable Input/Output
89N/CN/C
90N/CN/C
91TTL5J2-I09MOD2-DATIO32TTL, 0-5V, GND REF
92TTL6J2-I11MOD2-DATIO31TTL, 0-5V, GND REF
93N/CN/C
94MOD1-DATIO11J2-E03MOD1-ETH4-TP0PTXDLO-CH3RS-232/422/485 signal levels, programmable
95MOD2-DATIO18J1-B11USB3_1NDT-IO-GNDDiscrete I/O, 0-60Vdc, programmable Input/Output
96MOD2-DATIO17J1-A11USB3_1PVCC3 (CH13-18)Discrete I/O, 0-60Vdc, programmable Input/Output
97MOD3-DATIO21J2-C14MOD2-DATIO17RXDLO-CH7RS-232/422/485 signal levels, programmable
98MOD3-DATIO22J2-D14MOD2-DATIO18RXDHI-CH7RS-232/422/485 signal levels, programmable
99MOD2-DATIO01J1-A07IO-CH1Discrete I/O, 0-60Vdc, programmable Input/Output
100MOD2-DATIO02J1-B07IO-CH2Discrete I/O, 0-60Vdc, programmable Input/Output
101N/CN/C
102N/CN/C
103MOD1-DATIO08J2-H02MOD1-ETH4-TP2NTXDHI-CH2RS-232/422/485 signal levels, programmable
104MOD1-DATIO07J2-G02MOD1-ETH4-TP2PTXDLO-CH2RS-232/422/485 signal levels, programmable
105MOD3-DATIO02J2-B09MOD1-DATIO04RXDHI-CH1RS-232/422/485 signal levels, programmable
106MOD3-DATIO01J2-A09MOD1-DATIO03RXDLO-CH1RS-232/422/485 signal levels, programmable
107MOD1-DATIO12J2-F03MOD1-ETH4-TP0NTXDHI-CH3RS-232/422/485 signal levels, programmable
108ETH1-TP2NJ1-D14TX1-TP2N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
109ETH1-TP2PJ1-C14TX1-TP2P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
110MOD1-DATIO04J2-F01BKPLN-SATA-TXNTXDHI-CH1RS-232/422/485 signal levels, programmable
111MOD1-DATIO03J2-E01BKPLN-SATA-TXPTXDLO-CH1RS-232/422/485 signal levels, programmable
112MOD1-DATIO15J2-G04MOD1-ETH3-TP2PTXDLO-CH5RS-232/422/485 signal levels, programmable
113MOD1-DATIO16J2-H04MOD1-ETH3-TP2NTXDHI-CH5RS-232/422/485 signal levels, programmable
114N/CN/C
115MOD3-DATIO29J2-C16MOD2-DATIO25RXDLO-CH8RS-232/422/485 signal levels, programmable
116MOD3-DATIO30J2-D16MOD2-DATIO26RXDHI-CH8RS-232/422/485 signal levels, programmable
117N/CN/C
118MOD1-DATIO20J2-F05MOD1-ETH3-TP0NTXDHI-CH6RS-232/422/485 signal levels, programmable
119MOD1-DATIO19J2-E05MOD1-ETH3-TP0PTXDLO-CH6RS-232/422/485 signal levels, programmable
120ETH2-TP0NJ1-B15TX2-TP0N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
121ETH2-TP0PJ1-A15TX2-TP0P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
122MOD1-DATIO09J2-A03MOD1-ETH4-TP1PRXDLO-CH3RS-232/422/485 signal levels, programmable
123MOD1-DATIO10J2-B03MOD1-ETH4-TP1NRXDHI-CH3RS-232/422/485 signal levels, programmable
124MOD1-DATIO05J2-C02MOD1-ETH4-TP3PRXDLO-CH2RS-232/422/485 signal levels, programmable
125MOD1-DATIO06J2-D02MOD1-ETH4-TP3NRXDHI-CH2RS-232/422/485 signal levels, programmable
126MRSTnJ1-I15MRSTnMRSTn (+3.3 or OPEN/GND signal typ.)
127RTC-STDBYJ1-I03RTC_STDBYRTC-STDBY (+3.3V typ.) (external sourced)
128N/CN/C
129MOD1-DATIO24J2-H06MOD1-DATIO14TXDHI-CH7RS-232/422/485 signal levels, programmable
130MOD1-DATIO23J2-G06MOD1-DATIO13TXDLO-CH7RS-232/422/485 signal levels, programmable
131ETH1-TP0NJ1-D16TX1-TP0N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
132ETH1-TP0PJ1-C16TX1-TP0P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
133MOD1-DATIO13J2-C04MOD1-ETH3-TP3PRXDLO-CH5RS-232/422/485 signal levels, programmable
134MOD1-DATIO14J2-D04MOD1-ETH3-TP3NRXDHI-CH5RS-232/422/485 signal levels, programmable
135MOD3-DATIO07J2-G10MOD2-DATIO03TXDLO-CH2RS-232/422/485 signal levels, programmable
136GNDGNDGND Reference (signal/system GND)
137N/CN/C
138N/CN/C
139ETH1-TP1NJ1-H16TX1-TP1N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
140ETH1-TP1PJ1-G16TX1-TP1P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
141N/CN/C
142N/CN/C
143MOD3-DATIO08J2-H10MOD2-DATIO04TXDHI-CH2RS-232/422/485 signal levels, programmable
144SER-TXD1J1-I11SER-TXD1RS-232 Serial Console Debug
145SER-RXD1J1-I09SER-RXD1RS-232 Serial Console Debug
146ETH2-TP1NJ1-F15TX2-TP1N10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
147ETH2-TP1PJ1-E15TX2-TP1P10/100/1000BASE-T, ± 2.5V typ. (over twisted pair)
148MOD1-DATIO32J2-H08MOD1-DATIO06TXDHI-CH8RS-232/422/485 signal levels, programmable
149MOD1-DATIO31J2-G08MOD1-DATIO05TXDLO-CH8RS-232/422/485 signal levels, programmable
150MOD1-DATIO28J2-A03MOD1-DATIO10TXDHI-CH4RS-232/422/485 signal levels, programmable
151MOD1-DATIO27J2-B03MOD1-DATIO09TXDLO-CH4RS-232/422/485 signal levels, programmable

Pin-Out / General / I/O Connector (Slot 2-4)

The following pinout is an example of a SIU34 Slot-2 through Slot-4 (SX) populated with a 68G5. Please contact NAI for assistance/consult in generating a configuration specific pinout.

J2-J4 D38999 Connector68G5 - default68G5 PinBackplane (BP) PinBP Signal NameSignal Description
1N/C (ETH2-TXP)P1-D11J1-E11SX-ETH2-TXPN/C
2N/C (ETH2-TXN)P1-E11J1-F11SX-ETH2-TXNN/C
3N/C (ETH1-RXP)P1-B12J1-C12SX-ETH1-RXPN/C
4N/C (ETH1-RXN)P1-C12J1-D12SX-ETH1-RXNN/C
5N/C (ETH2-RXP)P1-A11J1-A11SX-ETH2-RXPN/C
6N/C (ETH2-RXN)P1-B11J1-B11SX-ETH2-RXNN/C
7MOD3-DATIO20P2-F12J2-H12SX-M3-D20Configuration/Function Specific
8MOD3-DATIO07P2-D15J2-E15SX-M3-D07Configuration/Function Specific
9MOD3-DATIO08P2-E15J2-F15SX-M3-D08Configuration/Function Specific
10N/C (ETH1-TXP)P1-E12J1-G12SX-ETH1-TXPN/C
11N/C (ETH1-TXN)P1-F12J1-H12SX-ETH1-TXNN/C
12ETH2-TP1PP1-D13J1-E13SX-ETH2-TP1PN/C
13ETH2-TP1NP1-E13J1-F13SX-ETH2-TP1NN/C
14MOD1-DATIO37P2-G01J2-I01SX-M1-D37Configuration/Function Specific
15MOD1-DATIO38P2-G03J2-I03SX-M1-D38Configuration/Function Specific
16MOD3-DATIO19P2-E12J2-G12SX-M3-D19Configuration/Function Specific
17MOD1-DATIO03P1-E10J1-G10SX-M1-D03Configuration/Function Specific
18GNDGNDGND Reference (signal/system GND)
19SER-GNDP1-G13J1-I13SX-SER-GND(N/A, RS232 Debug, if configured)
20SER-RXDP1-G09J1-I09SX-SER-RXD(N/A, RS232 Debug, if configured)
21SER-TXDP1-G11J1-I11SX-SER-TXD(N/A, RS232 Debug, if configured)
22ETH2-TP0+P1-A13J1-A13SX-ETH2-TP0PN/C
23ETH2-TP0-P1-B13J1-B13SX-ETH2-TP0NN/C
24MOD3-DATIO27P2-E10J2-G10SX-M3-D27Configuration/Function Specific
25MOD3-DATIO28P2-F10J2-H10SX-M3-D28Configuration/Function Specific
26MOD1-DATIO40P2-G07J2-I07SX-M1-D40Configuration/Function Specific
27MOD2-DATIO19P2-E04J2-G04SX-M2-D19Configuration/Function Specific
28MOD1-DATIO04P1-F10J1-H10SX-M1-D04Configuration/Function Specific
29MOD3-DATIO02P2-C16J2-D16SX-M3-D02Configuration/Function Specific
30MOD3-DATIO01P2-B16J2-C16SX-M3-D01Configuration/Function Specific
31MOD3-DATIO18P2-C12J2-D12SX-M3-D18Configuration/Function Specific
32MOD3-DATIO17P2-B12J2-C12SX-M3-D17Configuration/Function Specific
33ETH2-TP3PP1-E14J1-G14SX-ETH2-TP3PN/C
34ETH2-TP3NP1-F14J1-H14SX-ETH2-TP3NN/C
35MOD3-DATIO15P2-D13J2-E13SX-M3-D15Configuration/Func on Specific
36MOD3-DATIO16P2-E13J2-F13SX-M3-D16Configuration/Function Specific
37MOD1-DATIO39P2-G05J2-I05SX-M1-D39Configuration/Function Specific
38MOD2-DATIO20P2-F04J2-H04SX-M2-D20Configuration/Function Specific
39MOD2-DATIO10P2-C06J2-D06SX-M2-D10Configuration/Function Specific
40MOD1-DATIO07P1-D09J1-E09SX-M1-D07Configuration/Function Specific
41MOD3-DATIO22P2-B11J2-B11SX-M3-D22Configuration/Function Specific
42MOD3-DATIO21P2-A11J2-A11SX-M3-D21Configuration/Function Specific
43MOD1-DATIO12P1-F08J1-H08SX-M1-D12Configuration/Function Specific
44MOD1-DATIO11P1-E08J1-G08SX-M1-D11Configuration/Function Specific
45ETH2-TP2PP1-B14J1-C14SX-ETH2-TP2PN/C
46ETH2-TP2NP1-C14J1-D14SX-ETH2-TP2NN/C
47MOD3-DATIO25P2-B10J2-C10SX-M3-D25Configuration/Function Specific
48MOD3-DATIO26P2-C10J2-D10SX-M3-D26Configuration/Function Specific
49GNDGNDGND Reference (signal/system GND)
50MOD2-DATIO03P2-E08J2-G08SX-M2-D03Configuration/Function Specific
51MOD2-DATIO09P2-B06J2-C06SX-M2-D09Configuration/Function Specific
52MOD1-DATIO08P1-E09J1-F09SX-M1-D08Configuration/Function Specific
53MOD3-DATIO32P2-E09J2-F09SX-M3-D32Configuration/Function Specific
54MOD3-DATIO31P2-D09J2-E09SX-M3-D31Configuration/Function Specific
55GNDGNDGND Reference (signal/system GND)
56MOD1-DATIO24P1-E05J1-F05SX-M1-D24Configuration/Function Specific
57MOD1-DATIO23P1-D05J1-E05SX-M1-D23Configuration/Function Specific
58MOD3-DATIO05P2-A15J2-A15SX-M3-D05Configuration/Function Specific
59MOD3-DATIO06P2-B15J2-B15SX-M3-D06Configuration/Function Specific
60MOD2-DATIO28P2-F02J2-H02SX-M2-D28Configuration/Function Specific
61MOD2-DATIO27P2-E02J2-G02SX-M2-D27Configuration/Function Specific
62MOD2-DATIO04P2-F08J2-H08SX-M2-D04Configuration/Function Specific
63N/Cn/c
64N/Cn/c
65GNDGNDGND Reference (signal/system GND)
66MOD2-DATIO01P2-B08J2-C08SX-M2-D01Configuration/Function Specific
67MOD2-DATIO26P2-C02J2-D02SX-M2-D26Configuration/Function Specific
68MOD1-DATIO06P1-B09J1-B09SX-M1-D06Configuration/Function Specific
69MOD1-DATIO05P1-A09J1-A09SX-M1-D05Configuration/Function Specific
70MOD3-DATIO09P2-B14J2-C14SX-M3-D09Configuration/Function Specific
71MOD3-DATIO10P2-C14J2-D14SX-M3-D10Configuration/Function Specific
72MOD3-DATIO13P2-A13J2-A13SX-M3-D13Configuration/Function Specific
73MOD3-DATIO04P2-F16J2-H16SX-M3-D04Configuration/Function Specific
74MOD3-DATIO03P2-E16J2-G16SX-M3-D03Configuration/Function Specific
75N/Cn/c
76N/Cn/c
77N/Cn/c
78MOD2-DATIO02P2-C08J2-D08SX-M2-D02Configuration/Function Specific
79GNDGNDGND Reference (signal/system GND)
80MOD2-DATIO25P2-B02J2-C02SX-M2-D25Configuration/Function Specific
81MOD1-DATIO18P1-C06J1-D06SX-M1-D18Configuration/Function Specific
82MOD1-DATIO17P1-B06J1-C06SX-M1-D17Configuration/Function Specific
83MOD3-DATIO23P2-D11J2-E11SX-M3-D23Configuration/Function Specific
84MOD3-DATIO24P2-E11J2-F11SX-M3-D24Configuration/Function Specific
85MOD3-DATIO14P2-B13J2-B13SX-M3-D14Configuration/Function Specific
86GNDGNDGND Reference (signal/system GND)
87N/Cn/c
88N/Cn/c
89MOD1-DATIO02P1-C10J1-D10SX-M1-D02Configuration/Function Specific
90MOD2-DATIO08P2-E07J2-F07SX-M2-D08Configuration/Function Specific
91MOD2-DATIO07P2-D07J2-E07SX-M2-D07Configuration/Function Specific
92MOD3-DATIO30P2-B09J2-B09SX-M3-D30Configuration/Function Specific
93MOD3-DATIO29P2-A09J2-A09SX-M3-D29Configuration/Function Specific
94MOD2-DATIO05P2-A07J2-A07SX-M2-D05Configuration/Function Specific
95MOD2-DATIO17P2-B04J2-C04SX-M2-D17Configuration/Function Specific
96MOD2-DATIO18P2-C04J2-D04SX-M2-D18Configuration/Function Specific
97MOD1-DATIO31P1-D03J1-E03SX-M1-D31Configuration/Function Specific
98MOD1-DATIO27P1-E04J1-G04SX-M1-D27Configuration/Function Specific
99N/Cn/c
100N/Cn/c
101MOD1-DATIO01P1-B10J1-C10SX-M1-D01Configuration/Function Specific
102MOD1-DATIO34P1-C02J1-D02SX-M1-D34Configuration/Function Specific
103MOD1-DATIO33P1-B02J1-C02SX-M1-D33Configuration/Function Specific
104MOD2-DATIO16P2-E05J2-F05SX-M2-D16Configuration/Function Specific
105MOD2-DATIO13P2-A05J2-A05SX-M2-D13Configuration/Function Specific
106MOD2-DATIO14P2-B05J2-B05SX-M2-D14Configuration/Function Specific
107MOD2-DATIO06P2-B07J2-B07SX-M2-D06Configuration/Function Specific
108MOD3-DATIO11P2-E14J2-G14SX-M3-D11Configuration/Function Specific
109MOD3-DATIO12P2-F14J2-H14SX-M3-D12Configuration/Function Specific
110MOD1-DATIO32P1-E03J1-F03SX-M1-D32Configuration/Function Specific
111MOD1-DATIO28P1-F04J1-H04SX-M1-D28Configuration/Function Specific
112MOD1-DATIO09P1-B08J1-C08SX-M1-D09Configuration/Function Specific
113MOD1-DATIO14P1-A07J1-A07SX-M1-D14Configuration/Function Specific
114MOD2-DATIO30P2-B01J2-B01SX-M2-D30Configuration/Function Specific
115MOD1-DATIO19P1-E06J1-G06SX-M1-D19Configuration/Function Specific
116MOD2-DATIO22P2-B03J2-B03SX-M2-D22Configuration/Function Specific
117MOD2-DATIO15P2-D05J2-E05SX-M2-D15Configuration/Function Specific
118MOD2-DATIO24P2-E03J2-F03SX-M2-D24Configuration/Function Specific
119N/C (+5V-USB-)P2-G13J2-I13+5V-USB-SX(N/A)
120MOD1-DATIO35P1-E02J1-G02SX-M1-D35Configuration/Function Specific
121MOD1-DATIO36P1-F02J1-H02SX-M1-D36Configuration/Function Specific
122MOD1-DATIO22P1-A05J1-A05SX-M1-D22Configuration/Function Specific
123MOD1-DATIO21P1-B05J1-B05SX-M1-D21Configuration/Function Specific
124MOD1-DATIO10P1-C08J1-D08SX-M1-D10Configuration/Function Specific
125MOD1-DATIO13P1-B07J1-B07SX-M1-D13Configuration/Function Specific
126MOD2-DATIO29P2-A01J2-A01SX-M2-D29Configuration/Function Specific
127MOD1-DATIO20P1-F06J1-H06SX-M1-D20Configuration/Function Specific
128MOD2-DATIO21P2-A03J2-A03SX-M2-D21Configuration/Function Specific
129MOD2-DATIO23P2-D03J2-E03SX-M2-D23Configuration/Function Specific
130N/C (USB-GND-)P2-G15J2-I15USB-GND-SX(N/A)
131MOD2-DATIO12P2-F06J2-H06SX-M2-D12Configuration/Function Specific
132MOD2-DATIO11P2-E06J2-G06SX-M2-D11Configuration/Function Specific
133MOD1-DATIO25P1-B04J1-C04SX-M1-D25Configuration/Function Specific
134MOD1-DATIO26P1-C04J1-D04SX-M1-D26Configuration/Function Specific
135MOD1-DATIO29P1-B03J1-B03SX-M1-D29Configuration/Function Specific
136GNDGNDGND Reference (signal/system GND)
137MOD2-DATIO31P2-D01J2-E01SX-M2-D31Configuration/Function Specific
138MOD2-DATIO32P2-E01J2-F01SX-M2-D32Configuration/Function Specific
139N/C (-USB-DP)P2-G09J2-I09SX-USB-DP(N/A)
140N/C (-USB-DM)P2-G11J2-I11SX-USB-DM(N/A)
141ETH1-TP1NP1-E15J1-F15SX-ETH1-TP1N(N/A)
142ETH1-TP1PP1-D15J1-E15SX-ETH1-TP1P(N/A)
143MOD1-DATIO30P1-A03J1-A03SX-M1-D30Configuration/Function Specific
144MOD1-DATIO15P1-D07J1-E07SX-M1-D15Configuration/Function Specific
145MOD1-DATIO16P1-E07J1-F07SX-M1-D16Configuration/Function Specific
146ETH1-TP2NP1-C16J1-D16SX-ETH1-TP2N(N/A)
147ETH1-TP2PP1-B16J1-C16SX-ETH1-TP2P(N/A)
148ETH1-TP0-P1-B15J1-B15SX-ETH1-TP0N(N/A)
149ETH1-TP0+P1-A15J1-A15SX-ETH1-TP0P(N/A)
150ETH1-TP3NP1-F16J1-H16SX-ETH1-TP3N(N/A)
151ETH1-TP3PP1-E16J1-G16SX-ETH1-TP3P(N/A)

General System Functions

PS-ON/OFF#

SIU34 PSU is strapped to be always “ON”. The unit will power-on if external +28V power is applied.

SYSRST#

[GND] or Logic-level “Low” (referenced to internal System GND of the SIU34) initiates/applies an active low assertion to the OpenVPX SYSRST# signal on the cards. Applied and once released, this will effectively introduce a root ‘system/card’ reset. SYSRST# signal is typically accessed from the SLOT-1 card, J1 MIL-connector.

Note

SYSRST# function is dependent on slot 1 card type/configuration; SYSRST# is typically routed to the “MRSTn” reset input of the SBC (root-complex) /Slot-1 card. If/as applicable, the card issues the RSTn signal on the backplane to all other “end-point” cards within the chassis when SYSRST# is asserted.

PART NUMBER DESIGNATION

Standard Product = SIU34-XXXXX

XXXXX = NAI/Factory assigned unique configuration identifier

Standard Product = SIU34-XXXXX

Chassis FamilySIU34
Chassis VersionXXXXX
- Standard 3U OpenVPX 4-slot card version (plus dedicated PSU slot). - Pre-Configured Card, Function, Slot Designation and PSU Definitions*. - Unique product specific configuration code assignment / identifier. Contact factory for other than standard version**.

Specifications are subject to change without notice.

Notes

*Factory assigned X-digit code will reference the complete SIU configuration information in the NAI Master Code List (MCL) or Part Number Configurator, as assigned and documented at the factory.

SIU mating connector kit part number:

OpenVPX Systems; 4x 151-pin (unique keys) & 1x 13-pin

28 VDC Power: SIU34-CONN-KIT

**If your configuration option is not listed please contact factory at 1-631-567-1100

Revision History

Hardware Manual - SIU34 Revision History

RevisionRevision DateDescription
C2022-10-24ECO C09623, initial release of SIU34 hardware manual.
C12023-04-11ECO C10275, pg.5, updated weight. Pg.10, changed ‘length’ to ‘width’. Pg.10, updated unpopulated weight (incl. PSU); added fully populated weight.

DOCS.NAII REVISIONS

Revision DateDescription
2025-12-03Corrected part number in Qualification section (SIU36 to SIU34 - two places).

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100

Link to original

NAI Docs Assistant
Was this document helpful?

Backlinks
