DF1 Manual

INTRODUCTION

This module manual provides information about the North Atlantic Industries, Inc. (NAI) Differential Transceiver Function Module: DF1, Standard Functionality (SF). This module is compatible with all NAI Generation 5 motherboards.

The DF1 Differential Transceiver 32-Bit module provides 16 individual RS-422/RS-485 I/O channels that are programmable as either Inputs or Outputs. Differential transceivers increase resistance to noise by creating two complementary signals. These complementary signals produced on balanced lines double noise immunity by creating lower power requirements due to lower supply voltages.

FEATURES

• 16 channels available as inputs or outputs

• Programmable for fast or slow slew rates

• Programmable debounce circuitry with selectable time delay eliminates false signals resulting from relay contact bounce (pending)

• Built-in test runs in background constantly monitoring system health for each channel

SPECIFICATIONS

Digital I/O - 16-Channel Differential Transceiver SF Module DF1

Input Characteristics

Operational Mode:	RS-422	RS-485
Receiver Input Levels:	-10 V to 10 V	-7 V to 12 V
Receiver Input Sensitivity:	±200 mV	±200 mV
Receiver Input Resistance:	120 Ω /125 kΩ	125 kΩ
Each channel incorporates a 120 Ω termination resistor that can be programmed on a channel by channel basis.
Read Delay:	300 ns (100 ns with low EMI off)	300 ns (100 ns with low EMI off)
Debounce:	Programmable per bit from 0 to 34.36 sec. (LSB= 8 ns) (pending characterization)	Programmable per bit from 0 to 34.36 sec. (LSB= 8 ns) (pending characterization)

Output Characteristics

Driver Output Voltage:	-0.25 V to +5 V max.	-0.25 V to +5 V max.
Driver Output Signal Level: (Loaded Minimum)	±2 V	±1.5 V
Driver Output Signal Level: (Unloaded Maximum)	±5 V	±5 V
Driver Load Impedance: (Maximum Driver Current in)	100 Ω	54 Ω
Hi Z State (Power On): (Maximum Driver Current in)	N/A	±100 μA
Hi Z State (Power Off):	±10 μA	±10 μA
Write Delay:	100 ns	100 ns (low EMI off)
Protection:	Short circuit protected, thermal shutdown, built-in current limiting.
Rise/Fall Time:	31 ns into a 50pf load
Power (Per 16-Channels):	+5VDC @ 200 mA, 360 mA fully loaded (54 ohm load per channel)
Ground:	All grounds are common and connected to system ground.
Weight:	1.5 oz. (42 g)

Specifications are subject to change without notice.

PRINCIPLE OF OPERATION

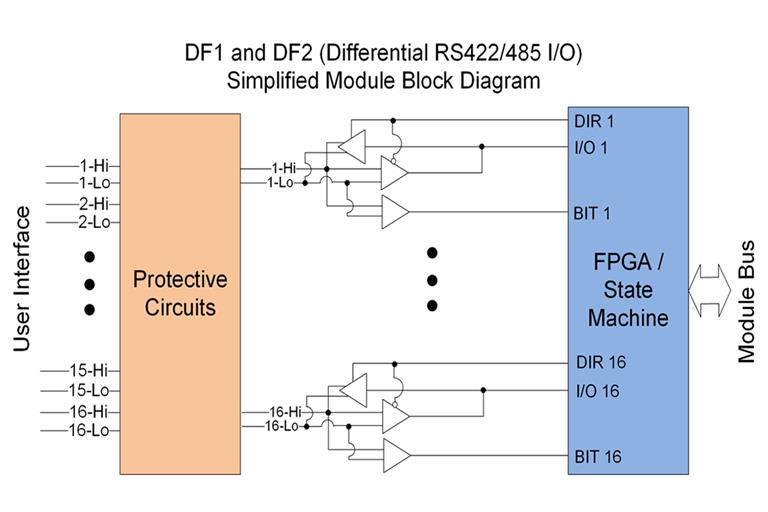

DF1 channels 1 through 16 may be set as inputs or outputs. When programmed as inputs, status and/or interrupts are enabled for each channel to indicate transition on rising edge or transition on falling edge or both as well as BIT fault. Each channel has a selectable internal 120-ohm internal resistor across its inputs.

When programmed as outputs, if an overcurrent condition is detected, the channel will be reset to input mode. All outputs are continually scanned “real-time”, for present status. Debounce circuits for each channel offer a selectable time delay to eliminate false signals resulting from contact bounce commonly experienced with mechanical relays and switches.

Each channel can also be programmed for fast or slow slew rates (slow slew rate may be desirable for certain sensitive EMI radiated transmission line applications).

Debounce Programming

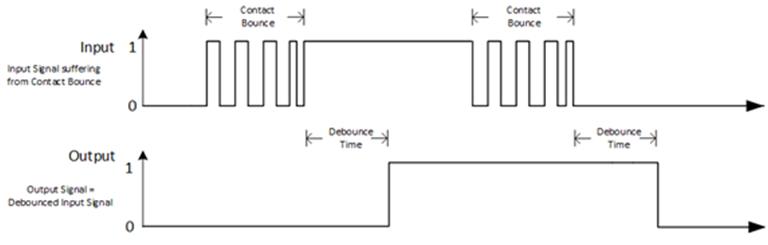

The Debounce Time register, when programmed for a non-zero value, is used with channels programmed as input to “filter” or “ignore” expected application spurious initial transitions. Once a signal level is a logic voltage level period longer than the Debounce Time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed Debounce Time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state.

Automatic Background Built-In Test (BIT)/Diagnostic Capability

The module contains automatic background BIT testing that verifies channel processing (data read or write logic), tests for overcurrent conditions and provides status for threshold signal transitioning.

Any failure triggers an Interrupt (if enabled) with the results available in status registers. The testing is totally transparent to the user, requires no external programming and has no effect on the operation of this card. It can be enabled or disabled via the bus (see further details in register description), and continually checks that each channel is functional. This capability is accomplished by an additional test comparator that is incorporated into each module. The test comparator checks each channel and is compared against the operational channel. Depending upon the configuration, the Input data read or Output logic written of the operational channel and test comparator must agree or a fault is indicated with the results available in the associated status register. Low-toHigh and High-to-Low logic transitions are indicated.

There is no independent overcurrent detection. Instead, the BIT detection circuitry is used to infer an overcurrent condition if the output state setting doesn’t match the readback value seen by the input circuitry. For example, a shorted output, causing the read state to be opposite from the expected value would trigger this. If the fault persists beyond the BIT interval stabilization time, the overcurrent protection will kick in and reset the drive output by returning the transceiver to input mode. To reset this condition, a reset command needs to be issued to the Overcurrent Reset register, which will restore drive output and allow the latched status to be reset. This is separate from the reset for the Overcurrent Interrupt Enable register on this module. It is recommended that a reset command is done whenever status is cleared to avoid a non-apparent output reset condition.

Status and Interrupts

The DF Digital I/O Function Module provide registers that indicate faults or events. Refer to “Status and Interrupts Module Manual” for the Principle of Operation description.

User Watchdog Timer Capability

The DF Digital I/O Function Module provide registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the Principle of Operation description.

Module Common Registers

The DF Digital I/O Function Module provide module common registers that provide access to module-level bare metal/FPGA revisions & compile times, unique serial number information, and temperature/voltage/current monitoring. Refer to “Module Common Registers Module Manual” for the detailed information.

REGISTER DESCRIPTIONS

The register descriptions provide the register name, Register Offset, Type, Data Range, Read or Write information, Initialized Value, a description of the function and, in most cases, a data table.

Input/Output Registers

I/O Format

Function:	Sets channels as inputs or outputs.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 0 for input (default), 1 for output.

Note

Power-on default or reset is configured for input. Bit-mapped per channel.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Read I/O

Function:	Reads High (1) or Low (0) inputs or outputs as defined by internal channel threshold values.
Type:	unsigned binary word (32-bit)
Read/Write:	R
Initialized Value:	N/A
Operational Settings:	N/A

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Write Outputs

Function:	Sets data outputs High (1) or Low (0).
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 1 for High output; write 0 for Low.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Input/Output Control Registers

Debounce Time

Function:	When the Input/Output Format register is programmed for Input mode, the input signal will have the debounce filtering applied based on this programmed value. This is selectable for each channel.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0002 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	The Debounce register, when programmed for a non-zero value, is used with channels programmed as input to “filter” or “ignore” expected application spurious initial transitions. Enter required debounce time into appropriate channel registers. LSB weight is 8 ns/bit (register may be programmed from 0 (debounce filter inactive) through a maximum of 34.36s (full scale w/ 8 ns resolution). Once a signal level is a logic voltage level period longer than the debounce time (Logic High and Logic Low), a logic transition is validated. Signal pulse widths less than programmed debounce time are filtered. Once valid, the transition status register flag is set for the channel and the output logic changes state. Enter a value of 0 to disable debounce filtering. Debounce defaults to 0000h upon reset.

Slew Rate

Function:	Enables user selection of Normal Mode or a reduced (Slow Mode) slew rate to soften the driver output edges to control high-frequency EMI emissions.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 1 for Normal Mode or 0 for Slow Mode.

Note

With Slow Mode selected, the data rate is limited to about 250 kbps.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Termination

Function:	Enables 120 Ω termination.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write 1 for 120 Ω termination.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Overcurrent Reset

Function:	Resets disabled channels in Overcurrent Latched Status register following an overcurrent condition.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	1 is written to reset disabled channels. Processor will write a 0 back to the Overcurrent Reset register when reset process is complete.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

User Watchdog Timer Programming Registers

Refer to “User Watchdog Timer Module Manual” for the register descriptions.

Module Common Registers

Refer to “Module Common Registers Module Manual” for the register descriptions.

General Purpose Status Functions

BIT Error Interrupt Interval

Function:	Sets up a threshold requirement of “successive” events to accumulate before a BIT Error is generated. Accumulated successive fault detections add +2 to the count and no-fault detections subtract 1 from the count to filter BIT errors prior to an actual interrupt generation. Once the count exceeds this register’s value, a BIT error is generated.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0x3
Operational Settings:	Write a threshold to filter BIT errors prior to generating a BIT Error.

Note

Advantageous in “noisy”/unstable application environments or for general filtering purposes.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

BIT Count Error Clear

Function:	Clears the BIT error.
Type:	unsigned binary word (32-bit)
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	Write a 1 to clear BIT errors.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
Ch16	Ch15	Ch14	Ch13	Ch12	Ch11	Ch10	Ch9	Ch8	Ch7	Ch6	Ch5	Ch4	Ch3	Ch2	Ch1

Status and Interrupt Registers

The DF Digital I/O Module provides status registers for BIT, Low-to-High Transition, High-to-Low Transition, and Overcurrent.

BIT Status

There are four registers associated with the BIT Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s BIT error.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Faults are detected (associated channel(s) bit set to 1) within 10 ms.

BIT Dynamic Status Register

BIT Latched Status Register

BIT Interrupt Enable Register

BIT Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Low-to-High Transition Status

There are four registers associated with the Low-to-High Transition Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s Low-to-High Transition event.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 40 ns.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 100 ns.

Note

Transition status follows the value read by the I/O Format register.

Low-to-High Dynamic Status Register

Low-to-High Latched Status Register

Low-to-High Interrupt Enable Register

Low-to-High Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

High-to-Low Transition Status

There are four registers associated with the High-to-Low Transition Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s High-to-Low Transition event.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Considered “momentary” during the actual event when detected. Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 40 ns.

Note

Programmable for level or edge sensing, status is indicated (associated channel(s) bit set to 1) within 100 ns.

Note

Transition status follows the value read by the I/O Format register.

High-to-Low Dynamic Status Register

High-to-Low Latched Status Register

High-to-Low Interrupt Enable Register

High-to-Low Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

Overcurrent Status

There are four registers associated with the Overcurrent Transition Status: Dynamic Status, Latched Status, Interrupt Enable, and Set Edge/Level Interrupt.

Function:	Sets the corresponding bit associated with the channel’s Overcurrent Error.
Type:	unsigned binary word (32-bits)
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R (Dynamic), R/W (Latched, Interrupt Enable, Edge/Level Interrupt)
Initialized Value:	0

Note

Status is indicated (associated channel(s) bit set to 1) within 80 ns.

Note

Channel(s) shut down by overcurrent sensed can be reset by writing to the Overcurrent Reset register.

Overcurrent Dynamic Status Register

Overcurrent Latched Status Register

Overcurrent Interrupt Enable Register

Overcurrent Set Edge/Level Interrupt Register

D31

D30

D29

D28

D27

D26

D25

D24

D23

D22

D21

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

Ch16

Ch15

Ch14

Ch13

Ch12

Ch11

Ch10

Ch9

Ch8

Ch7

Ch6

Ch5

Ch4

Ch3

Ch2

Ch1

User Watchdog Timer Fault Status

The Digital I/O Module provides registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Fault Status register descriptions.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector

Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering

Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table Read/Write: R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME	1
Direct Interrupt to ARM Processor (via SerDes) (Custom App on ARM or NAI Ethernet Listener App)	2
Direct Interrupt to PCIe Bus	5
Direct Interrupt to cPCI Bus	6

FUNCTION REGISTER MAP

Key:

*Bold Italic*	= Configuration/Control Bold Underline
= Measurement/Status

*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e. write-1-to-clear, writing a ‘1’ to a bit set to ‘1’ will set the bit to ‘0’).

Input/Output Registers

Addr (Hex)	Name	Read/Write
0x1038	*Input/Output Format*	R/W

Addr (Hex)	Name	Read/Write
0x1000	Read I/O	R
0x1024	*Write Outputs*	R/W

Input/Output Control Registers

Addr (Hex)	Name	Read/Write
0x208C	*Debounce Time Ch.1*	R/W
0x210C	*Debounce Time Ch.2*	R/W
0x218C	*Debounce Time Ch.3*	R/W
0x220C	*Debounce Time Ch.4*	R/W
0x228C	*Debounce Time Ch.5*	R/W
0x230C	*Debounce Time Ch.6*	R/W
0x238C	*Debounce Time Ch.7*	R/W
0x240C	*Debounce Time Ch.8*	R/W
0x248C	*Debounce Time Ch.9*	R/W
0x250C	*Debounce Time Ch.10*	R/W
0x258C	*Debounce Time Ch.11*	R/W
0x260C	*Debounce Time Ch.12*	R/W
0x268C	*Debounce Time Ch.13*	R/W
0x270C	*Debounce Time Ch.14*	R/W
0x278C	*Debounce Time Ch.15*	R/W
0x280C	*Debounce Time Ch.16*	R/W

Addr (Hex)	Name	Read/Write
0x1100	*Overcurrent Clear*	R/W
0x100C	*Input Termination*	R/W
0x1008	*Slew Rate*	R/W

User Watchdog Timer Programming Registers

Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Status Function Register Map

Module Common Registers

Refer to “Module Common Registers Module Manual” for the Module Common Registers Function Register Map

General Purpose Status Registers

Addr (Hex)	Name	Read/Write
0x101C	*BIT Error Interrupt Interval*	R/W
0x1020	*BIT Count Error Clear*	R/W

Status Registers

BIT

Addr (Hex)	Name	Read/Write
0x0800	BIT Dynamic Status	R
0x0804	BIT Latched Status*	R/W
0x0808	*BIT Interrupt Enable*	R/W
0x080C	*BIT Set Edge/Level Interrupt*	R/W

Low-to-High Transition

Addr (Hex)	Name	Read/Write
0x0810	Low-High Transition Dynamic Status	R
0x0814	Low-High Transition Latched Status*	R/W
0x0818	*Lo-Hi Transition Interrupt Enable*	R/W
0x081C	*Lo-Hi Transition Set Edge/Level Interrupt*	R/W

High-to-Low Transition

Addr (Hex)	Name	Read/Write
0x0820	High-Low Transition Dynamic Status	R
0x0824	High-Low Transition Latched Status*	R/W
0x0828	*Hi-Lo Transition Interrupt Enable*	R/W
0x082C	*Hi-Lo Transition Set Edge/Level Interrupt*	R/W

Overcurrent

Addr (Hex)	Name	Read/Write
0x0830	Overcurrent Dynamic Status	R
0x0834	Overcurrent Latched Status*	R/W
0x0838	*Overcurrent Interrupt Enable*	R/W
0x083C	*Overcurrent Set Edge/Level Interrupt*	R/W

User Watchdog Timer Fault

The DF Digital I/O Module provides registers that support User Watchdog Timer capability. Refer to “User Watchdog Timer Module Manual” for the User Watchdog Timer Fault Status Function Register Map.

Interrupt Registers

The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.

Addr (Hex)	Name	Read/Write
0x0500	*Module 1 Interrupt Vector 1 - BIT*	R/W
0x0504	*Module 1 Interrupt Vector 2 - Low-High*	R/W
0x0508	*Module 1 Interrupt Vector 3 - High-Low*	R/W
0x050C	*Module 1 Interrupt Vector 4 - Overcurrent*	R/W
0x0510 to 0x0568	*Module 1 Interrupt Vector 5-27 - Reserved*	R/W
0x056C	*Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0570 to 0x057C	*Module 1 Interrupt Vector 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0600	*Module 1 Interrupt Steering 1 - BIT*	R/W
0x0604	*Module 1 Interrupt Steering 2 - Low-High*	R/W
0x0608	*Module 1 Interrupt Steering 3 - High-Low*	R/W
0x060C	*Module 1 Interrupt Steering 4 - Overcurrent*	R/W
0x0610 to 0x0668	*Module 1 Interrupt Steering 5-27 - Reserved*	R/W
0x066C	*Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0670 to 0x067C	*Module 1 Interrupt Steering 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0700	*Module 2 Interrupt Vector 1 - BIT*	R/W
0x0704	*Module 2 Interrupt Vector 2 - Low-High*	R/W
0x0708	*Module 2 Interrupt Vector 3 - High-Low*	R/W
0x070C	*Module 2 Interrupt Vector 4 - Overcurrent*	R/W
0x0710 to 0x0768	*Module 2 Interrupt Vector 5-27 - Reserved*	R/W
0x076C	*Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0770 to 0x077C	*Module 2 Interrupt Vector 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0800	*Module 2 Interrupt Steering 1 - BIT*	R/W
0x0804	*Module 2 Interrupt Steering 2 - Low-High*	R/W
0x0808	*Module 2 Interrupt Steering 3 - High-Low*	R/W
0x080C	*Module 2 Interrupt Steering 4 - Overcurrent*	R/W
0x0810 to 0x0868	*Module 2 Interrupt Steering 5-27 - Reserved*	R/W
0x086C	*Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0870 to 0x087C	*Module 2 Interrupt Steering 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0900	*Module 3 Interrupt Vector 1 - BIT*	R/W
0x0904	*Module 3 Interrupt Vector 2 - Low-High*	R/W
0x0908	*Module 3 Interrupt Vector 3 - High-Low*	R/W
0x090C	*Module 3 Interrupt Vector 4 - Overcurrent*	R/W
0x0910 to 0x0968	*Module 3 Interrupt Vector 5-27 - Reserved*	R/W
0x096C	*Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0970 to 0x097C	*Module 3 Interrupt Vector 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0A00	*Module 3 Interrupt Steering 1 - BIT*	R/W
0x0A04	*Module 3 Interrupt Steering 2 - Low-High*	R/W
0x0A08	*Module 3 Interrupt Steering 3 - High-Low*	R/W
0x0A0C	*Module 3 Interrupt Steering 4 - Overcurrent*	R/W
0x0A10 to 0x0A68	*Module 3 Interrupt Steering 5-27 - Reserved*	R/W
0x0A6C	*Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0A70 to 0x0A7C	*Module 3 Interrupt Steering 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0B00	*Module 4 Interrupt Vector 1 - BIT*	R/W
0x0B04	*Module 4 Interrupt Vector 2 - Low-High*	R/W
0x0B08	*Module 4 Interrupt Vector 3 - High-Low*	R/W
0x0B0C	*Module 4 Interrupt Vector 4 - Overcurrent*	R/W
0x0B10 to 0x0B68	*Module 4 Interrupt Vector 5-27 - Reserved*	R/W
0x0B6C	*Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0B70 to 0x0B7C	*Module 4 Interrupt Vector 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0C00	*Module 4 Interrupt Steering 1 - BIT*	R/W
0x0C04	*Module 4 Interrupt Steering 2 - Low-High*	R/W
0x0C08	*Module 4 Interrupt Steering 3 - High-Low*	R/W
0x0C0C	*Module 4 Interrupt Steering 4 - Overcurrent*	R/W
0x0C10 to 0x0C68	*Module 4 Interrupt Steering 5-27 - Reserved*	R/W
0x0C6C	*Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0C70 to 0x0C7C	*Module 4 Interrupt Steering 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0D00	*Module 5 Interrupt Vector 1 - BIT*	R/W
0x0D04	*Module 5 Interrupt Vector 2 - Low-High*	R/W
0x0D08	*Module 5 Interrupt Vector 3 - High-Low*	R/W
0x0D0C	*Module 5 Interrupt Vector 4 - Overcurrent*	R/W
0x0D10 to 0x0D68	*Module 5 Interrupt Vector 5-27 - Reserved*	R/W
0x0D6C	*Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0D70 to 0x0D7C	*Module 5 Interrupt Vector 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0E00	*Module 5 Interrupt Steering 1 - BIT*	R/W
0x0E04	*Module 5 Interrupt Steering 2 - Low-High*	R/W
0x0E08	*Module 5 Interrupt Steering 3 - High-Low*	R/W
0x0E0C	*Module 5 Interrupt Steering 4 - Overcurrent*	R/W
0x0E10 to 0x0E68	*Module 5 Interrupt Steering 5-27 - Reserved*	R/W
0x0E6C	*Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0E70 to 0x0E7C	*Module 5 Interrupt Steering 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x0F00	*Module 6 Interrupt Vector 1 - BIT*	R/W
0x0F04	*Module 6 Interrupt Vector 2 - Low-High*	R/W
0x0F08	*Module 6 Interrupt Vector 3 - High-Low*	R/W
0x0F0C	*Module 6 Interrupt Vector 4 - Overcurrent*	R/W
0x0F10 to 0x0F68	*Module 6 Interrupt Vector 5-27 - Reserved*	R/W
0x0F6C	*Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x0F70 to 0x0F7C	*Module 6 Interrupt Vector 29-32 - Reserved*	R/W

Addr (Hex)	Name	Read/Write
0x1000	*Module 6 Interrupt Steering 1 - BIT*	R/W
0x1004	*Module 6 Interrupt Steering 2 - Low-High*	R/W
0x1008	*Module 6 Interrupt Steering 3 - High-Low*	R/W
0x100C	*Module 6 Interrupt Steering 4 - Overcurrent*	R/W
0x1010 to 0x1068	*Module 6 Interrupt Steering 5-27 - Reserved*	R/W
0x106C	*Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure*	R/W
0x1070 to 0x107C	*Module 6 Interrupt Steering 29-32 - Reserved*	R/W

APPENDIX: PIN-OUT DETAILS

Pin-out details (for reference) are shown below, with respect to DATAIO. Additional information on pin-outs can be found in the Motherboard Operational Manuals.

Module Signal (Ref Only)	44-Pin I/O	50-Pin I/O (Mod Slot 1-J3)	50-Pin I/O (Mod Slot 2-J4)	50-Pin I/O (Mod Slot 3-J3)	50-Pin I/O (Mod Slot 3-J4)	Differential (DFx)
DATIO1	2	10	1	2		IOHI-CH01
DATIO2	24	35	26	27		IOLO-CH01
DATIO3	3	11	2	3		IOHI-CH02
DATIO4	25	36	27	28		IOLO-CH02
DATIO5	5	13	4	5		IOHI-CH04
DATIO6	27	38	29	30		IOLO-CH04
DATIO7	7	14	5	6		IOHI-CH05
DATIO8	29	39	30	31		IOLO-CH05
DATIO9	8	15	6	7		IOHI-CH06
DATIO10	30	40	31	32		IOLO-CH06
DATIO11	10	17	8	9		IOHI-CH08
DATIO12	32	42	33	34		IOLO-CH08
DATIO13	12	18	9		17	IOHI-CH09
DATIO14	34	43	34		42	IOLO-CH09
DATIO15	13	19	10		18	IOHI-CH10
DATIO16	35	44	35		43	IOLO-CH10
DATIO17	15	21	12		20	IOHI-CH12
DATIO18	37	46	37		45	IOLO-CH12
DATIO19	17	22	13		21	IOHI-CH13
DATIO20	39	47	38		46	IOLO-CH13
DATIO21	18	23	14		22	IOHI-CH14
DATIO22	40	48	39		47	IOLO-CH14
DATIO23	20	25	16		24	IOHI-CH16
DATIO24	42	50	41		49	IOLO-CH16
DATIO25	4	12	3	4		IOHI-CH03
DATIO26	26	37	28	29		IOLO-CH03
DATIO27	9	16	7	8		IOHI-CH07
DATIO28	31	41	32	33		IOLO-CH07
DATIO29	14	20	11		19	IOHI-CH11
DATIO30	36	45	36		44	IOLO-CH11
DATIO31	19	24	15		23	IOHI-CH15
DATIO32	41	49	40		48	IOLO-CH15
DATIO33	6
DATIO34	28
DATIO35	11
DATIO36	33
DATIO37	16
DATIO38	38
DATIO39	21
DATIO40	43
N/A

DOCS.NAII REVISIONS

Revision Date	Description
2025-03-10	Updated module pinout table to add module I/O pinouts for 44- & 50-pin connectors.

STATUS AND INTERRUPTS

Status registers indicate the detection of faults or events. The status registers can be channel bit-mapped or event bit-mapped. An example of a channel bit-mapped register is the BIT status register, and an example of an event bit-mapped register is the FIFO status register.

For those status registers that allow interrupts to be generated upon the detection of the fault or the event, there are four registers associated with each status: Dynamic, Latched, Interrupt Enabled, and Set Edge/Level Interrupt.

Dynamic Status: The Dynamic Status register indicates the current condition of the fault or the event. If the fault or the event is momentary, the contents in this register will be clear when the fault or the event goes away. The Dynamic Status register can be polled, however, if the fault or the event is sporadic, it is possible for the indication of the fault or the event to be missed.

Latched Status: The Latched Status register indicates whether the fault or the event has occurred and keeps the state until it is cleared by the user. Reading the Latched Status register is a better alternative to polling the Dynamic Status register because the contents of this register will not clear until the user commands to clear the specific bit(s) associated with the fault or the event in the Latched Status register. Once the status register has been read, the act of writing a 1 back to the applicable status register to any specific bit (channel/event) location will “clear” the bit (set the bit to 0). When clearing the channel/event bits, it is strongly recommended to write back the same bit pattern as read from the Latched Status register. For example, if the channel bit-mapped Latched Status register contains the value 0x0000 0005, which indicates fault/event detection on channel 1 and 3, write the value 0x0000 0005 to the Latched Status register to clear the fault/event status for channel 1 and 3. Writing a “1” to other channels that are not set (example 0x0000 000F) may result in incorrectly “clearing” incoming faults/events for those channels (example, channel 2 and 4).

Interrupt Enable: If interrupts are preferred upon the detection of a fault or an event, enable the specific channel/event interrupt in the Interrupt Enable register. The bits in Interrupt Enable register map to the same bits in the Latched Status register. When a fault or event occurs, an interrupt will be fired. Subsequent interrupts will not trigger until the application acknowledges the fired interrupt by clearing the associated channel/event bit in the Latched Status register. If the interruptible condition is still persistent after clearing the bit, this may retrigger the interrupt depending on the Edge/Level setting.

Set Edge/Level Interrupt: When interrupts are enabled, the condition on retriggering the interrupt after the Latch Register is “cleared” can be specified as “edge” triggered or “level” triggered. Note, the Edge/Level Trigger also affects how the Latched Register value is adjusted after it is “cleared” (see below).

Edge triggered: An interrupt will be retriggered when the Latched Status register change from low (0) to high (1) state. Uses for edge-triggered interrupts would include transition detections (Low-to-High transitions, High-to-Low transitions) or fault detections. After “clearing” an interrupt, another interrupt will not occur until the next transition or the re-occurrence of the fault again.

Level triggered: An interrupt will be generated when the Latched Status register remains at the high (1) state. Level-triggered interrupts are used to indicate that something needs attention.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed with a unique number/identifier defined by the user such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism. In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Interrupt Trigger Types

In most applications, limiting the number of interrupts generated is preferred as interrupts are costly, thus choosing the correct Edge/Level interrupt trigger to use is important.

Example 1: Fault detection

This example illustrates interrupt considerations when detecting a fault like an “open” on a line. When an “open” is detected, the system will receive an interrupt. If the “open” on the line is persistent and the trigger is set to “edge”, upon “clearing” the interrupt, the system will not regenerate another interrupt. If, instead, the trigger is set to “level”, upon “clearing” the interrupt, the system will re-generate another interrupt. Thus, in this case, it will be better to set the trigger type to “edge”.

Example 2: Threshold detection

This example illustrates interrupt considerations when detecting an event like reaching or exceeding the “high watermark” threshold value. In a communication device, when the number of elements received in the FIFO reaches the high-watermark threshold, an interrupt will be generated. Normally, the application would read the count of the number of elements in the FIFO and read this number of elements from the FIFO. After reading the FIFO data, the application would “clear” the interrupt. If the trigger type is set to “edge”, another interrupt will be generated only if the number of elements in FIFO goes below the “high watermark” after the “clearing” the interrupt and then fills up to reach the “high watermark” threshold value. Since receiving communication data is inherently asynchronous, it is possible that data can continue to fill the FIFO as the application is pulling data off the FIFO. If, at the time the interrupt is “cleared”, the number of elements in the FIFO is at or above the “high watermark”, no interrupts will be generated. In this case, it will be better to set the trigger type to “level”, as the purpose here is to make sure that the FIFO is serviced when the number of elements exceeds the high watermark threshold value. Thus, upon “clearing” the interrupt, if the number of elements in the FIFO is at or above the “high watermark” threshold value, another interrupt will be generated indicating that the FIFO needs to be serviced.

Dynamic and Latched Status Registers Examples

The examples in this section illustrate the differences in behavior of the Dynamic Status and Latched Status registers as well as the differences in behavior of Edge/Level Trigger when the Latched Status register is cleared.

Figure 1. Example of Module’s Channel-Mapped Dynamic and Latched Status States

No Clearing of Latched Status Clearing of Latched Status (Edge-Triggered) Clearing of Latched Status(Level-Triggered)
Time Dynamic Status Latched Status Action Latched Status Action Latched
T0 0x0 0x0 Read Latched Register 0x0 Read Latched Register 0x0
T1 0x1 0x1 Read Latched Register 0x1 0x1
T1 0x1 0x1 Write 0x1 to Latched Register Write 0x1 to Latched Register
T1 0x1 0x1 0x0 0x1
T2 0x0 0x1 Read Latched Register 0x0 Read Latched Register 0x1
T2 0x0 0x1 Read Latched Register 0x0 Write 0x1 to Latched Register
T2 0x0 0x1 Read Latched Register 0x0 0x0
T3 0x2 0x3 Read Latched Register 0x2 Read Latched Register 0x2
T3 0x2 0x3 Write 0x2 to Latched Register Write 0x2 to Latched Register
T3 0x2 0x3 0x0 0x2
T4 0x2 0x3 Read Latched Register 0x1 Read Latched Register 0x3
T4 0x2 0x3 Write 0x1 to Latched Register Write 0x3 to Latched Register
T4 0x2 0x3 0x0 0x2
T5 0xC 0xF Read Latched Register 0xC Read Latched Register 0xE
T5 0xC 0xF Write 0xC to Latched Register Write 0xE to Latched Register
T5 0xC 0xF 0x0 0xC
T6 0xC 0xF Read Latched Register 0x0 Read Latched 0xC
T6 0xC 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T6 0xC 0xF Read Latched Register 0x0 0xC
T7 0x4 0xF Read Latched Register 0x0 Read Latched Register 0xC
T7 0x4 0xF Read Latched Register 0x0 Write 0xC to Latched Register
T7 0x4 0xF Read Latched Register 0x0 0x4
T8 0x4 0xF Read Latched Register 0x0 Read Latched Register 0x4

Interrupt Examples

The examples in this section illustrate the interrupt behavior with Edge/Level Trigger.

Figure 2. Illustration of Latched Status State for Module with 4-Channels with Interrupt Enabled

Time Latched Status (Edge-Triggered - Clear Multi-Channel) Latched Status (Edge-Triggered - Clear Single Channel) 2+ Latched Status (Level-Triggered - Clear Multi-Channel) Action
Latched Action Latched Action Latched T1 (Int 1)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 T1 (Int 1)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x1 to Latched Register T1 (Int 1)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T2. 0x1 T3 (Int 2)
Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 Interrupt Generated++``+
Read Latched Registers 0x2 T3 (Int 2)
Write 0x2 to Latched Register Write 0x2 to Latched Register Write 0x2 to Latched Register T3 (Int 2)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T4 (Int 3)
Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x1 Interrupt Generated++``+
Read Latched Registers 0x3 T4 (Int 3)
Write 0x1 to Latched Register Write 0x1 to Latched Register Write 0x3 to Latched Register T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5. 0x3 T4 (Int 3)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear until T7. 0x2 T6 (Int 4)
Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xC Interrupt Generated++``+
Read Latched Registers 0xE T6 (Int 4)
Write 0xC to Latched Register Write 0x4 to Latched Register Write 0xE to Latched Register T6 (Int 4)
0x0 Interrupt re-triggers++``+
Write 0x8 to Latched Register 0x8 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7. 0xE T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8. 0xC T6 (Int 4)
0x0 0x0 Interrupt re-triggers++``+
Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always. 0x4

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

The User Watchdog Timer (UWDT) Capability is available on the following modules:

AC Reference Source Modules

AC1 - 1 Channel, 2-115 Vrms, 47 Hz - 20kHz

AC2 - 2 Channels, 2-28 Vrms, 47 Hz - 20kHz

AC3 - 1 Channel, 28-115 Vrms, 47 Hz - 2.5 kHz

Differential Transceiver Modules

DF1/DF2 - 16 Channels Differential I/O

Digital-to-Analog (D/A) Modules

DA1 - 12 Channels, ±10 VDC @ 25 mA, Voltage or Current Control Modes

DA2 - 16 Channels, ±10 VDC @ 10 mA

DA3 - 4 Channels, ±40 VDC @ ±100 mA, Voltage or Current Control Modes

DA4 - 4 Channels, ±80 VDC @ 10 mA

DA5 - 4 Channels, ±65 VDC or ±2 A, Voltage or Current Control Modes

Digital-to-Synchro/Resolver (D/S) or Digital-to-L( R )VDT (D/LV) Modules

(Not supported)

Discrete I/O Modules

DT1/DT4 - 24 Channels, Programmable for either input or output, output up to 500 mA per channel from an applied external 3 - 60 VCC source.

DT2/DT5 - 16 Channels, Programmable for either input voltage measurements (±80 V) or as a bi-directional current switch (up to 500 mA per channel).

DT3/DT6 - 4 Channels, Programmable for either input voltage measurements (±100 V) or as a bi-directional current switch (up to 3 A per channel).

TTL/CMOS Modules

TL1-TL8 - 24 Channels, Programmable for either input or output.

Principle of Operation

The User Watchdog Timer is optionally activated by the applications that require the module’s outputs to be disabled as a failsafe in the event of an application failure or crash. The circuit is designed such that a specific periodic write strobe pattern must be executed by the software to maintain operation and prevent the disablement from taking place.

The User Watchdog Timer is inactive until the application sends an initial strobe by writing the value 0x55AA to the UWDT Strobe register. After activating the User Watchdog Timer, the application must continually strobe the timer within the intervals specified with the configurable UWDT Quiet Time and UWDT Window registers. The timing of the strobes must be consistent with the following rules:

The application must not strobe during the Quiet time.

The application must strobe within the Window time.

The application must not strobe more than once in a single window time.

A violation of any of these rules will trigger a User Watchdog Timer fault and result in shutting down any isolated power supplies and/or disabling any active drive outputs, as applicable for the specific module. Upon a User Watchdog Timer event, recovery to the module shutting down will require the module to be reset.

The Figure 1 and Figure 2 provides an overview and an example with actual values for the User Watchdog Timer Strobes, Quiet Time and Window. As depicted in the diagrams, there are two processes that run in parallel. The Strobe event starts the timer for the beginning of the “Quiet Time”. The timer for the Previous Strobe event continues to run to ensure that no additional Strobes are received within the “Window” associated with the Previous Strobe.

The optimal target for the user watchdog strobes should be at the interval of [Quiet time + ½ Window time] after the previous strobe, which will place the strobe in the center of the window. This affords the greatest margin of safety against unintended disablement in critical operations.

Figure 1. User Watchdog Timer Overview

Figure 2. User Watchdog Timer Example

Figure 3. User Watchdog Timer Failures

Register Descriptions

The register descriptions provide the register name, Type, Data Range, Read or Write information, Initialized Value, and a description of the function.

User Watchdog Timer Registers

The registers associated with the User Watchdog Timer provide the ability to specify the UWDT Quiet Time and the UWDT Window that will be monitored to ensure that EXACTLY ONE User Watchdog Timer (UWDT) Strobe is written within the window.

UWDT Quiet Time
Function: Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.
UWDT Window
Function: Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write: R/W
Initialized Value: 0x0
Operational Settings: LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.
UWDT Strobe
Function: Writes the strobe value to be use for the User Watchdog Timer Frame.
Type: unsigned binary word (32-bit)
Data Range: 0x55AA
Read/Write: W
Initialized Value: 0x0
Operational Settings: At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

Status and Interrupt

The modules that are capable of User Watchdog Timer support provide status registers for the User Watchdog Timer.

User Watchdog Timer Status

The status register that contains the User Watchdog Timer Fault information is also used to indicate channel Inter-FPGA failures on modules that have communication between FPGA components. There are four registers associated with the User Watchdog Timer Fault/Inter-FPGA Failure Status: Dynamic, Latched, Interrupt Enable, and Set Edge/Level Interrupt.

Function: Sets the corresponding bit (D31) associated with the channel’s User Watchdog Timer Fault error.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R (Dynamic), R/W (Latched, Interrupt Enable, Set Edge/Level Interrupt)
Initialized Value: 0

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s) Status Description
D31 User Watchdog Timer Fault Status 0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0 Reserved for Inter-FPGA Failure Status Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector and Steering

When interrupts are enabled, the interrupt vector associated with the specific interrupt can be programmed (typically with a unique number/identifier) such that it can be utilized in the Interrupt Service Routine (ISR) to identify the type of interrupt. When an interrupt occurs, the contents of the Interrupt Vector registers is reported as part of the interrupt mechanism.

In addition to specifying the interrupt vector, the interrupt can be directed (“steered”) to the native bus or to the application running on the onboard ARM processor.

Note

the Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Common Memory and these registers are associated with the Module Slot position (refer to Function Register Map).

Interrupt Vector
Function: Set an identifier for the interrupt.
Type: unsigned binary word (32-bit)
Data Range: 0 to 0xFFFF FFFF
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, this value is reported as part of the interrupt mechanism.
Interrupt Steering
Function: Sets where to direct the interrupt.
Type: unsigned binary word (32-bit)
Data Range: See table
Read/Write: R/W
Initialized Value: 0
Operational Settings: When an interrupt occurs, the interrupt is sent as specified:

Direct Interrupt to VME 1
Direct Interrupt to ARM Processor (via SerDes)
(Custom App on ARM or NAI Ethernet Listener App) 2
Direct Interrupt to PCIe Bus 5
Direct Interrupt to cPCI Bus 6

Function Register Map

KEY

Configuration/Control
Measurement/Status

USER WATCHDOG TIMER REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x01C0 UWDT Quiet Time R/W
0x01C4 UWDT Window R/W
0x01C8 UWDT Strobe R/W
STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x09B0 Dynamic Status R
0x09B4 Latched Status* R/W
0x09B8 Interrupt Enable R/W
0x09BC Set Edge/Level Interrupt R/W
INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x056C Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x066C Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x076C Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x086C Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x096C Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0A6C Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0B6C Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0C6C Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0D6C Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x0E6C Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W
0x0F6C Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W 0x106C Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure R/W

REVISION HISTORY

Motherboard Manual - Status and Interrupts Revision History
Revision Revision Date Description
C 2021-11-30 C08896; Transition manual to docbuilder format - no technical info change.

DOCS.NAII REVISIONS

Revision Date Description
2026-03-02 Formatting updates to document; no technical changes.
Link to original

MODULE COMMON REGISTERS

The registers described in this document are common to all NAI Generation 5 modules.

Module Information Registers

The registers in this section provide module information such as firmware revisions, capabilities and unique serial number information.

FPGA Version Registers

The FPGA firmware version registers include registers that contain the Revision, Compile Timestamp, SerDes Revision, Template Revision and Zynq Block Revision information.

FPGA Revision
Function: FPGA firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Compile Timestamp
Function: Compile Timestamp for the FPGA firmware.
Type: unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the compile timestamp of the board's FPGA
Operational Settings: The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
day (5-bits) month (4-bits) year (6-bits) hr
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
hour (5-bits) minutes (6-bits) seconds (6-bits)

FPGA SerDes Revision
Function: FPGA SerDes revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the SerDes revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Template Revision
Function: FPGA Template revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the template revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FPGA Zynq Block Revision
Function: FPGA Zynq Block revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Version Registers

The Bare Metal firmware version registers include registers that contain the Revision and Compile Time information.

Bare Metal Revision
Function: Bare Metal firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's Bare Metal
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Bare Metal Compile Time
Function: Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

FSBL Version Registers

The FSBL version registers include registers that contain the Revision and Compile Time information for the First Stage Boot Loader (FSBL).

FSBL Revision
Function: FSBL firmware revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the revision of the board's FSBL
Operational Settings: The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

FSBL Compile Time
Function: Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type: 24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings: The six 32-bit words provide an ASCII representation of the Date/Time.

The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

Note

little-endian order of ASCII values

Word 1 (Ex. 0x2079614D)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Month ('y' - 0x79)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Month ('a' - 0x61) Month ('M' - 0x4D)
Word 2 (Ex. 0x32203731)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Year ('2' - 0x32) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Day ('7' - 0x37) Day ('1' - 0x31)
Word 3 (Ex. 0x20393130)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Space (0x20) Year ('9' - 0x39)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Year ('1' - 0x31) Year ('0' - 0x30)
Word 4 (Ex. 0x31207461)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Hour ('1' - 0x31) Space (0x20)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
'a' (0x74) 't' (0x61)
Word 5 (Ex. 0x38333A35)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Minute ('8' - 0x38) Minute ('3' - 0x33)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
':' (0x3A) Hour ('5' - 0x35)
Word 6 (Ex. 0x0032333A)
D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
NULL (0x00) Seconds ('2' - 0x32)
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Seconds ('3' - 0x33) ':' (0x3A)

Module Serial Number Registers

The Module Serial Number registers include registers that contain the Serial Numbers for the Interface Board and the Functional Board of the module.

Interface Board Serial Number
Function: Unique 128-bit identifier used to identify the interface board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the interface board
Operational Settings: This register is for information purposes only.

Functional Board Serial Number
Function: Unique 128-bit identifier used to identify the functional board.
Type: 16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range: N/A
Read/Write: R
Initialized Value: Serial number of the functional board
Operational Settings: This register is for information purposes only.

Module Capability
Function: Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0x0000 0107
Read/Write: R
Initialized Value: 0x0000 0107
Operational Settings: A “1” in the bit associated with the capability indicates that it is supported.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 Flt-Pt 0 0 0 0 0 Pack FIFO Blk Blk

Module Memory Map Revision
Function: Module Memory Map revision
Type: unsigned binary word (32-bit)
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Value corresponding to the Module Memory Map Revision
Operational Settings: The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Major Revision Number
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Minor Revision Number

Module Measurement Registers

The registers in this section provide module temperature measurement information.

Temperature Readings Registers

The temperature registers provide the current, maximum (from power-up) and minimum (from power-up) Zynq and PCB temperatures.

Interface Board Current Temperature
Function: Measured PCB and Zynq Core temperatures on Interface Board.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Current Temperature
Function: Measured PCB temperature on Functional Board.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Interface Board Maximum Temperature
Function: Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Interface Board Minimum Temperature
Function: Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type: signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range: 0x0000 0000 to 0x0000 FFFF
Read/Write: R
Initialized Value: Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings: The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
PCB Temperature Zynq Core Temperature

Functional Board Maximum Temperature
Function: Maximum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Functional Board Minimum Temperature
Function: Minimum PCB temperature on Functional Board since power-on.
Type: signed byte (8-bits) for PCB
Data Range: 0x0000 0000 to 0x0000 00FF
Read/Write: R
Initialized Value: Value corresponding to the measured PCB on the table below
Operational Settings: The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 00D8, this represents PCB Temperature = -40° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
0 0 0 0 0 0 0 0 PCB Temperature

Higher Precision Temperature Readings Registers

These registers provide higher precision readings of the current Zynq and PCB temperatures.

Higher Precision Zynq Core Temperature
Function: Higher precision measured Zynq Core temperature on Interface Board.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Zynq Core temperature on Interface Board
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x002B 0271, this represents Zynq Core Temperature = 43.625° Celsius, and value 0xFFF6 0177 represents -10.375° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Interface PCB Temperature
Function: Higher precision measured Interface PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Interface PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/1000 of degree Celsius. For example, if the register contains the value 0x0020 007D, this represents Interface PCB Temperature = 32.125° Celsius, and value 0xFFE8 036B represents -24.875° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Higher Precision Functional PCB Temperature
Function: Higher precision measured Functional PCB temperature.
Type: signed word (16-bits) for integer part and unsigned word (16-bits) for fractional part
Data Range: 0x0000 0000 to 0xFFFF FFFF
Read/Write: R
Initialized Value: Measured Functional PCB temperature
Operational Settings: The upper 16-bits represent the signed integer part of the temperature and the lower 16-bits represent the fractional part of the temperature with the resolution of 1/100 of degree Celsius. For example, if the register contains the value 0x0018 004B, this represents Functional PCB Temperature = 24.75° Celsius, and value 0xFFD9 0019 represents -39.25° Celsius.

D31 D30 D29 D28 D27 D26 D25 D24 D23 D22 D21 D20 D19 D18 D17 D16
Signed Integer Part of Temperature
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Fractional Part of Temperature

Module Health Monitoring Registers

The registers in this section provide module temperature measurement information. If the temperature measurements reaches the Lower Critical or Upper Critical conditions, the module will automatically reset itself to prevent damage to the hardware.

Module Sensor Summary Status
Function: The corresponding sensor bit is set if the sensor has crossed any of its thresholds.
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: This register provides a summary for module sensors. When the corresponding sensor bit is set, the Sensor Threshold Status register for that sensor will indicate the threshold condition that triggered the event.

Bit(s) Sensor
D31:D6 Reserved
D5 Functional Board PCB Temperature
D4 Interface Board PCB Temperature
D3:D0 Reserved

Module Sensor Registers

The registers listed in this section apply to each module sensor listed for the Module Sensor Summary Status register. Each individual sensor register provides a group of registers for monitoring module temperatures readings. From these registers, a user can read the current temperature of the sensor in addition to the minimum and maximum temperature readings since power-up. Upper and lower critical/warning temperature thresholds can be set and monitored from these registers. When a programmed temperature threshold is crossed, the Sensor Threshold Status register will set the corresponding bit for that threshold. The figure below shows the functionality of this group of registers when accessing the Interface Board PCB Temperature sensor as an example.

Sensor Threshold Status
Function: Reflects which threshold has been crossed
Type: unsigned binary word (32-bits)
Data Range: See table below
Read/Write: R
Initialized Value: 0
Operational Settings: The associated bit is set when the sensor reading exceed the corresponding threshold settings.

Bit(s) Description
D31:D4 Reserved
D3 Exceeded Upper Critical Threshold
D2 Exceeded Upper Warning Threshold
D1 Exceeded Lower Critical Threshold
D0 Exceeded Lower Warning Threshold

Sensor Current Reading
Function: Reflects current reading of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents current sensor reading as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Minimum Reading
Function: Reflects minimum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents minimum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Maximum Reading
Function: Reflects maximum value of temperature sensor since power up
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R
Initialized Value: N/A
Operational Settings: The register represents maximum sensor value as a single precision floating point value. For example, for a temperature sensor, register value 0x41C6 0000 represents temperature = 24.75° Celsius.

Sensor Lower Warning Threshold
Function: Reflects lower warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC220 0000 represents temperature = -40.0° Celsius.

Sensor Lower Critical Threshold
Function: Reflects lower critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default lower critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor lower critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0xC25C 0000 represents temperature = -55.0° Celsius.

Sensor Upper Warning Threshold
Function: Reflects upper warning threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper warning threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper warning threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42AA 0000 represents temperature = 85.0° Celsius.

Sensor Upper Critical Threshold
Function: Reflects upper critical threshold of temperature sensor
Type: Single Precision Floating Point Value (IEEE-754)
Data Range: Single Precision Floating Point Value (IEEE-754)
Read/Write: R/W
Initialized Value: Default upper critical threshold (value dependent on specific sensor)
Operational Settings: The register represents sensor upper critical threshold as a single precision floating point value. For example, for a temperature sensor, register value 0x42FA 0000 represents temperature = 125.0° Celsius.

FUNCTION REGISTER MAP

KEY

Configuration/Control
Measurement/Status/Board Information

MODULE INFORMATION REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x003C FPGA Revision R 0x0074 Bare Metal Revision R
0x0030 FPGA Compile Timestamp R 0x0080 Bare Metal Compile Time (Bit 0-31) R
0x0034 FPGA SerDes Revision R 0x0084 Bare Metal Compile Time (Bit 32-63) R
0x0038 FPGA Template Revision R 0x0088 Bare Metal Compile Time (Bit 64-95) R
0x0040 FPGA Zynq Block Revision R 0x008C Bare Metal Compile Time (Bit 96-127) R
0x0090 Bare Metal Compile Time (Bit 128-159) R
0x0094 Bare Metal Compile Time (Bit 160-191) R
0x007C FSBL Revision R
0x00B0 FSBL Compile Time (Bit 0-31) R
0x00B4 FSBL Compile Time (Bit 32-63) R
0x00B8 FSBL Compile Time (Bit 64-95) R
0x00BC FSBL Compile Time (Bit 96-127) R
0x00C0 FSBL Compile Time (Bit 128-159) R
0x00C4 FSBL Compile Time (Bit 160-191) R
0x0000 Interface Board Serial Number (Bit 0-31) R 0x0010 Functional Board Serial Number (Bit 0-31) R
0x0034 Interface Board Serial Number (Bit 32-63) R 0x0014 Functional Board Serial Number (Bit 32-63) R
0x0008 Interface Board Serial Number (Bit 64-95) R 0x0018 Functional Board Serial Number (Bit 64-95) R
0x000C Interface Board Serial Number (Bit 96-127) R 0x001C Functional Board Serial Number (Bit 96-127) R
0x0070 Module Capability R
0x01FC Module Memory Map Revision R
MODULE MEASUREMENTS REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x0200 Interface Board PCB/Zynq Current Temp R 0x0208 Functional Board PCB Current Temp R
0x0218 Interface Board PCB/Zynq Max Temp R 0x0228 Functional Board PCB Max Temp R
0x0220 Interface Board PCB/Zynq Min Temp R 0x0230 Functional Board PCB Min Temp R
0x02C0 Higher Precision Zynq Core Temperature R
0x02C4 Higher Precision Interface PCB Temperature R
0x02E0 Higher Precision Functional PCB Temperature R
MODULE HEALTH MONITORING REGISTERS
OFFSET REGISTER NAME ACCESS OFFSET REGISTER NAME ACCESS
0x07F8 Module Sensor Summary Status R
![](/_shared/images/Module_Sensor_Registers_Memory_Map.png)

REVISION HISTORY

Motherboard Manual - Module Common Registers Revision History
Revision Revision Date Description
C 2023-08-11 ECO C10649, initial release of module common registers manual.
C1 2024-05-15 ECO C11522, removed Zynq Core/Aux/DDR Voltage register descriptions from Module Measurement Registers. Pg.16, updated Module Sensor Summary Status register to add PS references; updated Bit Table to change voltage/current bits to 'reserved'. Pg.16, updated Module/Power Supply Sensor Registers description to better describe register functionality and to add figure. Pg.17, added 'Exceeded' to threshold bit descriptions. Pg.17-18, removed voltage/current references from sensor descriptions. Pg.20, removed Zynq Core/Aux/DDR Voltage register offsets from Module Measurement Registers. Pg.20, updated Module Health Monitoring Registers offset tables.
C2 2024-07-10 ECO C11701, pg.16, updated Module Sensor Summary Status register to remove PS references;updated Bit Table to change PS temperature bits to 'reserved'. Pg.16, updated Module SensorRegisters description to remove PS references. Pg.20, updated Module Health MonitoringRegisters offset tables to remove PS temperature register offsets.

DOCS.NAII REVISIONS

Revision Date Description
2025-11-05 Corrected register offsets for Interface Board Min Temp and Function Board Min & Max Temps.
2026-03-02 Formatting updates to document; no technical changes.
Link to original

NAI Cares

North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems and Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. We accelerate our clients’ time-to-mission with a unique approach based on a Configurable Open Systems Architecture™ (COSA®) that delivers the best of both worlds: custom solutions from standard COTS components.

We have built a reputation by listening to our customers, understanding their needs, and designing, testing and delivering board and system-level products for their most demanding air, land and sea requirements. If you have any applications or questions regarding the use of our products, please contact us for an expedient solution.

Please visit us at: www.naii.com or select one of the following for immediate assistance:

Documentation

https://www.docs.naii.com

FAQ

http://www.naii.com/faqs

Application Notes

http://www.naii.com/applicationnotes

Calibration and Repairs

http://www.naii.com/calibrationrepairs

Call Us

(631) 567-1100
Link to original

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

		No Clearing of Latched Status	Clearing of Latched Status (Edge-Triggered)		Clearing of Latched Status(Level-Triggered)
Time	Dynamic Status	Latched Status	Action	Latched Status	Action	Latched
T0	0x0	0x0	Read Latched Register	0x0	Read Latched Register	0x0
T1	0x1	0x1	Read Latched Register	0x1		0x1
T1	0x1	0x1	Write 0x1 to Latched Register		Write 0x1 to Latched Register
T1	0x1	0x1		*0x0*		*0x1*
T2	0x0	0x1	Read Latched Register	0x0	Read Latched Register	0x1
T2	0x0	0x1	Read Latched Register	0x0	Write 0x1 to Latched Register
T2	0x0	0x1	Read Latched Register	0x0		*0x0*
T3	0x2	0x3	Read Latched Register	0x2	Read Latched Register	0x2
T3	0x2	0x3	Write 0x2 to Latched Register		Write 0x2 to Latched Register
T3	0x2	0x3		*0x0*		*0x2*
T4	0x2	0x3	Read Latched Register	0x1	Read Latched Register	0x3
T4	0x2	0x3	Write 0x1 to Latched Register		Write 0x3 to Latched Register
T4	0x2	0x3		*0x0*		*0x2*
T5	0xC	0xF	Read Latched Register	0xC	Read Latched Register	0xE
T5	0xC	0xF	Write 0xC to Latched Register		Write 0xE to Latched Register
T5	0xC	0xF		*0x0*		*0xC*
T6	0xC	0xF	Read Latched Register	0x0	Read Latched	0xC
T6	0xC	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T6	0xC	0xF	Read Latched Register	0x0		*0xC*
T7	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0xC
T7	0x4	0xF	Read Latched Register	0x0	Write 0xC to Latched Register
T7	0x4	0xF	Read Latched Register	0x0		*0x4*
T8	0x4	0xF	Read Latched Register	0x0	Read Latched Register	0x4

Time	Latched Status (Edge-Triggered - Clear Multi-Channel)		Latched Status (Edge-Triggered - Clear Single Channel) 2+		Latched Status (Level-Triggered - Clear Multi-Channel)	Action
Time	Latched	Action	Latched	Action	Latched	T1 (Int 1)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	T1 (Int 1)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x1 to Latched Register		T1 (Int 1)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T2.	*0x1*	T3 (Int 2)
Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	Interrupt Generated++``+ Read Latched Registers	0x2	T3 (Int 2)
Write 0x2 to Latched Register		Write 0x2 to Latched Register		Write 0x2 to Latched Register		T3 (Int 2)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T7.	*0x2*	T4 (Int 3)
Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x1	Interrupt Generated++``+ Read Latched Registers	0x3	T4 (Int 3)
Write 0x1 to Latched Register		Write 0x1 to Latched Register		Write 0x3 to Latched Register		T4 (Int 3)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0x3 is reported in Latched Register until T5.	*0x3*	T4 (Int 3)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear until T7.	*0x2*	T6 (Int 4)
*Interrupt Generated*++``+ Read Latched Registers	0xC	*Interrupt Generated*++``+ Read Latched Registers	0xC	*Interrupt Generated*++``+ Read Latched Registers	0xE	T6 (Int 4)
Write 0xC to Latched Register		Write 0x4 to Latched Register		Write 0xE to Latched Register		T6 (Int 4)
	*0x0*	*Interrupt re-triggers*++``+ Write 0x8 to Latched Register	*0x8*	Interrupt re-triggers++``+ Note, interrupt re-triggers after each clear and 0xE is reported in Latched Register until T7.	*0xE*	T6 (Int 4)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0xC is reported in Latched Register until T8.	*0xC*	T6 (Int 4)
	*0x0*		*0x0*	*Interrupt re-triggers*++``+ Note, interrupt re-triggers after each clear and 0x4 is reported in Latched Register always.	*0x4*

Motherboard Manual - Status and Interrupts Revision History
Revision	Revision Date	Description
C	2021-11-30	C08896; Transition manual to docbuilder format - no technical info change.

UWDT Quiet Time
Function:	Sets Quiet Time value (in microseconds) to use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must NOT write a strobe in the time between the previous strobe and the end of the Quiet time interval. In addition, the application must write in the UWDT Window EXACTLY ONCE.

UWDT Window
Function:	Writes the window value (in microseconds) to be used for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0 µsec to 2^32 µsec (0x0 to 0xFFFFFFFF)
Read/Write:	R/W
Initialized Value:	0x0
Operational Settings:	LSB = 1 µsec. The application must write the strobe once within the Window time after the end of the Quiet time interval. The application must write in the UWDT Window EXACTLY ONCE. This setting must be initialized to a non-zero value for operation and should allow sufficient tolerance for strobe timing by the application.

UWDT Strobe
Function:	Writes the strobe value to be use for the User Watchdog Timer Frame.
Type:	unsigned binary word (32-bit)
Data Range:	0x55AA
Read/Write:	W
Initialized Value:	0x0
Operational Settings:	At startup, the user watchdog is disabled. Write the value of 0x55AA to this register to start the user watchdog timer monitoring after initial power on or a reset. To prevent a disablement, the application must periodically write the strobe based on the user watchdog timer rules.

User Watchdog Timer Fault/Inter-FPGA Failure Dynamic Status
User Watchdog Timer Fault/Inter-FPGA Failure Latched Status
User Watchdog Timer Fault/Inter-FPGA Failure Interrupt Enable
User Watchdog Timer Fault/Inter-FPGA Failure Set Edge/Level Interrupt
Bit(s)	Status	Description
D31	User Watchdog Timer Fault Status	0 = No Fault + 1 = User Watchdog Timer Fault
D30:D0	Reserved for Inter-FPGA Failure Status	Channel bit-mapped indicating channel inter FPGA communication failure detection.

Interrupt Vector
Function:	Set an identifier for the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	0 to 0xFFFF FFFF
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, this value is reported as part of the interrupt mechanism.

Interrupt Steering
Function:	Sets where to direct the interrupt.
Type:	unsigned binary word (32-bit)
Data Range:	See table
Read/Write:	R/W
Initialized Value:	0
Operational Settings:	When an interrupt occurs, the interrupt is sent as specified:

USER WATCHDOG TIMER REGISTERS
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x01C0	UWDT Quiet Time	R/W
0x01C4	UWDT Window	R/W
0x01C8	UWDT Strobe	R/W

STATUS REGISTERS
*When an event is detected, the bit associated with the event is set in this register and will remain set until the user clears the event bit. Clearing the bit requires writing a 1 back to the specific bit that was set when read (i.e., write-1-to-clear, writing a “1” to a bit set to “1” will set the bit to “0”).
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x09B0	Dynamic Status	R
0x09B4	Latched Status*	R/W
0x09B8	Interrupt Enable	R/W
0x09BC	Set Edge/Level Interrupt	R/W

INTERRUPT REGISTERS
The Interrupt Vector and Interrupt Steering registers are mapped to the Motherboard Memory Space and these addresses are absolute based on the module slot position. In other words, do not apply the Module Address offset to these addresses.
OFFSET	REGISTER NAME	ACCESS	OFFSET	REGISTER NAME	ACCESS
0x056C	Module 1 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x066C	Module 1 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x076C	Module 2 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x086C	Module 2 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x096C	Module 3 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0A6C	Module 3 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x0B6C	Module 4 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0C6C	Module 4 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x0D6C	Module 5 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x0E6C	Module 5 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

0x0F6C	Module 6 Interrupt Vector 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W	0x106C	Module 6 Interrupt Steering 28 - User Watchdog Timer Fault/Inter-FPGA Failure	R/W

FPGA Revision
Function:	FPGA firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

FPGA Compile Timestamp
Function:	Compile Timestamp for the FPGA firmware.
Type:	unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the compile timestamp of the board's FPGA
Operational Settings:	The 32-bit value represents the Day, Month, Year, Hour, Minutes and Seconds as formatted in the table:

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

FPGA SerDes Revision
Function:	FPGA SerDes revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the SerDes revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

FPGA Template Revision
Function:	FPGA Template revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the template revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

FPGA Zynq Block Revision
Function:	FPGA Zynq Block revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Zynq block revision of the board's FPGA
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

Bare Metal Revision
Function:	Bare Metal firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's Bare Metal
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

Bare Metal Compile Time
Function:	Provides an ASCII representation of the Date/Time for the Bare Metal compile time.
Type:	24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the ASCII representation of the compile time of the board's Bare Metal
Operational Settings:	The six 32-bit words provide an ASCII representation of the Date/Time. The hexadecimal values in the field below represent: May 17 2019 at 15:38:32

FSBL Revision
Function:	FSBL firmware revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the revision of the board's FSBL
Operational Settings:	The upper 16-bits are the major revision, and the lower 16-bits are the minor revision.

FSBL Compile Time
Function:	Provides an ASCII representation of the Date/Time for the FSBL compile time.
Type:	24-character ASCII string - Six (6) unsigned binary word (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Value corresponding to the ASCII representation of the Compile Time of the board's FSBL
Operational Settings:	The six 32-bit words provide an ASCII representation of the Date/Time.

Interface Board Serial Number
Function:	Unique 128-bit identifier used to identify the interface board.
Type:	16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Serial number of the interface board
Operational Settings:	This register is for information purposes only.

Functional Board Serial Number
Function:	Unique 128-bit identifier used to identify the functional board.
Type:	16-character ASCII string - Four (4) unsigned binary words (32-bit)
Data Range:	N/A
Read/Write:	R
Initialized Value:	Serial number of the functional board
Operational Settings:	This register is for information purposes only.

NAI Documentation

Explorer

INTRODUCTION

FEATURES

SPECIFICATIONS

Input Characteristics

Output Characteristics

PRINCIPLE OF OPERATION

Debounce Programming

Automatic Background Built-In Test (BIT)/Diagnostic Capability

Status and Interrupts

User Watchdog Timer Capability

Module Common Registers

REGISTER DESCRIPTIONS

Input/Output Registers

I/O Format

Read I/O

Write Outputs

Input/Output Control Registers

Debounce Time

Slew Rate

Termination

Overcurrent Reset

User Watchdog Timer Programming Registers

Module Common Registers

General Purpose Status Functions

BIT Error Interrupt Interval

BIT Count Error Clear

Status and Interrupt Registers

BIT Status

Low-to-High Transition Status

High-to-Low Transition Status

Overcurrent Status

User Watchdog Timer Fault Status

Interrupt Vector and Steering

Interrupt Vector

Interrupt Steering

FUNCTION REGISTER MAP

Input/Output Registers

Input/Output Control Registers

User Watchdog Timer Programming Registers

Module Common Registers

General Purpose Status Registers

Status Registers

User Watchdog Timer Fault

Interrupt Registers

APPENDIX: PIN-OUT DETAILS

STATUS AND INTERRUPTS

Interrupt Vector and Steering

Interrupt Trigger Types

Dynamic and Latched Status Registers Examples

Interrupt Examples

REVISION HISTORY

USER WATCHDOG TIMER MODULE MANUAL

User Watchdog Timer Capability

Principle of Operation

Register Descriptions

User Watchdog Timer Registers

Status and Interrupt

User Watchdog Timer Status

Interrupt Vector and Steering

Function Register Map

REVISION HISTORY

MODULE COMMON REGISTERS

Module Information Registers

FPGA Version Registers

Bare Metal Version Registers

FSBL Version Registers

Module Serial Number Registers

Module Measurement Registers

Temperature Readings Registers

Higher Precision Temperature Readings Registers

Module Health Monitoring Registers

Module Sensor Registers

FUNCTION REGISTER MAP

REVISION HISTORY

NAI Cares

Documentation

FAQ

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
D	D	D	D	D	D	D	D	D	D	D	D	D	D	D	D

Module Capability
Function:	Provides indication for whether or not the module can support the following: SerDes block reads, SerDes FIFO block reads, SerDes packing (combining two 16-bit values into one 32-bit value) and floating point representation. The purpose for block access and packing is to improve the performance of accessing larger amounts of data over the SerDes interface.
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0x0000 0107
Read/Write:	R
Initialized Value:	0x0000 0107
Operational Settings:	A “1” in the bit associated with the capability indicates that it is supported.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	Flt-Pt	0	0	0	0	0	Pack	FIFO Blk	Blk

Module Memory Map Revision
Function:	Module Memory Map revision
Type:	unsigned binary word (32-bit)
Data Range:	0x0000 0000 to 0xFFFF FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the Module Memory Map Revision
Operational Settings:	The upper 16-bits are the major revision and the lower 16-bits are the minor revision.

Interface Board Current Temperature
Function:	Measured PCB and Zynq Core temperatures on Interface Board.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB and Zynq core temperatures based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 202C, this represents PCB Temperature = 32° Celsius and Zynq Temperature = 44° Celsius.

Functional Board Current Temperature
Function:	Measured PCB temperature on Functional Board.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0019, this represents PCB Temperature = 25° Celsius.

D31	D30	D29	D28	D27	D26	D25	D24	D23	D22	D21	D20	D19	D18	D17	D16
0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0
D15	D14	D13	D12	D11	D10	D9	D8	D7	D6	D5	D4	D3	D2	D1	D0
0	0	0	0	0	0	0	0	PCB Temperature

Interface Board Maximum Temperature
Function:	Maximum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the maximum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the maximum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 5569, this represents maximum PCB Temperature = 85° Celsius and maximum Zynq Temperature = 105° Celsius.

Interface Board Minimum Temperature
Function:	Minimum PCB and Zynq Core temperatures on Interface Board since power-on.
Type:	signed byte (8-bits) for PCB and signed byte (8-bits) for Zynq core temperatures
Data Range:	0x0000 0000 to 0x0000 FFFF
Read/Write:	R
Initialized Value:	Value corresponding to the minimum measured PCB and Zynq core temperatures since power-on based on the table below
Operational Settings:	The upper 16-bits are not used, and the lower 16-bits are the minimum PCB and Zynq Core Temperatures. For example, if the register contains the value 0x0000 D8E7, this represents minimum PCB Temperature = -40° Celsius and minimum Zynq Temperature = -25° Celsius.

Functional Board Maximum Temperature
Function:	Maximum PCB temperature on Functional Board since power-on.
Type:	signed byte (8-bits) for PCB
Data Range:	0x0000 0000 to 0x0000 00FF
Read/Write:	R
Initialized Value:	Value corresponding to the measured PCB on the table below
Operational Settings:	The upper 24-bits are not used, and the lower 8-bits are the PCB Temperature. For example, if the register contains the value 0x0000 0055, this represents PCB Temperature = 85° Celsius.
